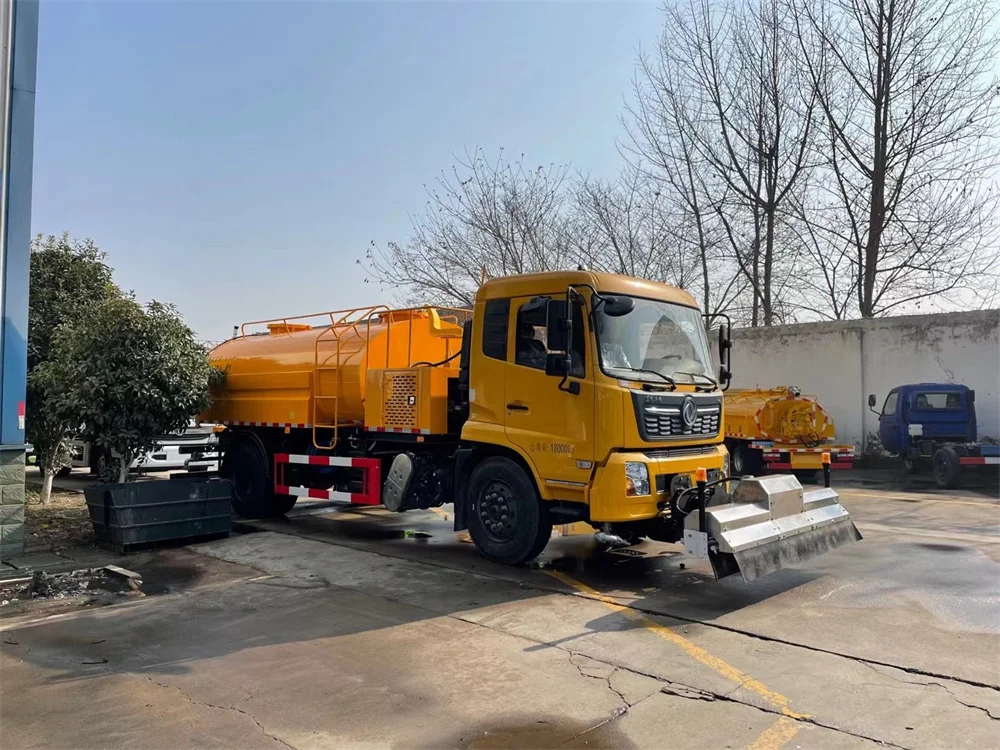

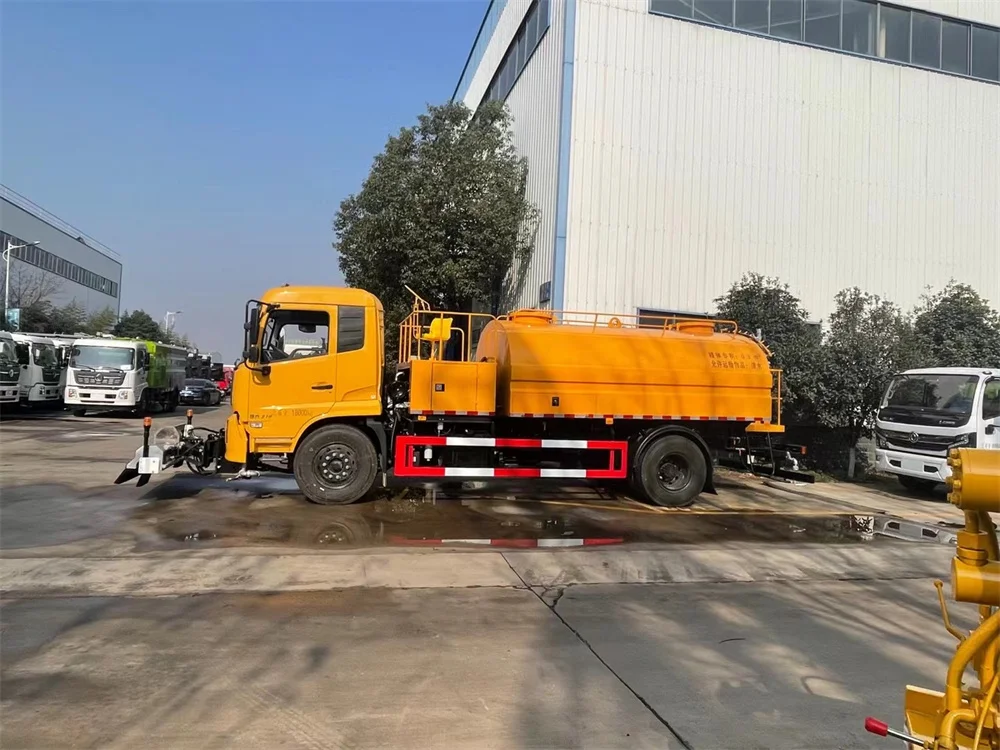

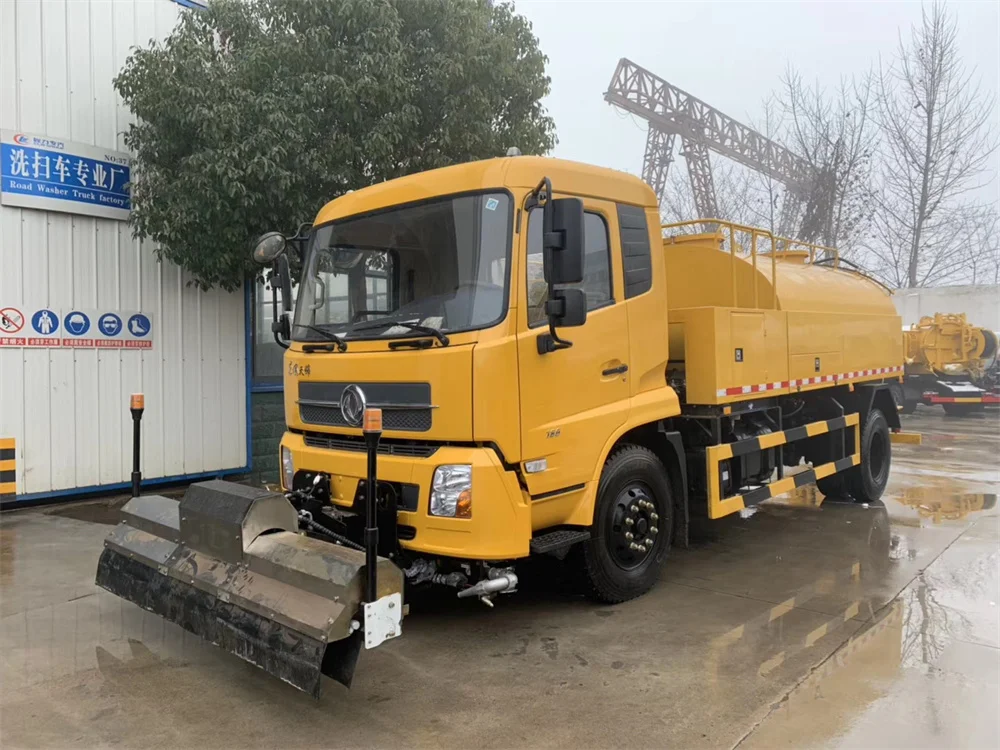

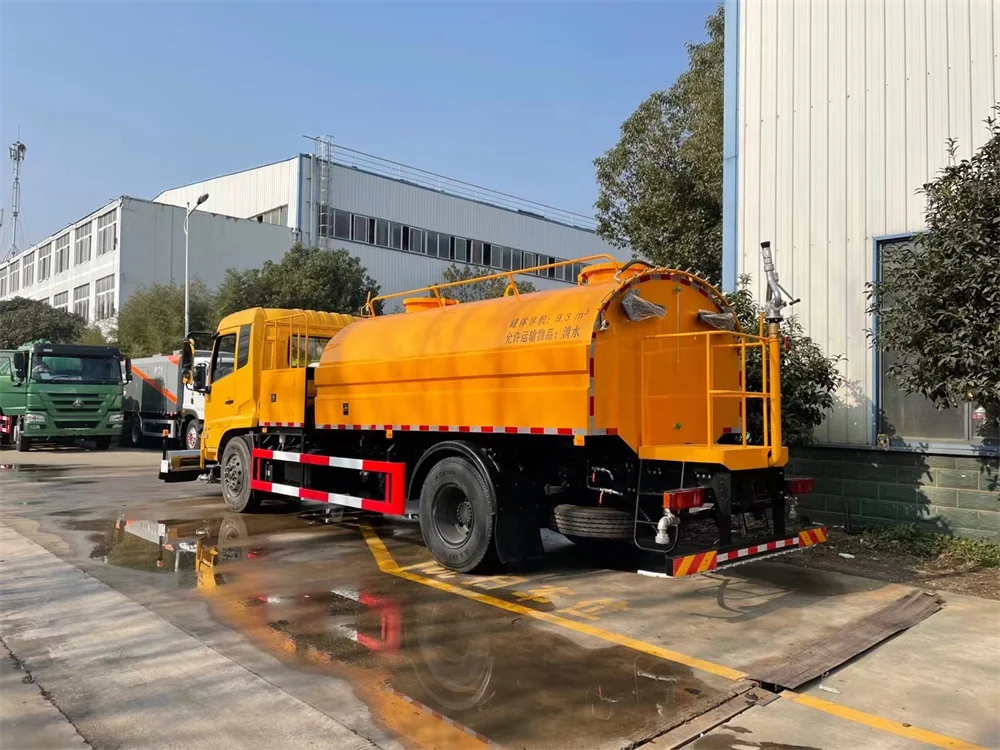

Airport Used 10 cbm High Pressure Road Street Washing Truck with Sprinkler and Spray Function
- Category: >>>
- Supplier: Hubei Itruck Import & Export Trading Co. Ltd.
Share on (1601062496745):
Product Overview
Description

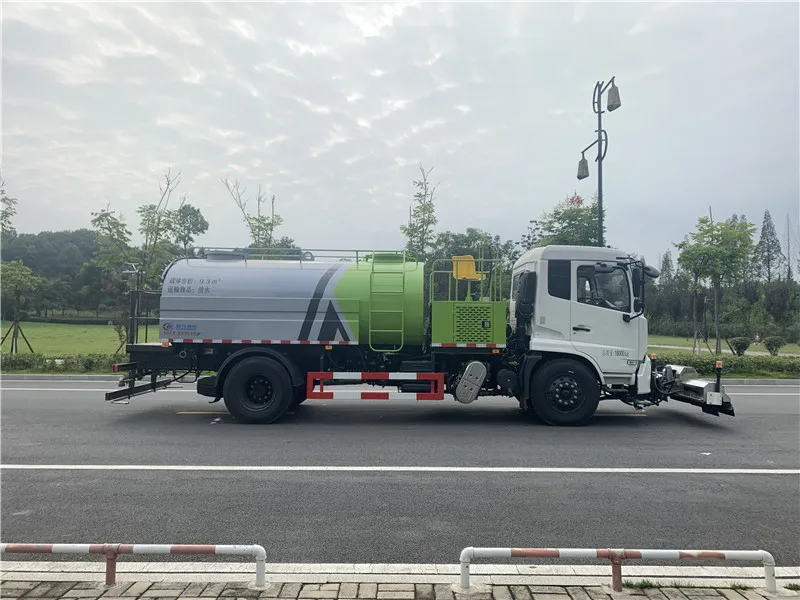

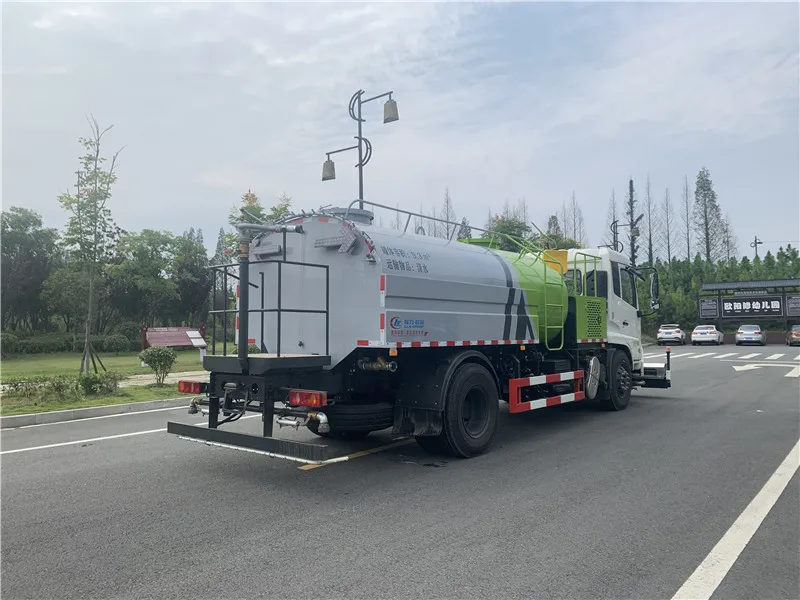

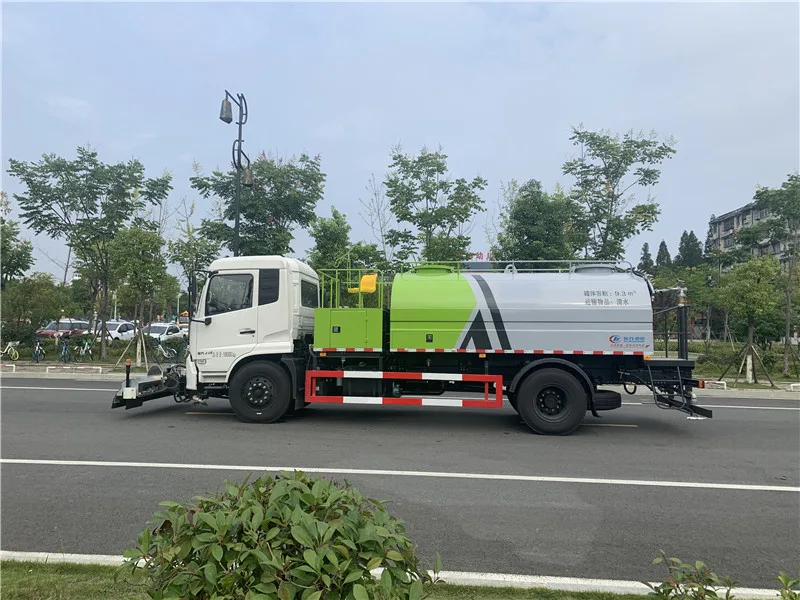

Dongfeng 10,000 liters Water Tank High Pressure Road Surface Street Clean Truck
Products Description
Product Paramenters
Item name | High pressure water spray truck | ||||||
Dimension | 8980x2500x3100 mm | ||||||
Total weight | 18310 kg | ||||||
Curb weight | 8160 kg | ||||||
Loading capacity | 10000 kg | ||||||
Wheelbase | 4700 mm | ||||||
Chassis brand | Dongfeng | ||||||
Tire speficication | 10.00R20 | ||||||
Number of tires | 6 | ||||||
Fuel type | Diesel | ||||||
Engine model | B190-33 | ||||||
Engine displacement | 5900 cc | ||||||
Engine power | 140 kw/ 190 hp | ||||||
Engine rate speed | 2500 rpm | ||||||
Engine max torque / speed | 640 N.m at 1500 rpm | ||||||
Assistance engine | JE493G3 | ||||||
Clean water volume | 10,000 liters | ||||||
High pressure water pump | P51/135-80(PF36) | ||||||
Clean pressure | 10-16 mpa | ||||||
Rate speed | 800 r/min | ||||||
High pressure Rate flow | 134 L/ min | ||||||
Front spray width | 2.5-3.5 meters | ||||||
Lower pressure water pump | 80QZB(F)-60/90 | ||||||
Rate speed | 1480 r/min | ||||||
Low pressure rate flow | 600-800 L/min | ||||||
low pressure spray width | ≥24 m | ||||||
Water gun range | 38 m | ||||||
Maximum cleaning capacity | 25000 m³/h | ||||||
Dish brush extension siz | ≥400 mm | ||||||
Opening Angle of discharge door | ≥45° | ||||||
Function Display
Front water spray take power from lower pressure pump
Rear water spray take power from high pressure pump

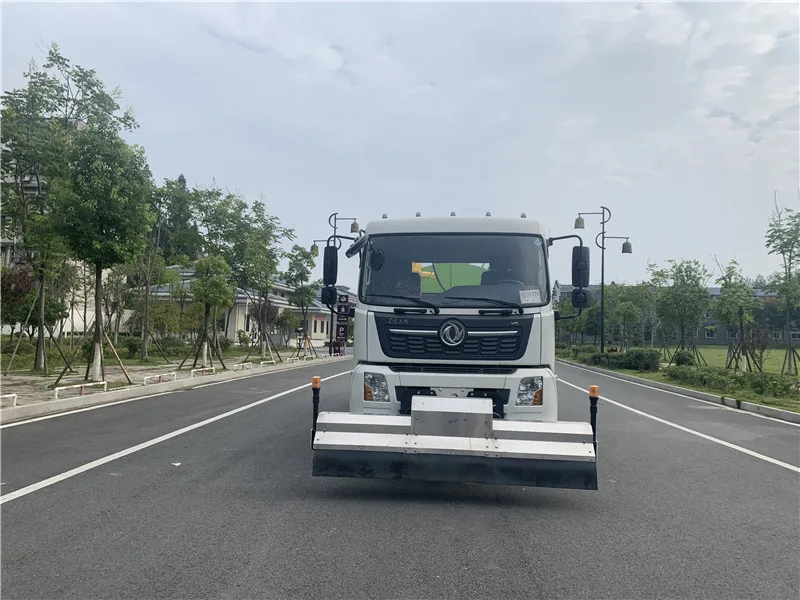

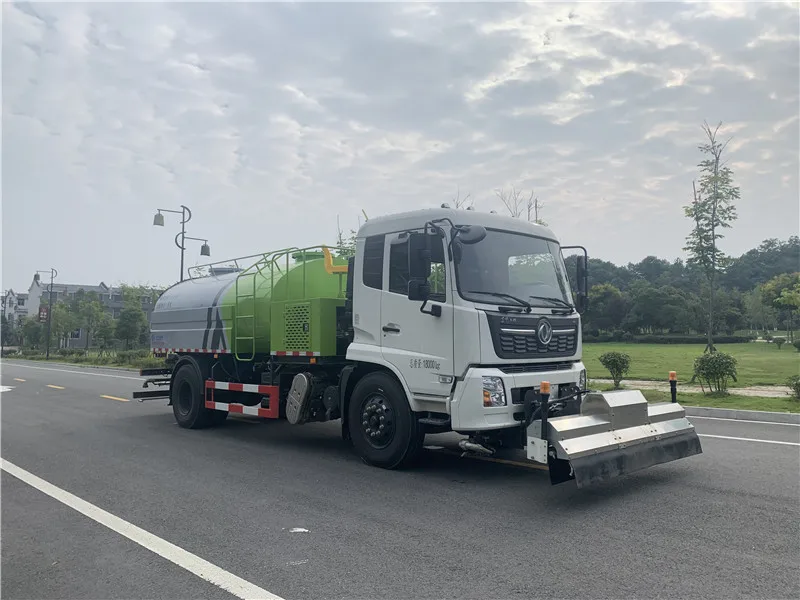

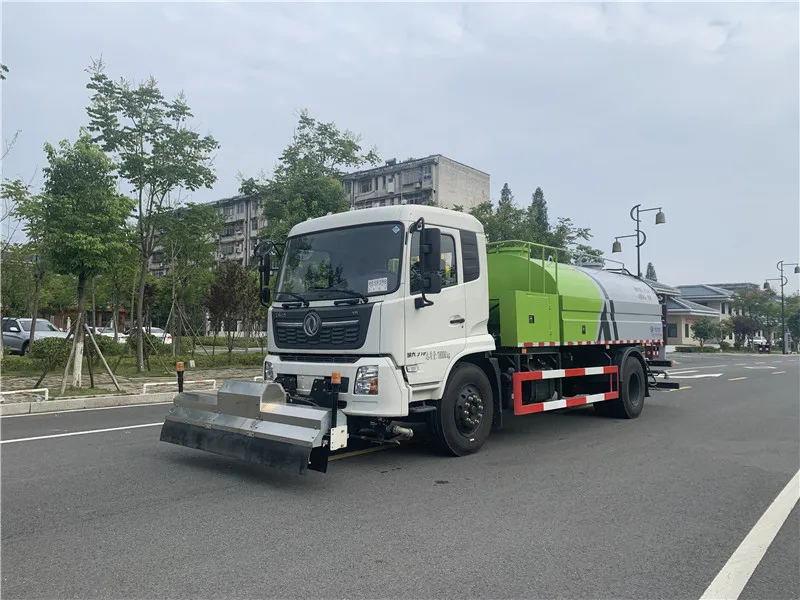

Front high pressure water spray, take power from high pressure pump

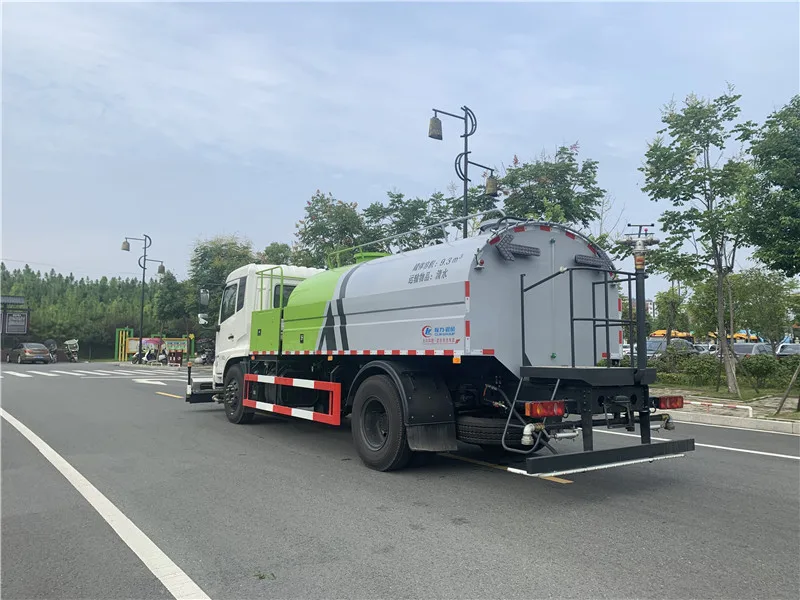

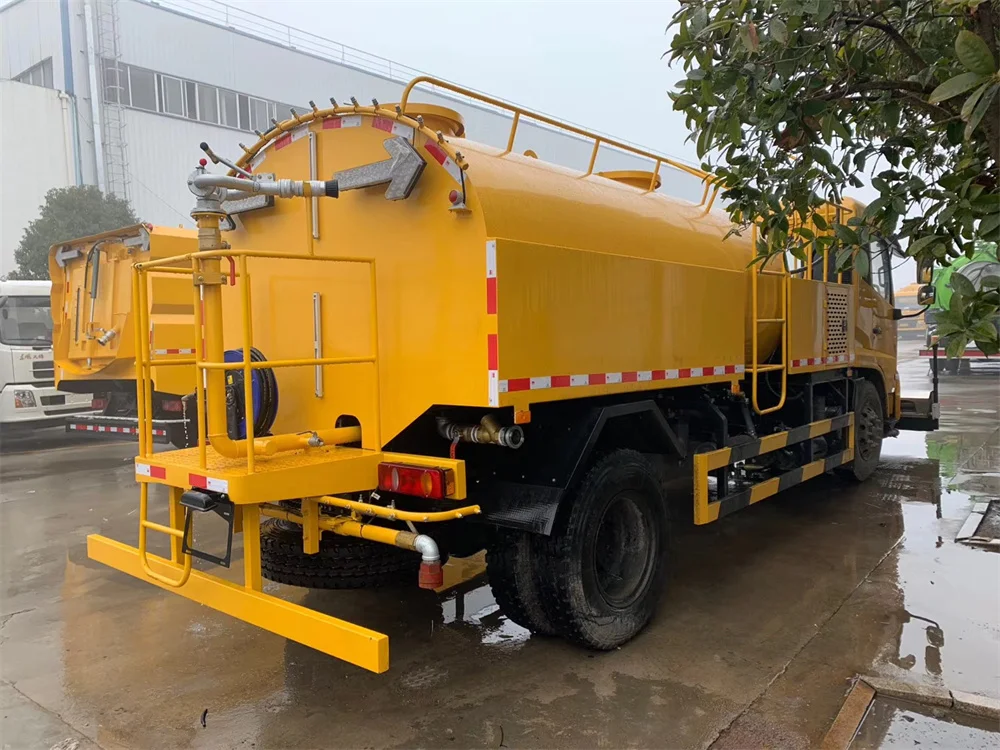

Rear high pressure water spray, take power from high pressure pump, dust fall with spray nozzles

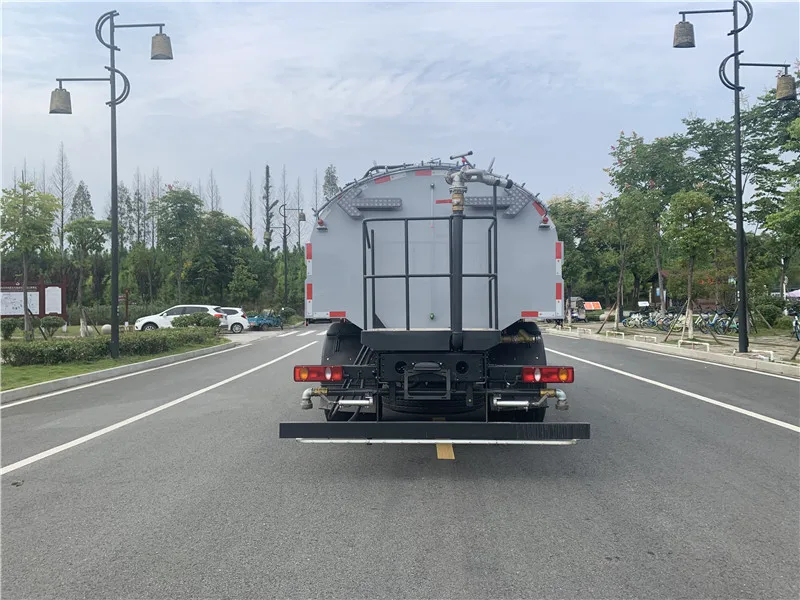

Rear waste water discharging
Self clean by handheld high pressure gun
