EDON DC inverter plasma cutter CUT-40 IGBT CUTTING MACHINE
US $65.00-$91.00

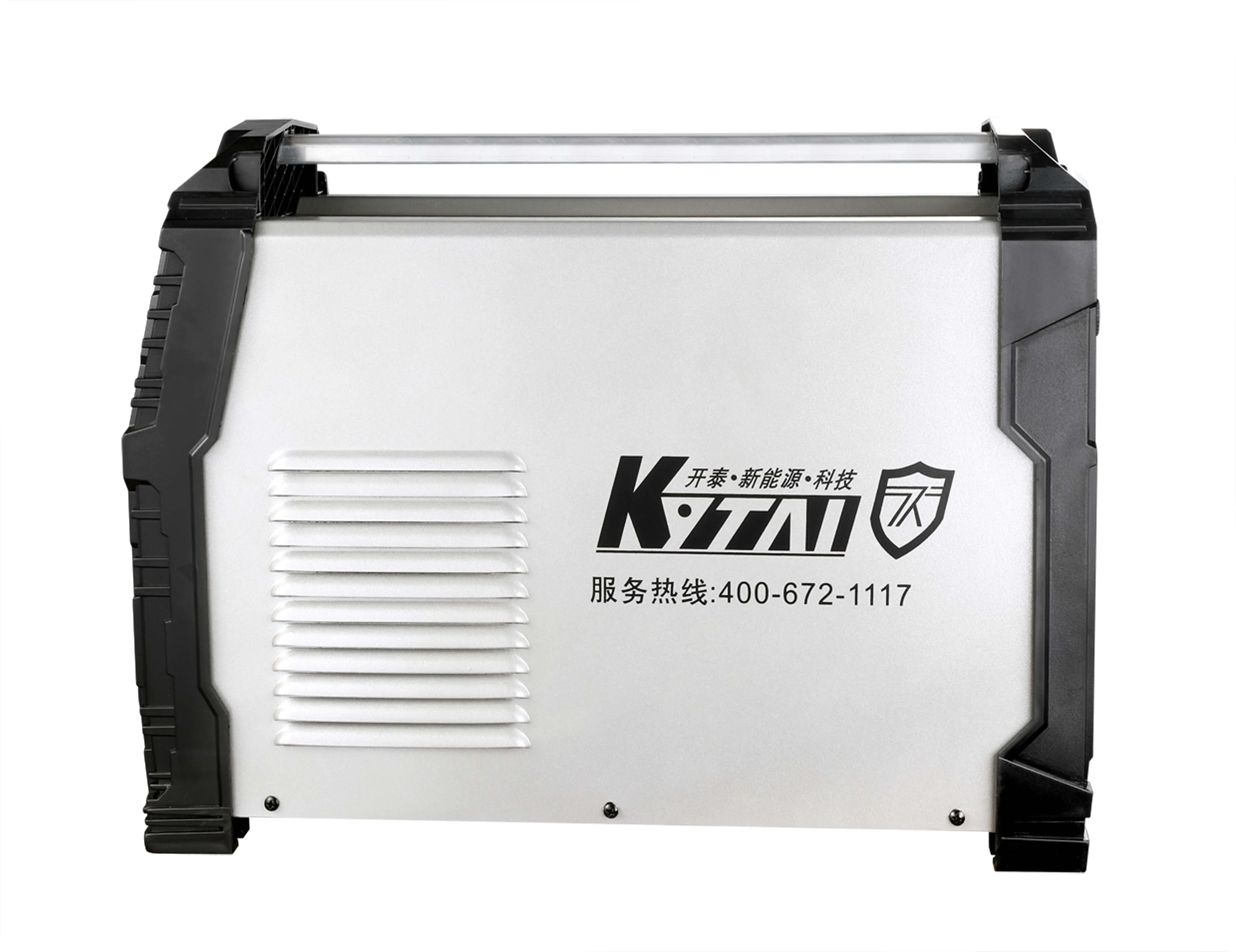

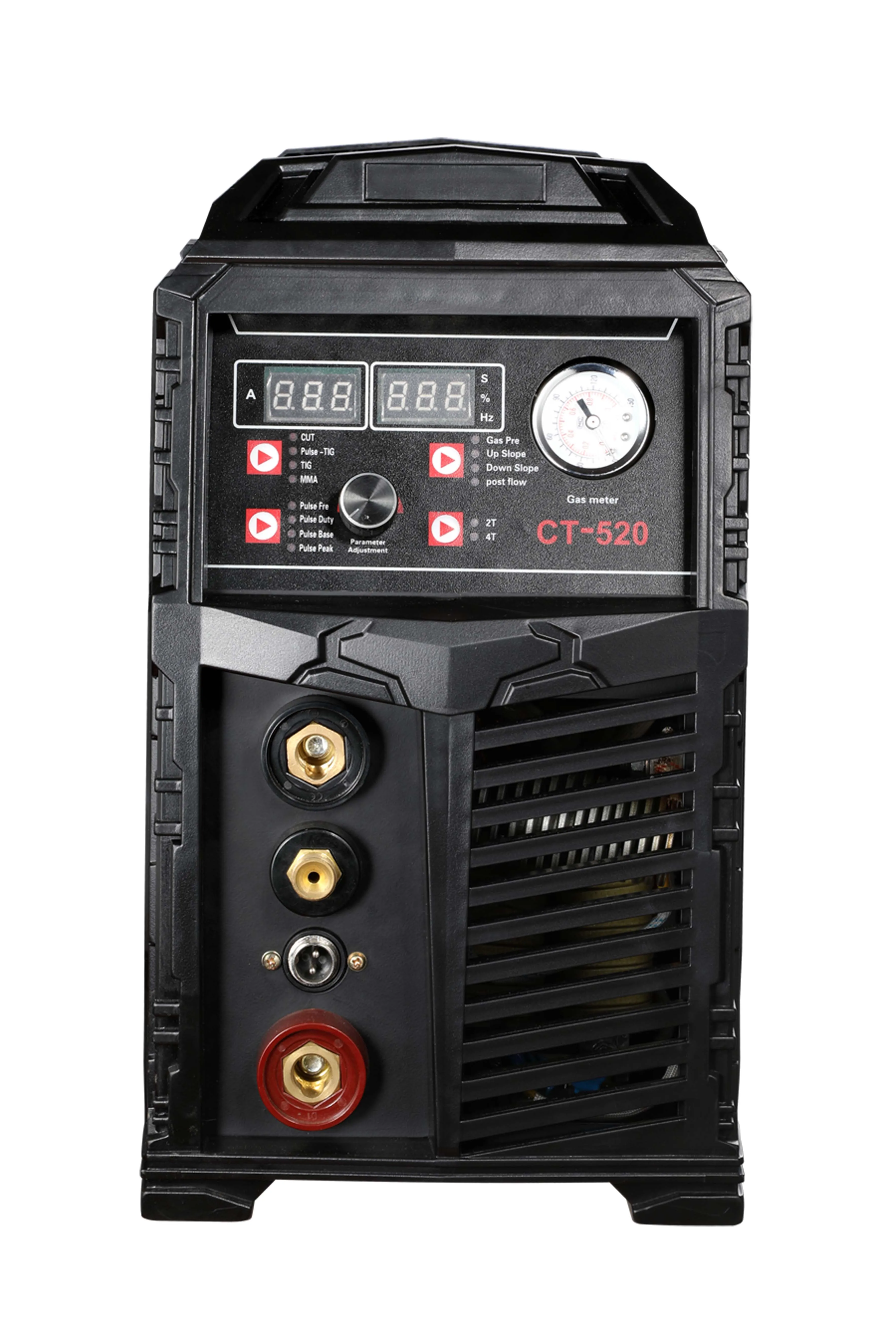

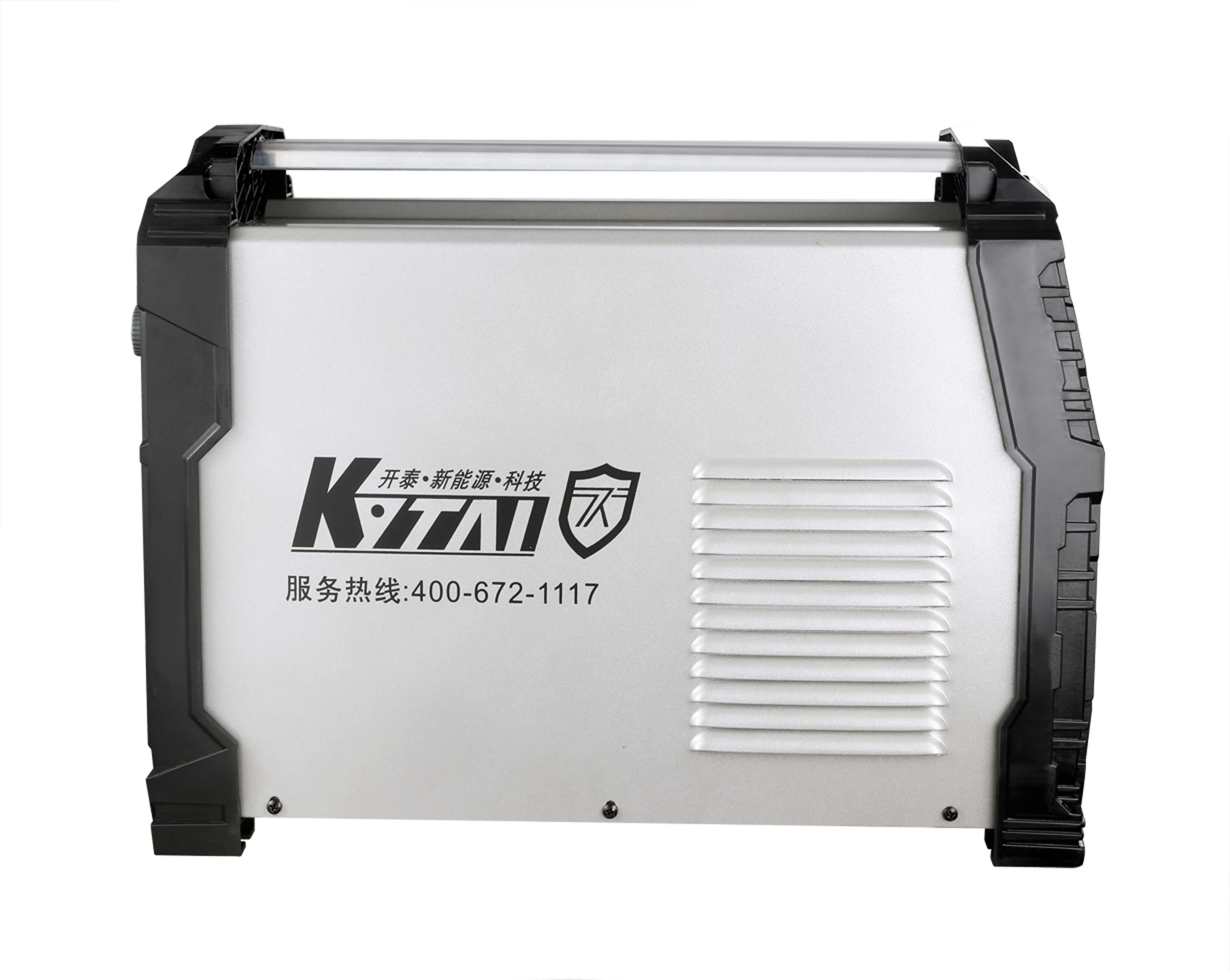

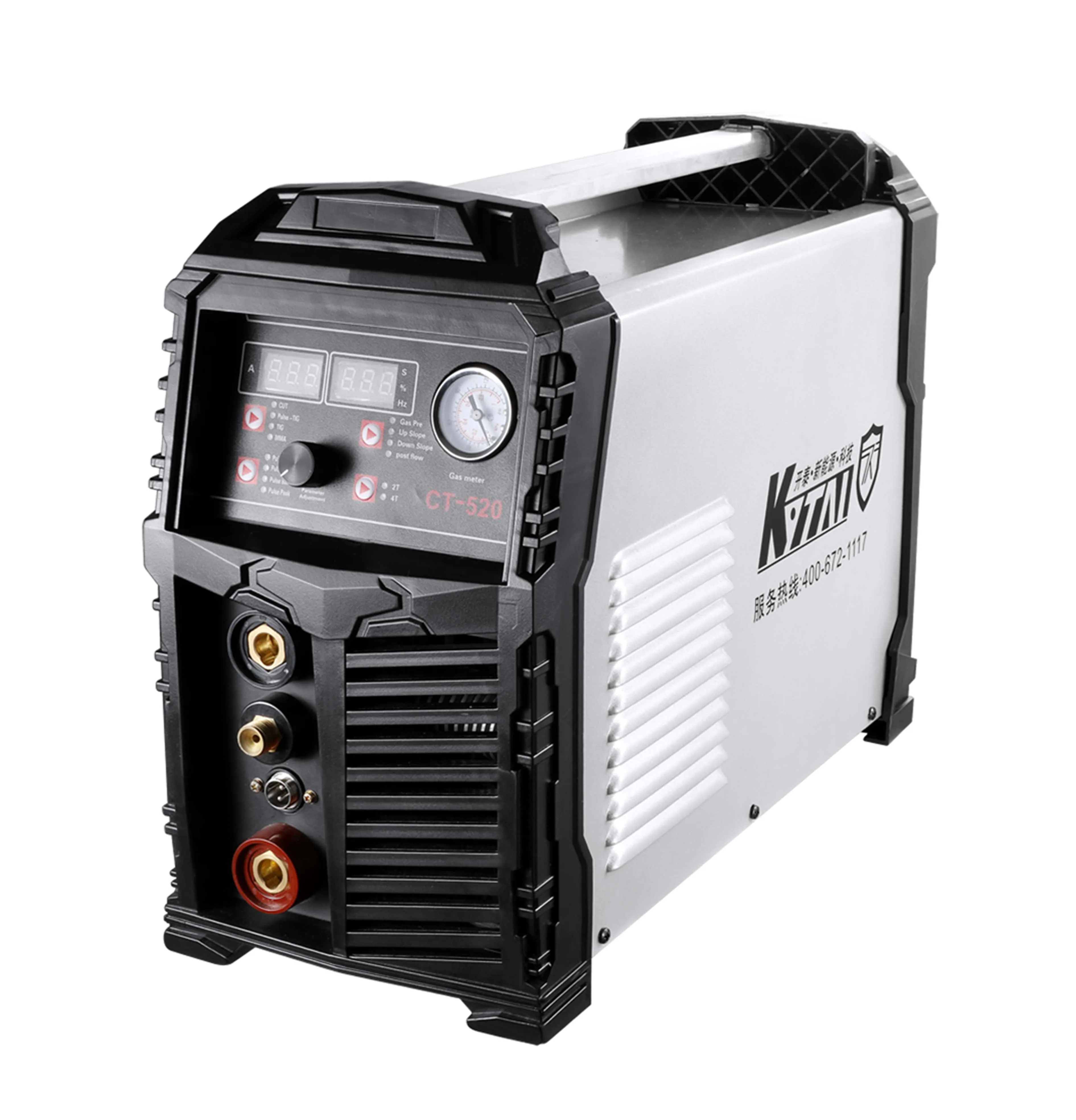

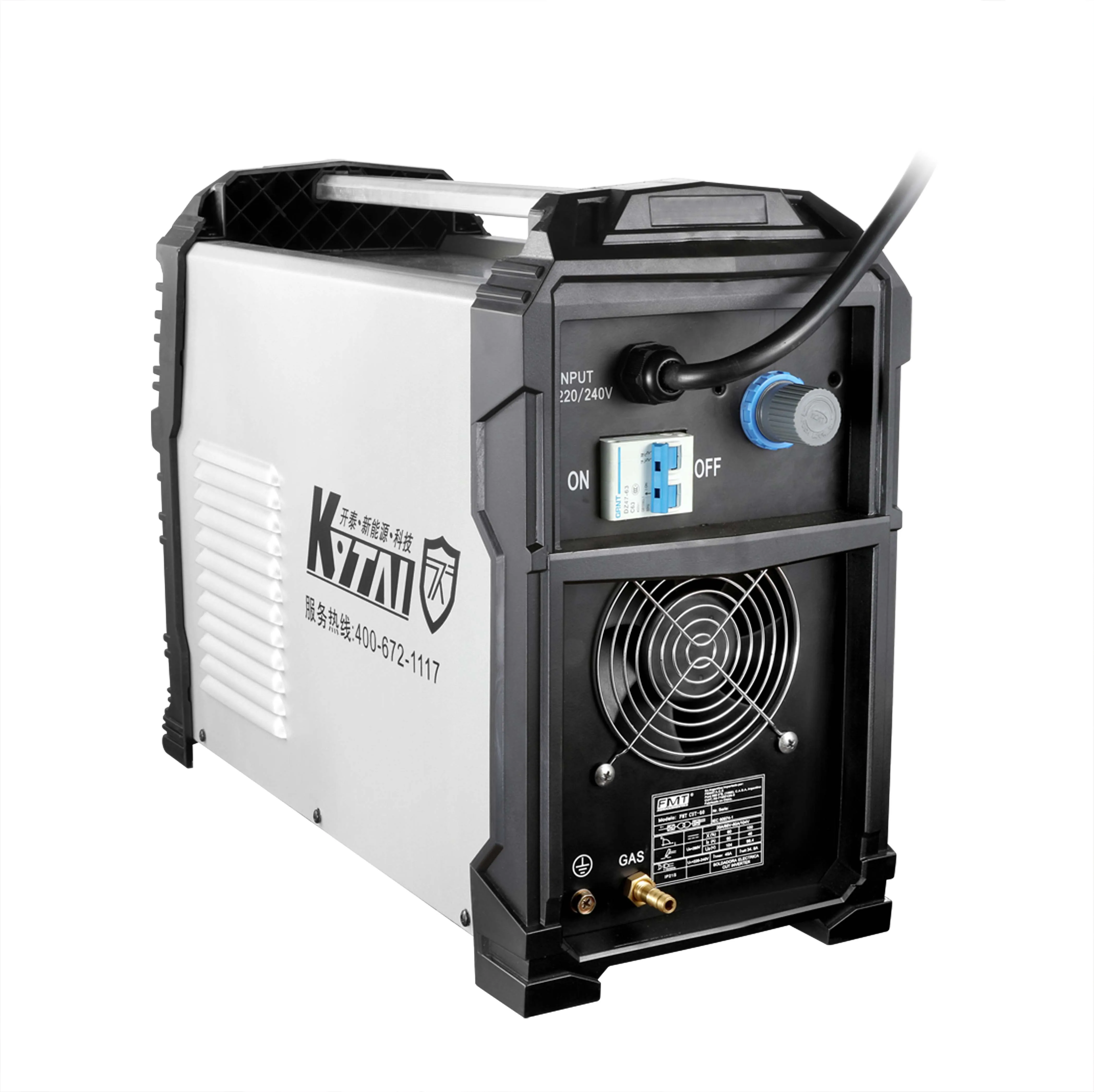

Compact Professional IGBT Inverter Plasma Cutting TIG Pulse TIG MMA 4 In1 Welding Machine CT 520 Plasma Cutter With Gas Meter
- Category: >>>
- Supplier: ZHEJIANG KAITAI AMPEREX TECHNOLOGY CO. LTD
Share on (1601069490931):
Product Overview
Description
Product Description
Model | CT520 | ||||||
Function | MMA | CUT | TIG | Pulse TIG | |||
Input Voltage(V) | 1Phase 220V/60HZ | ||||||
Input Current(A) | 49.3 | 43.6 | 32.2 | 32.2 | |||
Input Capacity(KVA) | 10.8 | 9.6 | 7.1 | 7.1 | |||
No-load Voltage(V) | 55 | ||||||
Output Current Range(A) | 30-220A | 25-55A | 15-220A | 15-220A | |||
Duty Cycle(%) | 60% | 60% | 60% | 60% | |||
Gaspre Range(S) | / | / | 0.1-1.9 | 0.1-1.9 | |||
Up slope(S) | / | / | 0.1-9.9 | 0.1-9.9 | |||
Down slope (S) | / | / | 0.1-9.9 | 0.1-9.9 | |||
Post flow(S) | / | 5.0-20 | 0.1-9.9 | 0.1-9.9 | |||
Pulse Frequency(Hz) | / | / | / | 0.2-100 | |||
Pulse Duty cycle(%) | / | / | / | 10-90 | |||
Pulse base range | / | / | / | 15-220A | |||
Pulse peak range | / | / | / | 15-220A | |||
Arcing current adjustment range | / | / | 15-220A | 15-220A | |||
Maximum cutting thickness(Sheet iron)(MM) | / | 25 | / | / | |||
Maximum quality cutting thickness(Sheet iron)(MM) | / | 12 | / | / | |||
Machine Size(mm) | 490*210*380 | ||||||
Packing Size(mm) | 602*307*441 | ||||||
Weight(Kg) | 15 | ||||||
Details Images
Accessories
3m WP26,
5m SG55,
Reducing valve,
1.8m 25²300A electrode holder,
1.2m 25²300A earth clamp,
4² 1.65m power line
