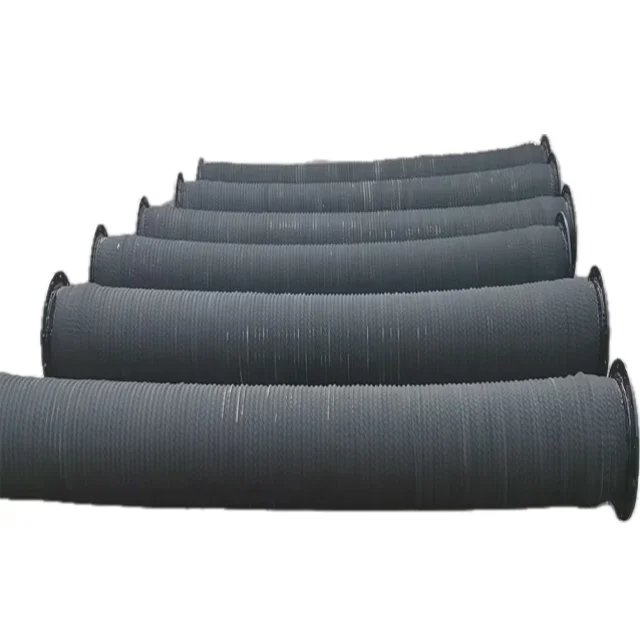

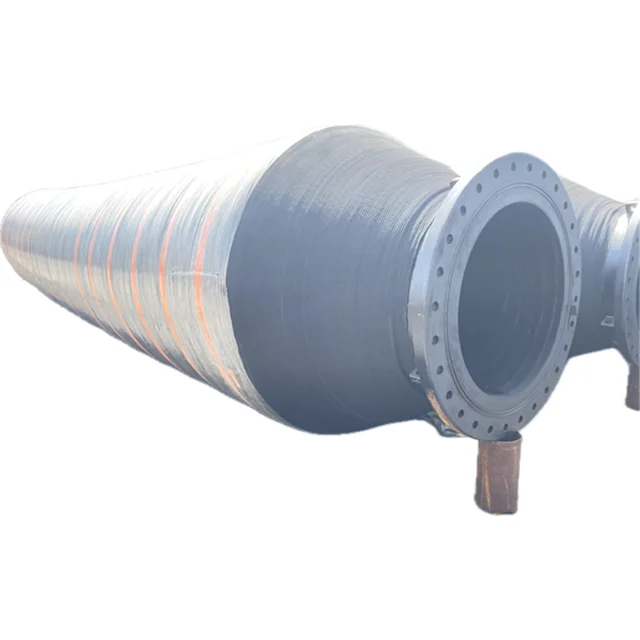

OIL SUCTION &DISCHARGE HOSES FOR OFFSHORE MOORINGS

Nominal Bore:

150mm(6"),200mm(8"),250 mm(10"),300 mm(12"),400 mm(16"),500 mm(20"),600 mm (24")

Standard Length:

9.1m(30'),10.7m(35'),12.2m(40')

( customized length also available)

Hose Construction:

Liner layer -NBR based,resistant to hydrocarbons with aromatic content up to 60%.

Primary Carcass -Elastomer reinforced with multi-layers of high tensile textile cords and embedded steel wire helix

Sub Carcass -Elastomer reinforced with multi-layers of high tensile textile cords.

Floater Material ( for Floating Hoses only)-Closed Cell Foam

Outer Smooth Cover -fiber   reinforced, with protection  ageing,abrasion,weather aging,UV,tearing,oil   and   seawater penetration.

Flanges:

ANSI B16.5 Class 150 or 300, Flat Face(FF),Hot Dip Galvanized,

(Raised Face(RF)flange face on request)

Pressure Rating

15 bar,19 bar,21 bar

Minimum Burst Pressure:

(Primary Carcass)-75 bar,95 bar,105 bar

(Sub Carcass)-30 bar,38 bar,42 bar

Flow Velocity:

Maximum of 21 m/s

Fluid Product:

Crude Oil and Liquid Petroleum Products(other than liquefied petroleum gases and liquefied natural gases).

Temperature Range:

Fluid Temperature from -20℃ to 82℃.

Ambient Temperature from -29℃ to 52℃

Minimum Bend Radius:

Submarine Hose -4 x hose Nominal Bore Diameter.

Floating Hose -6 x hose Nominal Bore Diameter.

Electrical Continuity:

Electrically Continuous or Discontinuous as required.

Leak Detection:

Pressure compensated leak detection system for Floating,Submarine &Catenary hoses
