SDE9 Dual Axis Slew Drive With 24v Dc Motor
- Category: >>>
- Supplier: Luoyang Jiawei Bearing Manufacturing Co. Ltd.Luoyang Ltd.
Share on (1601072134809):
Product Overview
Description
Product display

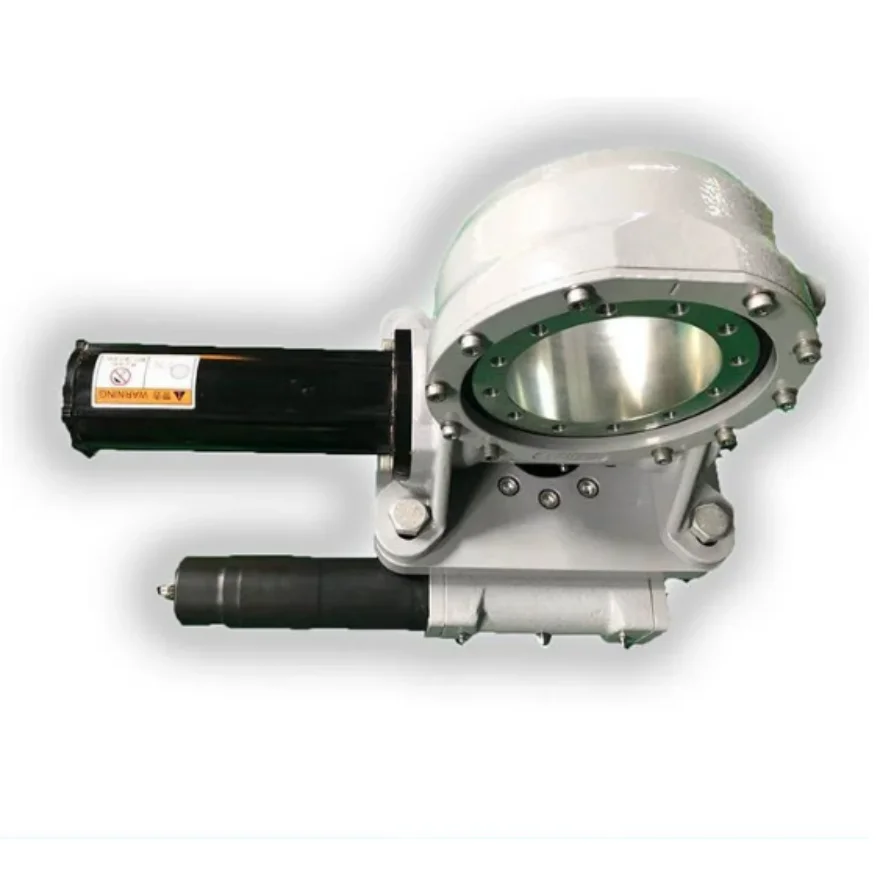

9" dual axis rotation gear slewing drive for solar tracker satellite antenna

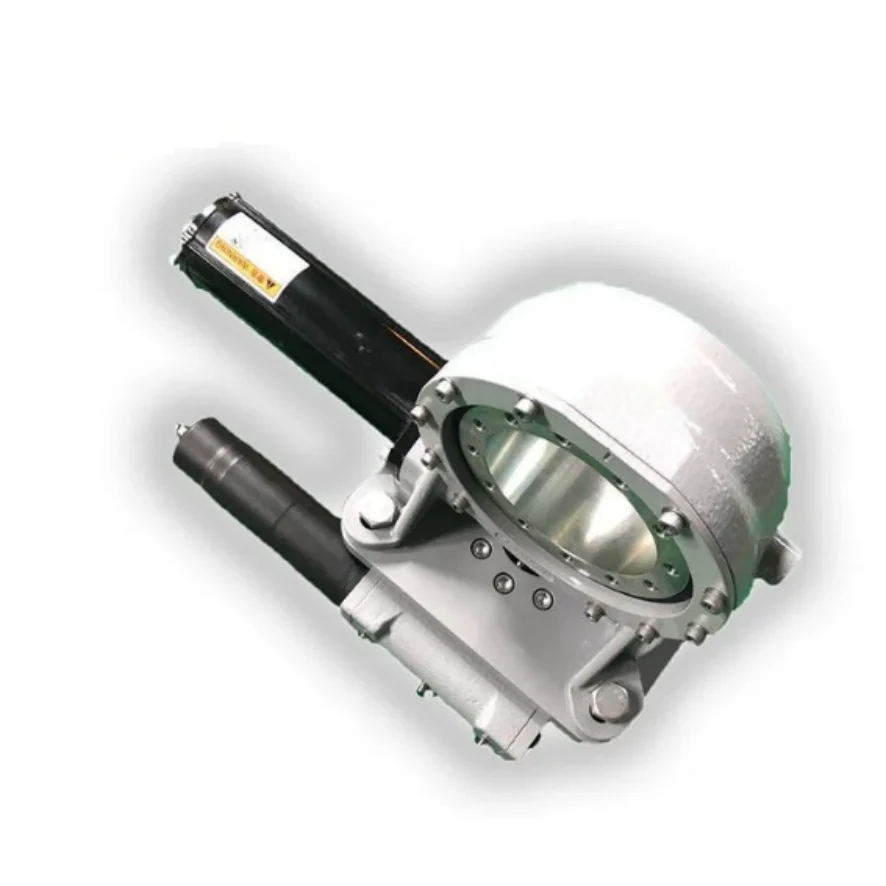

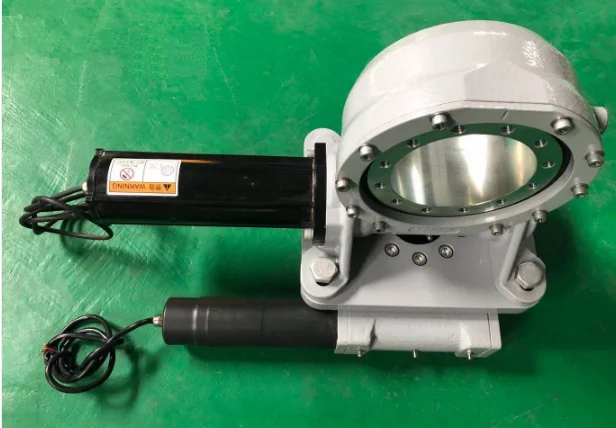

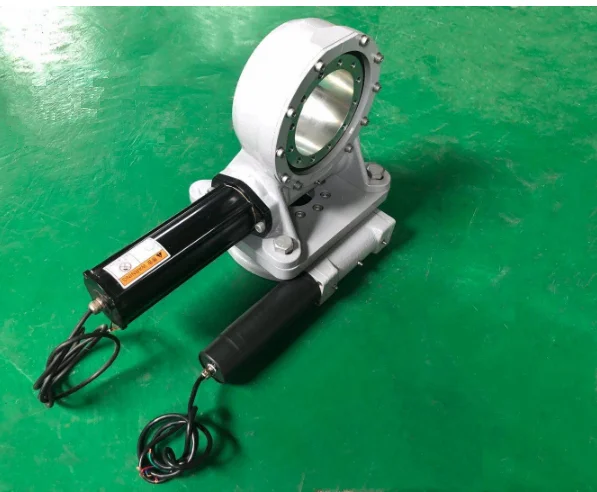

SDE9 a slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate
and worm. This unit brings the advantages of a slewing ring and a worm into one unit.It is suitable for applications
which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The
product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system
to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying

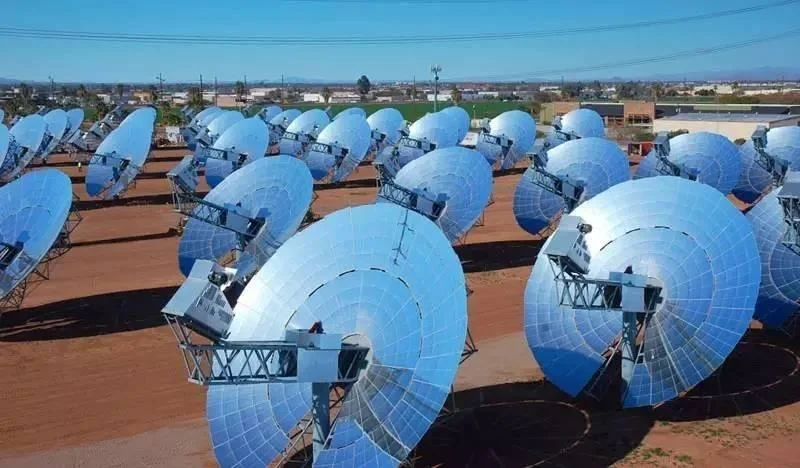

equipment such as Solar Power System, mobile assembly platforms, satellite system, hydraulic loading cranes on
haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
Model | SDE9 | Place of Origin | Henan,China |
Brand | LYJW | Type | Dual Axis |
IP Class | IP65 | Output Torque | 7320 N.m |
Tilting Moment Torque | 12 kN.m | Holding Torque | 56 kN.m |
Mounting Bolts | M16 | Output Speed | 0.025rpm |
Gear Ratio | 61:1 | Efficiency | 40% |
Motor | 24VDC | Type | Gear Reducer |
Carrying weight | 500-800kg | Carrying area | 18-30㎡ |
SDE9 dual axis slewing drive advantage
1.After heat treatment, the gear, worm gear, high hardness, good wear resistance, service life can reach 25-30 years
2. Through tooth grinding and special worm processing mode, fit clearance, high precision.
3. Double lip skeleton oil seal structure is adopted to achieve IP65 and IP66 protection level.
4. Compact structure, easy installation, meet the load design requirements.
5. Customizable production with different flanges and adapters.6.Double output structure
7.SDE9 is made by framework oil sealing structure,so the waterproof and dustproof is much better than
1.After heat treatment, the gear, worm gear, high hardness, good wear resistance, service life can reach 25-30 years
2. Through tooth grinding and special worm processing mode, fit clearance, high precision.
3. Double lip skeleton oil seal structure is adopted to achieve IP65 and IP66 protection level.
4. Compact structure, easy installation, meet the load design requirements.
5. Customizable production with different flanges and adapters.6.Double output structure
7.SDE9 is made by framework oil sealing structure,so the waterproof and dustproof is much better than
normal oil sealingproduction.
8.Special heat treatment,corrosion resistance
9.Built-in eccentric mechanism, ensure the accuracy requirements of the slewing drive
10.SDE9 have 8 bolts on worm shaft side,the original model just have 4 bolts.So,the axial load of SDE9 is
8.Special heat treatment,corrosion resistance
9.Built-in eccentric mechanism, ensure the accuracy requirements of the slewing drive
10.SDE9 have 8 bolts on worm shaft side,the original model just have 4 bolts.So,the axial load of SDE9 is
more steady than the other model.
The definition of altitude angle is the angle formed between a horizontal plane and an imaginary line pointed to
the sun. The azimuth angle is a horizontal angular distance from a reference direction, usually north.
Generally, these trackers are set up as alt-azimuth mounts, meaning the axes move vertically (the altitude) and horizontally (azimuth). This reduces the issue of ground clearance, which can be a problem with equatorial mounts,
but it requires a controller to make the adjustments in driving two motors.
In addition to the benefit for concentrating collectors, dual-axis tracking is sometimes used with flat collectors.
A flat collector always receives the maximum amount of solar energy if it is oriented so that the direct radiation is
perpendicular to its surface.
A dual-tracker moves the collector continuously during daylight hours to meet this condition, thus maximizing the
solar energy harvested.
LYJW processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows
the standard inspection specification.
In addition to the benefit for concentrating collectors, dual-axis tracking is sometimes used with flat collectors.
A flat collector always receives the maximum amount of solar energy if it is oriented so that the direct radiation is
perpendicular to its surface.
A dual-tracker moves the collector continuously during daylight hours to meet this condition, thus maximizing the
solar energy harvested.
LYJW processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows
the standard inspection specification.

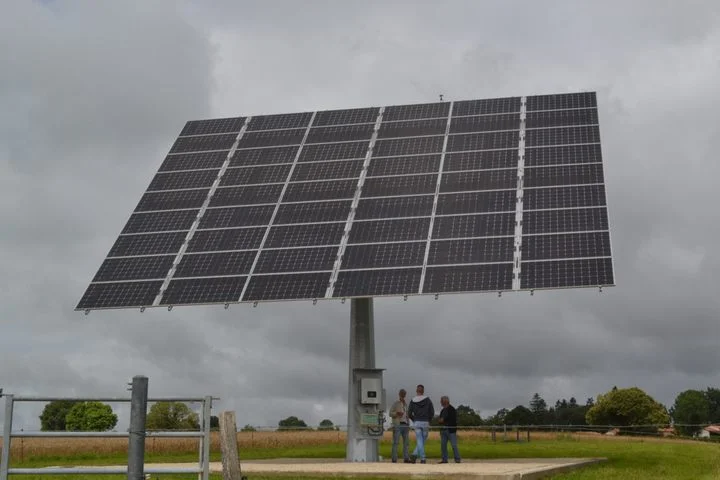

When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual
area of solar panels. Broadly speaking, 9 inch slewing drive is suitable for solar power system coming with 18-30 m2
solar panel.For more specific and detailed information, please contact me directly.Can also be specially customized
for your situation
SDE9 dual axis slewing drive gearmotor is available to load 500-800kg weight
For 10-18pcs solar panels tracking design
For 500-800kg load weight application
For 10-18pcs solar panels tracking design
For 500-800kg load weight application
