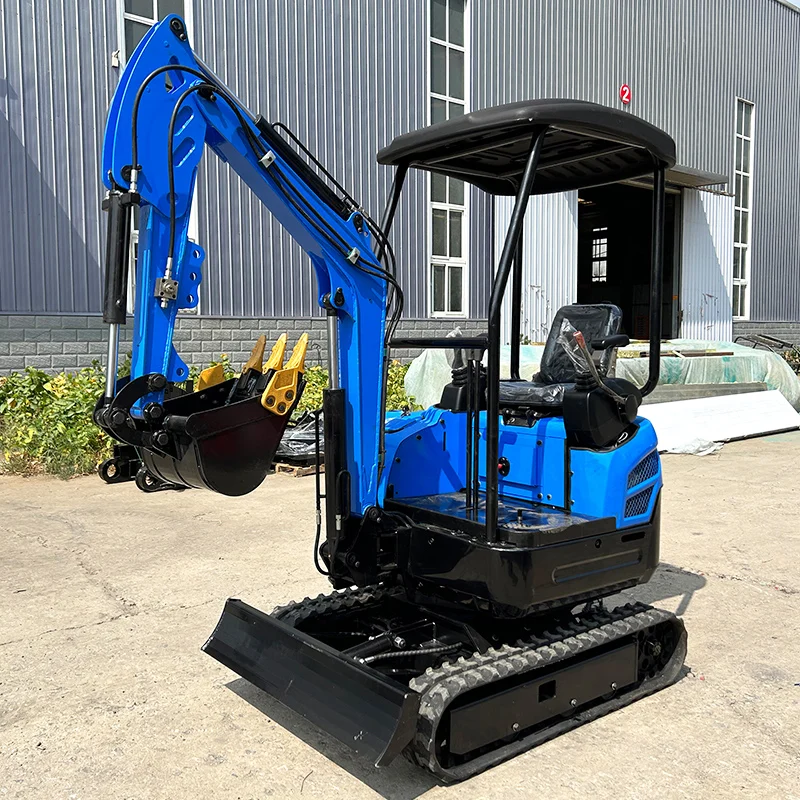

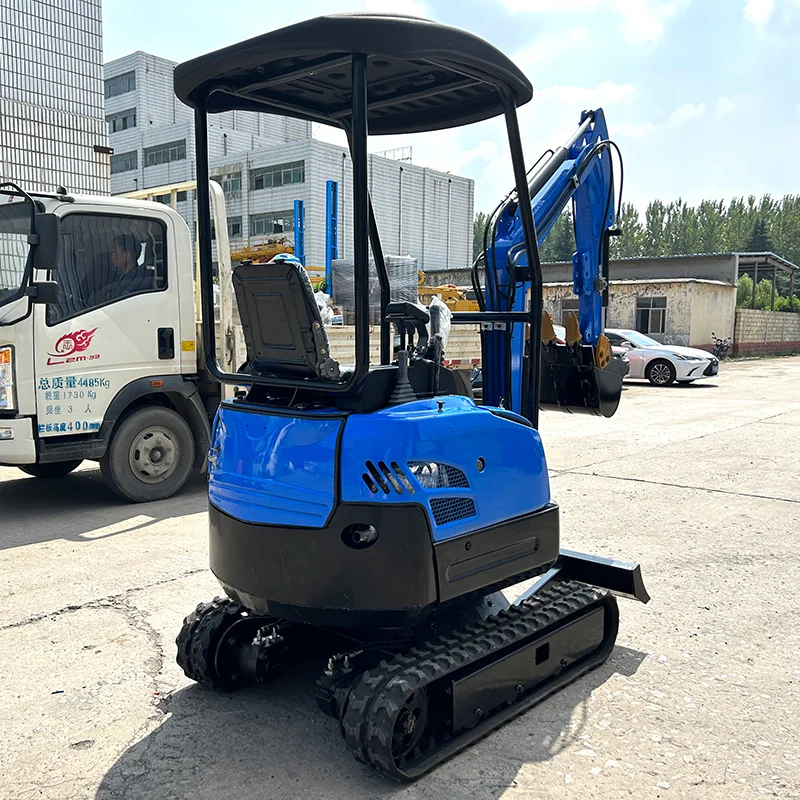

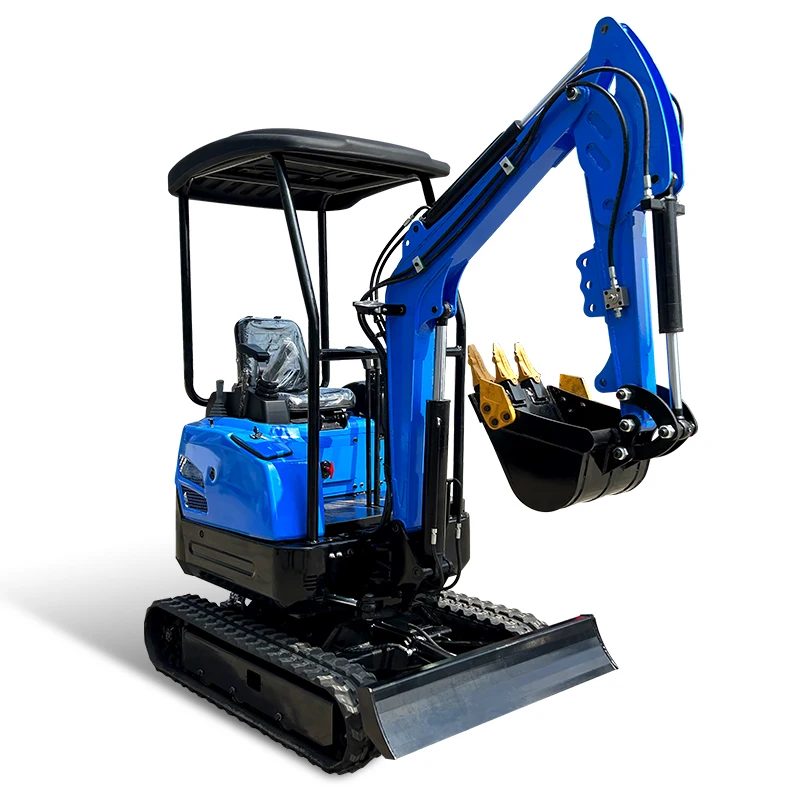

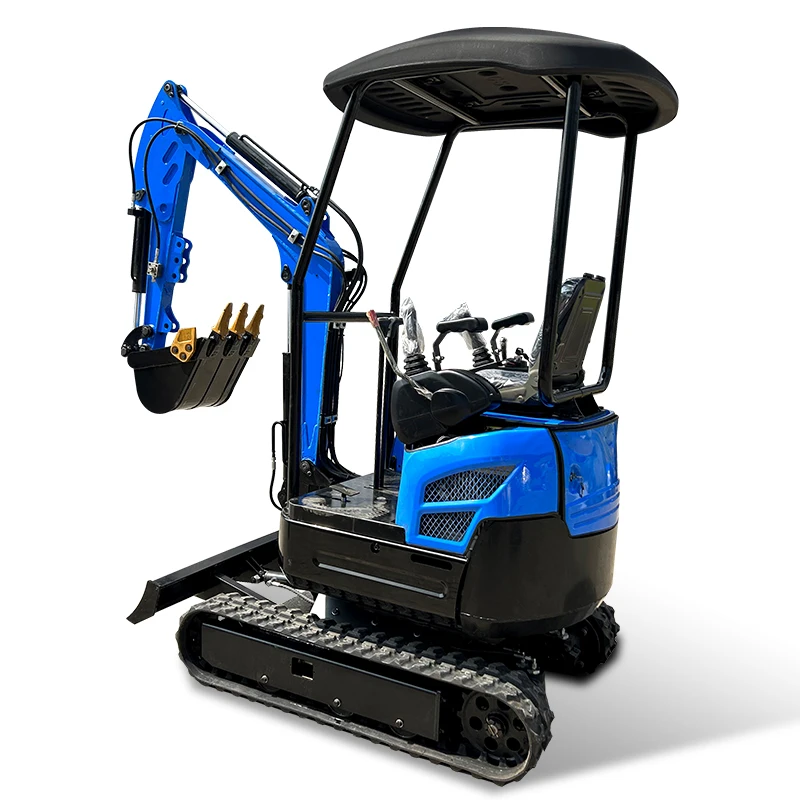

CE 1ton 1.6T excavator cheap price best rubber tire mini hydraulic excavator
- Category: >>>
- Supplier: Shandong Aiweiya Machinery Co. Ltd.
Share on (1601072500242):
Product Overview
Description

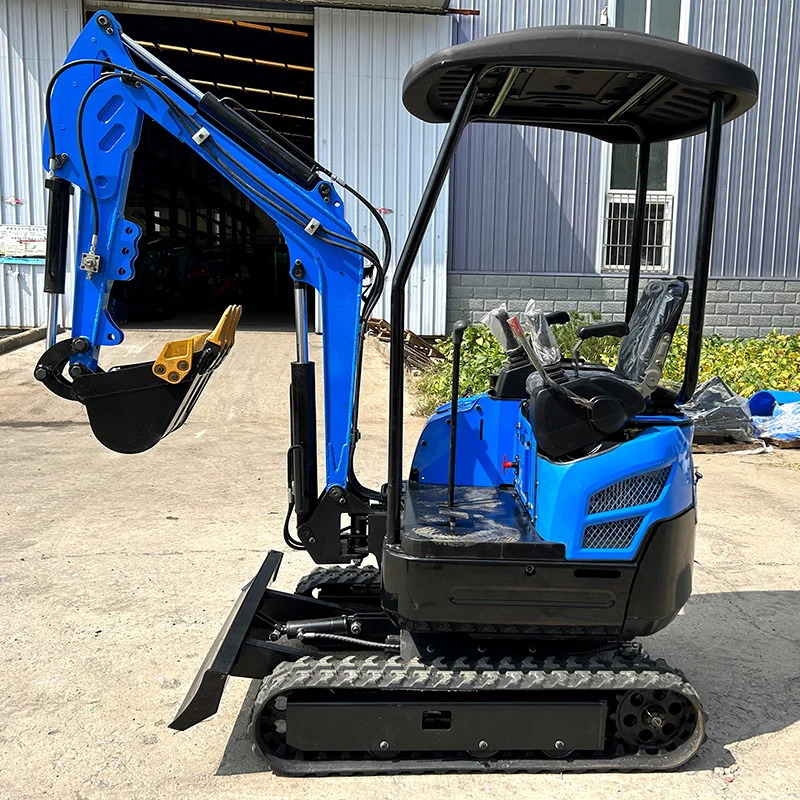

AWY16 1tons 1.6Tons Mini Excavator
1.Optional Diesel/EPA gasoline engine, to meet environmental protection, cost control and other needs.
2.It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3.Can be equipped with high precision pilot control system.
4.Adopting high quality hydraulic motor, small size, light weight, high efficiency and long service life.
5.Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6.The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7.Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
8. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
2.It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3.Can be equipped with high precision pilot control system.
4.Adopting high quality hydraulic motor, small size, light weight, high efficiency and long service life.
5.Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6.The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7.Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
8. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.

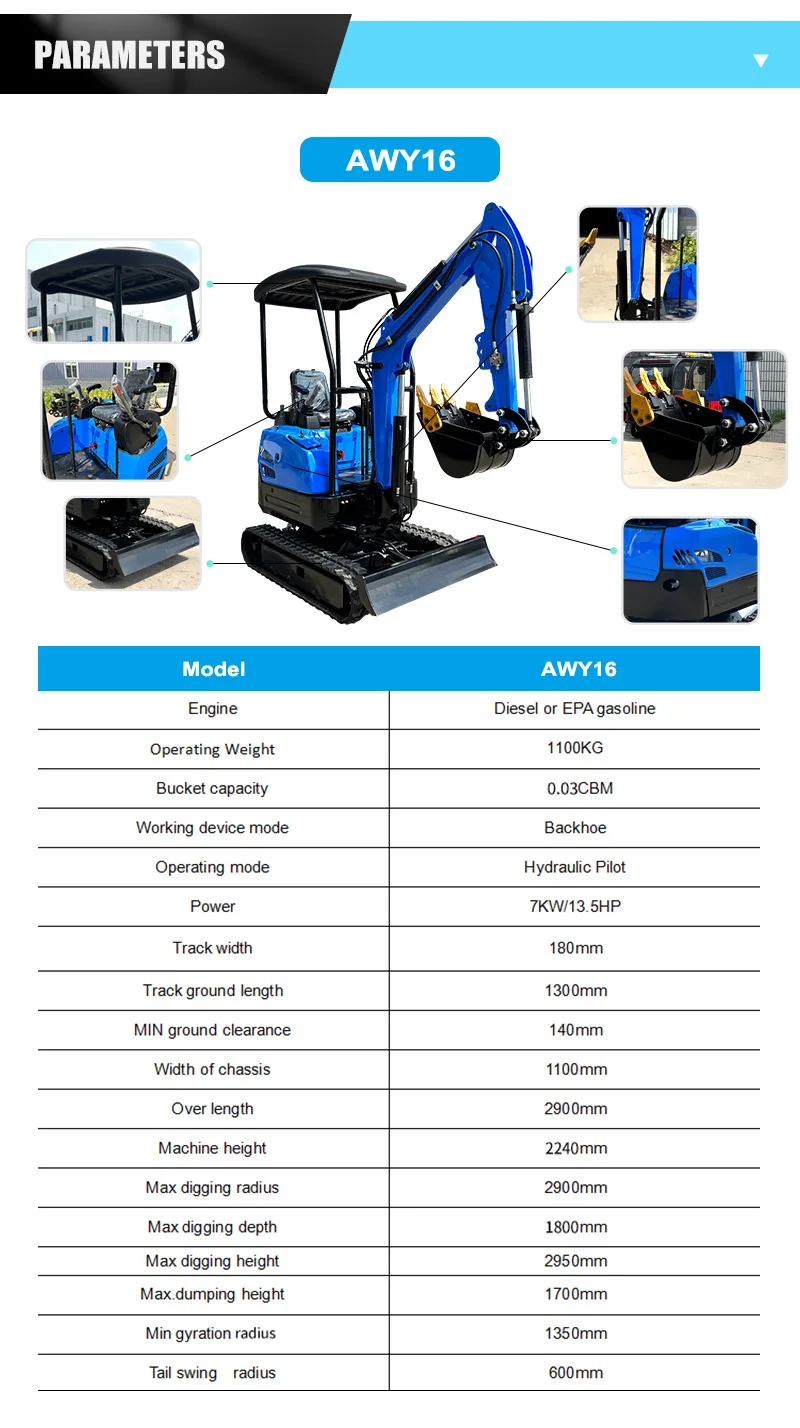

Specification
Model | AWY16 |
Engine | Diesel or EPA gasoline |
Operating weight | 1100KG |
Bucket capacity | 0.03CBM |
Working device mode | Backhoe |
Operating mode | Hydraulic Pilot |
Power | 7KW/13.5HP |
Track width | 180mm |
Track ground length | 1300mm |
Min ground clearance | 140mm |
Width of chassis | 1100mm |
Over length | 2900mm |
Machine height | 2240mm |
Max. digging radius | 2900mm |
Max. digging depth | 1800mm |
Max. digging height | 2950mm |
Max. dumping height | 1700mm |
Min. gyration radius | 1350mm |
Tail swing radius | 600mm |
NOTE: The above parameters are standard, please refer to the actual product for any changes.
Packing & Delivery
Company Profile
FAQ
Minimum order is 1 pc only, dealership is warmest welcome.
2, What's the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
