Plastic pvc door board extruder making machine pvc wpc door frame and window production line machine
- Category: >>>
- Supplier: Zhangjiagang Xinhe Machinery Co. Ltd.
Share on (1601073516208):
Product Overview
Description
Main Products Of Xinhe:
UPVC window and door profile production lineFeeding System
PVC edge band production line
PVC marble board production line
PS louver panel production line
PVC edge band production line with calender cooling
Vinyl siding panel production line
PVC fluted panel production line
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer machine
Plastic crusher &shredder
hot and cooling PVC mixer for compounding
PVC edge band production line
PVC marble board production line
PS louver panel production line
PVC edge band production line with calender cooling
Vinyl siding panel production line
PVC fluted panel production line
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer machine
Plastic crusher &shredder
hot and cooling PVC mixer for compounding
Why Choose Us
After Sales
24 Online Service
1.Machine running video2.Watch our factory online
3.More service contact us
1.Machine running video2.Watch our factory online
3.More service contact us
Successful machine Plant
Supply a running machine in your country or show you around , which you can see machine running directly.
Supply a running machine in your country or show you around , which you can see machine running directly.
Installation / Debug / Training
1.We will arrange seasoned technician for equipment installation, debug and test production. 2.Our company offers technology
training to the customer in his factory.
3.We promise that our goods are all new and not used
1.We will arrange seasoned technician for equipment installation, debug and test production. 2.Our company offers technology
training to the customer in his factory.
3.We promise that our goods are all new and not used
After-sales Service
1.After checking, we offer 12 months as a quality guarantee, offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems. 3.After quality guarantee, we offer technical support and after-sales service.
1.After checking, we offer 12 months as a quality guarantee, offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems. 3.After quality guarantee, we offer technical support and after-sales service.
Products Description
PVC DOOR\\WALL BOARD \\PANEL Production line
PVC DOOR\\WALL BOARD \\PANEL Production line is mainly used for making PVC plastic profile with different section shape and height.
the surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen,toilet,balcony and so on.
Features of the Machine:
1)Extruder screw and barrel：can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox:nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel
plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4)Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the tabley is made by #304 stainless steel, good strength and performance,long life time.
6)Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
PVC DOOR\\WALL BOARD \\PANEL Production line is mainly used for making PVC plastic profile with different section shape and height.
the surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen,toilet,balcony and so on.
Features of the Machine:
1)Extruder screw and barrel：can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox:nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel
plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4)Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the tabley is made by #304 stainless steel, good strength and performance,long life time.
6)Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
Details Images
Plastic PVC WPC Door Flow chart:

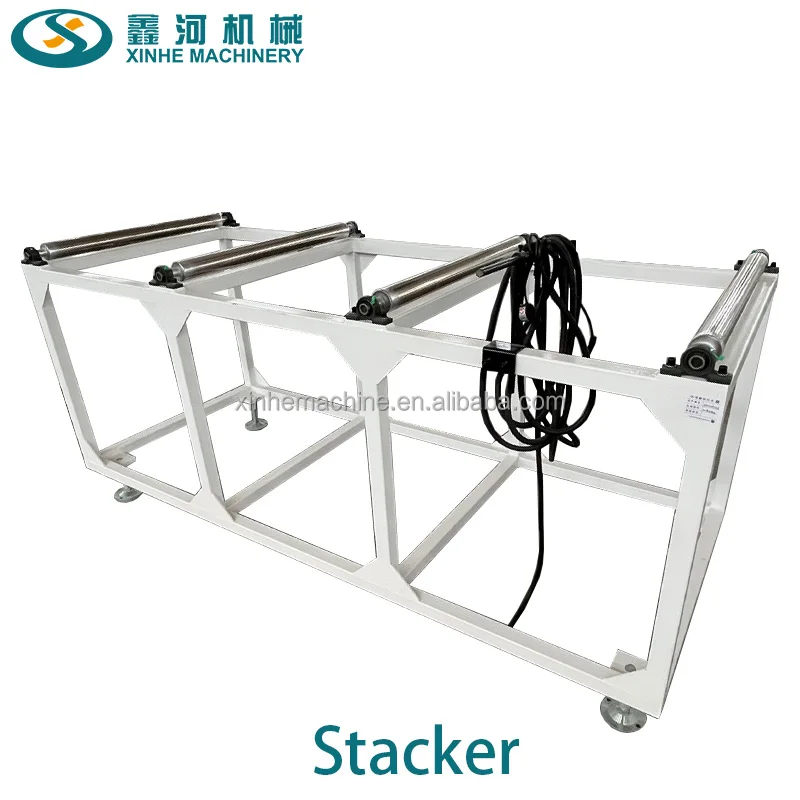

Mixer→Loader→Extruder→Mould→Vacuum calibration table→Cooling bracket→Hauling machine→Cutting machine(With dust-collector)→Stacker→Packing→Crusher,Pulverizer (for waste material)
Mixer→Loader→Extruder→Mould→Vacuum calibration table→Cooling bracket→Hauling machine→Cutting machine(With dust-collector)→Stacker→Packing→Crusher,Pulverizer (for waste material)
plastic pvc wpc door extruder making machine raw material is pvc or with a little wpc ,besides we can also offer door frame a whole set of door .

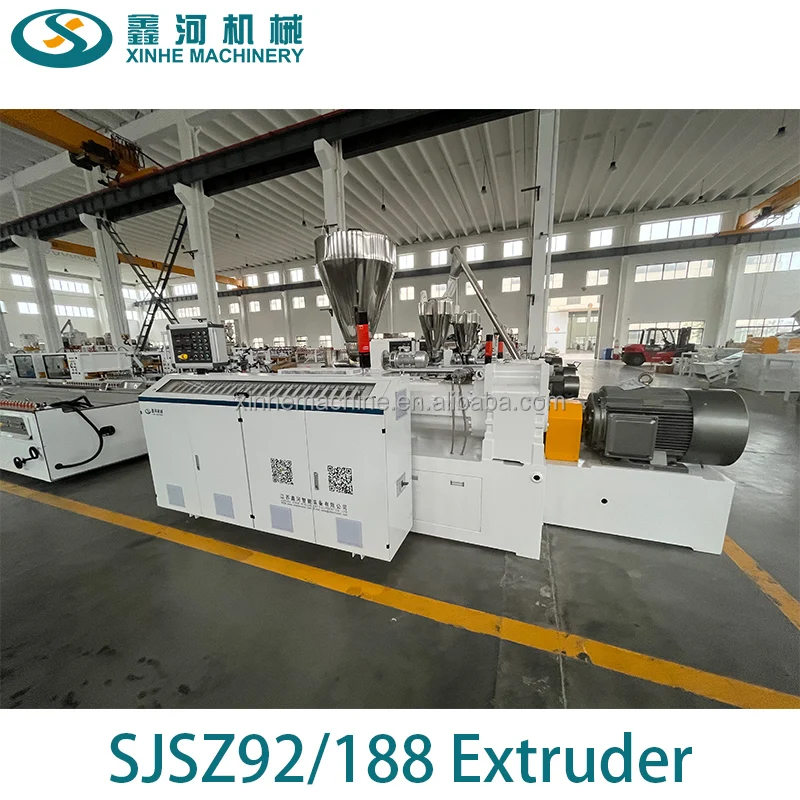

PVC WPC door panel Extrusion System Name: SJZ80/156 or SJZ92/188Conical twin screw extruder Technical parameters: a.Main motor
:75kw/110KW Siemens/TECO Brand. b.Inverter:ABB/TECO c.Screw barrel: 38CrMoAl, hardness HV950 or more , high-efficiency and long
service life. d. Vacuum pump : Double station.
:75kw/110KW Siemens/TECO Brand. b.Inverter:ABB/TECO c.Screw barrel: 38CrMoAl, hardness HV950 or more , high-efficiency and long
service life. d. Vacuum pump : Double station.
PVC WPC door panel board Mould Part
Name: Extrusion and calibration mould
Technical parameters:
a.3Cr17,forged、quenched and tempered with the feature of anti-wear, anti-corrosion, high-strength, high precision and long-time service
b.Three dimensional flow simulation software design.

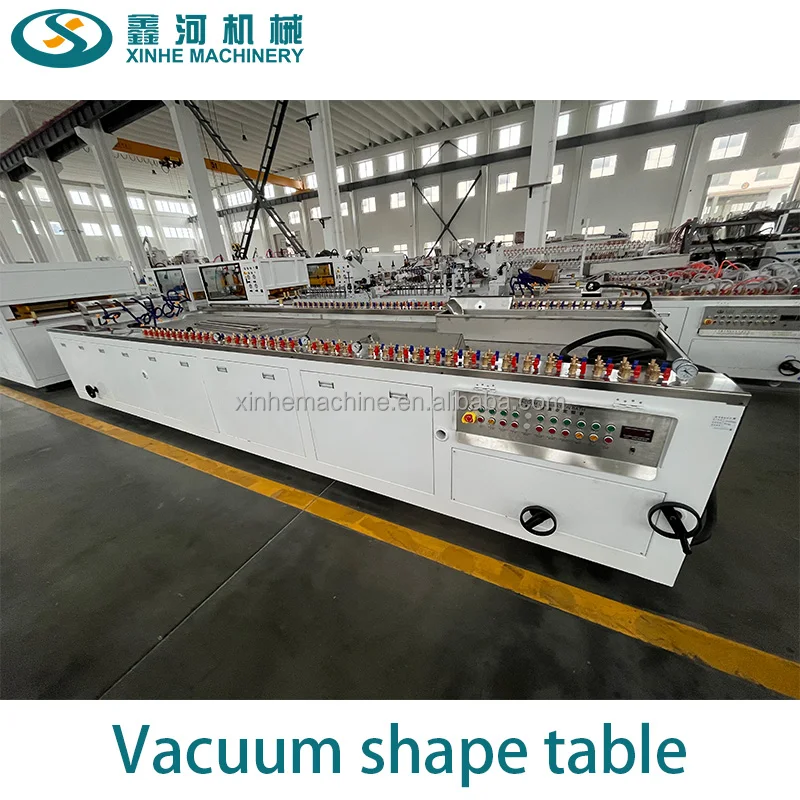

PVC WPC door board Calibration Forming Machine Technical parameters:
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.
c.Water tank length: 6m water pump: 3kw vacuum pump:
5.5kw*3sets Water nozzle:48pcs, material:brass
5.5kw*3sets Water nozzle:48pcs, material:brass

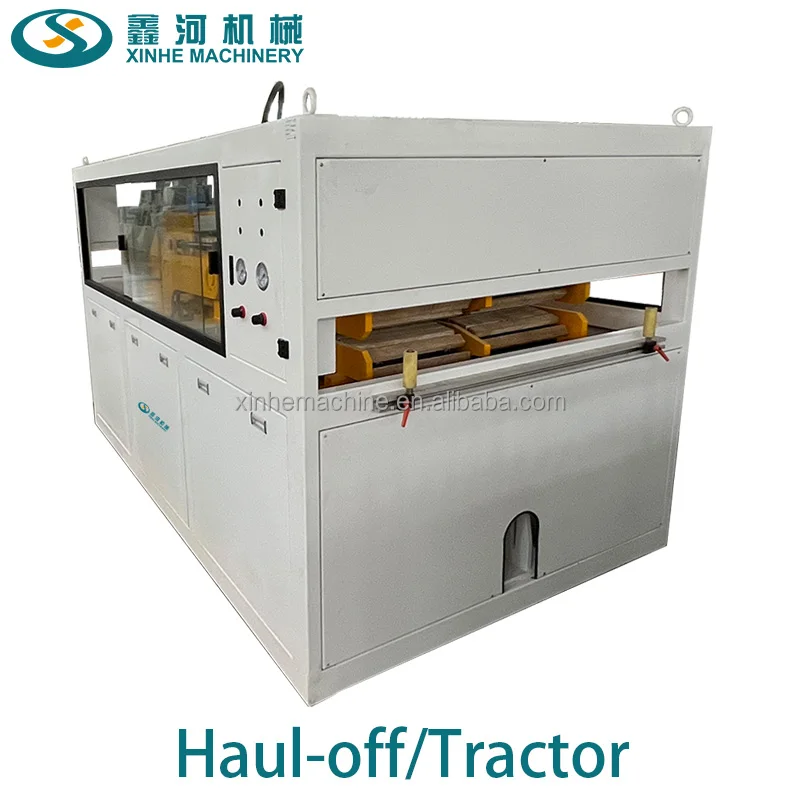

PVC WPC door board tractor
Technical parameters:
a. Rubber block is soft material. b.Adopt best design,it can press productsclosed,and delivery stably.
c.We choose Geax motor,and control two sets motor by inverter,this mean confirm the two arm run with
precise.
precise.
d. The motoradopts frequency control.Thetraction shelf adopts pneumatic Clamping.

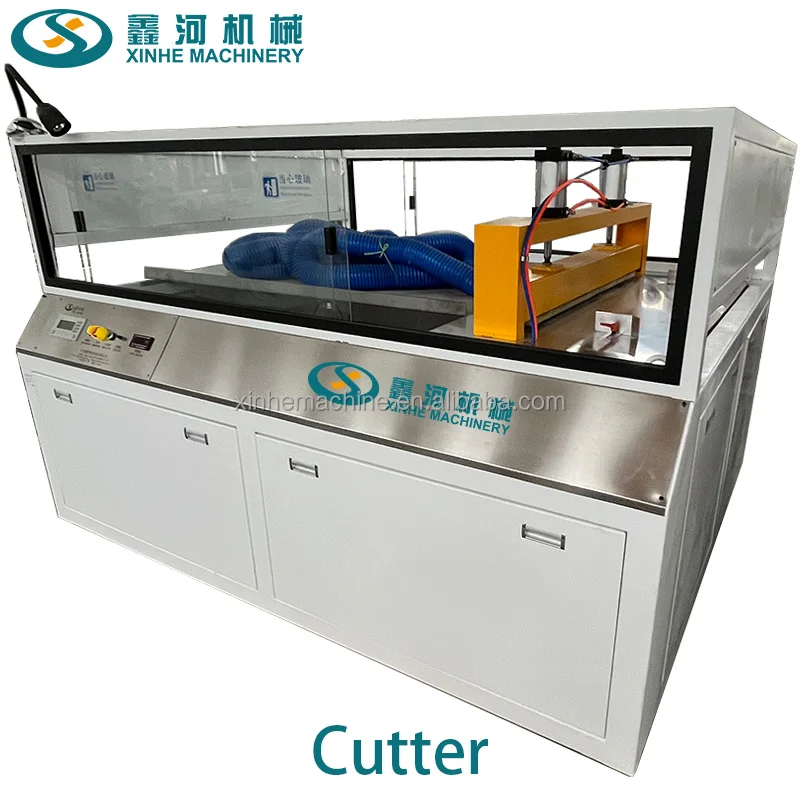

PVC WPC door board cutter Name:
Cutter Technical parameters:
a.Cylinder control moving,Fixed length cutting，Fixed-length using autonics meter of high accuracy cutting power:3kw, Equipped with dust collection device
b.With Photoelectricity device, guarantee
cutting accurate
cutting accurate
c.When lamination film or hot stamping film, each film pattern is accurate

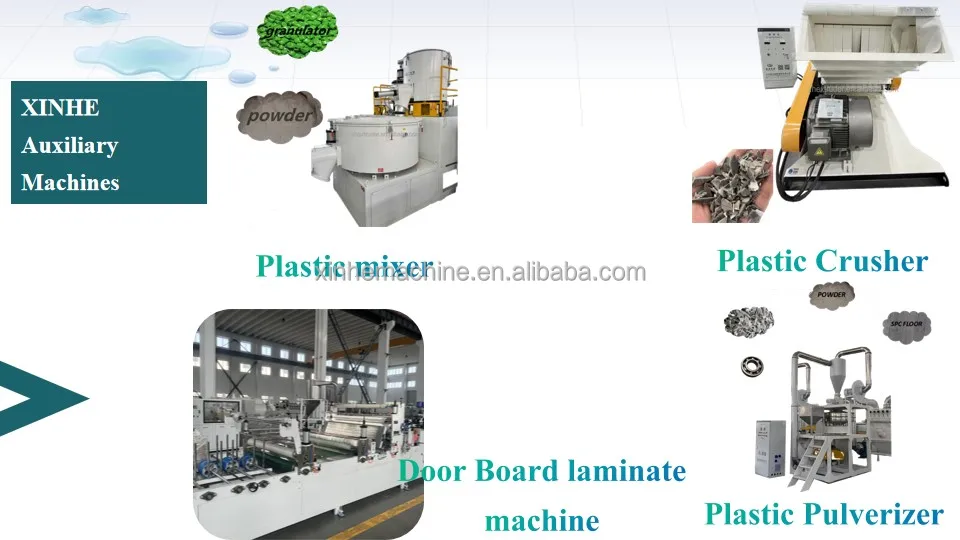

Besides WPC PVC production line making machine,we also need to use some recycling machines and mixer machines ,like crusher and pulverizers. At the same time ,we have laminate machine.
Weight | 20000KG |
Warranty | 1 Year |
Key Selling Points | Multifunctional |
Applicable Industries | Building Material Shops.Manufacturing Plant Machinery Repair Shops,Retail,Construction works |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor,PLC,Gearbox,Screw |
MachineryTest Report | Provided |
Screw Material | 38CrMoALA |
Screw diameter(mm) | 188 |
Screw Speed (rpm) | 33 rpm |
Brand Name | XINHE |
Voltage | 380V50HZ/customized |
Final Product
Plastic door board panel making machine
Normally it is used everywhere ,home use ,hotel and other places.It is more anti-water ,heat and moisture.What is more plastic pvc wpc door machine is very easy to install and weight light.
Product Parameters
Model | YF-200 | YF-400 | YF-600 | YF-800 | YF-1000 |
Extruder | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 | SJSZ92/188 |
Product thickmess(mm) | 3-20 | 3-20 | 3-30 | 4-40 | 5-50 |
Product width(mm) | 200 | 400 | 600 | 800 | 1000 |
Main motor power(kw) | 22 | 37 | 55 | 75 | 110 |
Capacity(Max. )(kg/h) | 150 | 250 | 400 | 450 | 600 |
Our Advantages
1.Different model Conical twin screw extruder,suitable for high speed extruding of different board width .
2.According to different moulds, the shaping table can choose, 6 meters, 8 meters,and other specification，Vacuum shaping adopts special increased eddy current cooling system adopts special increased eddy current cooling system to facilitate cooling and shaping to meet the needs of high-speed extrusion.
3.Traction machine adopts our company's unique lifting technology, smooth work,good reliability, large traction.
4.The moving speed of the cutting machine is synchronized with the traction speed.
5. By sanding，hot stamping，laminating，vacuum shaping, the user can make the wpc door surface looks more like real wooden.
2.According to different moulds, the shaping table can choose, 6 meters, 8 meters,and other specification，Vacuum shaping adopts special increased eddy current cooling system adopts special increased eddy current cooling system to facilitate cooling and shaping to meet the needs of high-speed extrusion.
3.Traction machine adopts our company's unique lifting technology, smooth work,good reliability, large traction.
4.The moving speed of the cutting machine is synchronized with the traction speed.
5. By sanding，hot stamping，laminating，vacuum shaping, the user can make the wpc door surface looks more like real wooden.
