Workshop heavy duty supporting overhead crane stable running Crane End carriage end beam trolley motor
- Category: >>>
- Supplier: Huahang Transportation Equipment Technology (shenzhen) Co. Ltd.
Share on (1601073864239):
Product Overview
Description

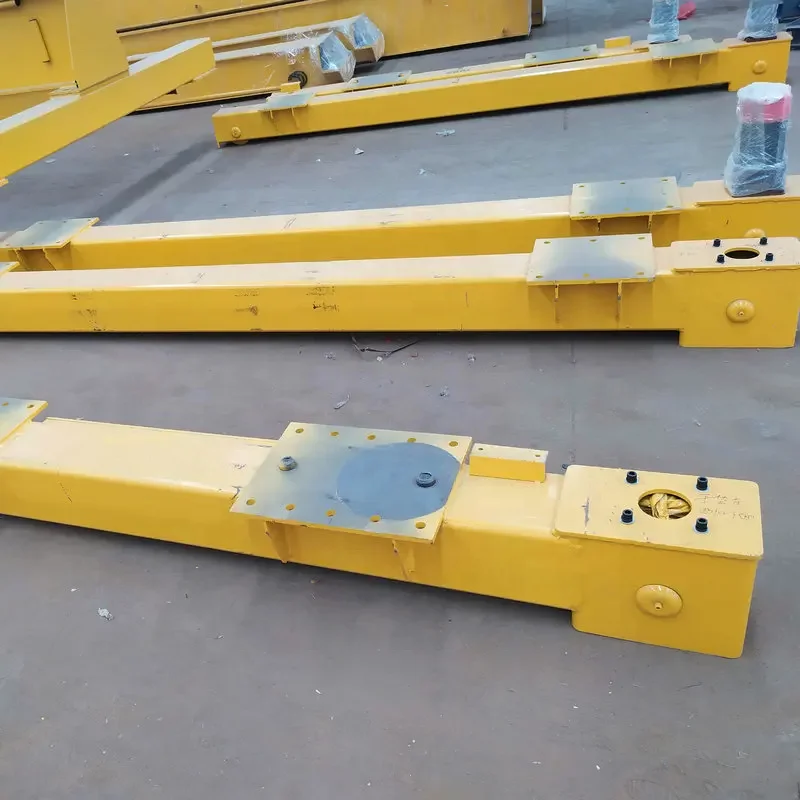

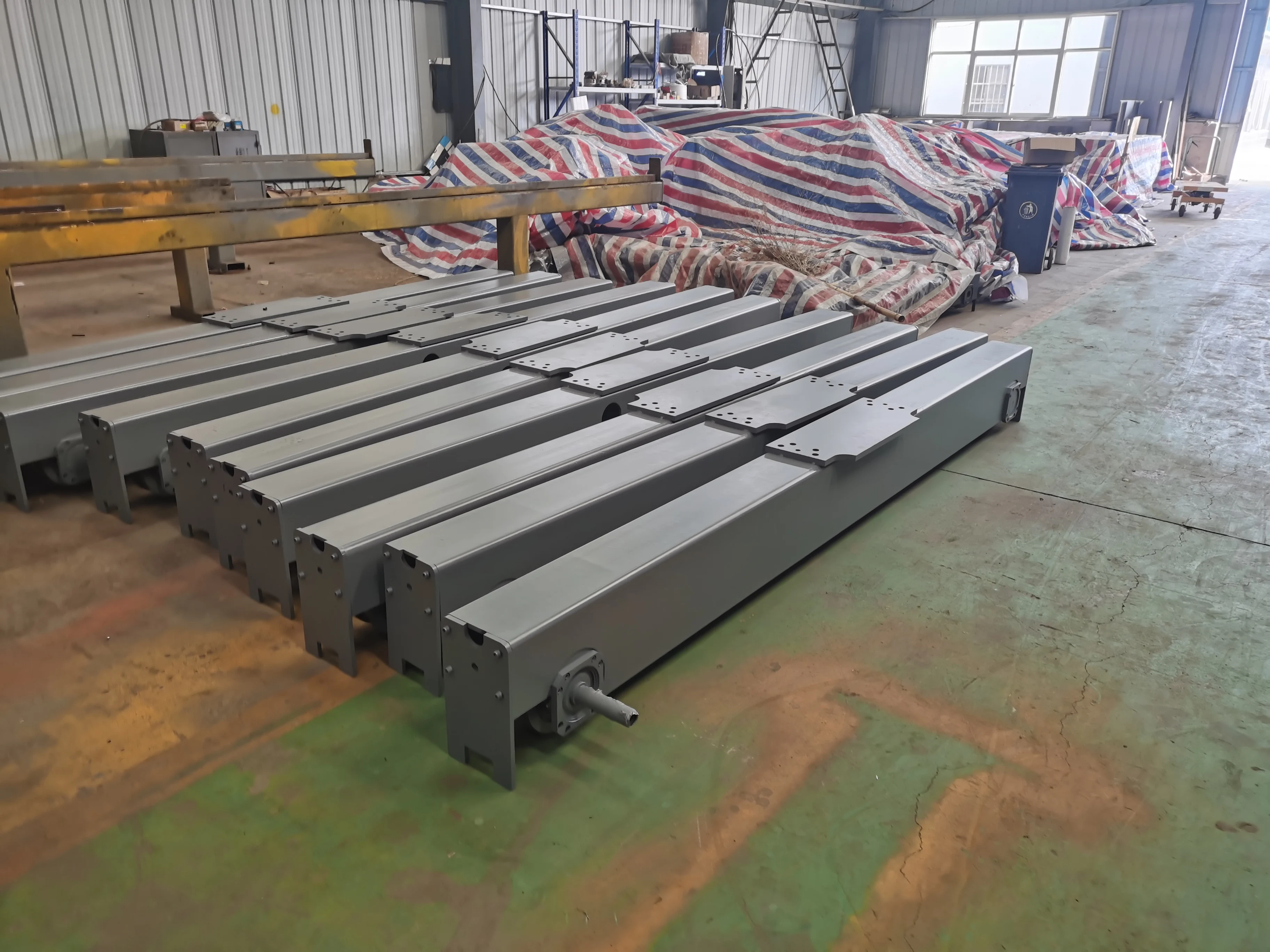

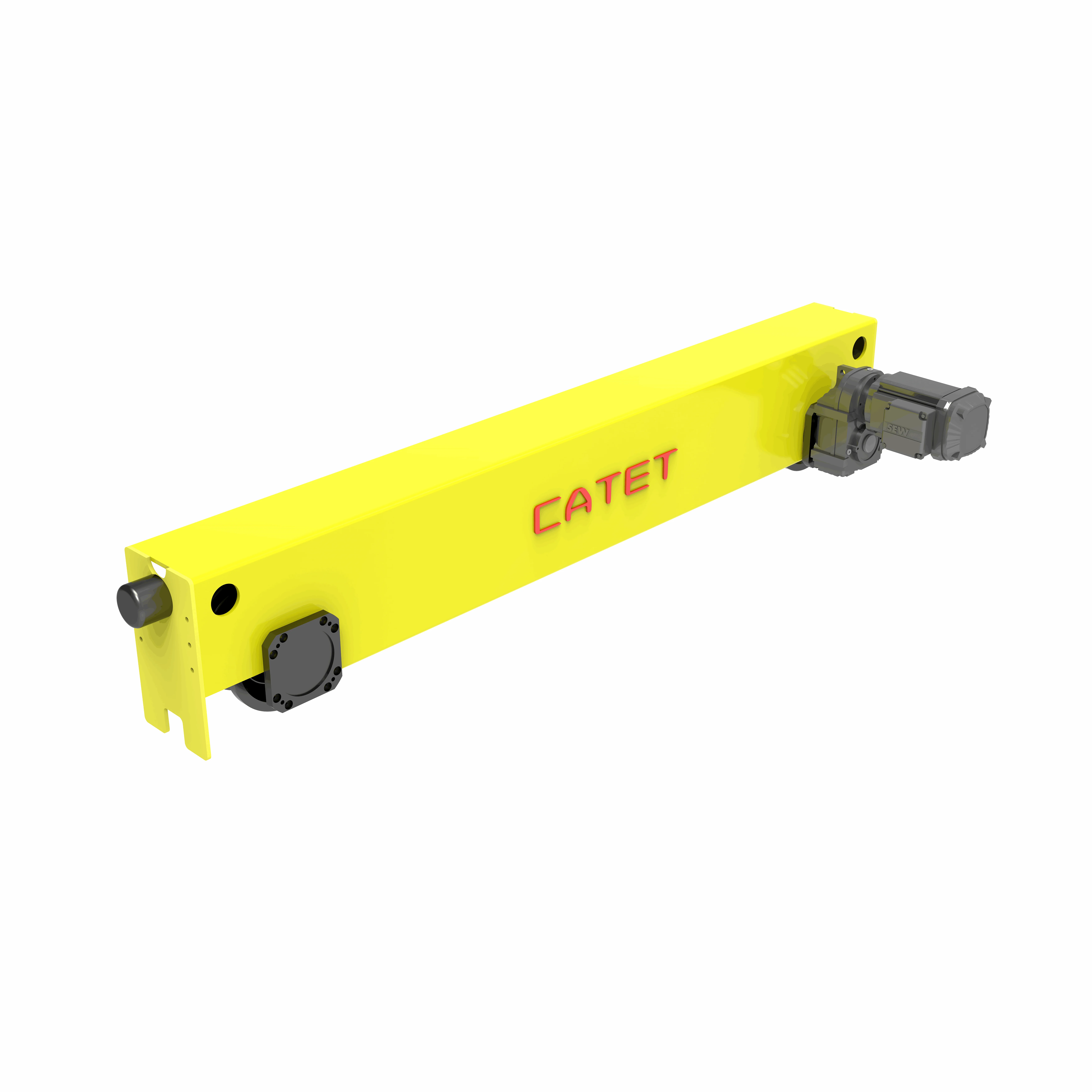

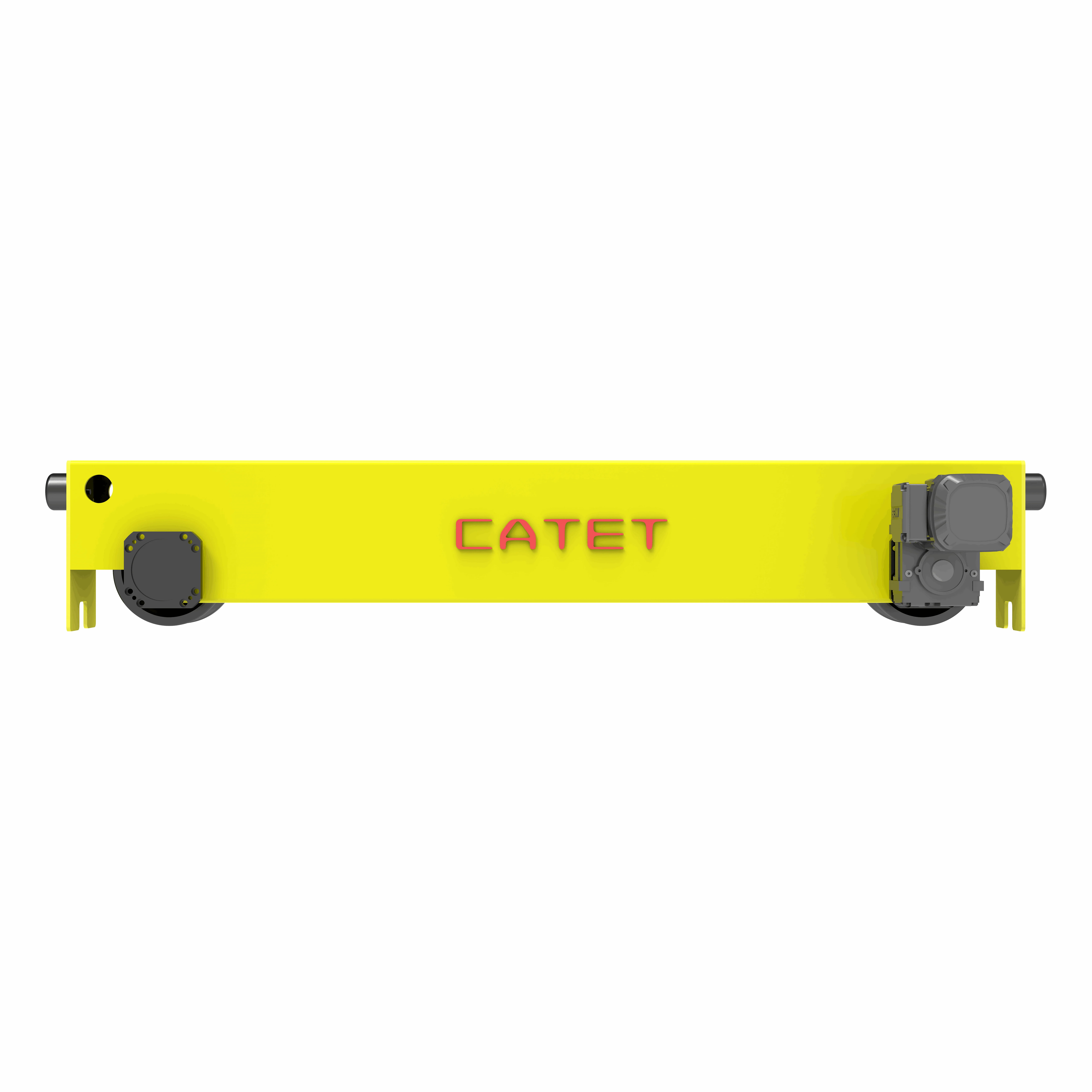

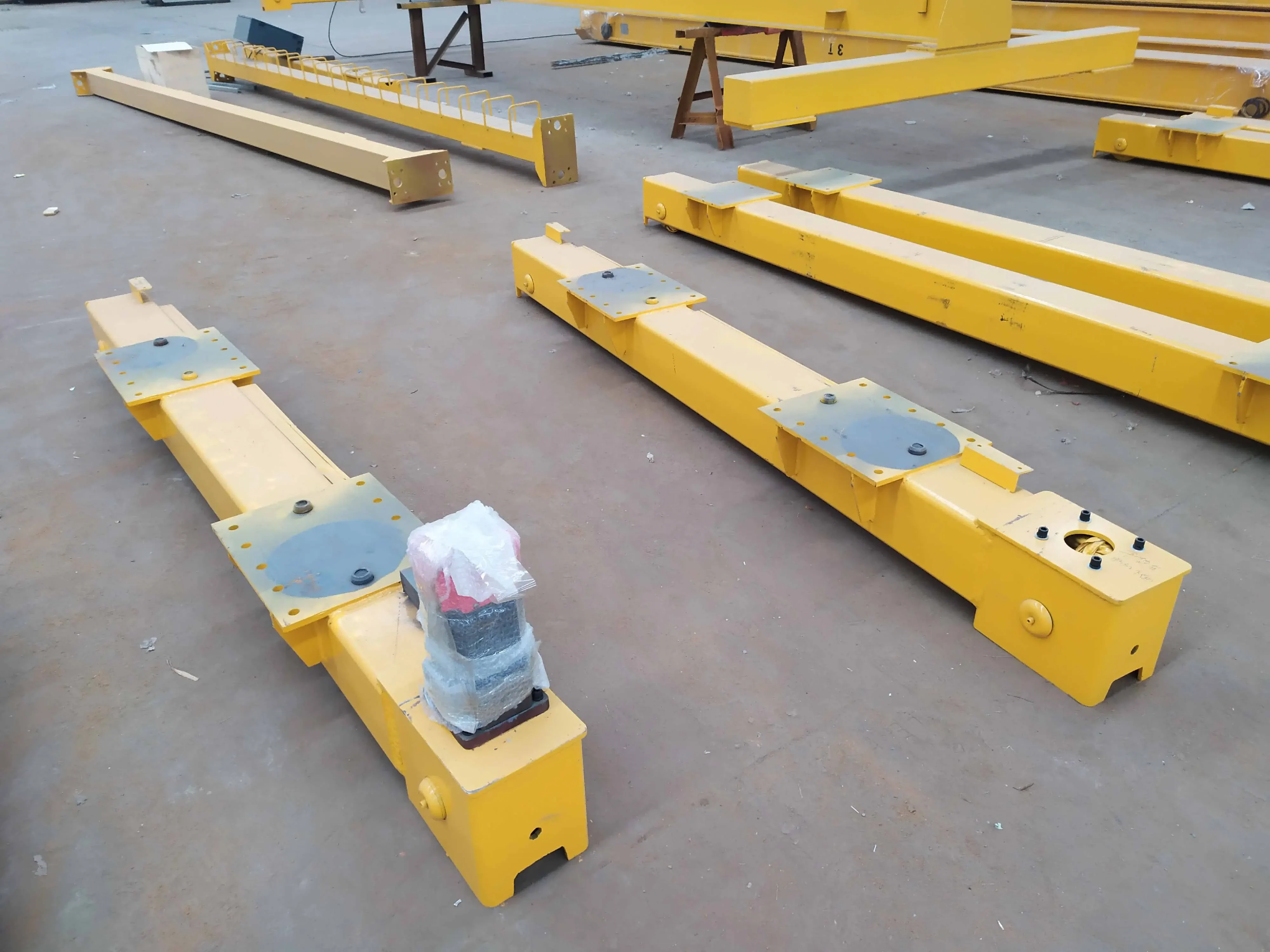

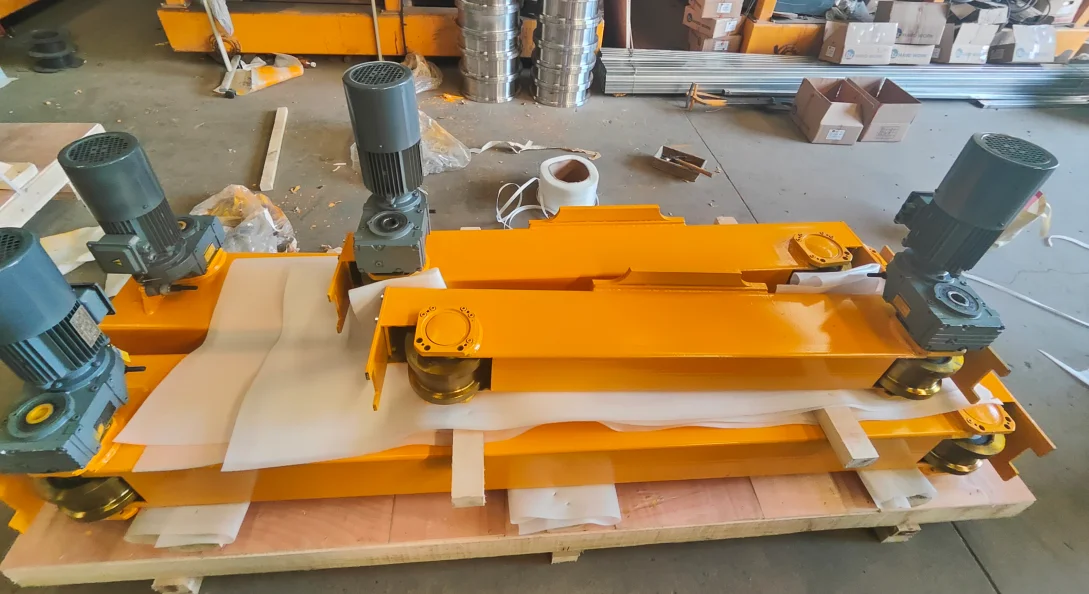

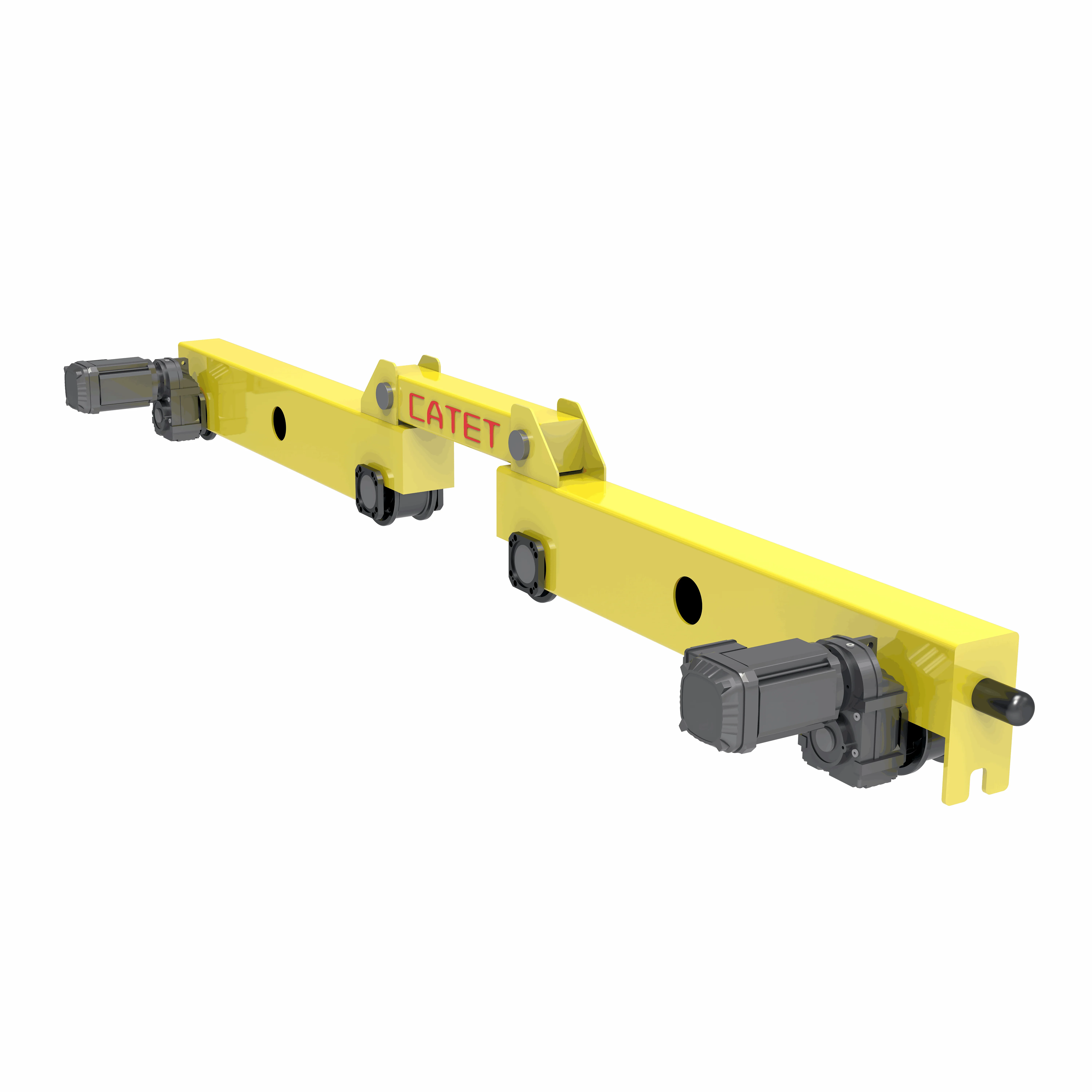

Crane End Beam End Carriage
Crane end carriages play a crucial role in supporting and guiding the movement of overhead cranes along the runway beams. They are essential components that help distribute the weight of the crane and its load, ensuring smooth and controlled operation.
Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures.
The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics – also for high loads. Their strengths in detail:
The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics – also for high loads. Their strengths in detail:
• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.
PRODUCT PARAMETERS | ||||
NUMBER | ITEM | PARAMETERS | ||
1 | Crane Type | for double beam crane or single beam crane | ||
2 | Lifting capacity | 1-200 tons | ||
3 | Lifting height | 1-20m | ||
4 | Working level | A3-A7 | ||
5 | Crane running speed | 0-20 m/min | ||
6 | Certifications | CE, ISO | ||
7 | Power supply | Depends on customer needs | ||
8 | Protection class | IP54, IP44 | ||
Main components

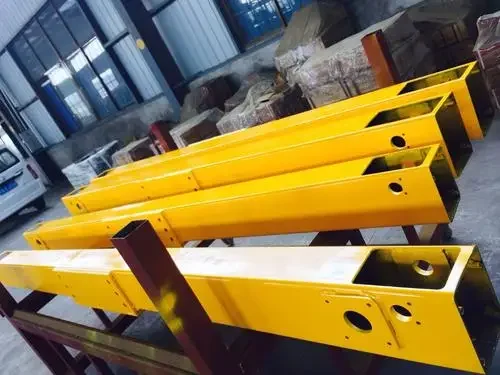

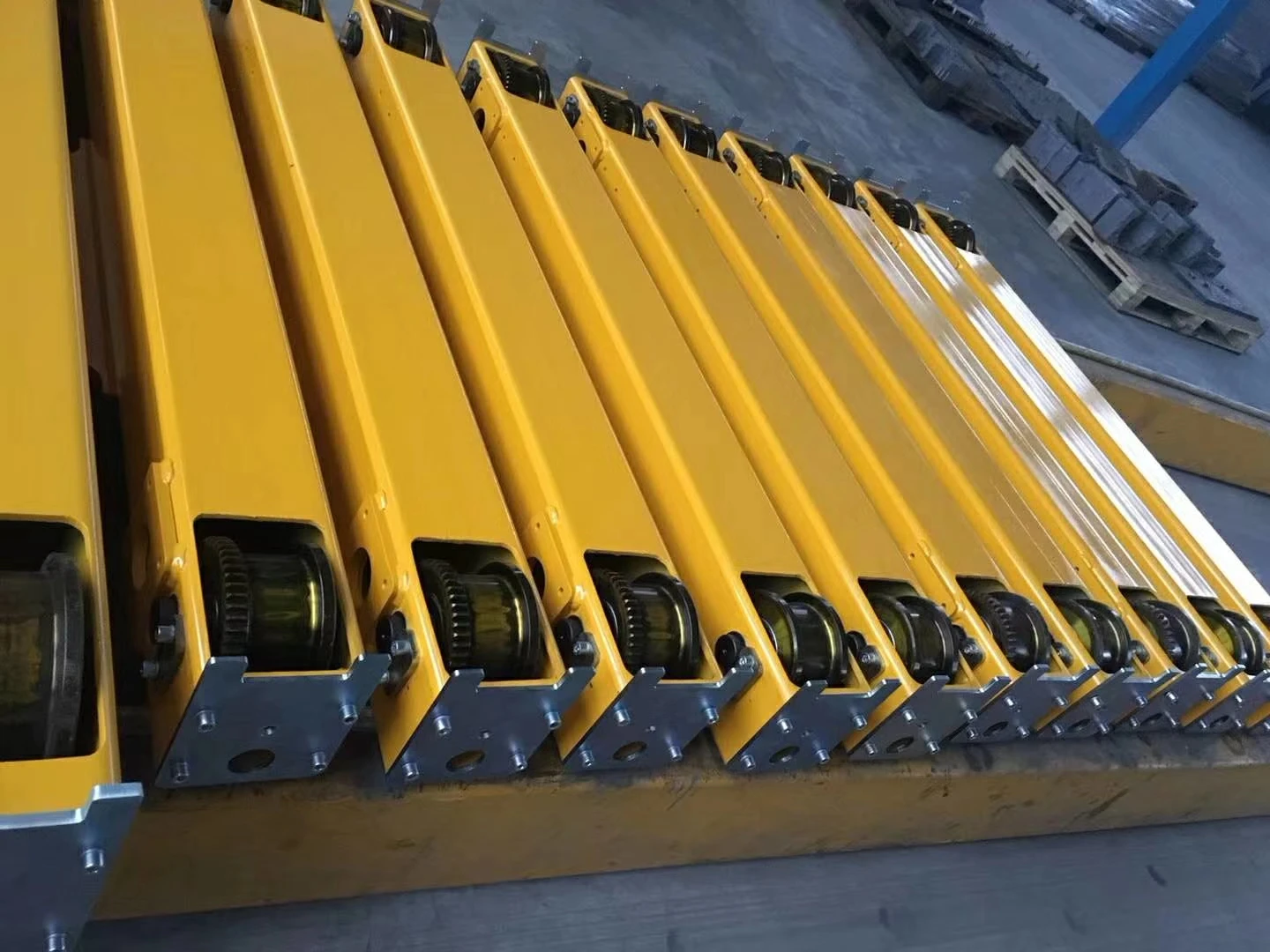

Box beam
Cross-sectional shape: "square box" shape is adopted. This structure has high rigidity and good bending resistance.
Material selection: usually made of high-strength steel plates to ensure sufficient mechanical strength. Common materials include Q345B, Q235B, etc.
Welding process: each component of the square box beam is welded with high quality to ensure the integrity and reliability of the beam.
Strengthening design: adding reinforcement ribs at key locations to improve the torsional and bending resistance of the beam.
Material selection: usually made of high-strength steel plates to ensure sufficient mechanical strength. Common materials include Q345B, Q235B, etc.
Welding process: each component of the square box beam is welded with high quality to ensure the integrity and reliability of the beam.
Strengthening design: adding reinforcement ribs at key locations to improve the torsional and bending resistance of the beam.

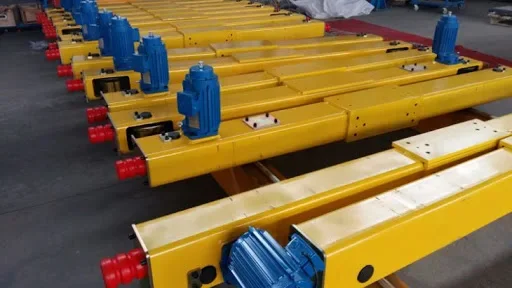

Drive Mechanism
■ The operating mechanism adopts a three-in-one drive system of motor, reducer, and brake to achieve three-in-one drive and improve the safety and reliability of the equipment.
■ The motor adopts a three-phase AC variable frequency motor.
■ The reducer adopts a hard tooth surface reducer.
■ The brake uses electromagnetic brake. Asbestos-free brake pads and brake discs are used.
■ The operating mechanism adopts a three-in-one drive system of motor, reducer, and brake to achieve three-in-one drive and improve the safety and reliability of the equipment.
■ The motor adopts a three-phase AC variable frequency motor.
■ The reducer adopts a hard tooth surface reducer.
■ The brake uses electromagnetic brake. Asbestos-free brake pads and brake discs are used.

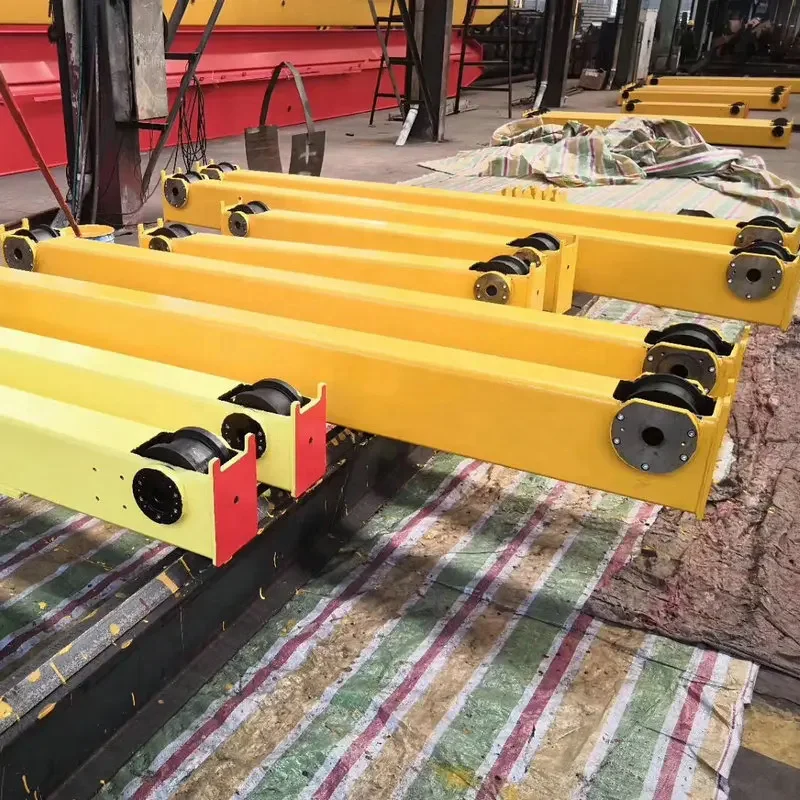

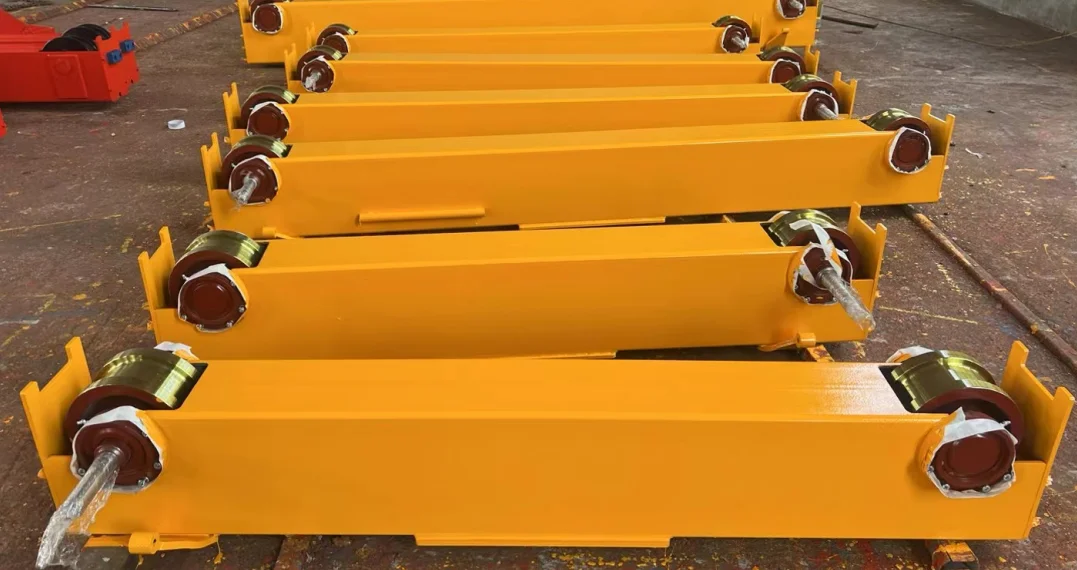

Wheel Part
■ The wheel is made of 40Cr or 42CrMo alloy steel, which is tempered as a whole, with high hardness, wear resistance,and long life.
■ It has the characteristics of high hardness, strong load-bearing capacity, wear resistance, and long life.
■ The bearing uses self-aligning bearing.
■ Adopts angle round box and buffer device.
■ Modular design to meet the needs of various customers.
HUAHANG TRANSPORTATION EQUIPMENT TECHNOLOGY(SHENZHEN) CO., LTD
CATET is affiliated to Dongqi Group, which was founded in 1987. It is an enterprise approved by the State Administration for Industry and Commerce to engage in the design, manufacture, installation and related services of various types of lifting and transportation machinery. The group has a total investment of 240 million yuan, more than 1,254 sets of various production and testing equipment, and more than 800 employees, including 2 doctoral supervisors, 2 overseas experts, 2 people enjoying State Council subsidies, 5 professor-level senior engineers, 25 senior engineers, 58 engineers, and more than 200 other management and technical personnel. The leading products are bridge cranes, gantry cranes, electric wire rope hoists, chain hoists, KBK modular cranes, cantilever cranes, electric transport vehicles, and various crane accessories. The company has passed CE, ISO and other international standard certifications. The products are widely used in machinery manufacturing, steel metallurgy, nuclear power, mining, hydropower engineering, highway and railway, electricity, automobile manufacturing, petrochemical, port logistics, shipbuilding and other material handling fields. The products are distributed throughout the country and in countries such as the United Kingdom, Russia, Dubai, Singapore, South Korea, Vietnam, Thailand, Kazakhstan, Iran, Mexico, Saudi Arabia and so on.
FACTORY AND WORKSHOP
Located in China's Crane Town - Changyuan City, Henan Province
CUSTOMER VISIT
Customer from Russia
Customer from UK
Customer from Dubai
CE,ISO,TUV......
Russia Moscow Construction Machinery Exhibition, Uzbekistan Construction Machinery Exhibition, Dubai Machinery and Engineering Machinery Exhibition, Vietnam Industrial Machinery Exhibition, etc......
Contains stretch film, waterproof colored plastic sheet, wooden box packaging.
FAQ
1. What products can you get from us?Overhead Crane, gantry Crane, Jib crane, KBK crane, track and trackless transfer cart,electric hoist, chain hoist, Agv robots, electric winch.etc.
2. How can we guarantee quality?
Our factory has passed the GB/T19001-2016/ISO9001: 2015 quality management system certification, all products comply with CE
certificates, guaranteed for 1-3 years.
3. Why should you buy from us not from other suppliers?
Bestaro Machinery Co., Ltd ( Huahang transportation) is a well-known professional manufacturer of cranes and handling equipments,
choosing us means quality and service are both guaranteed.
4. What services can we provide?
a.Professional sales team, inquiry will be responded within 24 hours.
b.Fast delivery.
c.professional research and design team,OEM and ODM are welcome.
5. How is your after-sales service?
a.guarantee the whole set machine for 12 months,
b.free parts would be sent during guarantee period if quality problem occurs.
c.lifelong technical consulting for free ,
d.low-maintaining cost service beyond guarantee.
e.long distance and on-site technical support even for overseas customers.
6.How about OEM & ODM?
Yes, we offer professional OEM & ODM service, we've cooperated with many world famous brands in different fields,such asSiemens,China Shipbuilding Industry Corporation, CRRC.etc.
