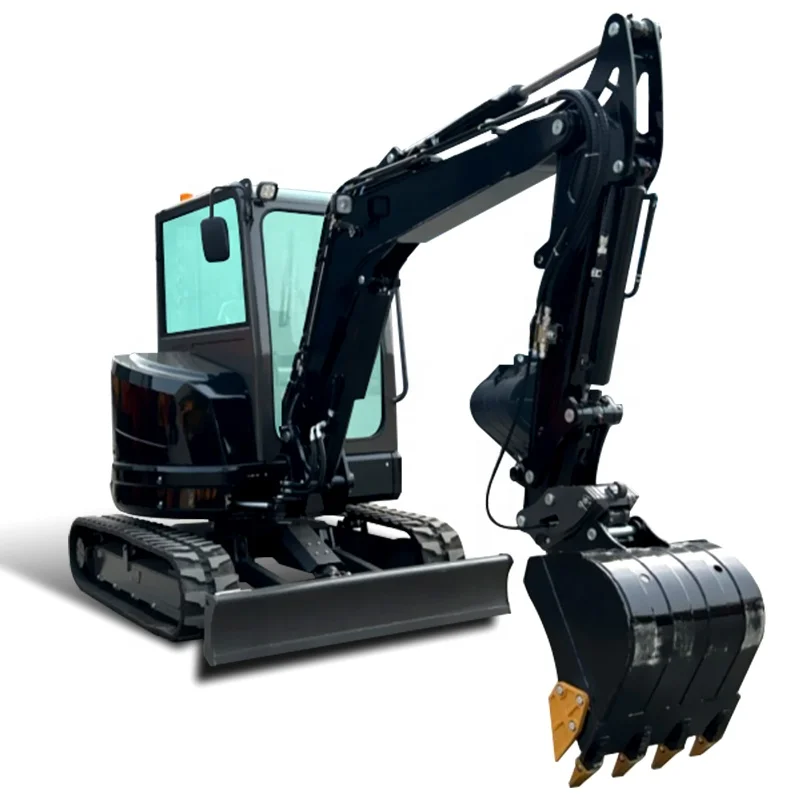

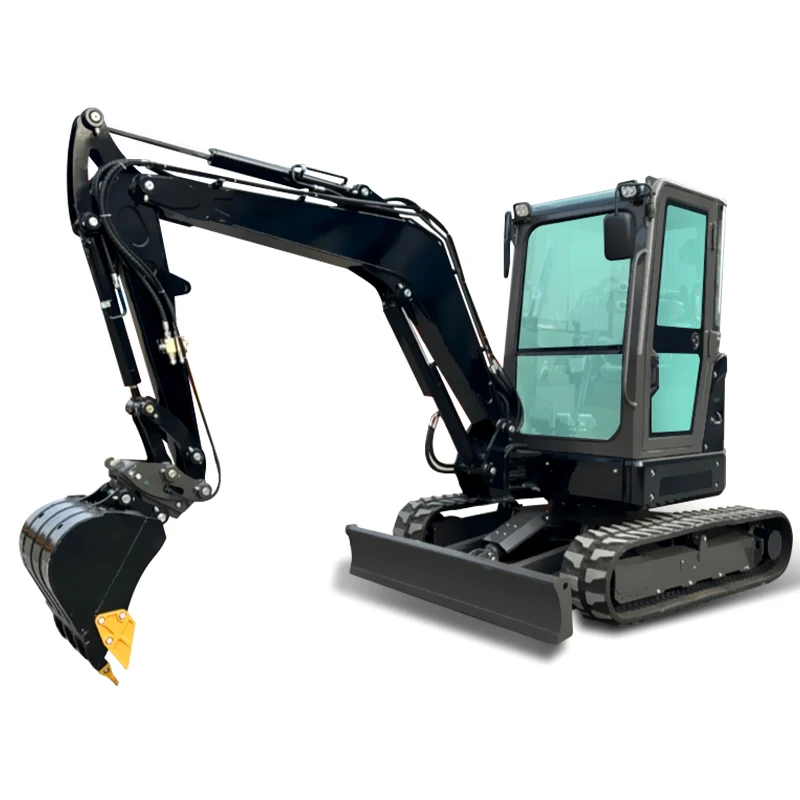

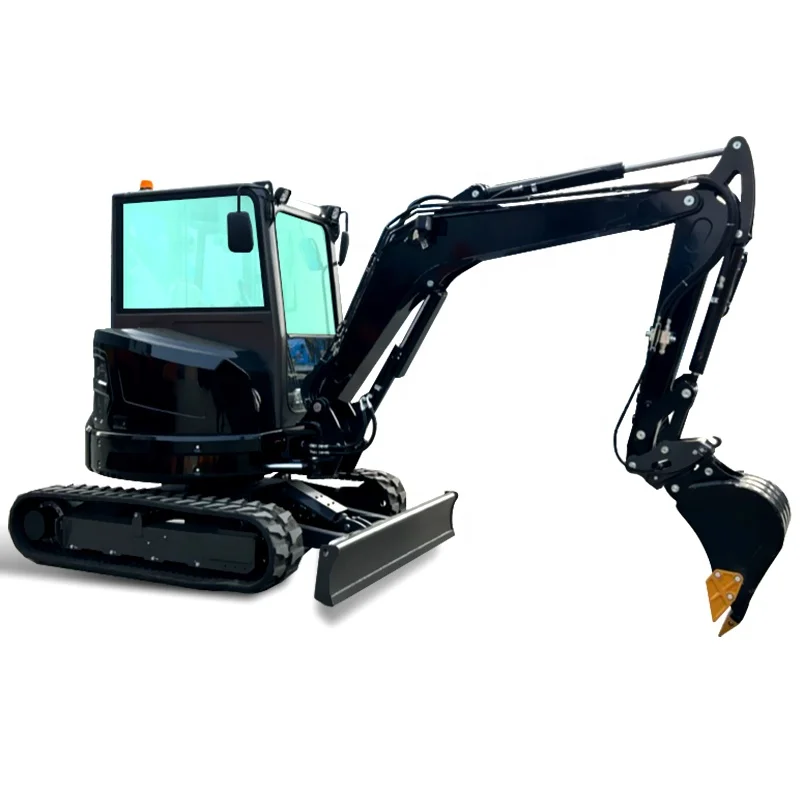

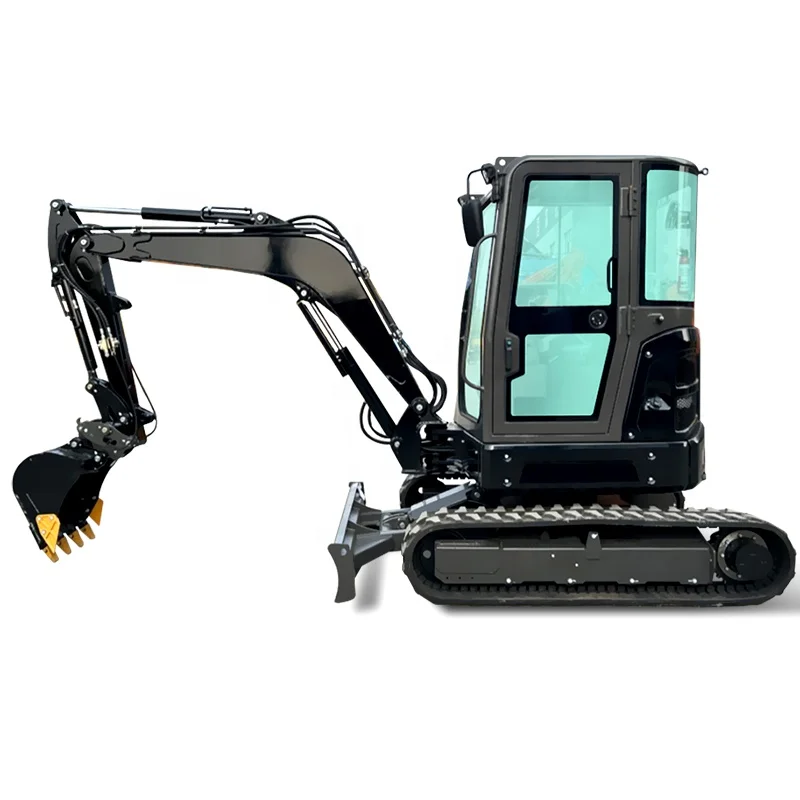

AWY35 3.5T Mini Crawler Excavator Factory Wholesale 3.5 Ton High Quality Mini Excavator for Home Use Retail and Farms
- Category: >>>
- Supplier: Shandong Aiweiya Machinery Co. Ltd.
Share on (1601074419047):
Product Overview
Description
Product Description
AWY Minibagger Kubota Engine 3.5 ton Mini Crawler Excavator
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine.
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful.
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower, the machine is powerful and can meet EPA,EURO V,CE certificates.
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine.
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful.
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower, the machine is powerful and can meet EPA,EURO V,CE certificates.

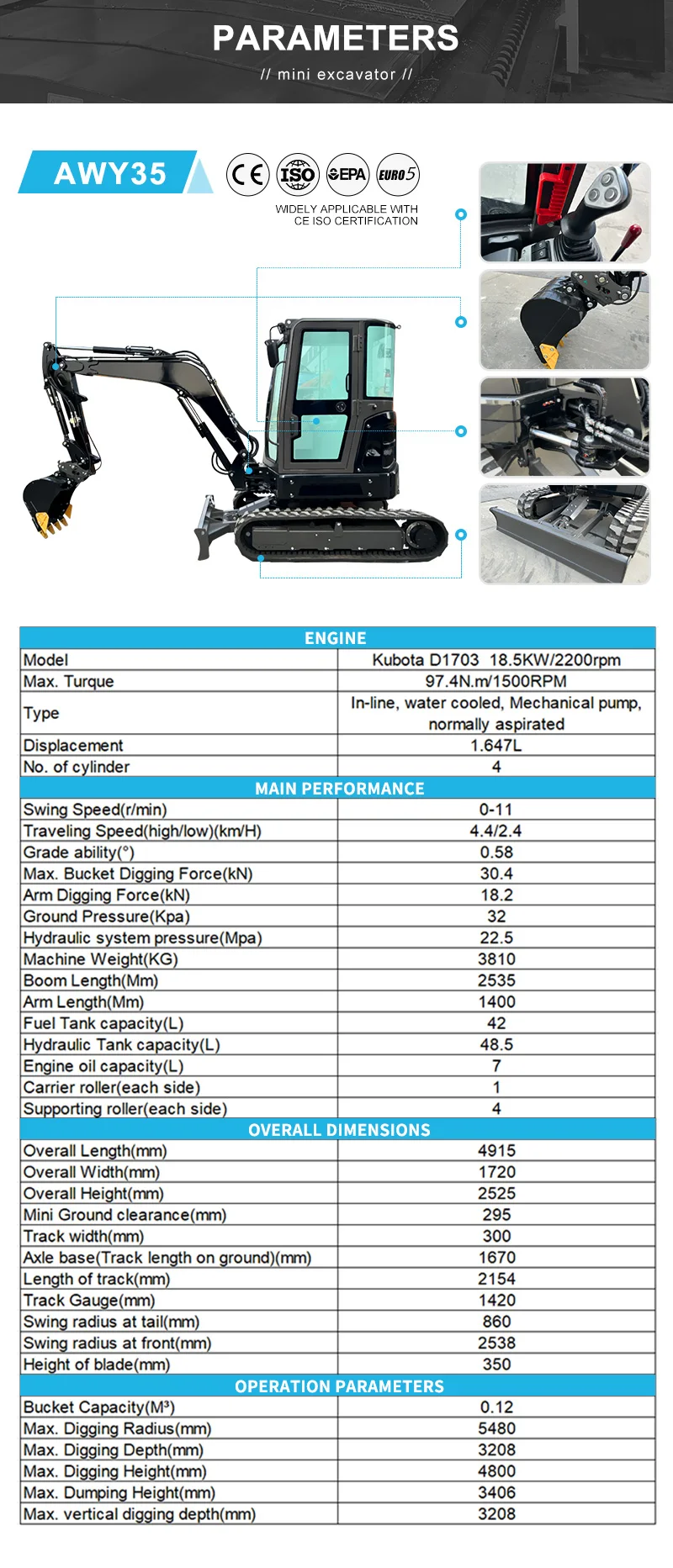

Specification
ENGINE | ||
Model | Kubota D1703 18.5KW/2200rpm | |
Max. Turque | 97.4N.m/1500RPM | |
Type | In-line, water cooled, Mechanical pump, normally aspirated | |
Displacement | 1.647L | |
No. of cylinder | 4 | |
MAIN PERFORMANCE | ||
Swing Speed(r/min) | 0-11 | |
Traveling Speed(high/low)(km/H) | 4.4/2.4 | |
Grade ability(°) | 0.58 | |
Max. Bucket Digging Force(kN) | 30.4 | |
Arm Digging Force(kN) | 18.2 | |
Ground Pressure(Kpa) | 32 | |
Hydraulic system pressure(Mpa) | 22.5 | |
Machine Weight(KG) | 3810 | |
Boom Length(Mm) | 2535 | |
Arm Length(Mm) | 1400 | |
Fuel Tank capacity(L) | 42 | |
Hydraulic Tank capacity(L) | 48.5 | |
Engine oil capacity(L) | 7 | |
Carrier roller(each side) | 1 | |
Supporting roller(each side) | 4 | |
OVERALL DIMENSIONS | ||
Overall Length(mm) | 4915 | |
Overall Width(mm) | 1720 | |
Overall Height(mm) | 2525 | |
Mini Ground clearance(mm) | 295 | |
Track width(mm) | 300 | |
Axle base(Track length on ground)(mm) | 1670 | |
Length of track(mm) | 2154 | |
Track Gauge(mm) | 1420 | |
Swing radius at tail(mm) | 860 | |
Swing radius at front(mm) | 2538 | |
Height of blade(mm) | 350 | |
OPERATION PARAMETERS | ||
Bucket Capacity(M³) | 0.12 | |
Max. Digging Radius(mm) | 5480 | |
Max. Digging Depth(mm) | 3208 | |
Max. Digging Height(mm) | 4800 | |
Max. Dumping Height(mm) | 3406 | |
Max. vertical digging depth(mm) | 3208 | |
Packing & Delivery

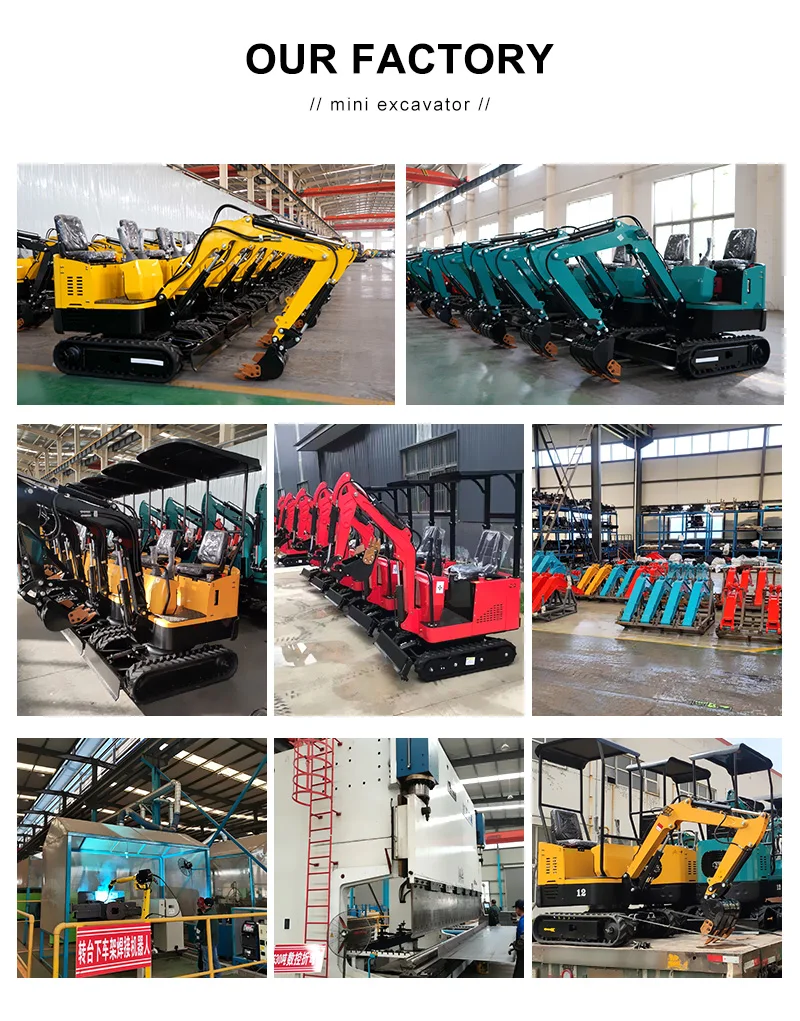

Company Profile
FAQ
Minimum order is 1 pc only, dealership is warmest welcome.
2, What's the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
