Hot Sale Medical Radiology Equipment 30KW Digital Xray System X Ray RX Radiography Price X Ray Machine
- Category: >>>
- Supplier: Shanghai Jingduan Technology Co. Ltd.
Share on (1601074820229):
Product Overview
Description
Features | ||||
1.3 0 0 /5 0 0 mA Digital X-Ray Radiography Machine is mainly used for medical examinations of human breasts, limbs, pelvis and lumbar vertebrae. 2.HF & HV- Generator controlled by microcomputer, the exposure conditions are stable and accurate, which meets the needs of clinical multi-position photography. 3. Operation interface liquid crystal display, simple and convenient position information and exposure parameter setting, x ray tube and the bucky are interconnected, easy to focus. 4. The tube capacity protection and fault self-diagnosis can be displayed in code form for convenient use and maintenance. | ||||
Main configuration | Technical Parameters | |||

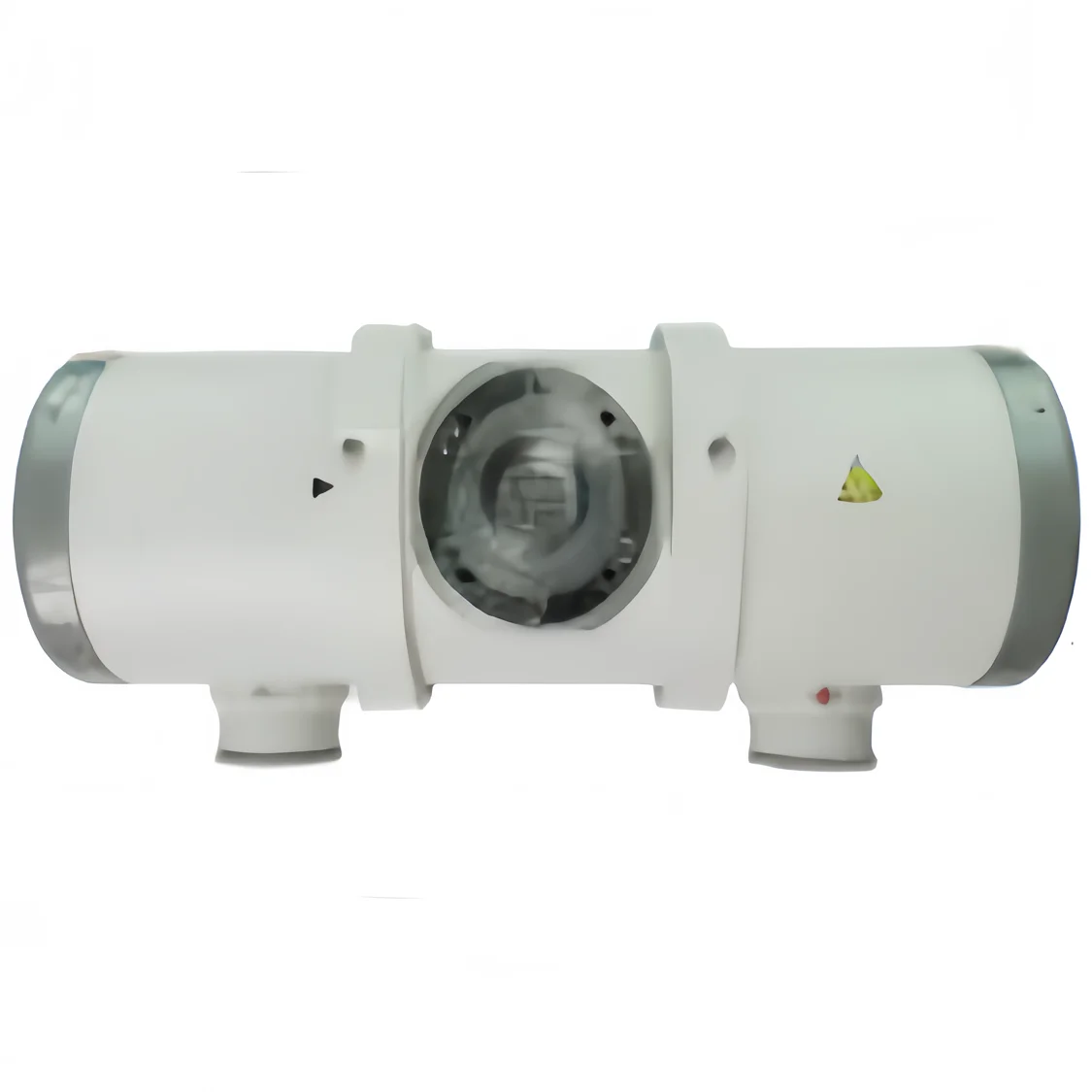

X ray tube | 1. X-ray tube mode：XD52-30.50/125KV.150kV XD52-20.40/ 125KV 2. Focus: Double focus 1×1 , 2×2 3. The rated speed of the anode is 2 8 0 0 r/ min | |||

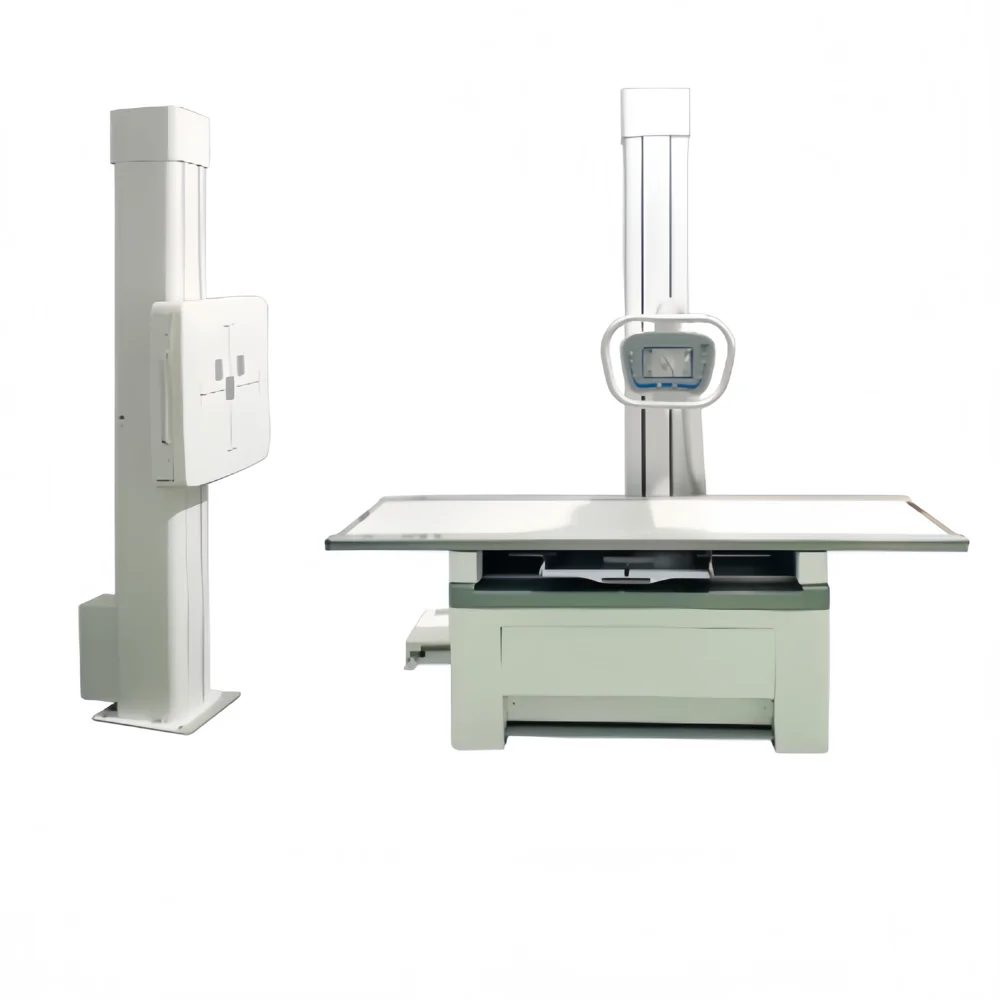

Multifunctional Radiology table | 1. Table surface movement: electromagnetic lock pedal release. Vertical: ± 560 m. Horizontal: ± 120 mm. 2. Fixed X- ray grid: Line: 40L/cm, Grid Ratio: 10: 1 , F.D:100cm. 3. Bucky Movement range: ≥610 mm. 4. Radiography specifications: 5 " x 7" , 8" x 10", 10" x 12", 11" x 14", 12" x 15", 14" x 14",14" x 17" 5. Table surface to film distance: 75 mm. 6. Table height: 700 mm. 7. Column movement: 180° every 90°positioning,longitudinal stroke≥1500 mm. | |||

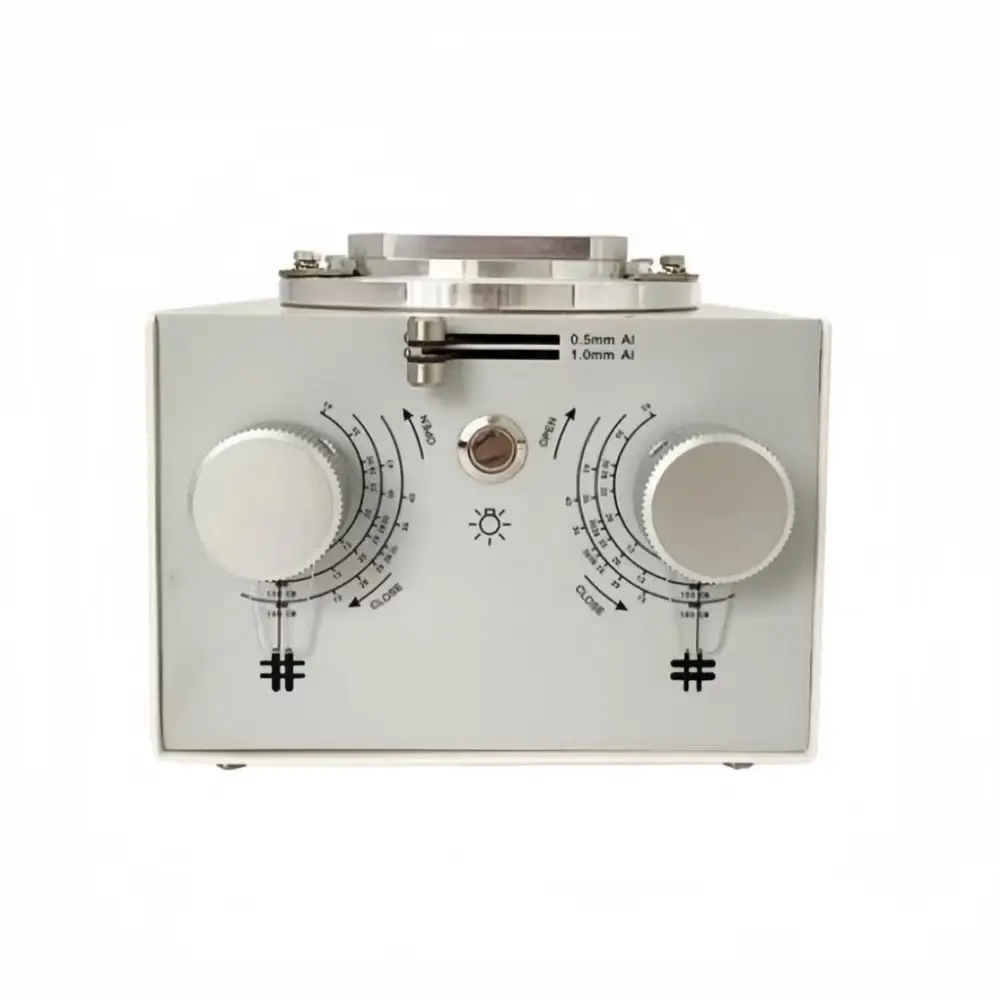

X ray collimator | 1. Max irradiation field: SID ( FFD) = 1000 mm, 440 mm x 440 mm. 2. Min irradiation field: 0x0 mm. 3. Inherent filter: 1 mm · Al/7 5 kVp 4. Additional filter: 1 mm · Al and 2 mm · Al 5. Lead leaf control mode: manual 6. Working power: 24 V AC/ DC, 15 0 W ( The lowest safe voltage) 7. Average brightness of light field:>160lux; 8. Contrast:>4:1; 9. Light bulb: 24V/150W; 10. Single lighting time of the field light: 30 seconds; 11. Focus installation surface distance mm (adjustable as required): 60mm; | |||

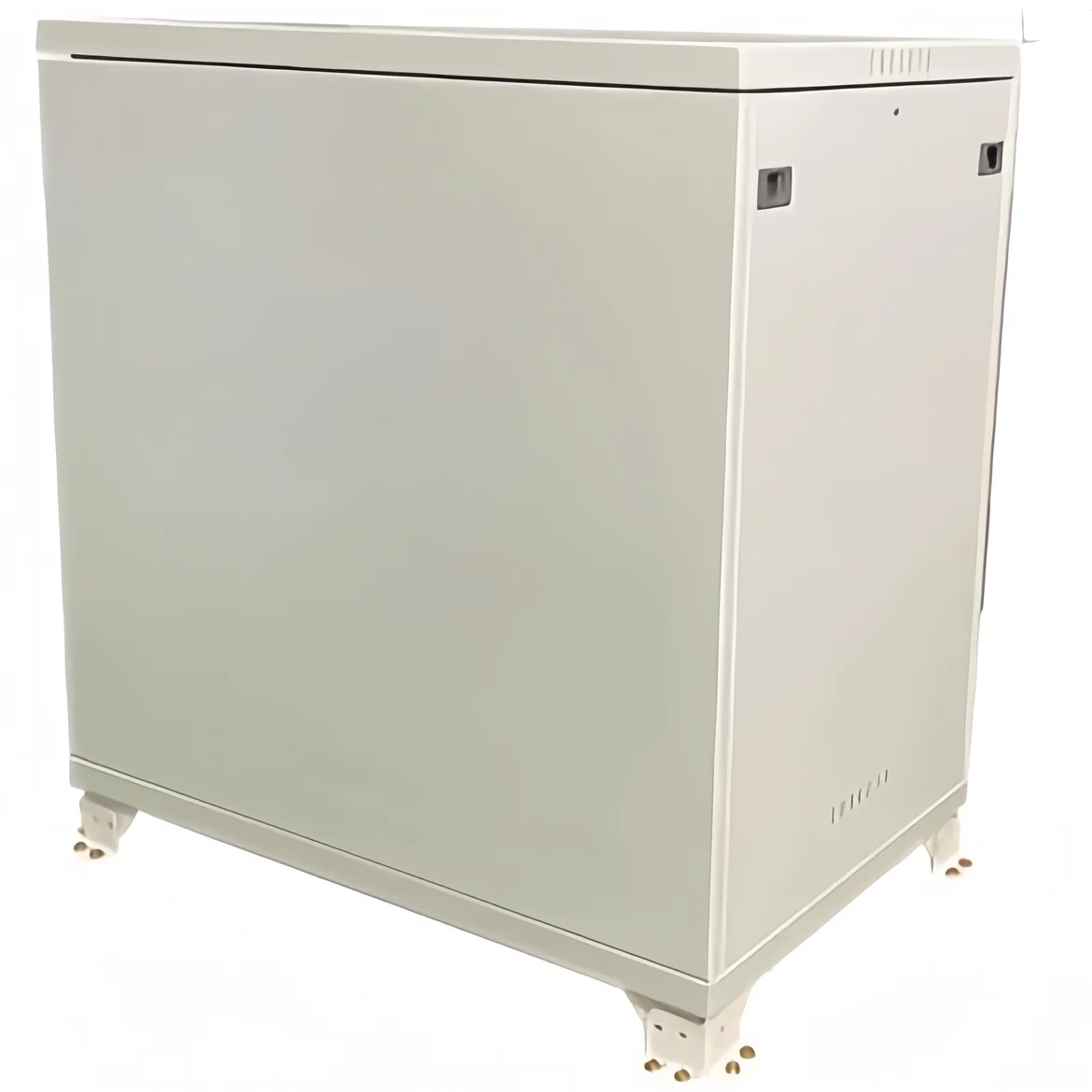

HV-Generator | Power Supply | Voltage: 380V/220V± 10% Frequency: 50 HZ± 1HZ Resistance: ≤0 .3 Ω | ||
Radiography Parameters | 1. Tube Voltage: 40~150kV, Stepping is 1KV 2. Tube Current: 50 - 320mA/10~640mA, Steps are adjustable. 3. Exposure Time: 2-5000ms/1-10000ms； 4. mAs range：1-250mAs/0.1-640mAs； 5. mAs accuracy ≤ ±5%+0.2 mAs 6. APR storage capacity: 2 4 0 0 data 7. Auxiliary output power：24VDC 2A 220VAC 5A / 24VDC 300mA 220VAC 5A | |||

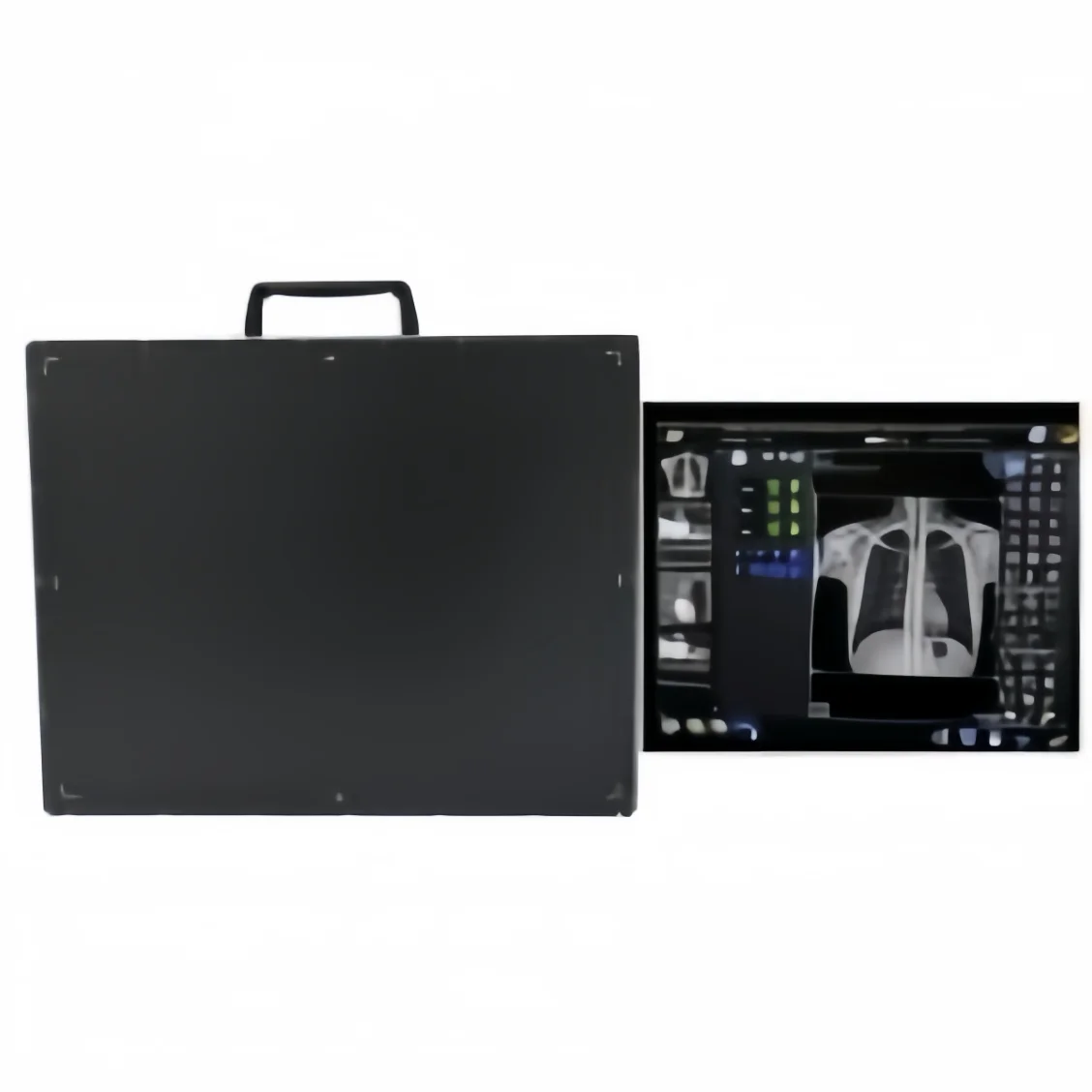

Digital flat panel detector | 17 ”×17” wired flat panel detector 1. Detector technology: a-Si 2. Scintillator: CsI 3. Image size: 430 × 430 mm 4. Pixel matrix: 3072 × 3072 5. Pixel pitch: 139µm 6. A / D conversion: 16bit 7. Spatial resolution: 3.6 LP / mm 8. Image acquisition time: 1s 9. Dimensions: 460 × 460 × 14.8 mm 10. Detector Weight :3.4kg | |||
