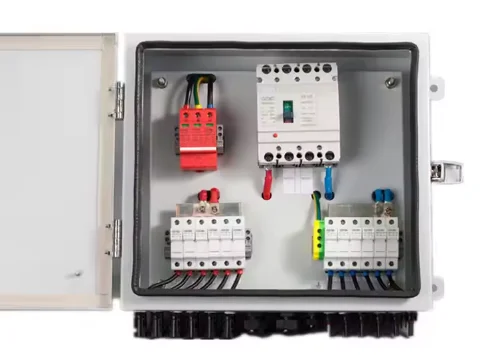

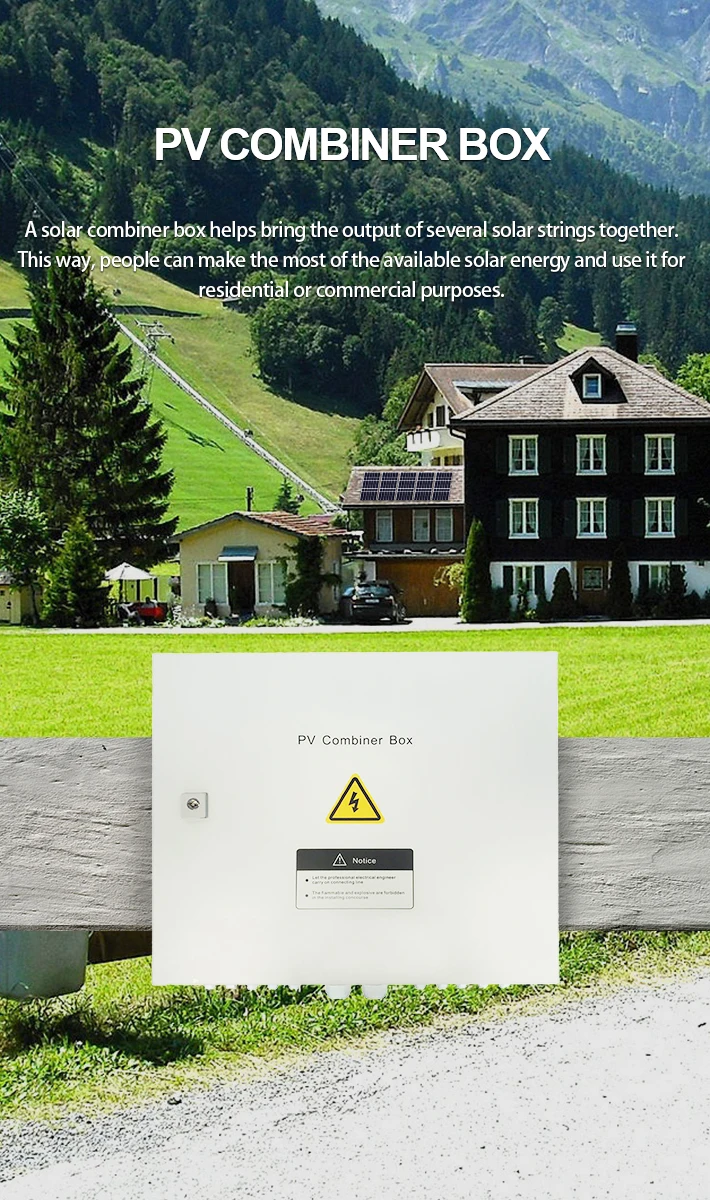

Customized 4 In 2 Out 1000v DC PV Combiner Box for Homeuse Solar Energy System Solar Related Products
- Category: >>>
- Supplier: YUEQING L&R NEW ENERGY CO. LTD.
Share on (1601076713743):
Product Overview
Description

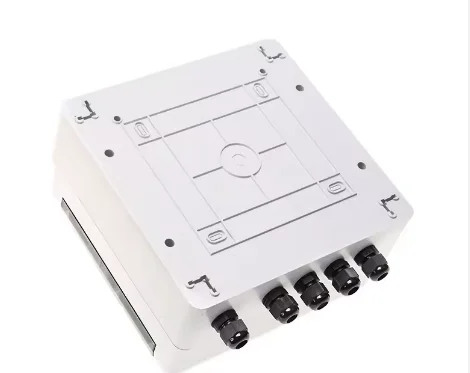

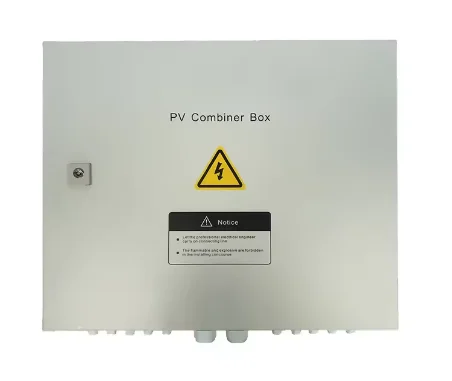

Robust Enclosure
The waterproof grade is IP65. You can use the item outdoors, and don't worry about it on rainy days. The
shell is made of stainless steel, durable and not easily damaged.

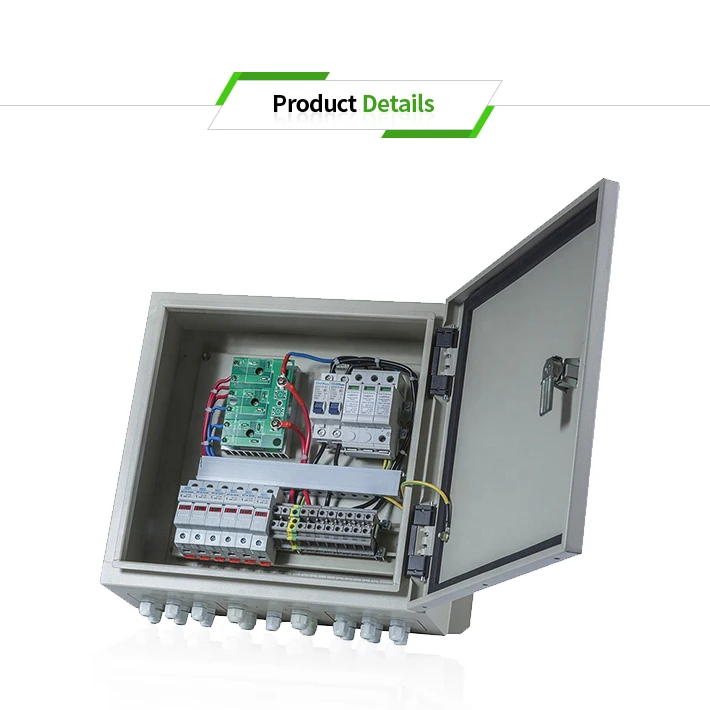

Detail
Open the details to see the quality. The fine and beautiful details are the guarantee of a product and the intention of the user.

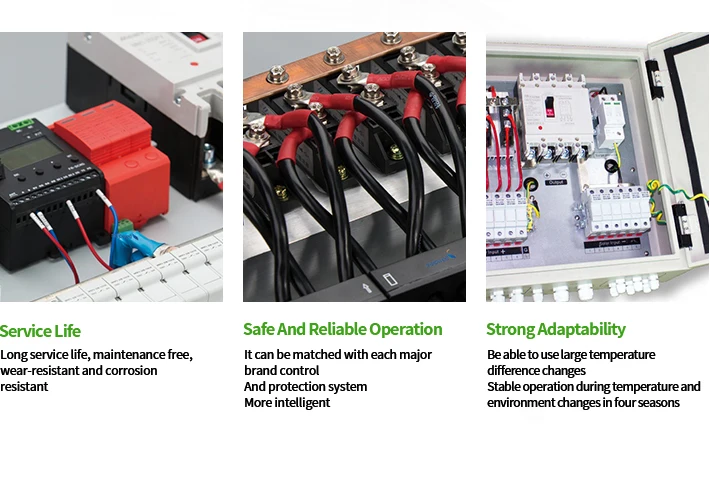

Protection
Bring better use to the product, bring a better sense of
use and experience to customers.

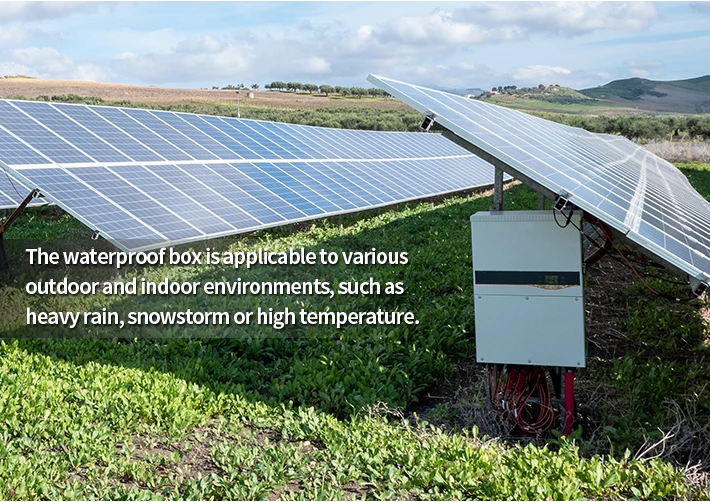

Widely applicable

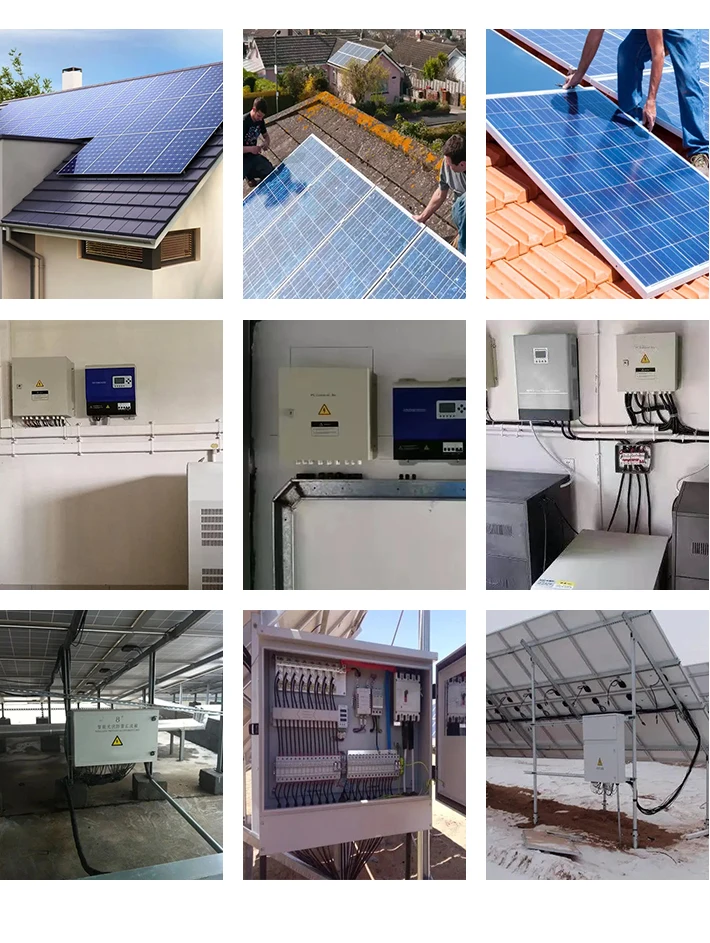

It is widely used indoors and outdoors, not afraid of wind and snow, and different needs require more choices.
THE THIRD GENERATION COMBINER BOX
♦The first generation combiner box only has the function of confluence and lightning protecction.
♦The second generation combiner box can monitor each current and voltage, and detect the temperature and humidity in the combiner box.
♦In addition to the advantages of the previous two generations, the third generation combiner box can also provide failure alarm, data collection and wireless data transmission.
♦The second generation combiner box can monitor each current and voltage, and detect the temperature and humidity in the combiner box.
♦In addition to the advantages of the previous two generations, the third generation combiner box can also provide failure alarm, data collection and wireless data transmission.

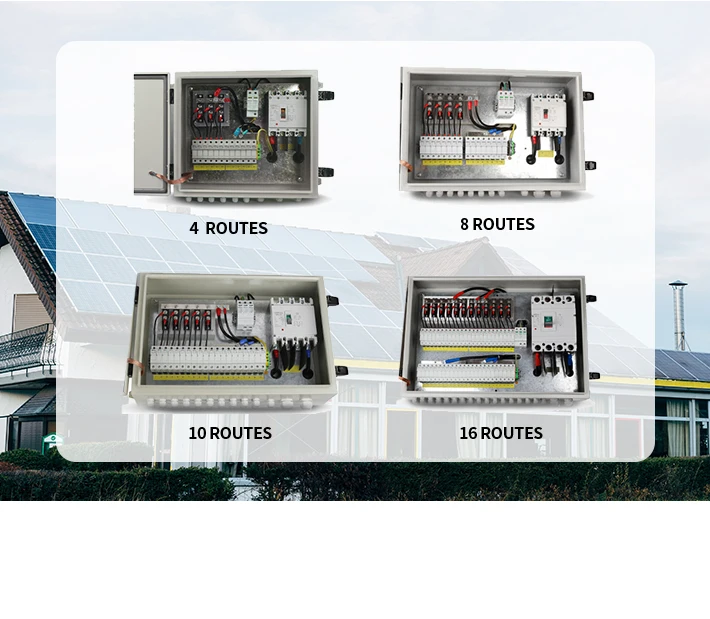

CUSTOMIZED CIRCUITS OF VARIOUS SIZES
♦Customize the required size and line according to your own needs.
♦4-way, 8-way,12 way and 16 way standard specifications and models can be connected to 4-way,8-way,12 way and 16 way solar cell strings,and the size of no circuit current nozzle can reach 10A.
Model | FU-CB24 | FU-CB16 | FU-CB12 | FU-CB8 | |||||
Input channel number | 17~24 | 13~16 | 9~12 | 5~8 | |||||
Max. input voltage | 1000Vdc | ||||||||
Input current of each channel | 0~20A | ||||||||
Max. output current | 250A | 160A/200A | 100A/125A/160A | 96A | |||||
Monitoring module (optional) | Detect current of each channel, bus voltage, status of circuit breaker and ightning protector, box temperature | ||||||||
Communication mode/ protol(loptional) | Rs485 bus/ standard MODBUS-RTU protocol | ||||||||
Prevent-reverse function | Can be equipped with modularized and encapsulated prevent-reverse diode (optional) | ||||||||
Temperature and humidity | Operating temperature: -40-+85°C, humidity 95%,places free of dew or corrosive gas. | ||||||||
Power consumption of monitoring module | Working hours=8W | ||||||||
Axiliary power supply | Auxiliary power supply: AC85V-265V/ DC24V(±10%)/ DC200V-1000V | ||||||||
Box material | Hot galvanized stee/ stainless stel/ cold rolled sheetlengineering plastics | ||||||||
Protection level | IP65 | ||||||||
COMPANY PROFILE
YUEQING L&R NEW ENERGY CO LTD.
It is a high-tech enterprise focusing on photovoltaic system,provide customers with one-stop off network service.
Main production and sales: inverter,photovoltaic panel,battery, controller and other photovoltaic module products.
The company has production bases and sales centers in Jiangxi,Zhejiang,Uganda,Tanzania and other places.
It is a high-tech enterprise focusing on photovoltaic system,provide customers with one-stop off network service.
Main production and sales: inverter,photovoltaic panel,battery, controller and other photovoltaic module products.
The company has production bases and sales centers in Jiangxi,Zhejiang,Uganda,Tanzania and other places.
WORLD TRADE
Our products have operated safely in power supply systems in more than 20 countries and regions around the world for more than 10 years.They are also qualified suppliers of China State Grid and China Southern Power Grid. At present, they have gained a good reputation in the field of power system in the world.
It has received high-quality product promotion from power supply companies in Kenya, Uganda, Tanzania, Zambia, Guinea,Ghana,Togo,Mozambique,Nepal,Guyana,Myanmar and other countries and regions.
It has received high-quality product promotion from power supply companies in Kenya, Uganda, Tanzania, Zambia, Guinea,Ghana,Togo,Mozambique,Nepal,Guyana,Myanmar and other countries and regions.
OUR ADVANTAGES
Our products has been sold worldwide in more than 20 countries and regions, and being operated safely in the power system for more than 15 years.
We have achieved good reputation in the field of power systems in the world and received numbers of excellent reference letters from different power and electricity departments from all over the world.
We have achieved good reputation in the field of power systems in the world and received numbers of excellent reference letters from different power and electricity departments from all over the world.

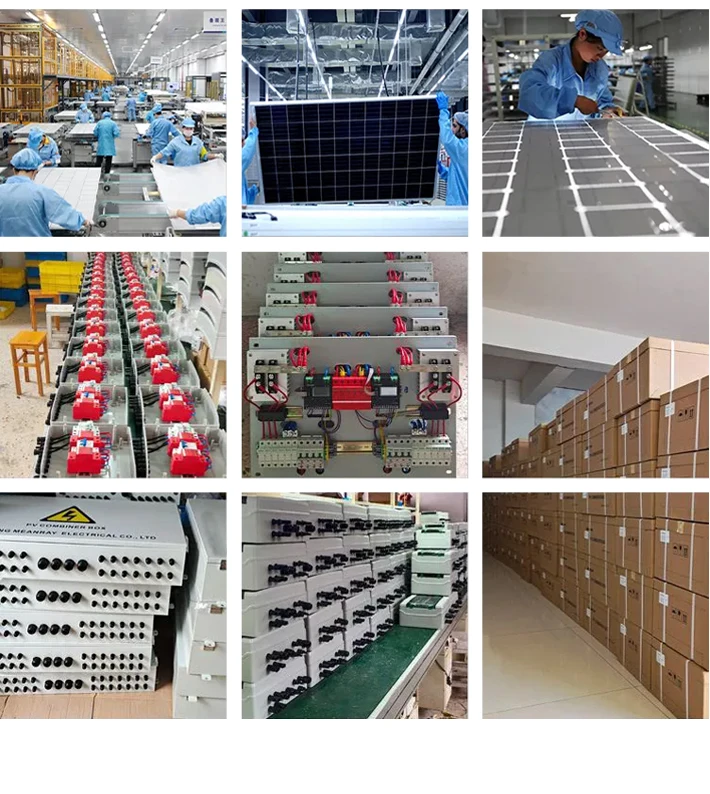

Workshop
Certifications
Our products have gotten the certificates of European CE,ISO9001,RoHS and IATF16949
