SUS304 SS316 Stainless Steel DIN 5685A Short Link Chain
- Category: >>>
- Supplier: Jiangsu Gostern Rigging Co. Ltd.
Share on (1601079724510):
Product Overview
Description
Product Description
Porduct name | SUS304 316 stainless steel short link chain |
Standard | DIN5685A |
Material | SUS304/316 |

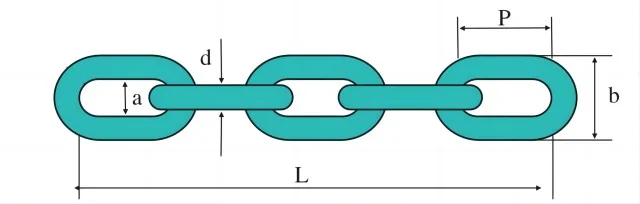

DIAMETER d (mm) | INNER LENGTH P (mm) | INNER WIDTH a (mm) | WEIGHT (kg/m) |
2 | 12 | 4 | 0.071 |
2.5 | 14 | 5 | 0.114 |
3 | 16 | 6 | 0.165 |
3.5 | 18 | 7 | 0.230 |
4 | 19 | 8 | 0.300 |
5 | 21 | 10 | 0.500 |
6 | 24 | 12 | 0.730 |
7 | 28 | 14 | 1.000 |
8 | 32 | 16 | 1.300 |
9 | 36 | 18 | 1.650 |
10 | 40 | 20 | 2.050 |
12 | 48 | 24 | 2.900 |
13 | 52 | 26 | 3.450 |
Detailed Images
DIN5685A Short link chain which with welded links, for various applications.
DIN5685A Short link chain is made in accordance with this standard have not been tested for strength and must not be used as bearing element, for lifting or supporting purposes or for the static suspension of loads.

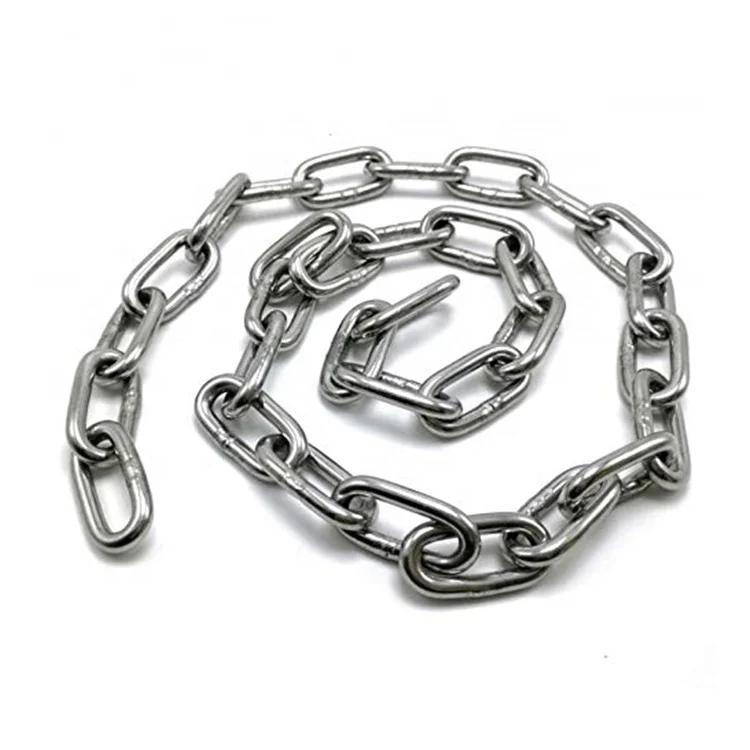

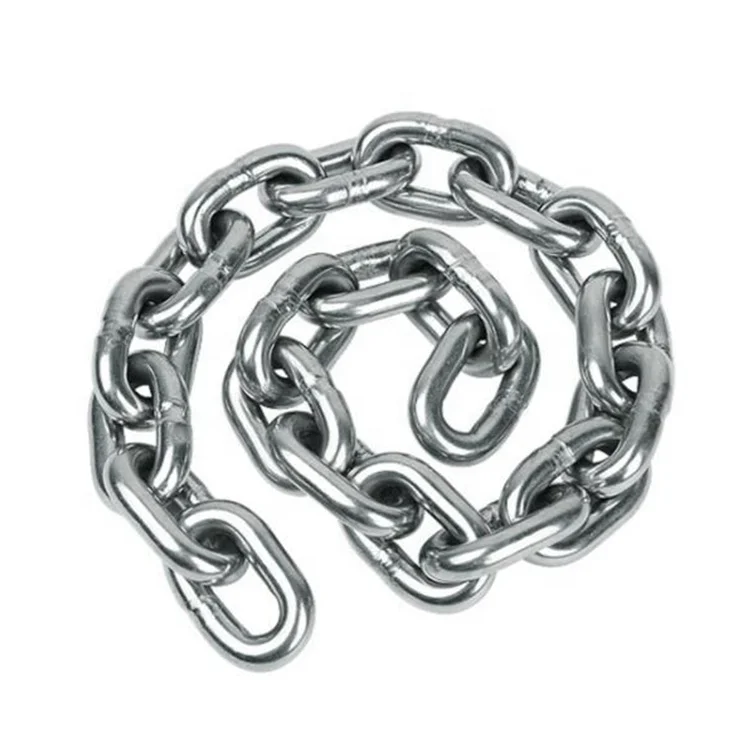

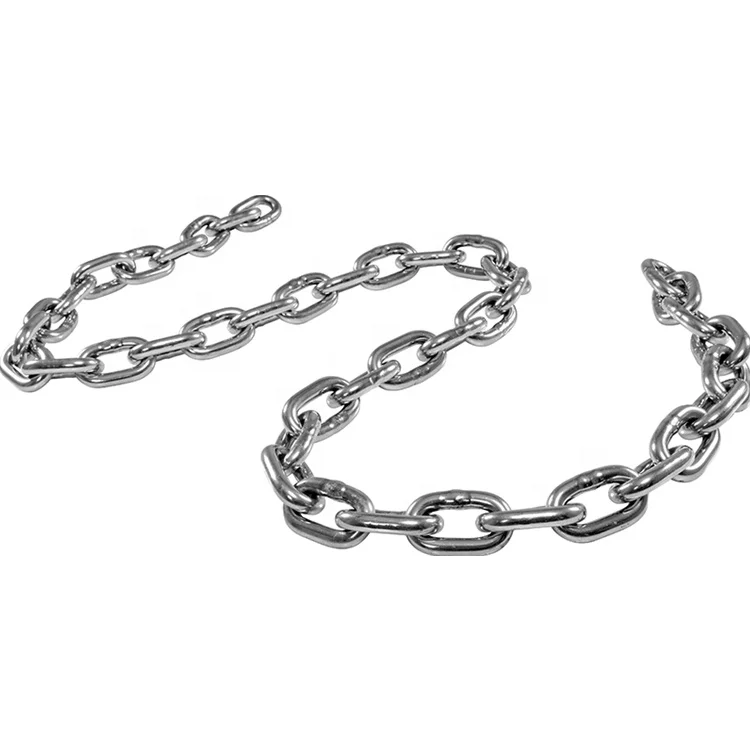

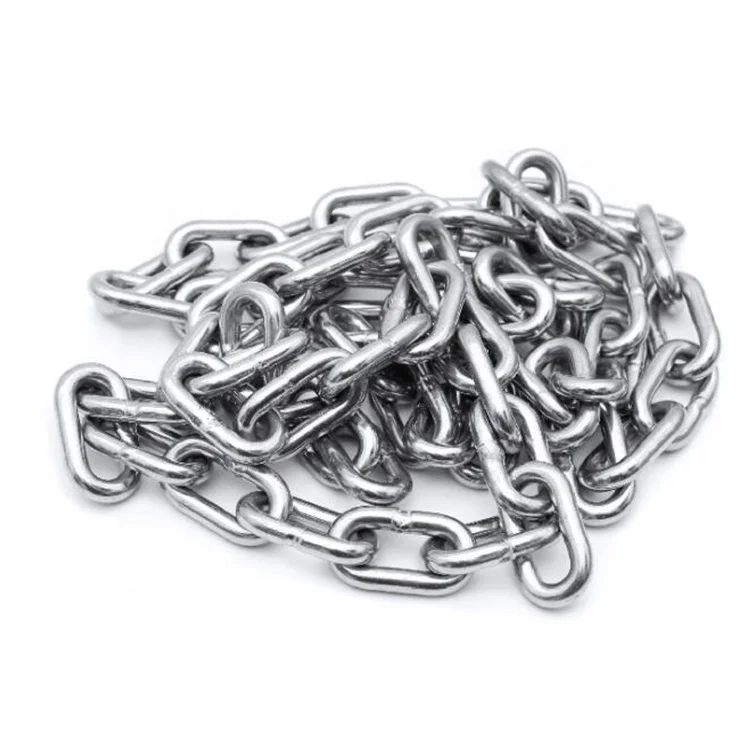

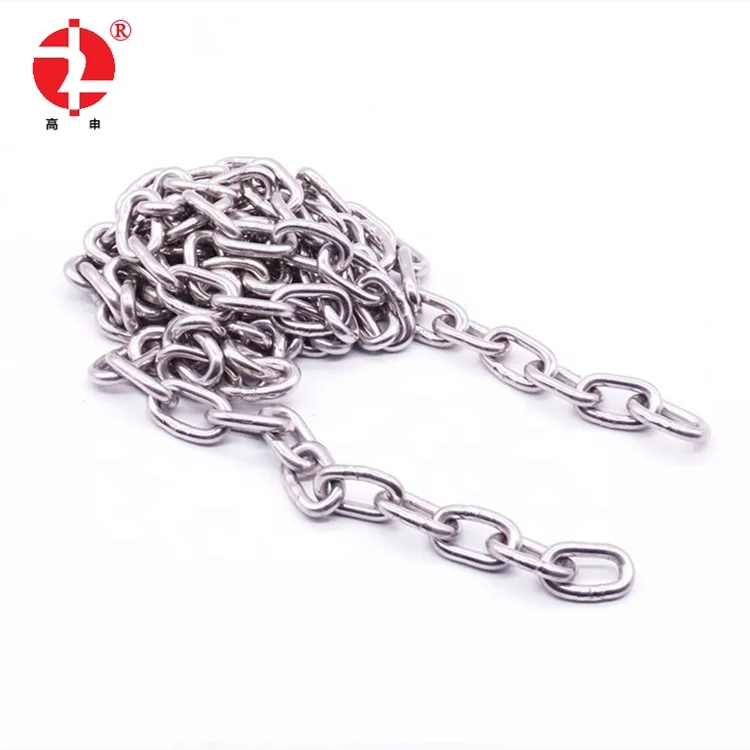

DIN5685A short link chain
material: SUS304/316
Length can be customized as required
