Suron Upgrades 17KW Motor 72V 60V Sur on Light Bee X Parts Talaria E Dirt Bikes Adult Motorcycle Electric Motor Spare Parts
- Category: >>>
- Supplier: Zhejiang Elyxon Smart Technology Co. Ltd.
Share on (1601082937187):
Product Overview
Description
Product Description

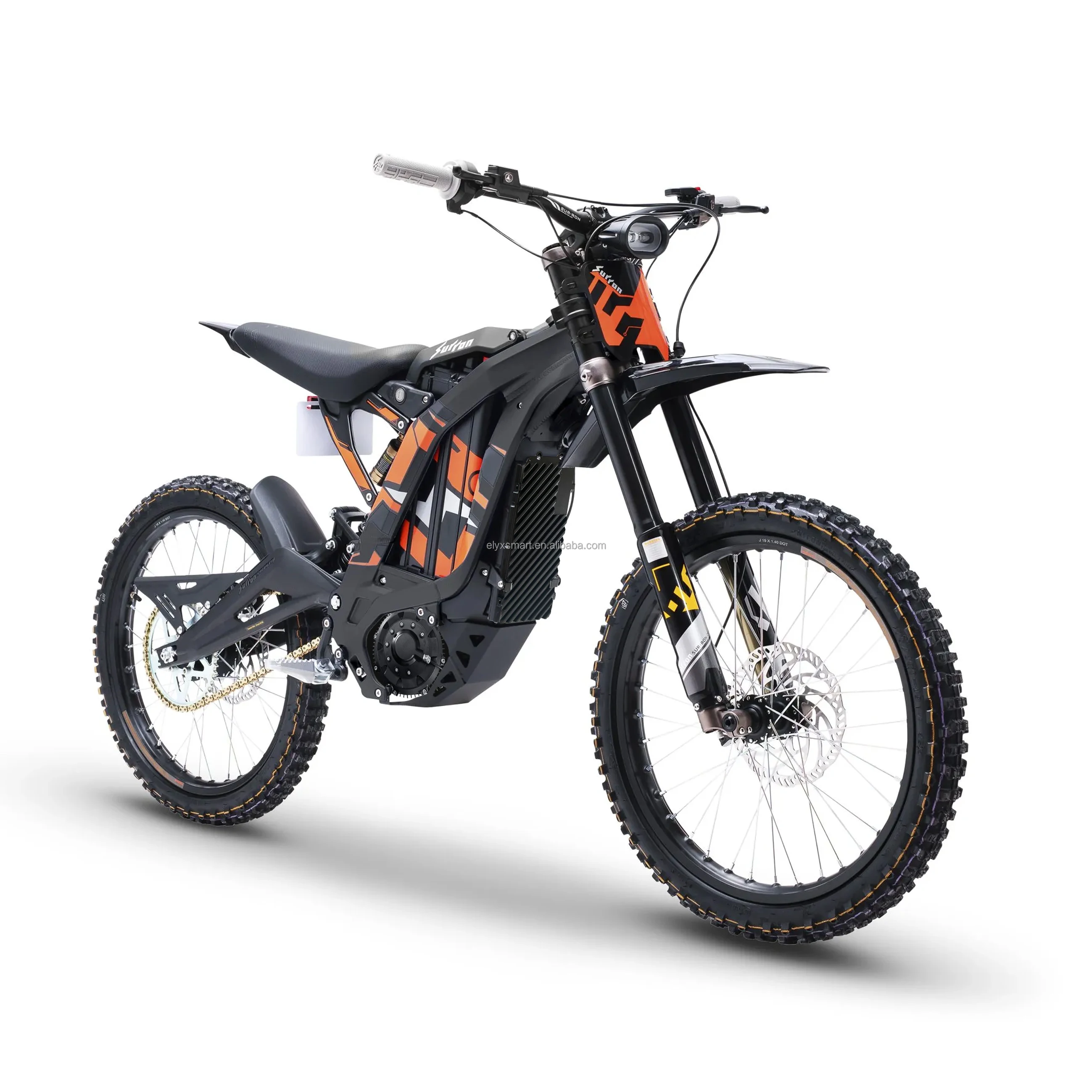

We provide the modified controllers and motors for Surron, Talaria and Segway dirt E bikes.
Support customization, Low MOQ, good price.
Contact us for more products~

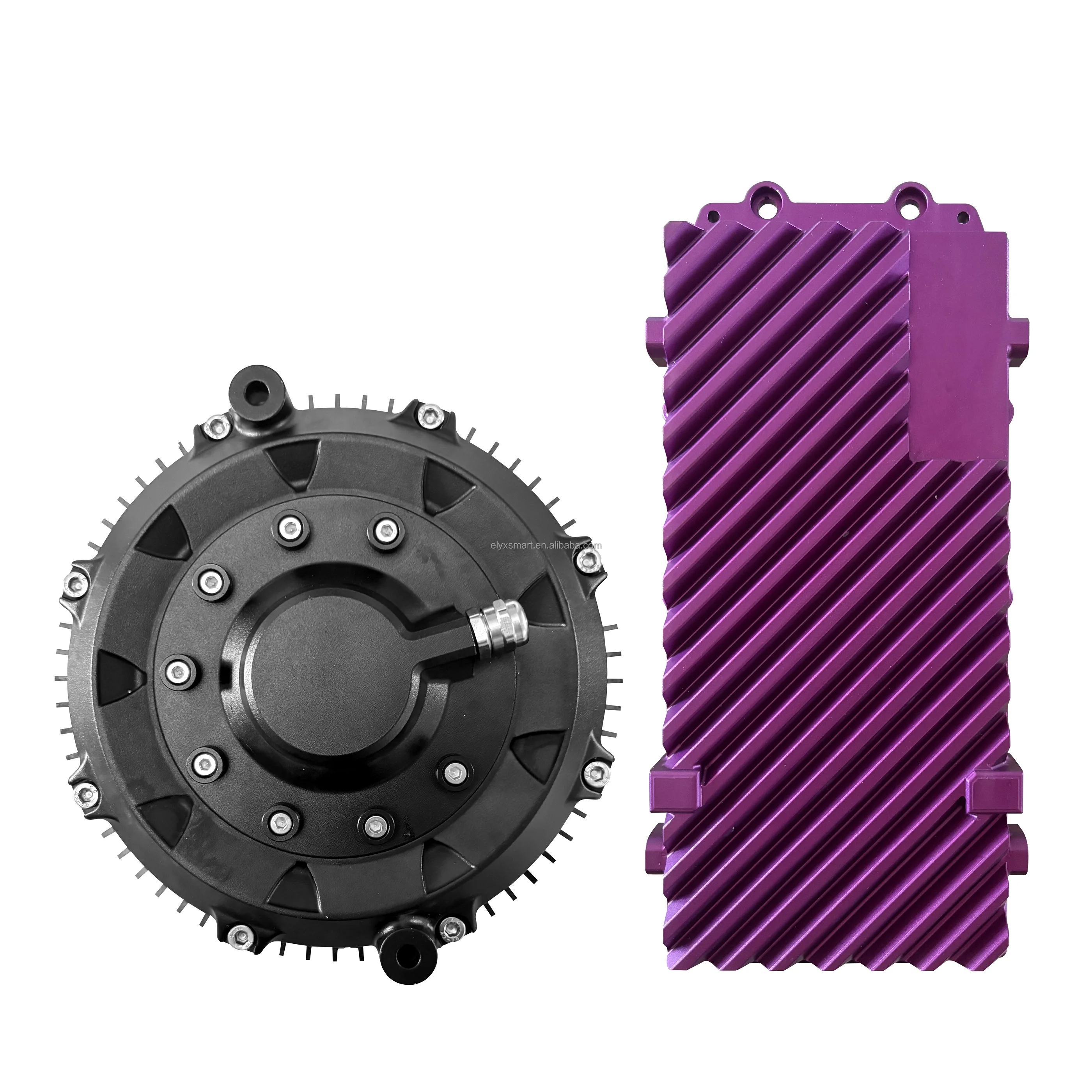

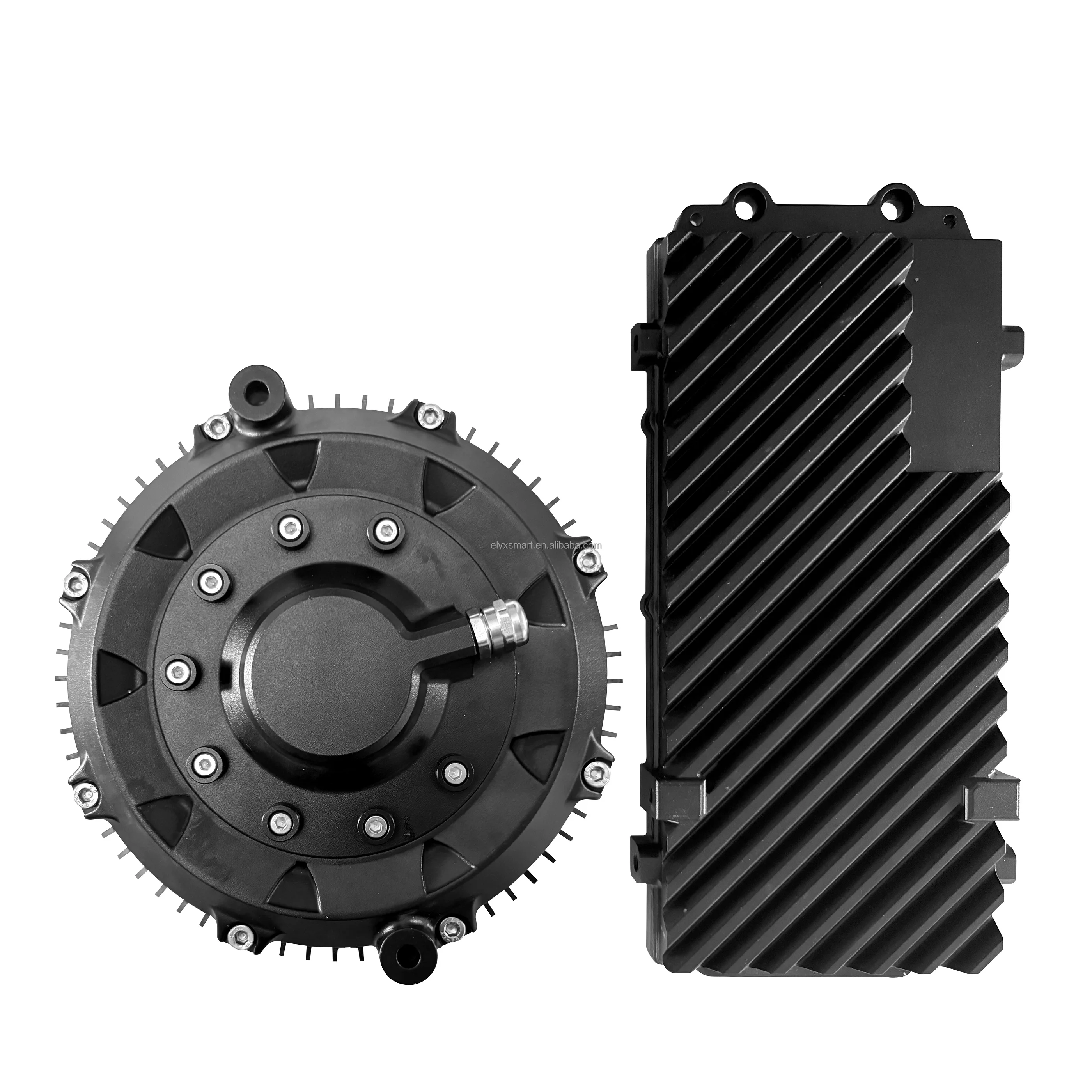

Motor Specification

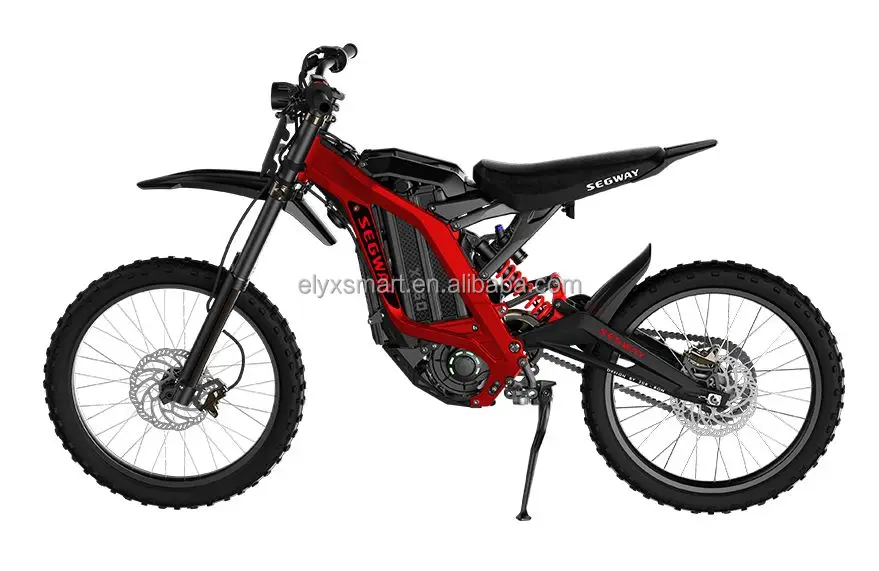

* Direct drop in replacement for Surron, Talaria and Segway X260

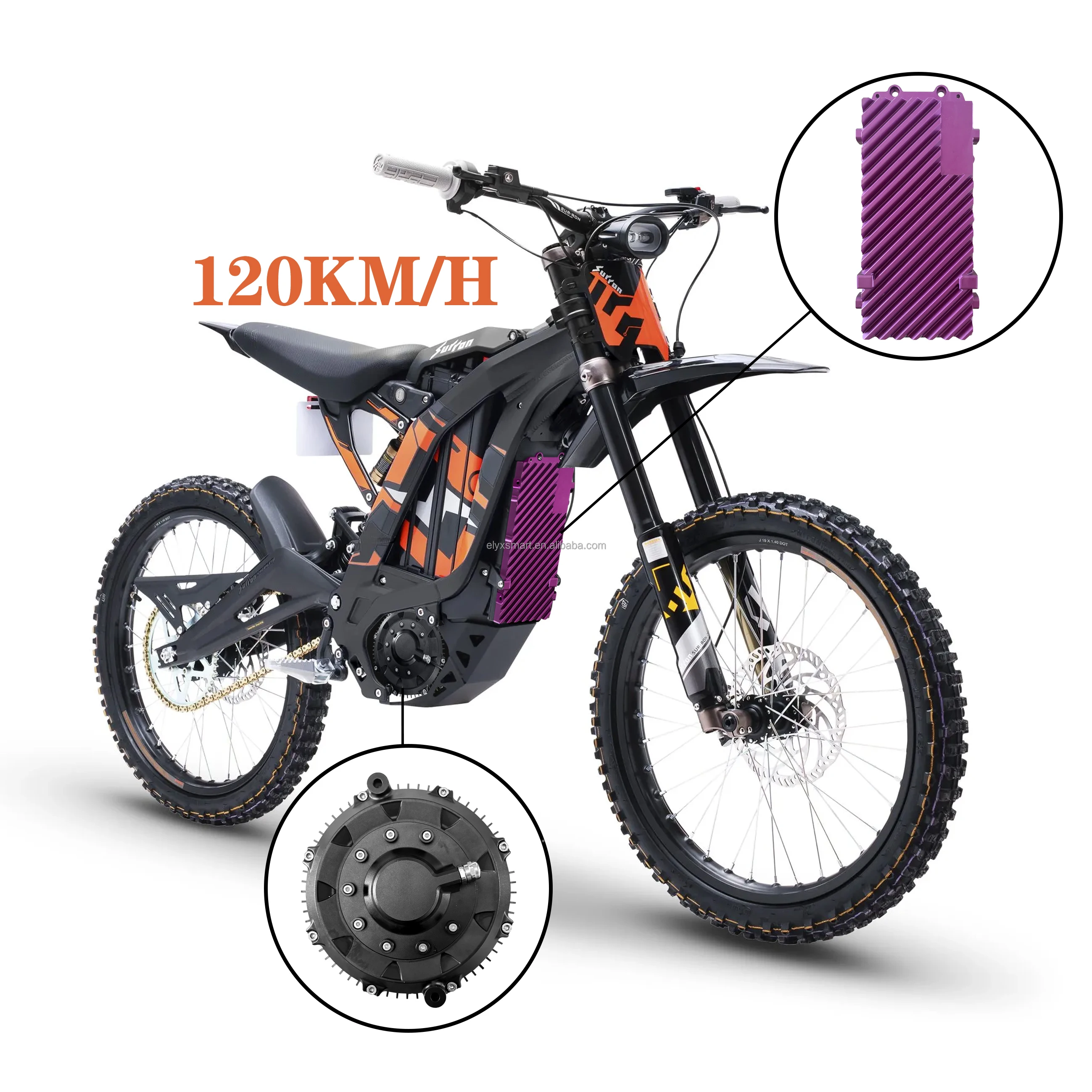

* Max power-10000W, max speed 120KM/H
* Max power-10000W, max speed 120KM/H
* Weight: 9.7kgs
* Max torque: 60V-52NM
* Max stable rotor RPM-11000 RPM
* Max efficiency ->97%, Waterproof level IP67
* Max torque: 60V-52NM
* Max stable rotor RPM-11000 RPM
* Max efficiency ->97%, Waterproof level IP67
Controller Specification

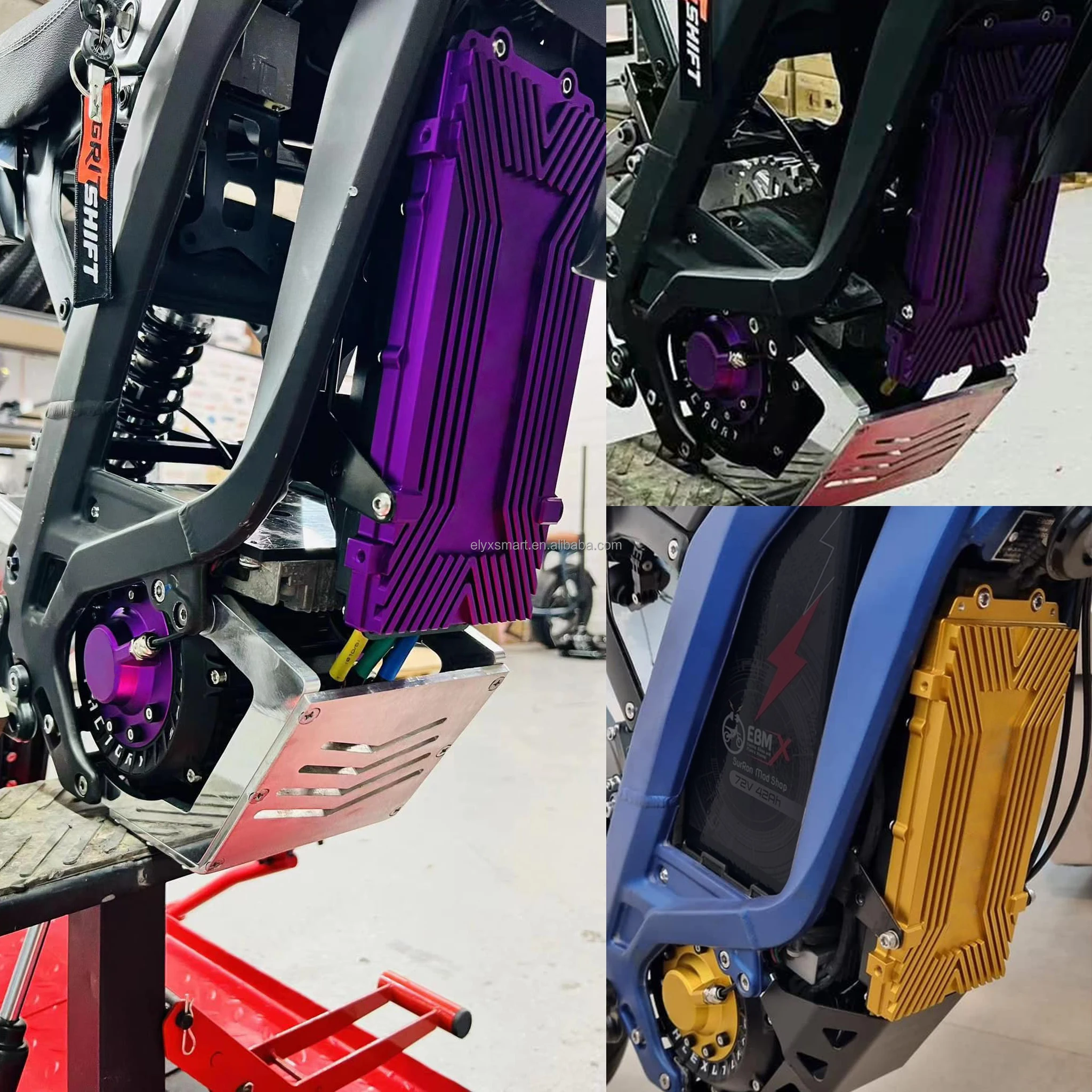

* Designed for Surron and easy to fit, using the same cabling and also the same default Sur-Ron display unit.
* Max power-16000W
* Max phase current 400A, max current 200A
* Max efficiency ->97%, Waterproof level IP67
* Designed for Surron and easy to fit, using the same cabling and also the same default Sur-Ron display unit.
* Max power-16000W
* Max phase current 400A, max current 200A
* Max efficiency ->97%, Waterproof level IP67
E10K Motor | ||
Color | Red, blue, golden, purple (customizable color MOQ is 30pcs) | |
Installation position | Mid | |
Rated voltage | 48V-84V | |
Rated power | 5000W | |
Peak power | 10000W | |
Max speed | 5500rpm100KM/H / 6000rpm120KM/H | |
Applicable models | Surron light bee/ Talaria | |
Rated torque | 23Nm/26Nm | |
Peak torque | 55Nm/60Nm | |
Rated rotor RPM | 5200rpm/6000 rpm | |
Max stable rotor RPM | 9000rpm/11000rpm | |
Maximum efficiency | 97% | |
Transmission ratio | Surron light bee 8.3/ Talaria 8.7 | |
Number of pole pairs | 4 | |
Position sensor | Encoder | |
Insulation class | H | |
Protection grade | IP67 | |
Transmission form | Belt | |
Cooling method | Air cooling | |
Stator dimensions | 160mm X 53mm | |
Weight | 9.7KGS | |

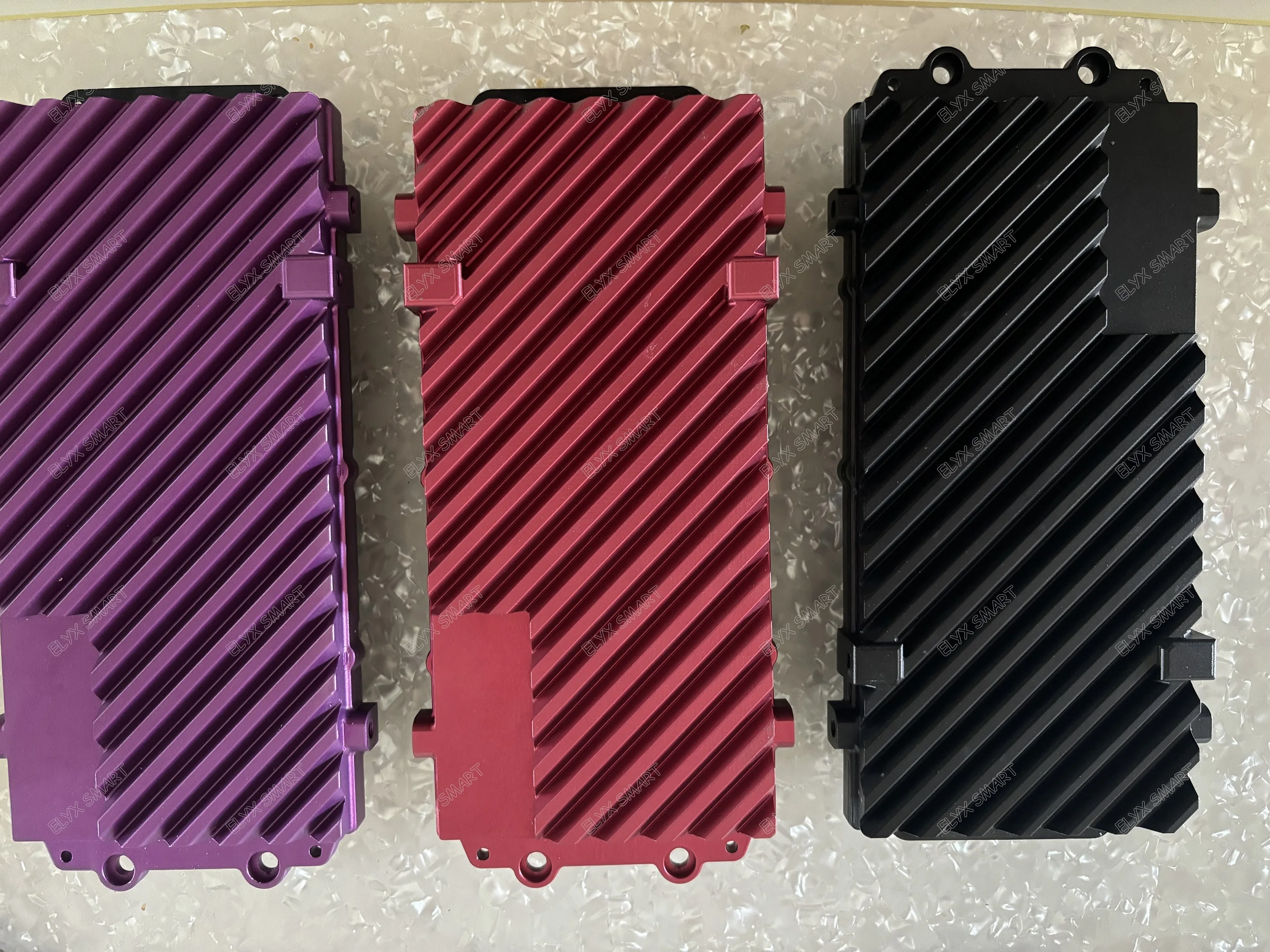

E200A Controller | ||
Color | Red, blue (customizable color MOQ is 30pcs) | |
Rated voltage(V) | 48V-84V | |
Working voltage(V) | 48-84V | |
Applicable models | Surron light bee/ Talaria | |
Max phase current(A) | 500A | |
Max current(A) | 200A | |
Max power | 16000W | |
Opreating temperature | -25-80℃ | |
Protection grade | IP67 | |
Maximum efficiency | ＞95% | |
Debugging method | APP | |
Weight | 1.8kgs | |
Why Choose Us
FAQ
Q1. What is your terms of packing?

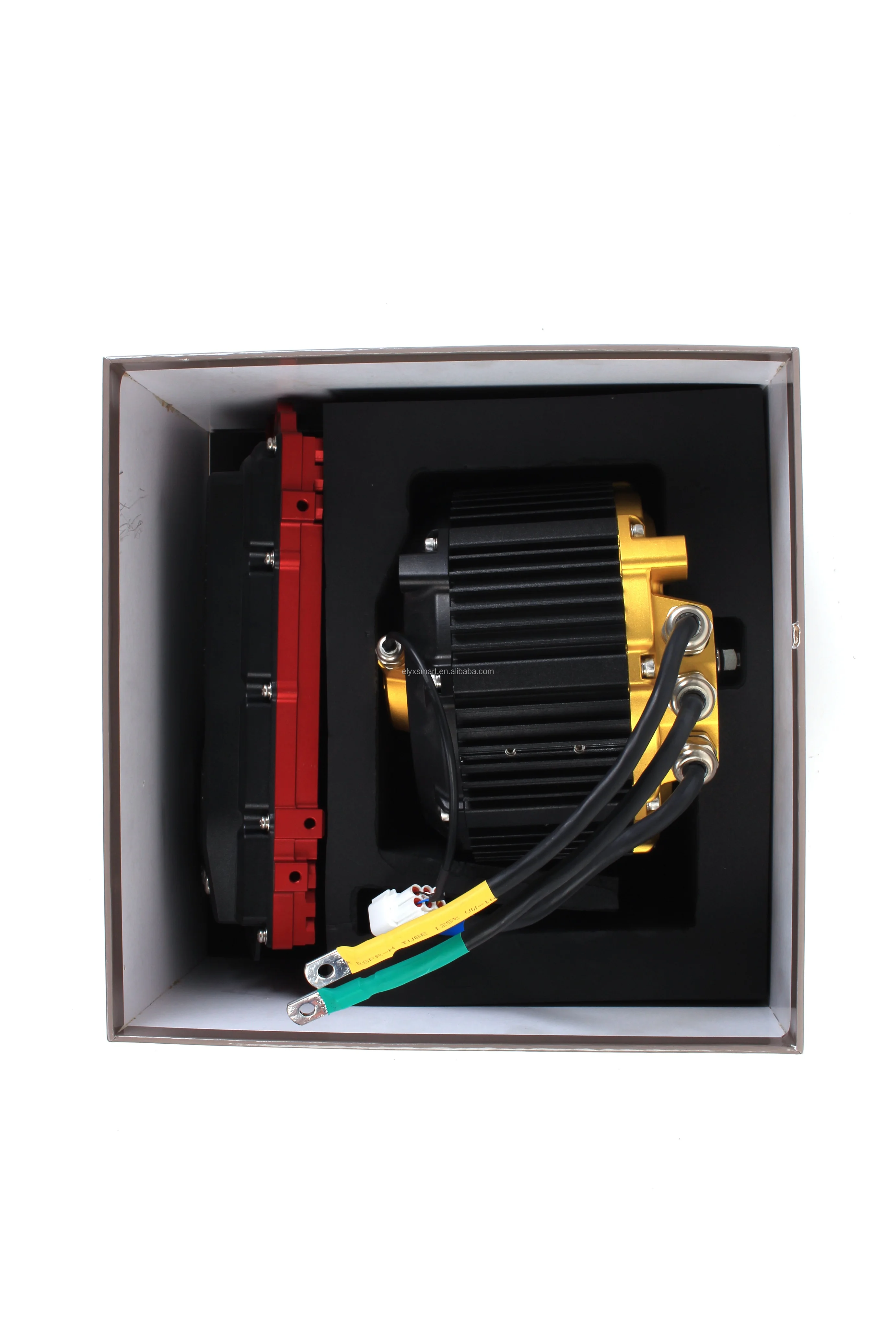

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
