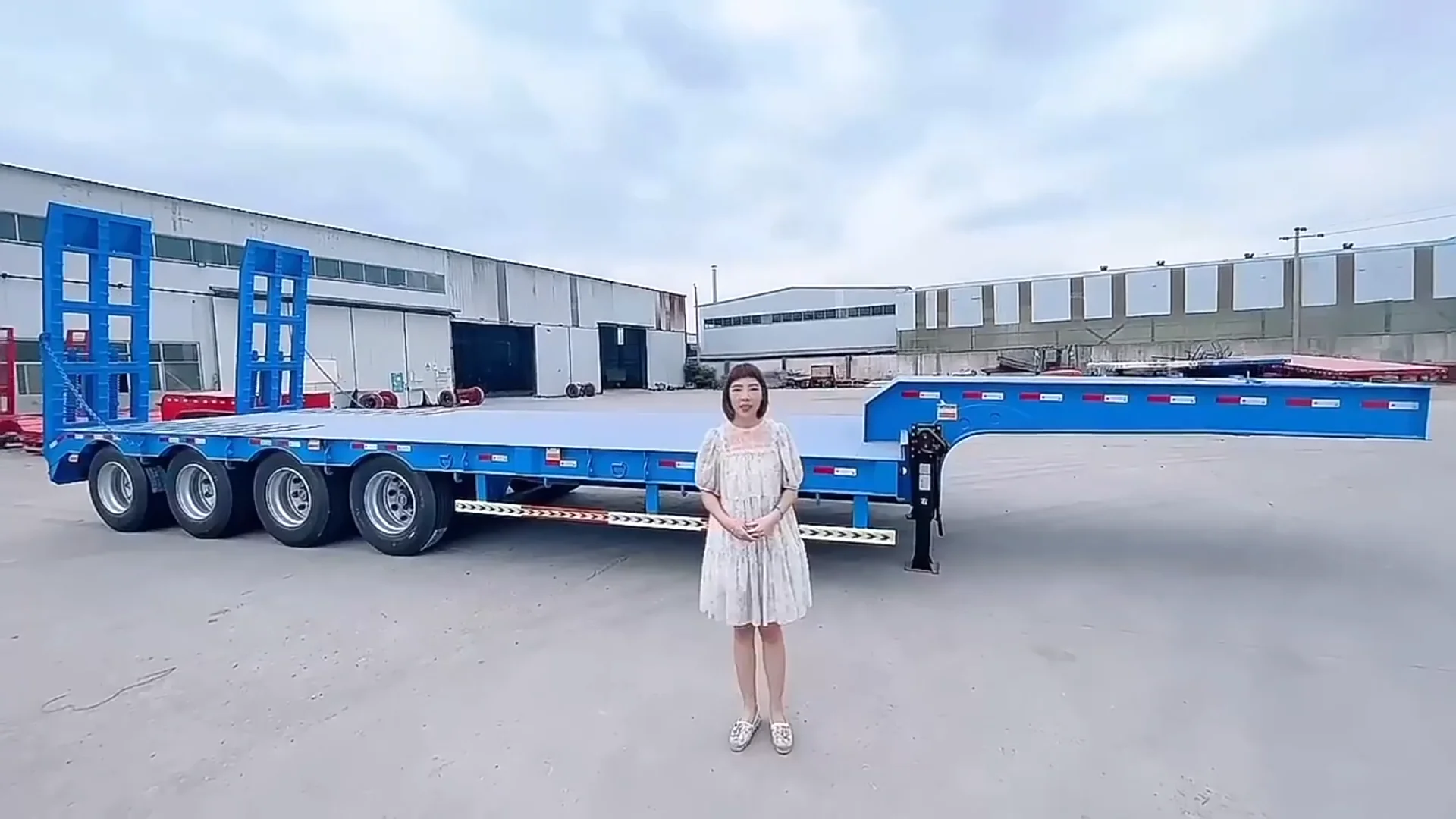

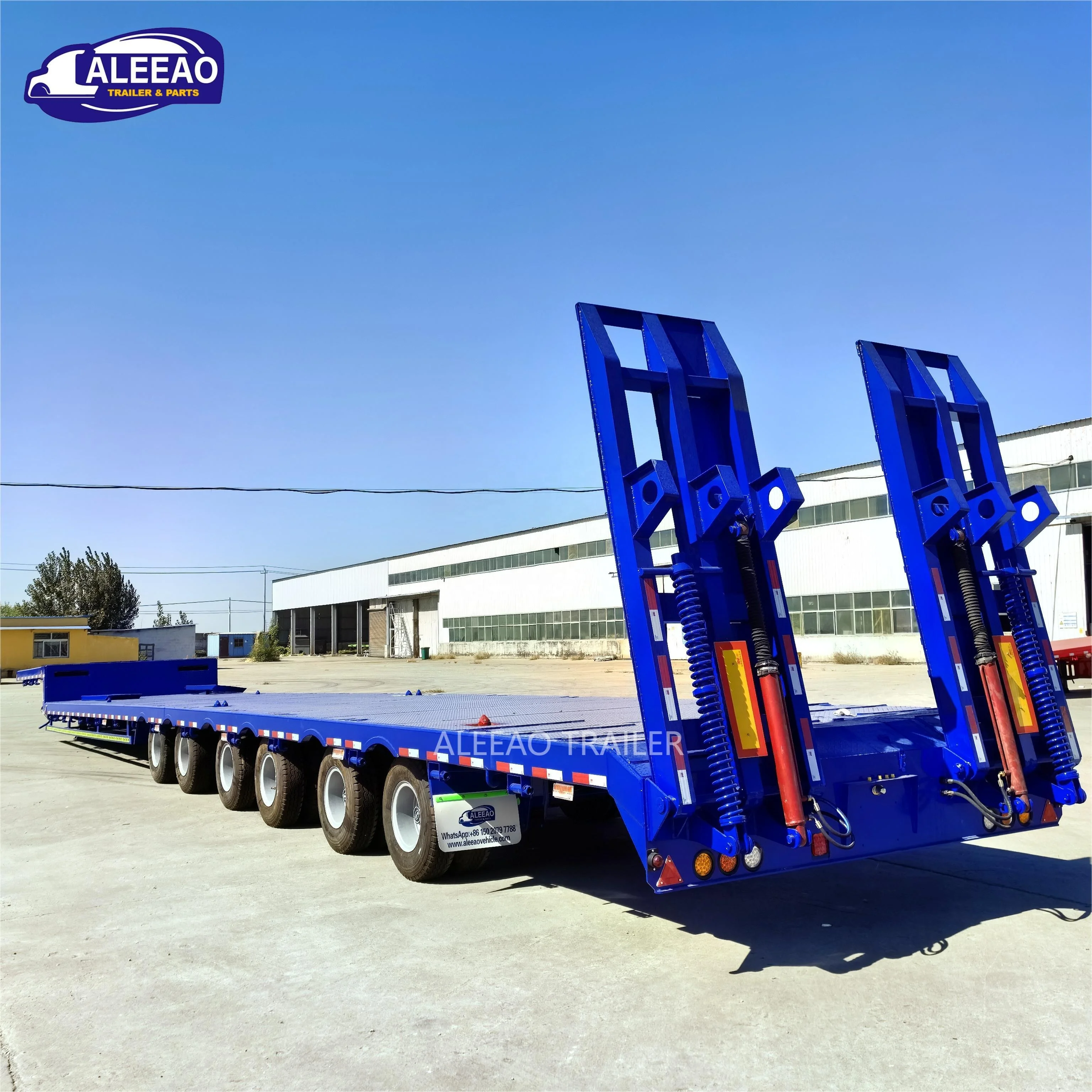

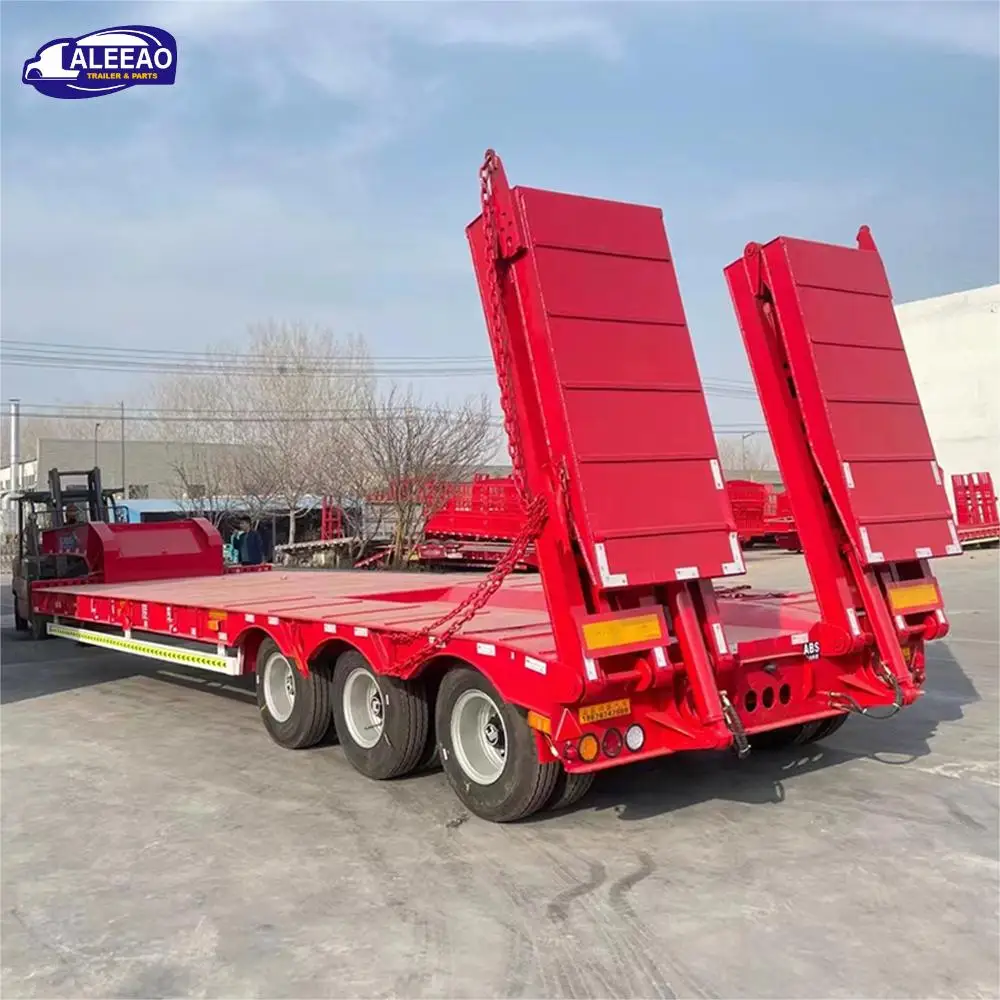

ALEEAO 6 Axle Lowbed Trailer 60 80 100 Ton Low Bed Lowboy Truck Semi Trailer for Kenya
- Category: >>>
- Supplier: Liangshan Leao Machinery Co. Ltd.
Share on (1601083520324):
Product Overview
Description
LOOK AT HERE
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if you necessary.
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if you necessary.
Specification
LEAO Factory Made 2/3/4/5 Axles Gooseneck Lowbed Semi Trailer
LEAO low bed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) and other heavy loads. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the lowbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 20-150 tons.

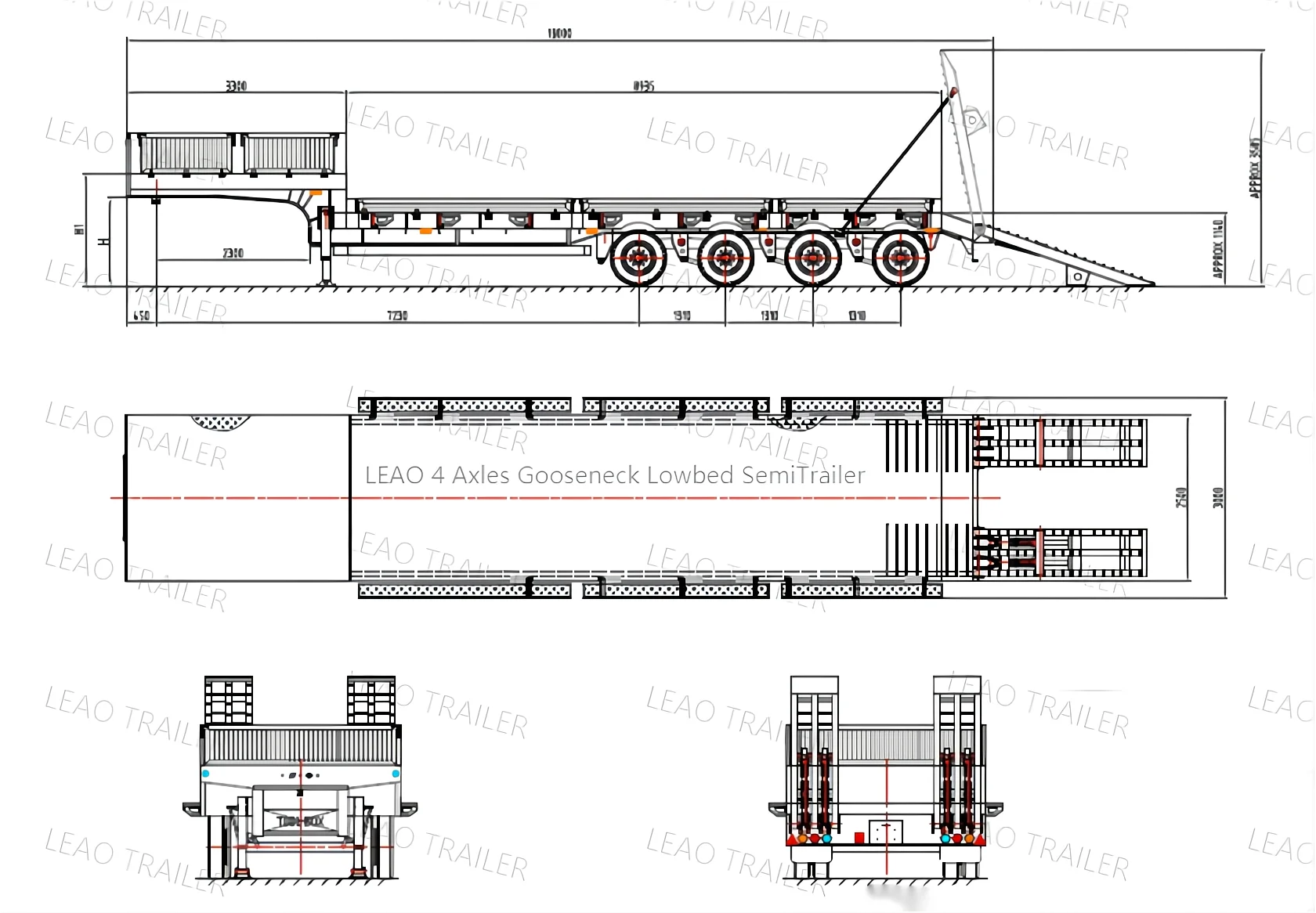

LEAO Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available) | ||||||
Product Name | 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer | |||
Size（mm） | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 | |||
Payload | 40000KG | 60000KG | 80000KG | |||
Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate | |||
Axles | 2 * 13ton capacity (Brand optional) | 3 * 13ton capacity (Brand optional) | 4 * 13ton capacity (Brand optional) | |||
Ladder | Hydraulic ladder or Mechanical spring ladder | |||||
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ; Material is Q345B Steel. | |||||
Side beam | 250mm I beam; 20mm channel steel ( Material is Q235steel ). | |||||
Bottom Platform | 4mm thickness diamond steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) | |||||
Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) | |||||
Kin pin | 2’’/3.5’’ bolt type | |||||
Landing gear | 28 Ton two speed | |||||
Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional | |||||
Electrical | LED light , 7 ways ,24V | |||||
Accessory | One tooling box with a set of standard trailer tool | |||||
Painting | 1.Sand blasting processing clean rust. 2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation. | |||||
Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products. | |||||
Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm. | |||||
Remark | We can design model according to client's requirement | |||||

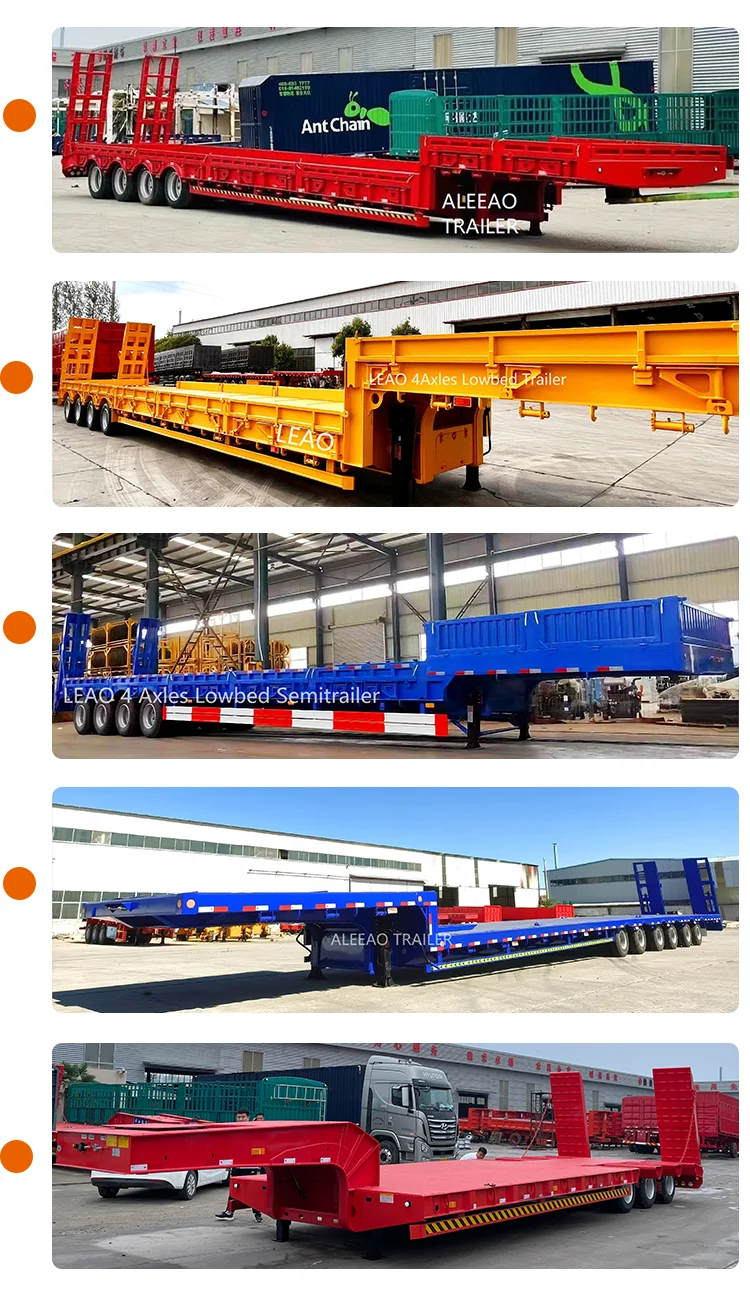

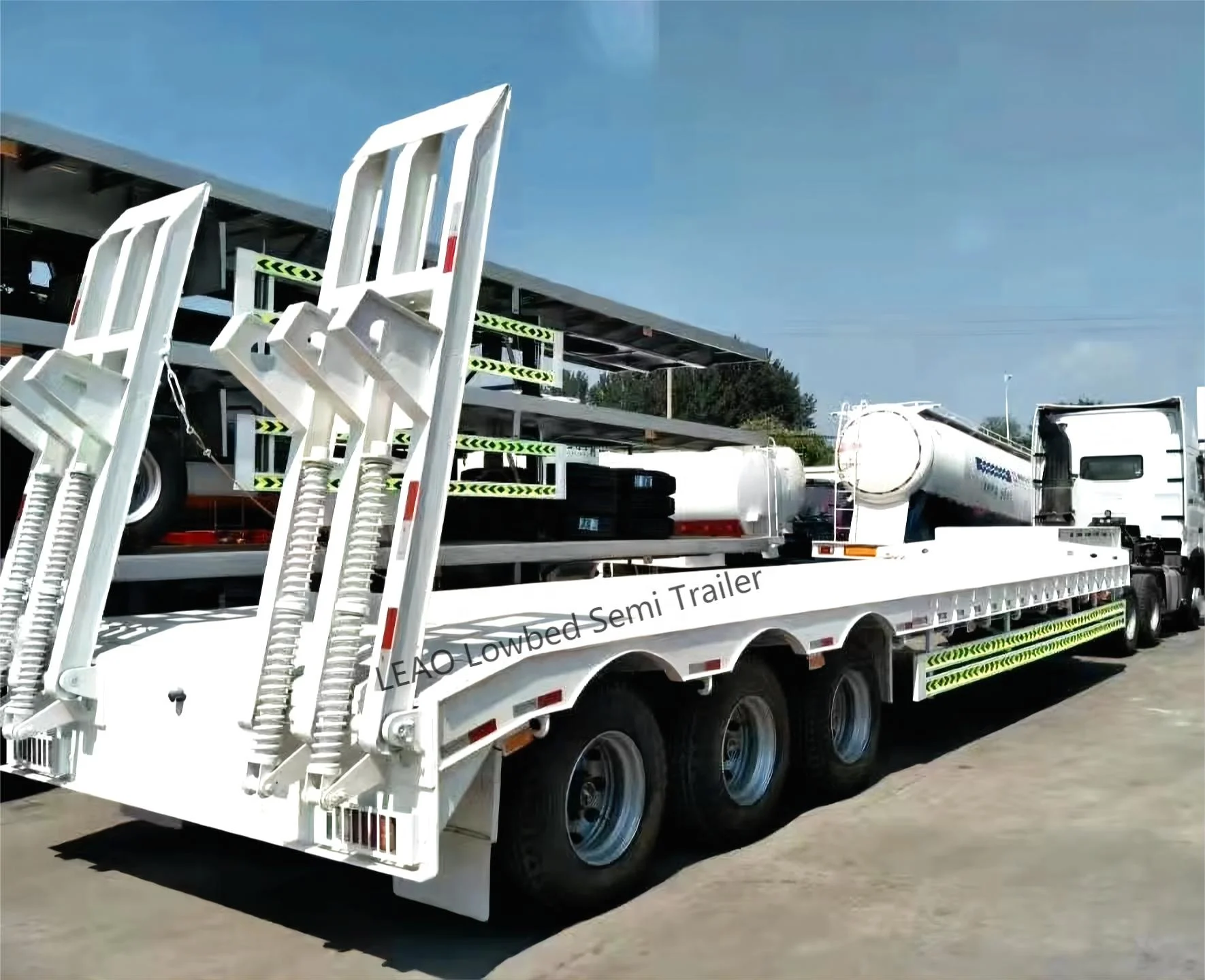

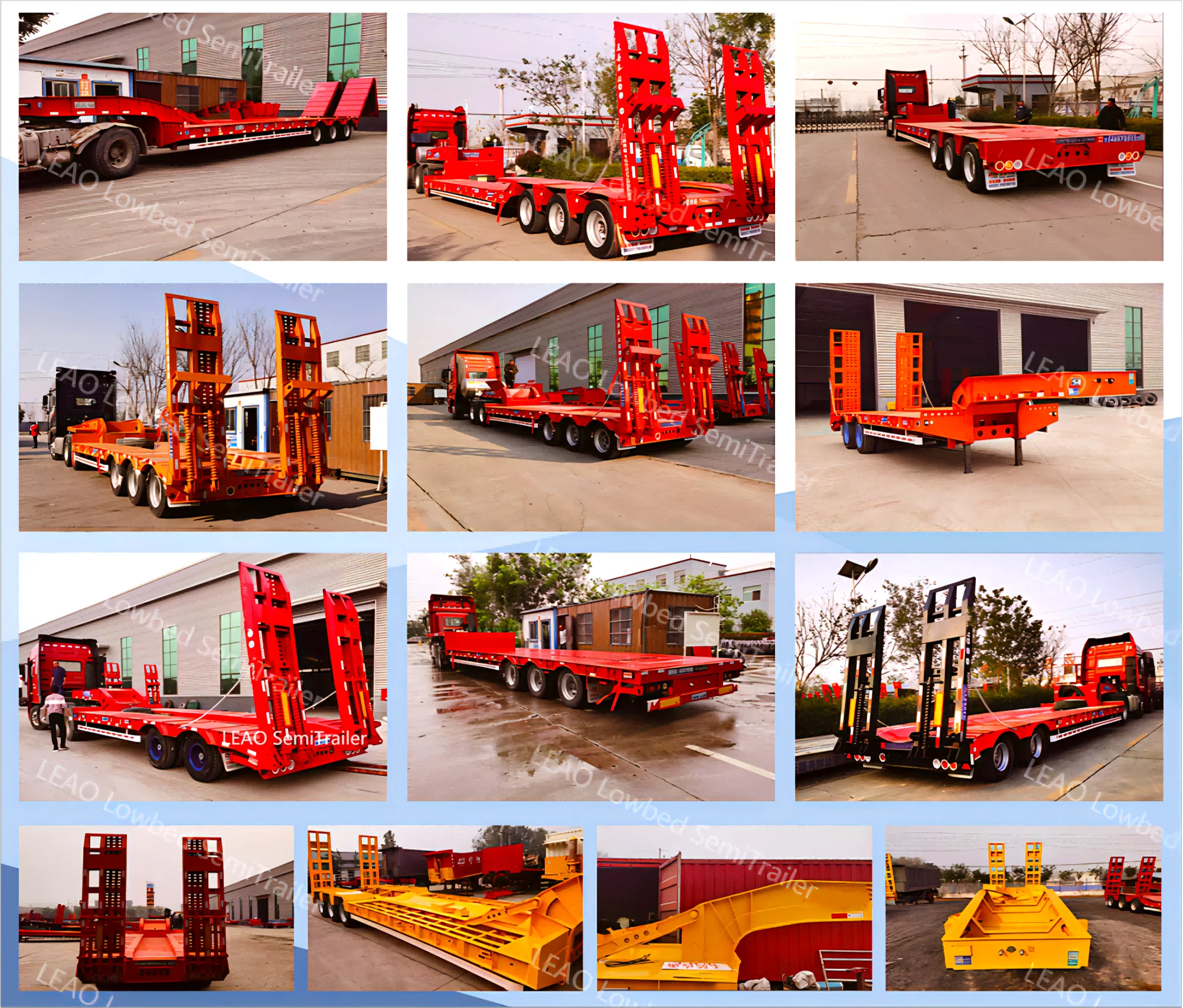

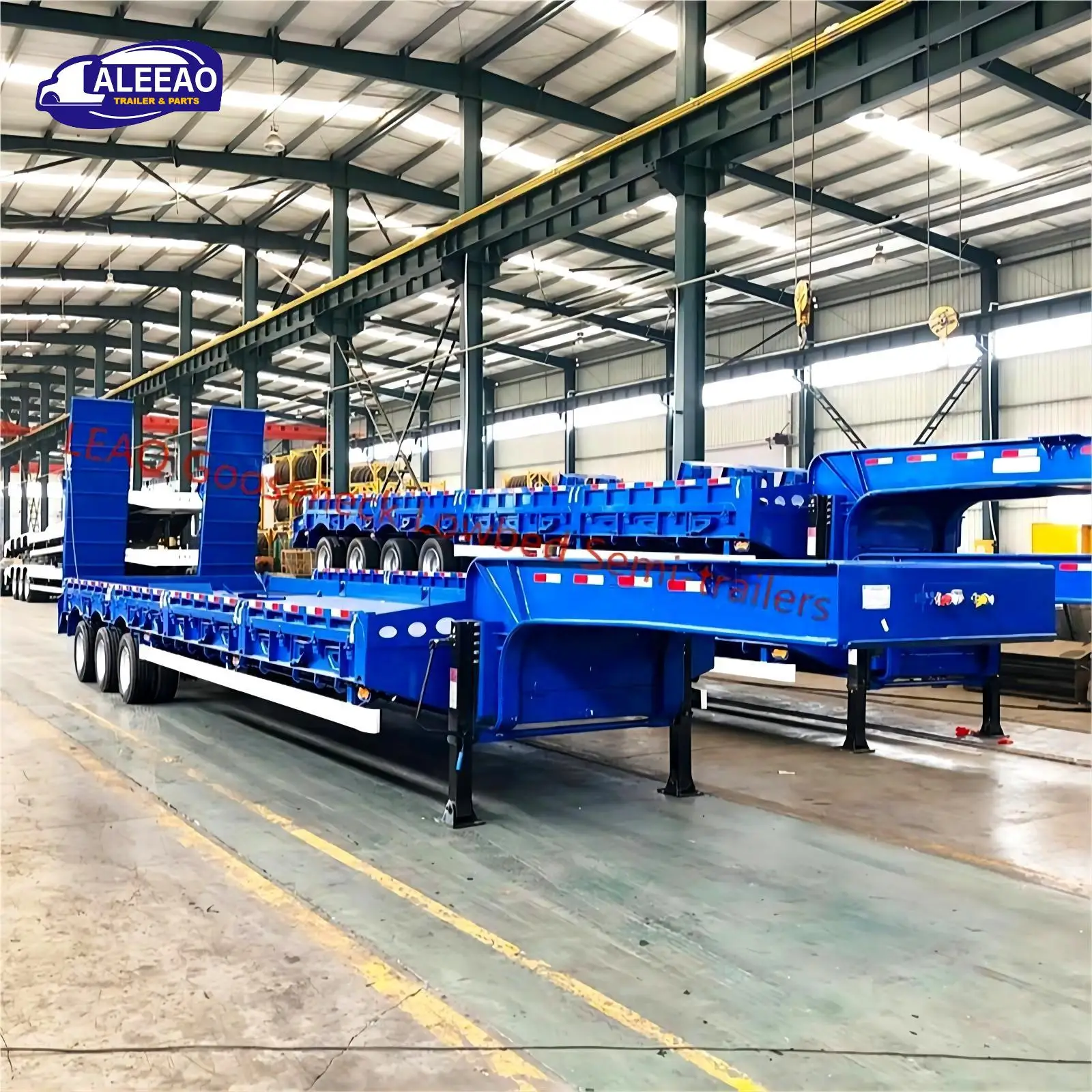

Product Display
LEAO uses advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces.
1.The series of lowbed semi-trailers have flatbed, concave beam and tire exposed structure. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.
2.The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
3.It adopts three-axis balance type, two-axis balance type or mechanical suspension, and a mass balance block is installed between the front and rear leaf springs, so that the deflection of the front and rear leaf springs can be changed in equal amounts, so that the front and rear axles are balanced in force, etc.
4.The whole frame of the lowbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt the world famous brand of parts, like JOST, WABCO braking valve etc. And the main part is Hydraulic support system. It is stable and long service life.
Details Images
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.

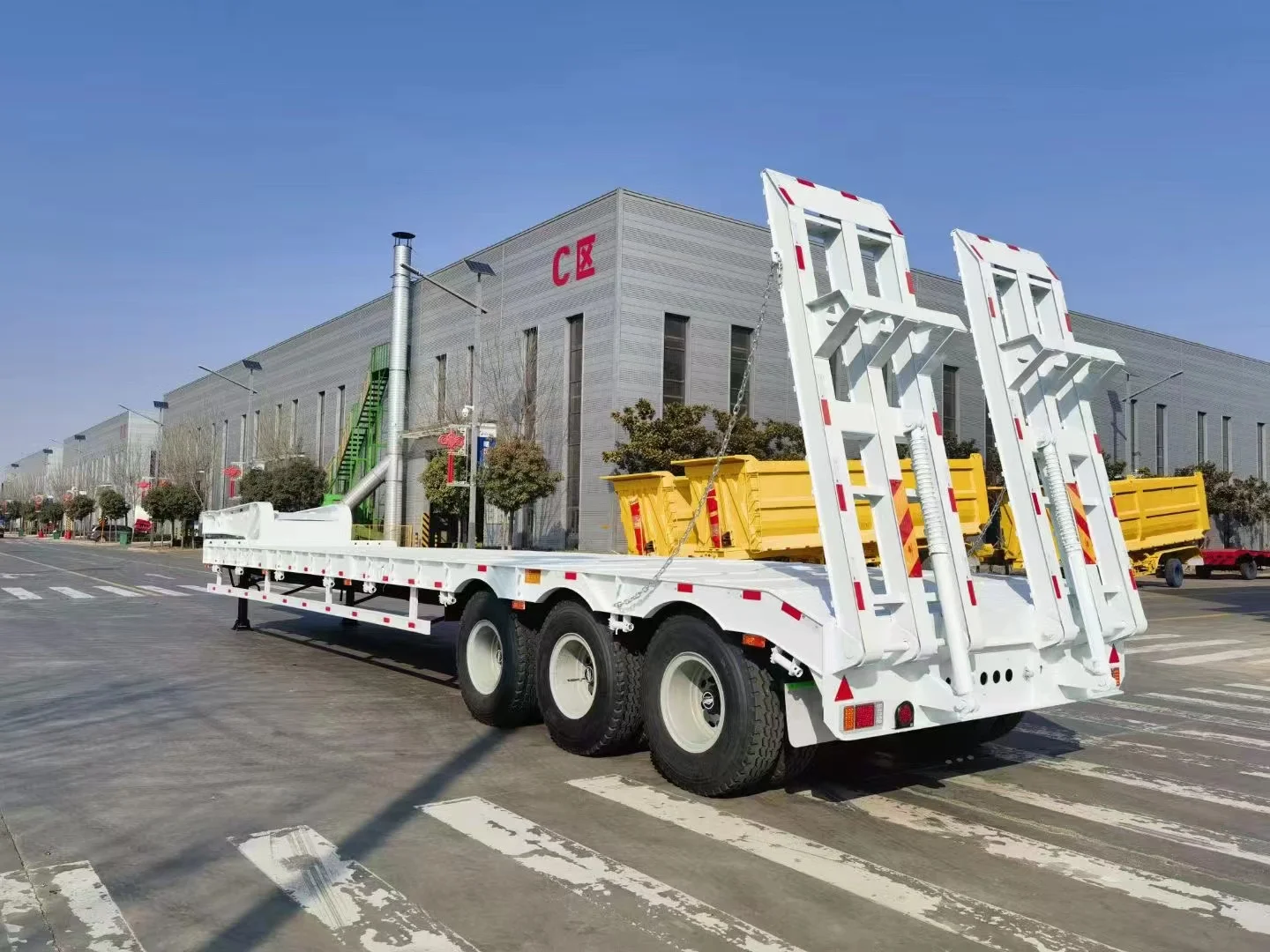

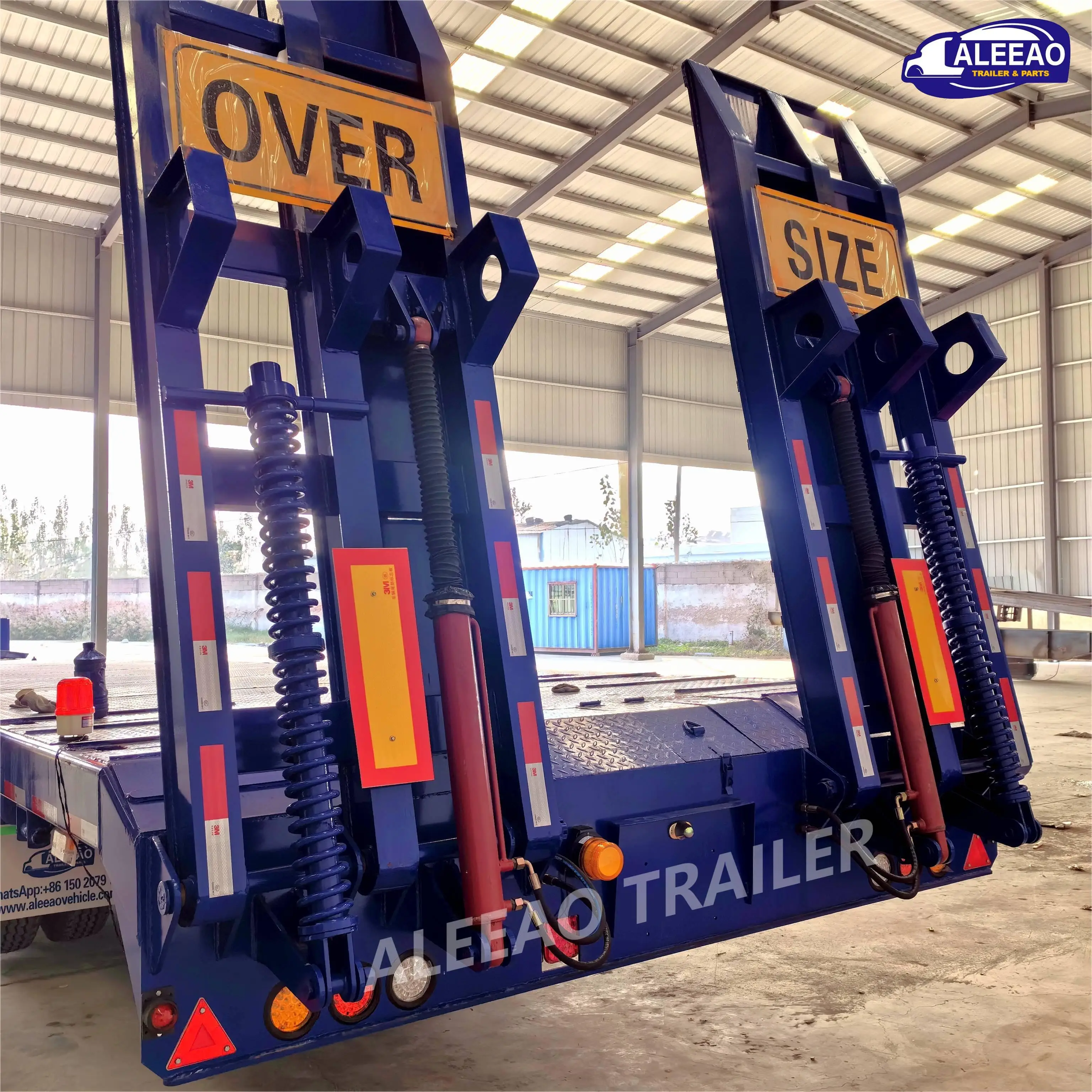

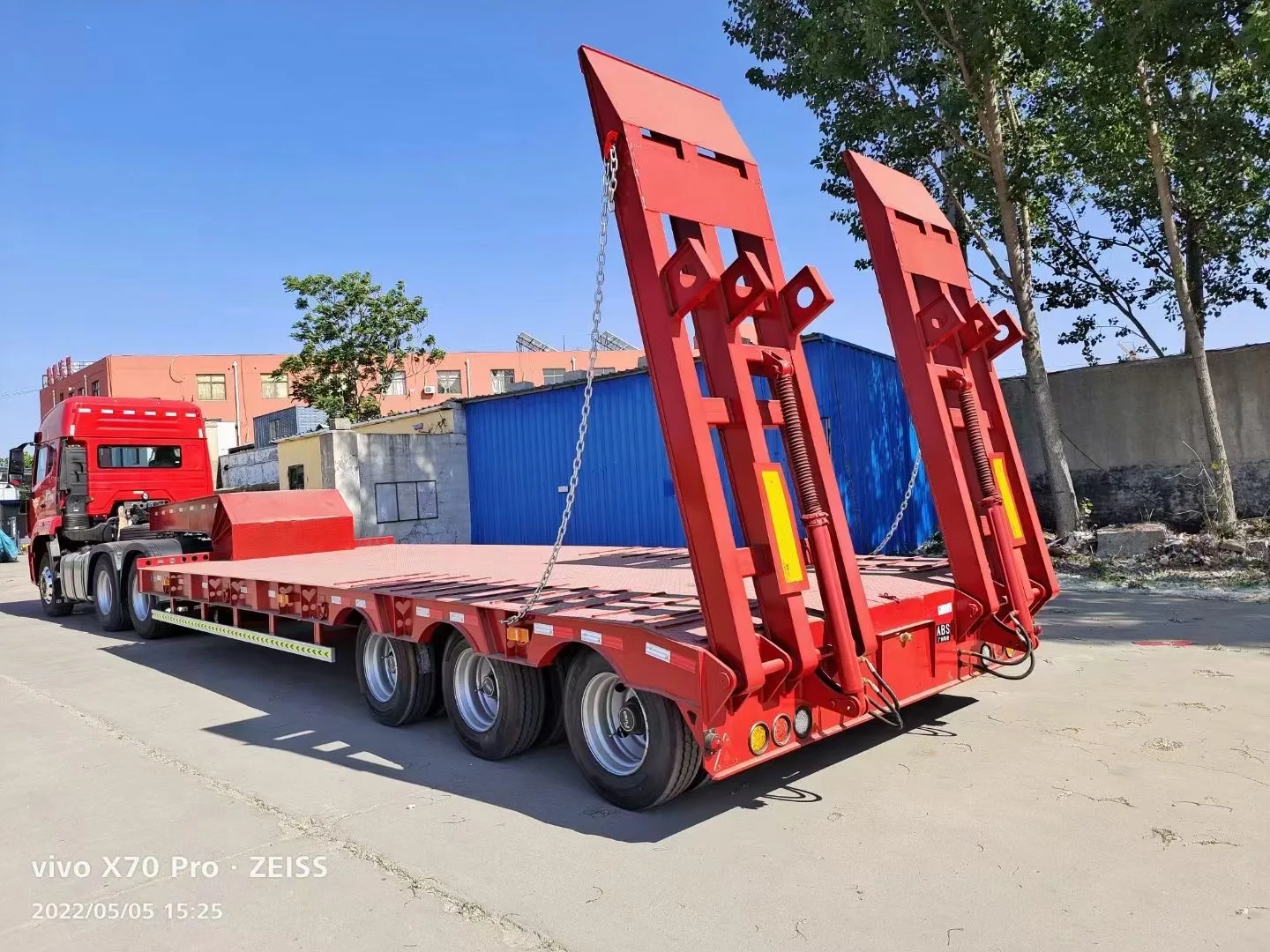

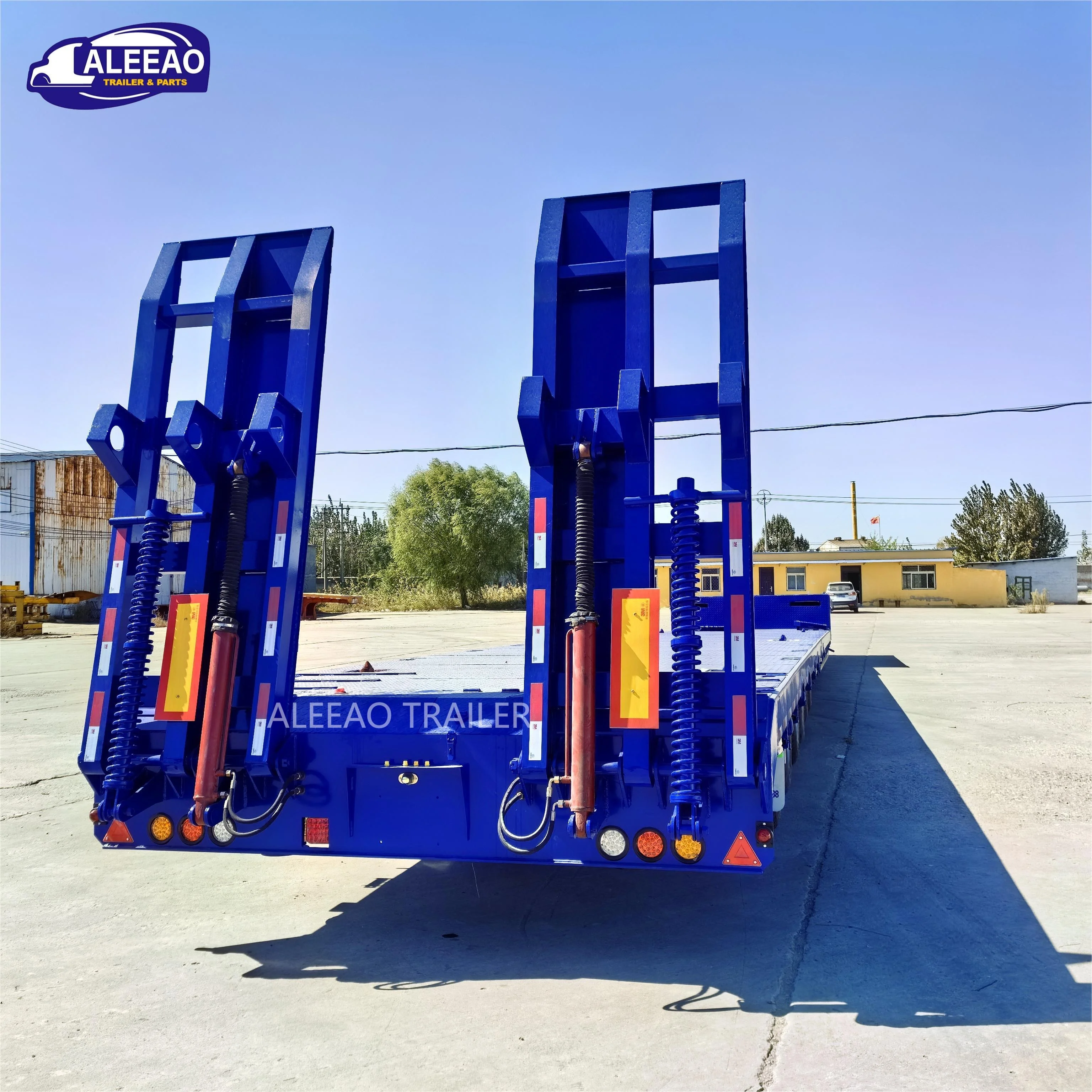

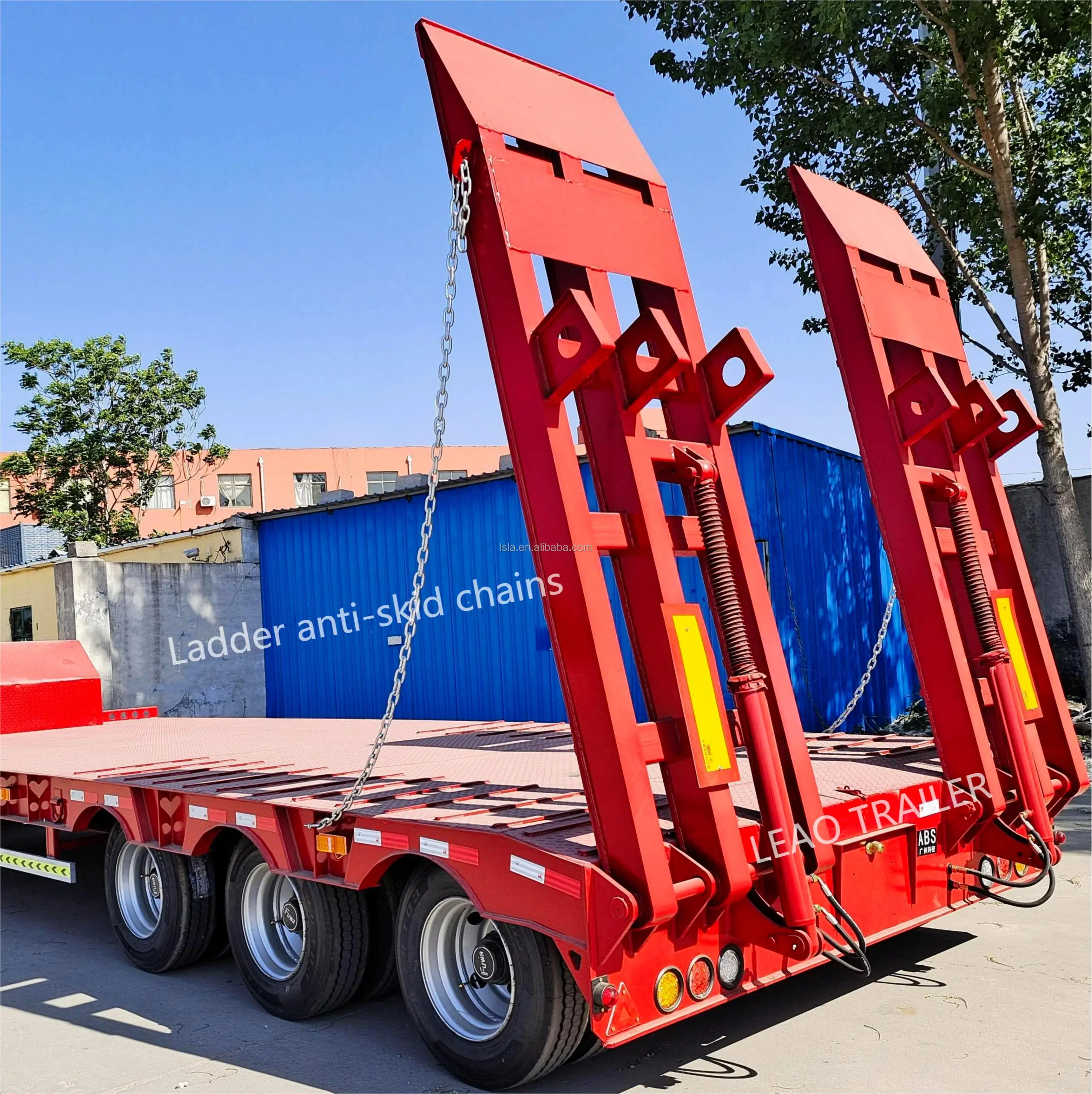

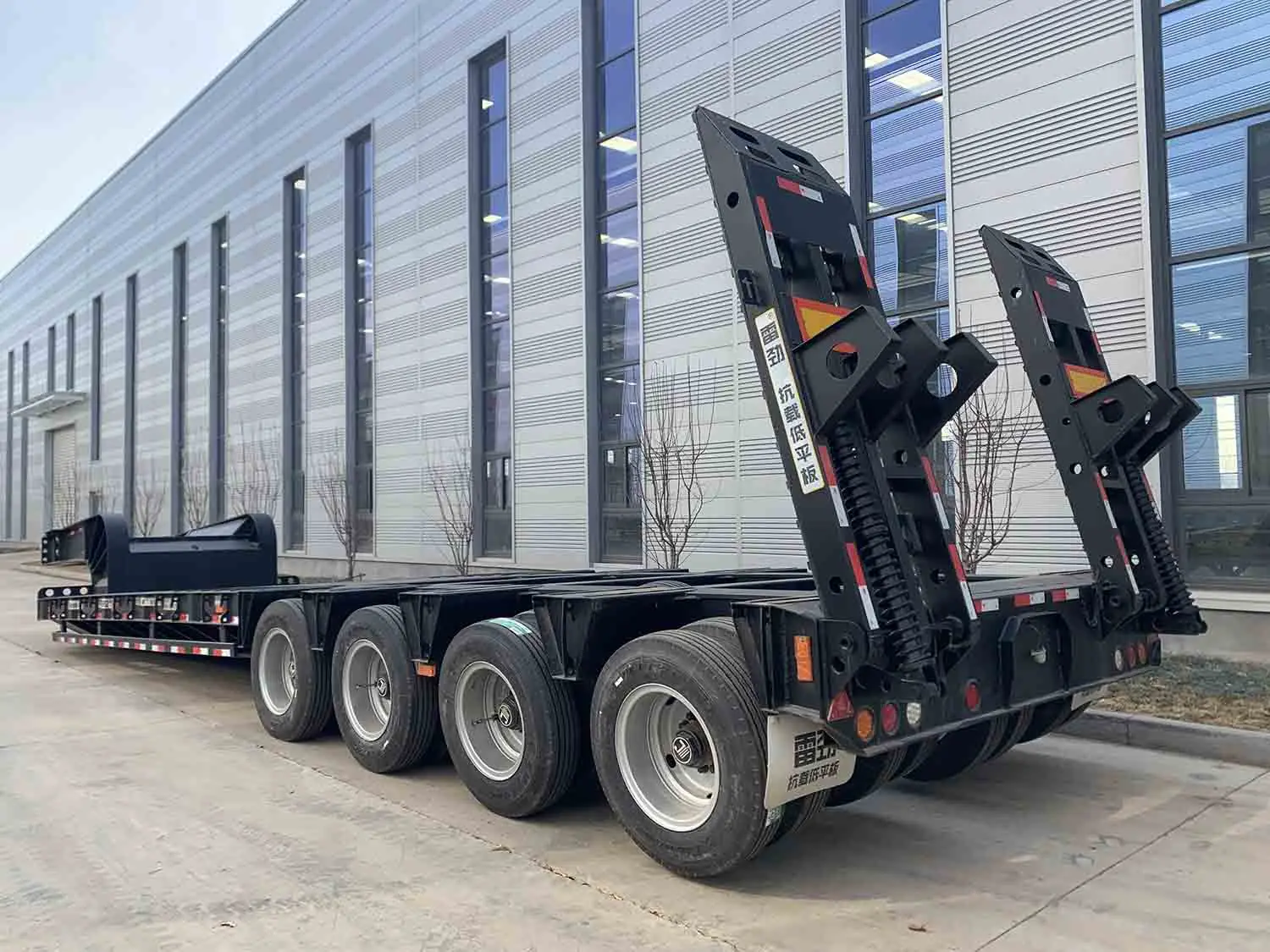

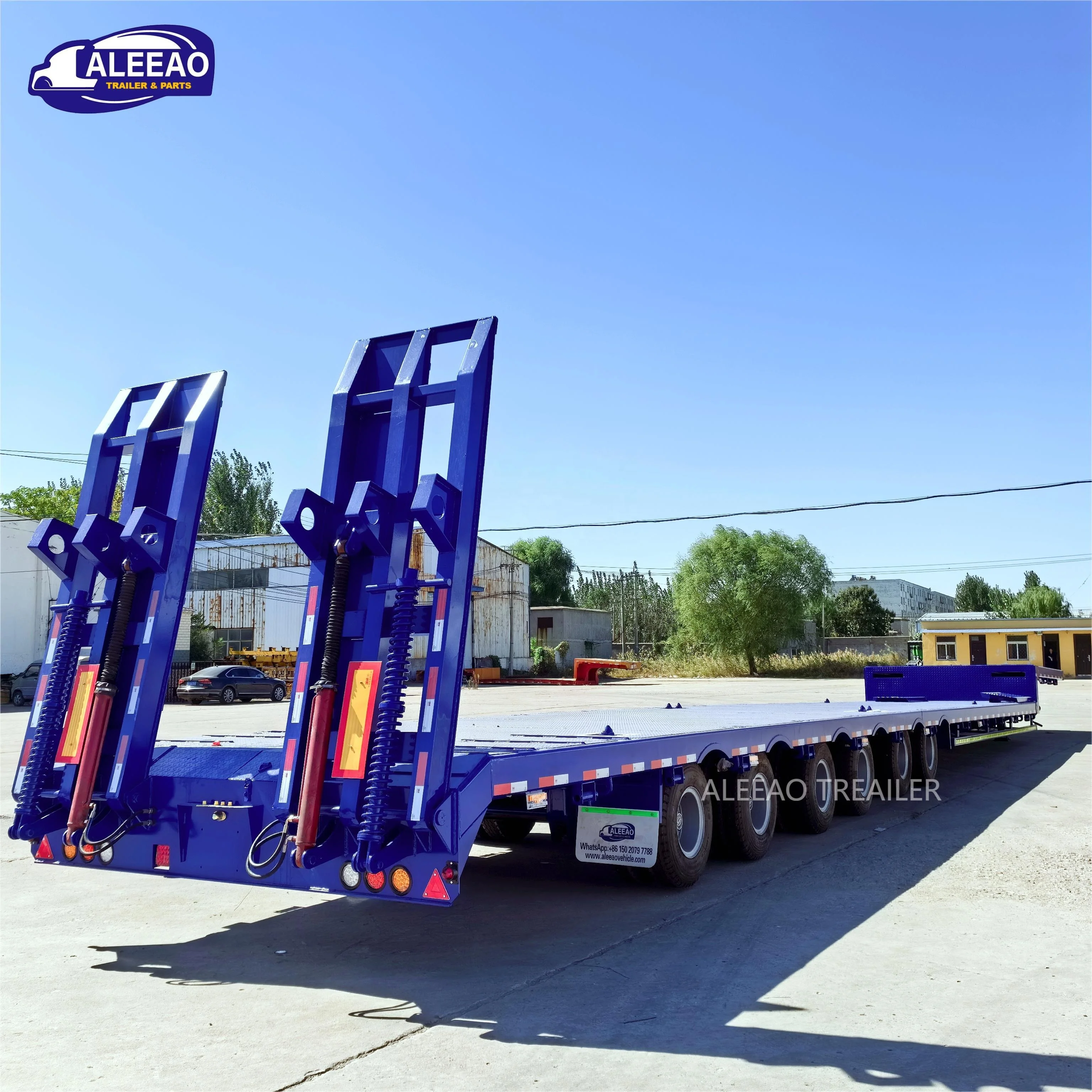

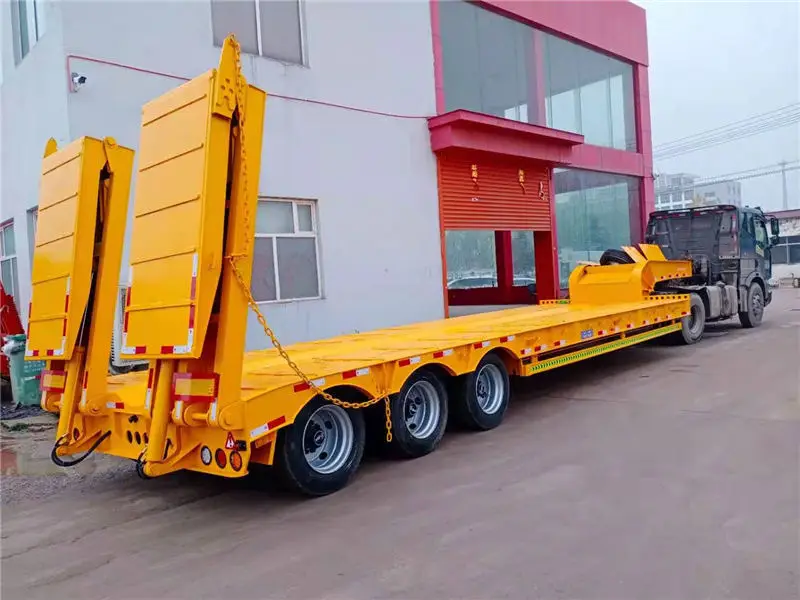

Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.

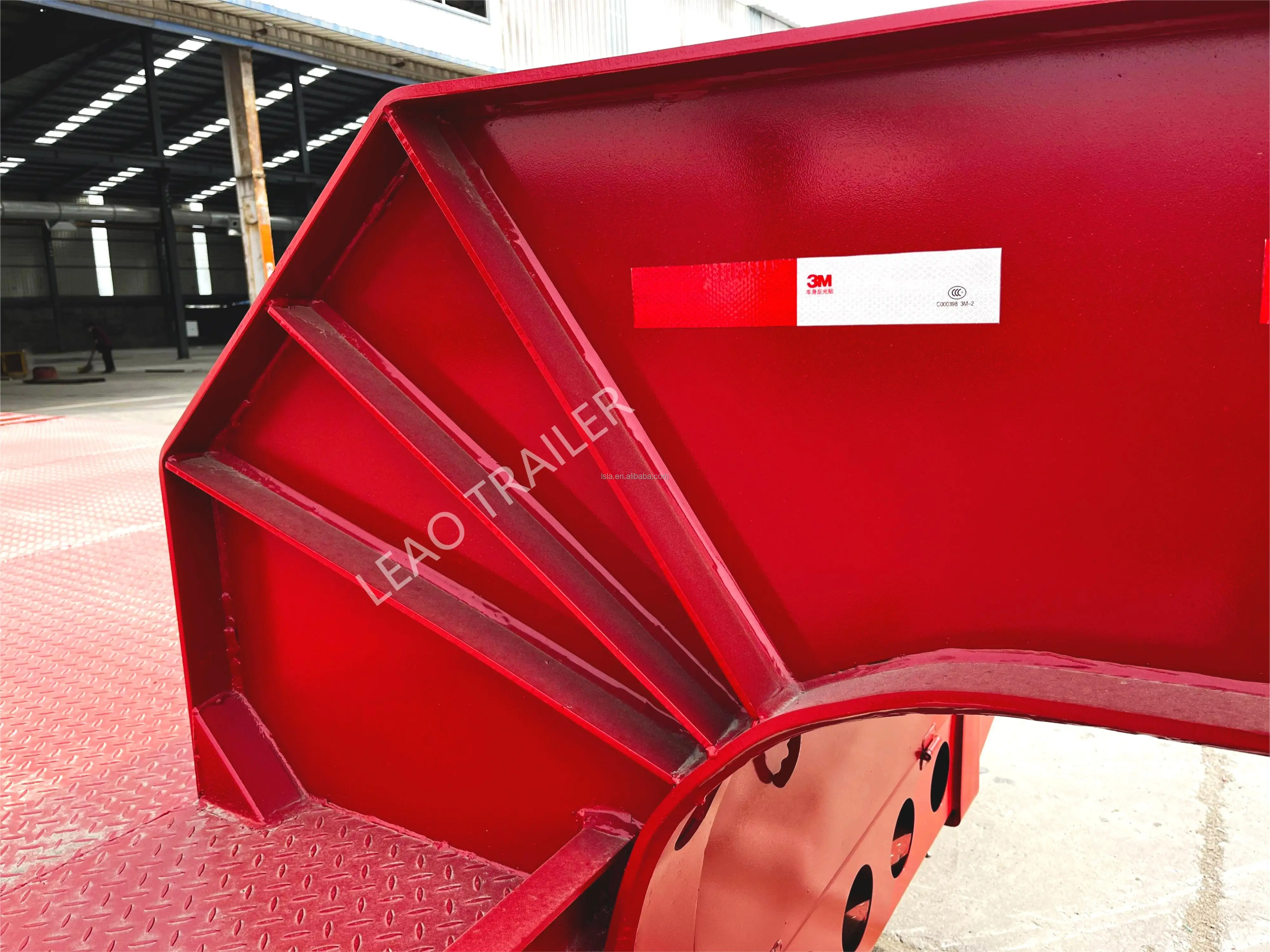

Gooseneck stiffeners increase the payload capacity of the low bed trailer.

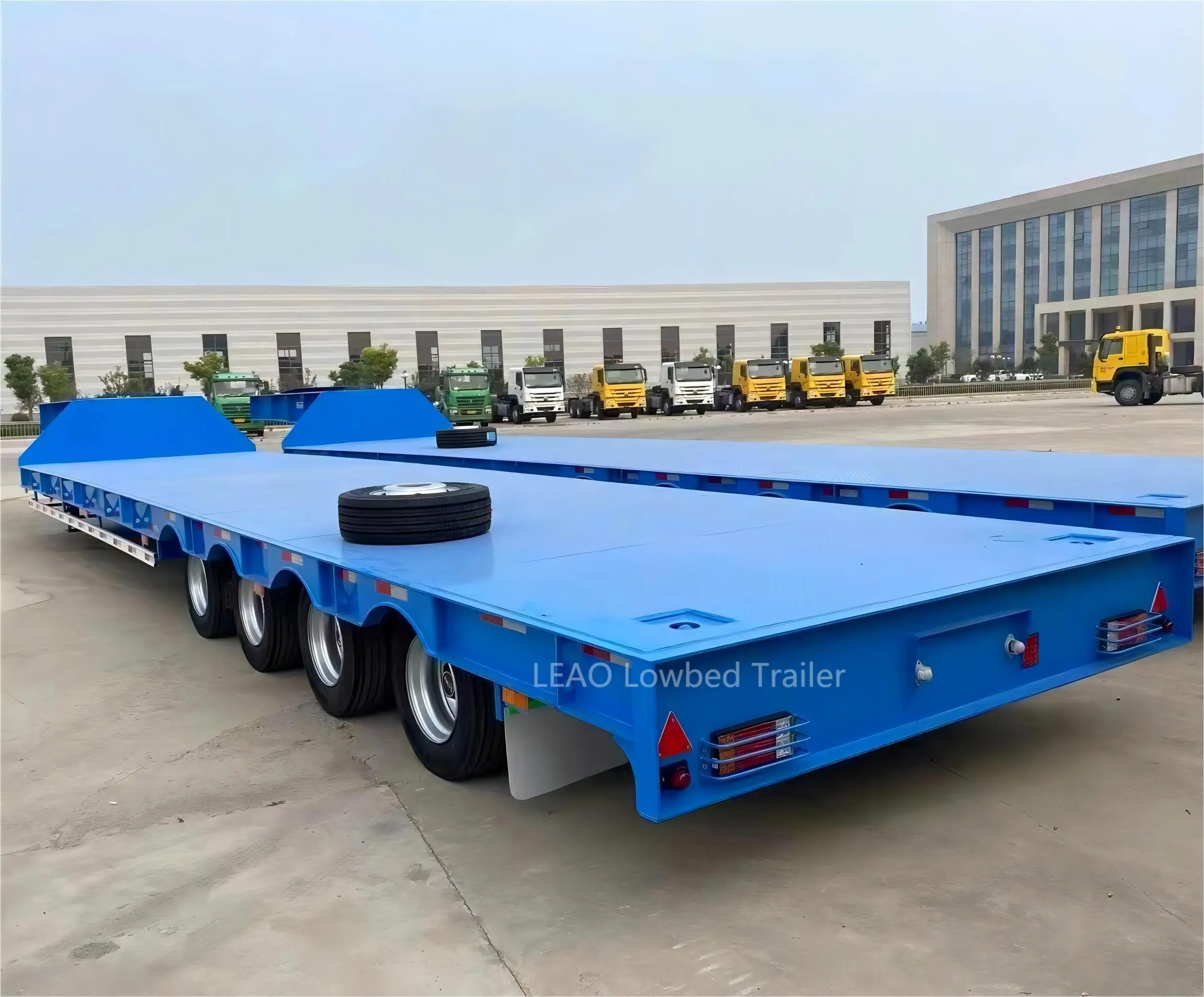

Low bed platform:

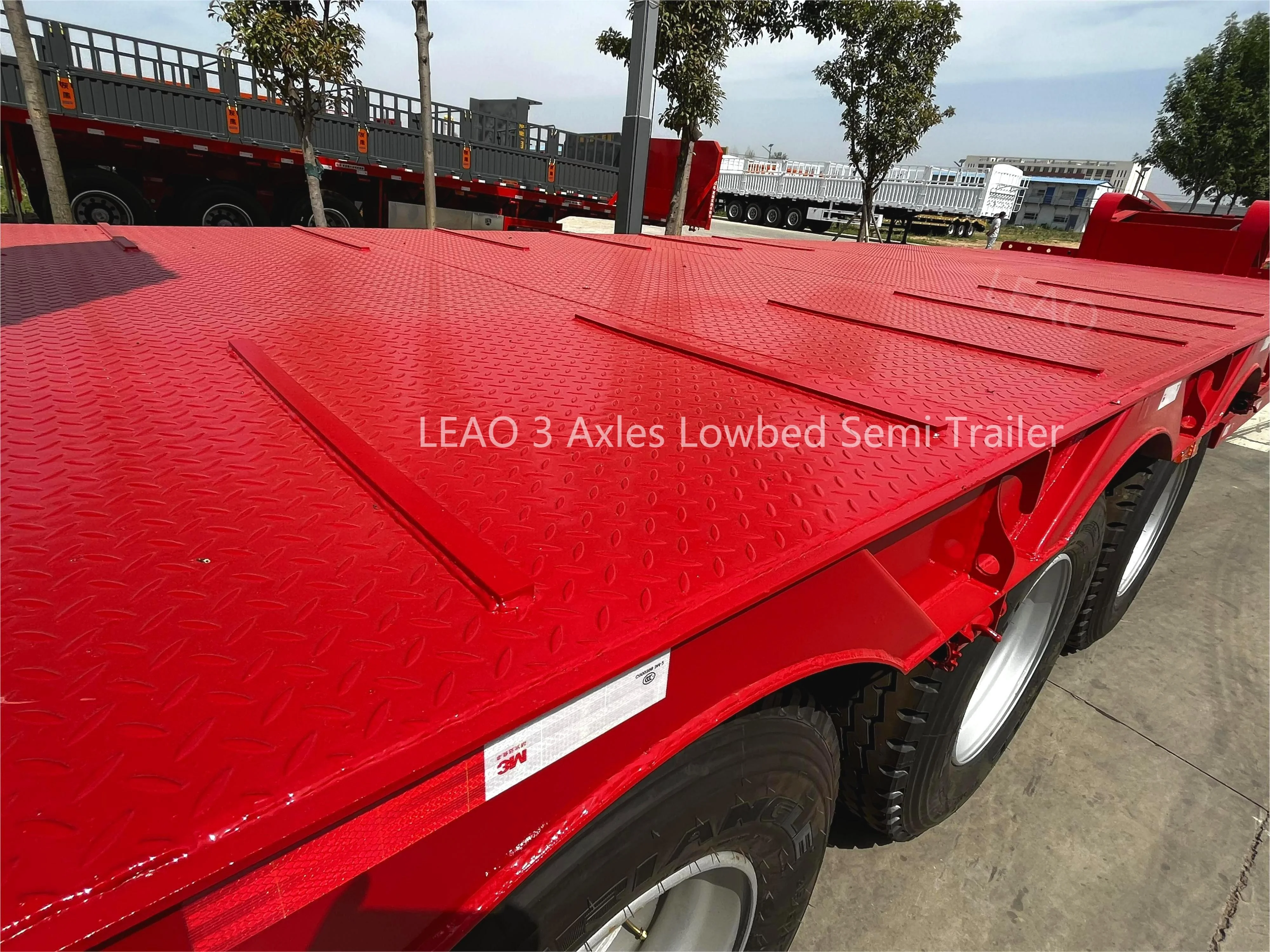

The low bed platform uses patterned steel and welded anti-skid ribs to prevent equipment and goods from loosening and slipping.
Twist Lock:
It is also optionally available with container locks, which facilitates the transport of containers.

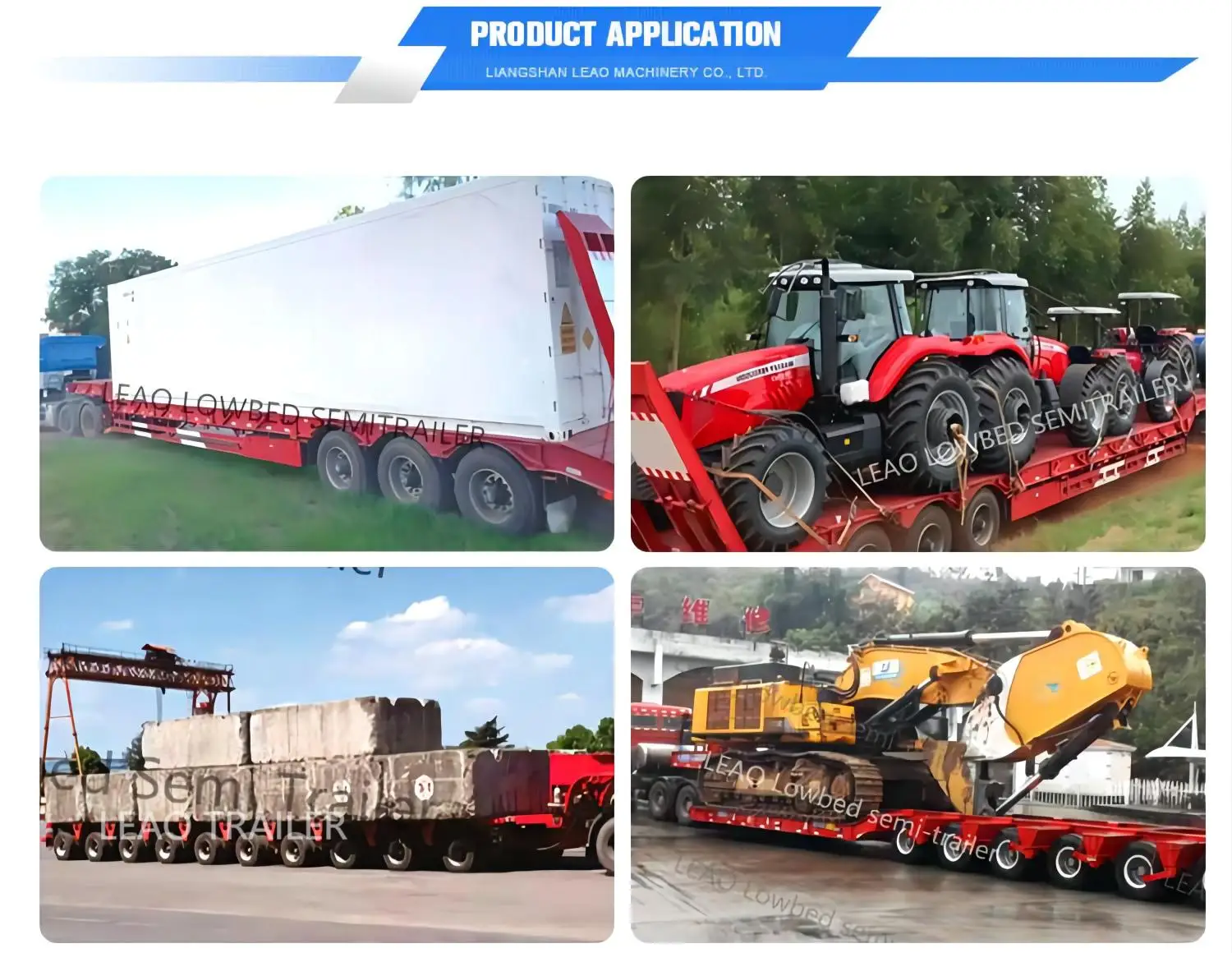

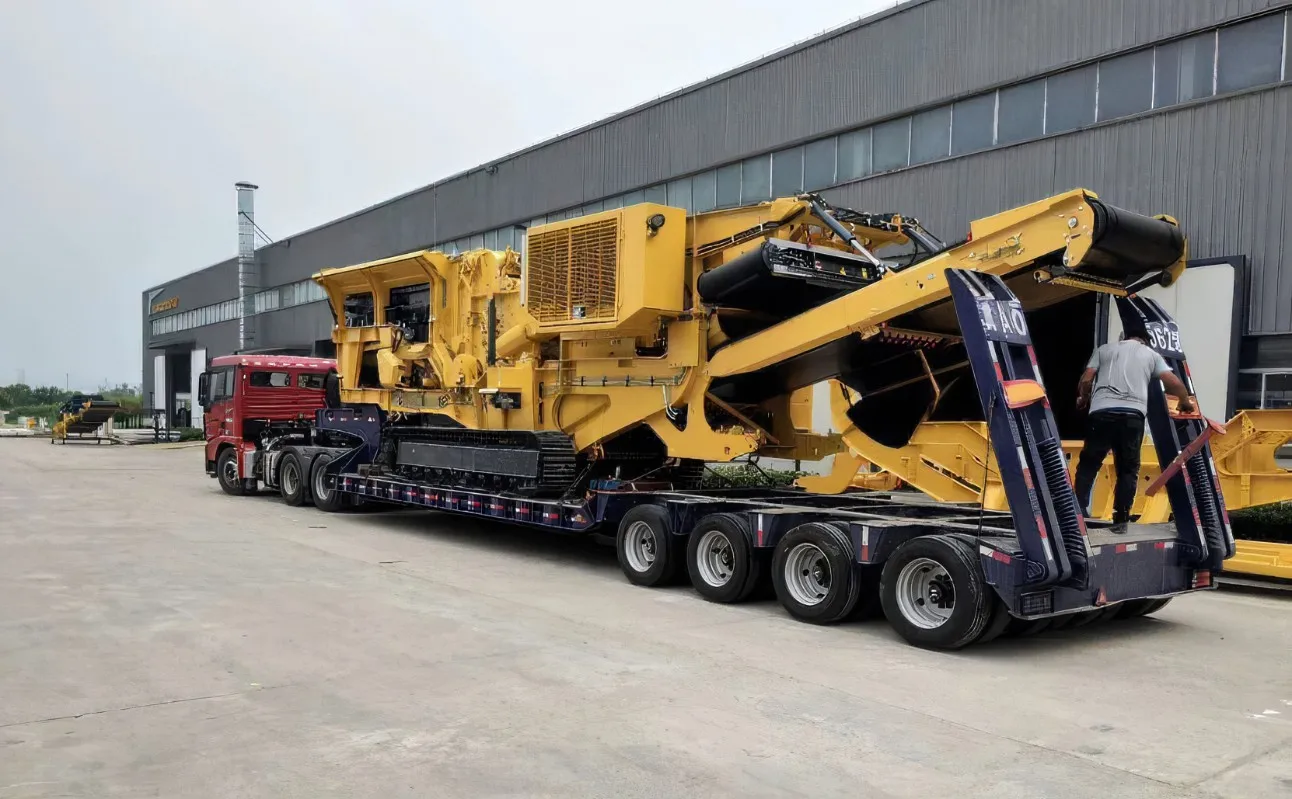

Product Application

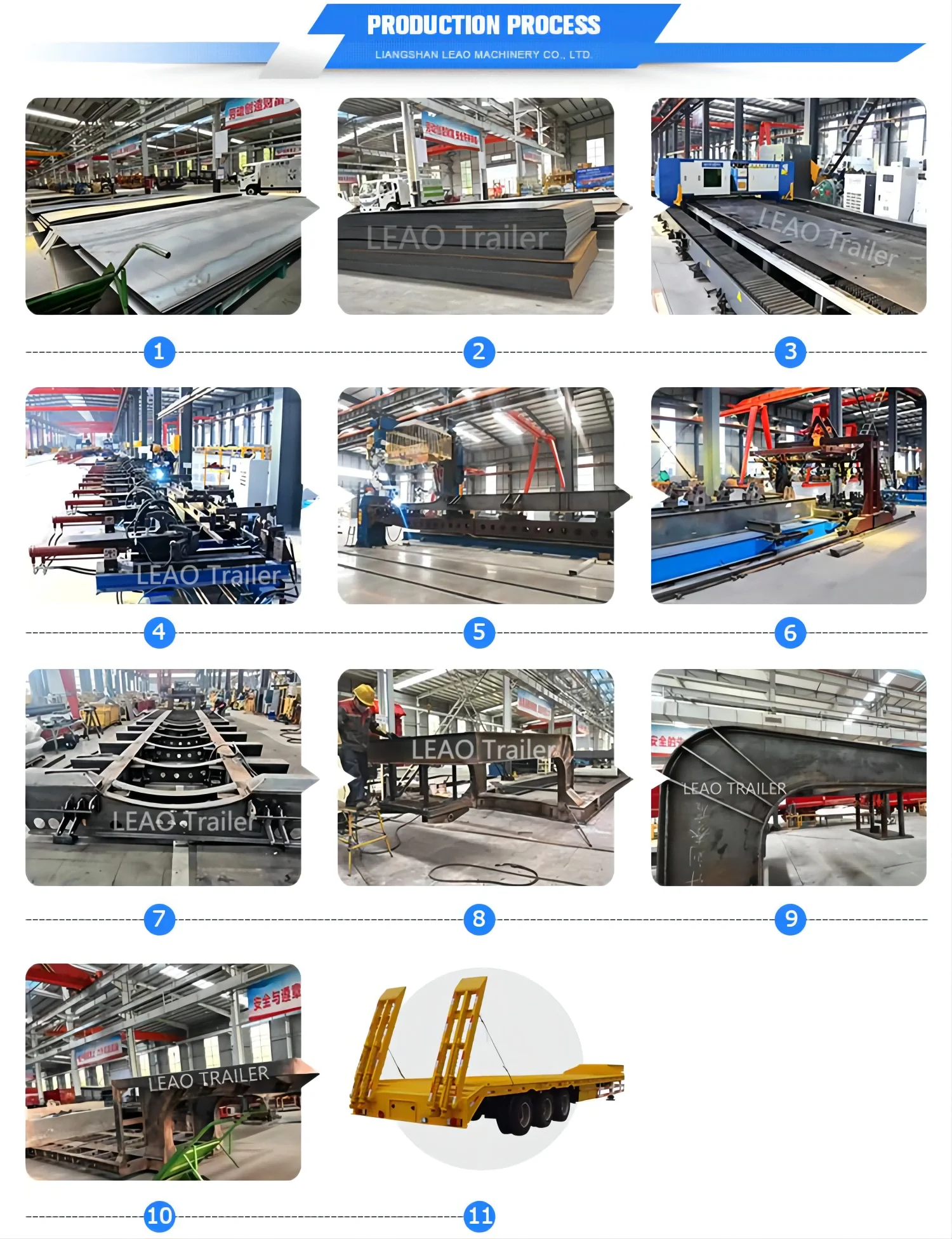

Production Process

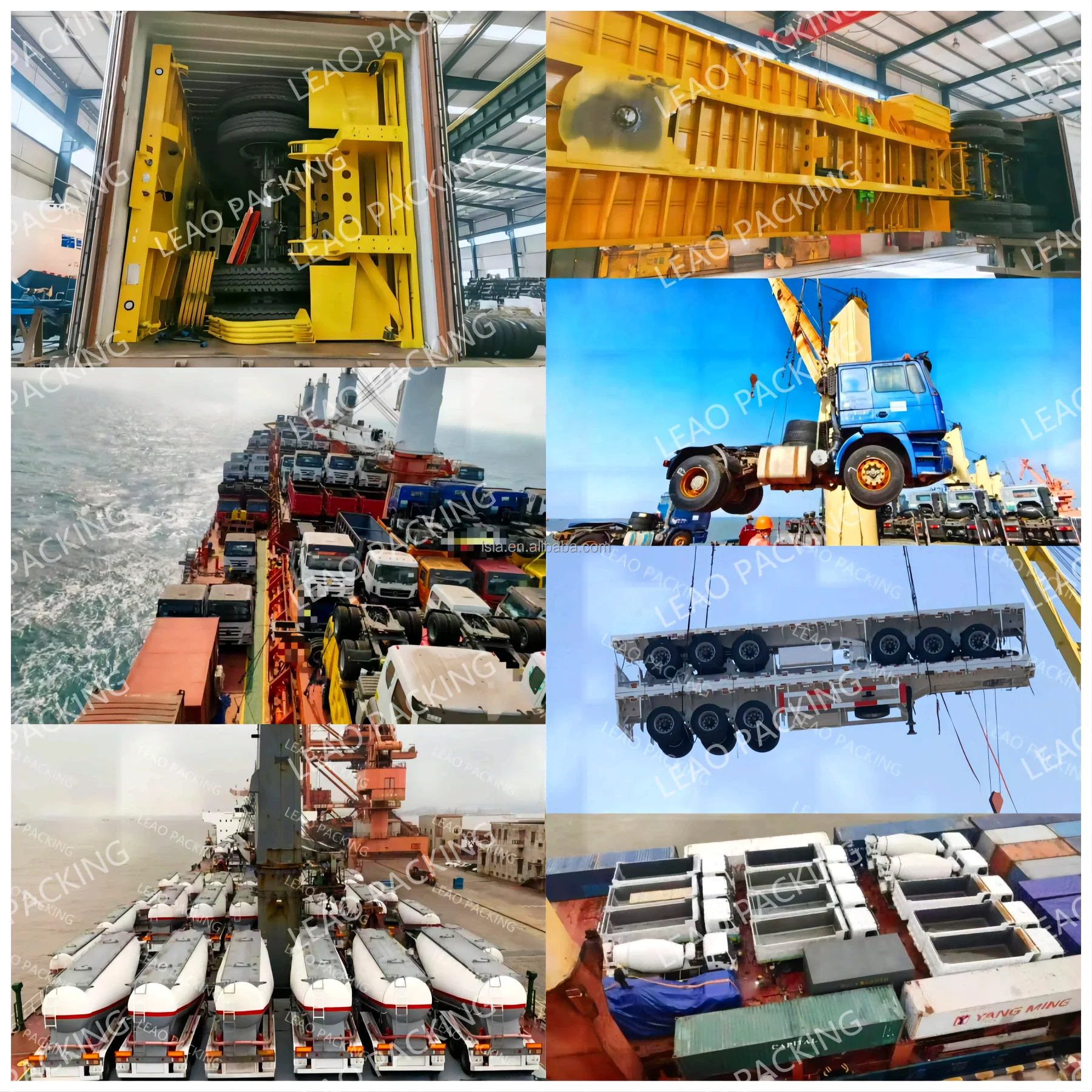

Packaging & Shipping
Company Profile
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.

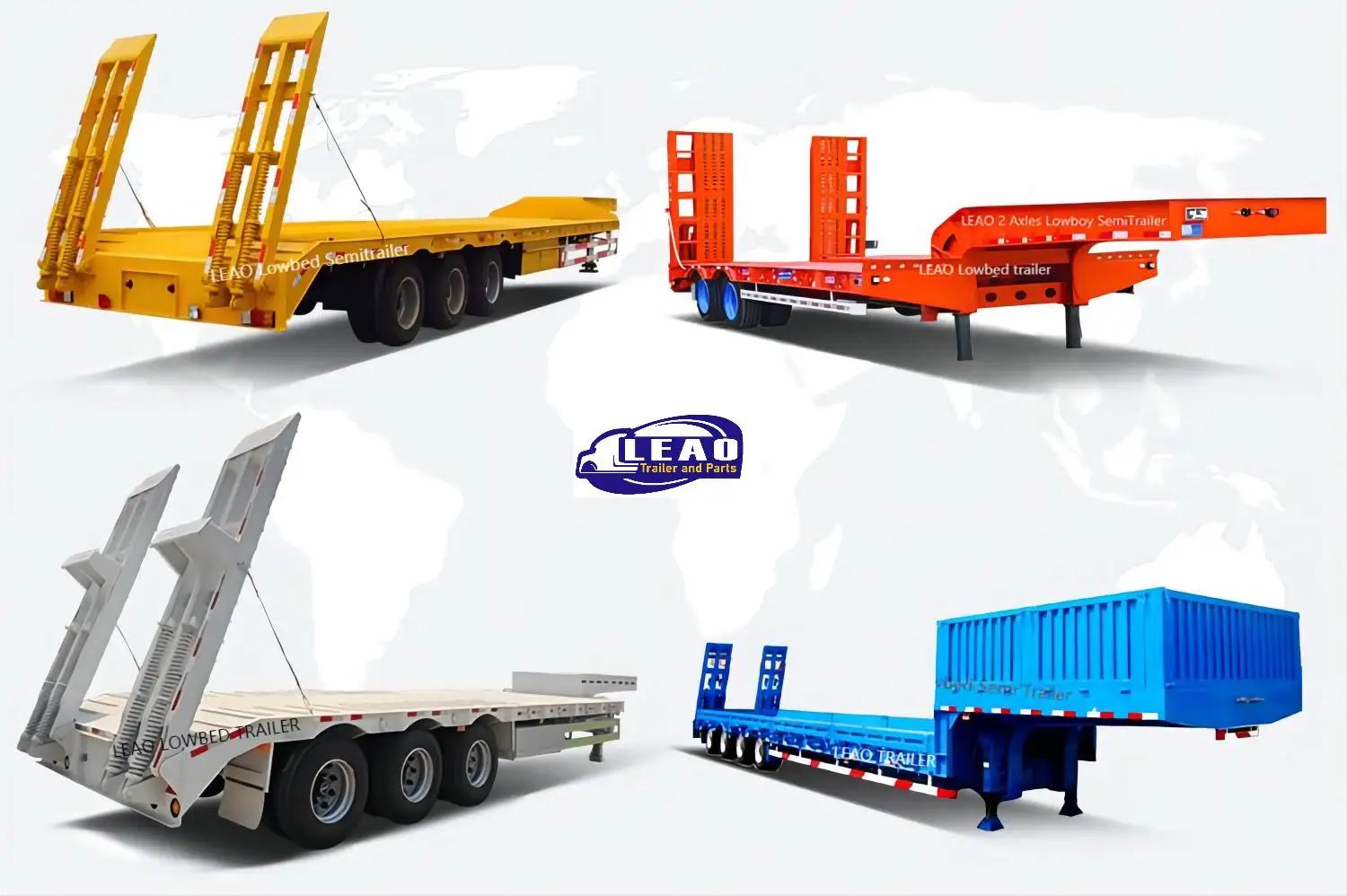

LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
