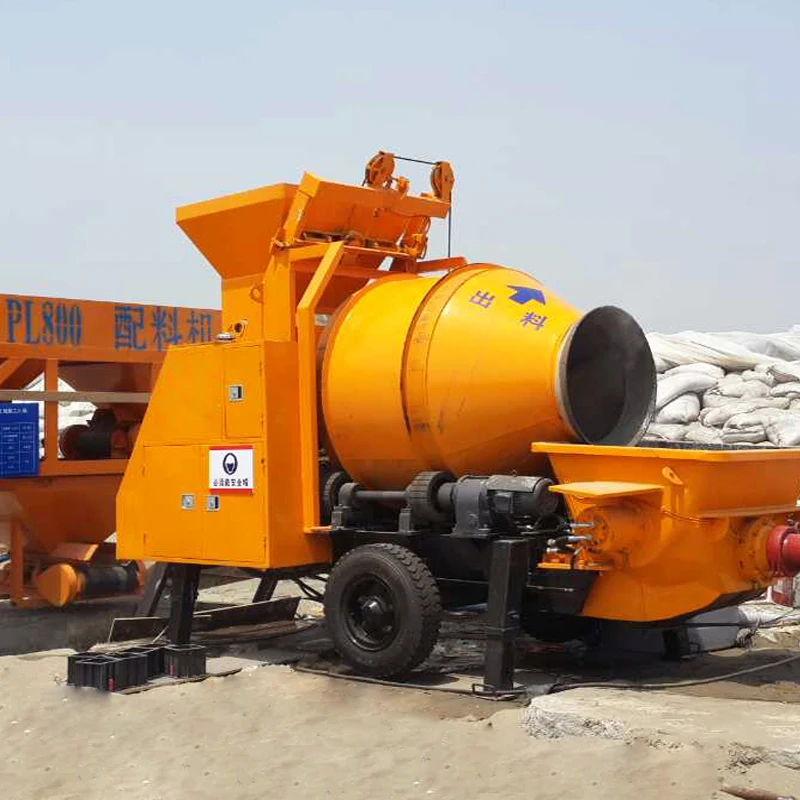

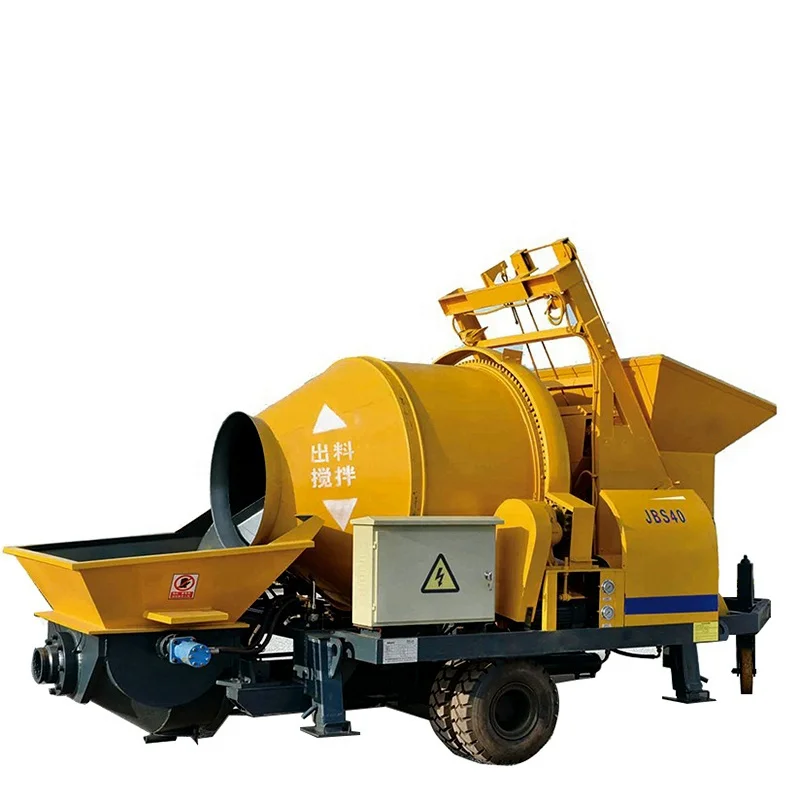

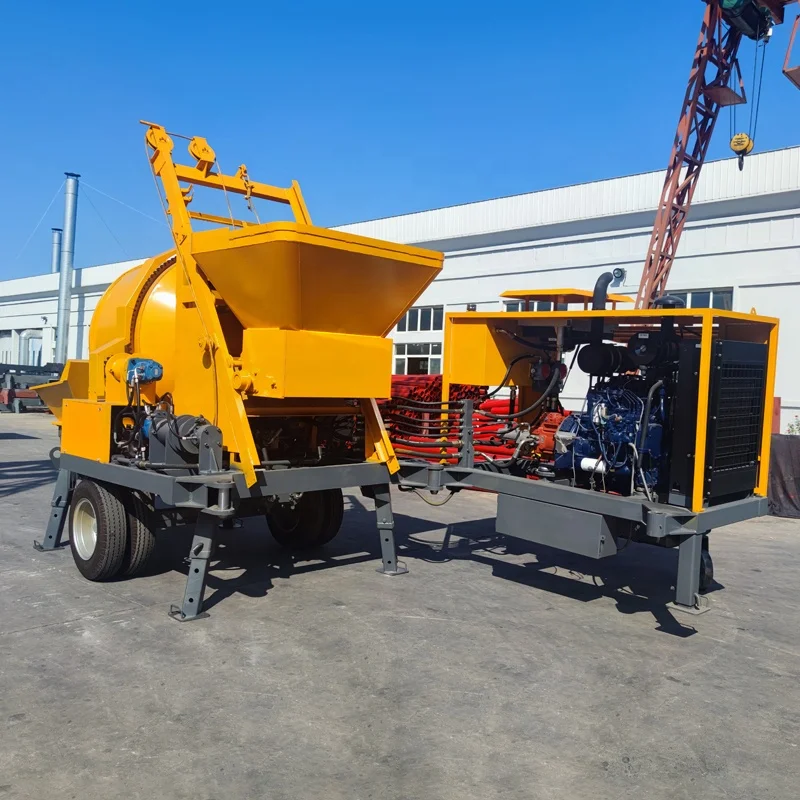

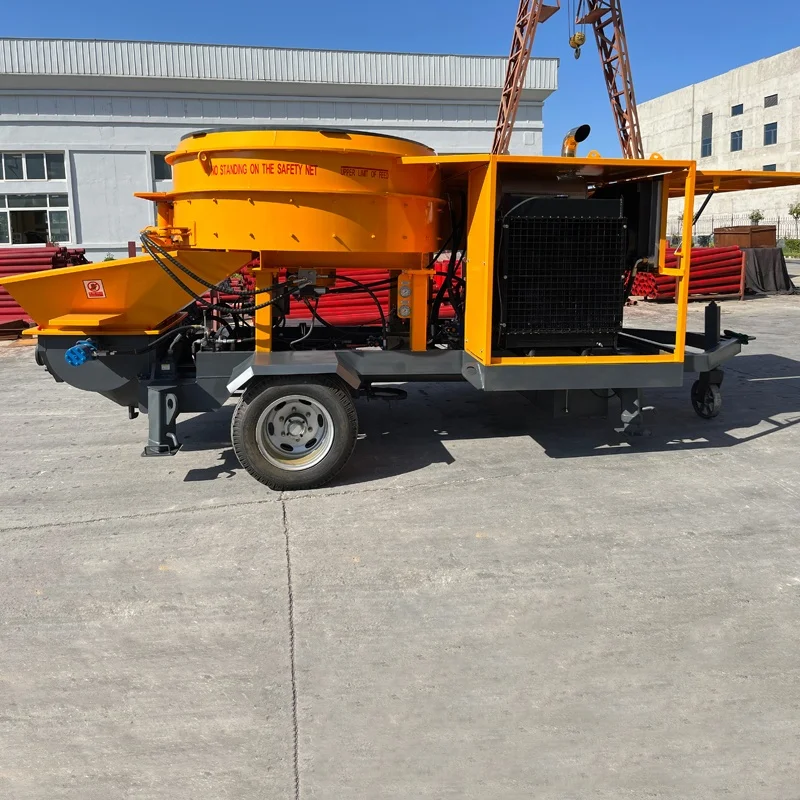

Diesel Concrete Mixer Pump Mixing hydraulic Pumping Machine And Concrete Mixer Cement Mortar Pump Concrete
- Category: >>>
- Supplier: Henan Hengyuan Co. Ltd.
Share on (1601088696041):
Product Overview
Description
1. Concrete mixer and pumping are combined into one, which reduces the procurement cost. 2. On-site mixer and continuous pumping greatly improve the construction efficiency and speed up the construction process.
3. In the process of stirring and pumping, only one operator is needed, and the operation is simple and the degree of mechanization is high, which greatly saves labor.
3. In the process of stirring and pumping, only one operator is needed, and the operation is simple and the degree of mechanization is high, which greatly saves labor.
4. Concrete mixer with pump is convenient and flexible to move and has strong maneuverability, which is very suitable for alternate operation of multiple construction sites.
Product Specification
Unit | JBS/JBTS 30 | JBS/JBTS 40 | |
Theoretical output | m3/h | 30 | 40 |
Max. concrete pumping pressure | Mpa | 10 | 10 |
Power type | Motor/Diesel engine | Motor/ Diesel engine | |
Main electric motor | kw | 37/66 | 45/84 |
Main oil pump | Kawasaki | Kawasaki | |
Main oil pump capacity | ml/min | 71 | 112 |
Theoretical delivery distance | m | 120/350 | 160/500 |
Hopper capacity | L | 550 | 550 |
Max. aggregate diameter | mm | 20/30 | 30/40 |
Inside diameter of delivery pipe | mm | Φ100 | Φ150 |
Loading capacity of the mixer | L | 560 | 720 |
Unloading capacity of the mixer | L | 350 | 450 |
Mixing motor | kw | 5.5 | 5.5 |
Hoisting motor | kw | 4.5 | 4.5 |
Dimension length x width x height | mm | 4500x2200x2800 | 4800x2200x2800 |
Total weight | kg | 5000 | 5500 |

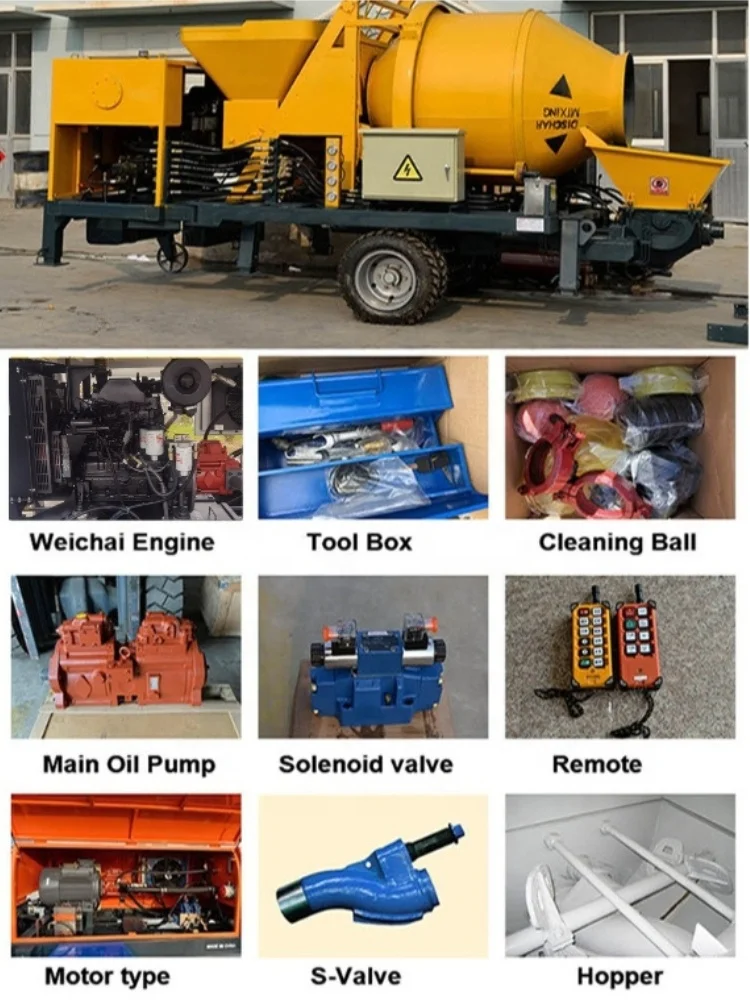

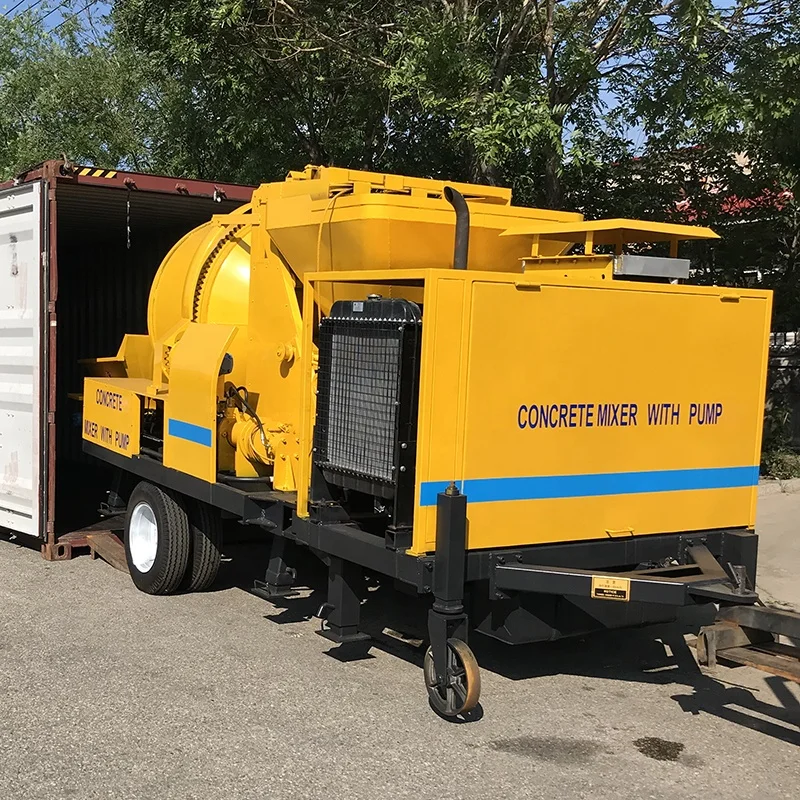

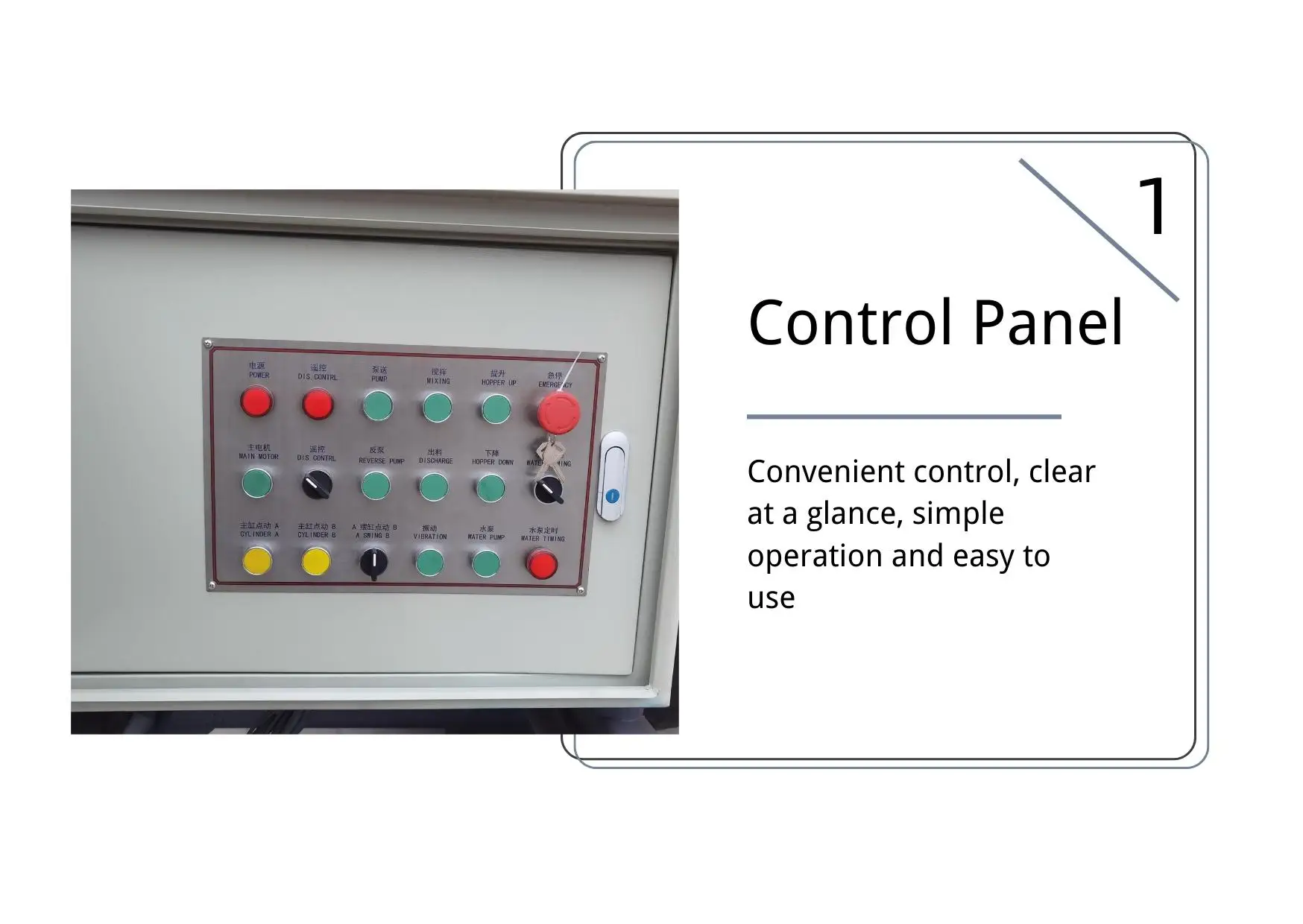

Product Details

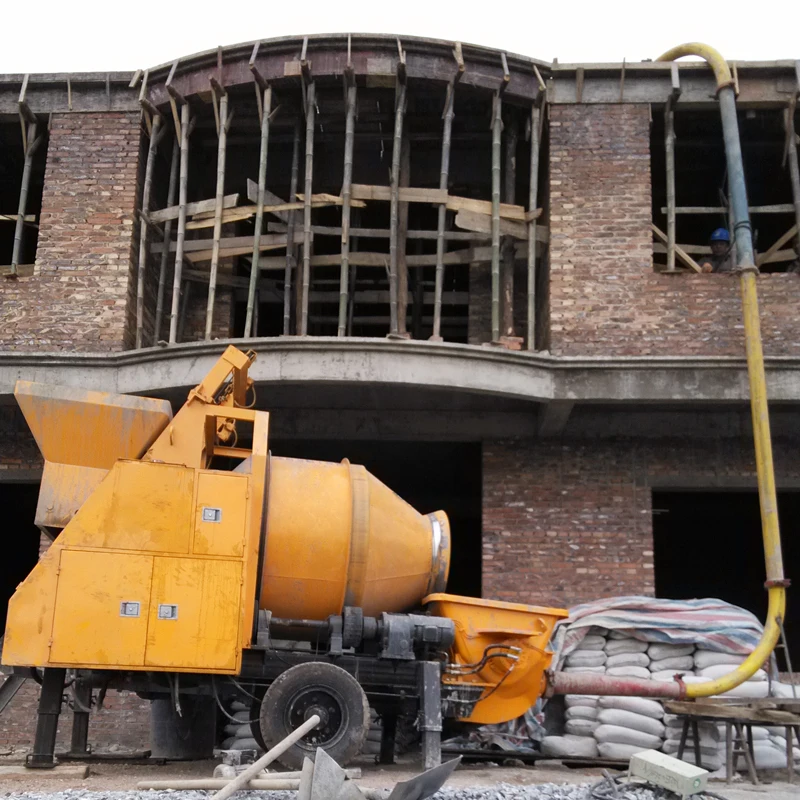

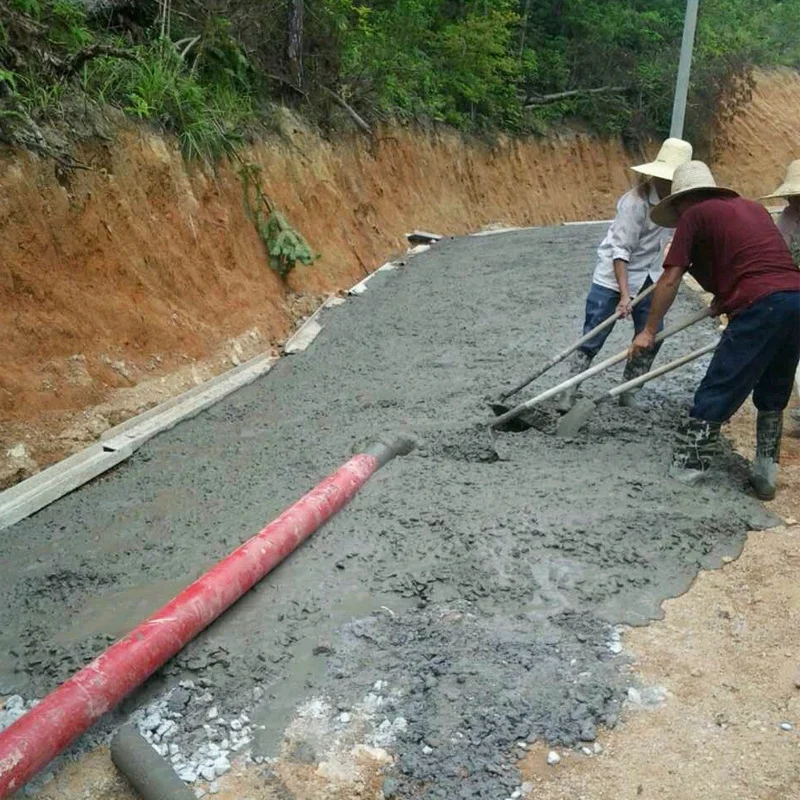

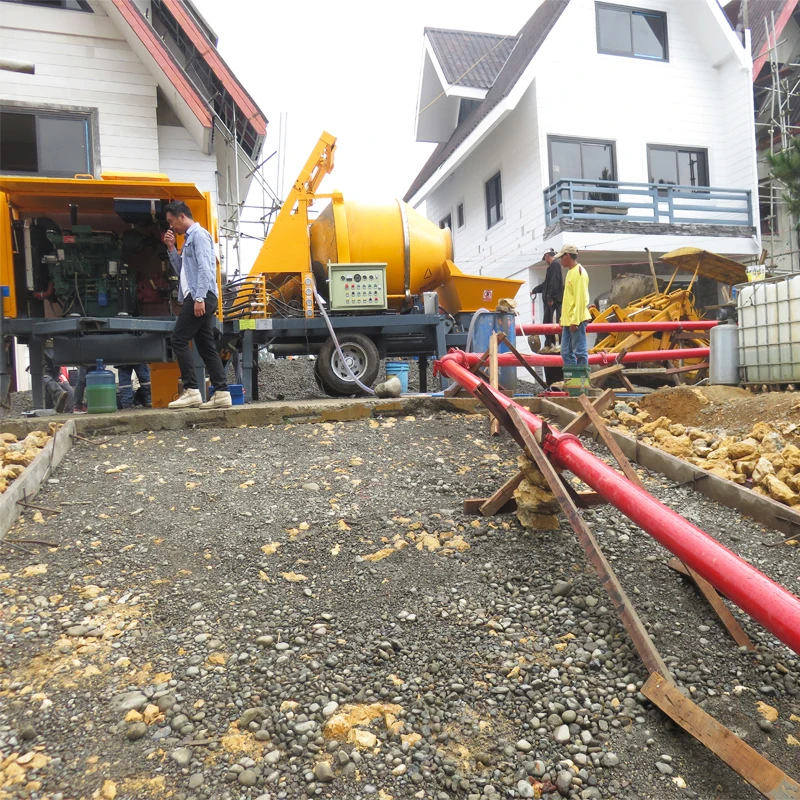

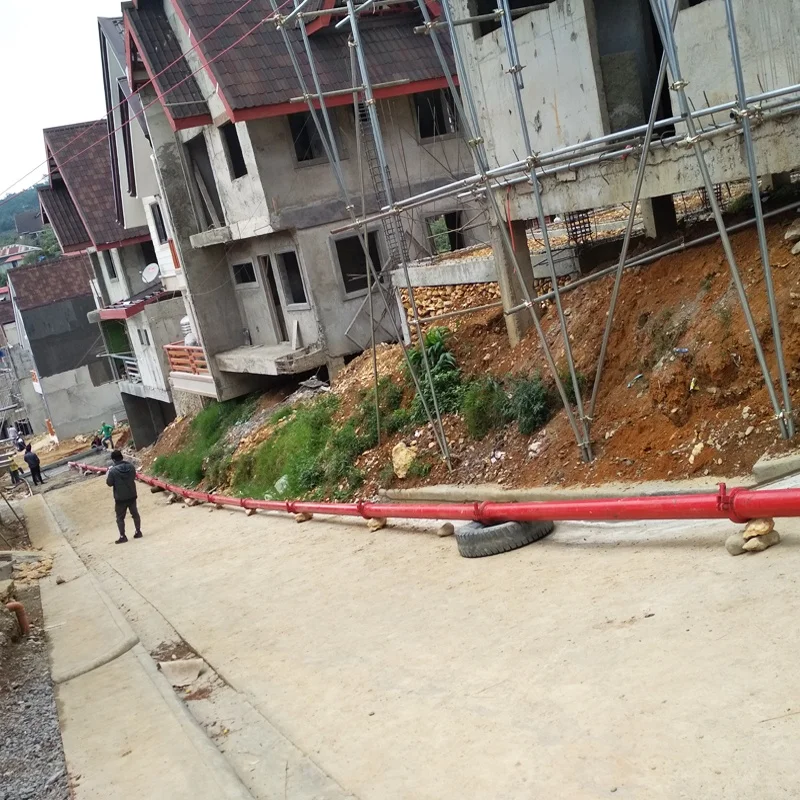

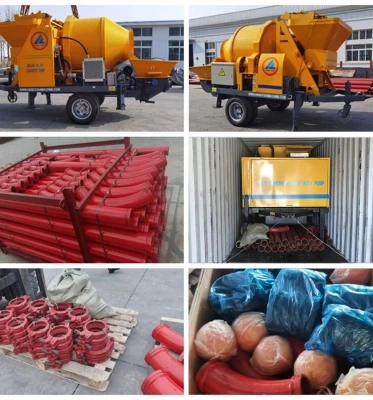

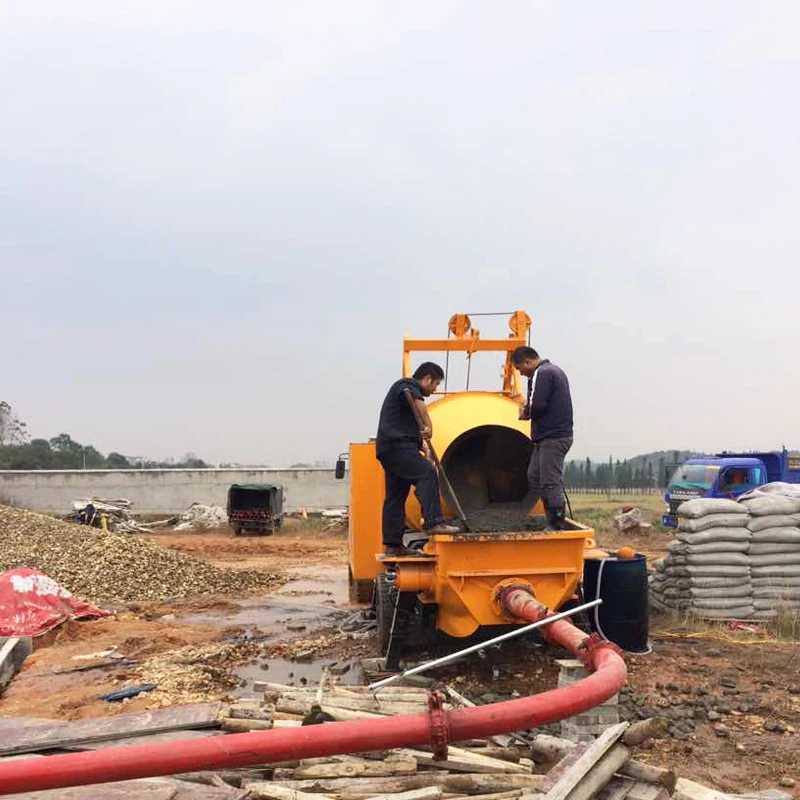

Packing & Successful Project
Certifications
ISO9001
CE
You May Like

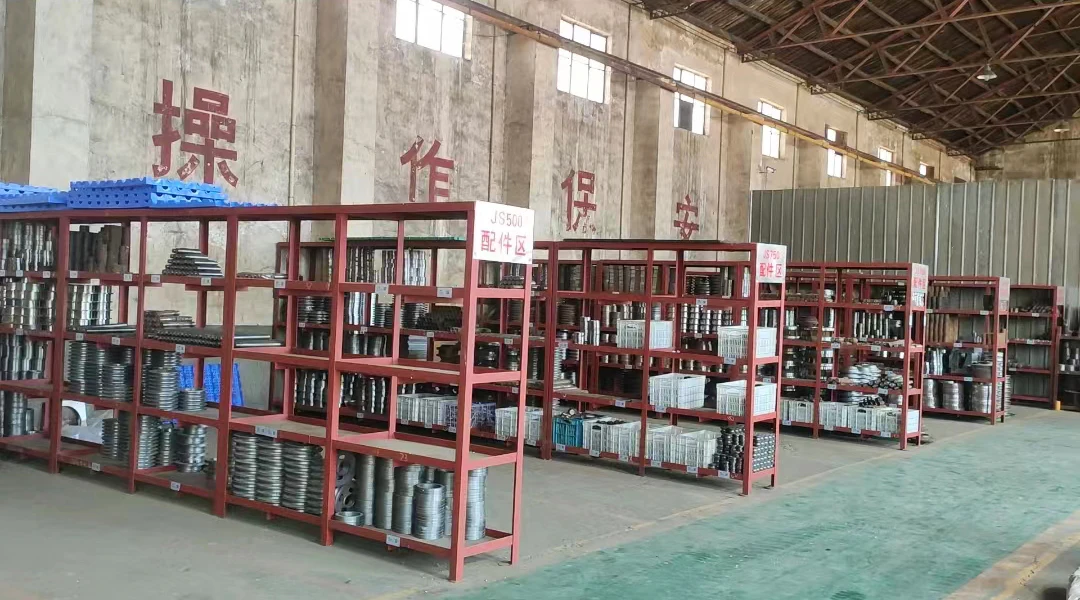

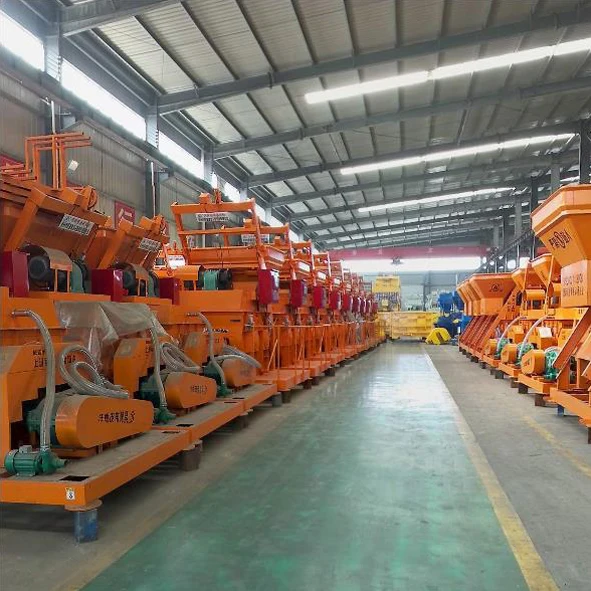

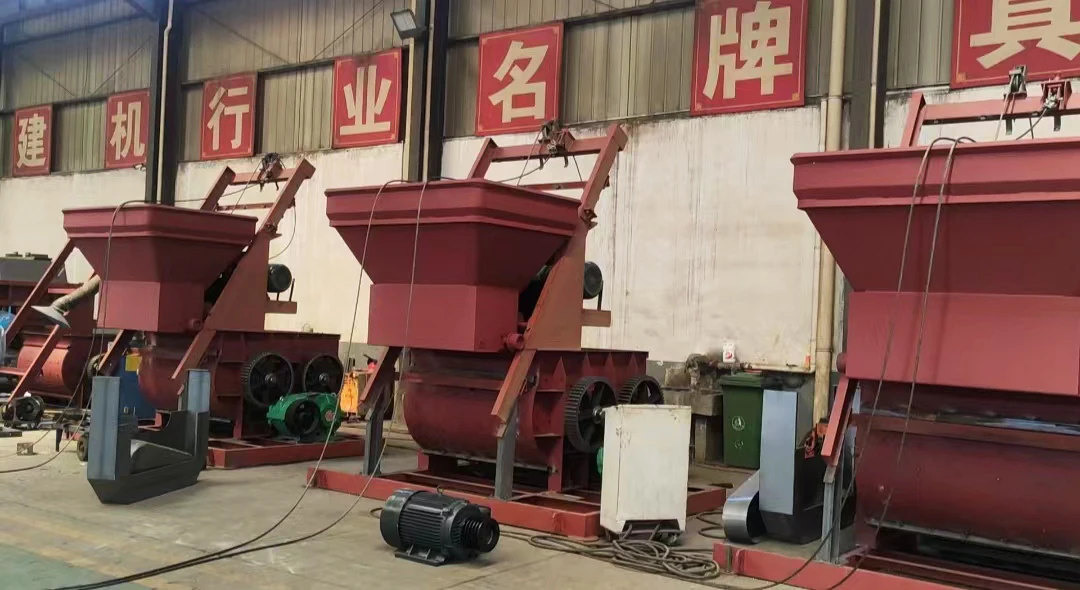

Company Profile
Henan Hengyuan Co., Ltd.
Henan hengyuan Co., Ltd. is a professional engage in the research, development sale and service on construction machinery: concrete mixer, concrete batching plant, concrete pump, concrete mixer pump, concrete pump truck, asphalt mixing plant and the related spare parts.
We are located in zhengzhou city, henan province. Our Associated factory is also located in Xingyang, Zhengzhou city, which is founded in 1999. Due to the long manufacture experience, it also got "Henan market product quality trust units"、"Famous Brand of Henan "title.
All our products are passed the ISO9001 and our concrete batching plant series passed CE certification. We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, our main market including Europe, Uzbekistan, Russia, Philippine, Malaysia, Brazil, Pakistan, Middle east and Africa.

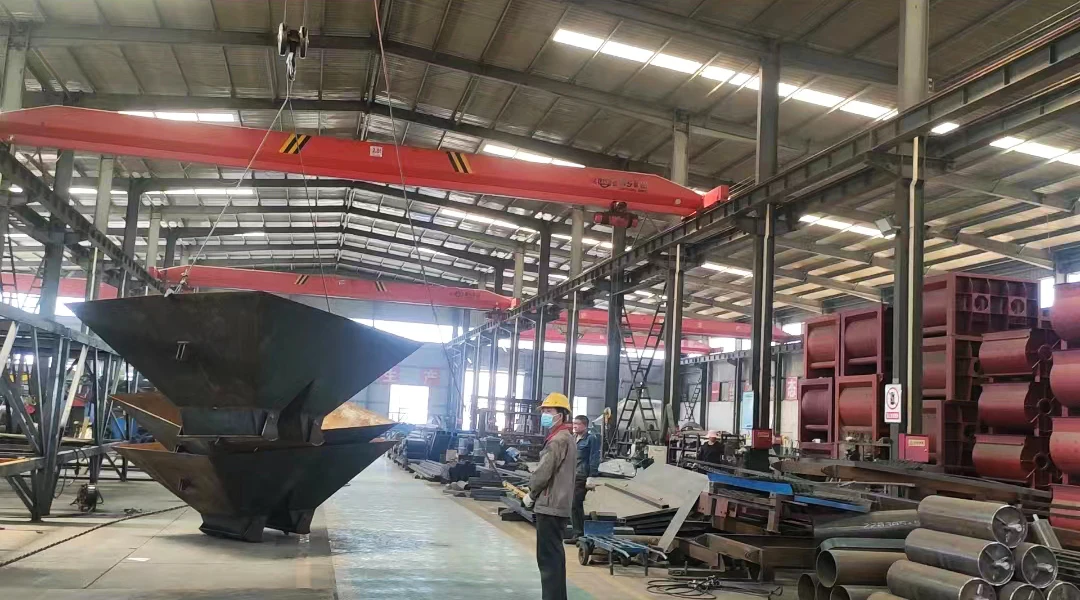

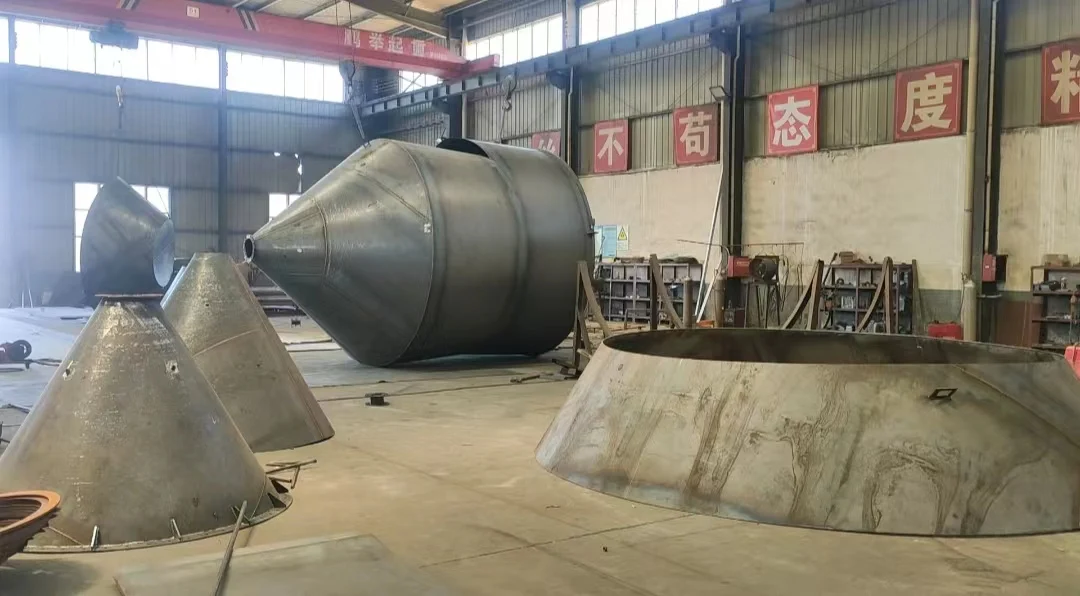

We are equipped with the C N C cutting machine, robot welding machine. Our R & D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
The company is willing to high quality, low cost, the operating principle of service to the contract and keep the credibility of the operating principles, pioneering and innovative spirit of enterprise to old and new friends, users in the economic construction hand in hand support each other and common development.
We are looking forward to your more cooperation.
We are equipped with the C N C cutting machine, robot welding machine. Our R & D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
The company is willing to high quality, low cost, the operating principle of service to the contract and keep the credibility of the operating principles, pioneering and innovative spirit of enterprise to old and new friends, users in the economic construction hand in hand support each other and common development.
We are looking forward to your more cooperation.
Advantages:
1.18 months warranty
2.Supply OEM ODM service
3. Professional technical and service team
3. Professional technical and service team
FAQ
Q1:Are you original manufacture?
A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
