Product Overview

Description



Product Description

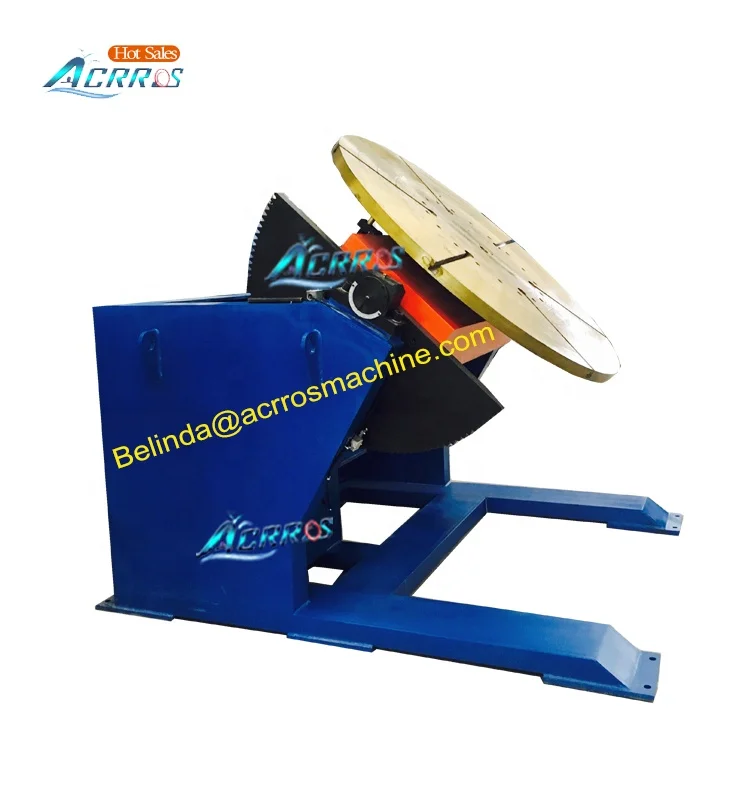

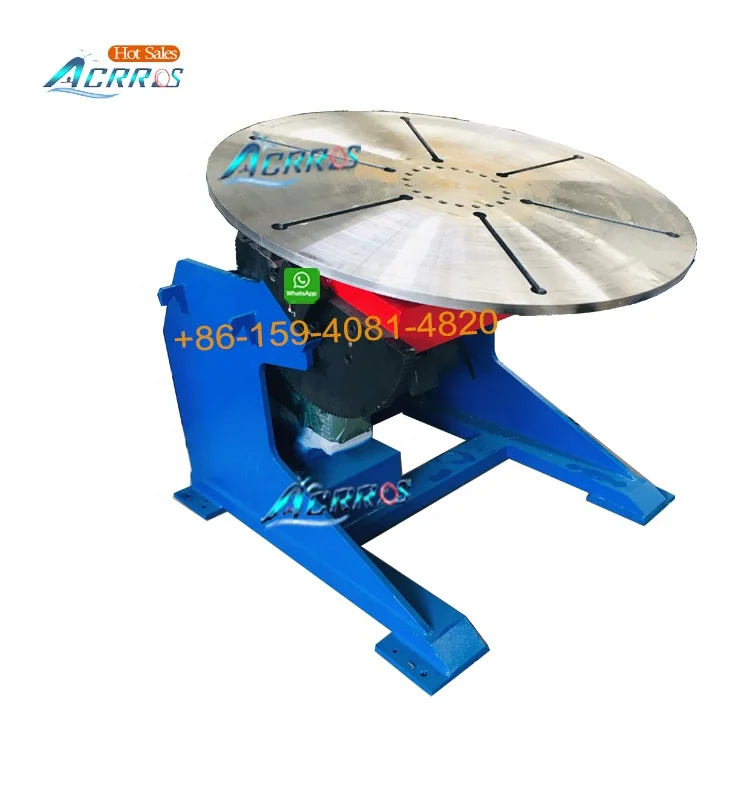

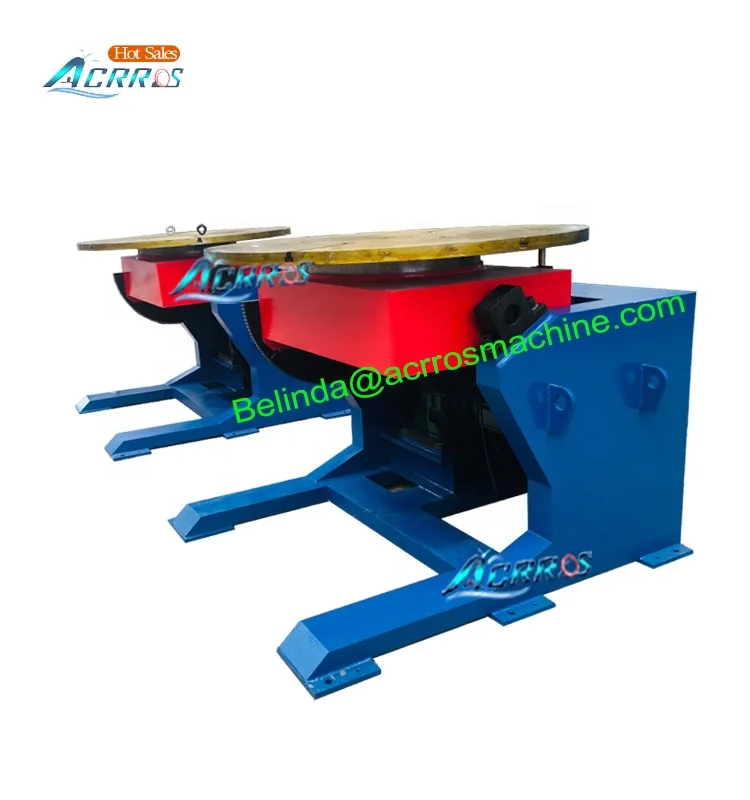

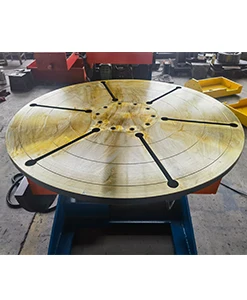

Welding Positioner Turntable
The seat-type positioner is composed of a rotating mechanism, a turning mechanism, a frame, and an electronic control system.
It rotates and flips the worktable to make the workpiece in the optimal welding or assembly position.
1Ton Automatic Tilting Rotary Table 0-120 Degree Welding Positioner with T-Slot Welding Turntable




Feature Welding Positioner Turntable
1. Variable frequency stepless speed regulation.
2. Can turning freely.
3. Wide applicability.

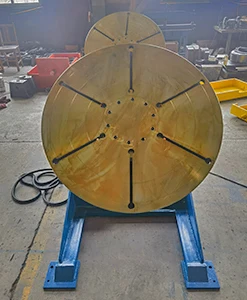

4. The work surface is made by precision machining of castings, which is not easy to be damaged by welding spatter.
5. The body adopts a seat structure, and the overall stability of the equipment is good.

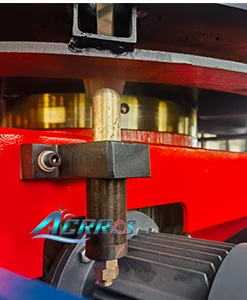

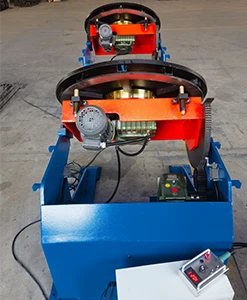

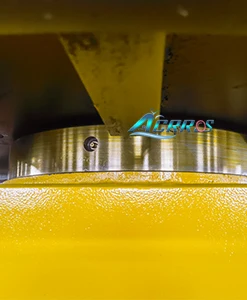

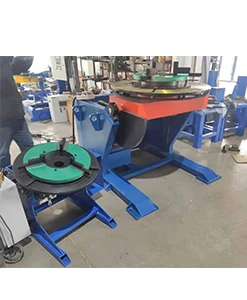

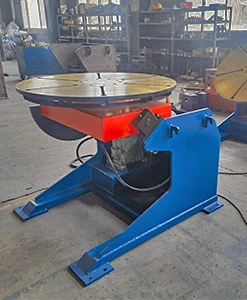

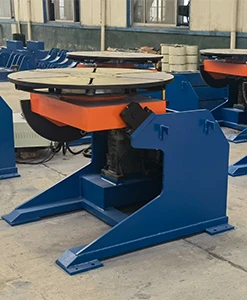

Detailed Images








Size Information


WELDING POSITIONER TURNTABLE
*The rotation of the worktable adopts stepless speed regulation by frequency conversion.

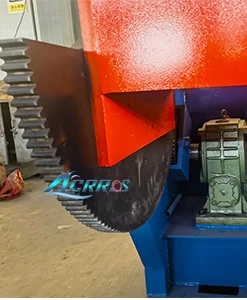

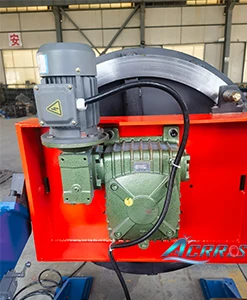

*The worktable is driven to tilt by sector gear or hydraulic cylinder.
*The rotation angle of the worktable is 0 ~ 120 °.
*It can realize joint control with an operation machine or welding machine.

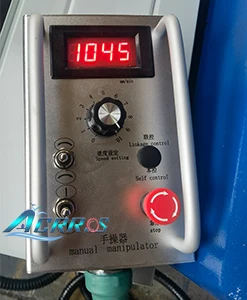

*The control system can be configured with three types of configurations: push-button digital control, switch digital control, and switch relay control


Size Chart of This Design




Model
Loading
Rotation Speed
Turning Angle
Table Diameter
Eccentricity Distance
AWP-1200KG
1200kgs
0.1-1R/Min
0-120°
1000mm
150mm
AWP-2000KG
2000kgs
0.1-1R/Min
0-120°
1200mm
150mm
AWP-3000KG
3000kgs
0.06-0.6R/Min
0-120°
1400mm
200mm
AWP-5000KG
5000kgs
0.05-0.5R/Min
0-120°
1600mm
200mm

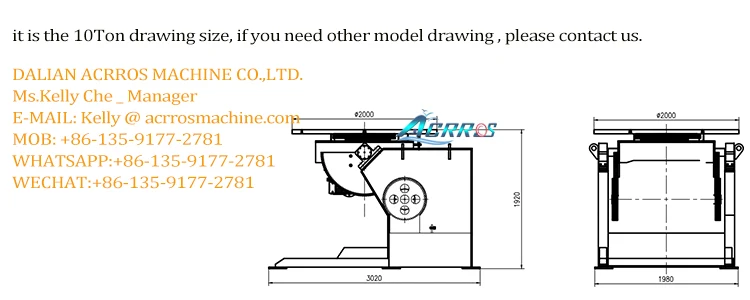

AWP-10Ton
10Ton
0.0.5-0.5R/Min
0-120°
2000mm
200mm


Manufacture Specification


The welding positioner is a practical auxiliary positioner.
It is mainly used in workplaces such as welding of steel structures and assembly of mechanical parts. It is widely used in the manufacturing industry of various steel structures such as flanges,pipe joints, etc.
It can also be used as peripheral equipment and a robot to achieve automatic welding.
It is one of the commonly used equipment in modern pipeline, container, and steel structure manufacturing enterprises






Best Selling




Recommending Styles


【Warranty WELDING POSITIONER TURNTABLE】We provide 1 YEAR warranty for every our customer. If you have any questions, please feel free to contact us directly. We will give you a reply as soon as possible.

If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB:+86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-86-159-4081-4820




Company Introduction


Dalian Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development
strategy. Acrros have been specialized in manufaturing welding positioners for more than 15 years.

All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service.

Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.

ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future harmonious world.




Our Services & Strength WELDING POSITIONER TURNTABLE
Advantages：Frequency conversion stepless speed regulation, free to flip, wide applicability.
Scope of Application：Applied to a variety of welding shaft, disk, cylinder of the rotating body of the workpiece.
Brief Intro: Through the rotation and flipping of the worktable, the workpiece is in the optimal welding or assembly position.
