CNC Flame Cutter Used Gas Cutting Torch
- Category: >>>
- Supplier: Dalian Fyeboon Technology Co. Ltd.
Share on (1601090595799):
Product Overview
Description
Product Info
Structural Feature | ||
1 | It is made of high quality forging brass. | |
2 | Balanced pressure structure design. | |
3 | It adopts silver solder, avoid leakage. | |

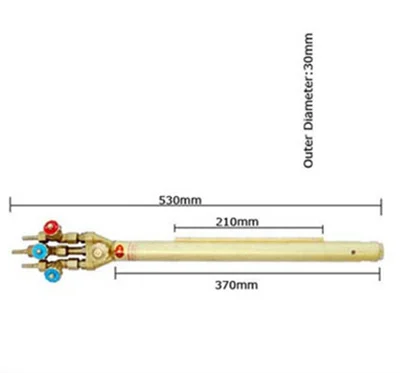

4 | O.D. of the tube: 30mm ad 32mm | |
5 | Length of tube: 180mm, 250mm, 300mm, 370mm, 450mm | |
6 | The gear rack can be installed at 4 different positions with 90 degrees between 2 positions | |

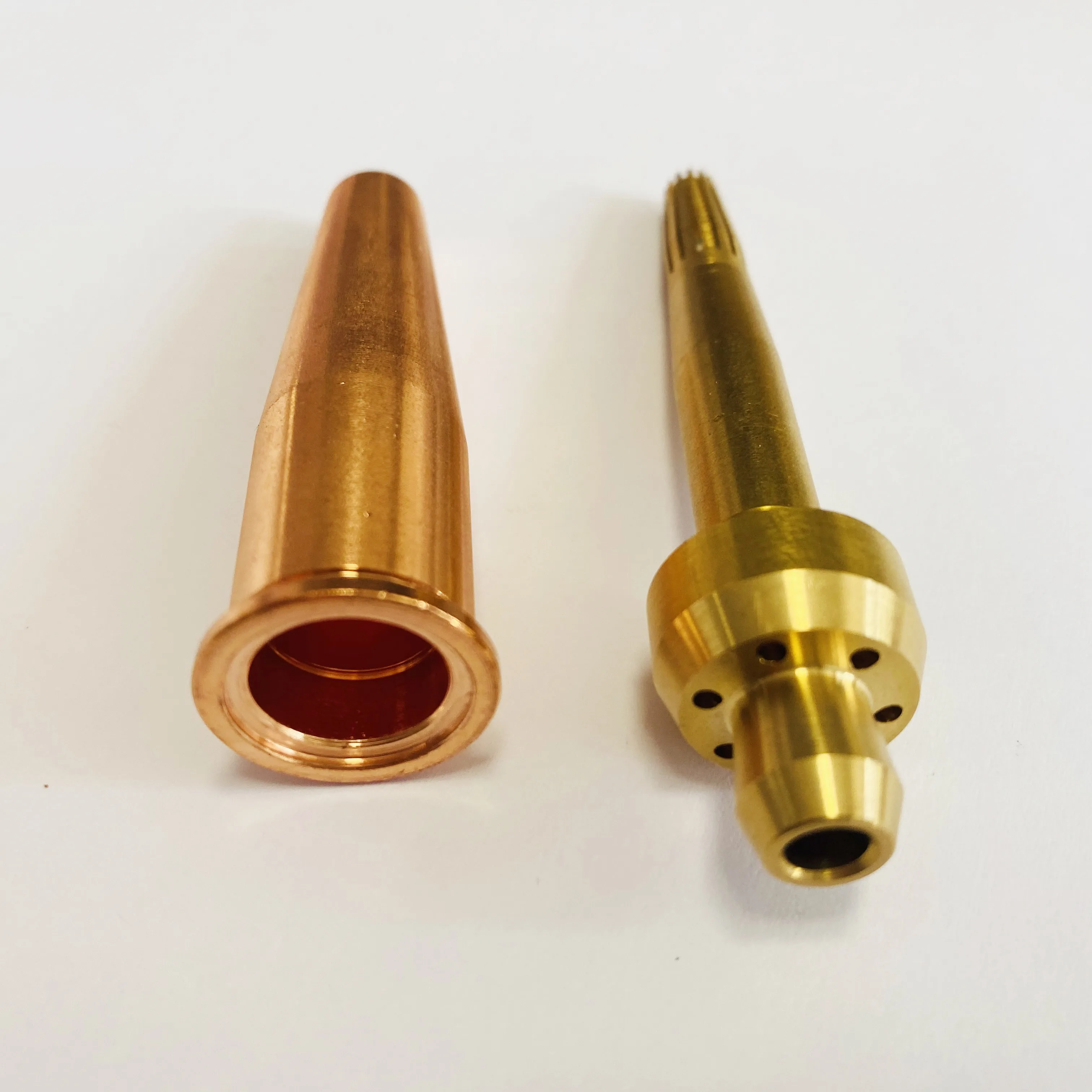

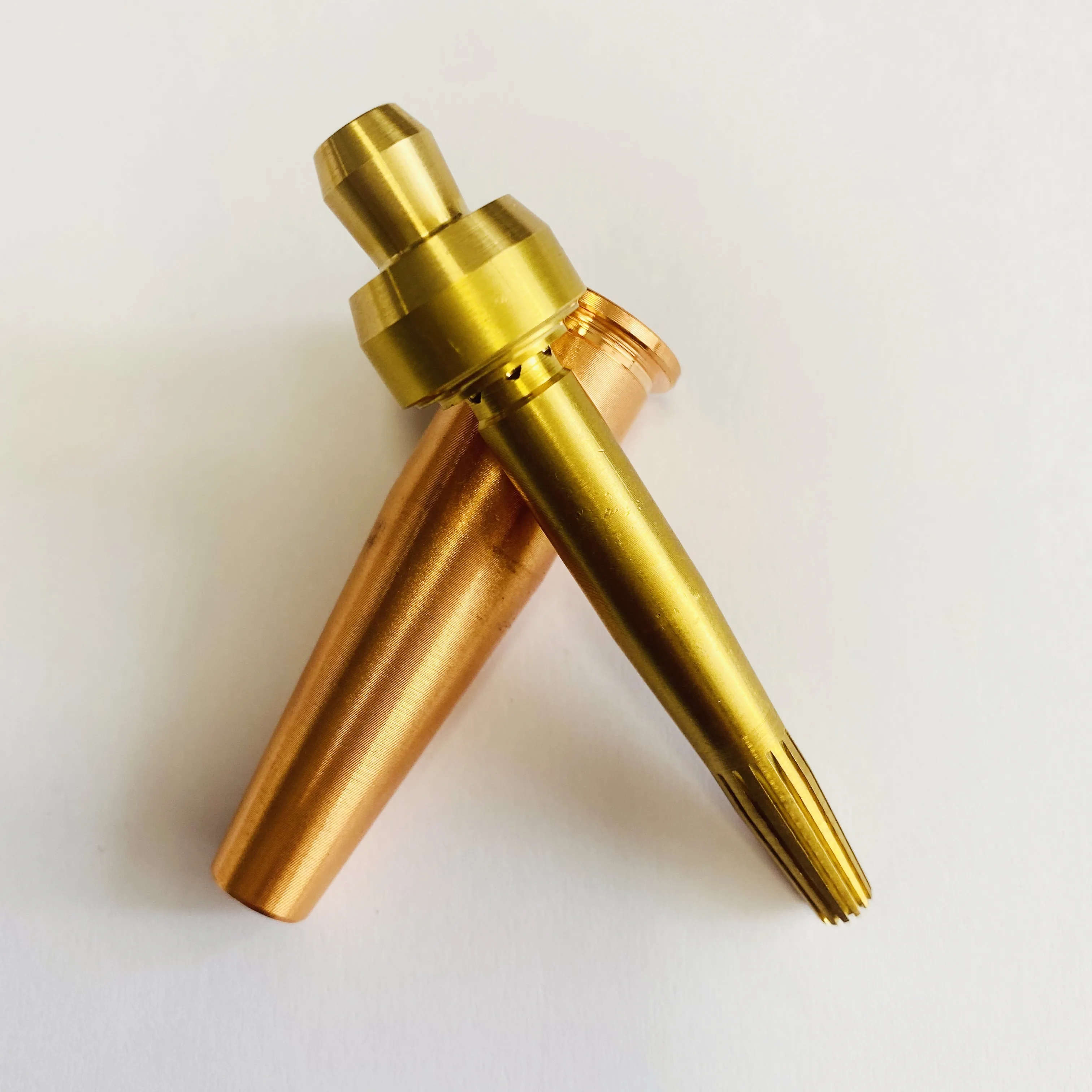

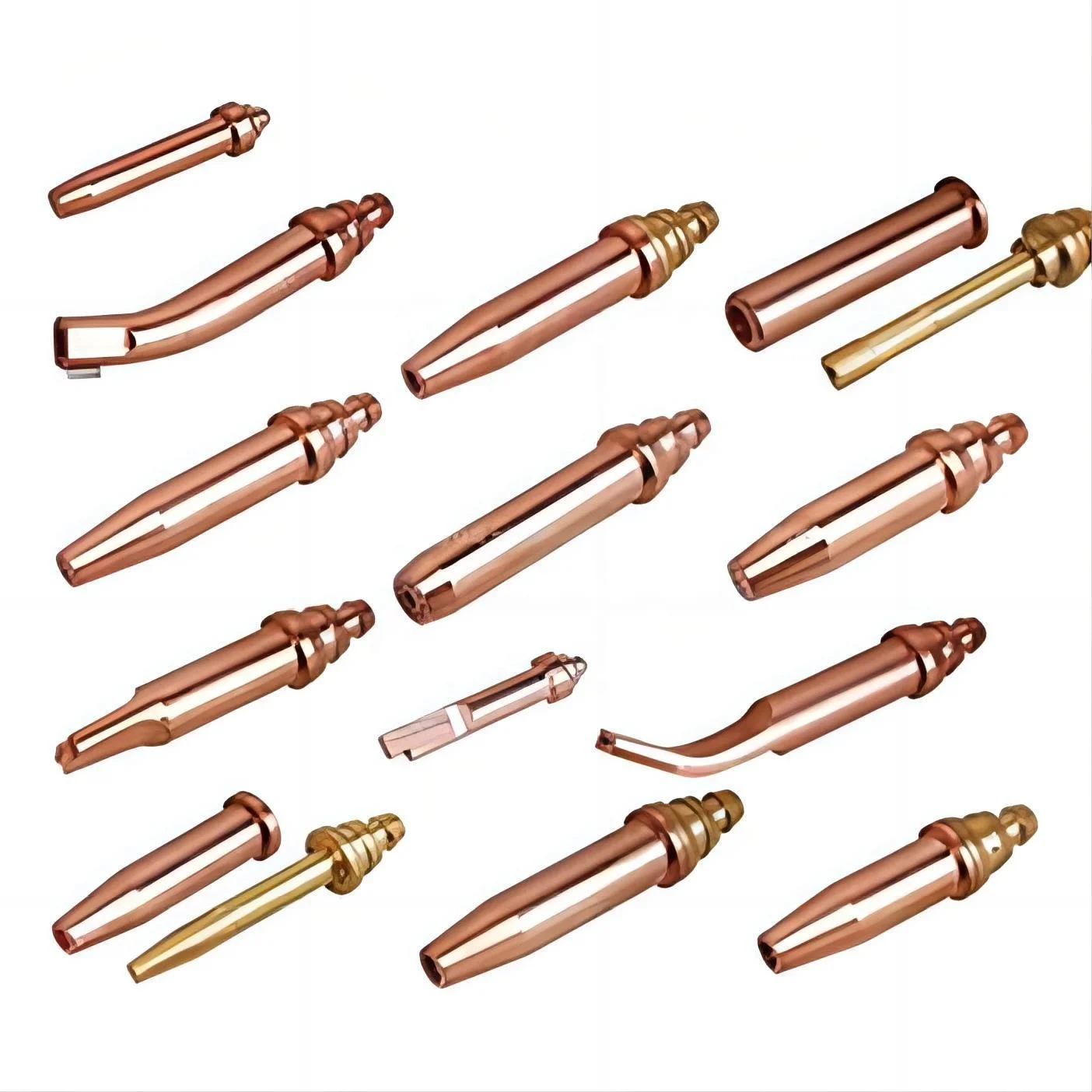

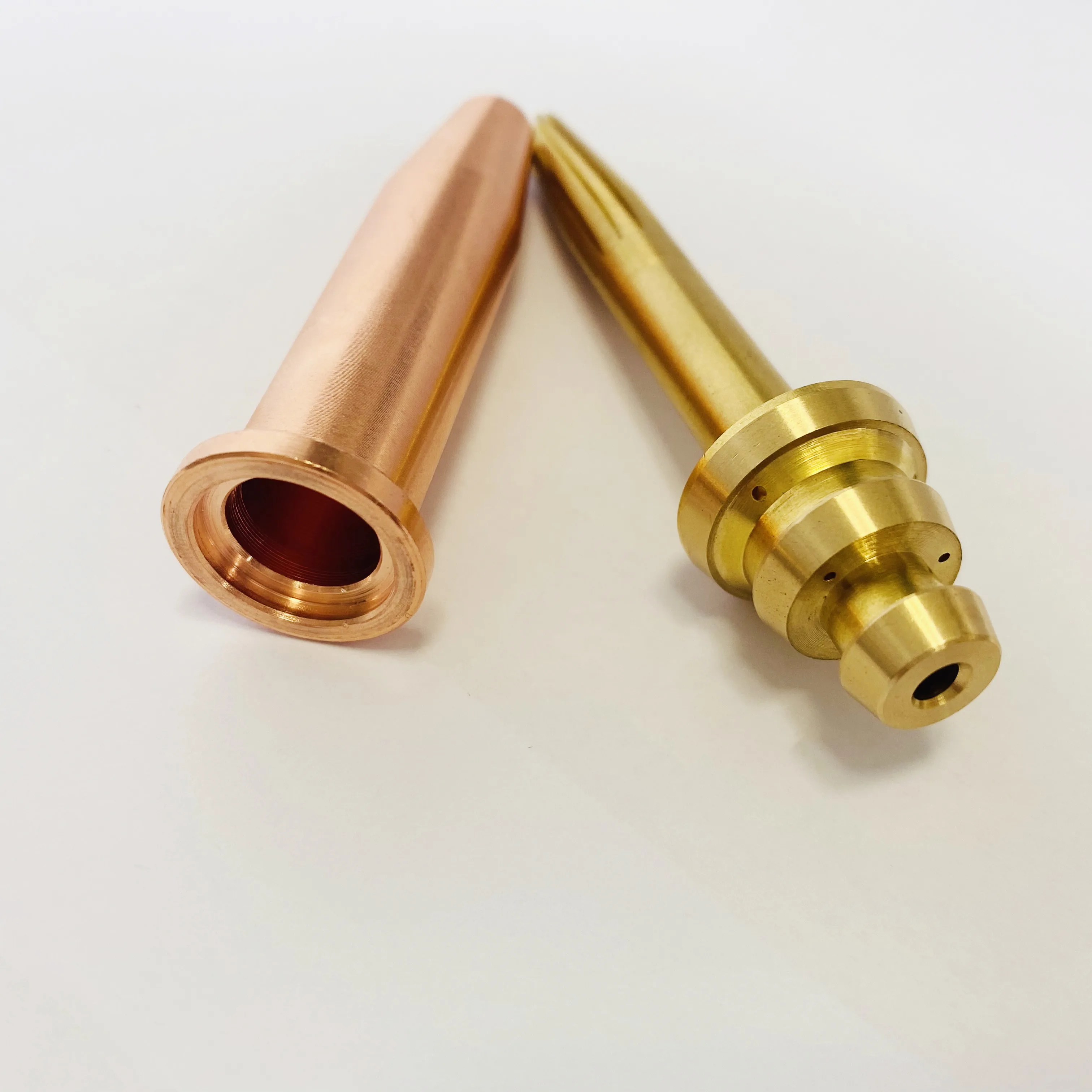

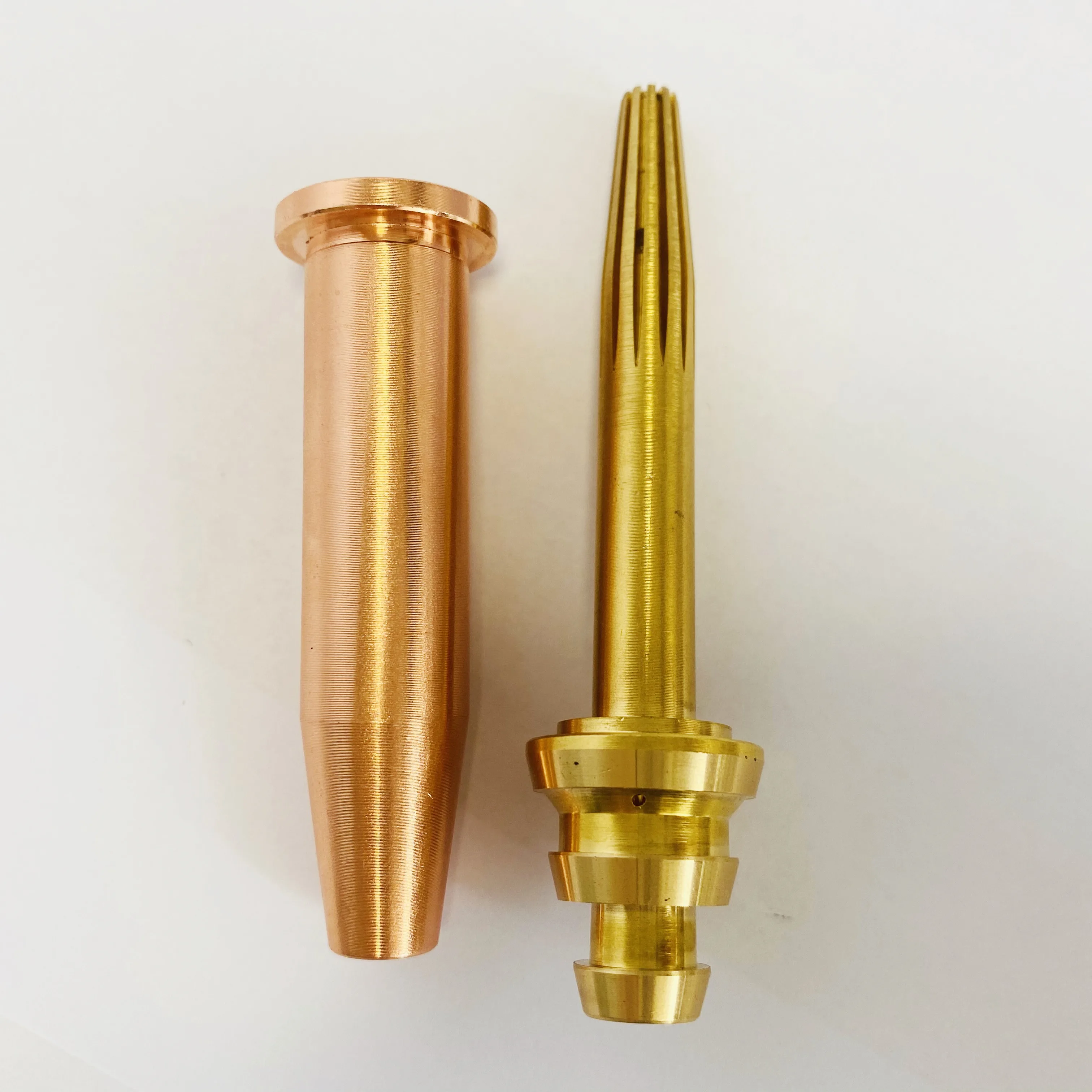

7 | It is suitable for balanced pressure cutting nozzle with cone of 30degrees | |
Tube Length (mm) | Cutting Thickness (mm) | Rack Length/Modulus | Acetylene Cutting Tip | Propane Cutting Tip | Inlet Connection |
180 | 300 | G02#0-#5 | G03#0-#5 | M16*1.5 | |
250 | 150/1 | ||||
300 | 210/1 | ||||
370 | 210/1 | ||||
450 | 310/1 |
Structural Feature | ||
1 | It is made of high quality forging brass | |
2 | Balanced pressure structure design | |
3 | adopt silver solder, which can avoid leakage | |
4 | O.D. of the tube is 30mm | |
5 | Length of tube: 85mm, 180mm, 250mm, 370mm, 450mm | |
6 | The gear rack can be installed at 4 different position with 90 degrees between two postions | |
7 | It is suitable for balanced pressure cutting nozzle with cone of 30 degrees | |
Tube Length | Cutting Thickness (mm) | Rack Length/Modulus | Acetylene Cutting Tip | Propane Cutting Tip | Inlet Connection |
85 | 300 | / | G02#1-#5 | G03#1-#5 | M12*1.25 |
180 | 150/1 | ||||
250 | 210/1 | ||||
370 | 210/1 | ||||
450 | 310/1 |
Recommend Products
Contact
Exhibition & Feedback

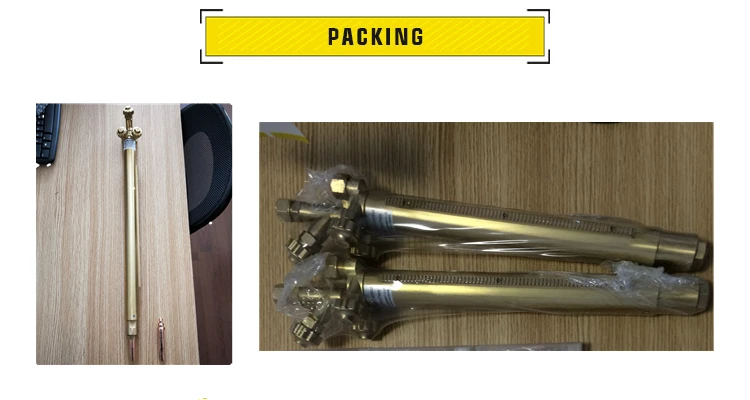

Packing & Delivery
