Product Overview

Description



Haomei Machinery Equipment Co.,Ltd. have produced Concrete Trailer Pumps for 10 years,is one professional supplier of concrete machinery in China

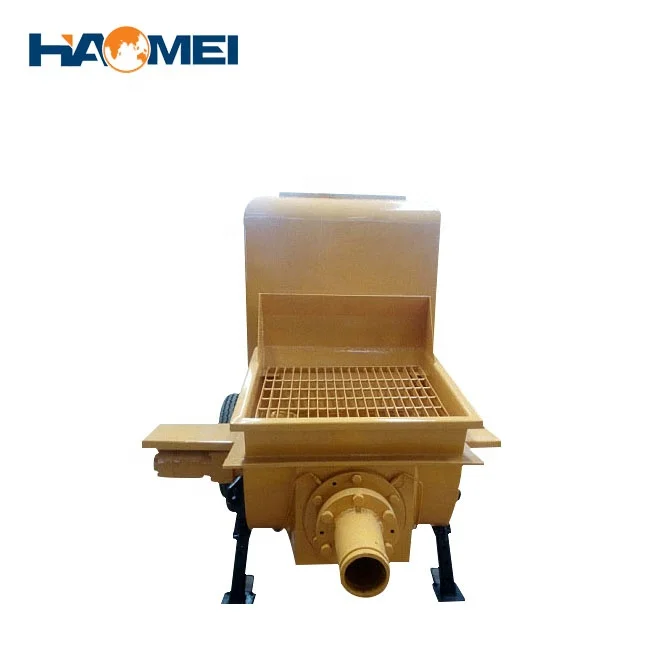

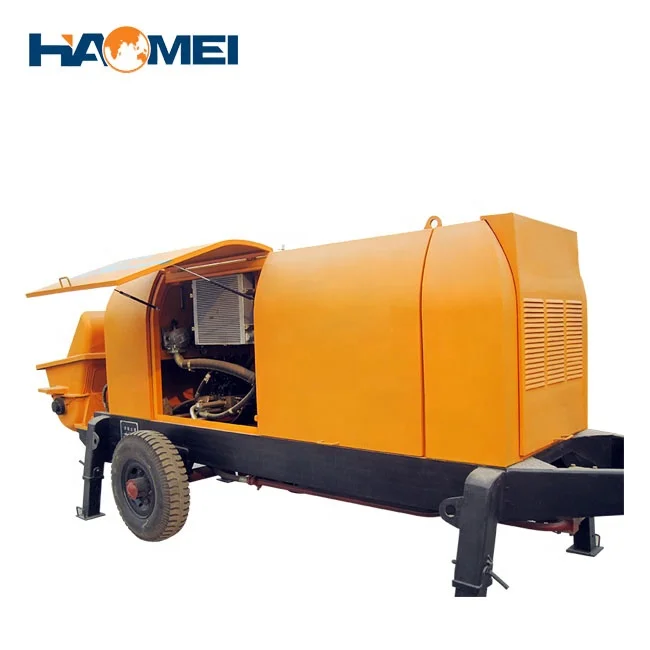

Types of HAOMEI trailer concrete pump as followings:

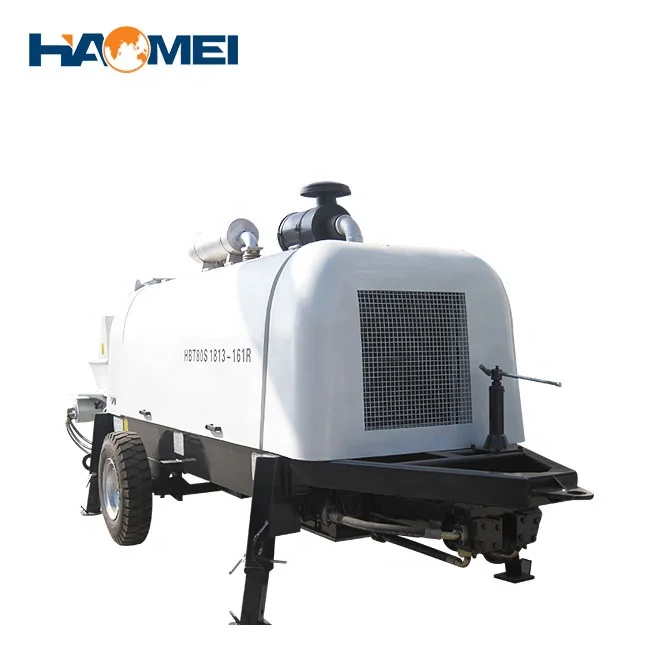

1,Diesel trailer concrete pump

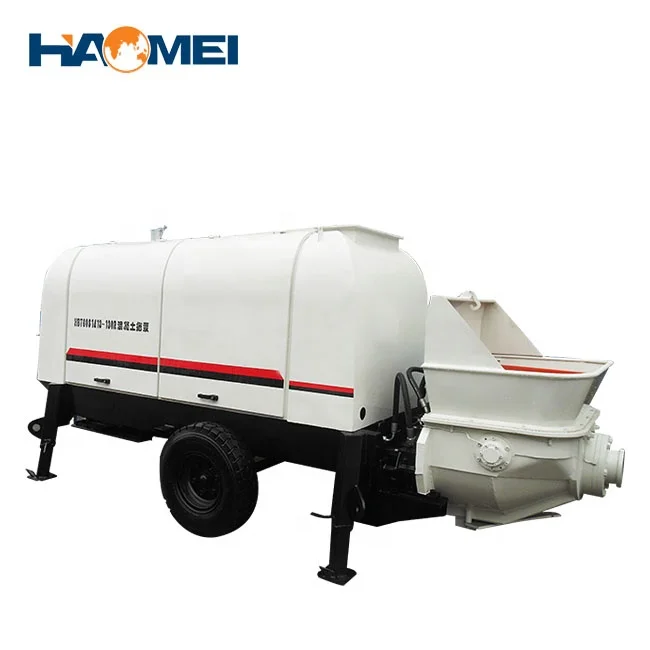

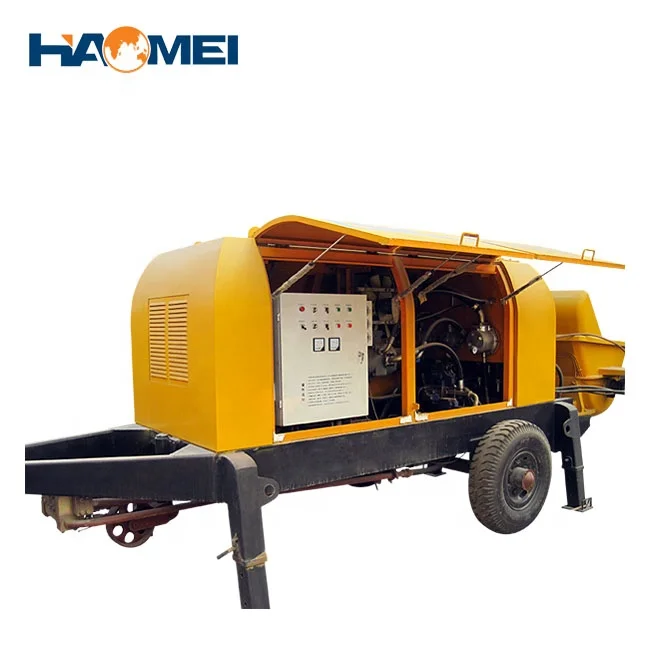

2,Electric trailer concrete pump

3,Foam concrete pump

4,Mini trailer concrete pump

5,Lightweight trailer concrete pump

6,Mortar pump

7,Shorcrete machine



Structure of Buy new and used concrete line boom pumps

1,Power system

Main hydraulic pumps are famous German REXROTH products.

Engine:German Deutz



2,Electric control system

The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.

Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.

3,Hydraulic system

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4,Pumping system

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.



5.Lubrication system
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.





HBT90S1821-200 Buy new and used concrete line boom pumps



Item		Unit or model	parameter
model			Single movement level in hydraulic piston
concrete distributing valve			"S"pipe valve
Outlet pressure in theory	High-pressure  small-engine	MPa	16
	low-pressure large-displacement		9.5
Outlet capacity in theory	High-pressure small-engine	m3/h	44
	low-pressure large-displacement		72
Max transportation distance in theory	150mmpipe	m	Level 1300 or vertical 270
	125mmpipe	m	Level 1200 or vertical 250
Max. aggregate size	150mmpipe	mm	50
	125mmpipe	mm	40
conveying cylinder diameter ×Max route		mm	φ200×1800
bucket capacity×feeding height		m3/mm	0.7/1320
main motor		Y2-315S-4	Rate power 110KW
260main oil pump		A11VL0190	Max flowing ability 275L/min
secondary motor		Y2-280M-4	Rated power 90KW
secondary oil pump 260		A11V0260	Max. flowing ability 275L/min
hydraulic oil tank capacity/diesel tank capacity		L	860
hydraulic oil			Great wall Brand AW46 # anti-wear hydraulic oil
tread		mm	2050
power supply voltage/Frequency		V/Hz	380/50
outside dimension: LWH		Mm	6680×2295×2255
largest towing speed		Km/h	second road≤15 third road ≤8
total quality		kg	6500

Pre-sales service: We guide customers to choose the best applicable device type and provide the advanced, energy-saving and practical process, and then we are responsible for the site planning and design.



Middle-sales Service: Strictly products inspection, customers are invited to the spot simulation test machine and raise advice in accordance with the contract, we will organize delivery.



After-sales service: Our Company will send technicians to guide device installation, debugging and train operators until customers are satisfied.
