Price:$54,500.00-57,000.00

Quantity:


Product Overview

Description



Product Description

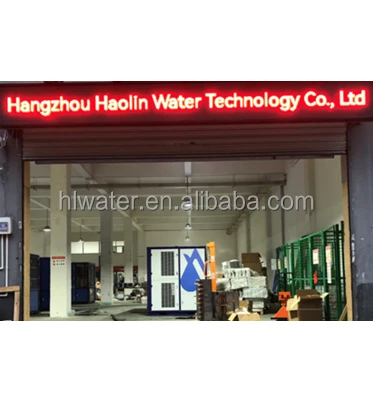

Hangzhou Haolin Water Technology Co., Ltd


Vision: Make A Better World
Mission: To Make Drinking Water Available and Affordable Anywhere on the Earth
Core Values: Customer First, Integrity, Passion, Openness, Teamwork




20 Years
AWG R&D and Manufacture Experience
6+
Product Patents
(30+ Historical Patents)
15
Countries Installed Haolin AWG


30+
Partners in Worldwide
2000+
Units Haolin AWG Delivered
1500 m2
Factory Area

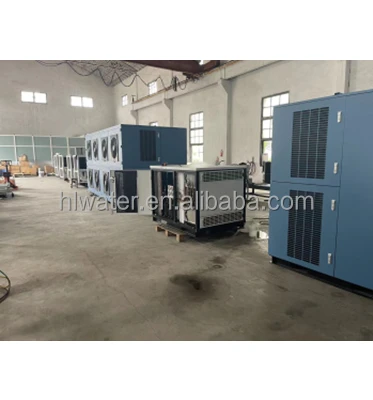

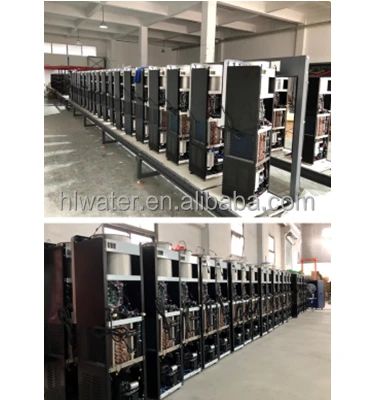

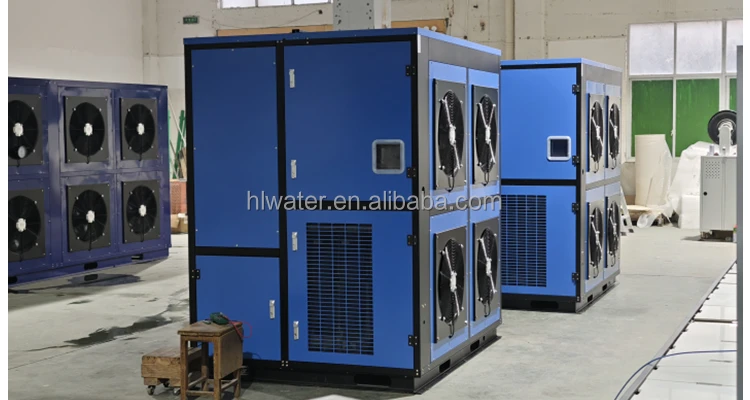

Factory Workshop of Haolin Industrial Atmospheric Water Generator, 250~5000L/D




Key Highlights of Haolin Industrial Atmospheric Water Generator

a) 206~235Wh per liter water, 33%~64% Power Saved Vs Traditional AWGs
b) 230% More Water Produced @25°C & RH-30% Vs Traditional AWGs
c) IOT Enabled to support Maintain Remotely + Further Opex Saved
d) Totally compatible with Solar Power Green Energy Solution

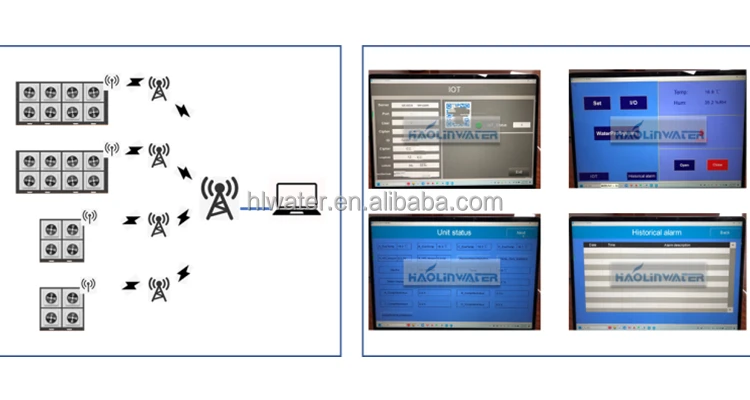

IOT Enabled in Haolin Industrial AWGs - Maintained Remotely + Further Opex Saved



HL-A250L- 2,450W
HL-A500L- 4,300W


HL-A1000L- 8,700W
HL-A2000L- 17,500W



HL-A5000L- 46,000W


1 - Excellent and high efficiency on water production, even @lower humidity level

Haolin industrial AWGs’ (atmospheric water generators) water production is:
230% More Water Produced @25°C & RH-30% Vs Traditional AWGs


2 - Energy saving and cost effective - 206~235Wh per 1 liter @30°C & RH-80%

Haolin industrial AWGs rated power consumption can achieve 206~235Wh per 1 liter @30°C & RH-80%, with Haolin unique and patented design allowing the cool and dehumidified air to absorb heat of incoming air, which make Haolin AWGs power consumption is 33%~64% lower than other traditional AWGs. It is really benefit to areas with energy shortages or expensive. And lower power consumption will lower your investment on solar power panels, inverters, and batteries when customer want to use solar power or wind power.


3 - Function modularity design for various capacity demand

Haolin function modularity design allows to built various capacity for industrial use to reach a wide range of application scenarios. Currently 250L, 500L, 1000L, 2000L, 5000L @30°C & RH-80% can be provided directly, other capacity design can be delivered quickly according to customers’ requirement.


4 - Guaranteed product quality on water extraction

Haolin workers have many years experiences on AWG manufacture and commissioning.
Haolin will make performance testing before packing AWG into plywood box to ensure Haolin AWG product quality and efficiency.


5 - High quality materials and multi-layer filtration system to ensure quality guaranteed drinkable water

Only high quality stainless steel, aluminum foil, air and water filtration systems are used in Haolin AWGs, since all components contact with potable water are strictly following National Standards for Drinking Water guidelines.
With Air filter+PPF+GAC+PPF+RO+LED-UV sterilizer to filter particles and remove bacteria in air and water effectively, Haolin AWGs can produce high quality drinkable water.


Specification


Specs of Haolin Industrial AWG
HL-A250L
HL-A500L
HL-A1000L
HL-A2000L
HL-A5000L
Water Production (Liter/24Hrs)
@30°C & RH-80%
250
500
1,000
2,000
5,000
Input power (W)
2,450
4,300
8,700
17,500
46,000
Efficiency (Wh/Liter)
@30°C & RH-80%
235
206
209
210
221
Water Production (Liter/24Hrs)
@27°C & RH-60%
150
300
600
1200
3000
Water Production (Liter/24Hrs)
@25°C & RH-30%
33
67
135
270
675
Power supply
AC 220V/110V 50Hz/60Hz,
Single-Phase Voltage

AC 380V/460V 50Hz/60Hz,
Three-Phase Voltage


Compressor type
Enclosed Vortex Compressor




Compressor qty
2
2
2
2
4
Refrigerant gas
R410A




Filter system
Air Filter+PPF+GAC+PPF+RO+LED-UV




Recycle fan
1 pcs
1 pcs
2 pcs
4 pcs
8 pcs
Heat removal fan
1 pcs
1 pcs
2 pcs
4 pcs
8 pcs
Control system
PLC




Dimension
L*W*H (mm)
820*1582*1113
1106*1582*1113
1127*1582*2207
2226*1582*2207
4377*1796*2207
Net weight (kg)
280
350
750
1650
3300
Loading Qty
20' GP: 12 units
40' HQ: 24 units
20' GP: 12 units
40' HQ: 24 units
20' GP: 6 units
40' HQ: 12 units
20' GP: 3 units
40' HQ: 7 units
20' GP: 2 units
40' HQ: 1 units
Working temperature
Standard working temperature is 15°C - 45°C.
Higher or lower request, customization will be conducted.




Working humidity
RH 25% above

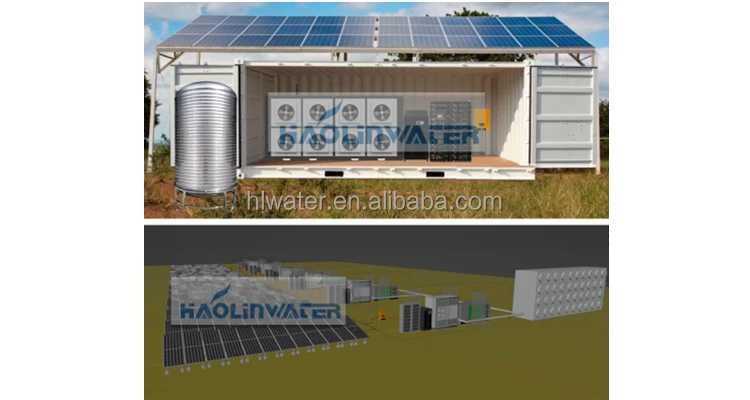

End to End Solar Powered Haolin AWG Solution

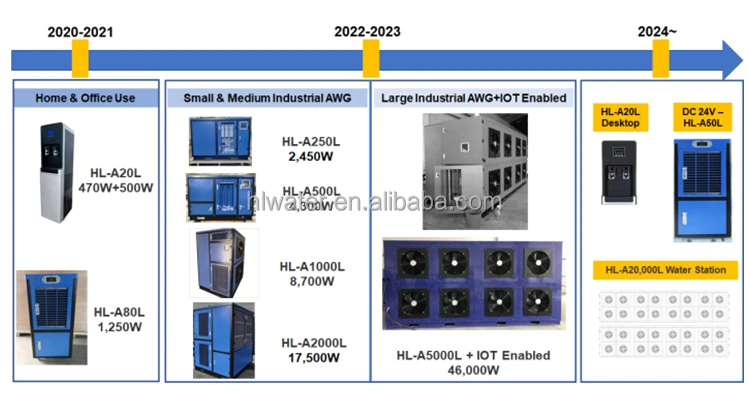

Product Roadmap of Haolin Atmospheric Water Generator

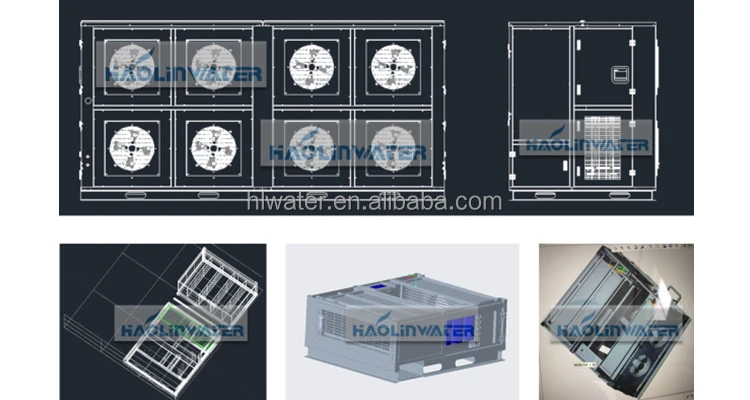

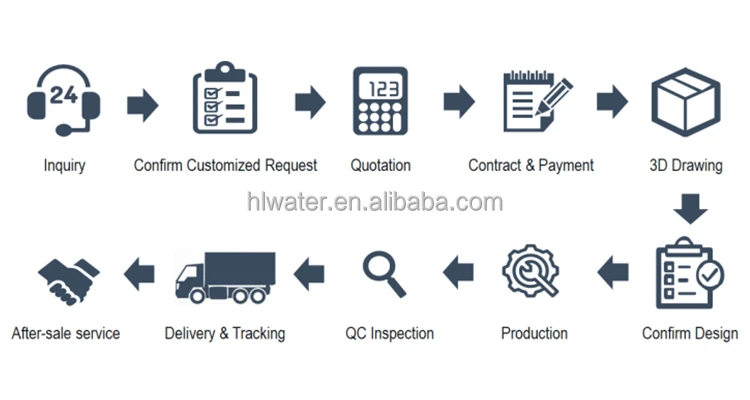

Customization Process of Haolin AWG





Company Profile

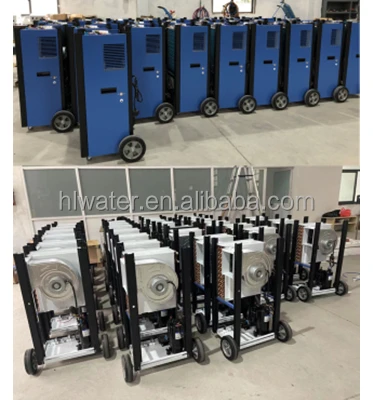

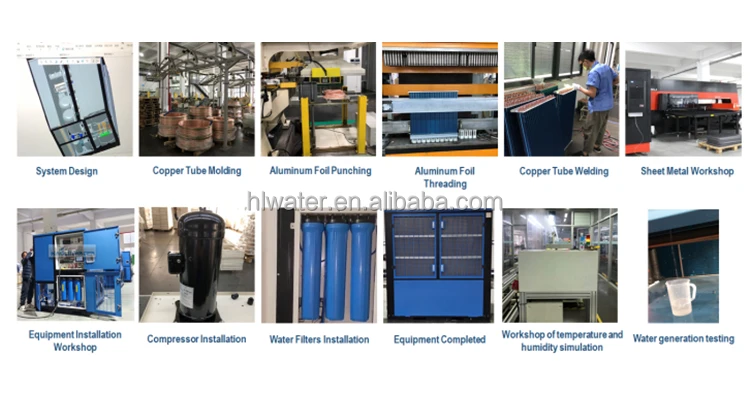

Key Manufacture Process in Haolin Factory

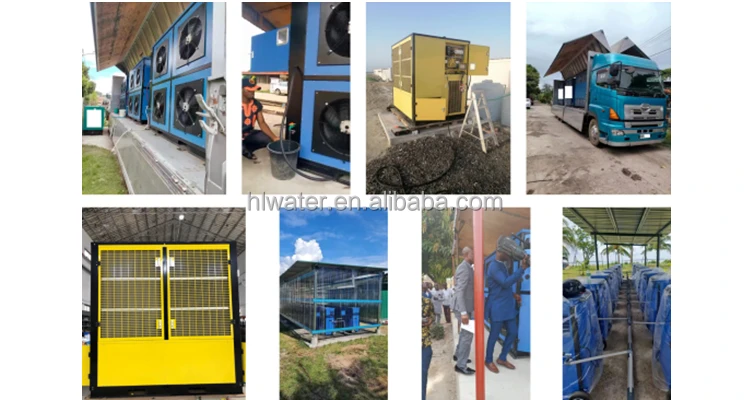

Haolin AWG Cases Study in Worldwide

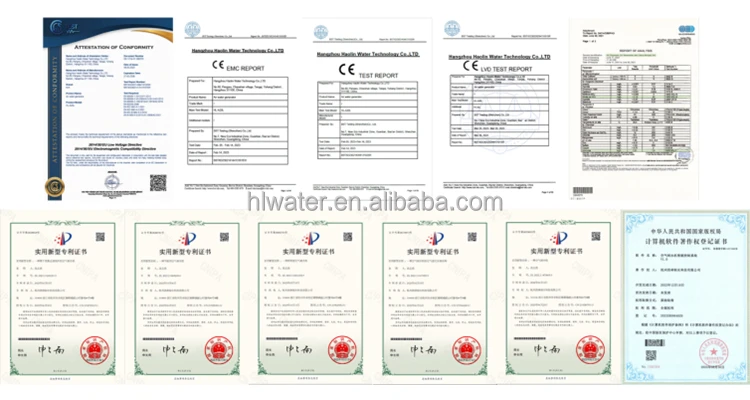

Haolin AWG Certificates and Patents

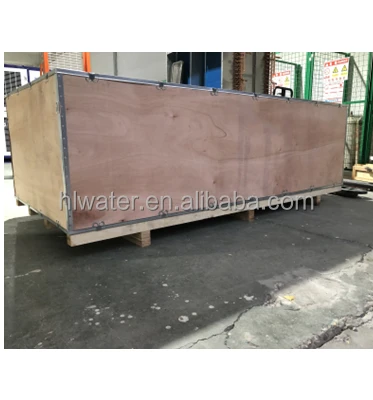

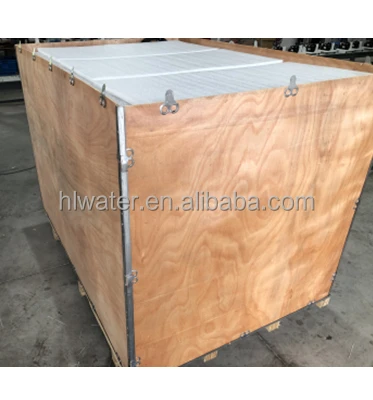

Packing & Delivery




FAQ


1. Are Haolin atmospheric water generators compatible with solar power system?
A: Sure, both solar power system and wind power system can be integrated, once the equivalent power input provided.

2. What is the pH value of the water produced by Haolin atmospheric water generators?
A: The pH value is around 6.5-7.6. And the optional mineral filter can be provided if requested.

3. How often should I need to change the filters?
A: We suggest the air filters to be checked once a month and cleaned by washing, if needed. Every 3-6 months for the water filters and every 12-18 months for the reverse osmosis after you start to use, which is depend on the quality of ambient air and the actual usage. The LED-UV light needs to be cleaned or replaced every 12-18 months. Water storage tank needs to be empty and cleaned every 6 months.

4. What’s the warranty policy of Haolin atmospheric water generators?
A: The warranty period of overall machine is 1 year. And 3 years for the 4 core parts: compressor, condenser, evaporator and motor. Damage to the product due to misuse, not following user manual, improper environmental placement are not being covered.

5. Can you make a customization on AWG according to an assigned dimension?
A: Sure, we’ve made a customized and compact AWG according to customer’s limited dimension for recreational vehicle usage scenario, which can be easily and firmly attached under recreational vehicle to provide water for drinking and daily usage with solar system powered.
