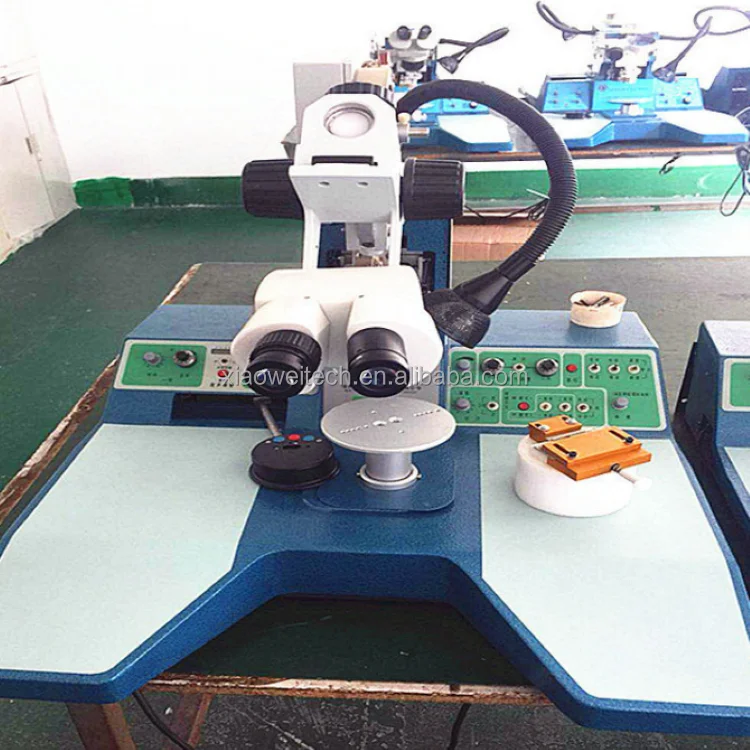

  • Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine
Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine

Factory supplier ultrasonic automatic wire bonding machine for LED lab wire bonding machine

Share on (1601093874243):


Price:

Quantity:


Product Overview

Description



Product Description

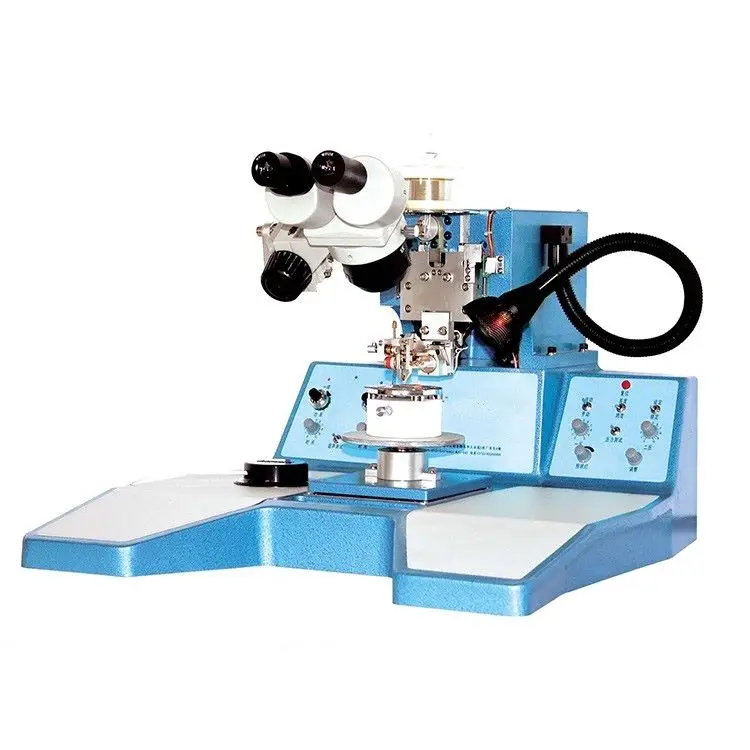

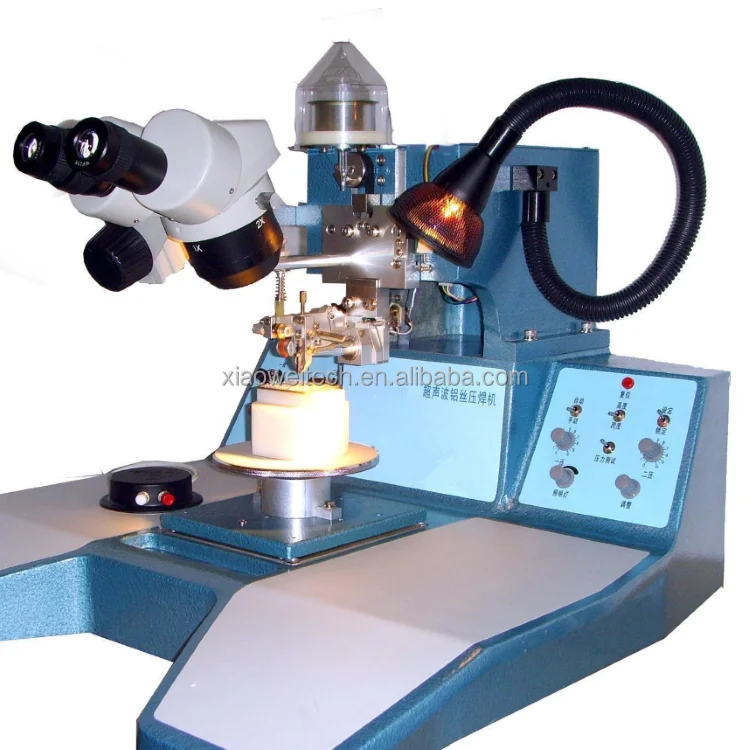

Heavy wire bonder
Here we provide 7 types of most competitive wire bonder, 4 Types of manual wire bonder, and 3 types of automatic wire bonder.
The most competitive 4 types: thin aluminum wire wedge bonder XW-B2575(25-75um aluminum wire);Wire wedge bonder
XW-B25125(25-125um aluminum wire); heavy aluminum wire wedge bonder XW-B7550(75-500um aluminum wire);gold wire ball bonder
XW-B1750(17-50um gold wire). they are very popular for small quantity production, school, institution, research department.
And the 3 automatic: automatic thin aluminum wire bonder XW-Etech1850(18-50um aluminum wire); automatic ball bonder
XW-S800(15-50um Au or alloy wire); automatic heavy wire bonder XW-CWX-3710(125-500um Aluminum wire).


Specification


electric requiement：
220VAC±10％、50HZ、be sure connected to ground
aluminium wire diameter：
75～500μm (3～20mil)
ultrasonic power：
0－30W, two channel.can be set separately of the two point
bond time：
10－500ms，two channel
bond force:
30－1200g，two channel
motorized Y：
0－18mm
microscope rate：
7.5 and 15
working area：
Φ25mm
light：
adjustable brightness
size：
620×610×560mm
35weight：
35kg

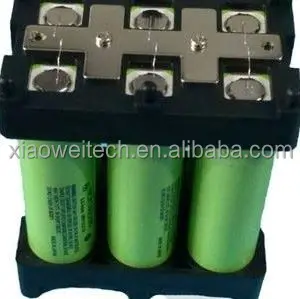

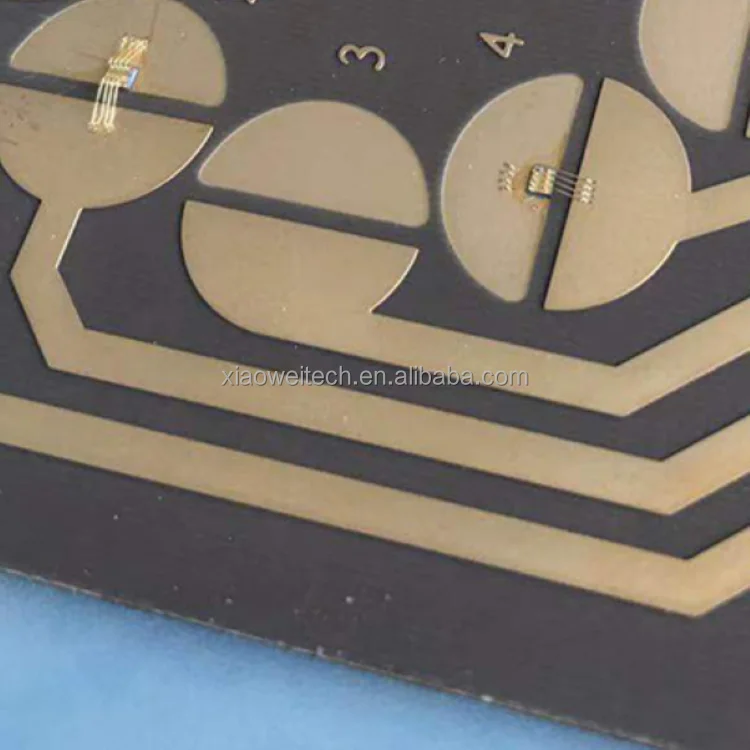

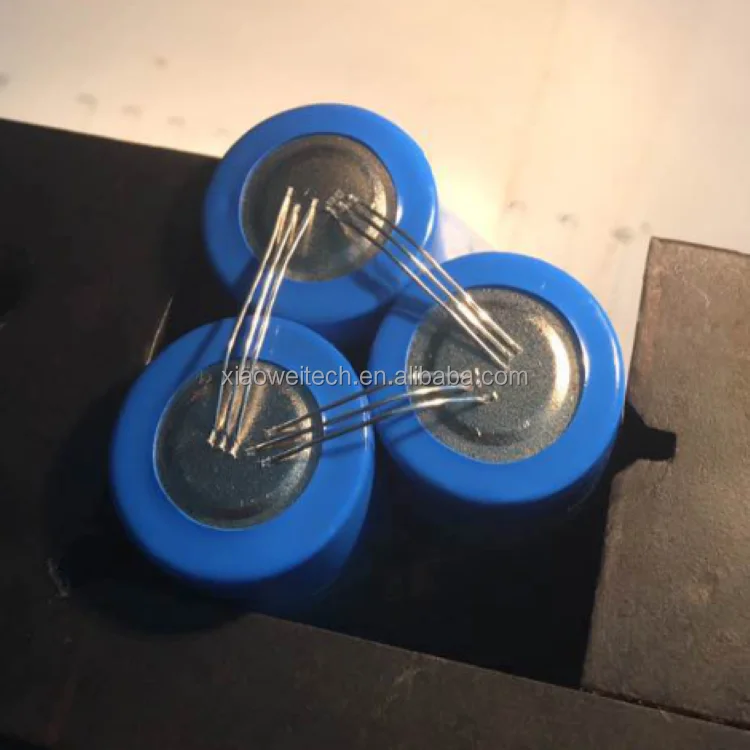

Sample




Applications


High power dynatron/FET/SCR, Power module, IGBT, High power Fast recovery diode, Schottky transistor, Lead attachment, wire bonding,TO-3、TO-3P、TO-3PF、TO-3PN、TO-3PL、TO-220F、TO-126、TO-12F、TO-66、TO-251、TO-202 etc.



Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
