IGBT 15KW High Frequency Heating Welding Induction Brazing Machine
- Category: >>>
- Supplier: Guangzhou Wangxin Mechanical & Electrical Equipment Co. Ltd.
Share on (1601094301200):
Product Overview
Description
IGBT 15KW High Frequency Heating Welding Induction Brazing Machine
Knowledge of Induction Brazing
What is Brazing?
Brazing uses heat and a filler metal (alloy) to join metals. Once melted, the alloy flows between close-fitting base metals (the pieces being joined) by capillary action. This molten filler alloy interacts with a thin layer of the base metal to form a strong, leak-proof joint.
Difference between Soldering and Brazing
Soldering use much lower temperature (below 450℃) than brazing (typically 450-1150℃)
Induction Brazing Process
The induction brazing process can be broken into the following steps:
1. Ensure the correct gap between the base materials.
2. Clean the base materials by removing residues, oxides etc
3. Apply flux to the joint area
4. Position, and if necessary clamp the parts to be brazed.
5. Apply the brazing filler alloy
6. Induce the desired heat in the joint area
7. Remove any remaining oxides or flux residue
1. Ensure the correct gap between the base materials.
2. Clean the base materials by removing residues, oxides etc
3. Apply flux to the joint area
4. Position, and if necessary clamp the parts to be brazed.
5. Apply the brazing filler alloy
6. Induce the desired heat in the joint area
7. Remove any remaining oxides or flux residue
Machine Show
We both have blue color machine and white color machine for option. Choose any one you like!

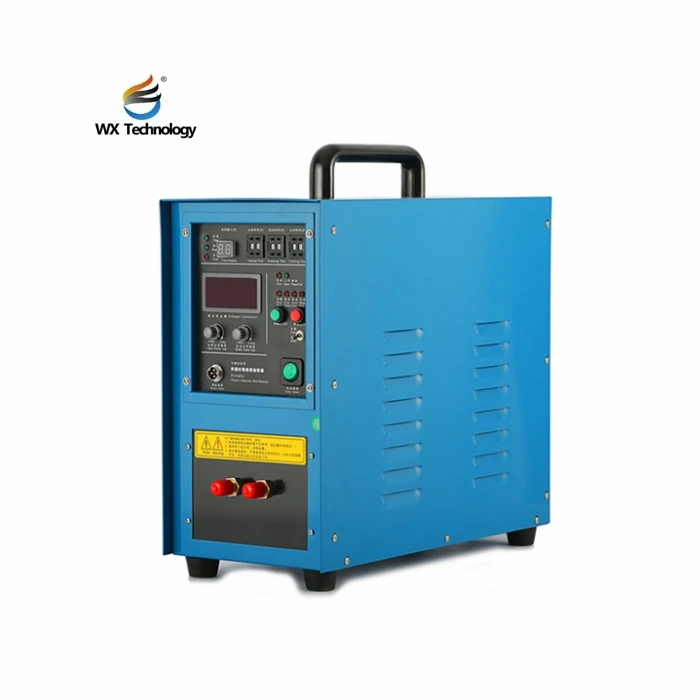

Blue Color Machine

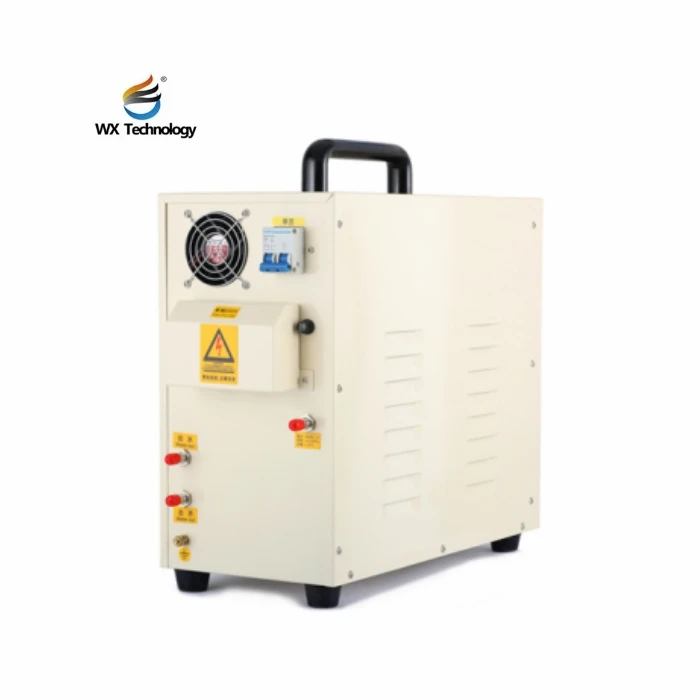

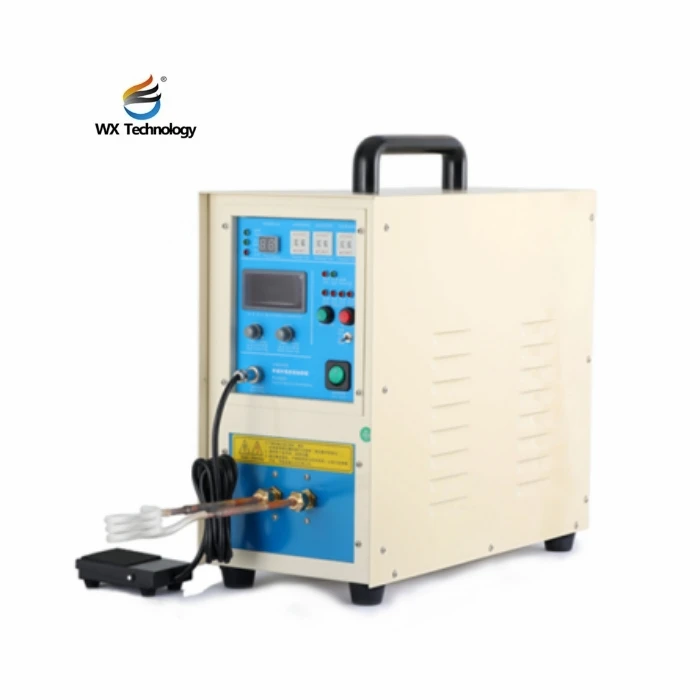

White Color Machine
Technical Parameters
Model | Input Voltage | Frequency | Max Input Current | Water Flow For Cooling |
WXH-15/15AB | Single Phase 220V, 50/60HZ | 30-100KHZ | 37A | 0.2MPa, 6L/Min |
WXH-25/25AB | 3 Phase 380V, 50/60HZ | 30-80KHZ | 28A | 0.2MPa, 6L/Min |
WXH-30 | 3 Phase 380V, 50/60HZ | 30-80KHZ | 38A | 0.2MPa, 7L/Min |
WXH-40 | 3 Phase 380V, 50/60HZ | 30-80KHZ | 45A | 0.2MPa, 7L/Min |
WXH-60 | 3 Phase 380V, 50/60HZ | 30-80KHZ | 75A | 0.2MPa, 9L/Min |
WXH-80 | 3 Phase 380V, 50/60HZ | 30-80KHZ | 105A | 0.2MPa, 9L/Min |

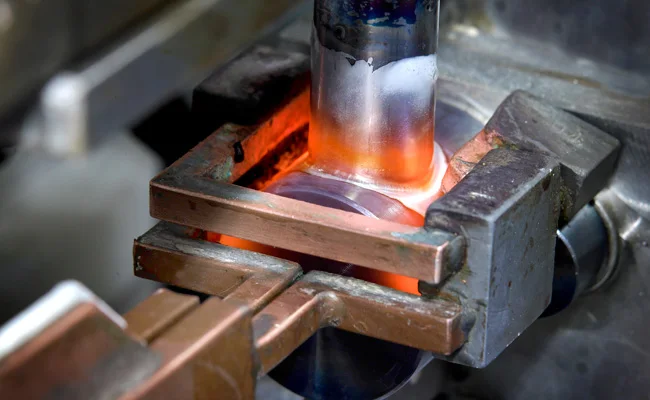

Application

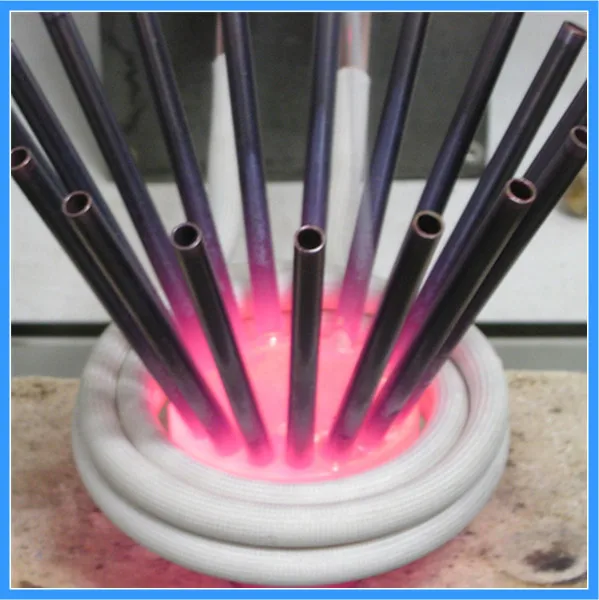

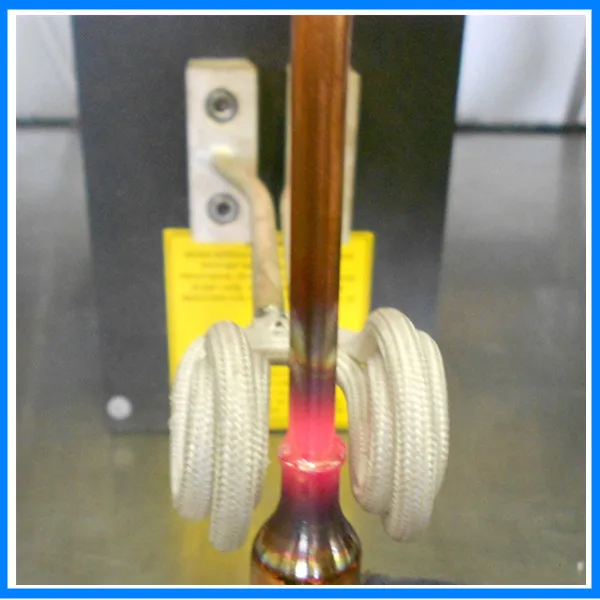

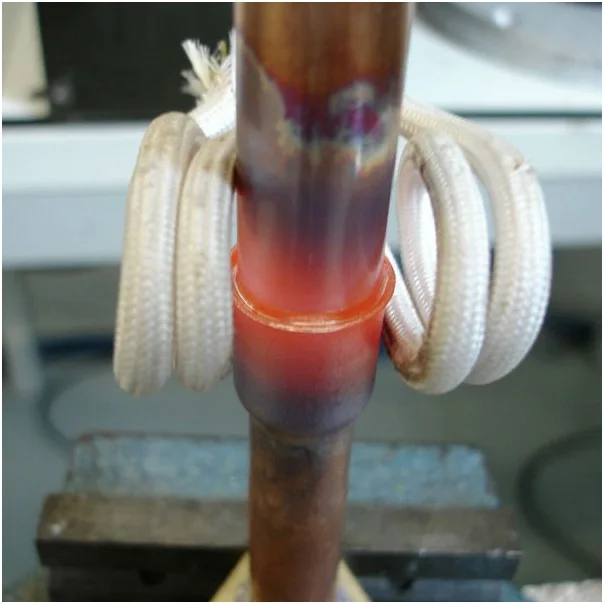

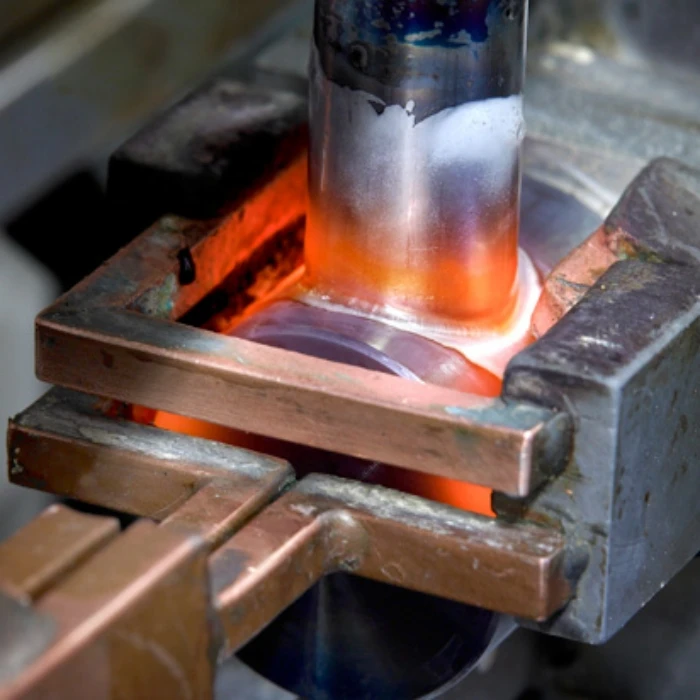

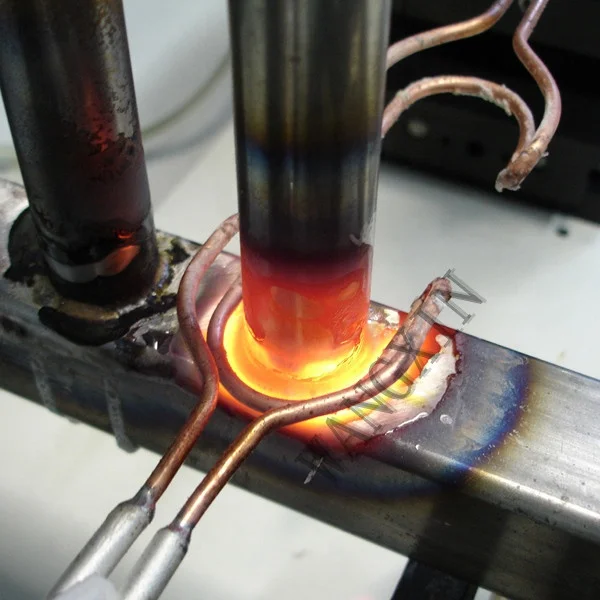

Tube Induction Brazing Welding Soldering

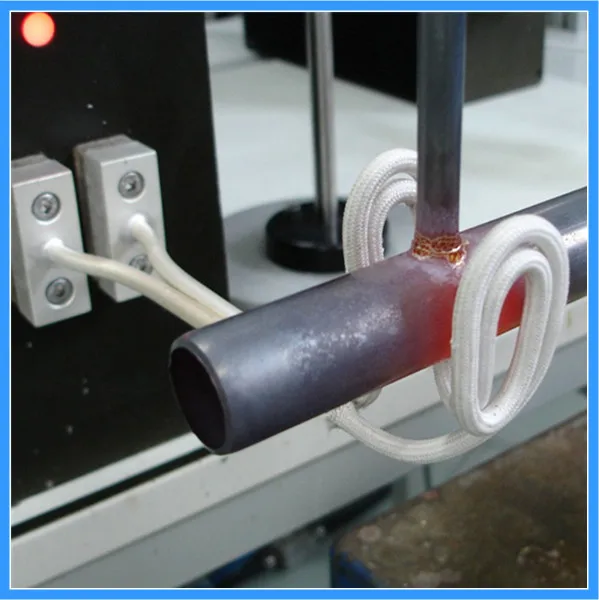

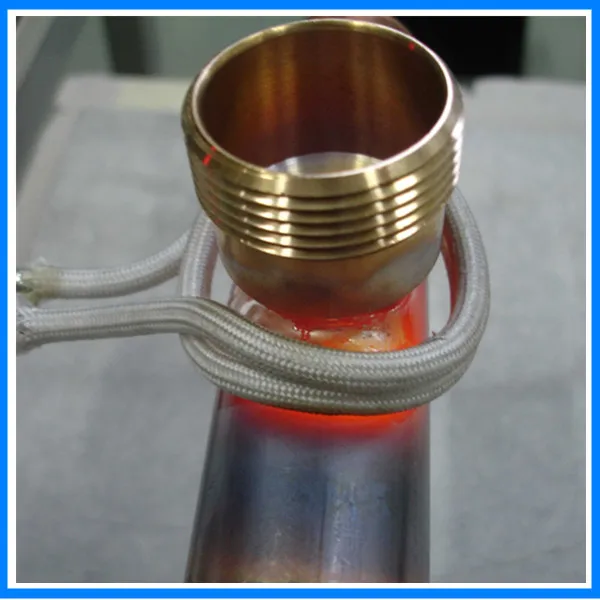

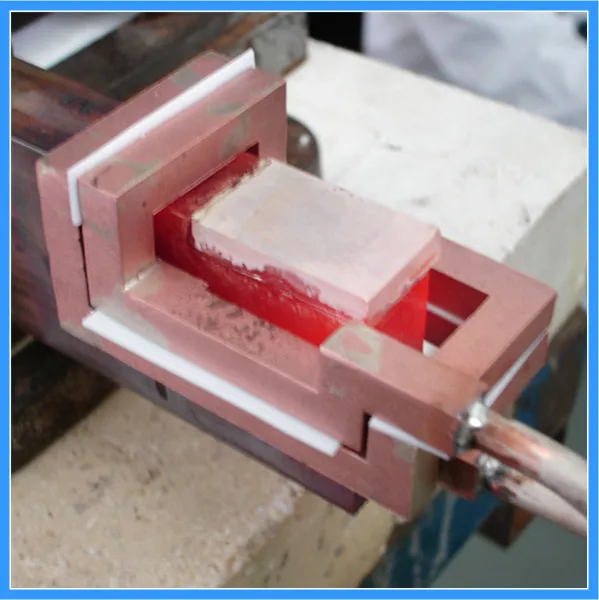

Joint Stud Induction Brazing Welding Soldering

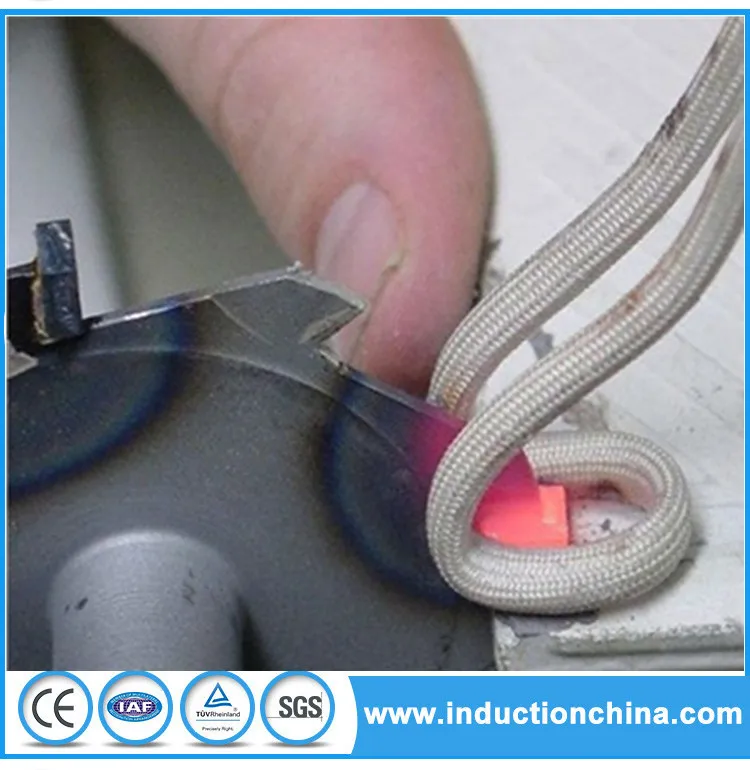

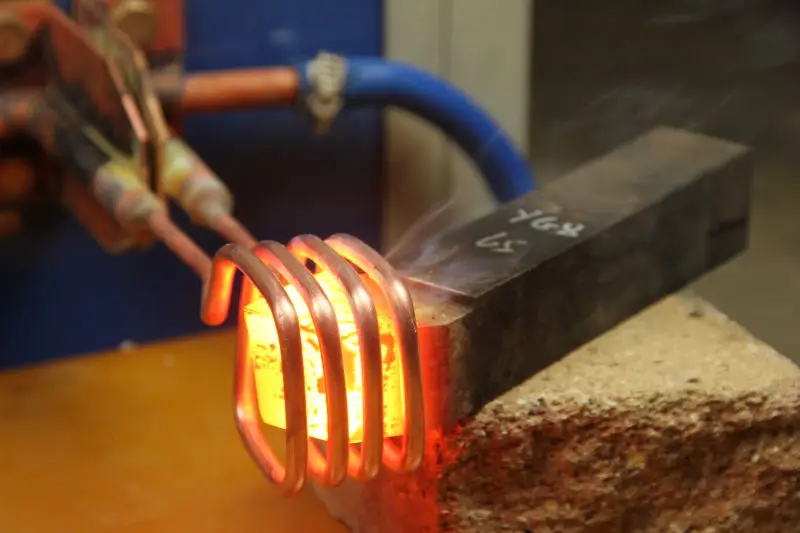

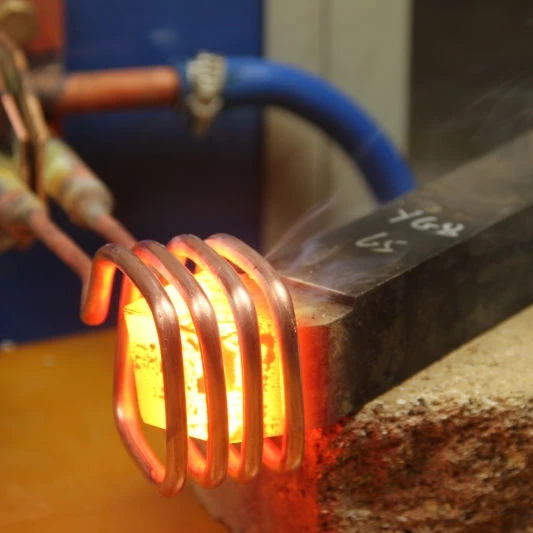

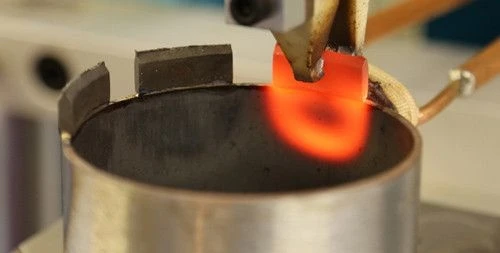

Carbide Tips/ Cutting Tools Induction Brazing Welding Soldering
Others
Product Package
Packing Details
1. Standard export wooden cases, no need fumigation,
2. Plastic wrap for waterproof,
3. Plastic foam for shockproof,
4. Steel belt for fastening the wooden box corner.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
2. Plastic wrap for waterproof,
3. Plastic foam for shockproof,
4. Steel belt for fastening the wooden box corner.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
Customer Photos
Process Flow
Wangxin is a really manufacturer for more than 15 years, all manufacturing procedure are finished by ourselves, from raw material purchasing to installation, from coils making to machine commissionning. So we can more easily control the quality and production schedule. What's more, we have our own R&D team and strict QA department, which makes us become stronger and stronger in the competitive market. Come on, dear! Wangxin will satisfy you all.
Company Profile
Guangzhou Wangxin Electrical & Mechanical Equipment Co.,Ltd is based in Guangzhou, more than 20 years focused on the development and manufacture of induction heating machine. Customers’ satisfy is our constant aim, hope our professional induction heating solutions can benefit you a lot.
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
