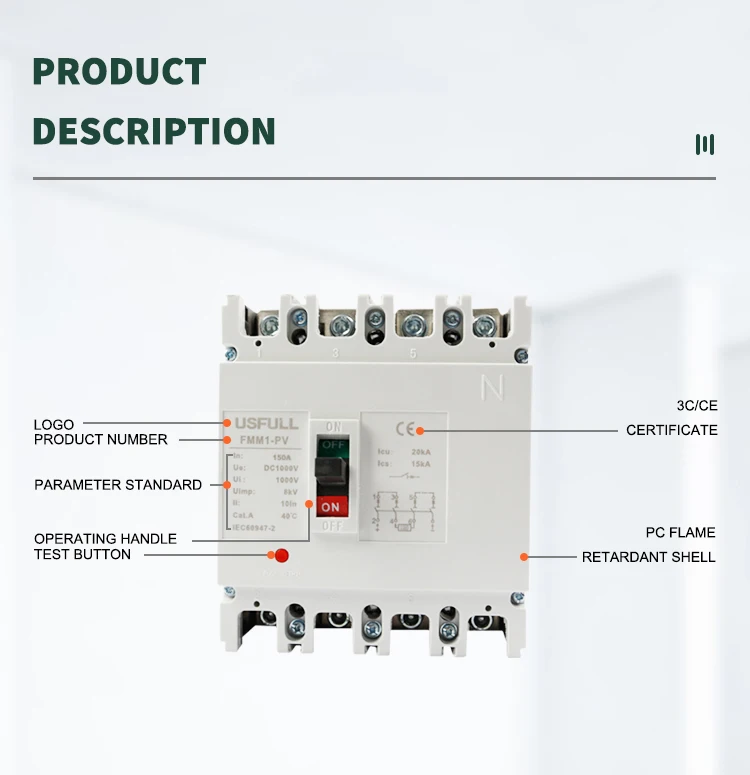

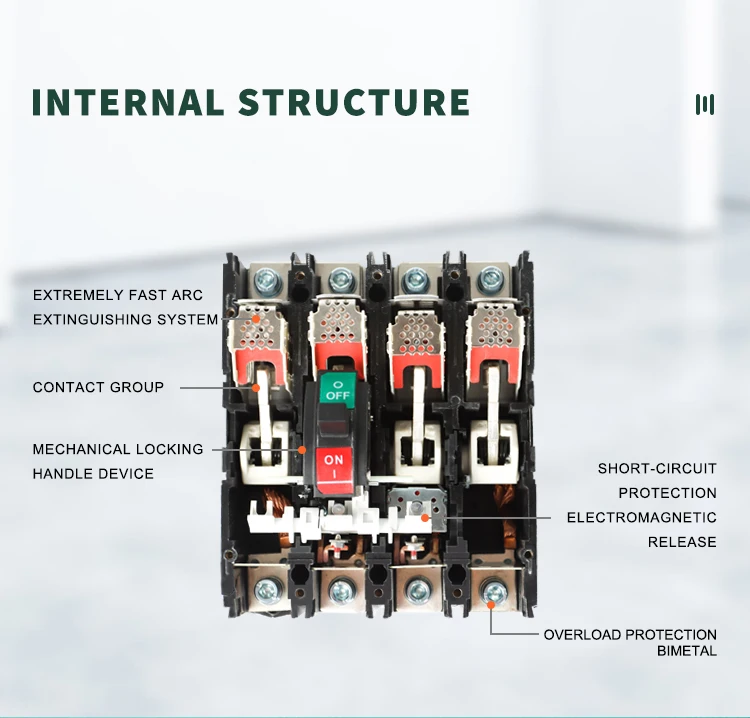

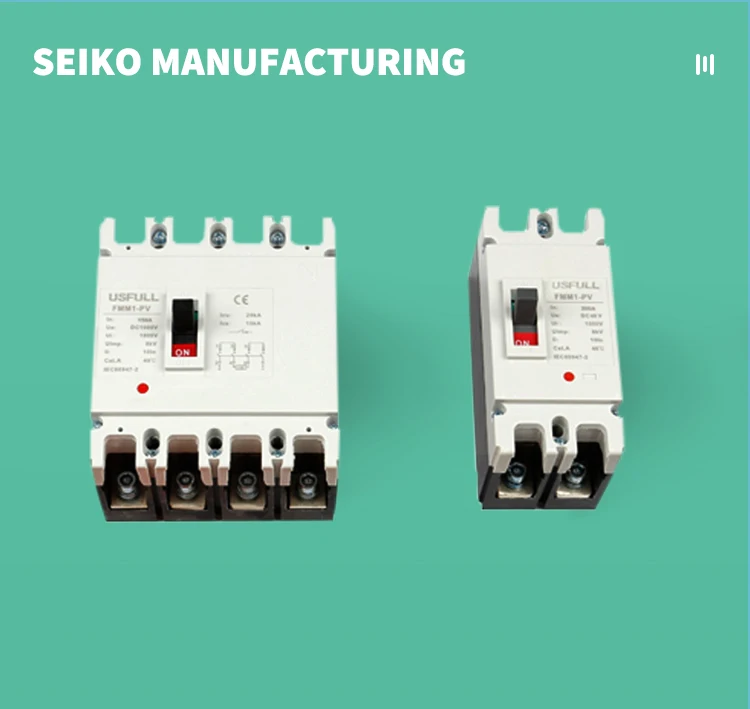

USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system
USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system

USFULL DC MCCB Molded case circuit breaker 125A 200A 250A 2P 4P 500V 1000V for solar photovoltaic system

Share on (1601094616231):


Price:

Quantity:


Product Overview

Description

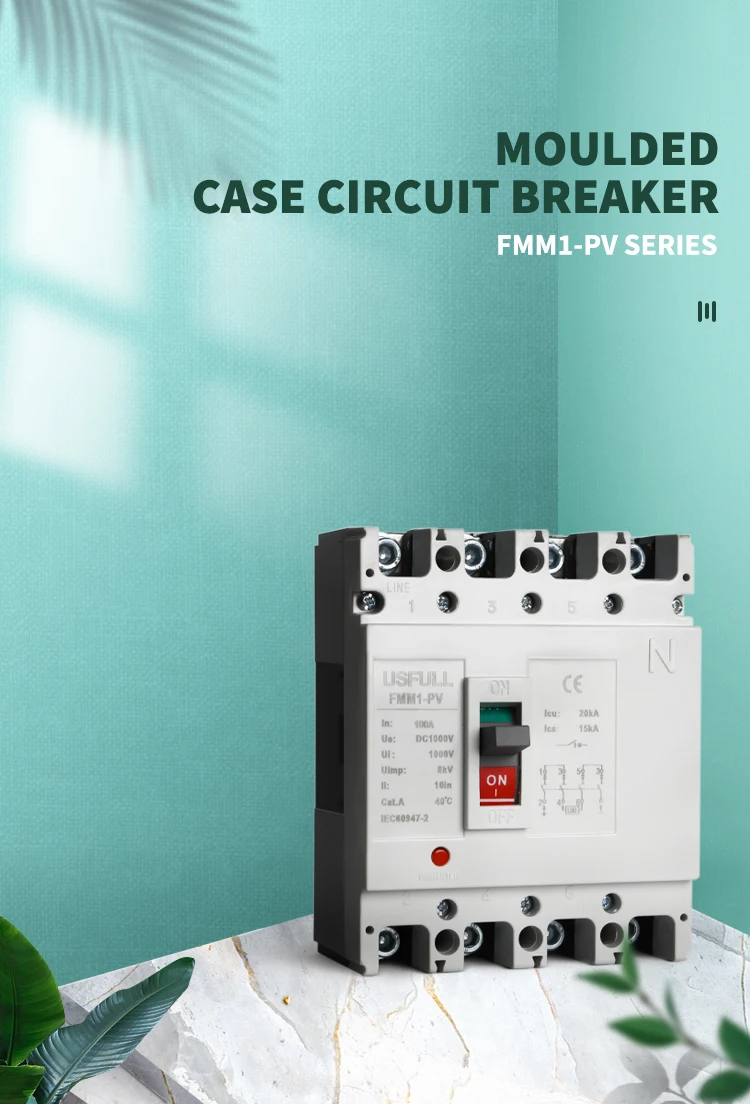

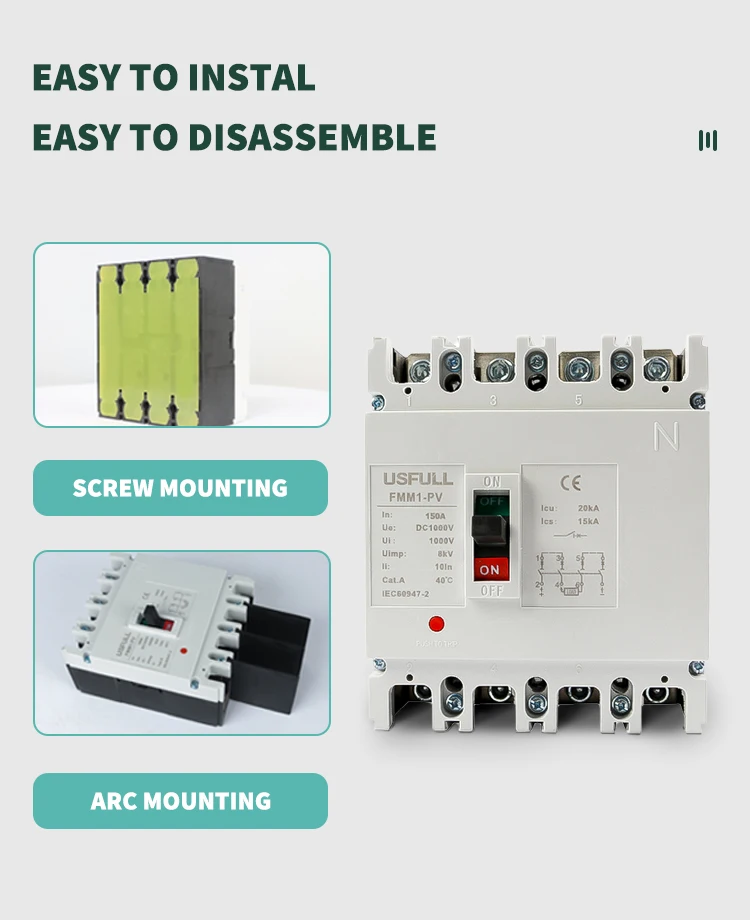

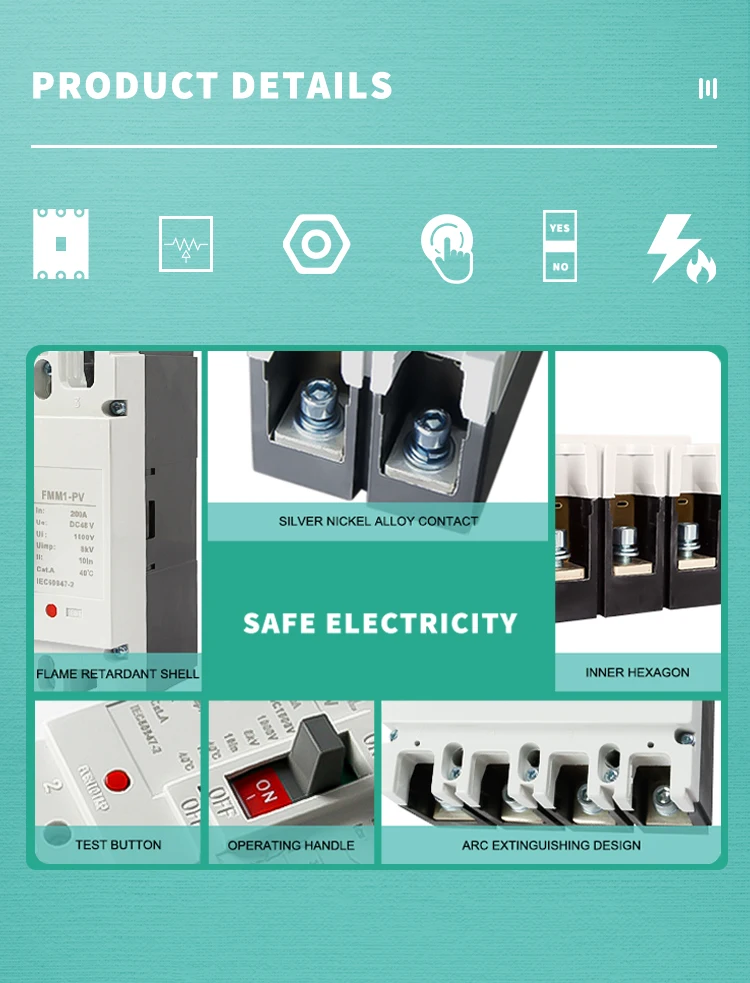

-01-02-03-04-05-06-07

































































































SPECIFICATION
Product ModelFMM1-PV
Max Ralated Current125A225A400A630A
Related Current        In (A)60/80/100/125125/160/200/225225/250/300/350/400400/500/630
Related Working Voltage  Ue (V)DC500V
Related Insulated Voltage      Ui (V)1500V
Rlated Impulse Withstand Voltage8KV
Test Voltage One Minute           (V)3550
Short-Circuit Breaking Capacity
(kA) Icu( 1cs=75%Icu)		M35M35
H35H15
R65R65
Total Breaking Times20
Isolator CapacityYes
Operating Temperature-25℃- +50℃
Protection GradeIP20
Flashover Distance≥50
Instantaneous Action Value20ln
Installation MethodFixed type, plug-in
Technical StandardIEC 60947-2,IEC 60947-1,GB 14048.1,GB 14048.2

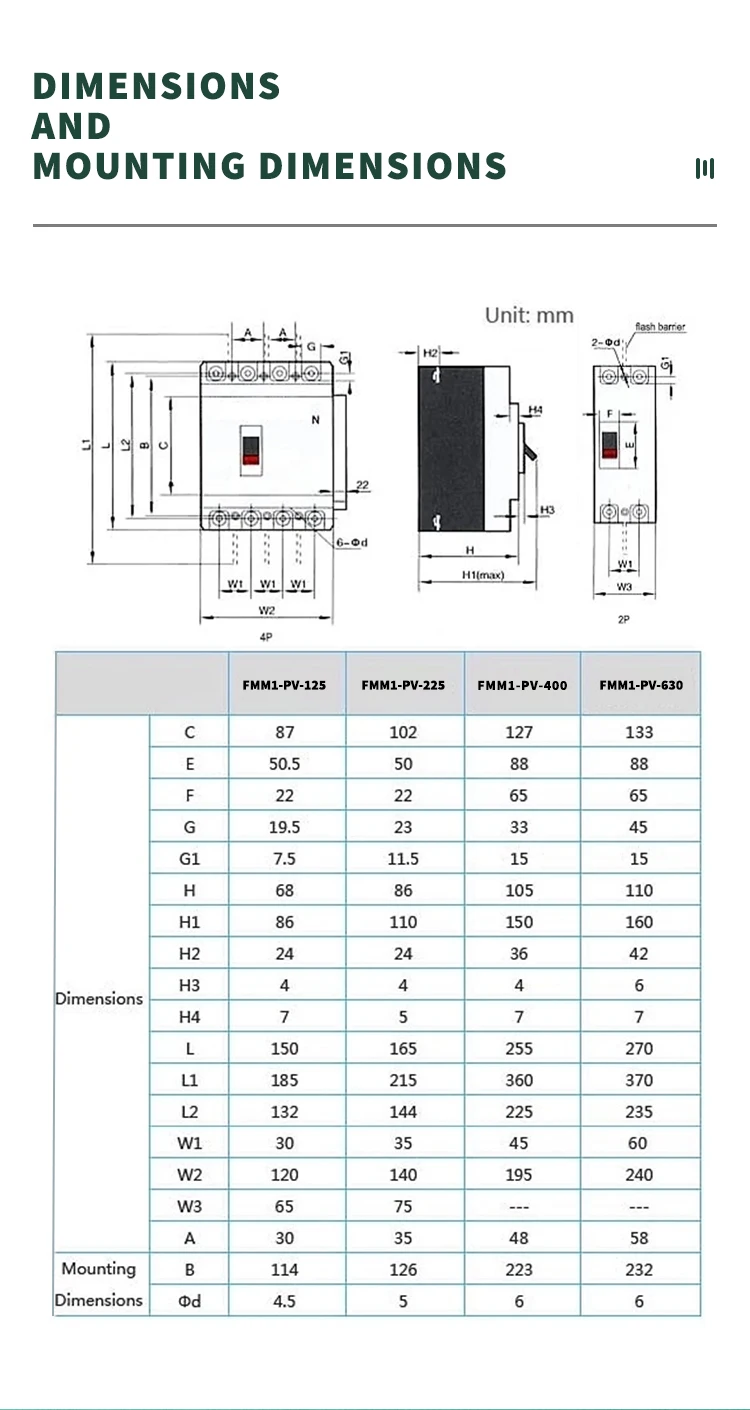

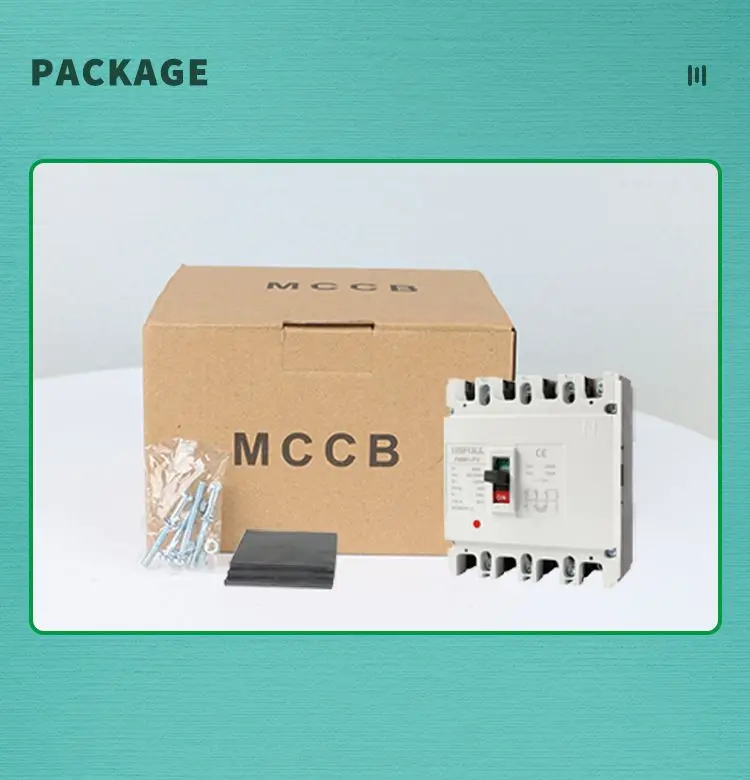

-08-09
