  • Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine
Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine

Aimix 30CBM 40CBM 60CBM 80CBM 90CBM New Rotary Concrete Pumping Machine

Share on (1601095785701):


Price:

Quantity:


Product Overview

Description

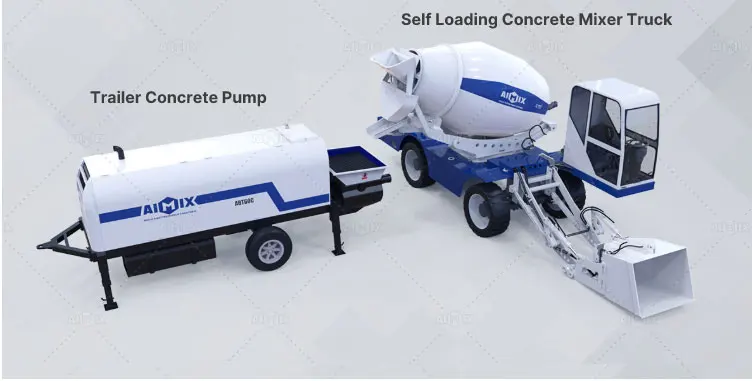

Combination Scheme

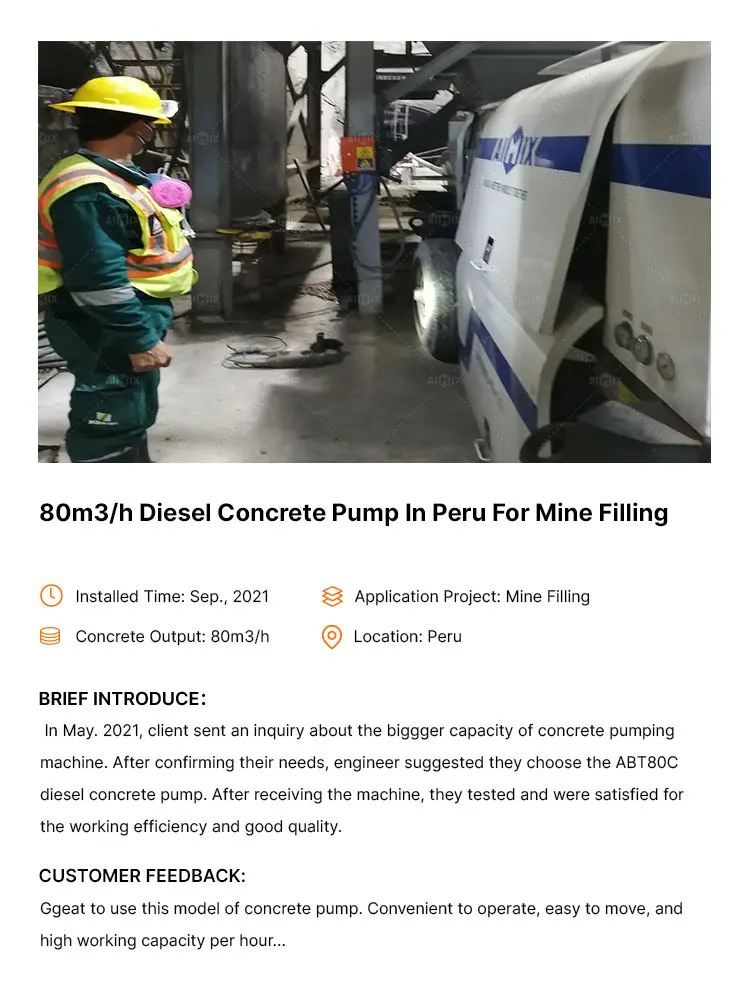

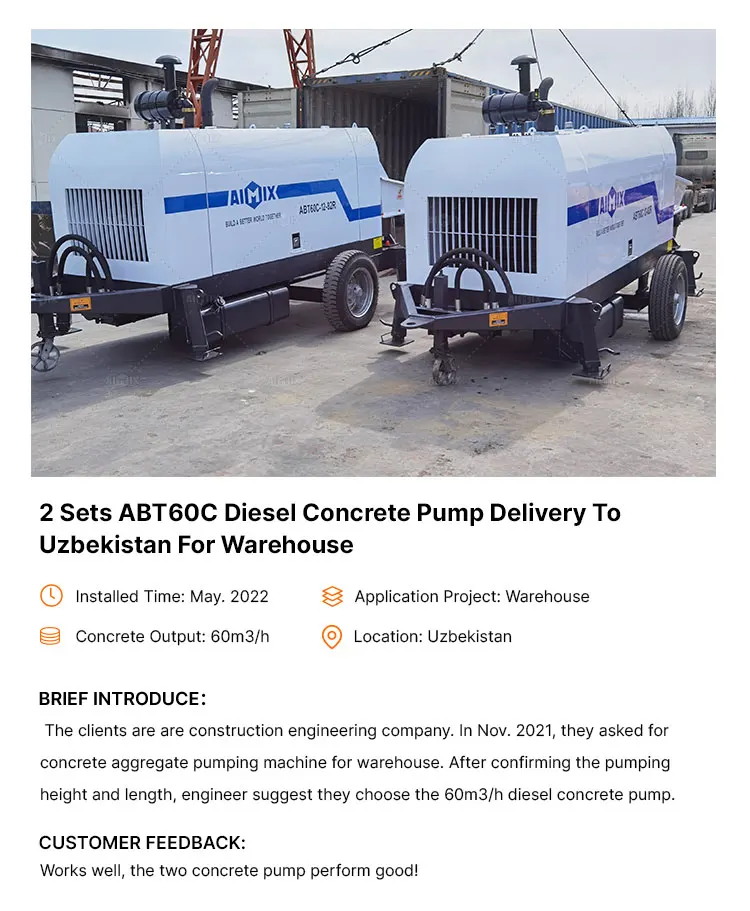

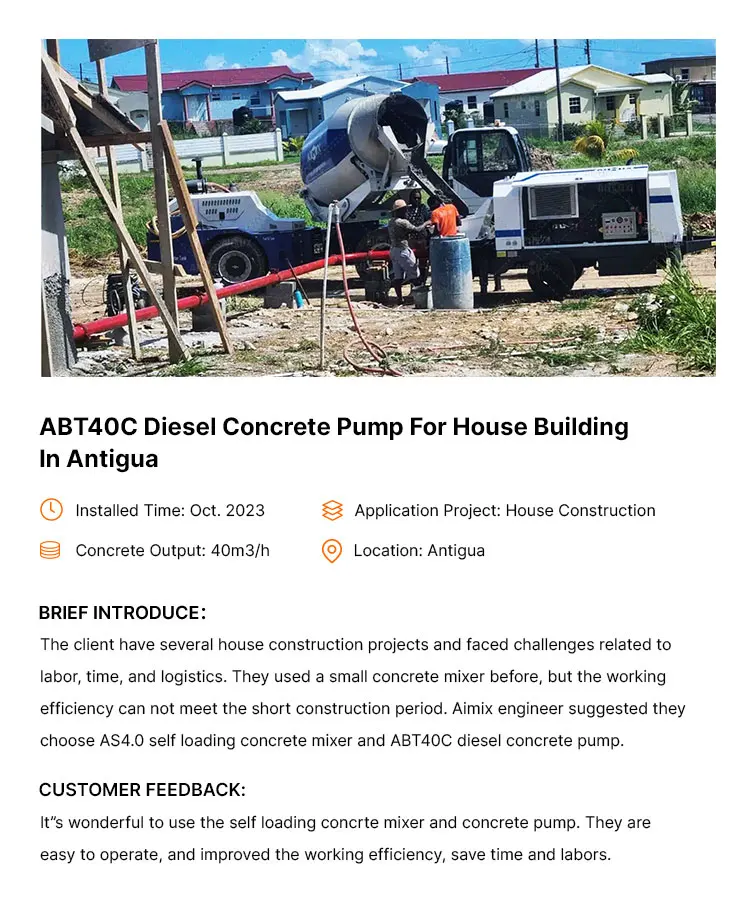

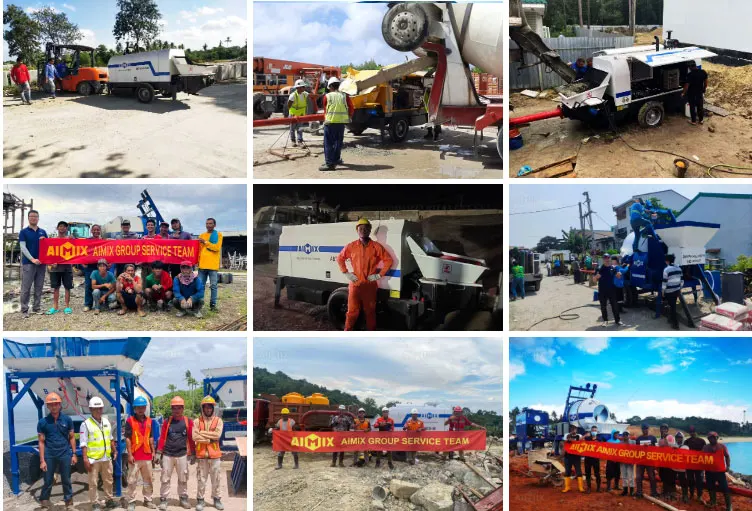

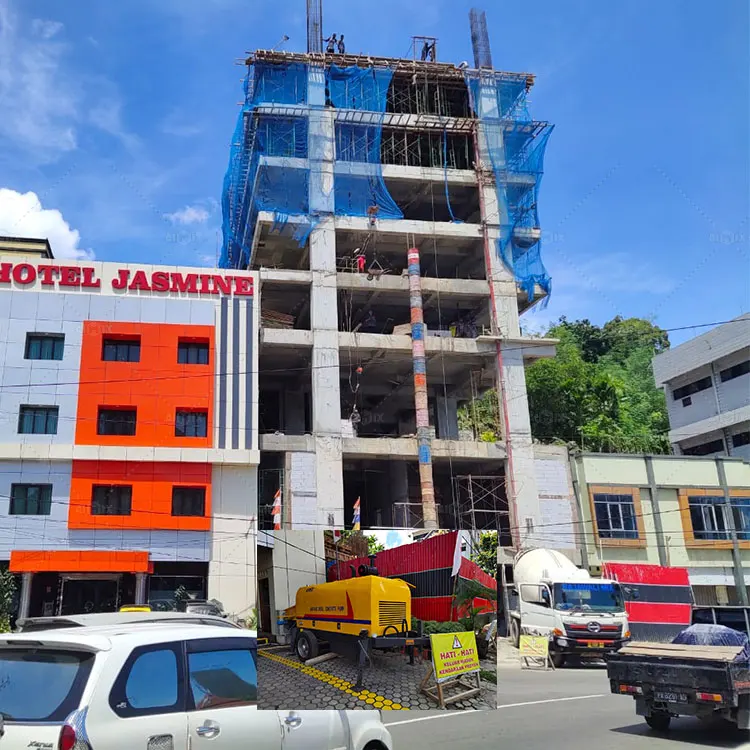

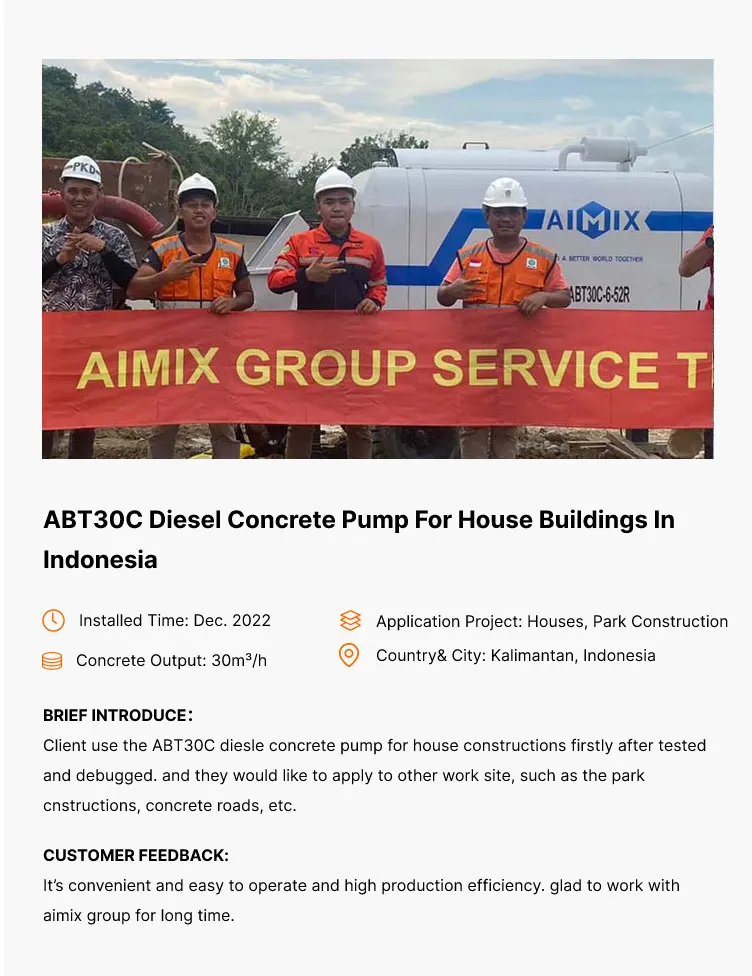

Successful Cases










Customer Praise




Choose Right Model




Specification


Diesel Engine Concrete Pump
Model
ABT30C
ABT40C
ABT60C
ABT80C
ABT90C
Max. theo. concrete output(L./H)M3/h
30
40/26
67/45
84/45
95/55
Max.concrete pumping pressure(H./L.)MPa
10
10/8
13/7
16/7
18/9.3
Distribution valve type
S Valve
Concrete cylinder diameter×stroke (mm)
Φ140x1200
Φ180x1200
Φ200x1650
Φ200x1800
Ф200×1800
Hopper capacity x feeding height （L/mm）
400/1100
400/1100
800/1400
800/1400
800
Diesel engine model
Cummins/ Weichai/ Yuchai/ Dalian DEUTZ




Diesel engineering power （KW）
56
82
129
176
186
Circuit type
Open circuit




Pumping system pressure （MPa）
26
32
32
32
32
Mixing system pressure （MPa）
6-8
10
10
10
8
Capacity of oil tank （L)
260
370
560
560
580
Max. Theoretical Vertical/Horizontal Conveying Distance (m)
120/300
120/500
180/1000
260/1200
260/1200
Total weight (kg)
3500
4500
6500
6900
6500


Electric Engine Concrete Pump
Model
ABT30D
ABT40D
ABT60D
ABT80D
Max. theo. concrete output(L./H) M3/h
30
40/26
60/36
84/46
Max.concrete pumping pressure(H./L.)MPa
10
10/8
13/7
16/9
Distribution valve type
S Valve



Concrete cylinder diameter×stroke (mm)
Φ140x845
Φ180x1300
Φ200x1650
Φ200x1800
Hopper capacity x feeding height (L/mm)
400/1100
400/1250
800/1400
800/1400
Outlet diameter(mm)
Φ100
Φ150
Φ180
Φ180
Electrical engineering power (KW)
37
45
90
110
Circuit type
Open circuit



Pumping system pressure (MPa)
18
28
28
32
Mixing system pressure (MPa)
6-8
10
10
10
Capacity of oil tank (L)
260
370
560
560
Max. Theoretical Vertical/Horizontal Conveying Distance (m)
120/500
120/500
160/800
200/1000
Inside diameter of delivering pipe (mm)
Φ80
Φ125
Φ125
Φ125
Total weight(kg)
2300
3200
6000
6300

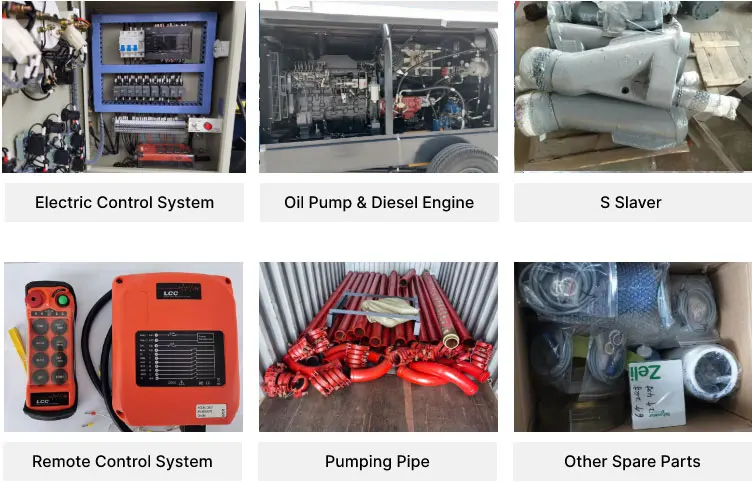

Core Component




Company Profile






Services


Technical Support
Remote troubleshooting
On-site debugging & maintenance
Customization
Based on kinds of needs
Help to achieve the productivity & efficiency


Spare Parts
Provide wearing parts
Delivery in time
Quality Control & Monitoring System
Quality control teams & system
Run tests before delivery



FAQ

Q1: What is the use range of 40M3/H diesel agitator pumps?
A1:Suitable for 2-8 storeys building construction, road, bridge and small hydro power station projects.

Q2: What is your payment term?
A2: We accept T/T(30% down payment and balance before shipping) , L/C , Credit card. But if you prefer other payment terms please contact us for further information.

Q3: How can we apply for engineers service?
A3: Please contact sales manager directly or call our after-sale service, we will arrange engineers service rapidly.

Q4: Do you supply OEM and ODM service?
A4:Sure friend. We provide OEM and ODM service. Please tell your requires to us, we will make our best.
