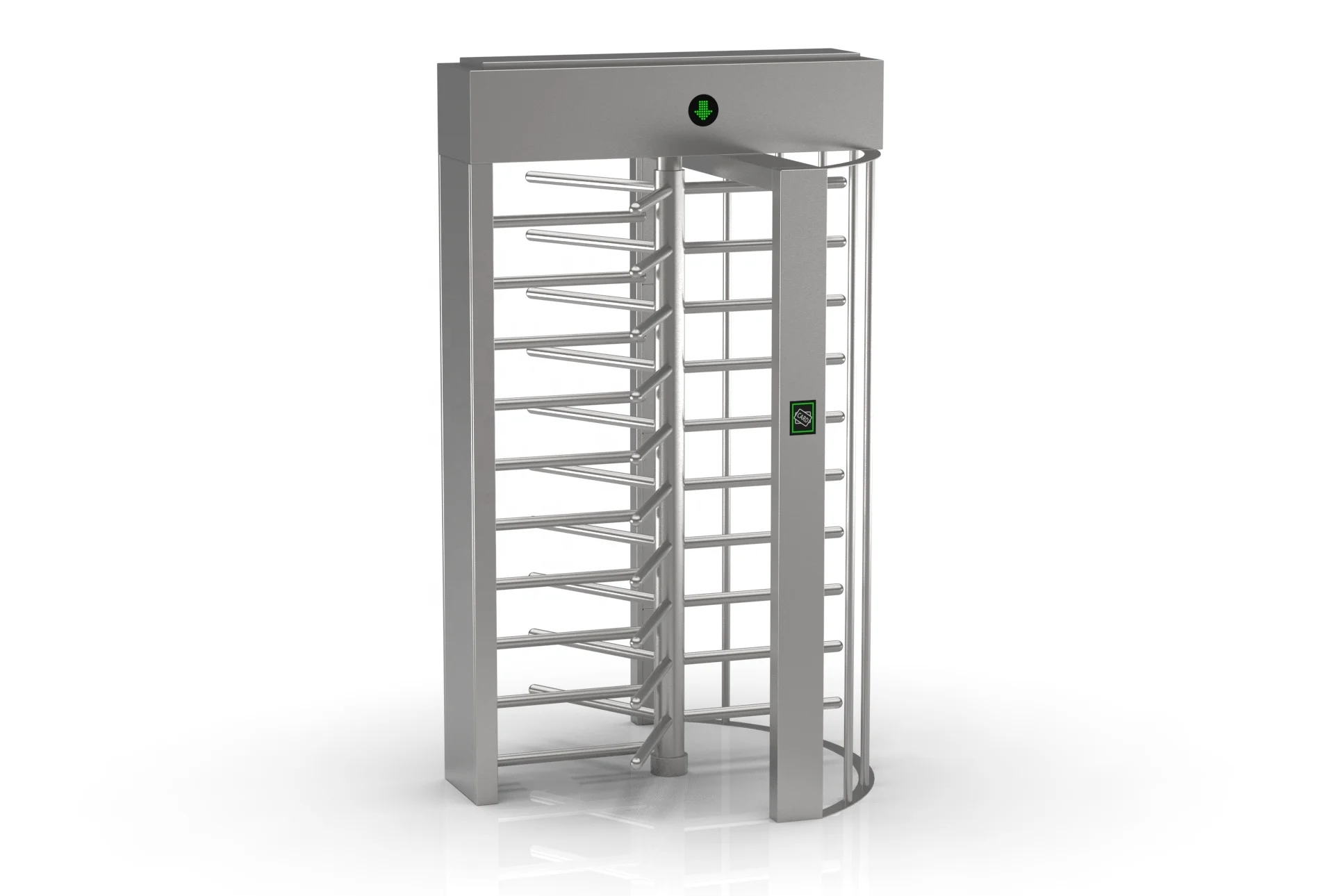

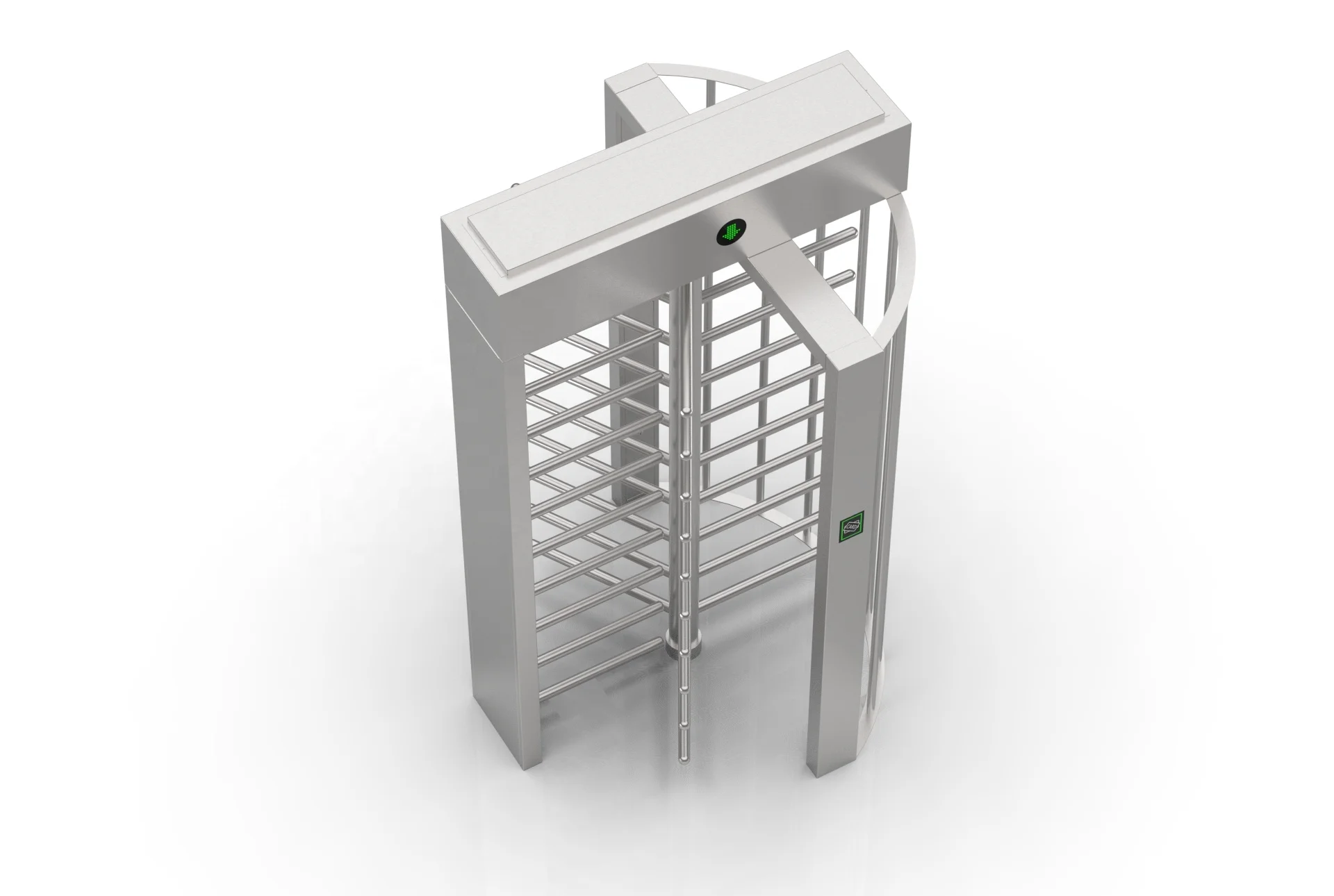

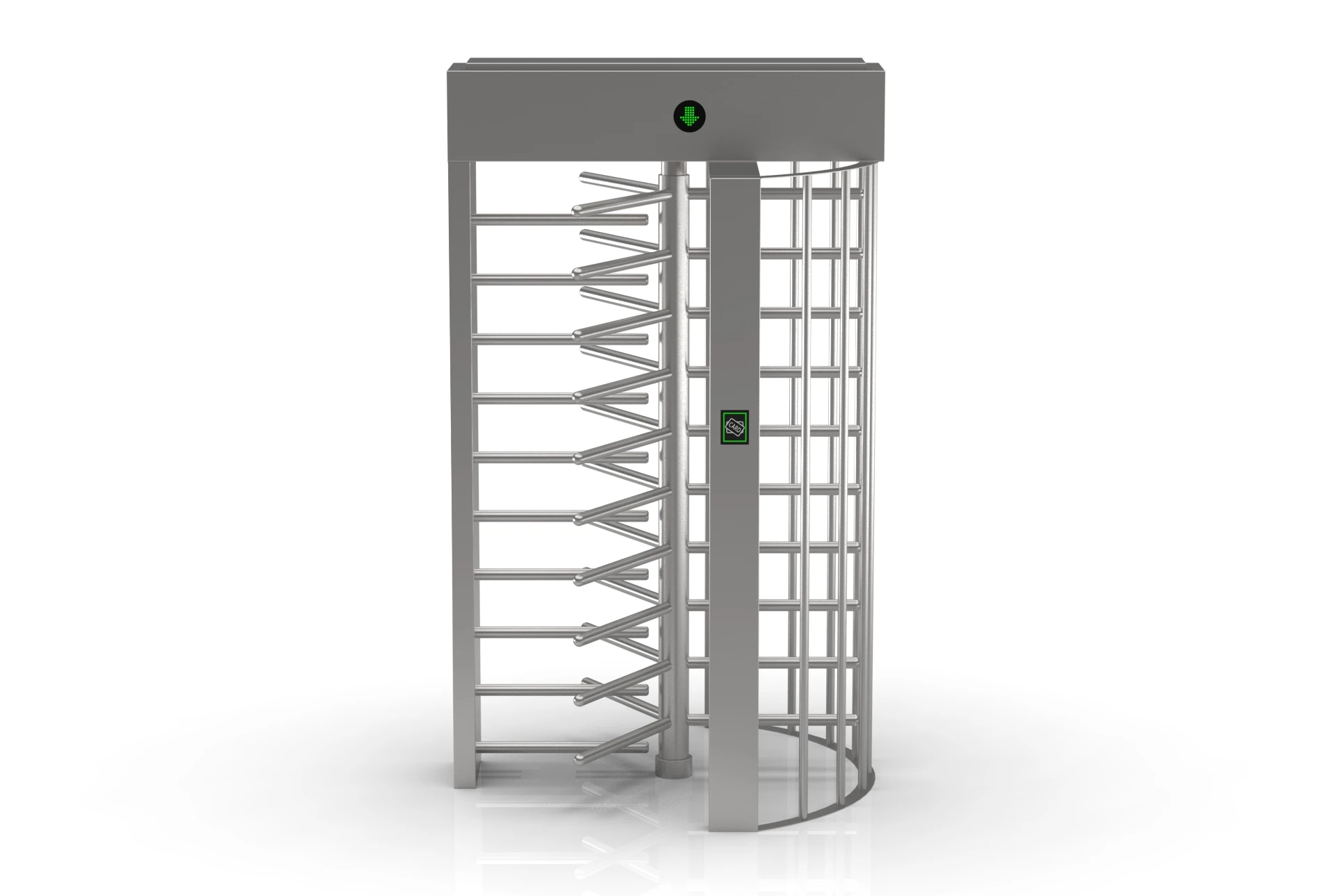

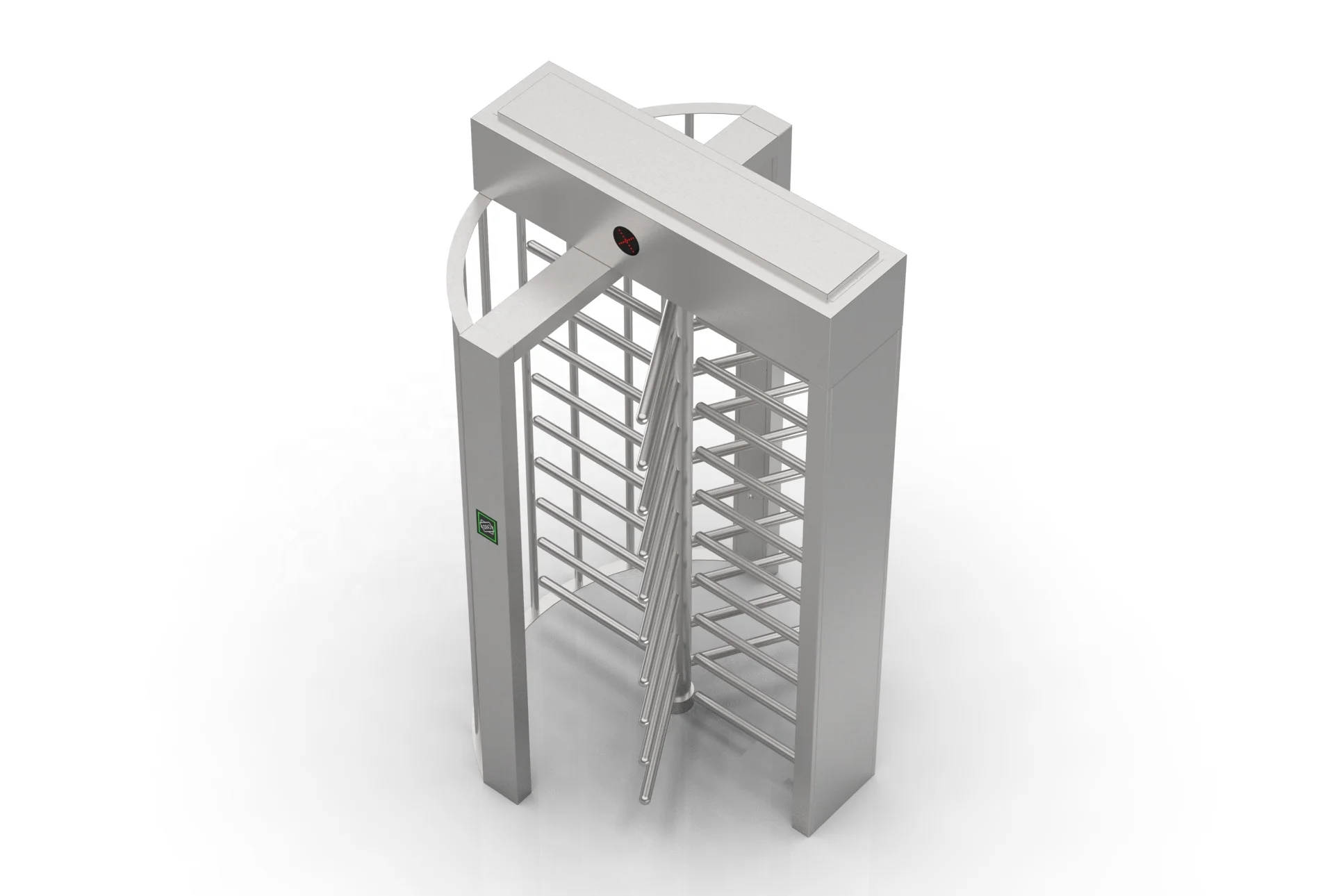

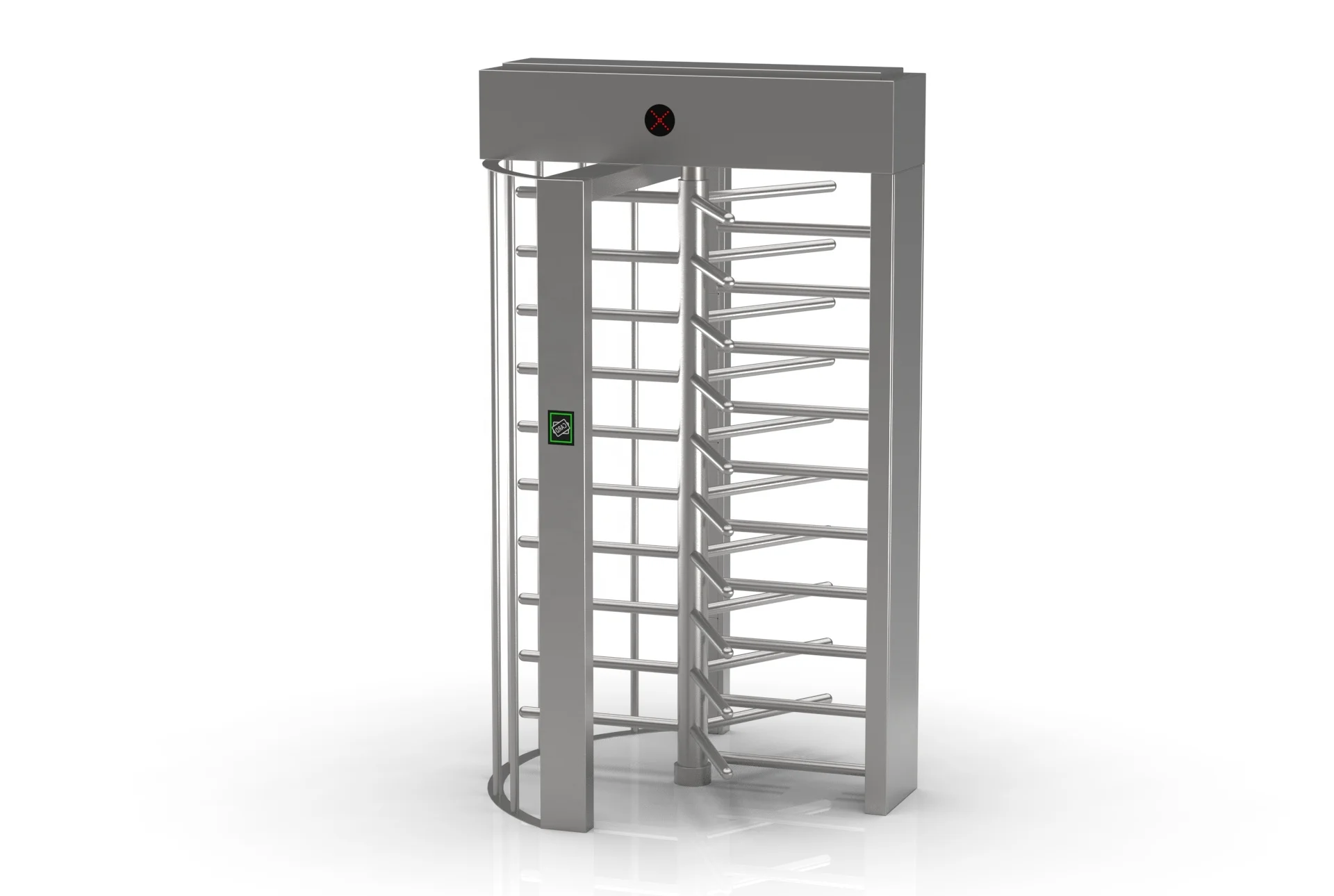

304 Stainless Steel Entrance Pedestrian Full Height Electric Turnstile Gate
- Category: >>>
- Supplier: Shenzhen Top Saful Electronic Tech Co. Ltd.
Share on (1601097634262):
Product Overview
Description
Specification
Name | Single lane full automatic full height turnstile |
Structure | Frame structure / stainless steel shell |
Production process | Full computer CNC laser cutting Machine production |
Overall dimensions | (W)1495mm*(D)990mm*(H)2200mm |
Operating voltage | AC220 ± 10%v ± 10%hz 100W |
Passage width | 750MM |
Switch Bar Steering | Bidirectional, unidirectional ( optional) |
Brake rod driving force | 2Kg |
Lighting Tips | Indication of direction of passage |
Work movement | 24V German technology Brush motor |
Working environment | Indoor and outdoor |
Temperature | -20℃ ~70℃ |
Normal service life | To more than once |
Induction card reading card mouth | Equipped with standard mounting bracket, or tailor-made |
Opening time | 0.2 seconds |
Speed of Passage | 25-40 person / minutes |
Input interface | Relay dry contact signal or pulse width >100ms 12V pulse signal, drive current >10mA |
Communication interface | TCP/IP/RS232 /RS485/CAN |
Material | 304 stainless steel |
Motor drive | DC motor/Brush motor/Hydraulic pressure |
Normal work life | >10000000times |
Products Feature
1、with 0-bit self-test function to facilitate user maintenance and use.
2、through the built-in small disk on the main control board, programmable device running state.
3、this section of the full height of the switch to a new second-generation movement .
4、Emergency mode :Built-in safety feature to switch the rotor to free access in the event of a power failure or when the turnstile receives a signal from the fire detection system.
5、Anti-collision function, in the absence of receiving the opening signal, the brake rod automatically locked dead.
6、free access to power, in line with fire requirements.
7、with automatic reset function, after opening, in the specified time when pedestrians do not pass, the system will automatically
cancel the pedestrian permissions, reset time of 1S~60S Adjustable ( system default time is) 10S), automatically open the channel after power off ( meet fire requirements ), the Power channel automatically shuts down.
8、ultra-bright directional indicator board to indicate the prevailing condition.
9、card opening memory function.
10、with access control system, consumer system, electronic ticket system, biometric system, electrostatic tester and other equipment to connect.
11、one- way or two-way control personel access.
12、the remote control and management can be realized directly through the management computer.
2、through the built-in small disk on the main control board, programmable device running state.
3、this section of the full height of the switch to a new second-generation movement .
4、Emergency mode :Built-in safety feature to switch the rotor to free access in the event of a power failure or when the turnstile receives a signal from the fire detection system.
5、Anti-collision function, in the absence of receiving the opening signal, the brake rod automatically locked dead.
6、free access to power, in line with fire requirements.
7、with automatic reset function, after opening, in the specified time when pedestrians do not pass, the system will automatically
cancel the pedestrian permissions, reset time of 1S~60S Adjustable ( system default time is) 10S), automatically open the channel after power off ( meet fire requirements ), the Power channel automatically shuts down.
8、ultra-bright directional indicator board to indicate the prevailing condition.
9、card opening memory function.
10、with access control system, consumer system, electronic ticket system, biometric system, electrostatic tester and other equipment to connect.
11、one- way or two-way control personel access.
12、the remote control and management can be realized directly through the management computer.
