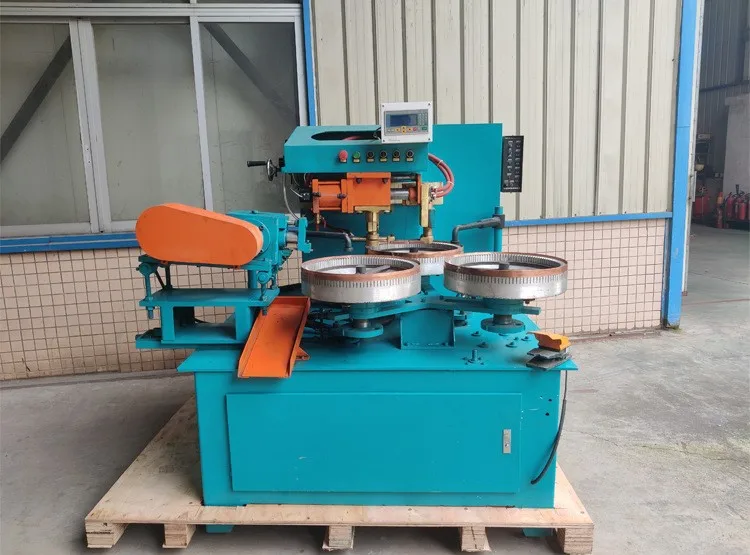

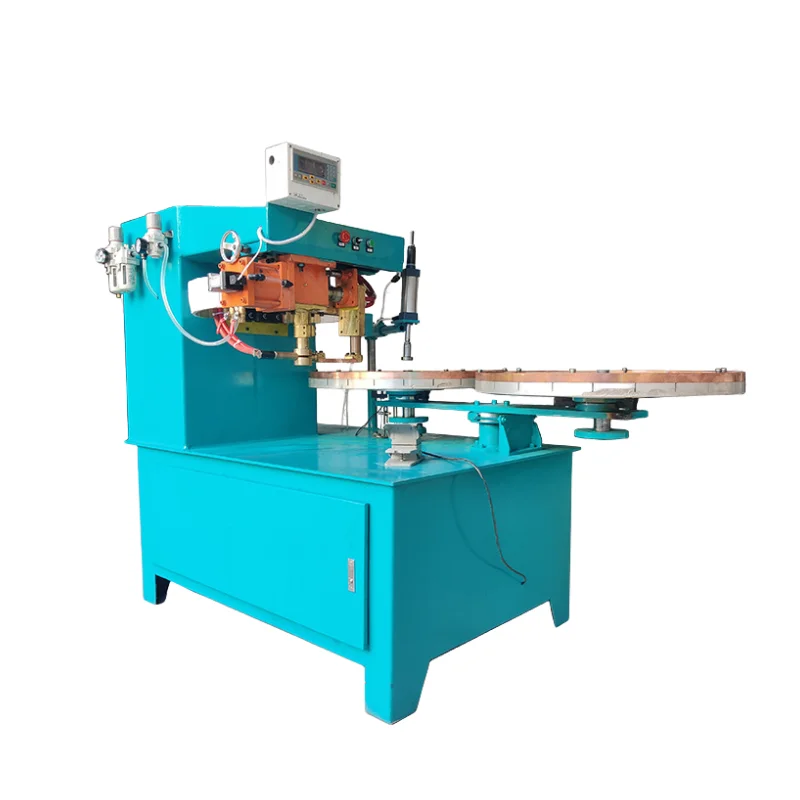

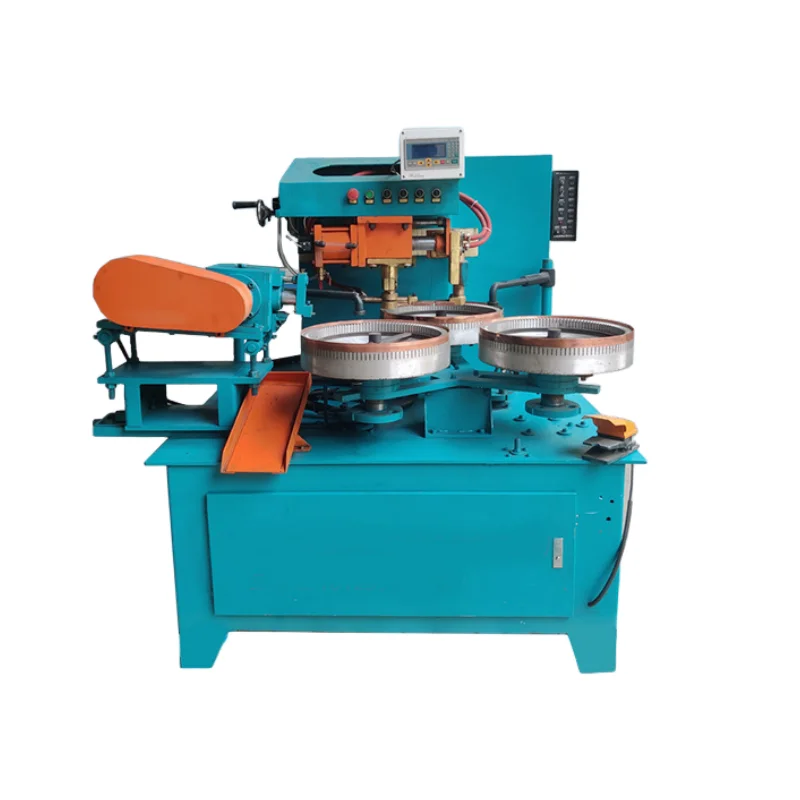

Bird Cage / Fan Outer Ring Making Machine, Fan net cover Fan guard / making machine
- Category: >>>
- Supplier: Shenzhen Lianyizhi Technology Co. Ltd.Shenzhen Ltd.
Share on (1601101390174):
Product Overview
Description
Product Description
Performance and characteristics of the outer ring machine:
1, the key parts of the whole machine adopts imported devices, such as electronic valve, cylinder, thyristor are imported or domestic famous factory components, control box for single-chip microcomputer, microcomputer integrated design and manufacture.
2, pneumatic pressure, adjustable pressure, flexible and reliable transmission part.
3, the main circuit adopts PLC intelligent control, the current is continuously adjustable, and has the function of network pressure fluctuation.
4, the control is equipped with: preheating, slow rise, prepressure, welding, pressure holding, rest time, program control current, single point welding and continuous welding can be selected switch
5, the control adopts single-chip integrated circuit +PLC control system, high precision dip switch, welding primary circuit adopts advanced technology such as bidirectional thyristor control, so as to ensure the current output is more stable and reliable.
6 The main transformer is cast with epoxy resin, and the transformer is cooled by water together with the SCR electrode
7. The machine adopts optimized design and high conductivity electromagnetic material, resulting in low loss of equipment in no-load, more powerful, stable power output and long service life.
1, the key parts of the whole machine adopts imported devices, such as electronic valve, cylinder, thyristor are imported or domestic famous factory components, control box for single-chip microcomputer, microcomputer integrated design and manufacture.
2, pneumatic pressure, adjustable pressure, flexible and reliable transmission part.
3, the main circuit adopts PLC intelligent control, the current is continuously adjustable, and has the function of network pressure fluctuation.
4, the control is equipped with: preheating, slow rise, prepressure, welding, pressure holding, rest time, program control current, single point welding and continuous welding can be selected switch
5, the control adopts single-chip integrated circuit +PLC control system, high precision dip switch, welding primary circuit adopts advanced technology such as bidirectional thyristor control, so as to ensure the current output is more stable and reliable.
6 The main transformer is cast with epoxy resin, and the transformer is cooled by water together with the SCR electrode
7. The machine adopts optimized design and high conductivity electromagnetic material, resulting in low loss of equipment in no-load, more powerful, stable power output and long service life.
Specification
-- Machine model: LYZ-50KVA
-- Suitable wire diameter of the outer ring: 3-4mm
-- Rated welding power: 50KVA
-- Size of guards: 8"-20"
-- Productivity: 2000-3000 pieces (16", 120 radial wires)
-- Air consumption: 0.4m3/min
--Welding current: 10A per time
-- Dimension: 1200 x 950 x 1550mm
-- Weight: about 500kg
-- Suitable wire diameter of the outer ring: 3-4mm
-- Rated welding power: 50KVA
-- Size of guards: 8"-20"
-- Productivity: 2000-3000 pieces (16", 120 radial wires)
-- Air consumption: 0.4m3/min
--Welding current: 10A per time
-- Dimension: 1200 x 950 x 1550mm
-- Weight: about 500kg
The equipment can be customized according to user needs. Due to the shape of the structure, metal material, wire diameter, material thickness is different, please tell us your product requirements. | ||||||||
