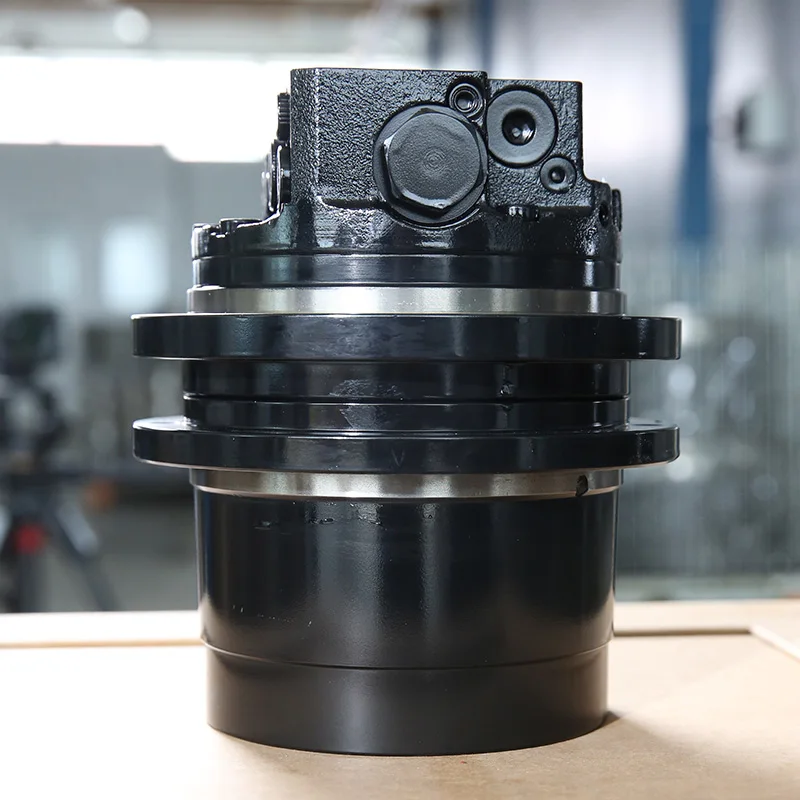

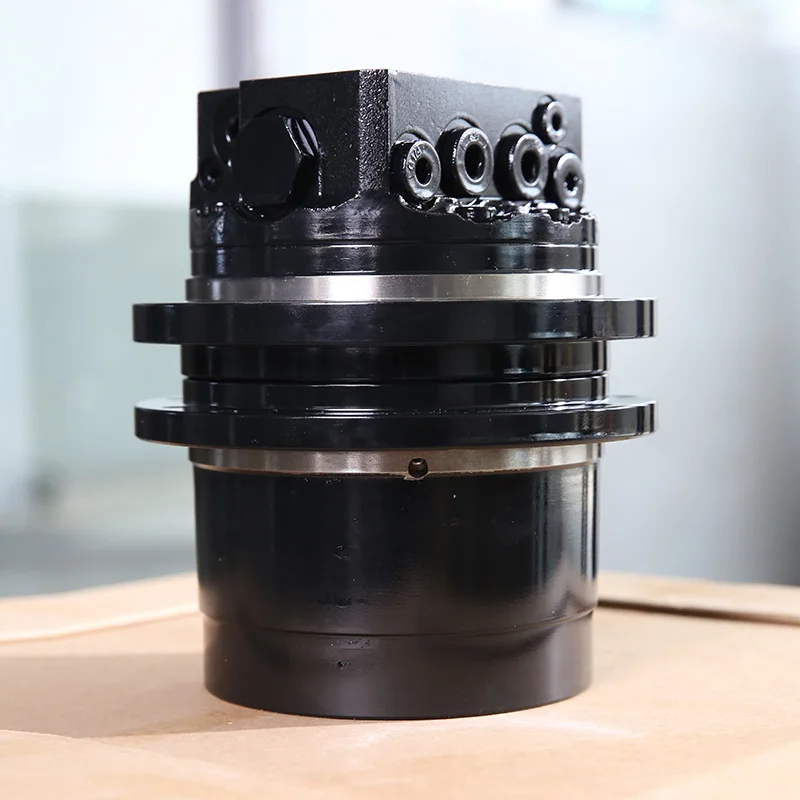

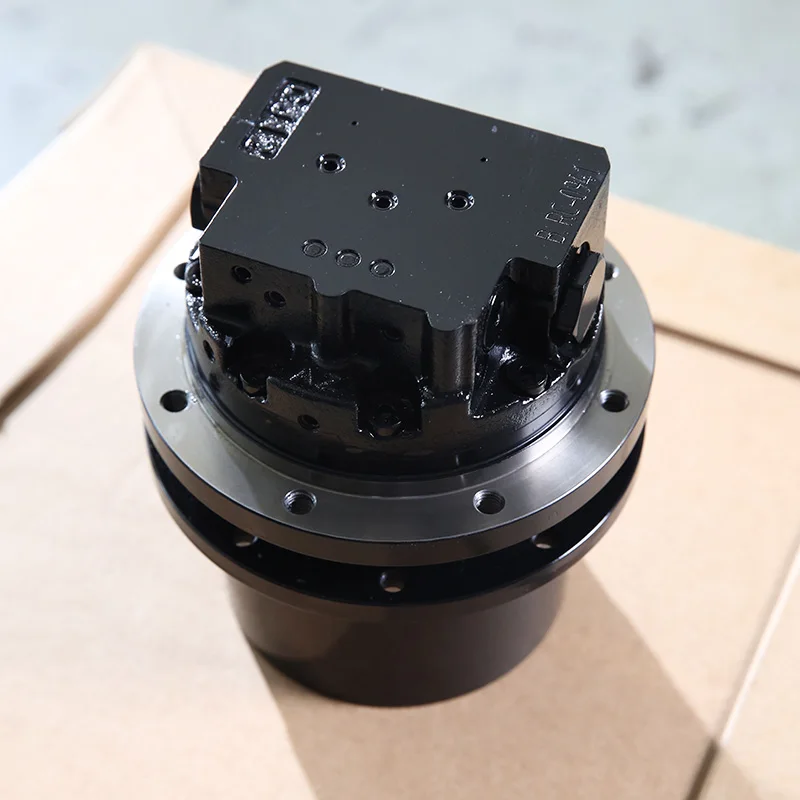

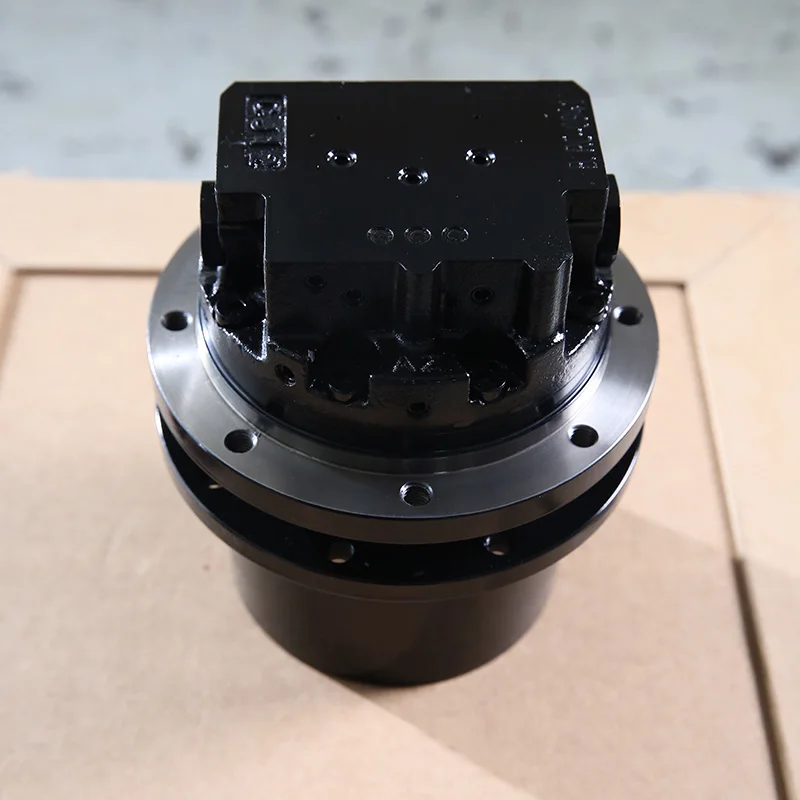

WEITAI High Quality WTM 02 final drive for 0.8 2Ton excavator hydraulic travel motor
- Category: >>>
- Supplier: Qingdao Weitai Hydraulic Co. Ltd.
Share on (1601104946771):
Product Overview
Description
PRODUCT PARAMETERS
Input Flow | 20 L/min | 20 L/min | 20 L/min |
Motor Displacement | 7.8/12 cc/r | 6.6/15.4 cc/r | 23.2/15.4 cc/r |
Working Pressure | 210 bar | 210 bar | 210 bar |
2-Speed Switching Pressure | 20~70 bar | 20~70 bar | 20~70 bar |
Ratio Options | 37 | 37 | 37 |
Max. Output Torque | 1500 N.m | 1990 N.m | 1500N.m |
Max. Output Speed | 75 rpm | 75 rpm | 72 rpm |
Machine Application | 0.8~2 Ton | 0.8~2 Ton | 0.8~2 Ton |

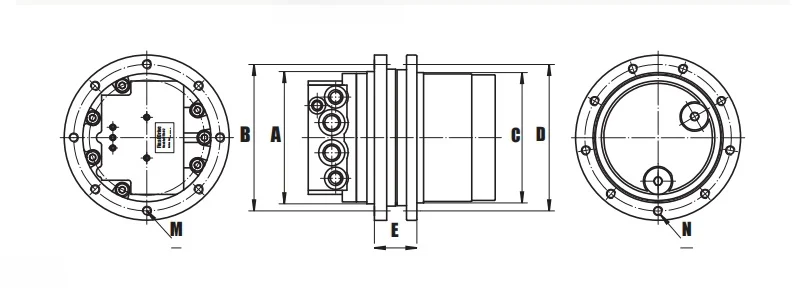

Connection Dimensions
Frame Orientation Diameter | A | 140 mm | 140 mm |
Frame Holes P.C.D | B | 155 mm | 157mm |
Frame Bolt Pattern | M | 8-M10 Equally | 8-M10 Equally |
Sprocket Orientation Diameter | C | 140 mm | 140 mm |
Sprocket Holes P.C.D | D | 155 mm | 157 mm |
Sprocket Bolt Pattern | N | 9-M10 Equally | 8-M10 Equally |
Flange Distance | E | 45 mm | 45 mm |
Approximate Weight | 20 kg | 20 kg |
Product Application
Product Packaging
Recommended Products

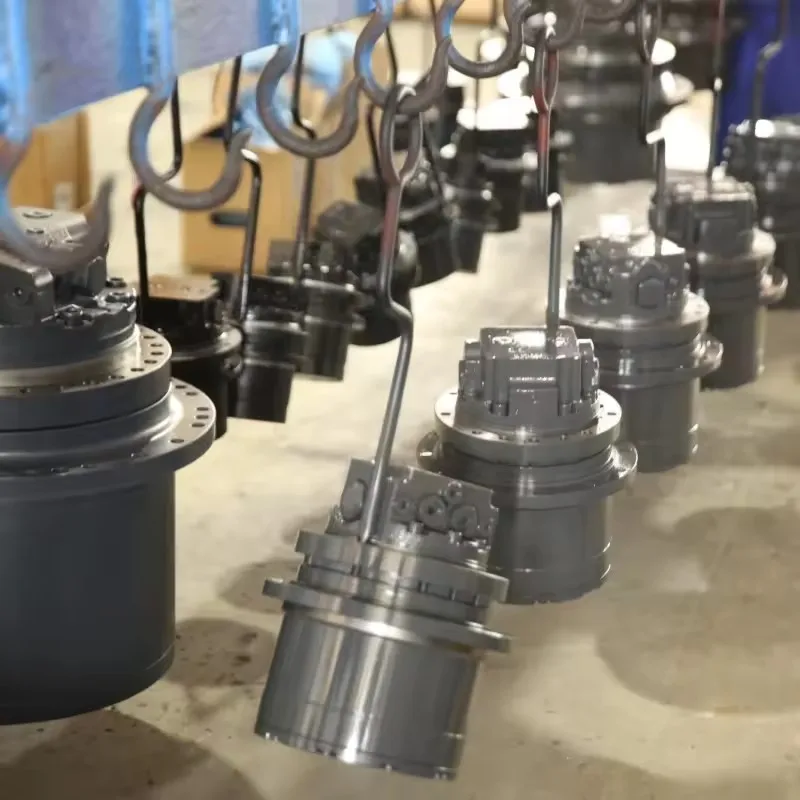

Production Process
COMPANY PROFILE
FAQ
1) What types of hydraulic motors does your company produce?
A: WEITAI mainly produces complete and fully assembled brand new axial piston motors integrated with travel reducers, which are widely used for track equipment. We can also produce hydraulic motors for wheeled machines.2) Hydraulic motors of which brands can be replaced with WEITAI's ones?
A: Our motors are interchangeable with the motors of the following brands: Eaton, Doosan, Jeil, KYB, Nachi, Nabtesco, Rexroth, Poclain, Bonfiglioli, etc.
3) How can I choose the right model of the hydraulic motor to fit my machine?
A: Different markets have different machine variations. The best way to find the right motor is to look at the motor brand and the machine model you have. Another way would be by measuring the key dimensions of the flange frame and the sprocket flange. Please contact our sales team to get technical support if you have difficulties choosing the right motor for your application.
4) Can you produce hydraulic motors based on your customer's designs and dimensions?
A: Yes, we can. We are ready to provide the best customized hydraulic solutions for your business.
5) Can the OEM parts apply to WEITAI's travel motors?
A: No, they cannot. Although they might have a similar appearance, their internal structures are different. Only WEITAI's spare parts can fit WEITAI's travel motors.
6) What information do we need our customers to provide while choosing the right hydraulic motor for their application?
A: (1) Drawing, or (2) original motor model, or (3) machine model and part No.
