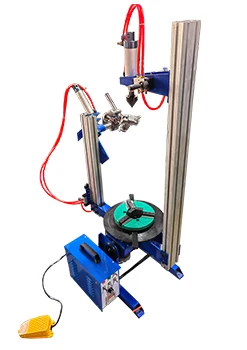

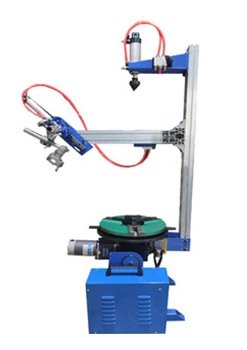

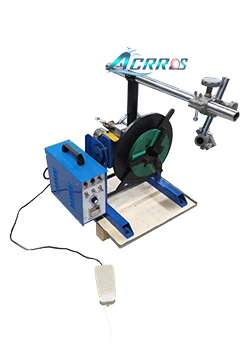

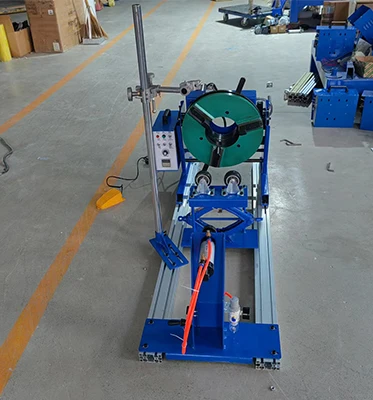

Easy operate CNC Welding Turntable 50 kg pipe welding positioner with pendulum gun holder
- Category: >>>
- Supplier: Dalian Acrros Machine Co. Ltd.
Share on (1601106105348):
Product Overview
Description
Product Description
Application of Welding Positioner Turntable,

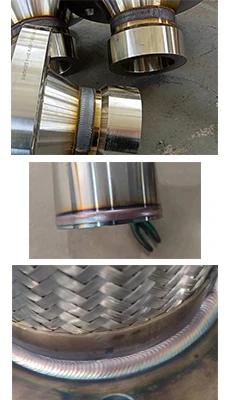

This welding positioner is designed for circle welding, annular welding, cutting, polishing, assembling etc. especially suitable for under 50KG flange, steel pipe and other seam welding. 50kg welding positioner for sale
Welding Positioner TABLE Feature: Easy to Control
*Time and speed controllable, The time and speed is regulated by the knob on the machine
*1-15r/min, driven by DC motor, stepless speed regulation can be achieved.
*Using foot pedal to control table rotation.

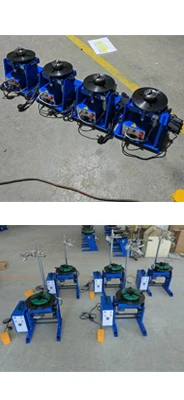

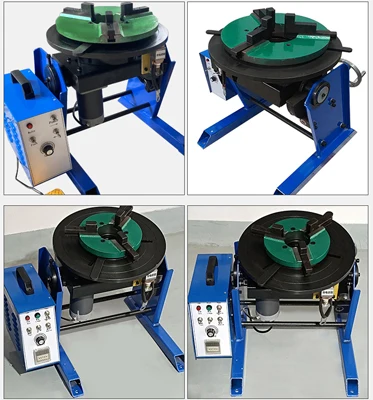

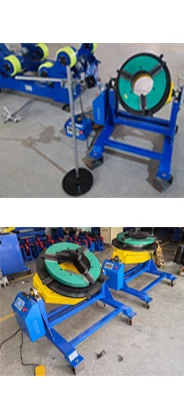

Detailed Images
Size Information

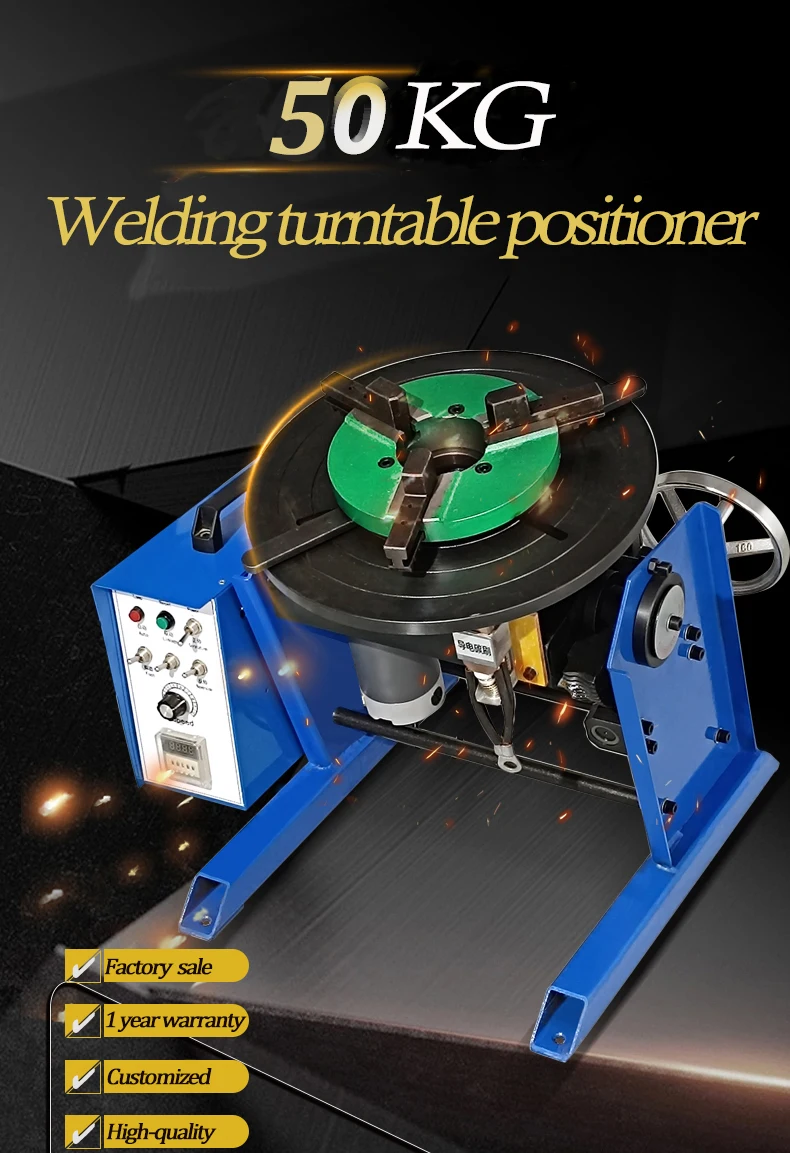

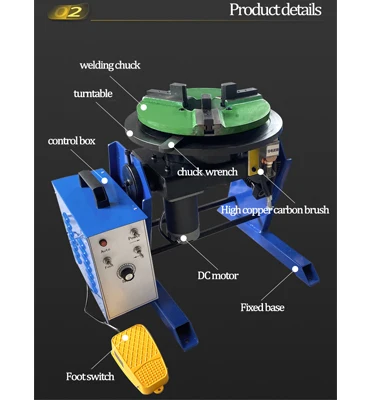

3 Jaw Lathe Chuck and Welding Table
*Chuck diameter:200mm/300mm,
*Table diameter: 320mm,

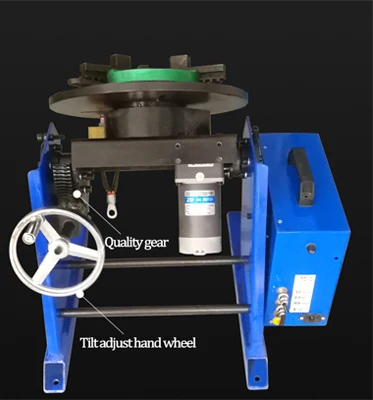

*Tilt angle: 0 degree - 90 degree, The turning structure of worm and gear has the function of self-lock.

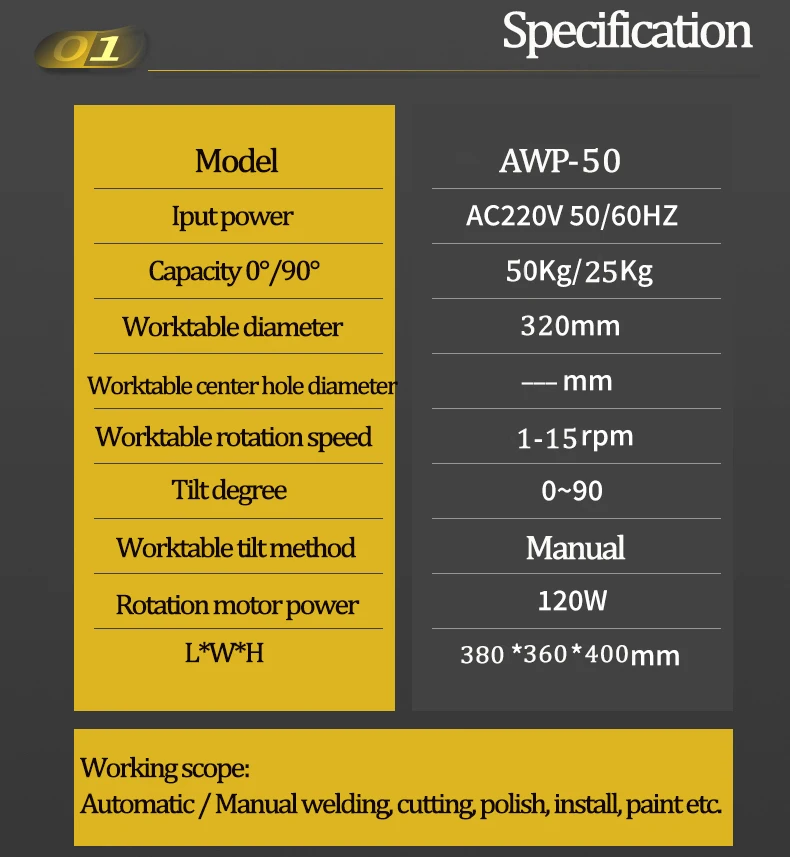

Model | Loading Horizontal/Vertical | Rotation Speed (R/MIN) | Motor Power | Table Through Hole | Size (CM) | Weight |
AWP-30KG | 30KG/15KG | 1-15 | 40W | 25/65MM | 38*36*40 | 30KG |
AWP-50KG | 50KG/25KG | 1-15 | 120W | NO | 38*36*40 | 35KG |
AWP-100KG | 100KG/50KG | 0.5-5 | 120W | 65MM | 50*41*45 | 75Kg |
AWP-200KG | 200KG/100KG | 0.5-5 | 125W | 140/170MM | 53*49*50 | 80KG |
AWP-300KG | 300KG/150KG | 0.2-2.5 | 200W | 140/170MM | 65*56*60 | 120KG |

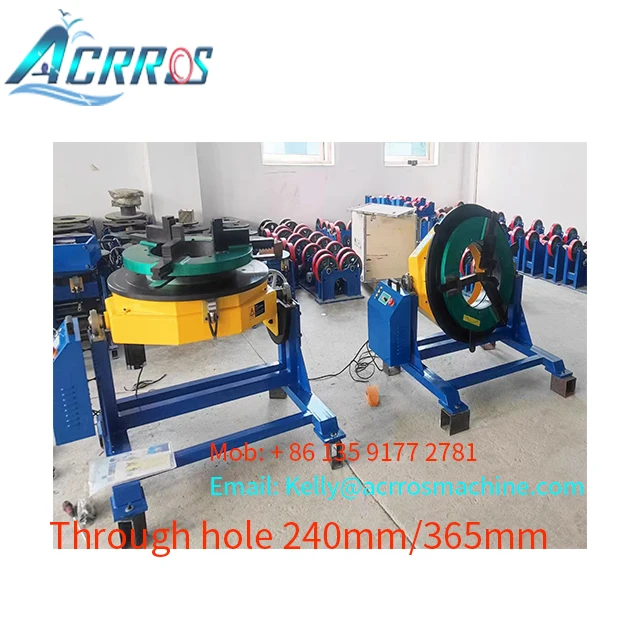

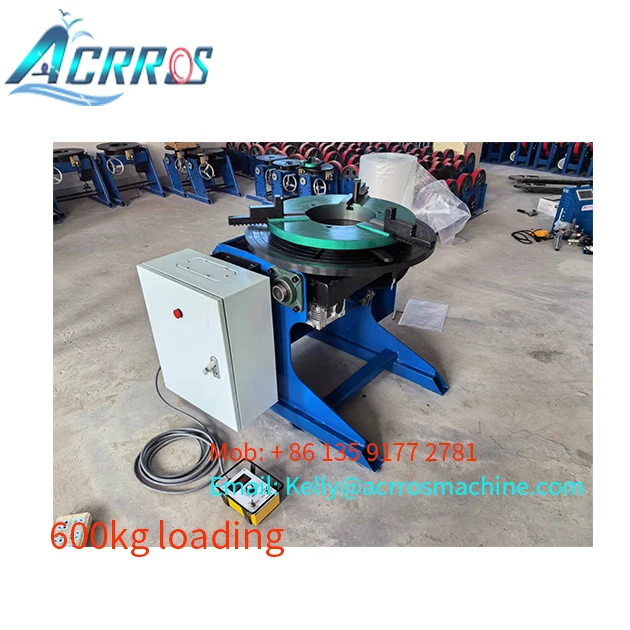

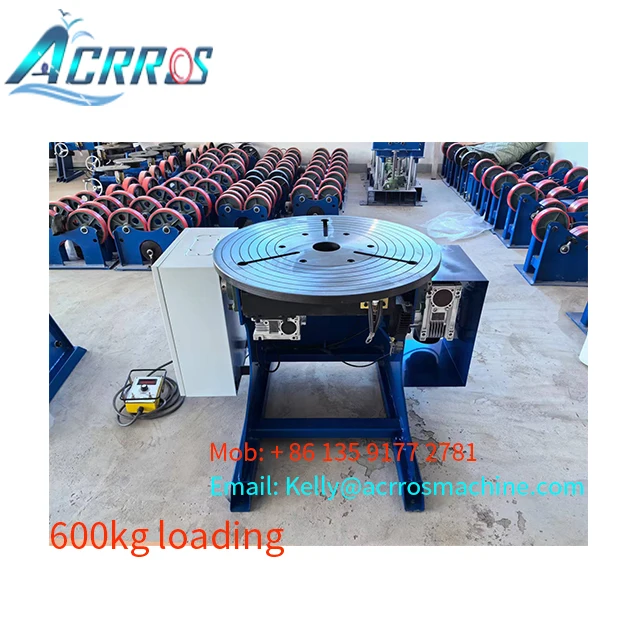

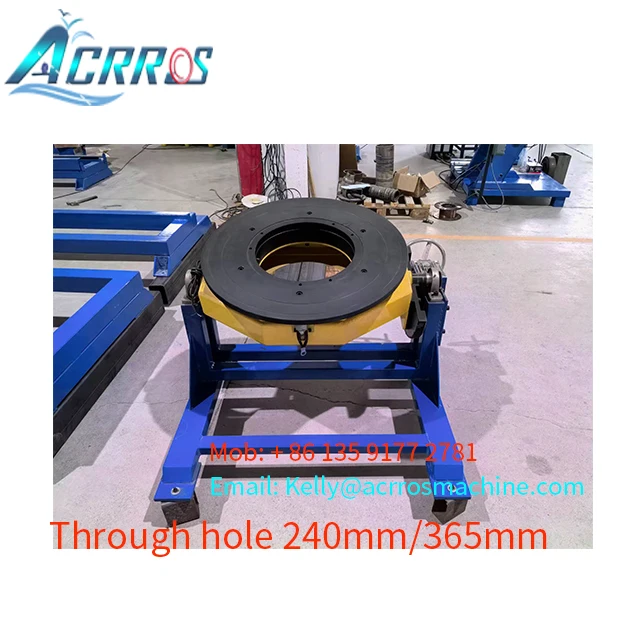

AWP-600KG | 600KG/300KG | 0.5-3 | 550W | 80/240/365MM | 83*58*69 | 260KG |
Manufacture Specification
Please kindly contact us for the goods inquiries if you are interested.
DALIAN ACRROS MACHINERY CO.,LTD.Ms.Kelly Che _ Manager
E-MAIL: kelly@ acrrosmachine.com
MOB: +86-135-9177-2781
WHATSAPP:+86-135-9177-2781
WECHAT:+86-135-9177-2781
* Welding Gas : Welding positioner Support CO2 welding, MIG, MAG, TIG welding etc. Special design of anti-electromagnetic, which reduces the high frequency interference of TIG welding, and can improve the welding quality effectively.

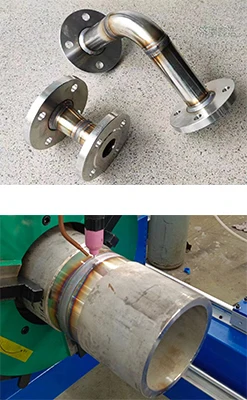

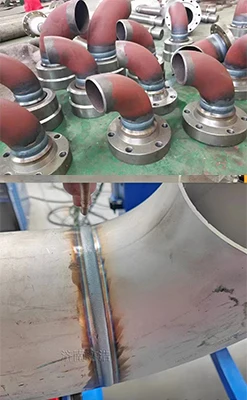

* Application This welding positioner is designed for circle welding, annular welding, cutting, polishing, assembling etc.
especially suitable for flange, steel pipe and other seam welding.
especially suitable for flange, steel pipe and other seam welding.
Best Selling
Recommending Styles
Warranty Welding Positioner Rotary Turntable
We provide 1 YEAR warranty for every our customer. If you have any questions, please feel free to contact us directly. We
will give you a reply as soon as possible.
will give you a reply as soon as possible.
Company Introduction
Dalian Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development
strategy. Acrros have been specialized in manufaturing welding positioners for more than 15 years. All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great
quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future harmonious world.
strategy. Acrros have been specialized in manufaturing welding positioners for more than 15 years. All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great
quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future harmonious world.
Our Services & Strength

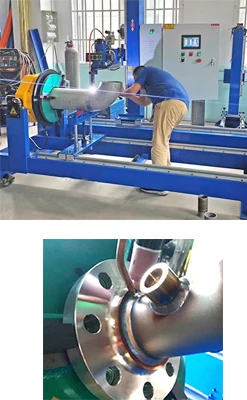

This rotary welding positioner is a professional equipment for annular welding.

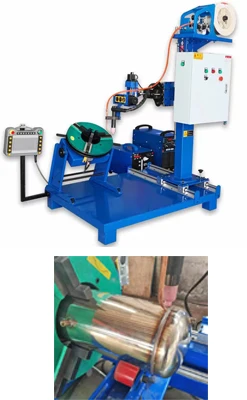

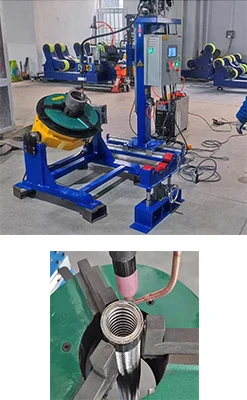

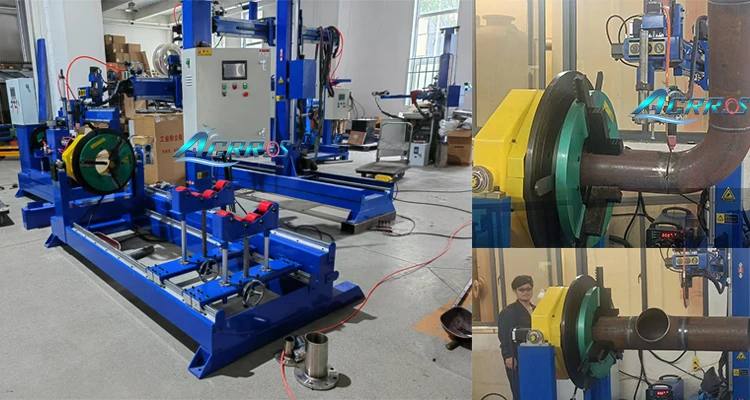

It is mainly used to tilt, rotate the work pieces and keep them in horizontal or ship-shape position for further welding. You can put chuck on its working table or assemble clamping tools on this positioner, cooperate with manual welding works. This welding positioner can also be connected to automatic welding machine to ensure auto welding process.
Circle welding, Annular welding, Cutting, Polishing, Assembling
If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB:+86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-86-159-4081-4820
WECHAT:+86-86-159-4081-4820
FAQ
Q: Can I get some samples?
A: Yes, sample orders welcomed.
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
A: Yes, sample orders welcomed.
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
