Full automatic soldering bus bar bussing machine for 100MW 200MW 500MW solar panel production line
- Category: >>>
- Supplier: Nantong Reoo Technology Co. Ltd.
Share on (1601106966294):
Product Overview
Description

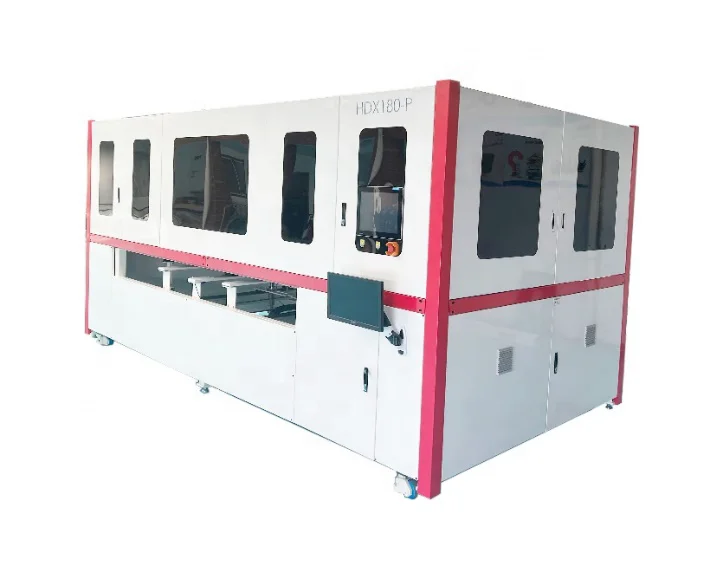

Full Automatic bussing machines
Product Description
The main function of this equipment is to separate the cell string from the glass, lift the cell string to a certain height with a lifting mechanism, and then suspend and solder the bus bars at the head, middle, and tail of the mid-outlet type module. It has the function of supplying rolled bus bars and bending U and L-shaped leads upward
Related Parameters
1. Functional features
1.1 The whole machine is compatible with half cell, double glass modules, compatible with multiple grids after replacing tooling.
1.2 Automatically completes cutting, bending and interconnection soldering of solar module ribbons.
1.3 To effectively rectify cell strings, avoid soldering defects caused by large layup accuracy error.
1.4 Ribbon roll feeding,automatically prepare upfold L type ribbon.
1.5 The flux can be automatically filled between the ribbon and busbar before soldering.
1.6 Visual correction for cell string.
1.7 The operating door is equipped with safety protection
1.1 The whole machine is compatible with half cell, double glass modules, compatible with multiple grids after replacing tooling.
1.2 Automatically completes cutting, bending and interconnection soldering of solar module ribbons.
1.3 To effectively rectify cell strings, avoid soldering defects caused by large layup accuracy error.
1.4 Ribbon roll feeding,automatically prepare upfold L type ribbon.
1.5 The flux can be automatically filled between the ribbon and busbar before soldering.
1.6 Visual correction for cell string.
1.7 The operating door is equipped with safety protection
2. Technical parameters
No. | Item | Main technical parameters | Note |
1 | Maximum compatible module size | 1650*900-2500*1500mm |
|
| 2 | Cycle time | ≤18S |
|
| 3 | Utilization rate | ≥99% |
|
4 | Number of compatible grid lines | Compatible with 5-20 grid |
|
5 | Breakage rate | <0.02%(according to cells quantity) |
|
8 |
Ribbons types |
4mm-8mm(Width) 0.2mm-0.4mm(thickness ) | Priority standard 4mm,5mm, 6mm, 7mm width, other width tooling can be paid upgrade |
9 | Cutting accuracy | ±0.5mm |
|
10 | Bus-bar straightness | ≤3mm/1000mm |
|
11 | Soldering method | Induction |
|
12 | Flux filled | flux can be automatically filled |
|
14 | Production speed | ≤20s |
|
15 | Overall yield | 99% |
|
17 | After soldering tension | 5BB≥6N/mm MBB≥3N/mm | (180°counter pull) |
18 | Power supply | 380V/220V,50Hz |
|
19 | Working air pressure | 0.6MPa~0.8Mpa |
|

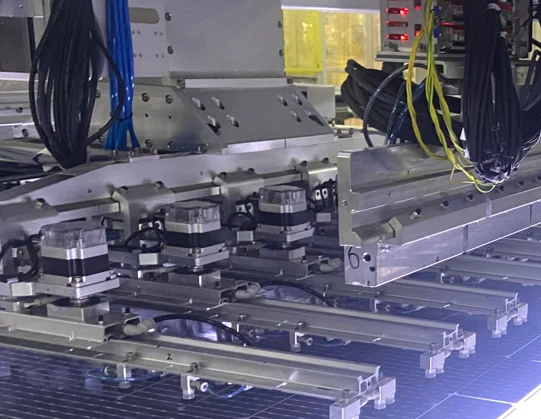

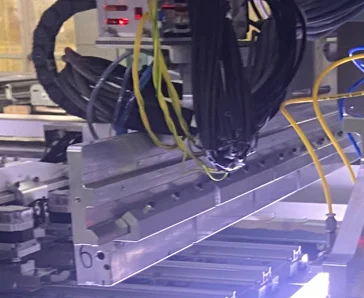

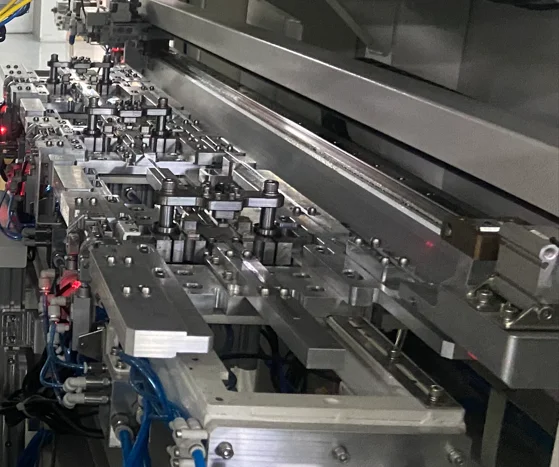

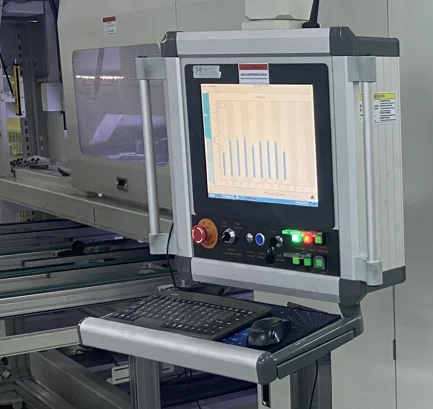

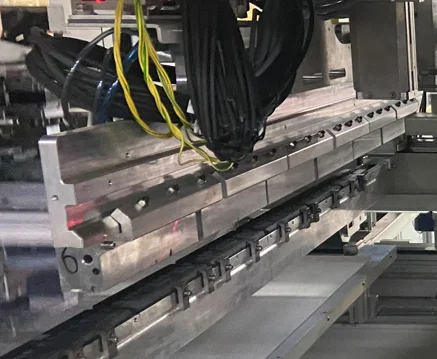

Detailed Images
Packing & Delivery

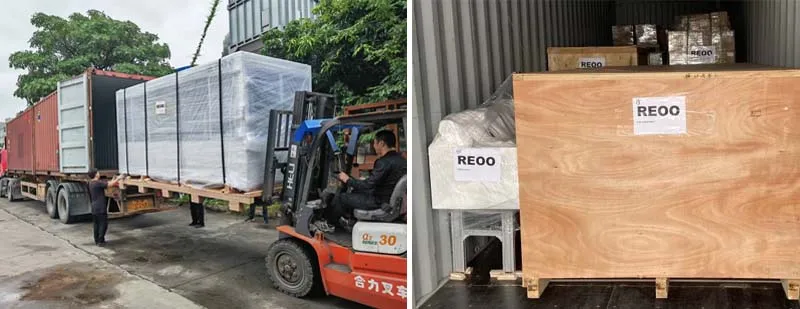

Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 30 days after received the advance payment.
Our Services
Installation:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
Our Company
REOO Technology Co., Ltd. is a leading manufacturer for solar panel assembly production line in China. We
have 9 years history to manufacture all size of laminator also whole of production line. We have a great deal of experience for design, manufacturing, shipping, installation, commissioning and training for solar panel production line . We have exported many of production line to other countries. This specification include design, manufacturing, shipping, testing and commissioning of assembling plant of solar panel on turn key basis. The assembling plant should have a production capacity of 1 MW/year considering 80% uptime and single shift of operation.
