New Type Ceramic Tile Stone Cutting Machine Trimming Cutting Disc Stone Cutter Saw Machine Stone Machine
- Category: >>>
- Supplier: Jinan TechPro CNC Equipment Co. Ltd.Jinan Ltd.
Share on (1601109978570):
Product Overview
Description
New Type Ceramic Tile Stone Cutting Machine Trimming Cutting Disc Stone Cutter Saw Machine Stone Machine
Products Description

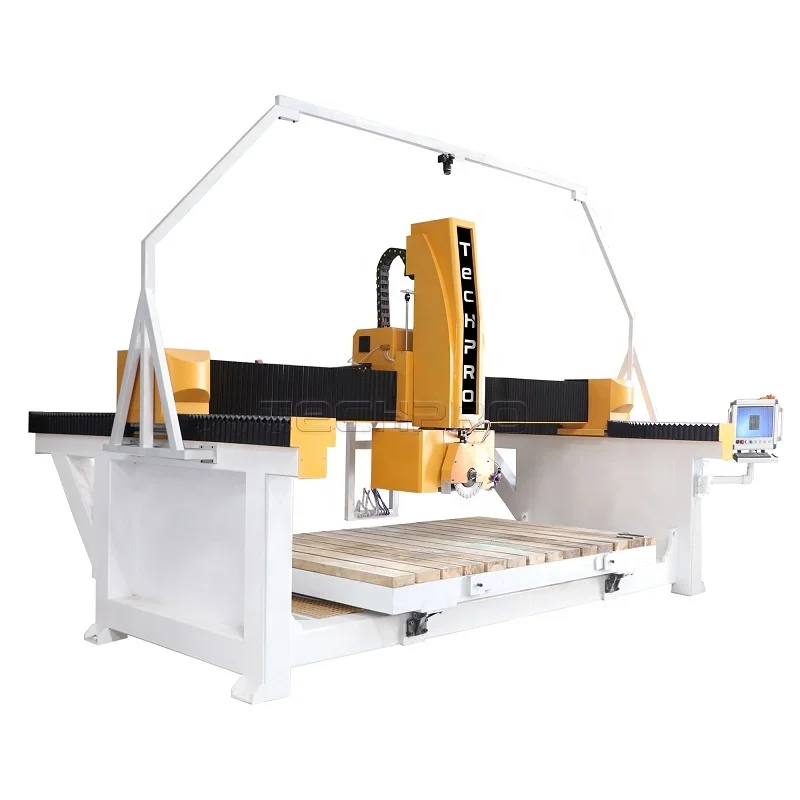

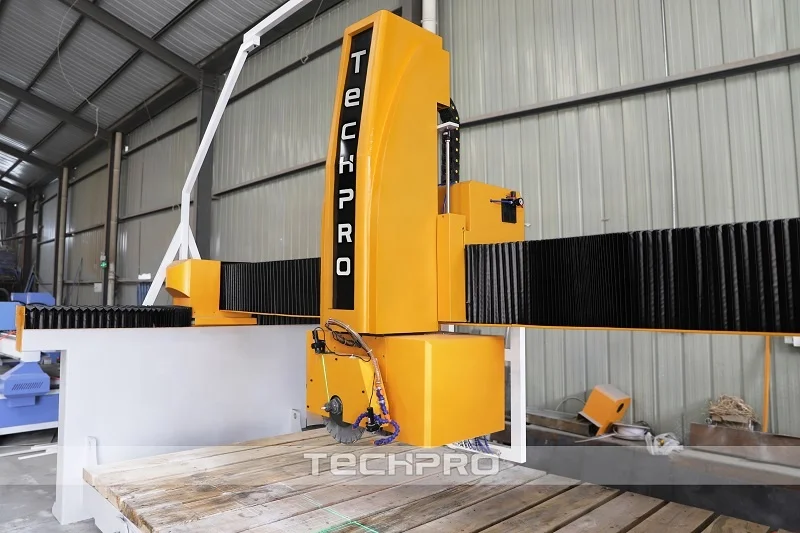

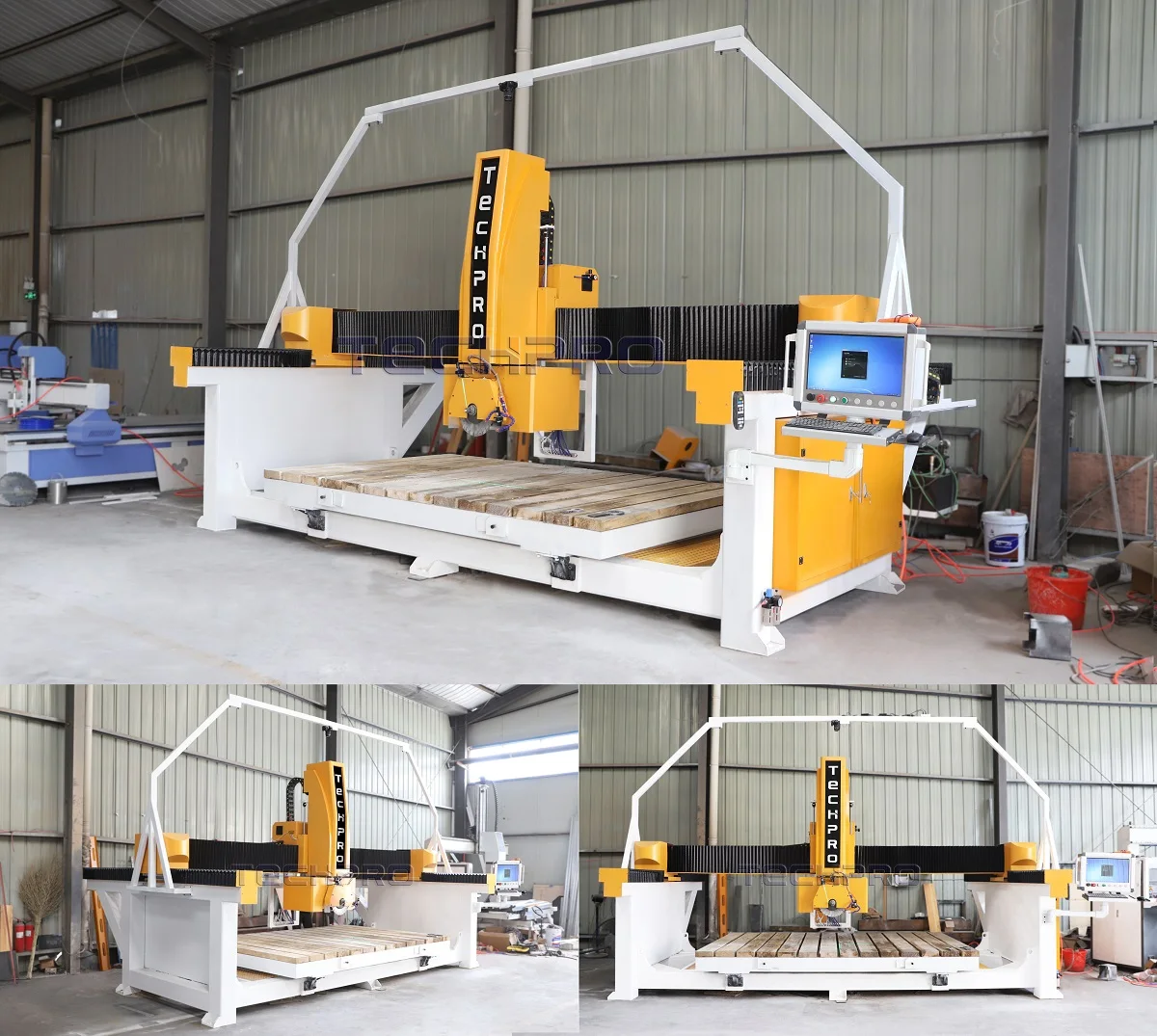

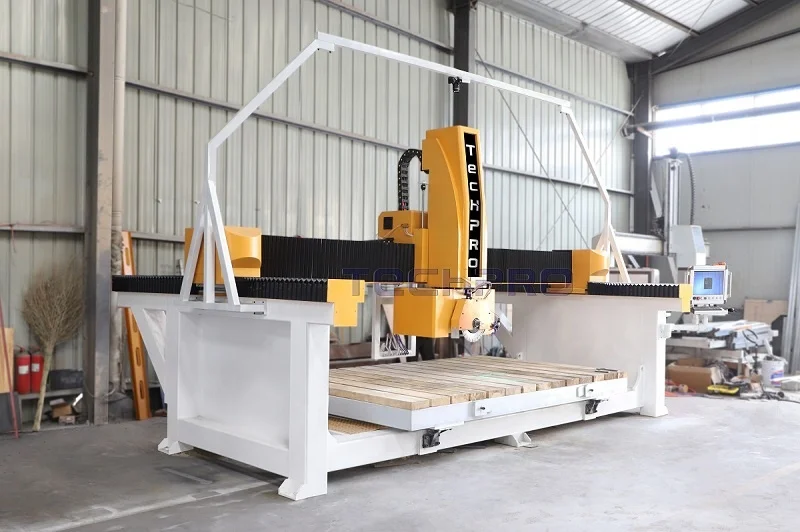

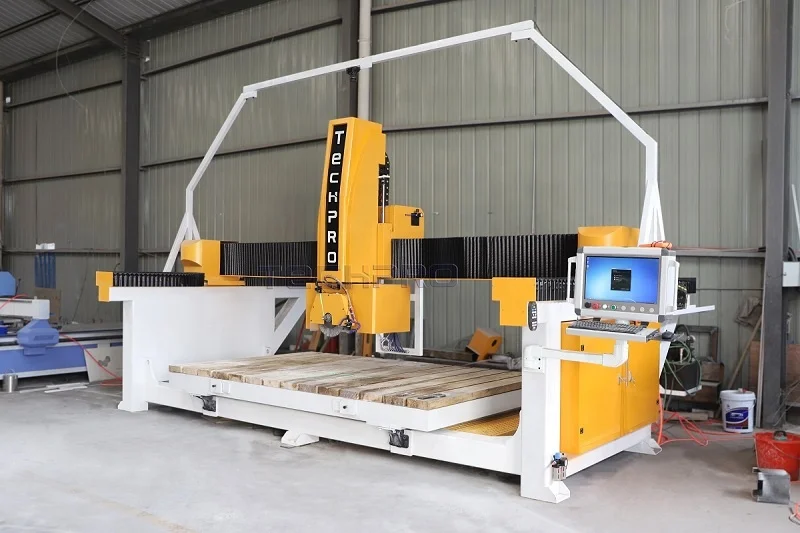

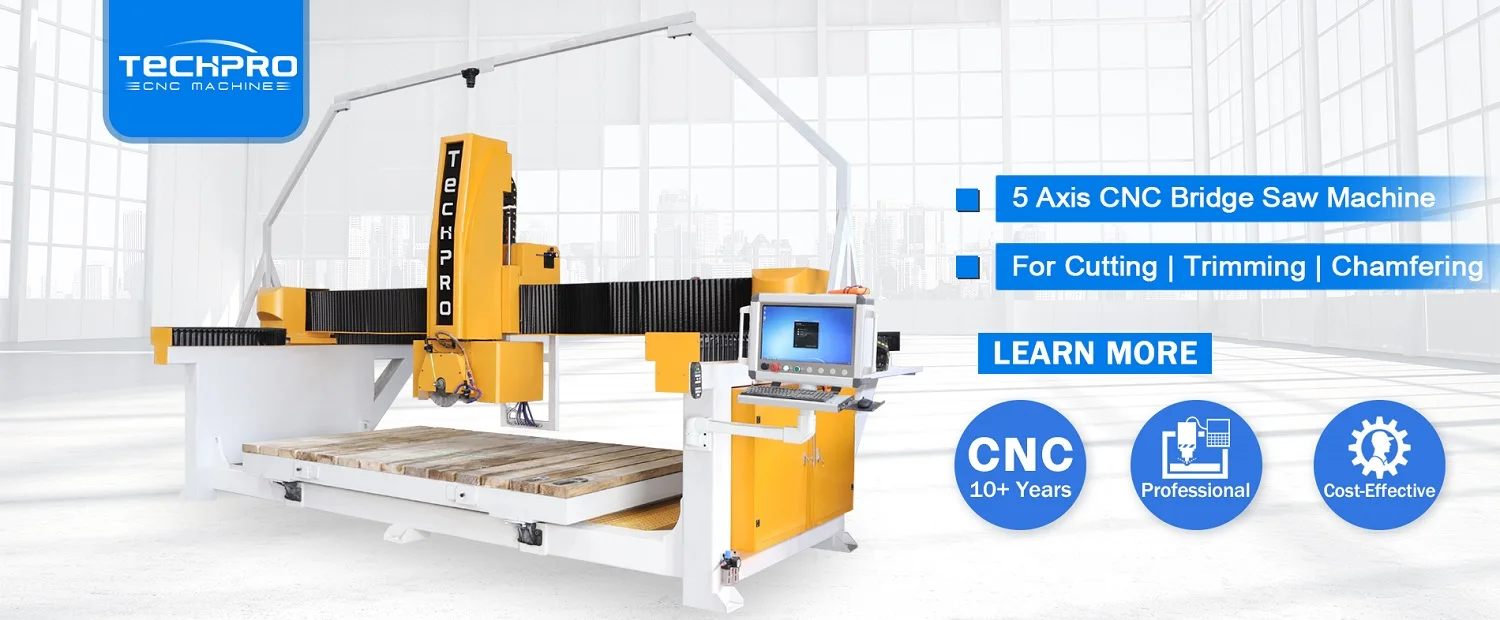

TechPro Bridge Saw Stone CNC Router Features :

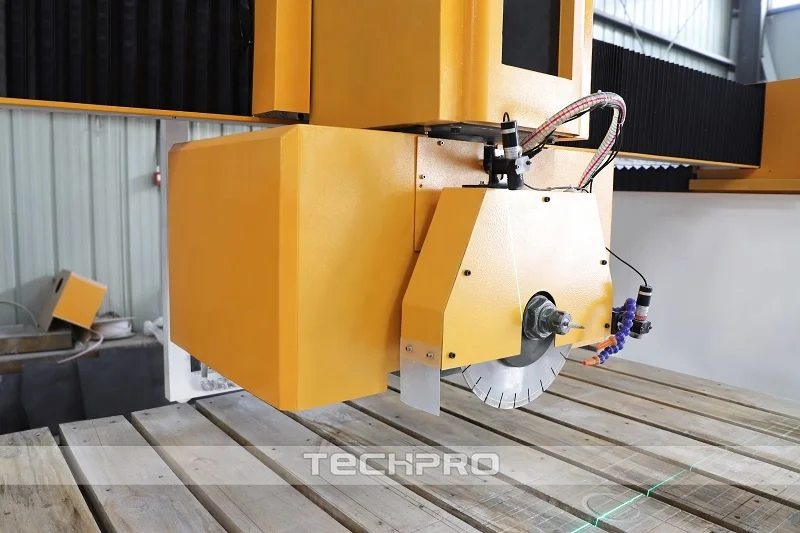

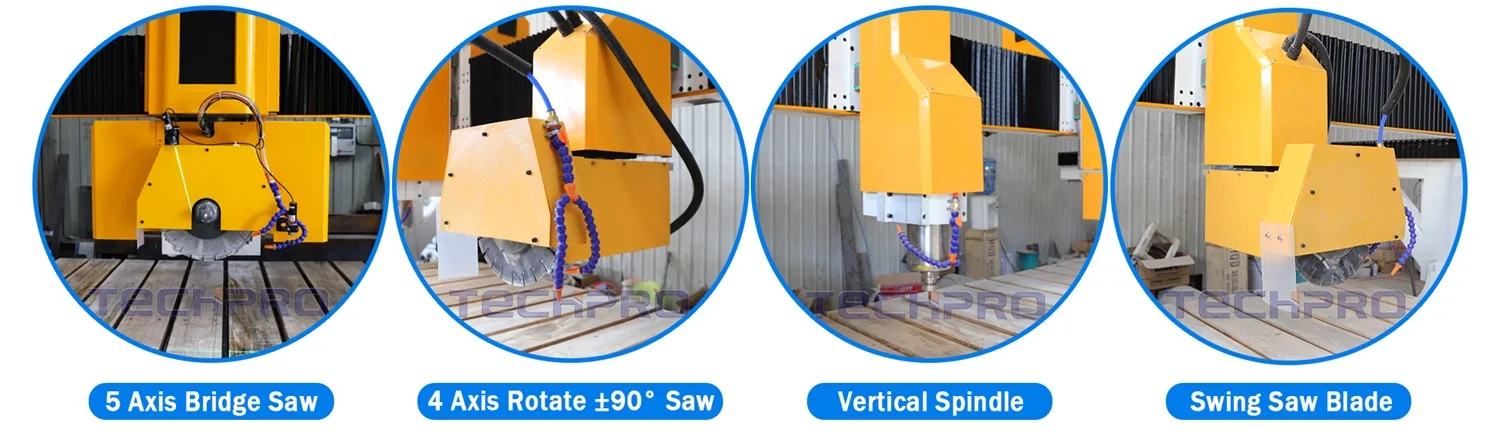

1. TechPro 5 axis bridge saw cutting machine can realize cross cutting, vertical cutting, chamfering at any angle, circle, horse belly, arc, fan shape, etc. also can install a tool perpendicular to the direction of the saw blade for various types of processing.
3. Full three-dimensional design and stress analysis, CNC processing modular assembly, greatly improve the reliability and stability of the machine and ensure the continuous operation of the machine.
4. TechPro 5 axis bridge saw cutting machine adopts customized PLC control system and human-machine interface. The whole machine has high cutting efficiency, high slicing accuracy, high flatness of the plate after cutting, good stability and easy operation.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
2. It has the functions of automatic CCD camera, automatic plate moving, and automatic table turning.
3. Full three-dimensional design and stress analysis, CNC processing modular assembly, greatly improve the reliability and stability of the machine and ensure the continuous operation of the machine.
4. TechPro 5 axis bridge saw cutting machine adopts customized PLC control system and human-machine interface. The whole machine has high cutting efficiency, high slicing accuracy, high flatness of the plate after cutting, good stability and easy operation.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
Application of TechPro 5 Axis Bridge Saw Machine :
1. Applied materials:
It integrates cross-cutting and longitudinal cutting, can be arbitrarily chamfered 0-85 degrees, circular, oval, fan-shaped, special-shaped typesetting and other functions. It can be used for cutting quartz stone, rock slabs, ceramic tiles, marble and other materials.

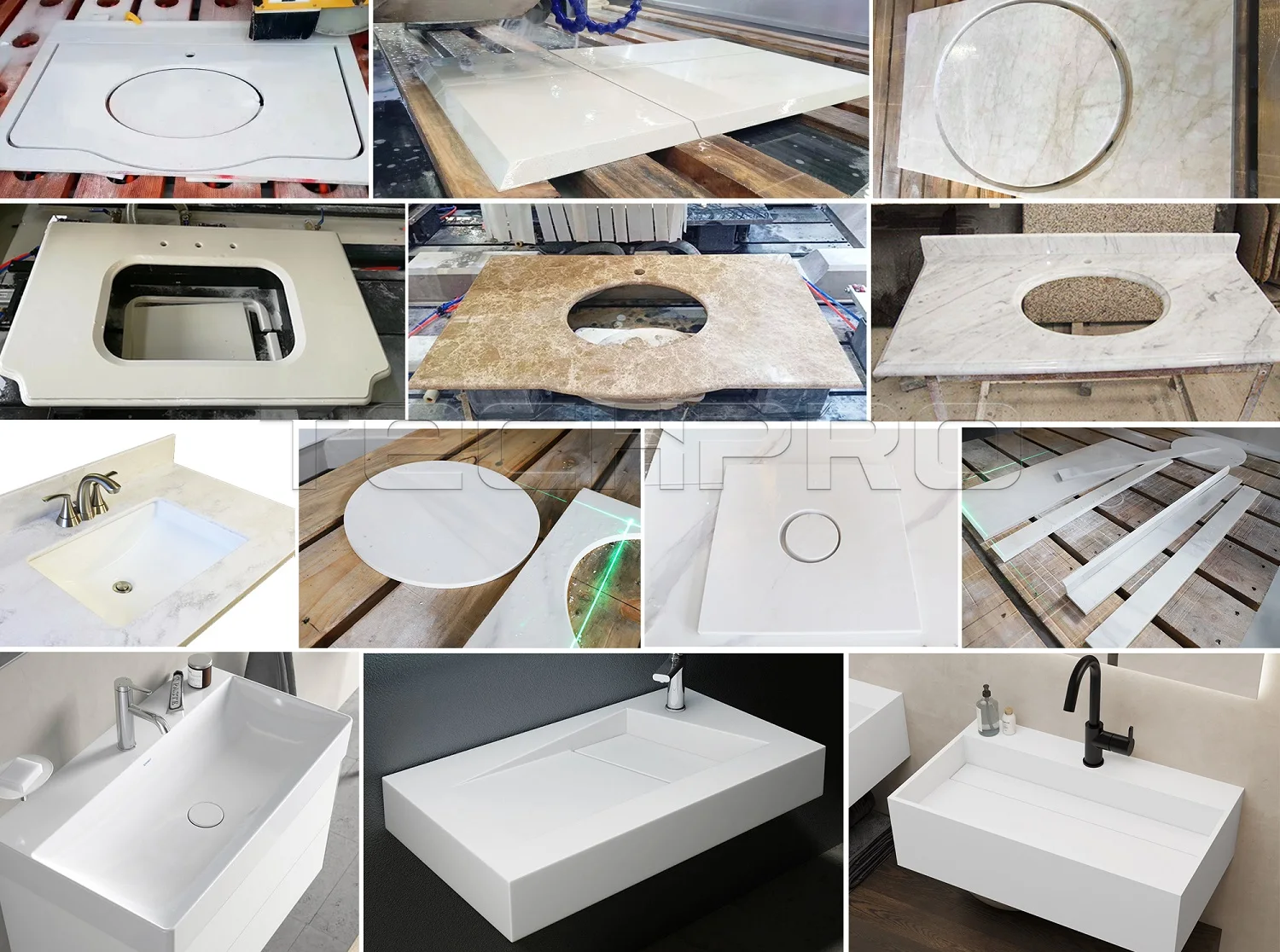

2. Application industries:
Currently it is widely used in the processing of kitchen countertops, bathroom countertops, bar islands, coffee table tops, stone tabletops, and other stone countertops.
2. Application industries:
Currently it is widely used in the processing of kitchen countertops, bathroom countertops, bar islands, coffee table tops, stone tabletops, and other stone countertops.
Machine Configuration
Model | TPS2032-5 Axis |
Working area | 3200*2000*400mm (Optional 1500*3000*400) |
Control system | TechPro customization 5 axis control system |
Spindle Motor | China 15kw Frequency spindle ( 0-6000rpm ); 350mm Saw Blade |
5 Axis Processing | X Y Z C A axis |
Motor and Driver | Japan Yaskawa AC servo motor and driver 1800W |
Inverter | Taiwan Delta inverter |
Table surface | Slide wood Lifting Table |
Structure | Heavy Duty 10mm Steel machine bed; 18mm Moving Steel Gantry |
Lubrication system | Manual lubrication system |
Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI 3205 ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm |
Electric Parts | Schneider brand |
Software | Artcam/Ucancam / Aspire /Fushion360 etc |
Working Voltage | 380V or 220V /3phase/1 Phase |
Extra Functions | Automatic CCD camera |
Automatic plate moving | |
Automatic table turning | |
Automatic cleaning function |

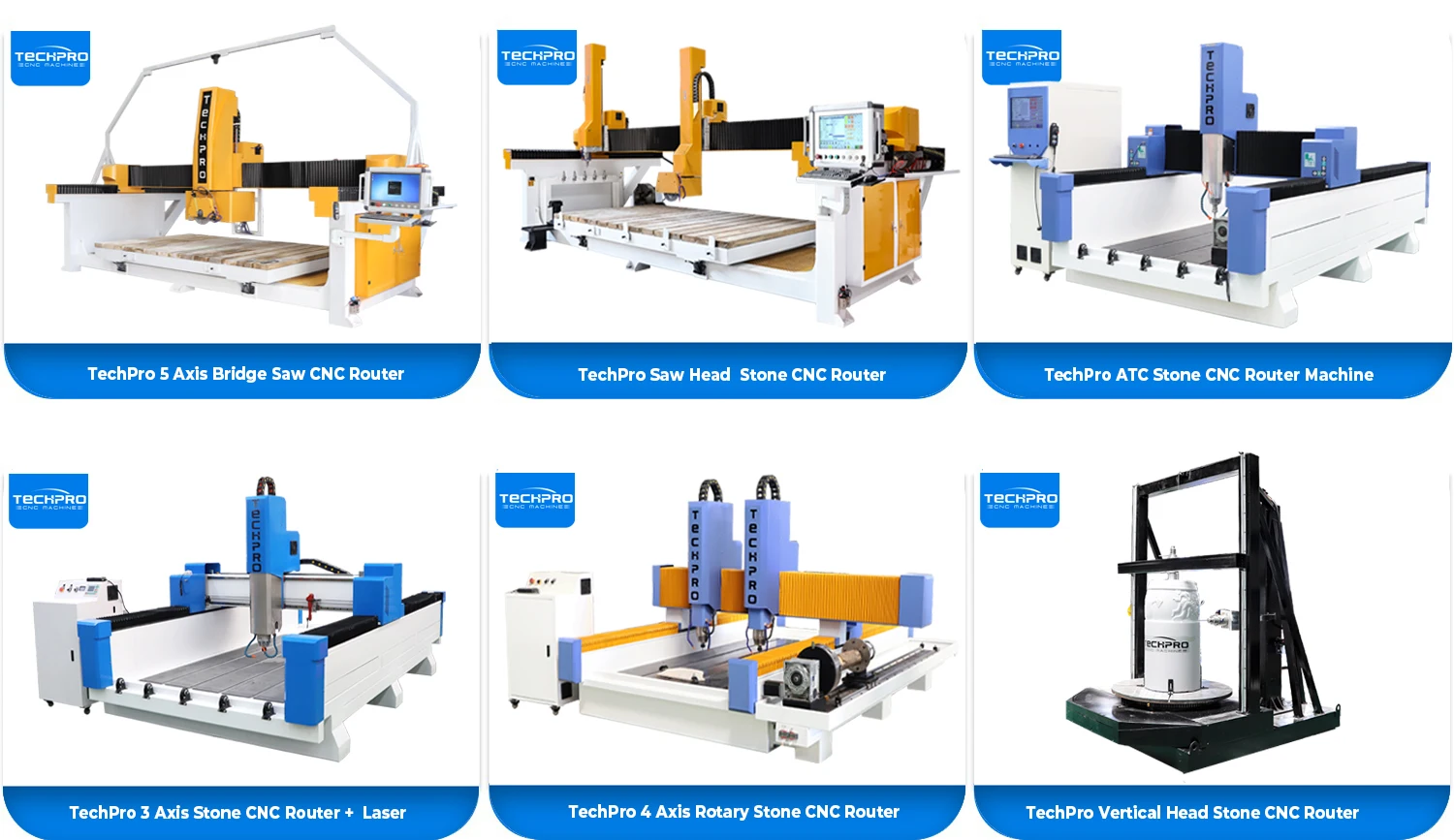

TechPro CNC Solutions
# TechPro CNC Router Machine for Sale
Hobby CNC Router, Wood CNC Router, Stone CNC Router, Metal CNC Router, ATC CNC Router, Nesting CNC Rotuer. CNC Machine Center, CNC Milling Machine, Production Line CNC Machine. PTP CNC Router, Saw CNC Router, Mold CNC Router, Foam CNC Router, ESP CNC Router, Rotary CNC Router, Swing Head CNC Router, 5 Axis Foam CNC Router, 5 Axis Car Mold CNC Router.
Hobby CNC Router, Wood CNC Router, Stone CNC Router, Metal CNC Router, ATC CNC Router, Nesting CNC Rotuer. CNC Machine Center, CNC Milling Machine, Production Line CNC Machine. PTP CNC Router, Saw CNC Router, Mold CNC Router, Foam CNC Router, ESP CNC Router, Rotary CNC Router, Swing Head CNC Router, 5 Axis Foam CNC Router, 5 Axis Car Mold CNC Router.
# TechPro Edge Banding Machine for Sale
5 functions edge banding machine, 6 functions edge banding machine, 7 functions edge banding machine, 8 functions edge banding machine, 45° Bevel edge banding machine, Grooving edge banding machine, Side hole edge banding machine, Curve edge banding machine.
# TechPro Woodworking Machine for Sale
Side holes drilling machine, Slotting drilling machine, Hinge boring machine, Hinge drilling machine, Polishing machine, Wood door brush sander.
5 functions edge banding machine, 6 functions edge banding machine, 7 functions edge banding machine, 8 functions edge banding machine, 45° Bevel edge banding machine, Grooving edge banding machine, Side hole edge banding machine, Curve edge banding machine.
# TechPro Woodworking Machine for Sale
Side holes drilling machine, Slotting drilling machine, Hinge boring machine, Hinge drilling machine, Polishing machine, Wood door brush sander.
# Intelligent Chemical Factory Recommendation：
If you have a large-scale factory, we can provide you with an intelligent factory to reduce labor costs and improve processing efficiency.
If you have a large-scale factory, we can provide you with an intelligent factory to reduce labor costs and improve processing efficiency.
# Economical woodworking production line from TechPro：
Automatic labeling machine + Nesting CNC touter + Up-down drilling machine + Edge banding Machine + Transmission line.
# High-End production line from TechPro :
Nestiong CNC Router + Computer Saw + Six-sided drill machine + Edge banding machine + Transmission line.
Packing and Delivery

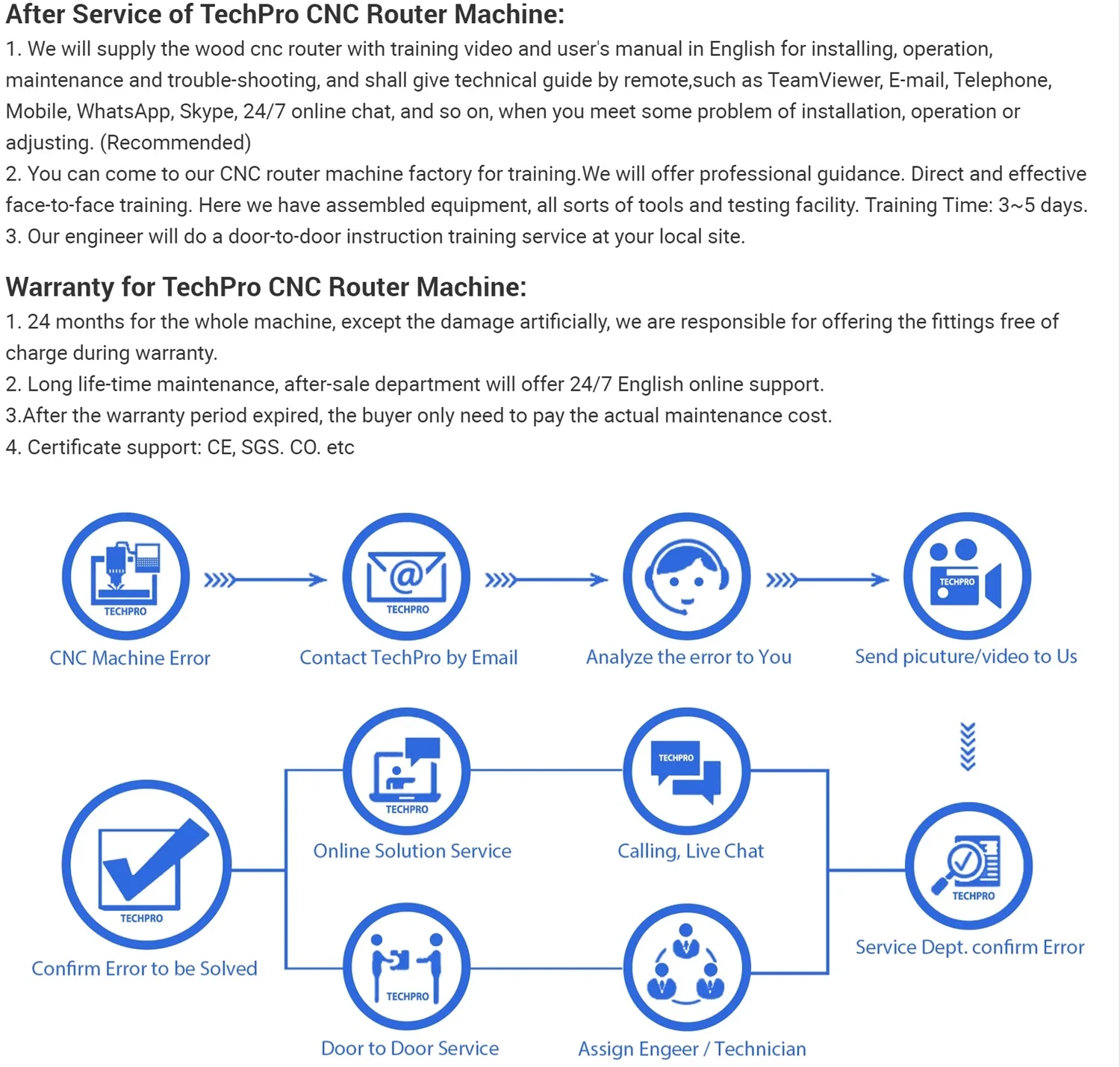

Our Service

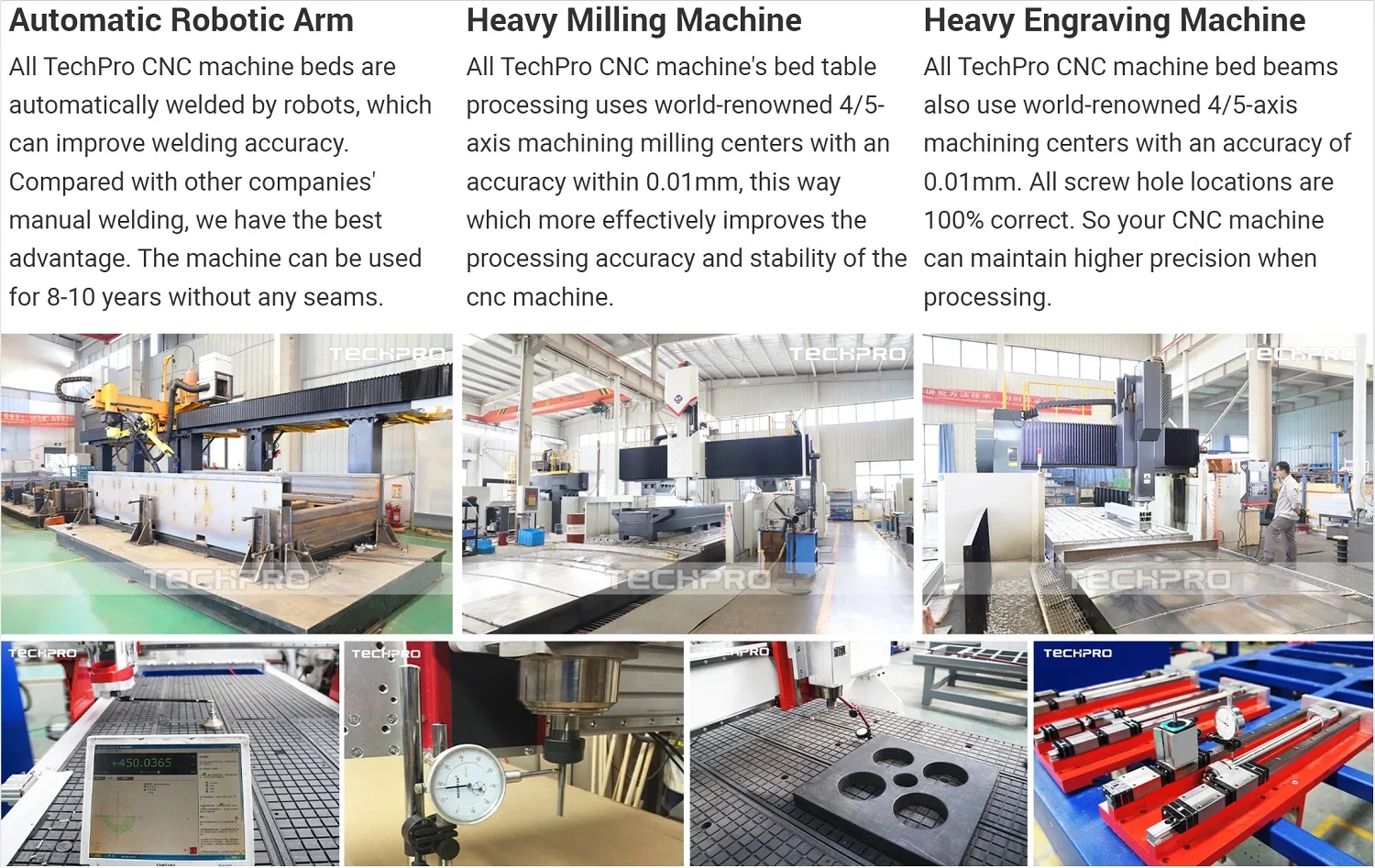

Our Machine Advantage
