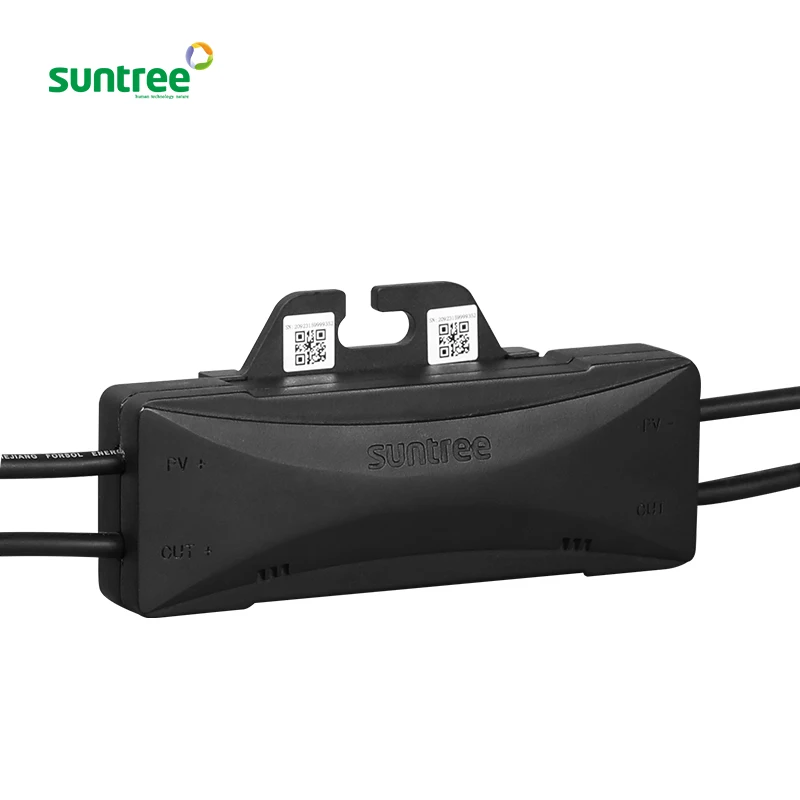

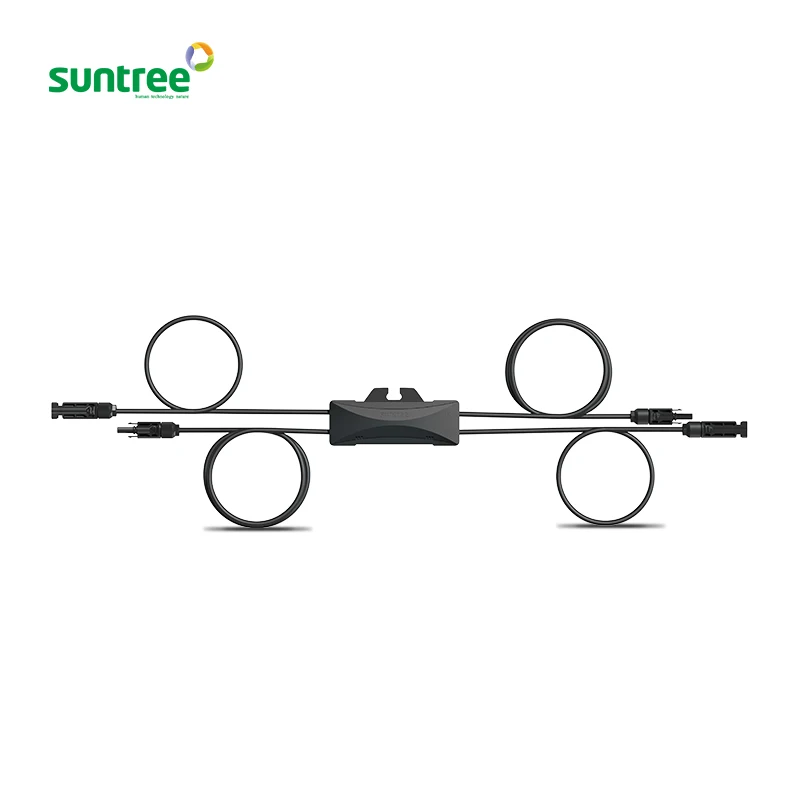

Safety solar Rapid Shutdown device DC Fire Fighters Safety PLC PV Module RSD Controller Safety
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1601110413009):
Product Overview
Description
Product Details
Specification
STANDARD | DATA | ||
Maximum Allowed Input Voltage | 80V | 160V | |
Maximun Output Voltage | 80V | 160V | |
Number of connectable panels | 1/2 | 1/2 | |
Maximum input current | 15A/21A | 15A/21A | |
Maximum short circuit current | 15A/21A | 15A/21A | |
Maximum system voltage | 1000V(1500 optional) | 1000V(1500 optional) | |
Operating temperature | Negative 30-80°C (automatically shut down if over 85°c) | Negative 30-80°c (automatically shut down if over 85°c) | |
perating environment temperature | Negative 30°C~+55°C | Negative 30°C~+55°c | |
Supply voltage | PV panels | PV panels | |
Protection level | IP68 | IP68 | |
Fire-proof level | UL94-V0 | UL94-V0 | |
Humidity | 0%~90% at 20°c | 0%~90% at 20°c | |

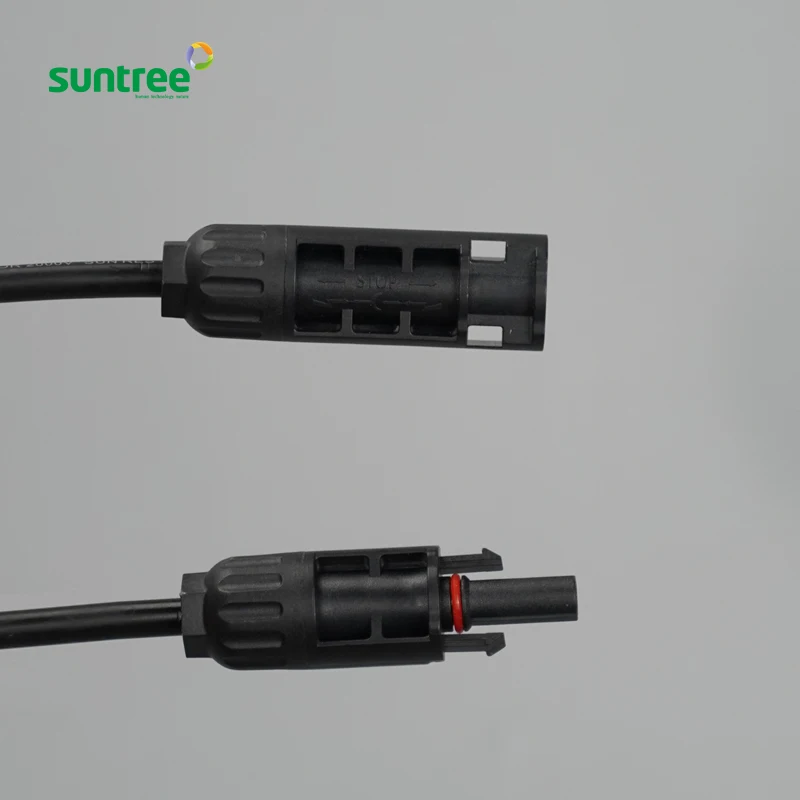

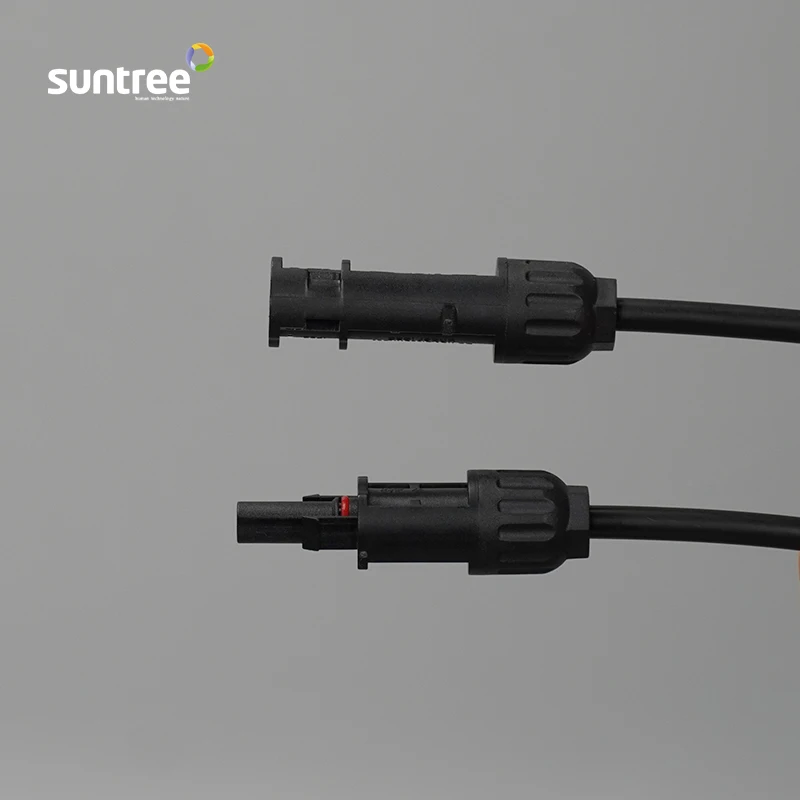

lnterface | MC4 | MC4 | |
Warranty | 10 Years | 10 Years | |
Panel cable length | 280+10mm | 280+10mm | |
String cable length | 1280+10mm | 1280+10mm | |
Communication | PLC | PLC | |
Standards compliant | UL 1741/NEC 2017 690.12 | UL 1741/NEC 2017 690.12 | |
Company Information
FAQ
Q:Do you accept customized design ?
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
