2024 Cheap handling premium wholesale worldwide customizable loading and unloading cement 3 axle dump semi trailer
- Category: >>>
- Supplier: Henan Lishixin Logistics Equipment Co. Ltd.
Share on (1601110747710):
Product Overview
Description
Product Description
Lishixin is the largest vehicle factory in China. So far, we have exported more than 6,000 vehicles of various types, including dump trucks, mixers, tractors, semi-trailers, tank semi-trailers, tank containers, etc., which have been recognized and supported by customers all over the world. So many old customers choose to work with us again and buy our cars. We can customize according to the actual needs of customers. Welcome new and old customers to sample customized procurement.
Specification
Vehicle specification | Stringer specification | |||||
Vehicle outline | height | 500MM Q345B | ||||
length | 8800MM （ingrowth8000MM） | Upper wing | 16MM/140MM | |||
wide | 2500MM（inside width2400MM） | Lower wing | 16MM/140MM | |||
height | 3400MM（Tank height1600MM） | plate | Plate 10MM | |||
The car is fitted with a grid | ||||||
sub-frame | 120/120 5#square tube | traction pin | 90# traction pin | |||
boundary beam | 60/100 5#square tube | outrigger | 28T external legs | |||
sideboard | 6# Q345B | synchronous valve | Weight valve | |||
stand column | bended workpiece | laminated spring | 13# thick 10 pieces of standard spring 6 sets | |||
baseboard | 5#checkered plate | axle | 13T axle 3 | |||
hold-all | 1.5/0.6/0.55 iron gate2#Live tool kit | tyre | Triangle 12R22.5 tire 12 strips | |||
spare wheel carrier | 1个 | steel ring | Matching steel ring 12 | |||
gas holder | 2个Black iron-30litre | suspension | Formal wear Standard 5# | |||
hydro-cylinder | Domestic 196 oil cylinder | brakestaff | T30/30 double air chamber 6 | |||
lamps and lanterns | LED lamps (side light side 3 taillights 2) | source | 24V seven-hole socket | |||
Color: To be determined | ||||||
curb weight：10T | ||||||
Rated bearing mass：50T | ||||||

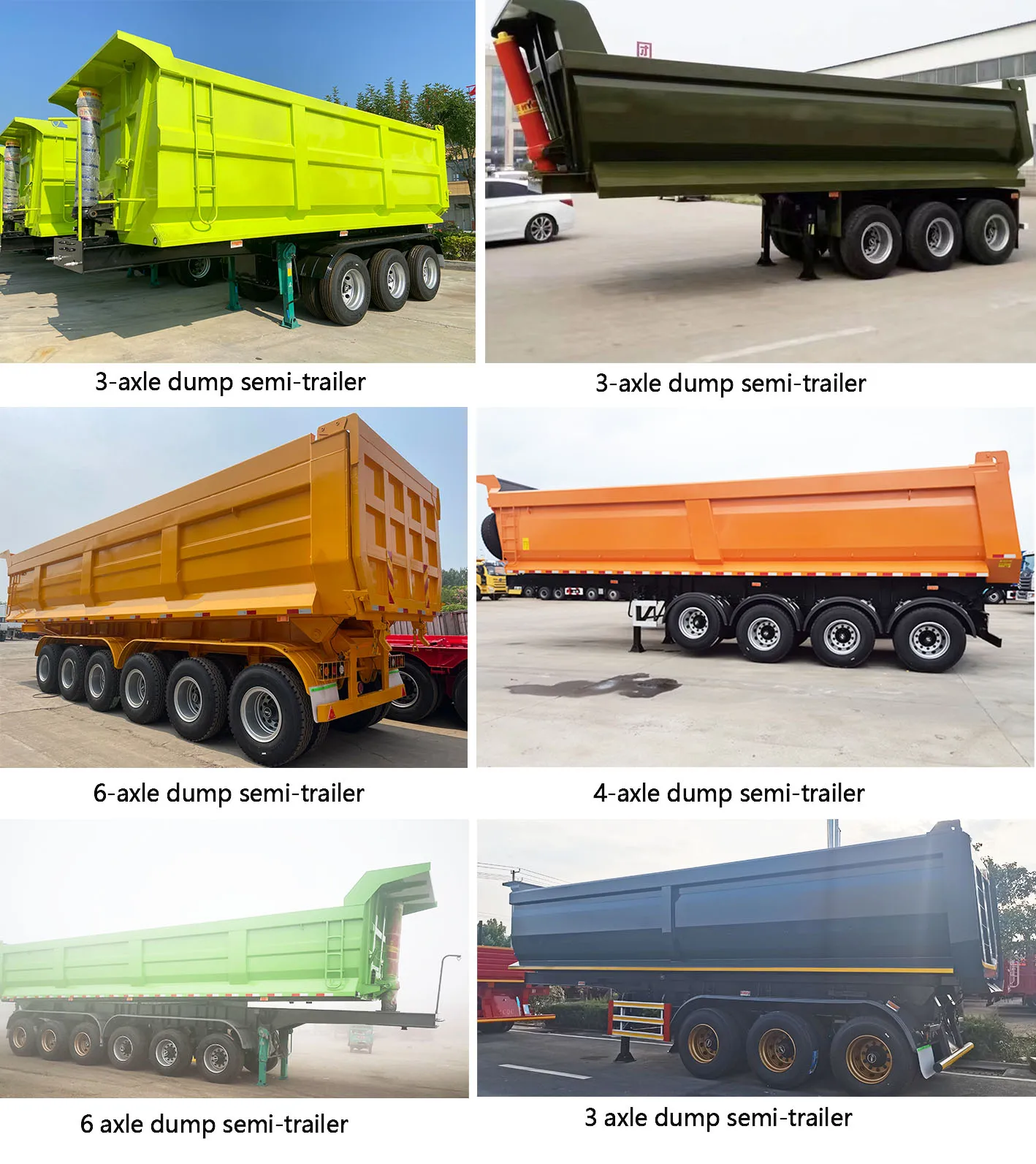

Product show
Henan Lishixin factory, focusing on the sale of transportation equipment, mainly including semi-trailers, stirring trucks, tank semi-trailers, tank containers, special power vehicles, dump trucks and tractors. Lishixin is committed to providing high quality, cost-effective transportation equipment to customers worldwide.

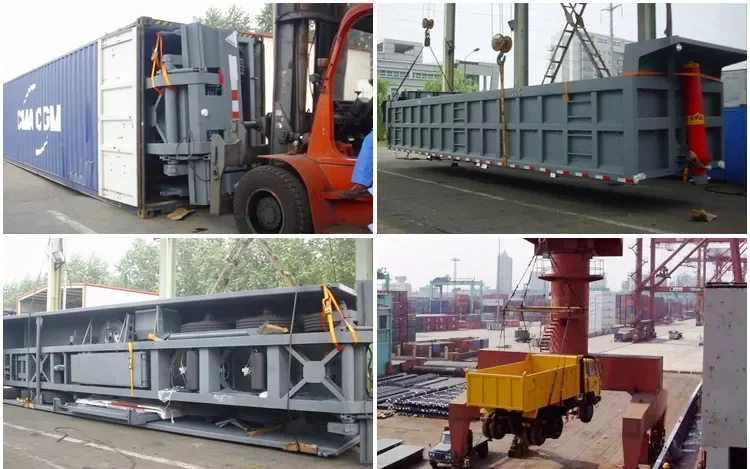

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Visits
Our Certificates
FAQ
1. Does your company have its own factory?
Yes, we have a factory ourselves and we have been engaged in this business in China for several years. Our factory is very famous for producing various trailers in Henan, China
2. How do we guarantee the quality?
2. How do we guarantee the quality?
It is always a pre-production sample before mass production; Always perform a final inspection before shipment;
3. What can you buy from us?
Flatbed container trailers, cargo trailers, dump trucks, tank trailers, spare parts
4. What services can we provide?
Accepted delivery terms: FOB, CIF, EXW;Accepted payment currencies: U.S. dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc;Language: English, Chinese
5. Can you meet my special requirements?
5. Can you meet my special requirements?
really! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
