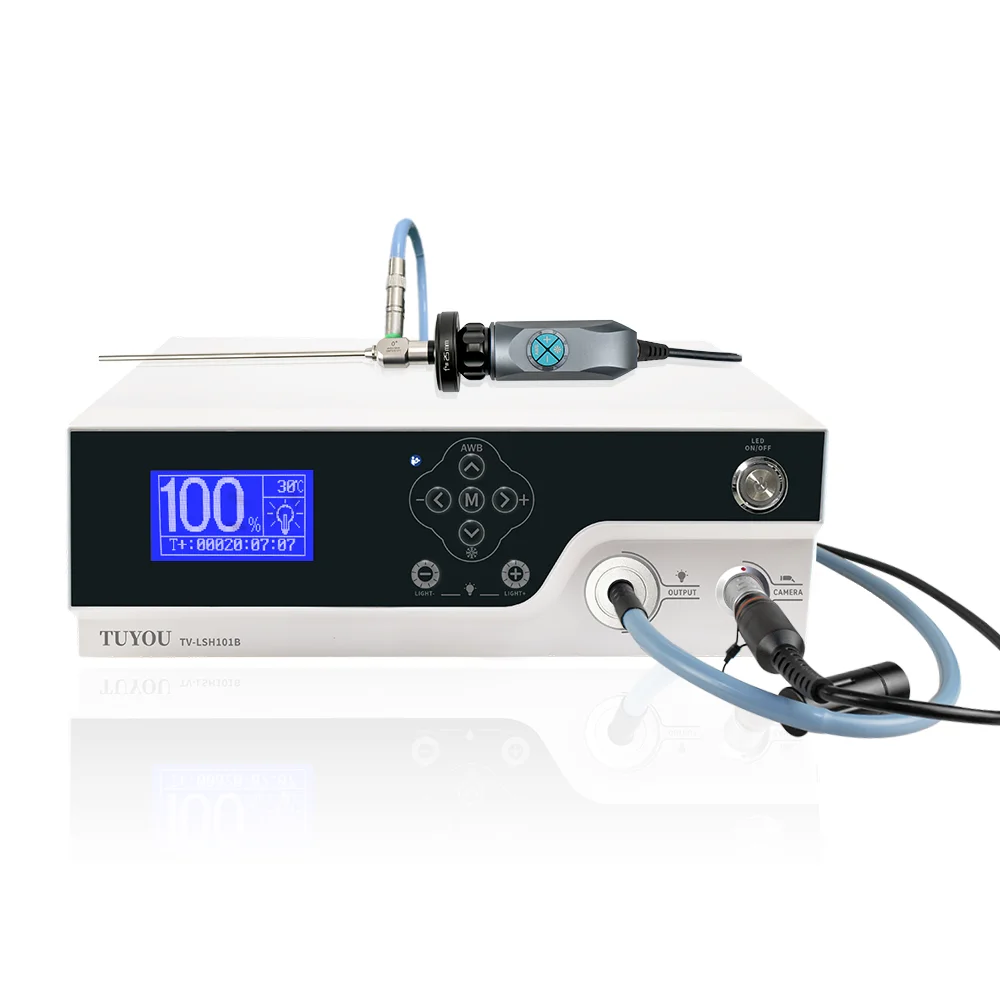

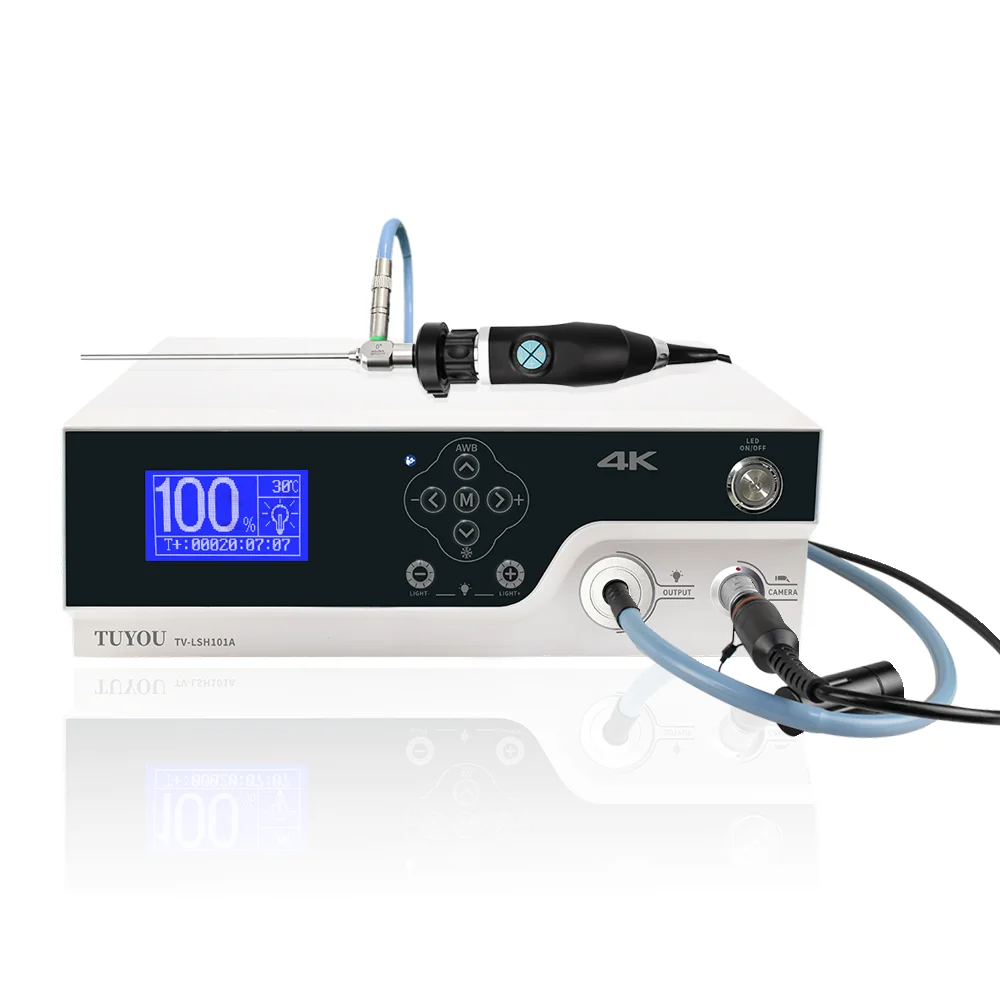

Tuyou Medical Laparoscopic 4K Camera Endoscope Camera Integrated System 120W Light Source
- Category: >>>
- Supplier: SHENZHEN TUYOU MEDICAL IMAGING CO. LTD.SHENZHEN LTD.
Share on (1601110843470):
Product Overview
Description
Product Parameters
Product Item No. | TV-LSH101A (4K Carema) |
All in One Endoscope Camera System Parameters | ||
Input Interface | SDI 4K 60FPS | |
Output Interface | HDMI/SDI | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
Handle Camera | Sony CMOS | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | 0℃~40℃ | |
Product Size | L336*W337*H121mm | |
Net Weight | 5.8KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 3864(H) × 2192(V)Approx. 8.46M Pixels | |
Resolution | SDI 4K 60fps | |
FREEZE | Support | |
AWB | Support | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 1-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~70℃ | |
Power(Max.) Supply | DC12V ±10% <3W | |
Working Current | 250mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Effective Optical Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 4500-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8 | |
Product Description
Product Composition Introduction:

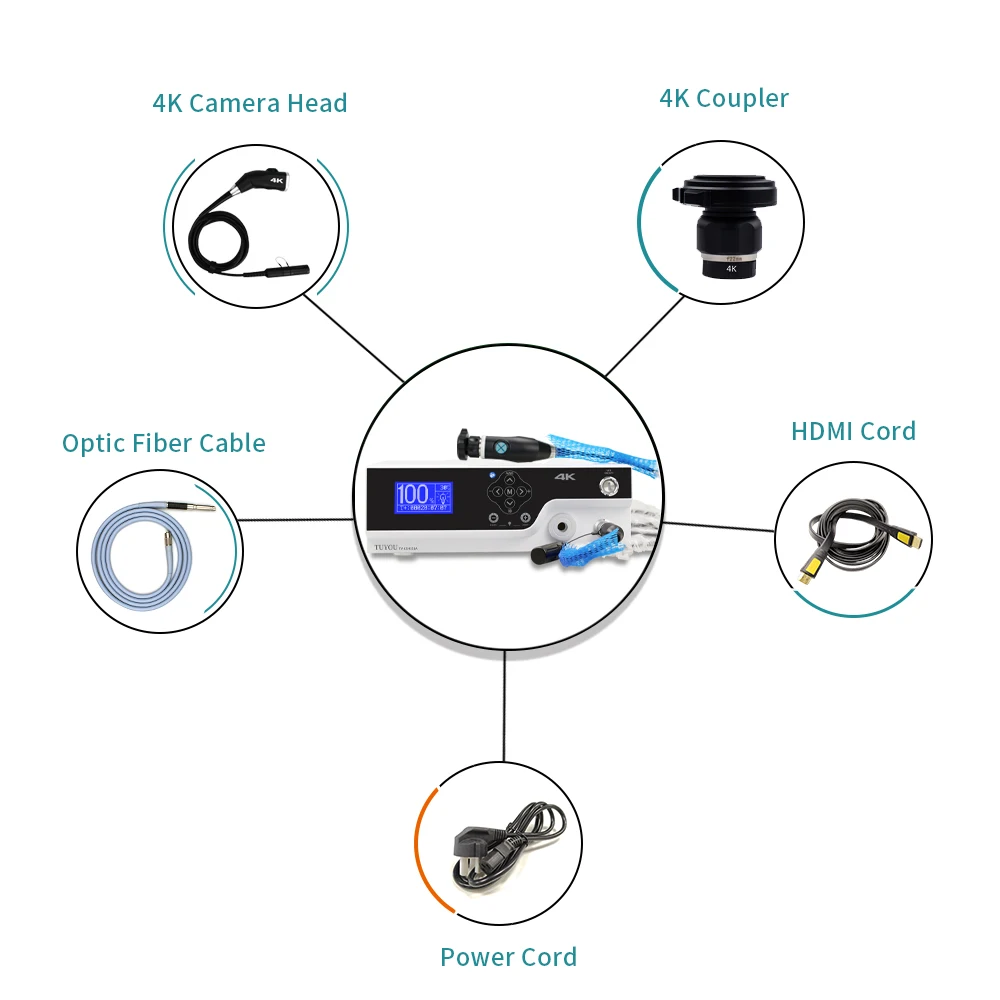

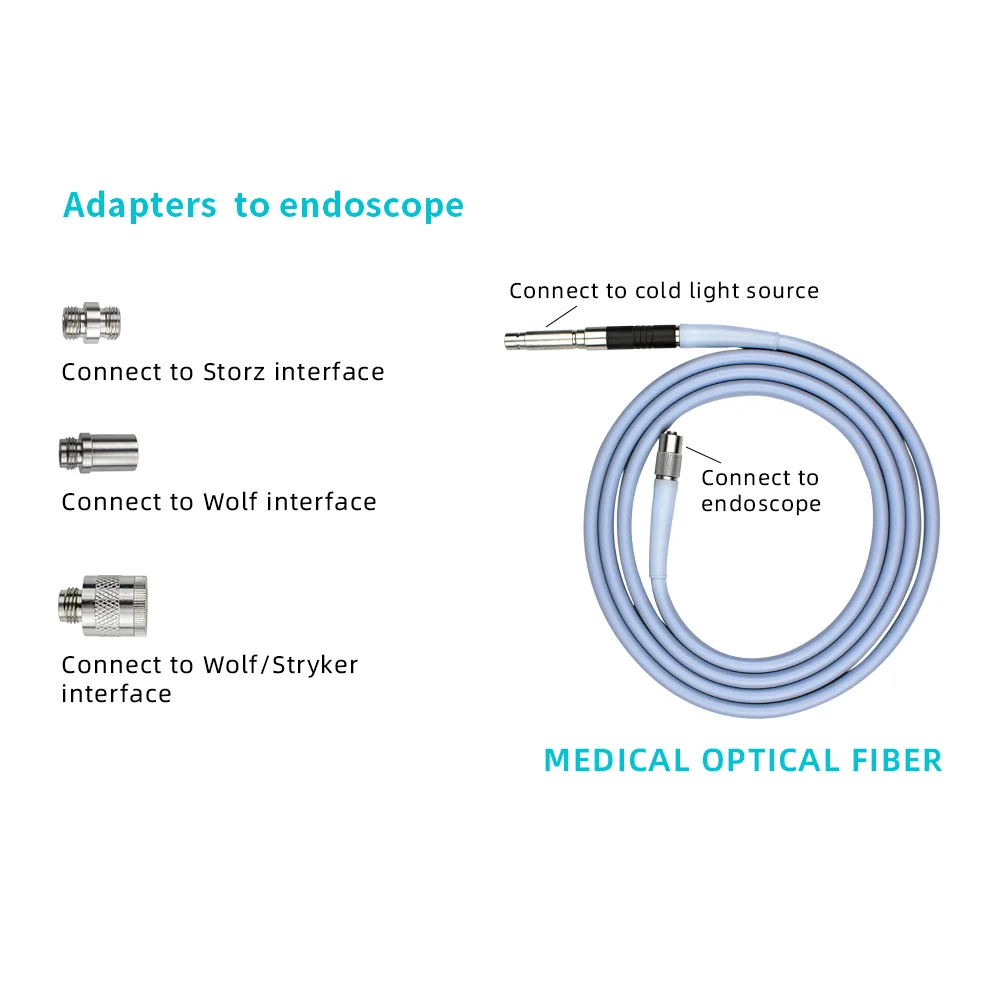

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically
memorizes the brightness before shutdown after the startup
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically
memorizes the brightness before shutdown after the startup
Notes: In different lens models, optical lenses should be matched. Some shots match as below:
SIZE | Laparoscopic | Synscope | Laryngoscope | Hysteroscope | Arthroscopye |
1/2" | 35mm | 28mm | 28mm | 28mm | 28mm |
1/3"(native) | 28mm | 22mm | 22mm | 22mm | 22mm |
1/4" | 22mm | 18mm | 18mm | 18mm | 18mm |
