Custom Modern Design Biological laboratory storage cabinet Laboratory Furniture

Share on (1601111505206):


Price:$99.00 - $150.00

Quantity:


Product Overview

Description



Hot Sale Product






ProductCertificate

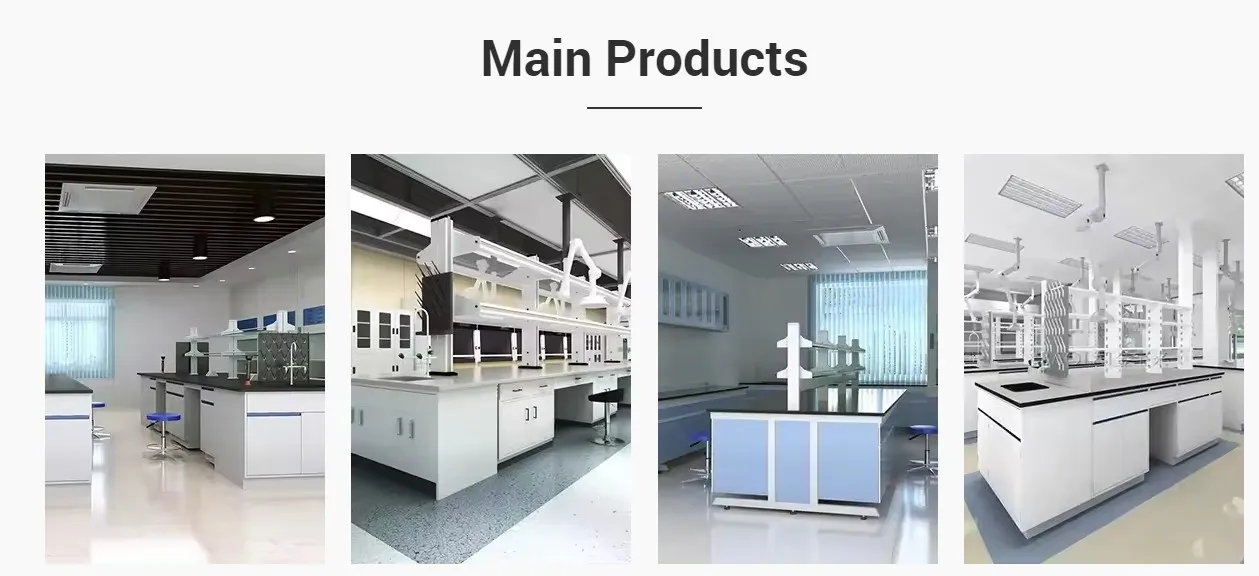

Main Products




Products Description


Technical parameters
Brand
OEM or Whithout Logo
Material
PP/ SS304
Size
Lmm (length) * 750mm (width) * 850mm (height)  /custom
Color
Blue,grey,white and customized
Structure
All steel, wood, stainless steel, PP
Modes of packing
Packed in carton
About it
*All steel structure, box body and drawer are made of 1.0mm thick cold-rolled steel plate, stamped and bent by die Table surface
adopts laboratory special solid core physical and chemical board, thickness 12.7mm, edge double-layer thickened lock edge 25.4mm.

*Design concept: the pursuit of perfection in craft modeling, the pursuit of safety, practicality and humanization in function,
and the perfect combination of art and laboratory.

*Laboratory furniture cabinets, drawers and doors: Material: 1.0mm thick cold-rolled steel plate>, shearing, bending, welding,
stamping, grinding a series of exquisite processes, the surface by degreasing, pickling, phosphating for anti-rust treatment, the
surface by pickling phosphating, epoxy resin net electric powder spraying.

*Powder coating for traditional paint coatings, the advantages of non-toxic, pollution-free, no waste, and water-based coatings
are called environmentally friendly coatings.

*The drawer panel adopts both internal and external double-layer structure, filled with forming sound insulation material, the
drawer is 1.0mm thick cold-rolled steel plate bending integrated forming, the bracket bearing capacity is strong, the sealing
plate is bent and connected to the outer drawer panel by drilled tail screws, the appearance is integrated, and the overall beauty
is generous.*Static load-bearing > 250kg
Customized size, Color, mterial and thickness are available.


Details Images




Details Images


Product detail

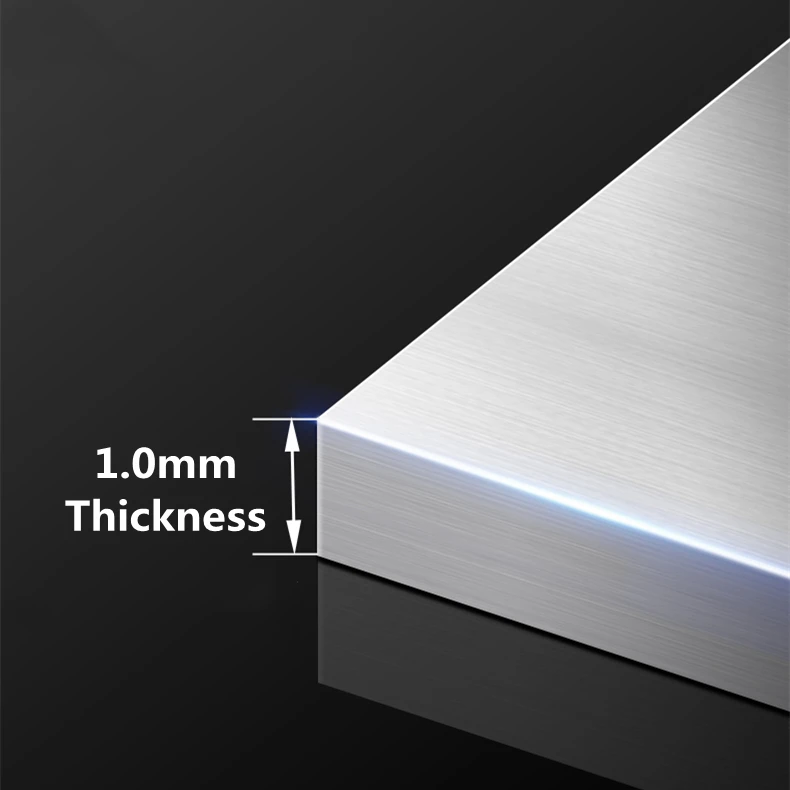

Cabinet Material
1.0mm full-thickness high-quality coldroll steel sheet is used as a whole; the thickness of up to 1.15mm-1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.

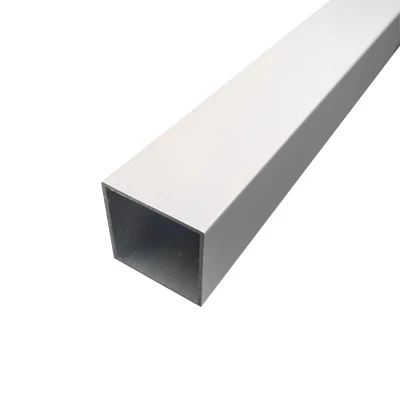

Connecting Rod
The whole adopts 40+60+1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth.

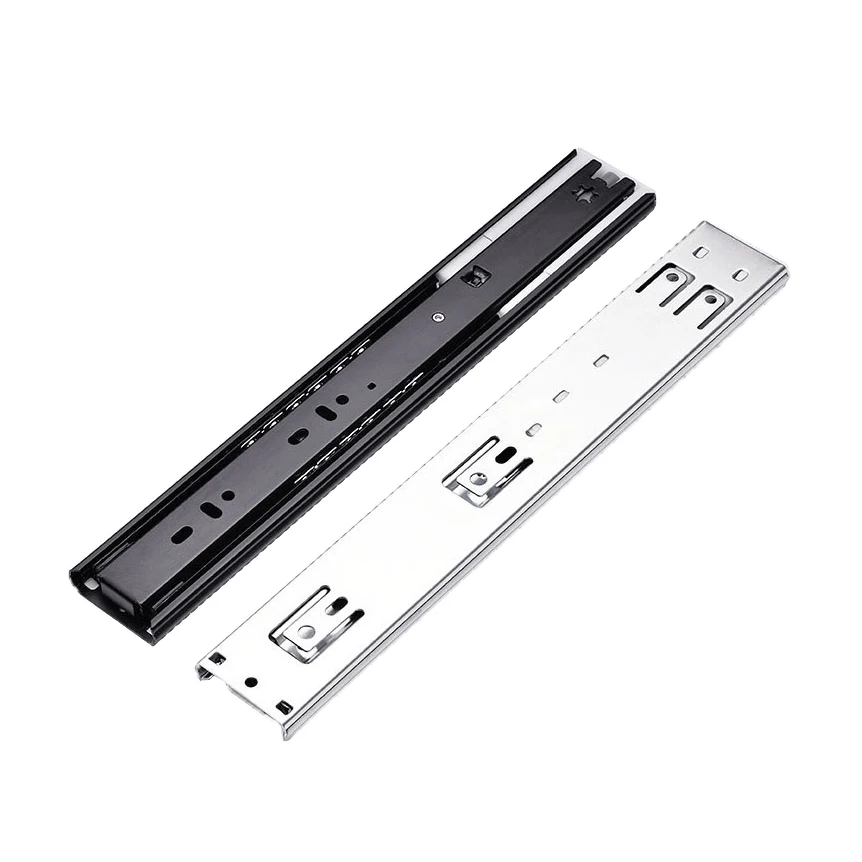

Rail

DTC 16-inch three-section silent rail.


Hinge
DTC 105°/175° buffer hinge/stainlesssteelhinge.

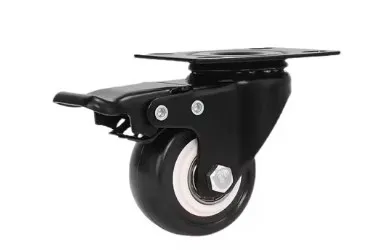

Wheel for cabinet
High-quality PU mute universal wheel with brake, heavy load, high mechanical strength, shock absorption, wear resistance, no damage to the floor. A single wheel bears 120kg.


Insertion Aluminum Handle

C-shaped SS Handle

Non-welded linear Handle


Bench Countertop


Phenolic Resin (Standard)
12.7mm (Edge banding and Thicken to 25.4mm) /16~30mm thickness
Epoxy Resin (Option)
16/19/20/25mm thickness


Ceramic (Option)
20mm thickness (Special thickness can be customized)
Stainless Steel (Option)
1.2mm thickness, supported byreinforcement rods or MDF
Title goes here.
Marble/granite (Option)
20/25mm thickness


Product Accessories


Water Faucet
Gas Faucet
Lab Sink


Peg Board
Wall Cupboard
Lab Stool

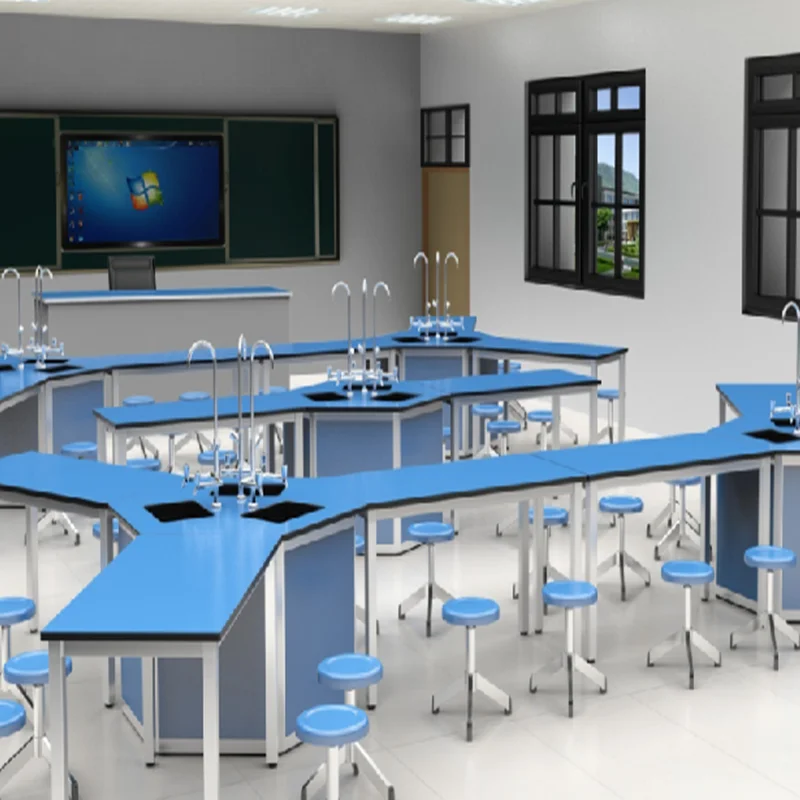

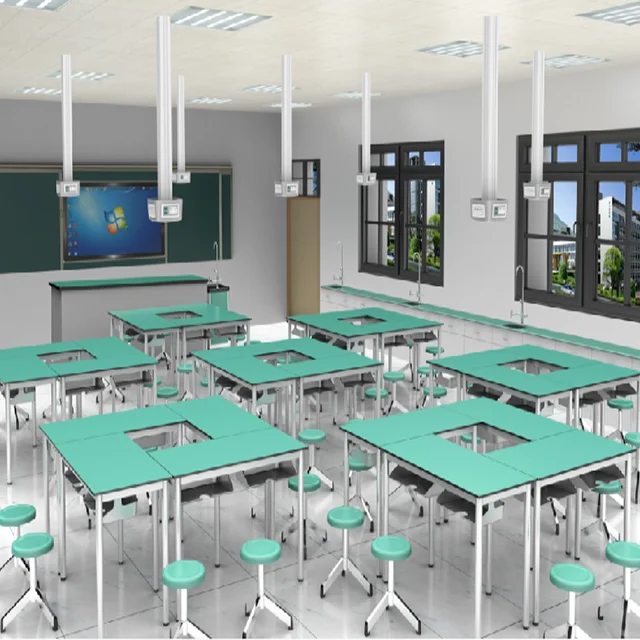

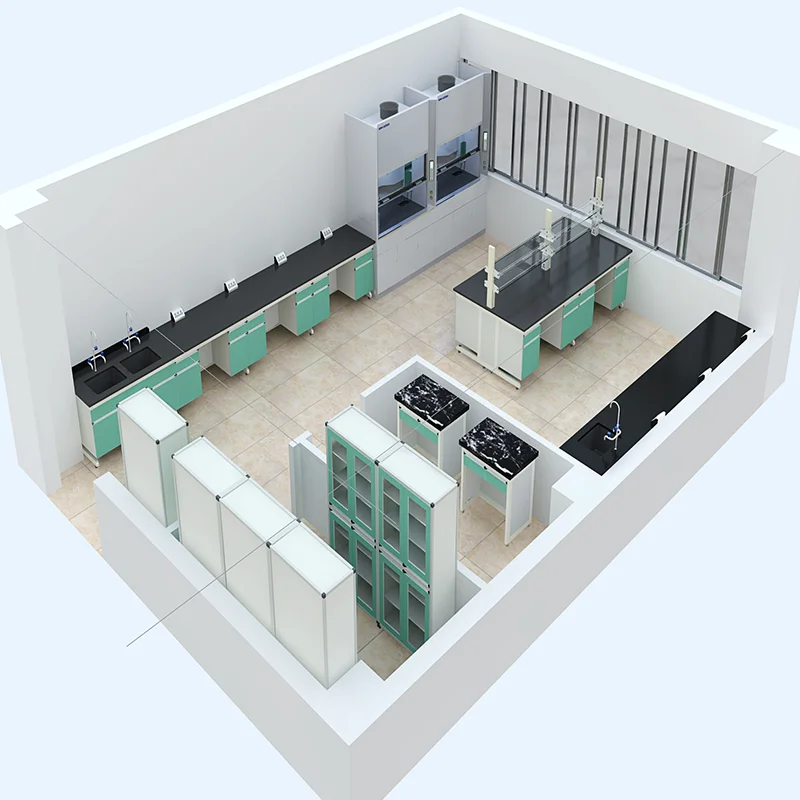

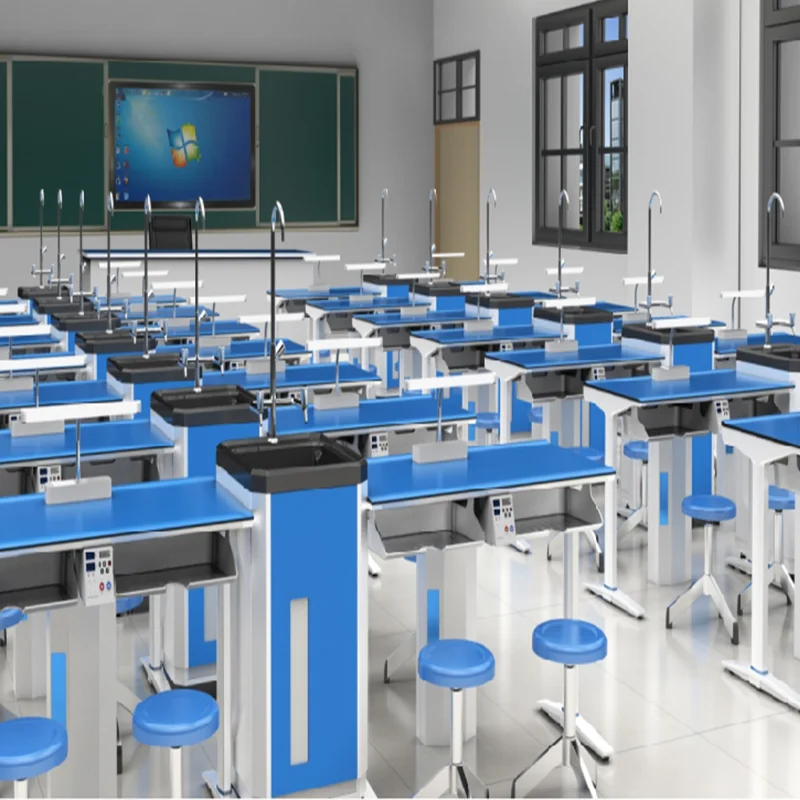

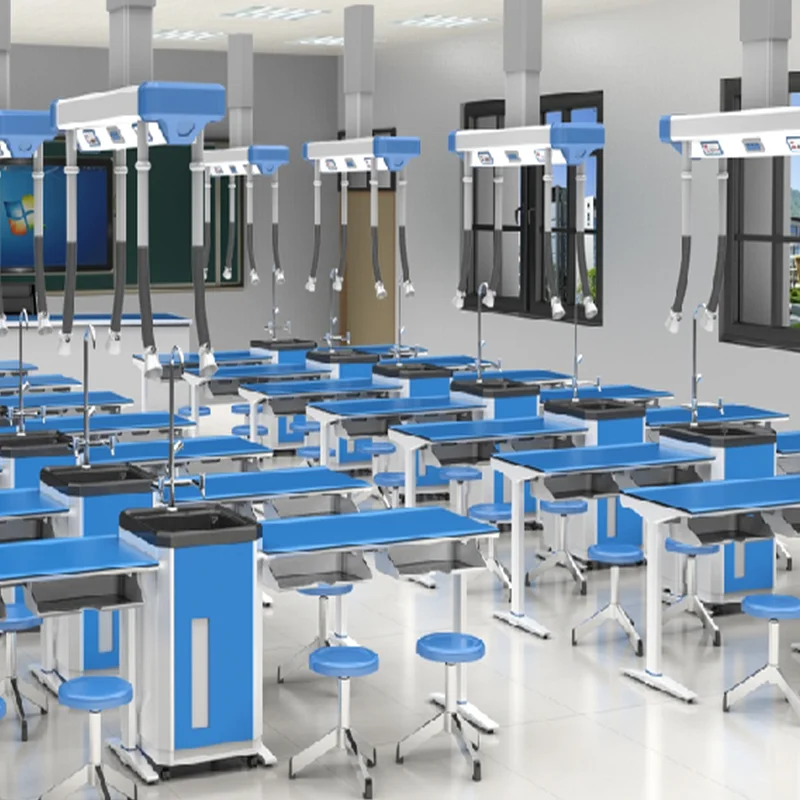

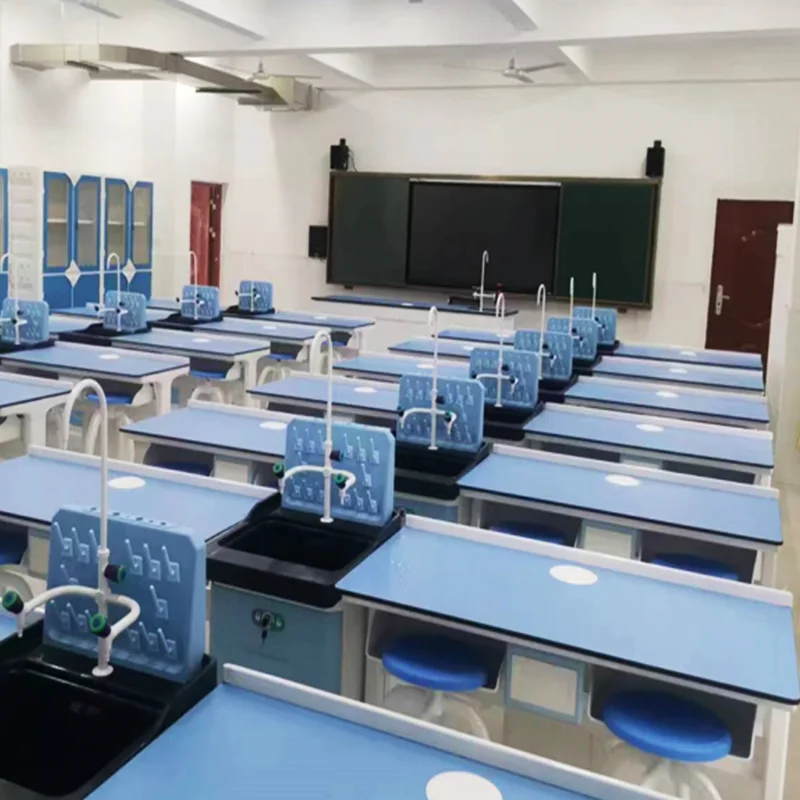

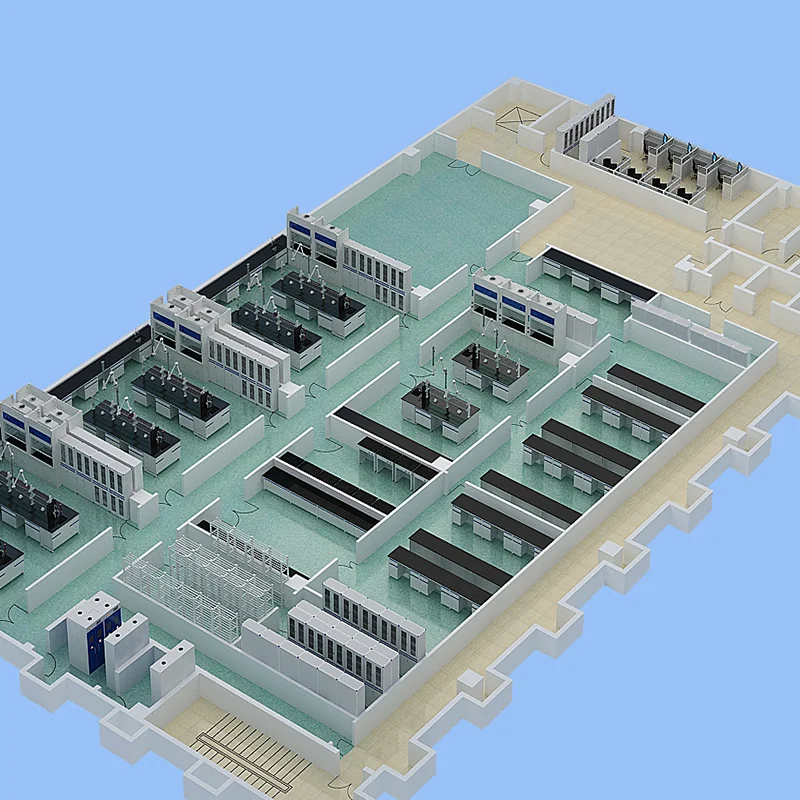

Project Reference




Company Profile


Guangzhou Huide people adhere to the principle of "strict and pragmatic, vigorous and resolute". With the help of modern cutting-edge science and technology, continuous learning and innovation. Strive to build a first-class laboratory! To build a new green laboratory space and work hard! Specializing in the overall laboratory construction planning, laboratory system engineering, medical engineering, office special projects, GMP workshop, clean engineering equipment, etc.




Manufacturing scale

Our company is located in Yongning Industrial Park, Zengcheng District, Guangzhou, covering a total area of tens of thousands of
square meters, in 2015 officially put into use, the industrial park manufacturing workshop, storage, logistics, administrative
office, dormitory and other basic supporting perfect, the production process, technology has the domestic advanced level, can
adapt to the variety, high quality, fast supply service needs.

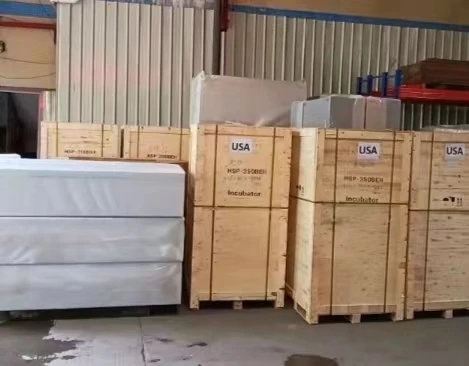

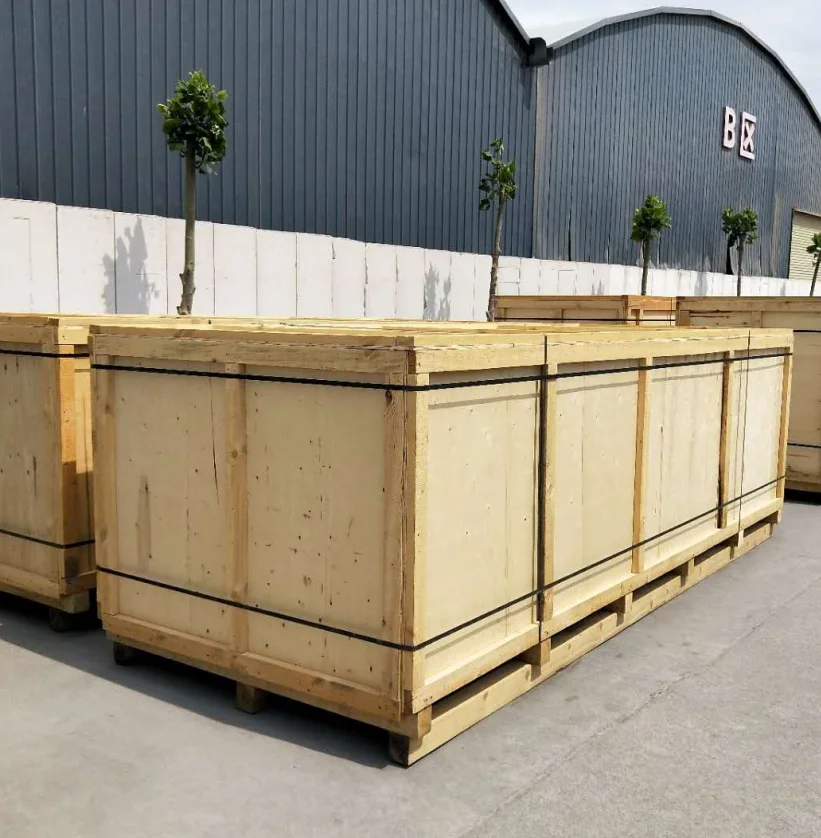

Packaging and delivery




FAQ


Q1: How do I place an order? A: Selected your items, choose the payment method, if you have any special instructions or important
information, about the shipping mark. For example, please inform accordingly and submit your order.

Q2: How can I pay for my order?

A: We accept most forms of payment. such as L/C, T/T, The easiest method is T/T, 40% in advance, the balance before shipment.

Q3:What do I do if my furniture arrives damaged?
A: Naturally we endeavor to deliver all our furniture in good condition. we havespent many hours talking to our suppliers about
packing and shipping our products so they arrive safely.

Q4: How can I contact you?
A: If you have any questions about an existing order including delivery and after-sales, please send us a message. Our phone lines are manned from 8:30 am -18:00 pm.

welcome to contact us !!!
