Modern Design Wood Gripper for Hotel Use for Floor and Carpet Flooring Accessories Type Flooring Trims

Product Overview

Description

Wood gripper



We have various kinds of carpet smooth edge, suitable for all carpet types.

Type: timber plywood

Usage: indoor and outdoor carpet installation

Size:1220mm/1520mm*6.3mm*22mm(7/8inch)/25.4mm(1 inch)/33mm(4/3 inch)/44mm(7/4 inch)

Nails:wood /concrete/dual purpose nails and import nails



Item No.	Length	Thickness	Width
JR-22	1220/1520mm	6.3mm	22mm
JR-25	1220/1520mm	6.3mm	25.4mm
JR-33	1220/1520mm	6.3mm	33mm
JR-44	1220/1520mm	6.3mm	44mm

Struction:

3 birch/2 poplar or 5 poplar

Prevents carpet from sliding and bunching

Pre-nailed and screwed for ease of fitting



Specifications:

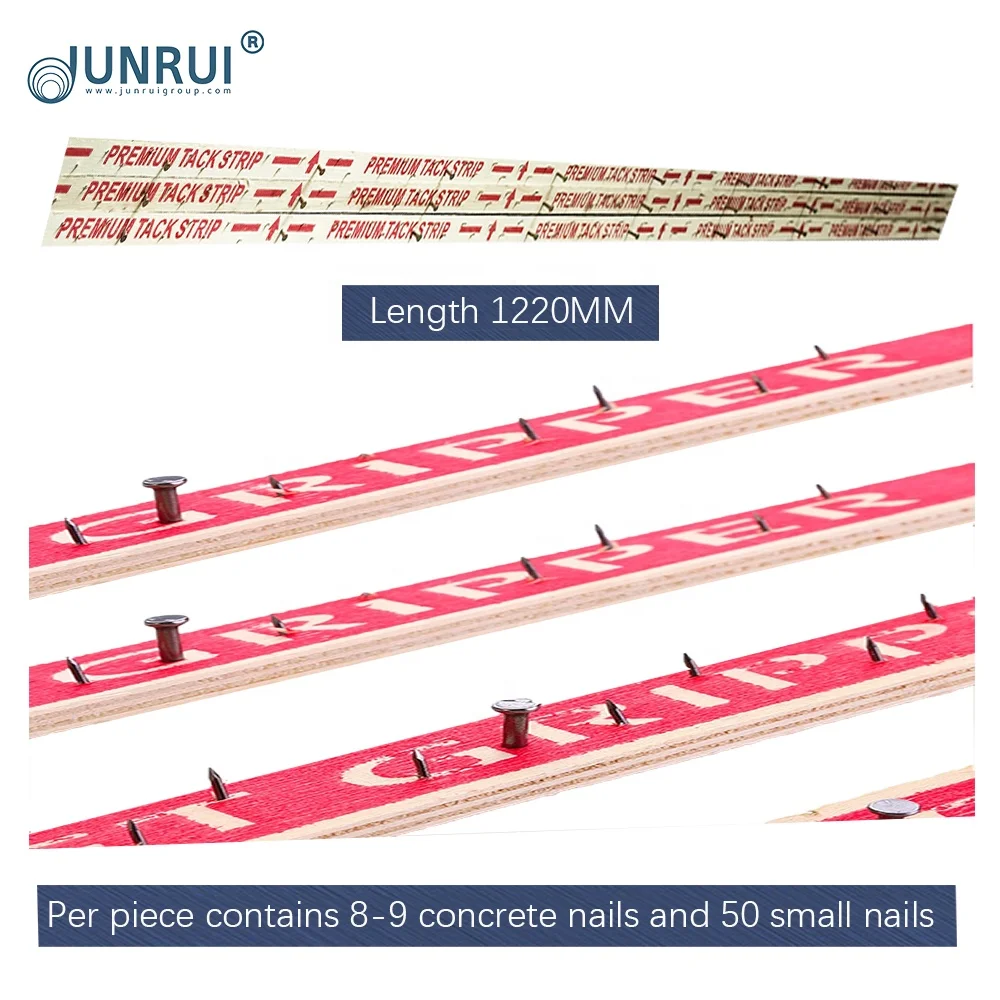

1) one strip include 9 pins and 52 steel nails

2) one strip include 10 pins and 88 steel nails



Different nails suit for different floors:



1) 22mm & 25.4mm nails suit for carpet installation of small area such as private home and company office.

2) 33mm & 44mm nails suit for carpet installation of large area  such as gymnasium and stadium.

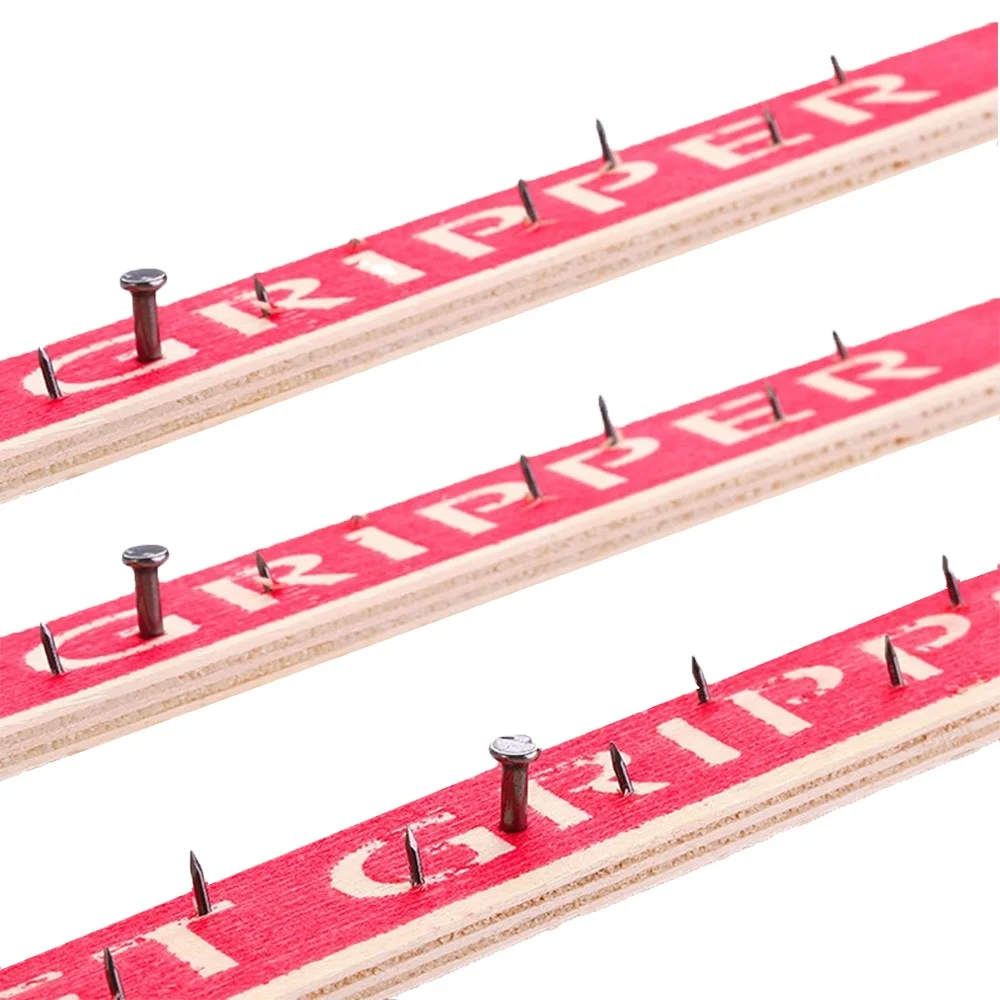

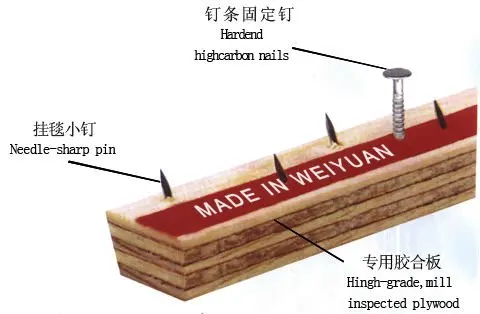

The ideal carpet smoothedge for stretch fit carpet installations, our gripper is made from high grade resin bonded plywood, five ply (6.3mm) thickness, machined on one edge to a defined angle and penetrated from the underside by two rows of passivated pins.



The Pins are set at an angle of 60degree to eliminate pull-out and bending, even when power stretching. The carpet backing is then held in place by the pins to allow for correct tension.



Packing detail:

Quantity/ctn-22mm       100pcs per carton

Quantity/ctn-25.4mm    100pcs per carton

Quantity/ctn-33mm         70pcs per carton

Quantity/ctn-44mm         50pcs per carton

tied by strengthed ropes and packed in hard paper box
