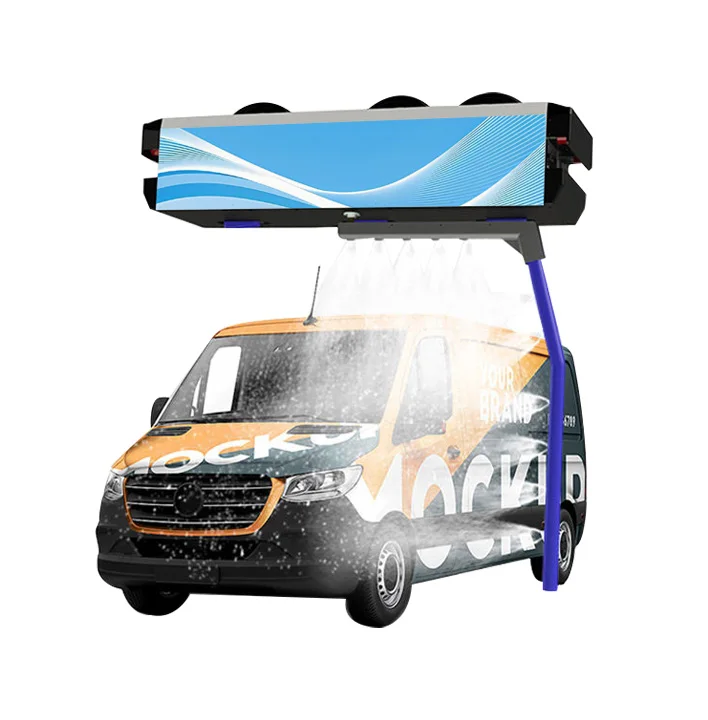

self service system equipment tool set tunnel full dry touchless machine automatic wash car
- Category: >>>
- Supplier: Weifang City Yitongcheng Machinery Technology Co. Ltd.
Share on (1601113343239):
Product Overview
Description
Video Description

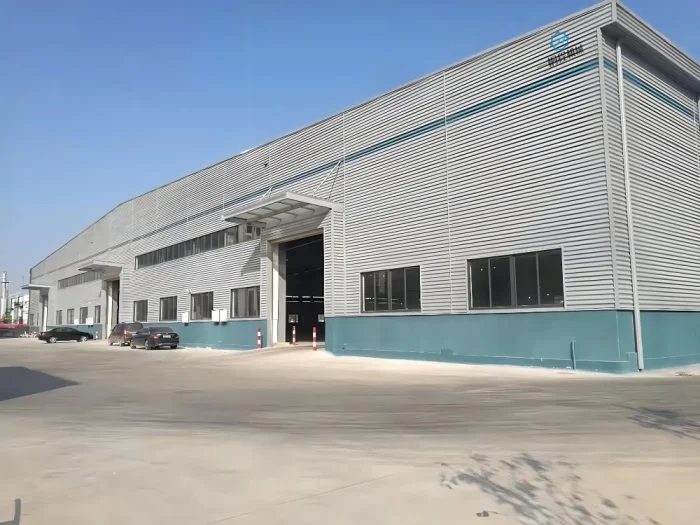

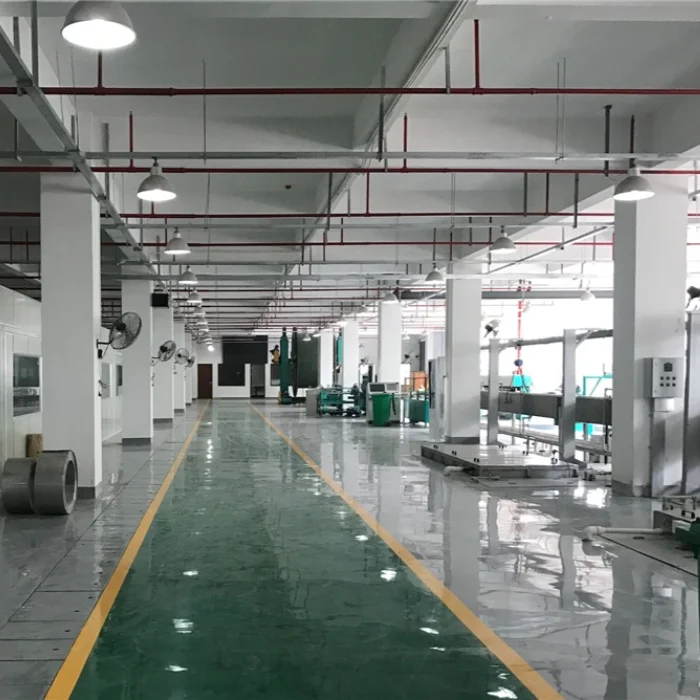

Company Profile
Certifications
Our Advantages
Trouble saving: car washing machine, car care machine, 360 degree cleaning, door gap cleaning, paint care all in one step Time
saving: special wipe free car wash fluid, tricolor car wash fluid, molecular coating fluid, spray car wash fluid
Labor saving: chassis washing, body washing, jet bar 360 running rail, washing steel ring, strong air drying effect

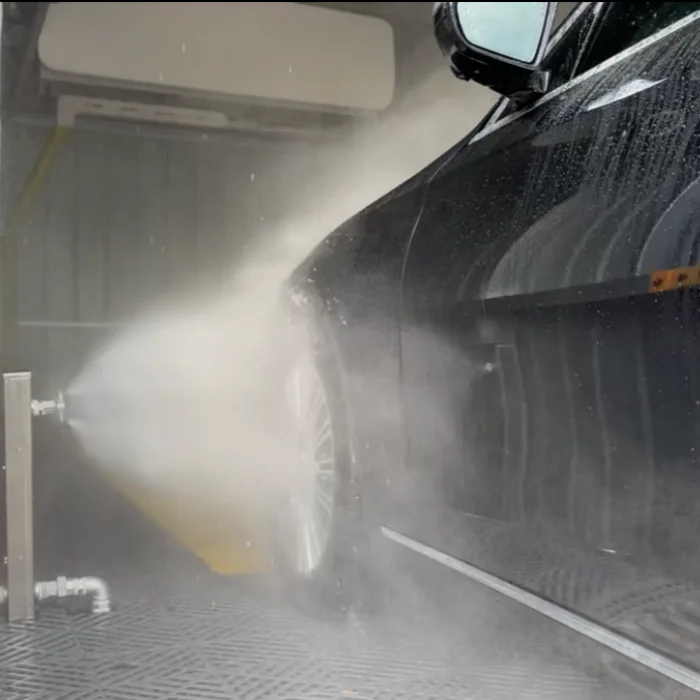

Money saving: the car washing business grows, the cost of workers increases, now machines replace labor, the efficiency increases by 3-5 times, the wash cost is reduced, and the work is simpleWith hub cleaning, high pressure flushing, spray three kinds of car washing foam.This touchless car wash equipment has good quality and favorable price. Cleaning effect is also very good, cleaning a car 3-5 minutes, efficient and fast.
saving: special wipe free car wash fluid, tricolor car wash fluid, molecular coating fluid, spray car wash fluid
Labor saving: chassis washing, body washing, jet bar 360 running rail, washing steel ring, strong air drying effect
Money saving: the car washing business grows, the cost of workers increases, now machines replace labor, the efficiency increases by 3-5 times, the wash cost is reduced, and the work is simpleWith hub cleaning, high pressure flushing, spray three kinds of car washing foam.This touchless car wash equipment has good quality and favorable price. Cleaning effect is also very good, cleaning a car 3-5 minutes, efficient and fast.
Product Paramenters
Basic equipment parameters | |||||||
Project Description | Unit | Basic parameters | Mode configuration | Standard √ Optional O | |||
Car washing machine outer frame installation size requirements | Standard mode | √ | |||||
Frame mounting length | mm | 6700mm~12000mm | Precision mode | √ | |||
Frame mounting width | mm | 3200mm ~4000mm | Chassis flush | √ | |||
Frame mounting height | mm | 2900mm-3300mm | Manual stepping smart distance detection | √ | |||
High pressure pump and dosing pump integrated station power | Rotating smart flush | √ | |||||
High pressure piston pump and motor power | KW | 15KW | Tire washing | √ | |||
Car wash liquid pump | W | 40W | Car wash spray | √ | |||
High foam shampoo pump | W | 40W | High foam shampoo spray | √ | |||
Coated water wax plus liquid pump | W | 40W | Coated water wax spray | √ | |||
Intelligent control system power | Automatic drying | √ | |||||
Pic central processor | W | 80W | LED prompt guidance | √ | |||
Man-machine control panel | W | 80W | Car wash count | √ | |||
Operating system power | Fault self-test | √ | |||||
Longitudinal stepless variable frequency motor, intelligent stepper drive | W | 500W | Antifreeze automatic emptying | √ | |||
Lateral servo motor | W | 750W | Automatic standby | √ | |||
Cantilever drive servo motor | W | 750W | Smart card payment | 0 | |||
Air drying system power | WeChat payment | 0 | |||||

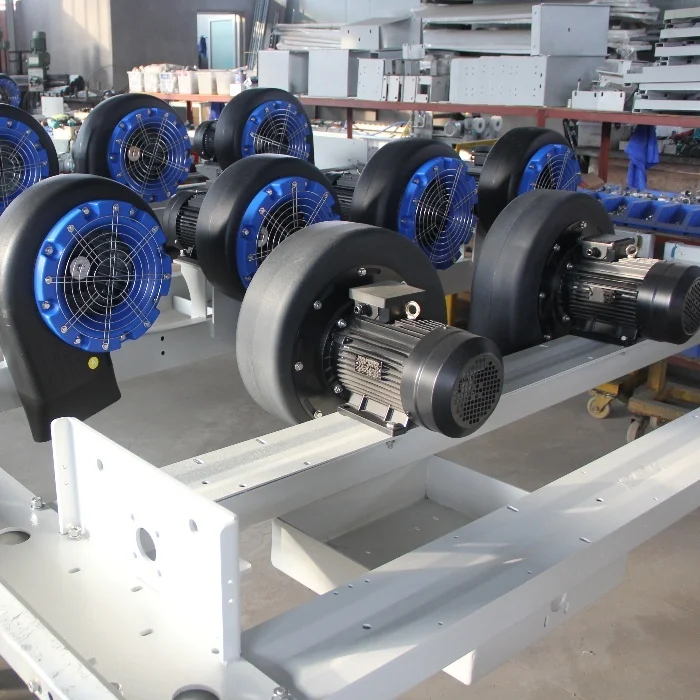

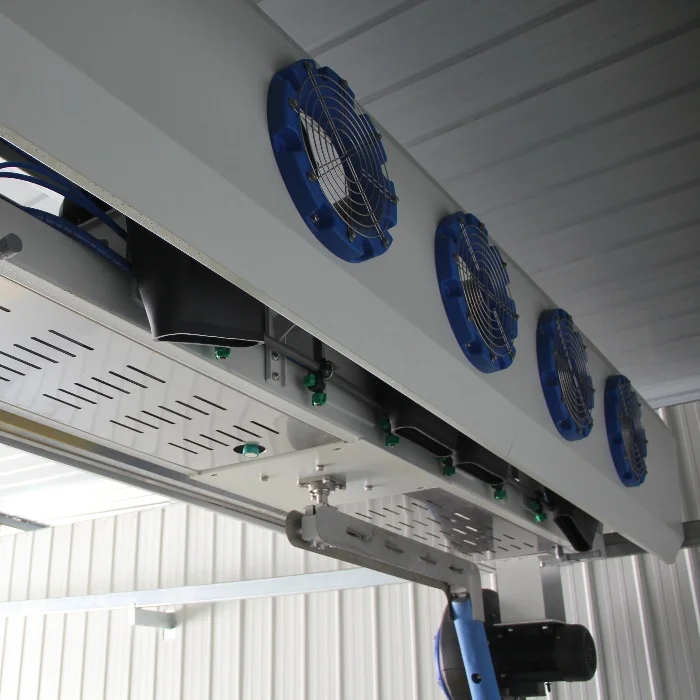

Multi-wing air dryer | KW | 4KW *3 | Outer frame | √ | |||
Average energy consumption breakdown | Remote mode | √ | |||||
Chassis flushing water | L | 28L | |||||
Car washing fluid | ML | 45mL | Air compressor | 0 | |||
High foaming shampoo | ML | 40mL | |||||
Coated water wax | ML | 20mL | |||||
Machine power consumption | Degrees | 0.7kw·h/each time | |||||

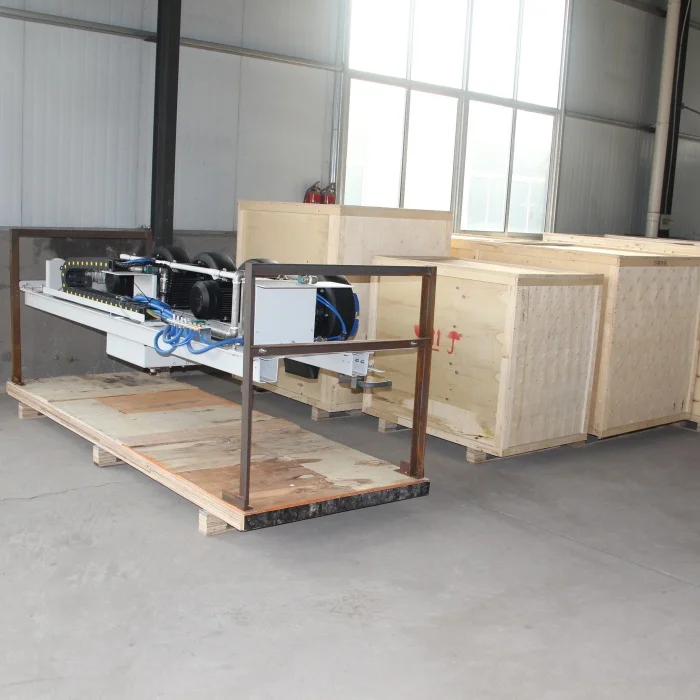

Product packaging
