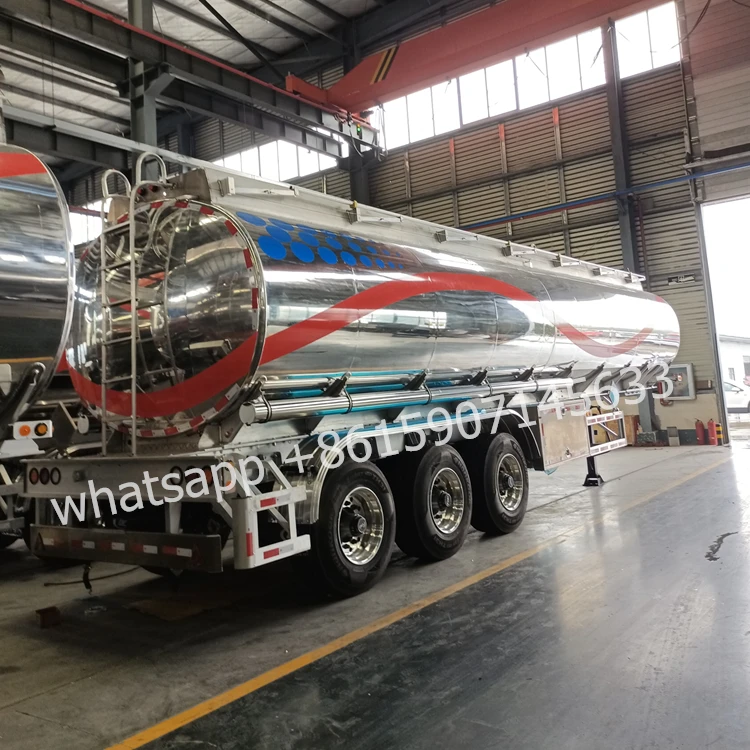

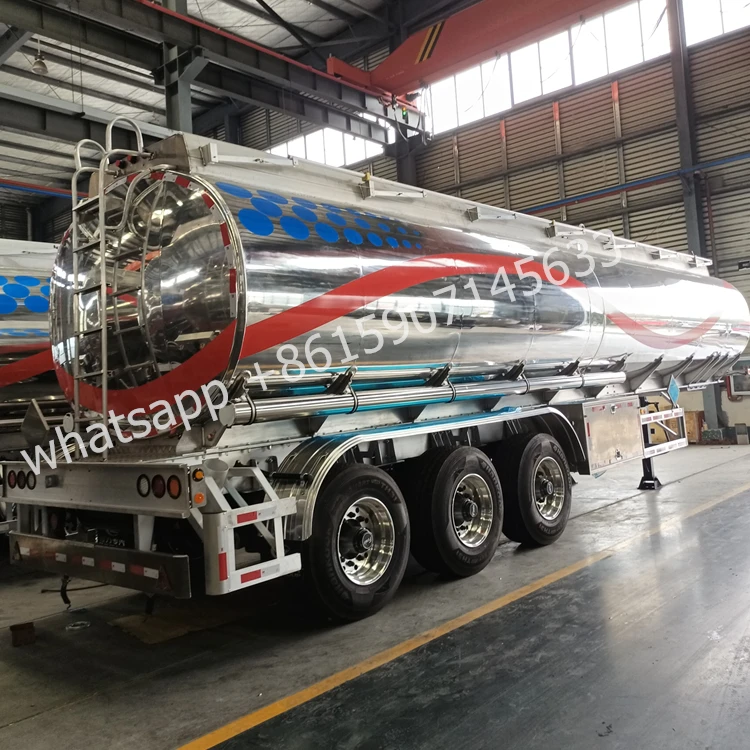

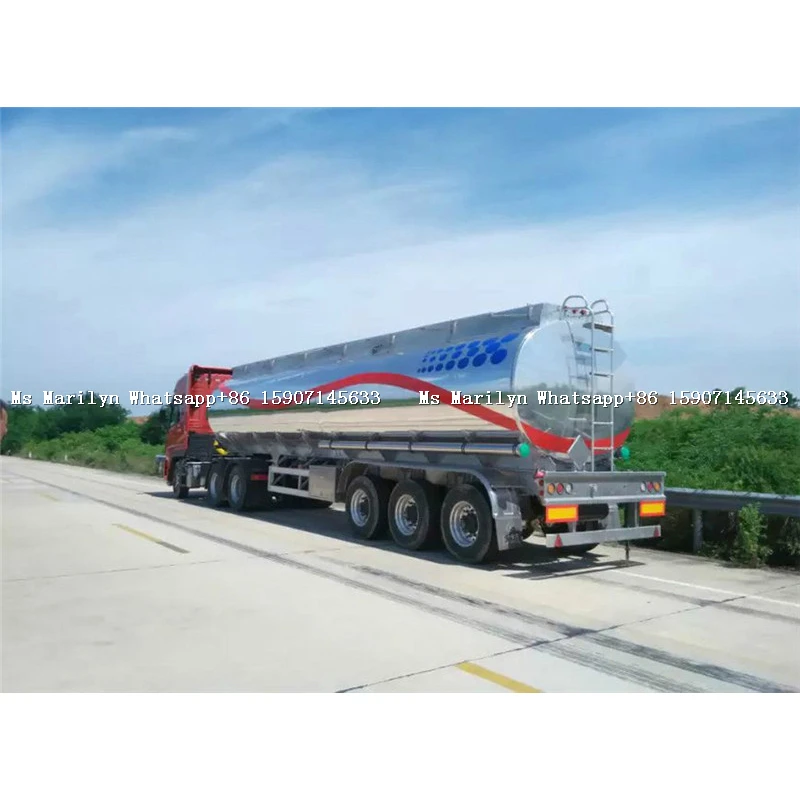

38000l 42000l 43000l Aluminum Tanker Truck Semi Trailer with 3 Axles
- Category: >>>
- Supplier: Hubei Dali Special Automobile Manufacturing Co. Ltd.
Share on (1601114476210):
Product Overview
Description
38000l 42000l 43000l Aluminum Tanker Truck Semi Trailer with 3 Axles
ALUMINUM TANK SPECIFICATIONS:
Aluminum Grade: 5454 Shiny Type
Aluminum Thickness: 5.5- 7.0mm
Design standard: U.N ADR

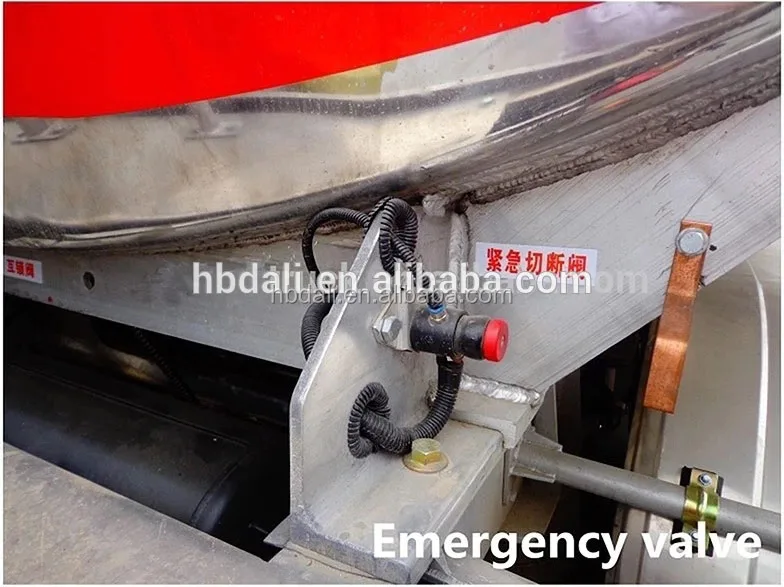

Safety system: Vapor recovery, Overfill protection, & Pneumatic control
Systems,Emergency cut-off switch,anti-static System.
SEMI TRAILER SPECIFICATIONS:
CHASSIS : ALUMINUM
SUSPENSION : AIR
AXEL : 3 AXELS
BRAKE : DOUBLE CIRCUIT AIR BRAKE
ELECTRICAL : 24 VOLTS
RIM : ALUMINUM
TYRE : 385/65 R 22.5
WATER TANK : 200 LTRS
LANDING GEAR : EQUIPPED
KINGPIN : EQUIPPED
REVERSE BUZZER : EQUIPPED
ACCESSORIES:
WALKING PLATFORM : ON TOP WITH 850 WIDTH
LADDER : AT REAR OF THE TANK WITH LOAD OF 200 KGS
DISCHARGE BOX : BALL VALVE AT THE DRAINAGE BOTTOM
TOOL BOX : ONE AT THE LEFT SIDE
SAFETY CONE HOLDER : ONE AT THE LEFT SIDE
FIRE EXTINGUISHER : FOUR PIECES, EACH 9 KGS
Product Description
SASO certificate Aluminum Alloy Fuel Tank Trailer for Saudi ARAMCO SPECIFICATIONS
We have supplIed the Saudi ARAMCO for the Aluminum Alloy Fuel Tanker semi trailer since 2014 year, have got the SGS AND DOT CERTIFICATE , and the Aluminum tanker have pasted the inspection by ARAMCO in 2014 year.
5454H32 mirror shine aluminum alloy tank petrol tanker semitrailer oil fuel tankers SASO DOT ADR light weight aluminum tanker trailer
fuel tank trailer capacity : 3 alxes 36000Littes ,38000litters 42000litters
2 alxes 20000Ltters ,24000Ltters 26000Ltters
certification: SASO SABER ,DOT ,ADR with S G S OR TUV test repoirt
we will help u to get the approve from Saudi ARAMCO and the SASO saber certification
Aluminum alloy oil trailer specification:
| GENERAL INFORMATION | |
| Description | Aluminum alloy tank trailer with 3 axles |
| Design standard | U.N ADR |
| Safety system: | Vapor recovery, Overfill protection, & Pneumatic control |
| Systems, Emergency cut-off switch,anti-static System. | |
| Transportation of | Diesel Fuel oil |
| Type of charge and discharge | Bottom loading |
| Gross weight | 43566kg |
| Tanker capacity | 40000 liters |
| Overall Length | 11900mm |
| Overall Width | 2500mm |
| Overall Height | 3650mm |
| TANK | |
| Material | Aluminum alloy 5454 Shiny Type |
| Body | 5.5mm |
| Dish end (lids/cover) | 6mm |
| Breakwater | 6mm |
| Geometric of the tank | Cylindercal |
| manholes | 1 manhole on the top of the tanker |
| CHASSIS | |
| Frame | Aluminum alloy |

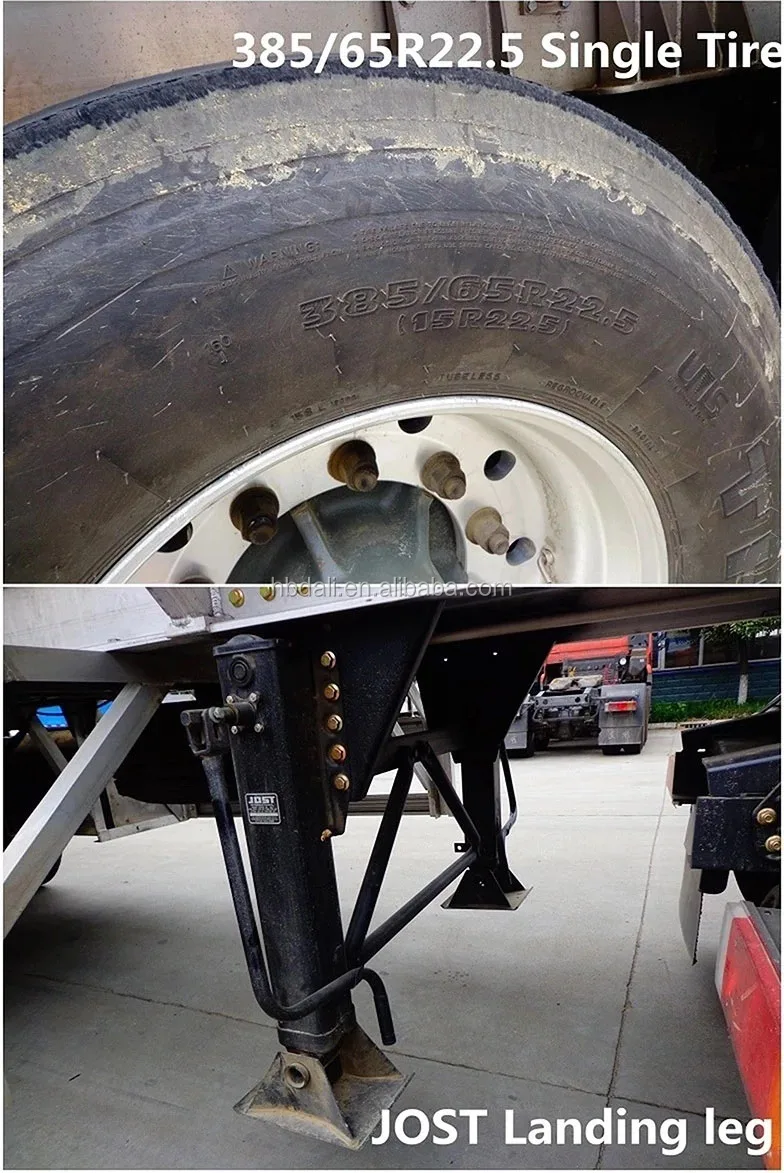

| Landing gear | 1pair JOST A400,28T loading capacity |
| King pin | 1pc 2" JOST brand |
| Axles | 3 axles 13Ton FUWA Brand |

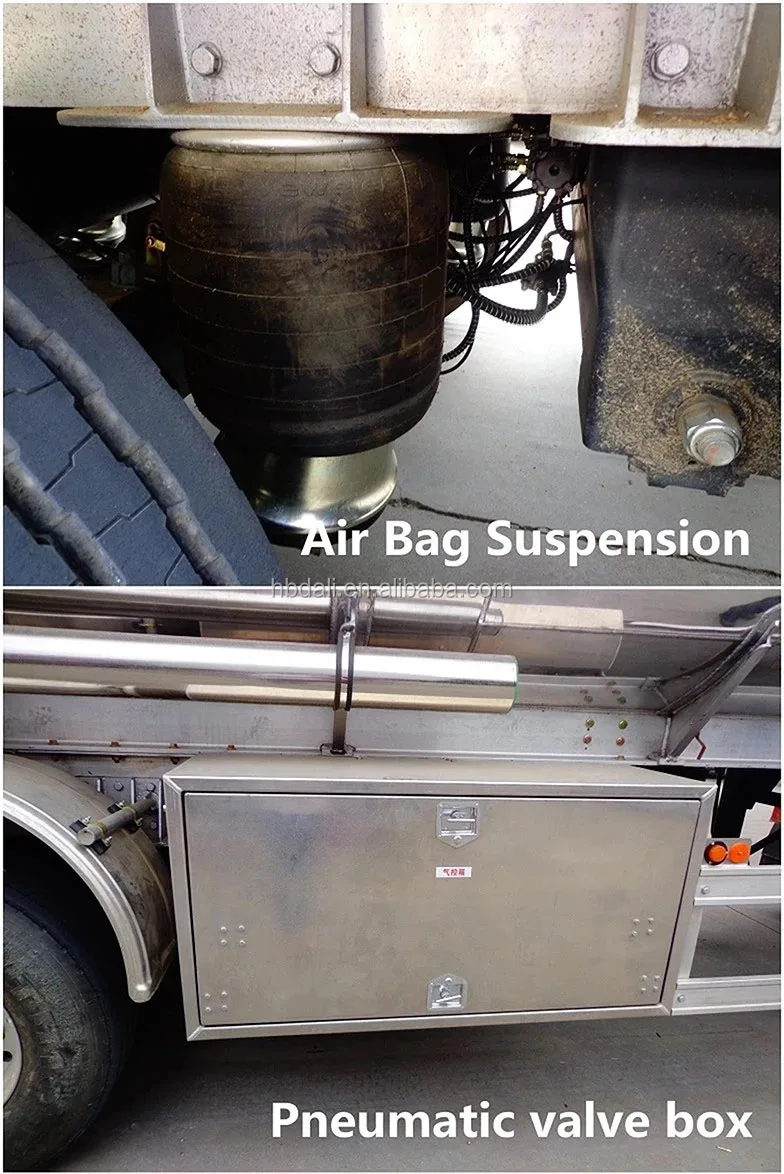

| Suspension | AIR BAG SUSPENSION |
| Brakes | DOUBLE CIRCUIT AIR BRAKE, WABCO ABS 4S/2M,and a Wabco emergency relay valve, KNORR brand chamber 30L(2pc),30/30L (4pcs), and a Chinese air tanker. |
| Wheels | Set of 6 wheels of aluminum 8.25x22.5 |
| Tyre | 385/65 R 22.5 |
| ACCESSORIES | |

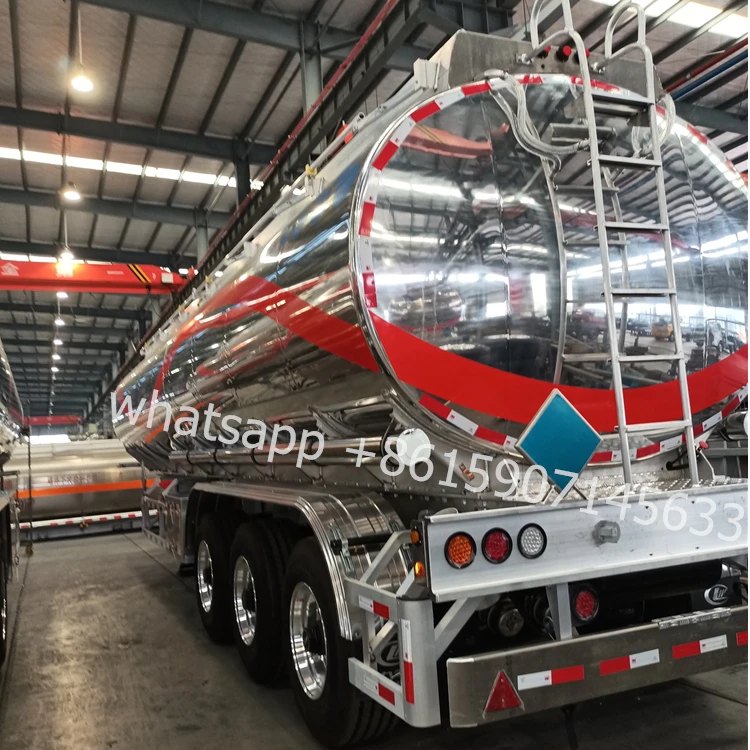

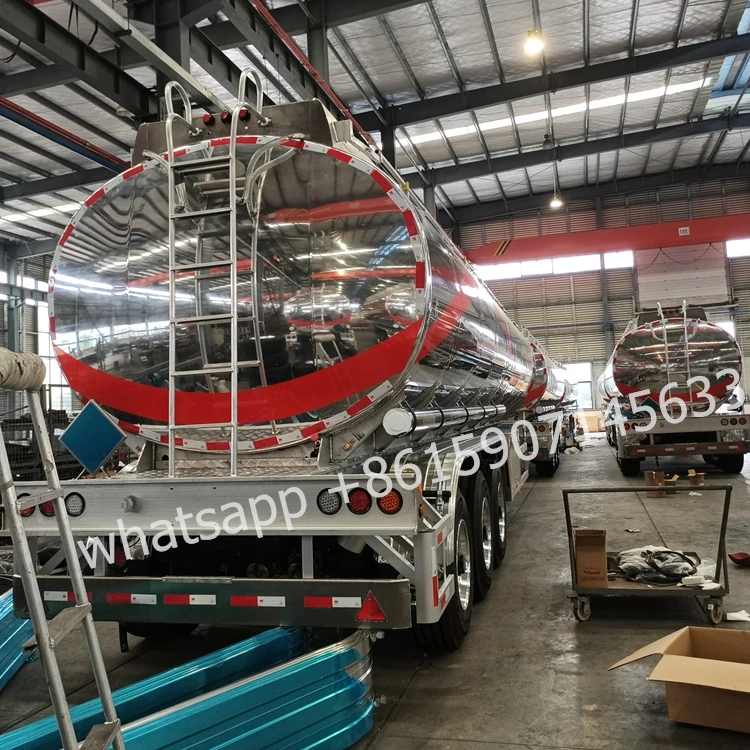

| Stair | Install in the front part, manufactured in aluminum of high resistance with slip resistant steps |
| Walk way | Anti-slip Walkway 850mm wide reach the manhole. |
| Drainage lines | Drainage lines with external pipe vertically falling and ball valves |
| Tire carriers | 2 carriers |
| General Assembly Security Team | |
| Lateral protection | Aluminum side protection on each side |
| Extinguisher holder | Four fire extinguishers installed two at the driver's side next to the landing gear, and another next to the passenger side on the back side of the drawer valve. |
| Bumper | Reducing impacts manufactured in structural aluminum of 1/4" X 4" |
| Lifeline | Pneumatic esqualizable in aluminum |
| Electric EQ | LED closed harness electrical system |
| Compacts | Compacts installed:2 in front part and 1 in the rear |
| Dust guard | 2 dust guard of rubber |
| Painting | Chassi paint of gray colour or according to customer's request. |
| Lights | LED type |
| 3 side lights on each side | |
| Turn signals (2) | |
| Backup lights (2) | |
| Stationary lights and brake(2) | |
| Plate light (1) | |
| Rear Hook | Reinforced to pull tank in an emergency |
| BOTTOM LOADING | |
| Equipment | Pneumatic bottom loading for 3 independent compartments |
| Production time | 20-35 working days |

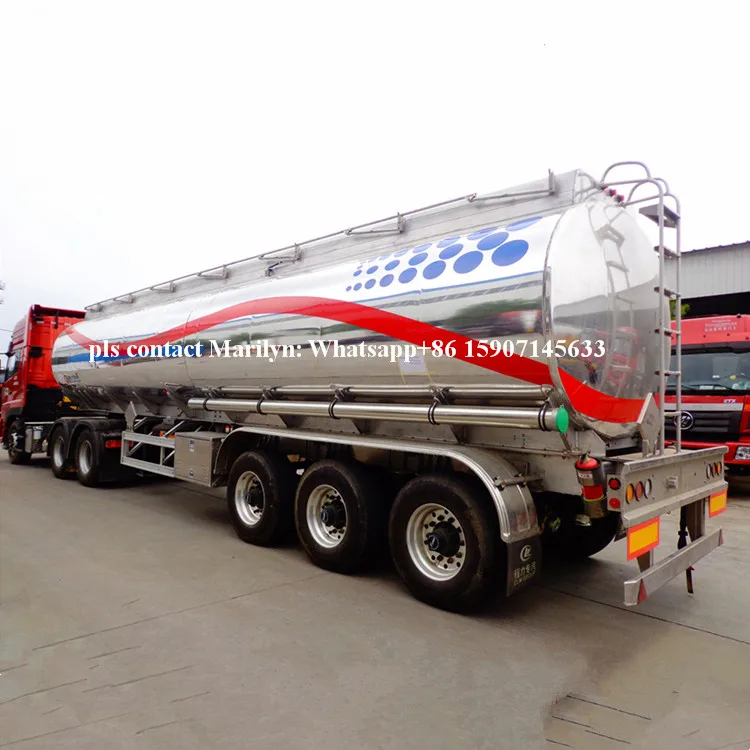

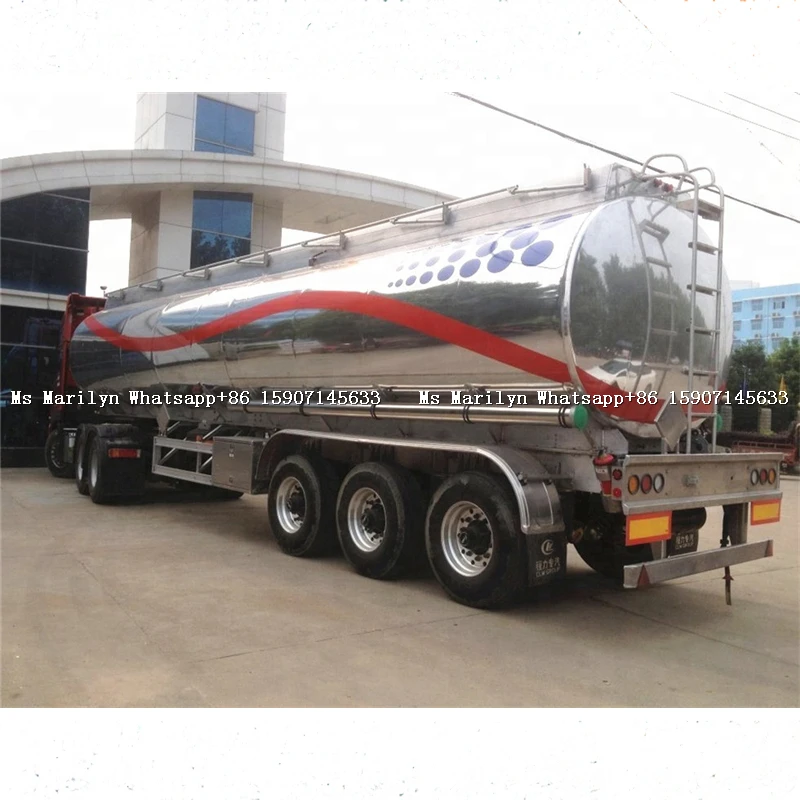

DALI ADR Certificate aluminium trailer aluminium fuel tank aluminium tank pictures:
Product Details

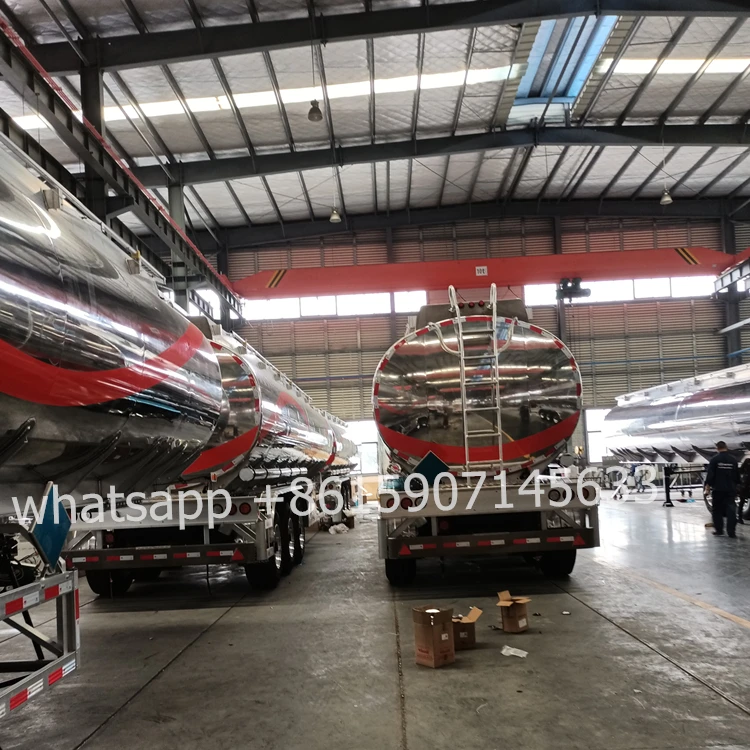

Manufacturing proces
