Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030
Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030

Low Friction High Accuracy Slewing Bearing Rotary Table Bearing YRT1030

Share on (1601114485103):


Price:$8,299.00 - $8,999.00

Quantity:


Product Overview

Description



Products Description

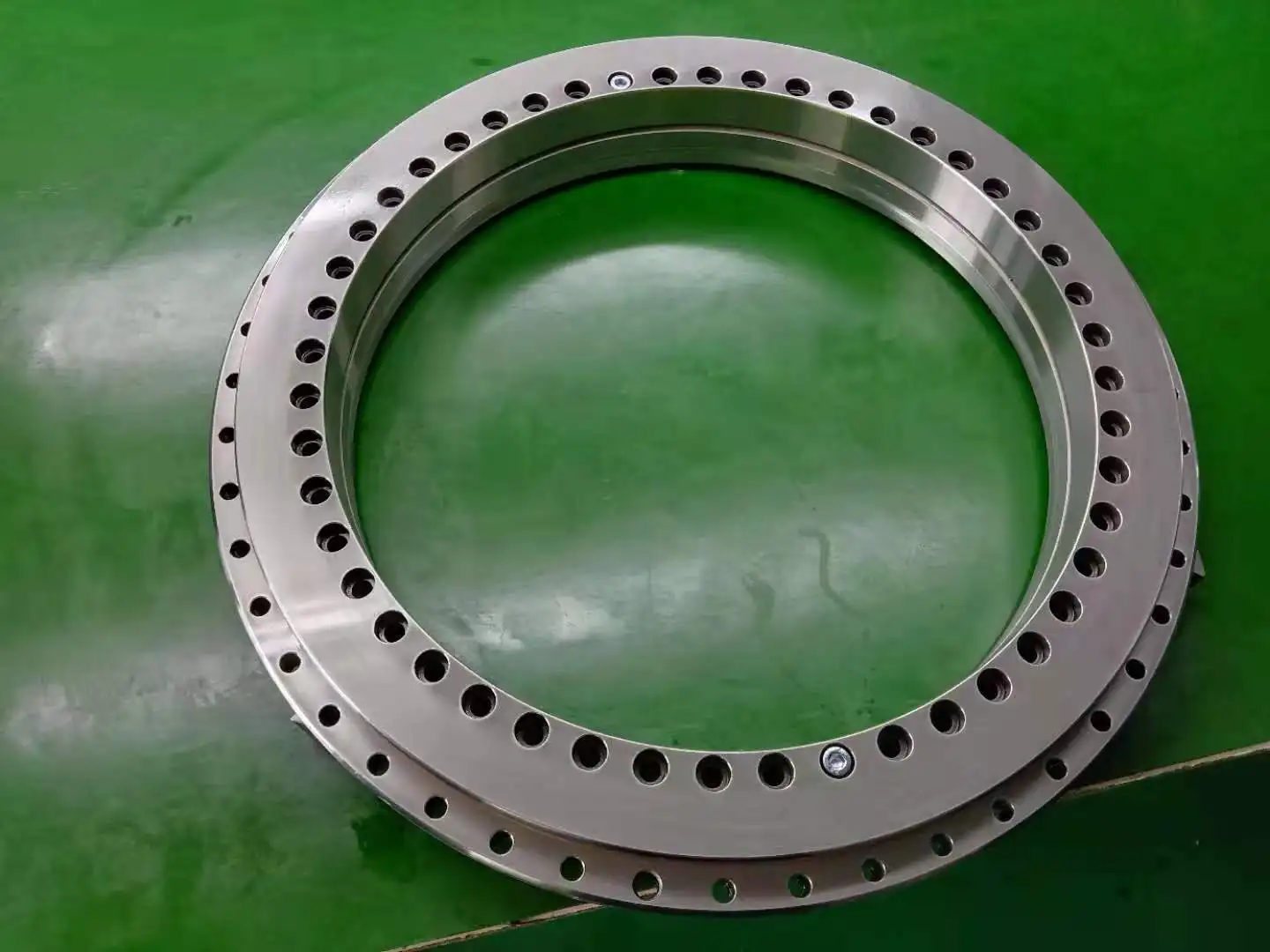

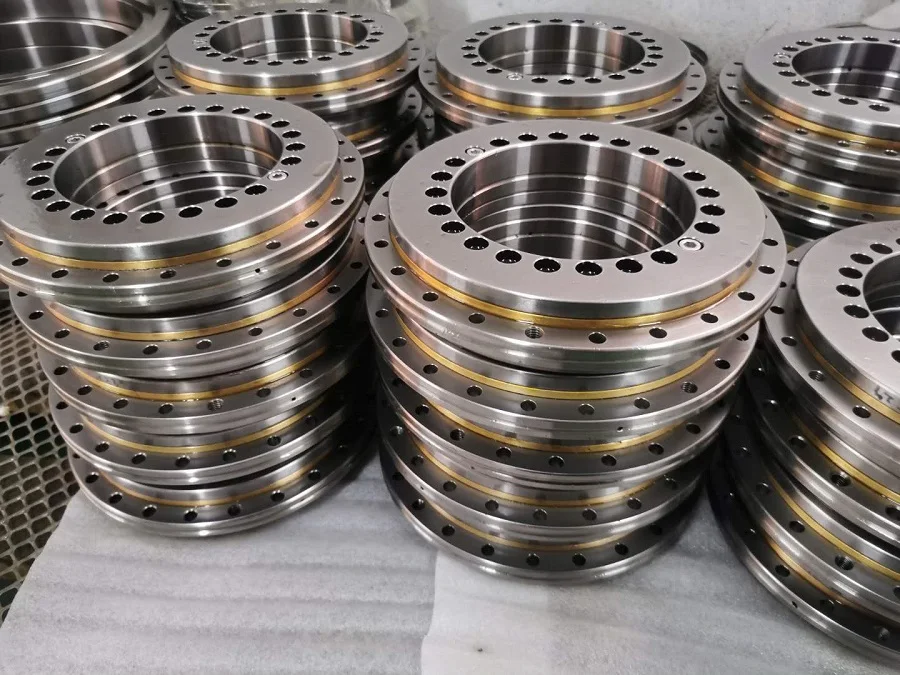

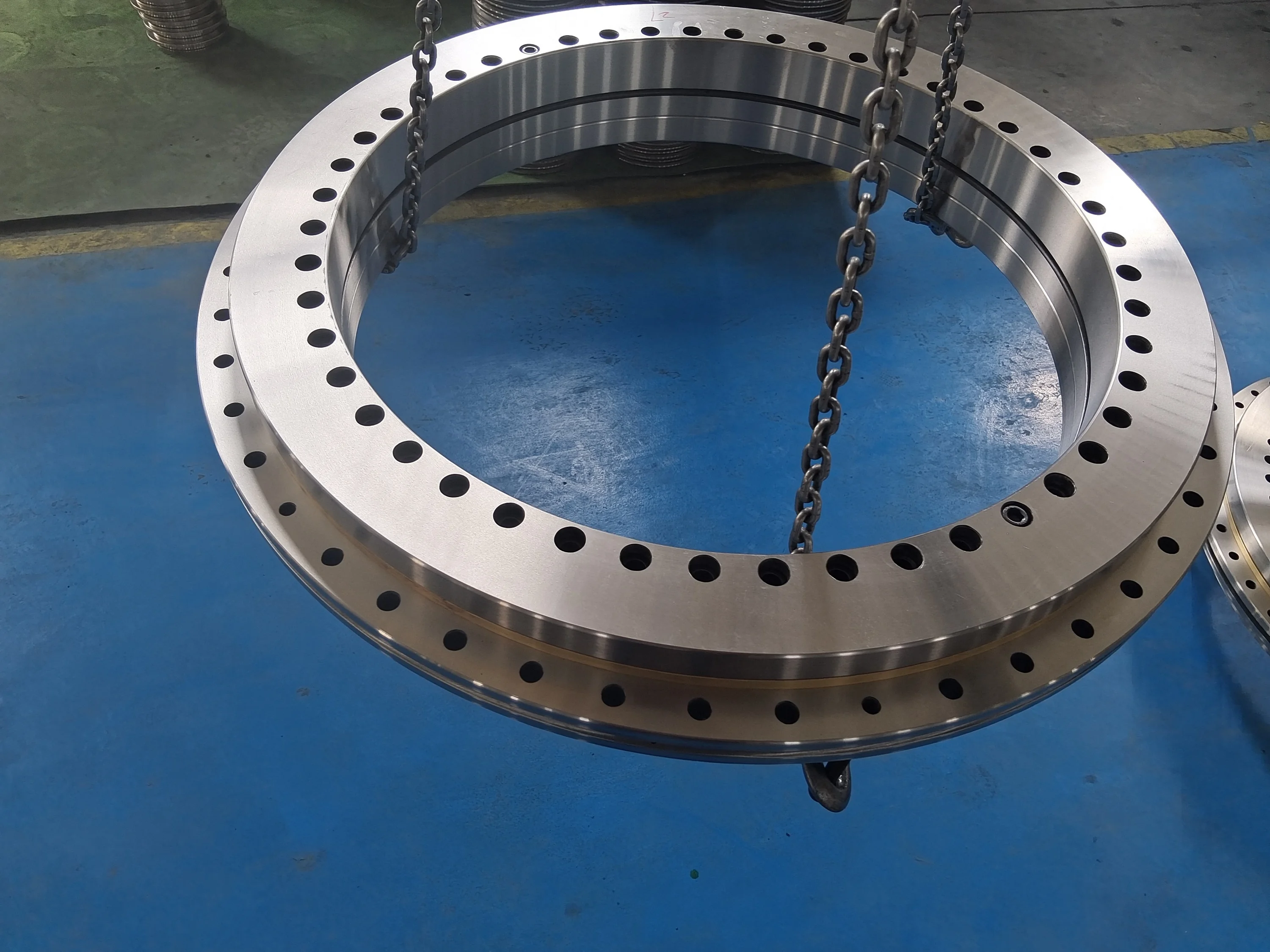

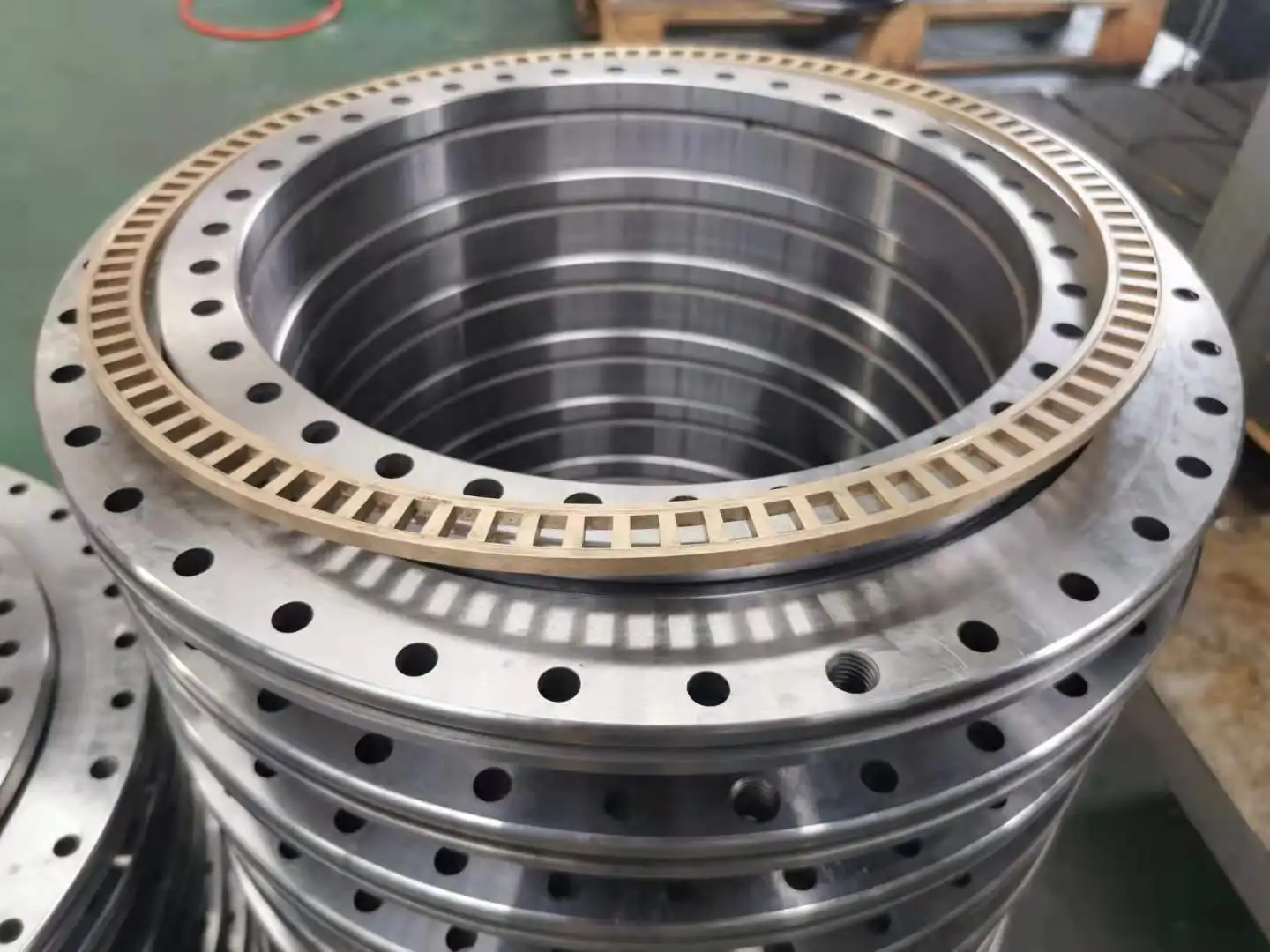

YRT rotary table bearing

A rotary table bearing is a specialized type of bearing designed specifically for use in rotary tables. Rotary tables are precision machines used in manufacturing and automation to rotate a workpiece or tool around a vertical axis. The rotary table bearing plays a critical role in ensuring the smooth, precise, and stable rotation of the table.


YRT rotary table bearing


Axial-radial bearings: These are double-direction bearings that can support radial forces, axial forces from both directions, and
tilting moments. They are known for their high rigidity, high load-carrying capacity, and exceptional running accuracy. They are
often pre-greased and sealed units for ease of use.


rotary table bearing model
YRT series:
YRTC50 YRTC80 YRTC100 YRTC120 YRTC150 YRTC180 YRTC200 YRTC260 YRTC325 YRTC395 YRTC460 YRTC580 YRTC650 YRTC850 YRTC950 YRTC1030 YRTC1200
YRTS series:
YRTS200 YRTS260 YRTS325 YRTS395 YRTS460
ZKLDF series
ZKLDF100 ZKLDF120 ZKLDF150 ZKLDF200 ZKLDF260 ZKLDF325 ZKLDF395 ZKLDF460






Model
Inner Dia.
Outer Dia.
Height
Height1
Normal tolerance
Strict tolerance
Weight
d(mm)
D(mm)
H(mm)
H1(mm)
δH1(mm)
δH1(mm)
m(Kg)
YRTC50
50
126
30
20
±0.125
±0.025
1.6
YRTC80
80
146
35
23.35
±0.15
±0.025
2.4
YRTC100
100
185
38
25
±0.175
±0.025
3.65
YRTC120
120
210
40
26
±0.175
±0.025
4.61
YRTC150
150
240
40
26
±0.175
±0.03
5.4
YRTC180
180
280
43
29
±0.175
±0.03
7.2
YRTC200
200
300
45
30
±0.175
±0.03
9.2
YRTC260
260
385
55
36.5
±0.2
±0.04
17.8
YRTC325
325
450
60
40
±0.2
±0.05
24.7
YRTC395
395
525
65
42.5
±0.2
±0.05
32.5
YRTC460
460
600
70
46
±0.225
±0.06
45.2
YRTC580
580
750
90
60
±0.25
±0.075
89
YRTC650
650
870
122
78
±0.25
±0.100
170
YRTC850
850
1095
124
80.5
±0.3
±0.120
253
YRTC950
950
1200
132
86
±0.3
±0.120
312
YRTC1030
1030
1300
145
92.5
±0.3
±0.150
375
YRTC1200
1200
1490
164
108
±0.3
±0.150
450
YRTS200
200
300
45
30
±0.175
±0.06
9.7
YRTS260
260
385
55
36.5
±0.2
±0.07
18.3
YRTS325
325
450
60
40
±0.2
±0.07
25
YRTS395
395
525
65
42.5
±0.2
±0.07
33
YRTS460
460
600
70
46
±0.225
±0.08
45
