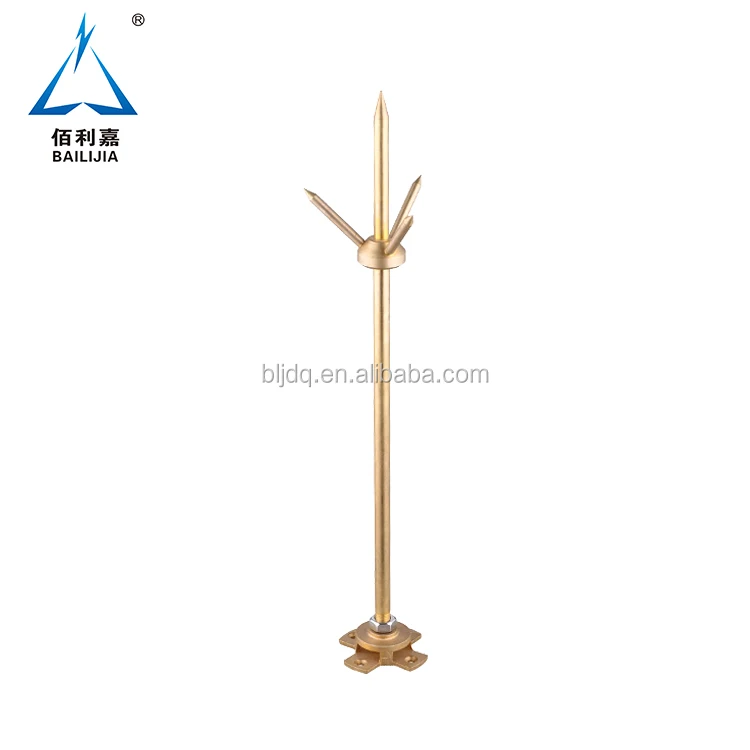

Professional Lightning Conductor Protection System 15mm Copper Air Terminal Lightning Arrester Rod

Product Overview

Description

PRODUCT DESCRIPTION



As Lightning Arrester Manufacturer In China,Lightning Arrester is used for protecting the buildings to avoid lightning strike. Lightning Rod plays an important part of the air termination network of a lightning protection system.We are professional lightning rod manufacturer.

Lightning arrester,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available.





PRODUCT PARAMETERS

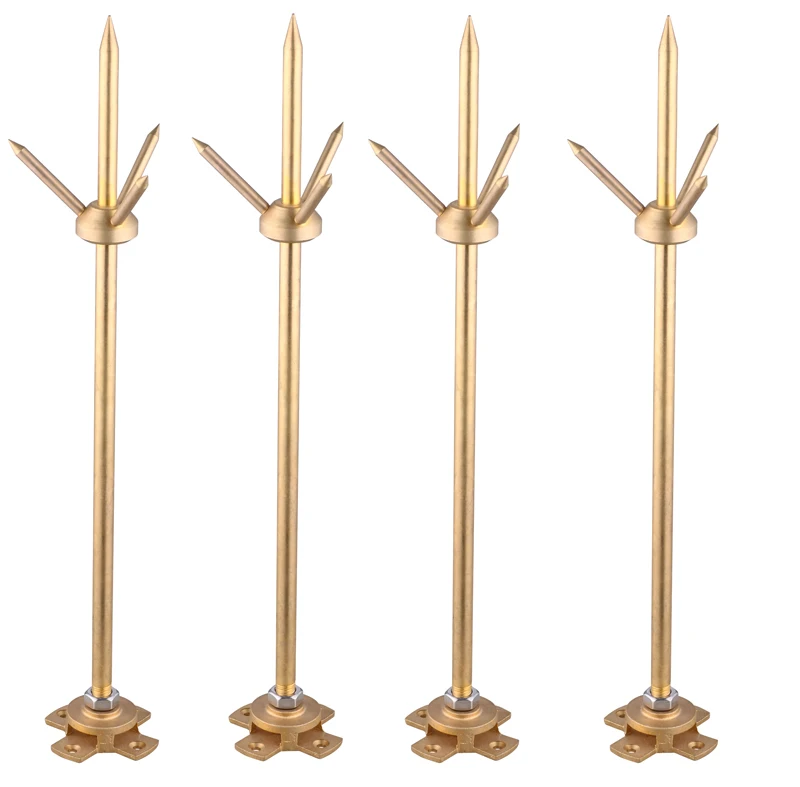

 Professional Lightning Conductor Protection System 15mm Copper Air Terminal Lightning Arrester Rod

Material	Copper or Brass or Copper Clad Steel or Stainless Steel
Size	according to customer's requirement
Life	More than 50 Years
Characters	Easy installation,long life



PRODUCT SIZE



Rod Length	Rod diameter	Thread	Material
500mm	15mm	M16	Brass,copper
1000mm	15mm	M16	Brass,copper
1500mm	15mm	M16	Brass,copperl
Avaible Dia:8mm-25mm; Length:300mm-2000mm
Base	Conductor size	Rod diamter	Material
1	50-95mm²wire	15mm	Brass
2	25mmx3mm copper tape	15mm	Brass

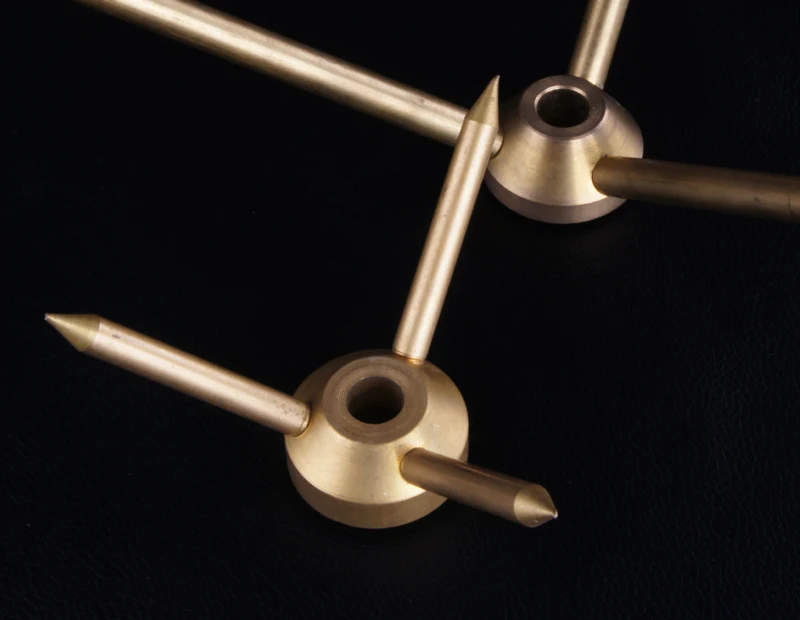

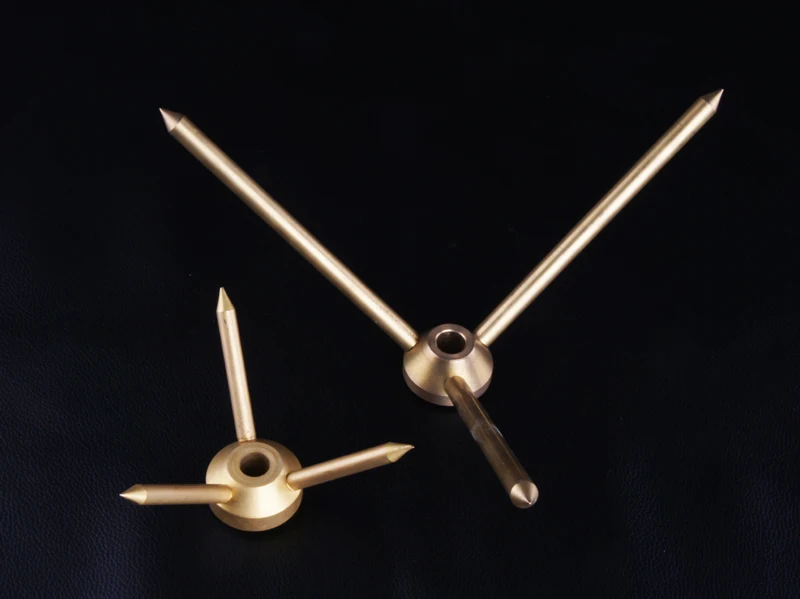

Three Point Needle	Nos	Rod	Material
1	3	15mm	Brass,copper



Description	Size	Material
Lightning rod	Dia7mmxL250mm	copper clad steel or stainless steel
Three point needle	Dia7mmxL9mm
Ball	Dia18mm
Holder	Dia85mmxH60mm
Base	100mmx100mmx2mm
Total Height	370m



INSTALLATION



(A)The installation of lightning rod

Matters need attention during installation:

(1)The lightning rod and other metal part on the building should connected together;

(2)No low voltage cable or communication cable installed on the rod

(B)Installation of earthing tape and earthing grid

1. Installation of exposed earthing tape (grid) :Installed at the ridge ,eave(abat-vent) or edge of roof

(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.

(2) Installation on the parapet wall or gutter bracket

Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution

(3) Installation at ridge ,eave or edge of roof

Use concrete base or bracke

If make the base on site , please remove the corner of ridge tile first ,and make the bracket and ridge tile together;

The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution.

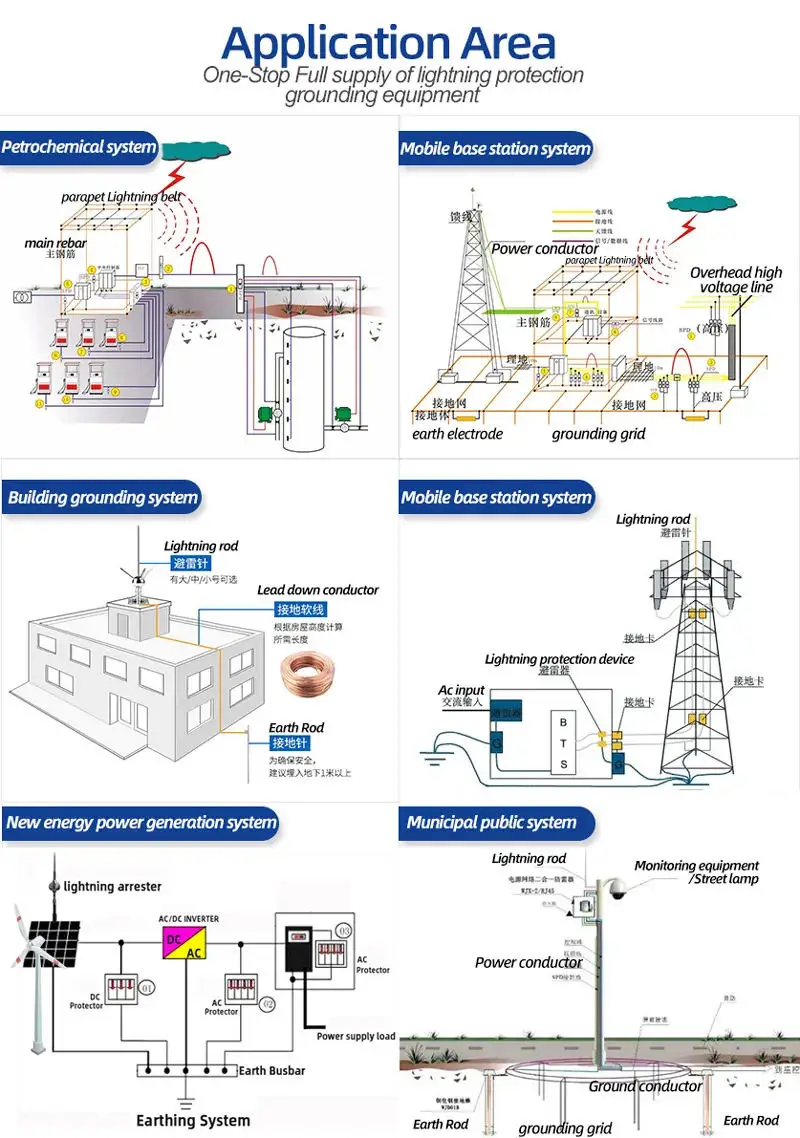

PRODUCT APPLICATION



Lightning arrester is used for lightning system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

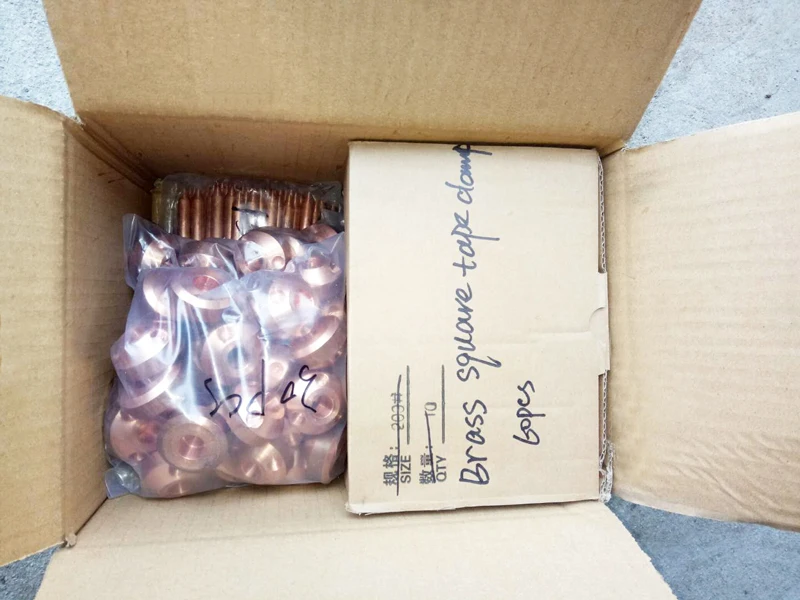

PACKAGE



All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.



PRODUCT CATEGORY





ABOUT US





COOPERATIVE BRAND



FAQ



   1.Are you a trading company or manufacturer?

     Manufacturer with factory!



 2.What kinds of Grounding Material do you produce?

      It covers grounding rod ,lightning rod ,connecting fixing ,conductor, exothermic welding kit, etc.



 3.Is Customized Material available?

    Yes, please offer your required specs.



 4.Do you Accept OEM service?

     YES!



 5.What's your Delivery Time?

     Normally 20-25days,please confirm with us before order!



 6.What's the Payment Trems?

 Usually,50% as deposit,50% before sending B/L by T/T.



 7.How you pack products?
   Normally, in steel pallet. We'll do according to customers' requirement.



 8.What's your available port of Shipment?

       Normally, Ningbo port or Shanghai Port.
