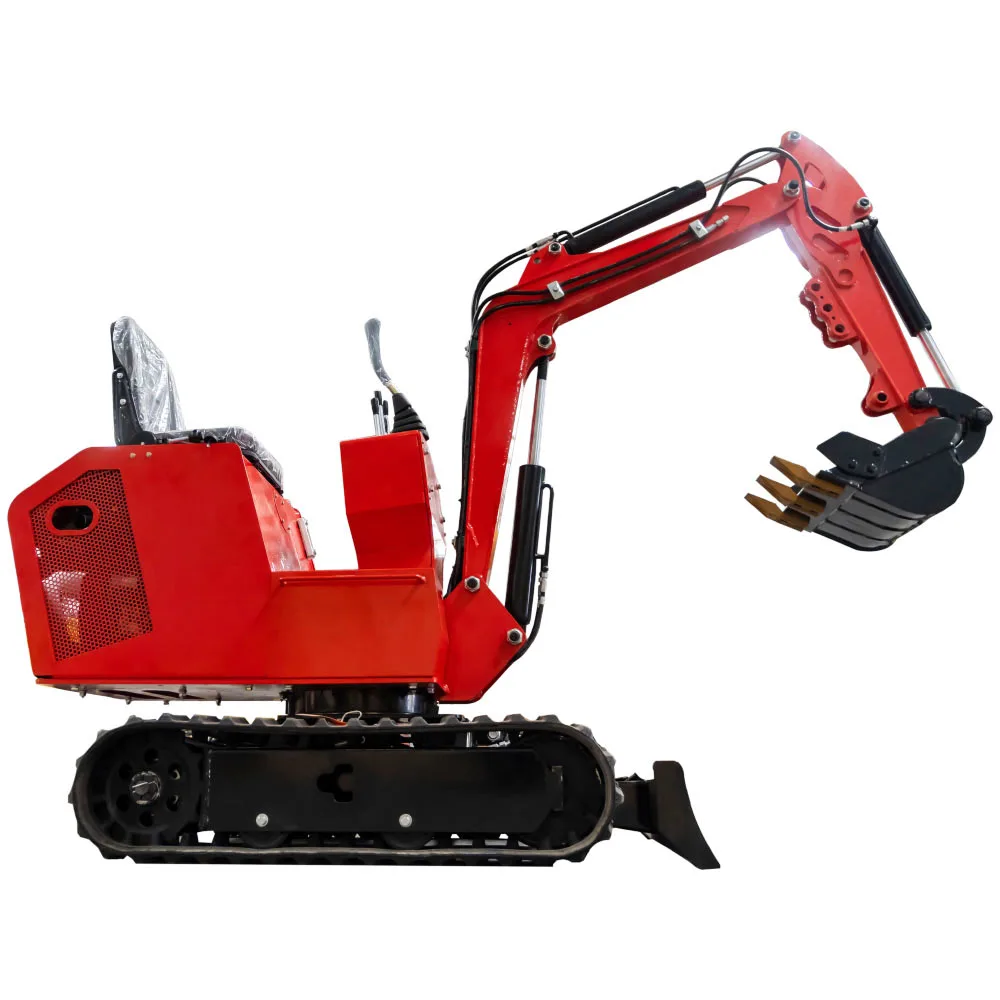

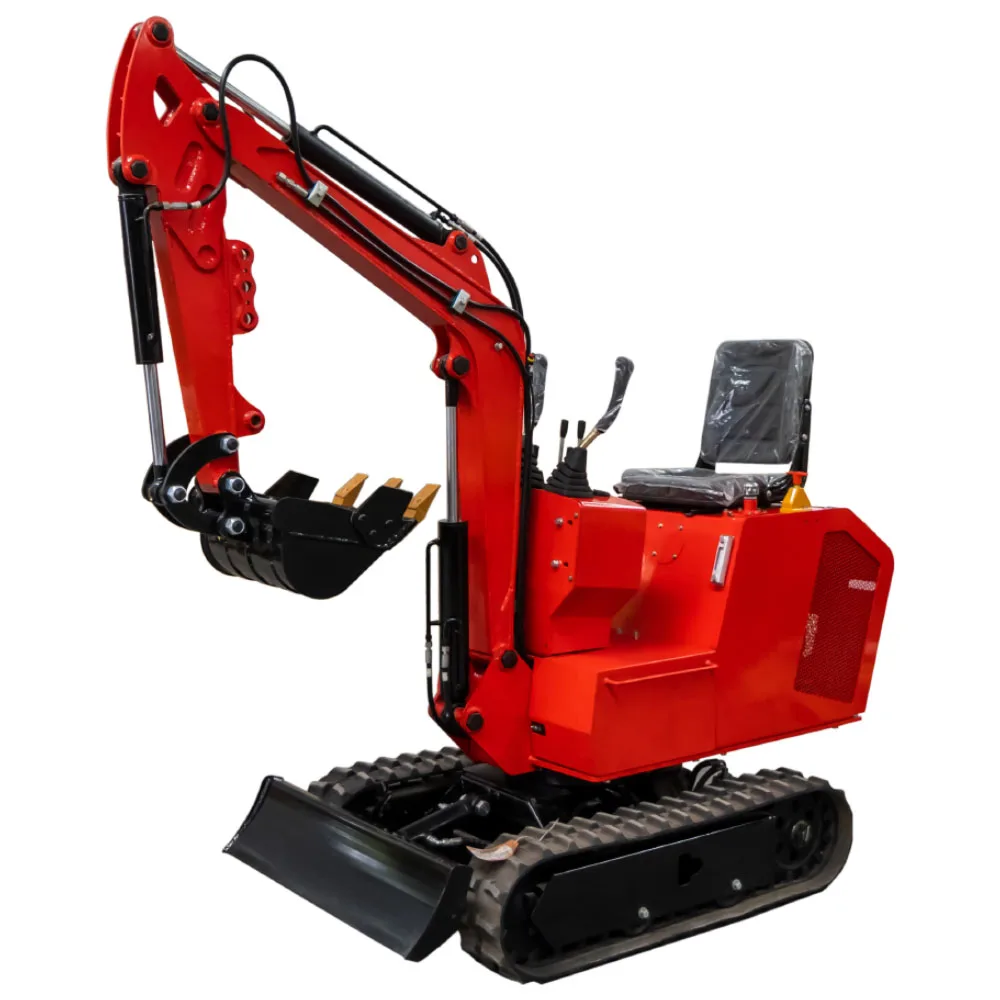

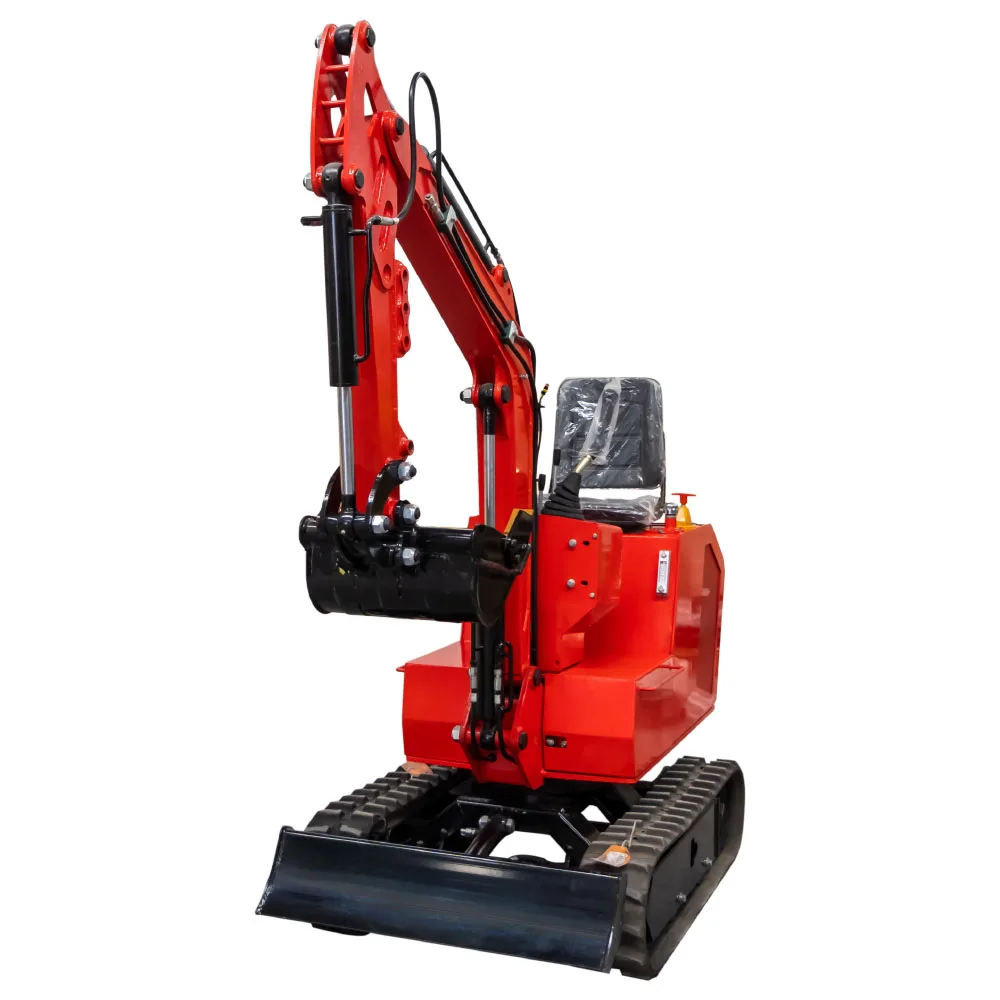

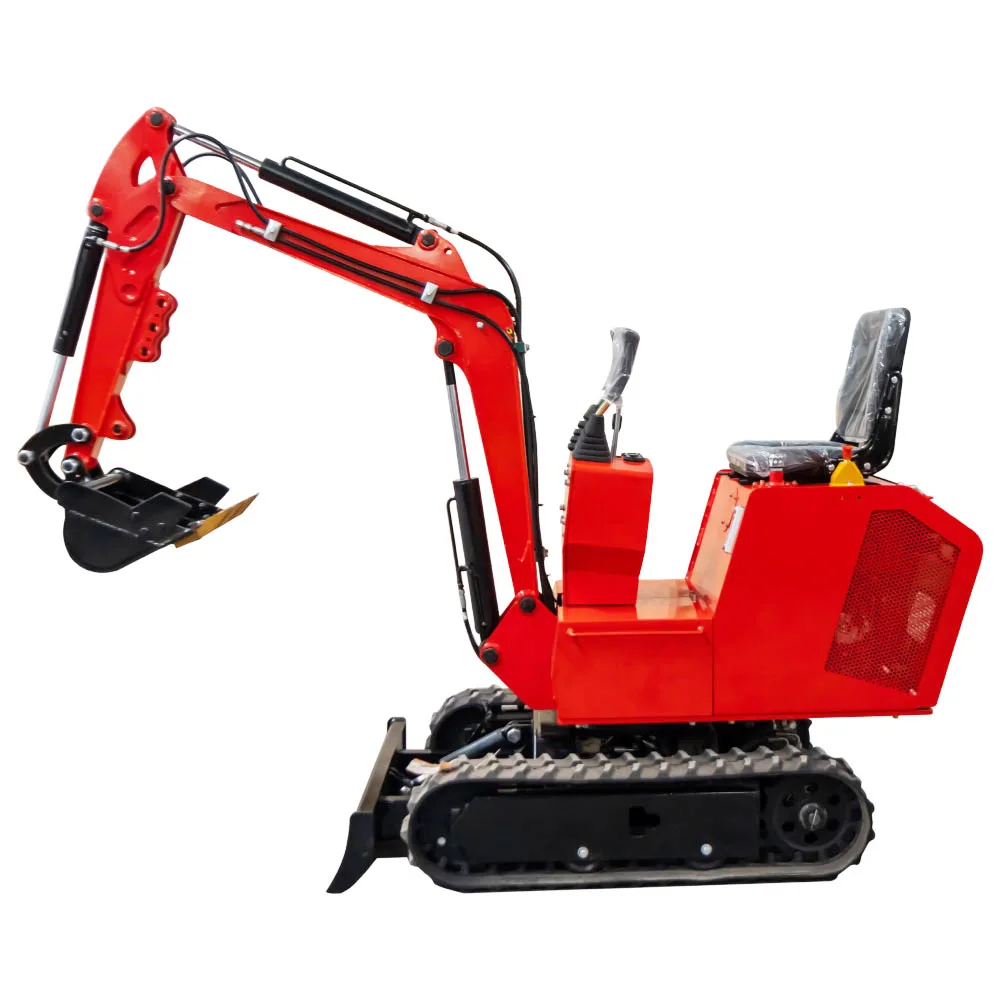

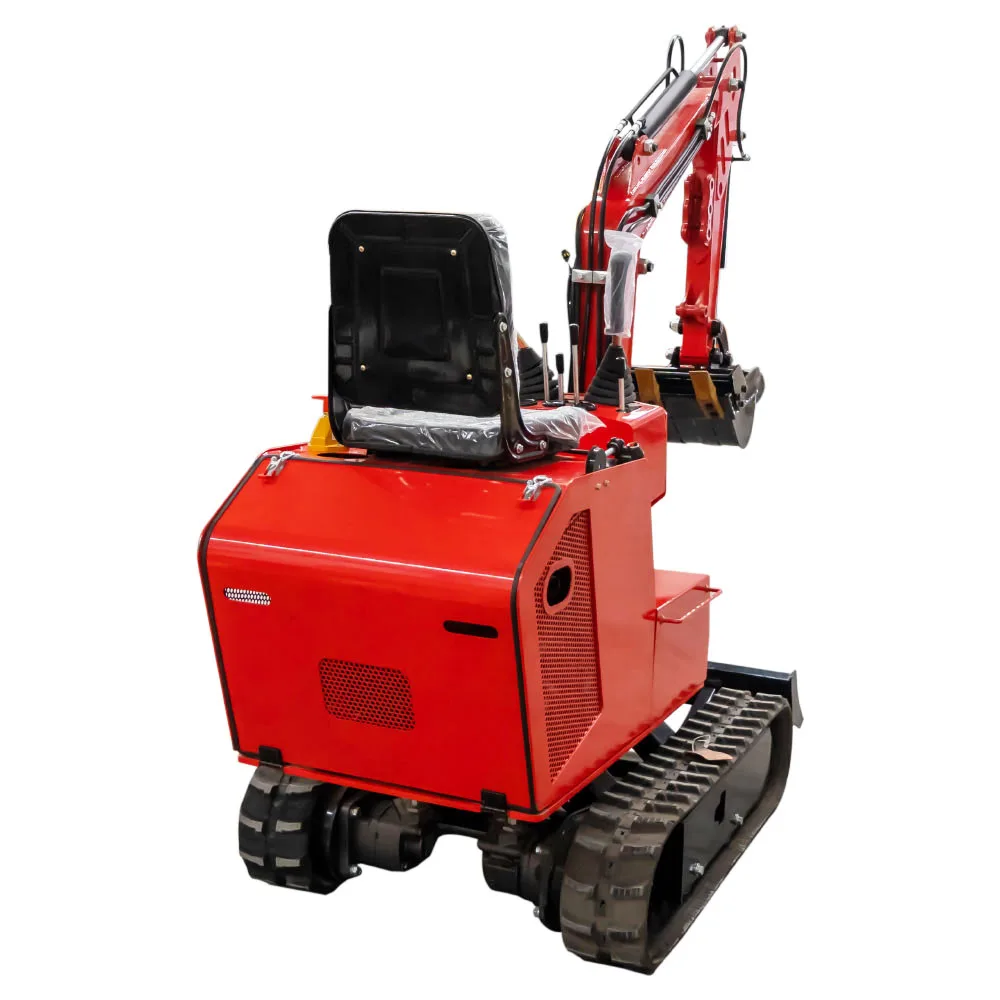

Low price garden farm tools excavator crawler digger with bucket for sale
- Category: >>>
- Supplier: Shandong Jintop Machinery Co. Ltd.Shandong Ltd.
Share on (1601117540112):
Product Overview
Description
Product Description
Specification
HT10D technical specification | ||
Machine Size(mm) | ||
Overall dimension( LxWxH) | 2775 x 930 x 2219 | |
Wheelbase | 910 | |
Total length of track | 1230 | |
Platform ground clearance | 380 | |
Platform back turning radius | 784 | |
Chassis width | 896 | |
Track width | 180 | |
Track height | 320 | |
Chassis ground clearance | 132 | |
Working Range（mm) | ||
Max. Digging depth | 1750 | |
Max. Vertical digging depth | 1375 | |
Max. Digging height | 2610 | |
Max. Dumping height | 1850 | |
Max. Digging radius on ground | 2850 | |
Min. Rotation radius | 1330 | |

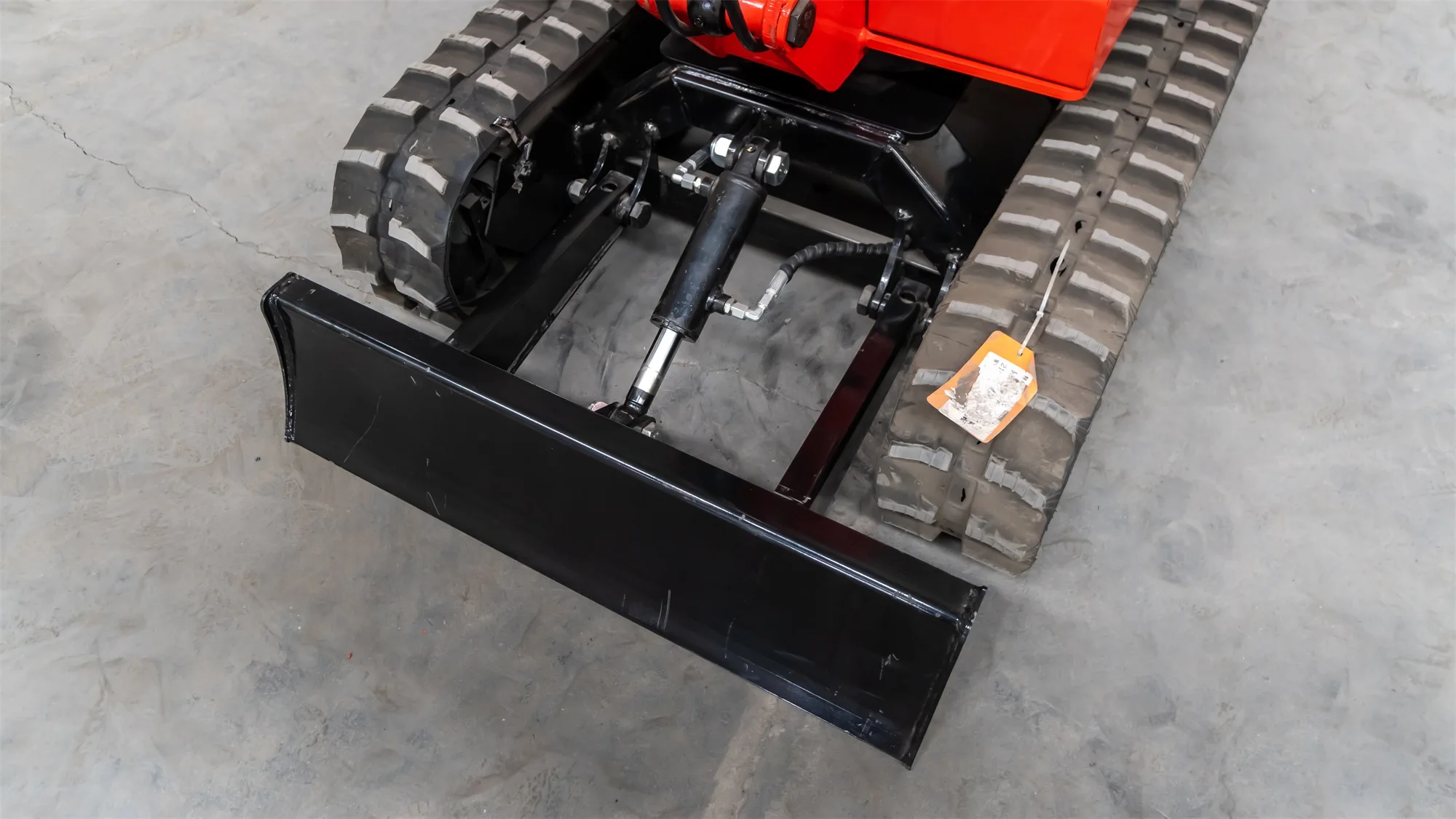

Max. Upgrade height of bulldozer blade | 345 | |
Max. Digging depth of bulldozer blade | 255 | |
Performance Parameter | ||
Weight | 1000kg | |

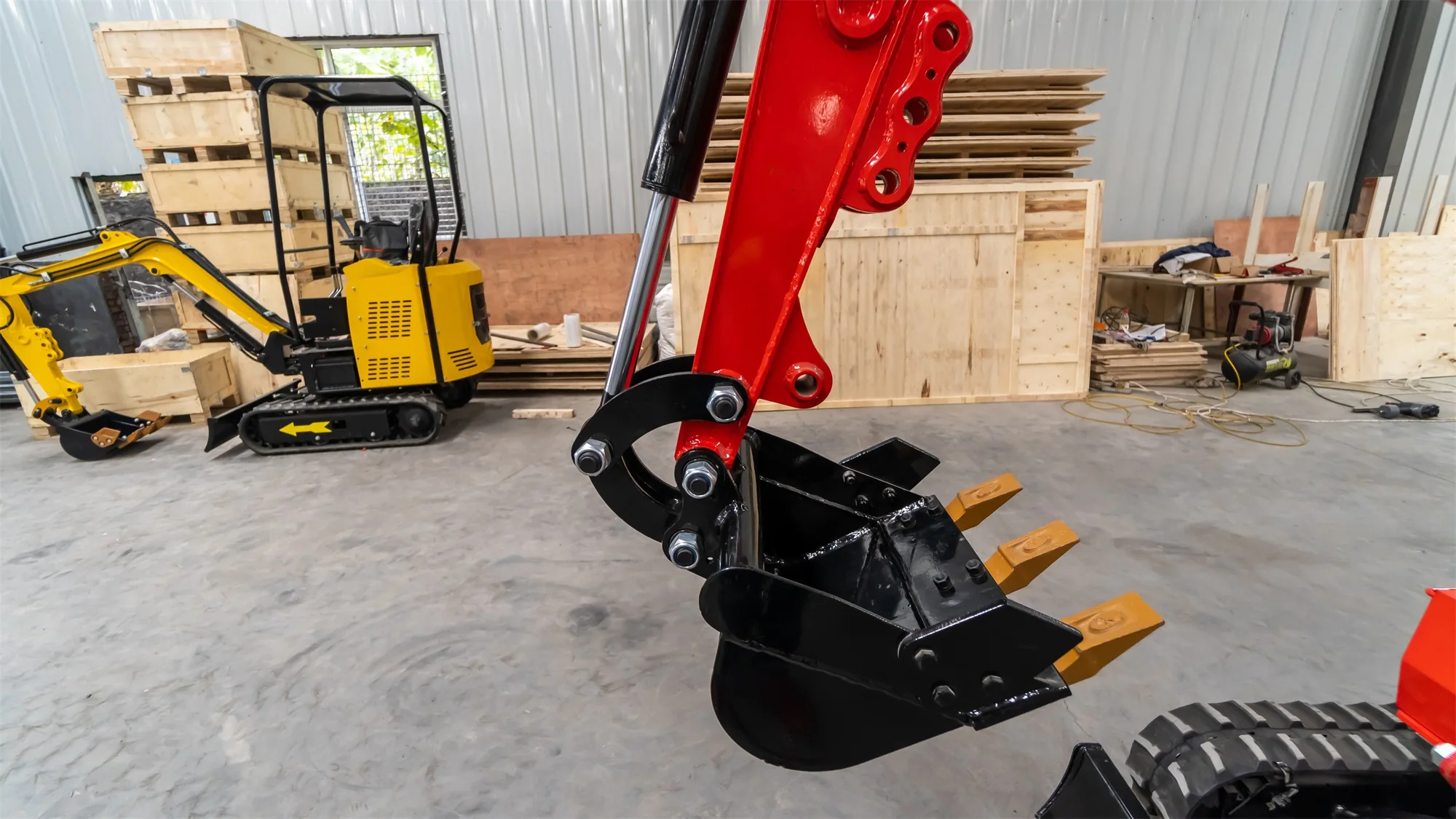

Bucket capacity | 0.025m³ | |
Main components | ||

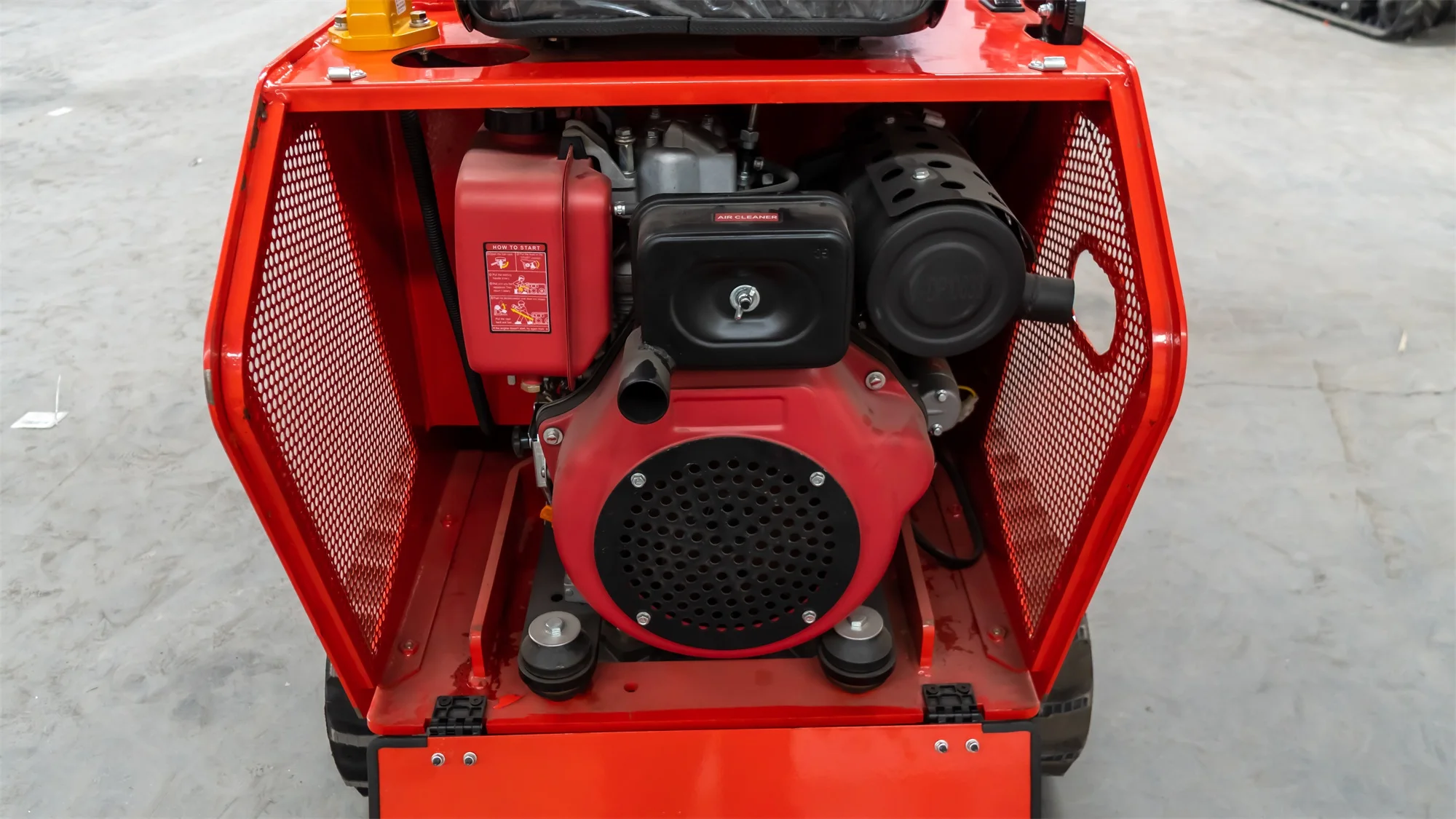

Engine | BRIGGS & STRATTON KOOP 192F | |
Our Advantages

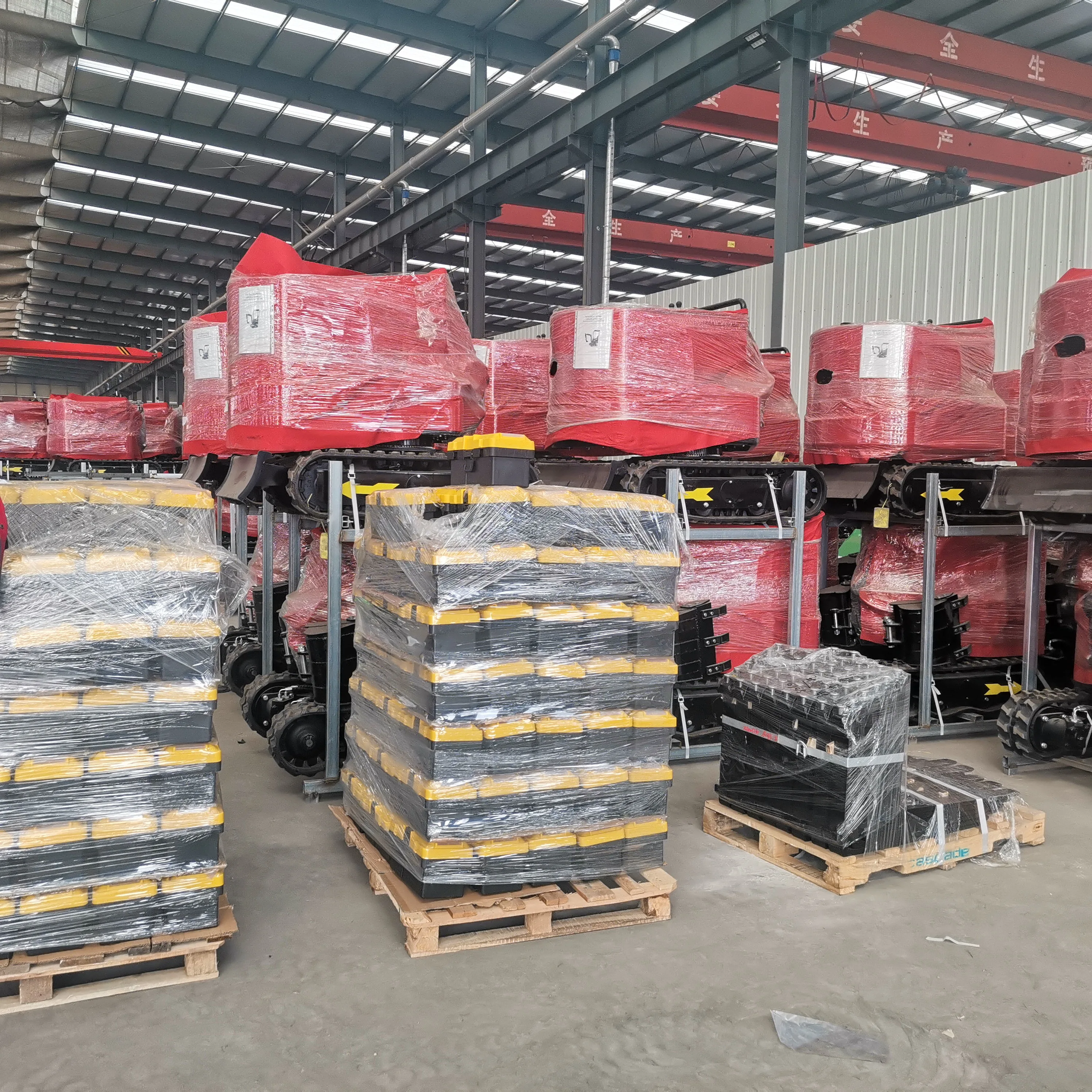

Packing & Delivery

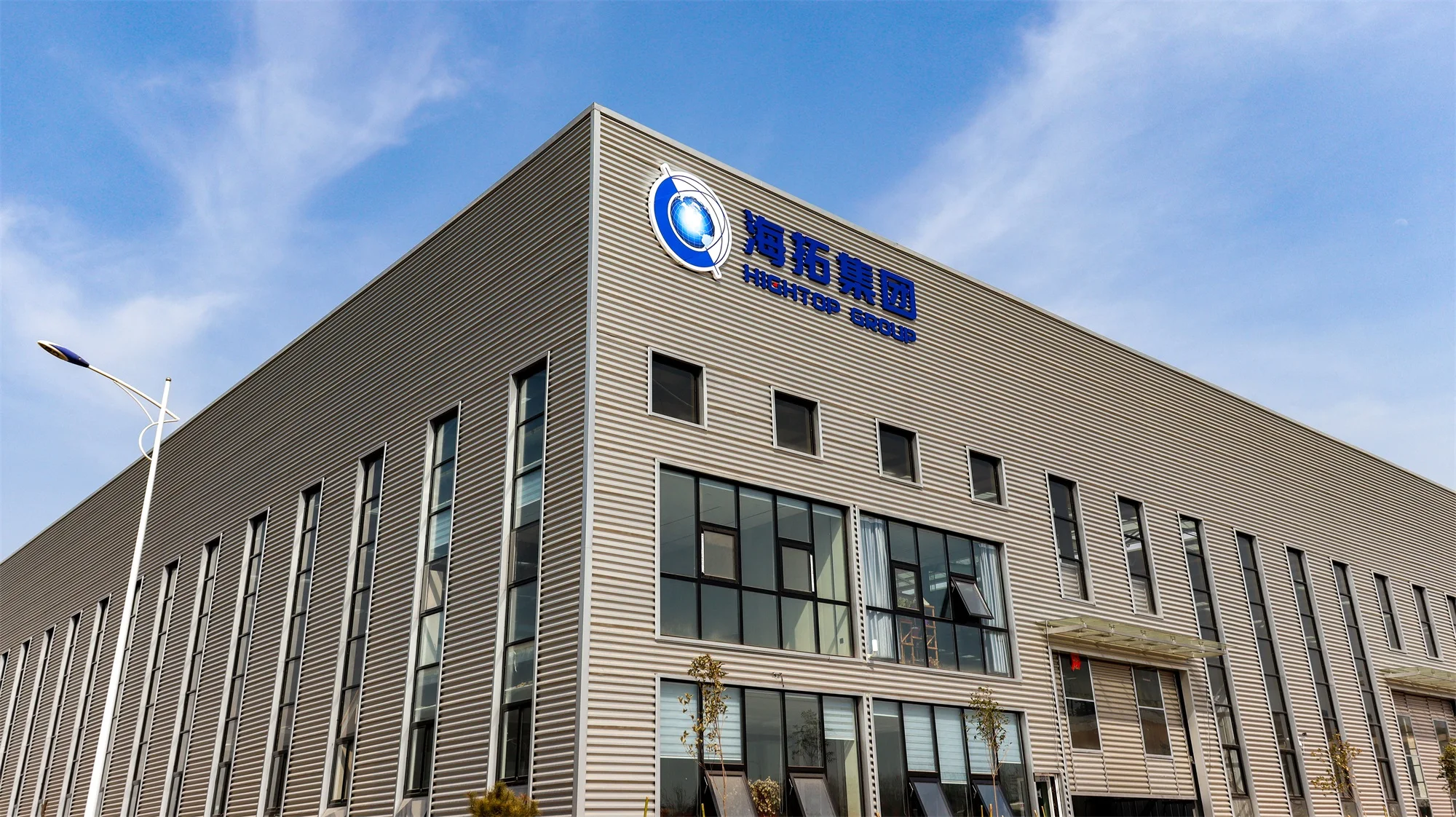

Company Profile
