1200*600*6mm Underfloor Insulation XPS Tile Backer Board
US $1.00-$30.00
XPS foam board JLXPS700 B3 1200mm*600mm*50mm R Value 8.4 XPS rigid foam insulation board
- Category: >>>
- Supplier: Shenzhen Jialiang Thermal Insulation Materials Co. Ltd.Shenzhen Ltd.
Share on (1601120432534):
Product Overview
Description
Product Description
XPS foam board, full name of extruded polystyrene foam board.
It is a board with a delicate and uniform surface layer and a closed cell honeycomb structure manufactured by extrusion process using polystyrene resin, foaming agent, flame retardant, color masterbatch and other additives. Therefore, it has the characteristics of high compression resistance, lightweight, non absorbent, non breathable, wear-resistant, and non degradable.
Its performance characteristics are mainly manifested in the following six points:
1、 Excellent insulation performance
Low thermal conductivity is a requirement for all insulation materials. As is well known, polystyrene itself is an excellent insulation material, and when produced by extrusion, the tightly packed honeycomb condenser effectively prevents heat conduction.
Its thermal conductivity is less than or equal to 0.028w/mk. XPS foam plate has the characteristics of high thermal resistance, low linearity, and low
Its thermal conductivity is less than or equal to 0.028w/mk. XPS foam plate has the characteristics of high thermal resistance, low linearity, and low
expansion ratio.
Its structure has a closed cell ratio of more than 99%, forming a vacuum layer to avoid air flow and heat dissipation, and ensure the durability and stability of its thermal insulation performance.
XPS foam board is an excellent choice for building thermal insulation. It is usually used for roof thermal insulation system, cold storage, internal and external thermal insulation of walls, with incomparable effect.
XPS foam board is an excellent choice for building thermal insulation. It is usually used for roof thermal insulation system, cold storage, internal and external thermal insulation of walls, with incomparable effect.
In addition, we can provide regular and flame-retardant products according to user requirements, which can fully meet the flame
retardant performance requirements of insulation products in factories, sports venues, exhibition centers, etc.
retardant performance requirements of insulation products in factories, sports venues, exhibition centers, etc.
2、 Excellent high-strength compressive strength
Squeezed plastic board is a new type of lightweight and high resistance board, with a compressive strength of over 350KPa at a density of no more than 40kg per cubic meter. It is equivalent to 7 adult elephants weighing 5 tons jumping on a square meter of extruded plastic board!
Extruded plastic panels have extremely high compressive strength and strong impact resistance. Depending on different models and thicknesses, their compressive strength can reach 150-500Kpa or above, and they can withstand ground loads in various systems.They are widely used in geothermal engineering, large cold storage, and interior decoration and insulation fields.
The excellent compressive performance of extruded panels remains almost unchanged even when immersed in water, which is not foundin other insulation materials.
3、 High quality hydrophobicity and moisture resistance
As a perfect thermal insulation material, XPS foam board has an extremely important technical index of water absorption. High water absorption will lead to poor thermal insulation performance, and the thermal insulation performance of the thermal insulation material will decline after water absorption. At low temperatures, the water inhaled will easily freeze, which will damage the structure of the thermal insulation material, thus reducing the compression resistance and thermal
insulation performance of the board.
Among building thermal insulation materials, only XPS foam board and foam glass have water absorption
less than 2%.
The extruded board has a complete closed cell structure, with no gaps on both sides of the board, which prevents moisture from penetrating due to water leakage, condensation, and freezing/thawing cycles. Therefore, it can effectively prevent water moleculesless than 2%.
from entering, so there is no need to worry about the aging of the board over time and the loss of its insulation layer,
further causing the problem of needing to repair the insulation structure layer.
The closed cell structure of extruded polystyrene board can effectively prevent the penetration of water molecules (including water vapor), and even if it is mechanically damaged during construction, the tightly packed honeycomb structure of extruded
polystyrene board can effectively maintain its low water absorption function. Due to its effective prevention of water molecule infiltration and lack of hydrophilicity, aging is almost impossible to occur, and it has almost the same lifespan as buildings.
polystyrene board can effectively maintain its low water absorption function. Due to its effective prevention of water molecule infiltration and lack of hydrophilicity, aging is almost impossible to occur, and it has almost the same lifespan as buildings.
4、 Lightweight and convenient to use
The completely closed cell foaming chemical structure and honeycomb like physical structure of XPS foam board make
it light and high strength, easy to cut, transport, not easy to damage, and easy to install.
5、 Good dimensional stability and corrosion resistance
General hard foam insulation materials are prone to aging after several years of use, leading to a decrease in water absorption and performance. XPS foam board has excellent corrosion resistance, aging resistance, thermal insulation, and can still maintain its excellent performance under high steam pressure. During long-term use, it does not age, decompose, and produce harmful substances. Its chemical
performance is extremely stable,and it will not degrade due to water absorption and corrosion,which will reduce its performance. It can still maintain its superior performance under high temperature environment. According to relevant information, XPS foam boards produced by domestic manufacturers have a service life of about 60 years, and can still maintain excellent performance, without decomposition or mildew, and without the volatilization of toxic substances.
6、 Environmental performance
In insulation systems, the application of extruded panels can not only resist the infiltration of cold or hot air currents outside, but also have the effect of environmental protection skills.
The environmental protection performance of XPS foam board mainly depends on the foaming agent. In the production process of XPS foam board, environmental friendly raw materials and carbon dioxide foaming are used, which does not produce harmful gases. After testing by relevant national departments, its chemical performance is stable, does not volatilize harmful substances, does not decompose or mildew, has good corrosion resistance, is harmless to human body, and is an environmental friendly building material.
The environmental protection performance of XPS foam board mainly depends on the foaming agent. In the production process of XPS foam board, environmental friendly raw materials and carbon dioxide foaming are used, which does not produce harmful gases. After testing by relevant national departments, its chemical performance is stable, does not volatilize harmful substances, does not decompose or mildew, has good corrosion resistance, is harmless to human body, and is an environmental friendly building material.
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Other |
Project Solution Capability | Others |
Application | Any Building |
Design Style | Modern |
Place of Origin | China |
Brand Name | Jialiang |
Model Number | JLXPS150、JLXPS250、JLXPS350、JLXPS500、JLXPS700 |
Type | foamed plastic |
Product name | XPS Panels |
Colour | Pink、White |
Thickness | 20mm-100mm |
Compress Strength | 150-700kPa |
Density | 30~45Kg/M3 |
Surface | Smooth surface |
Water Absorption | Max 1.0%-vol |
R-Value | Min 3.3 |
thermal conductivity | ≤0.034W/(m*k) |

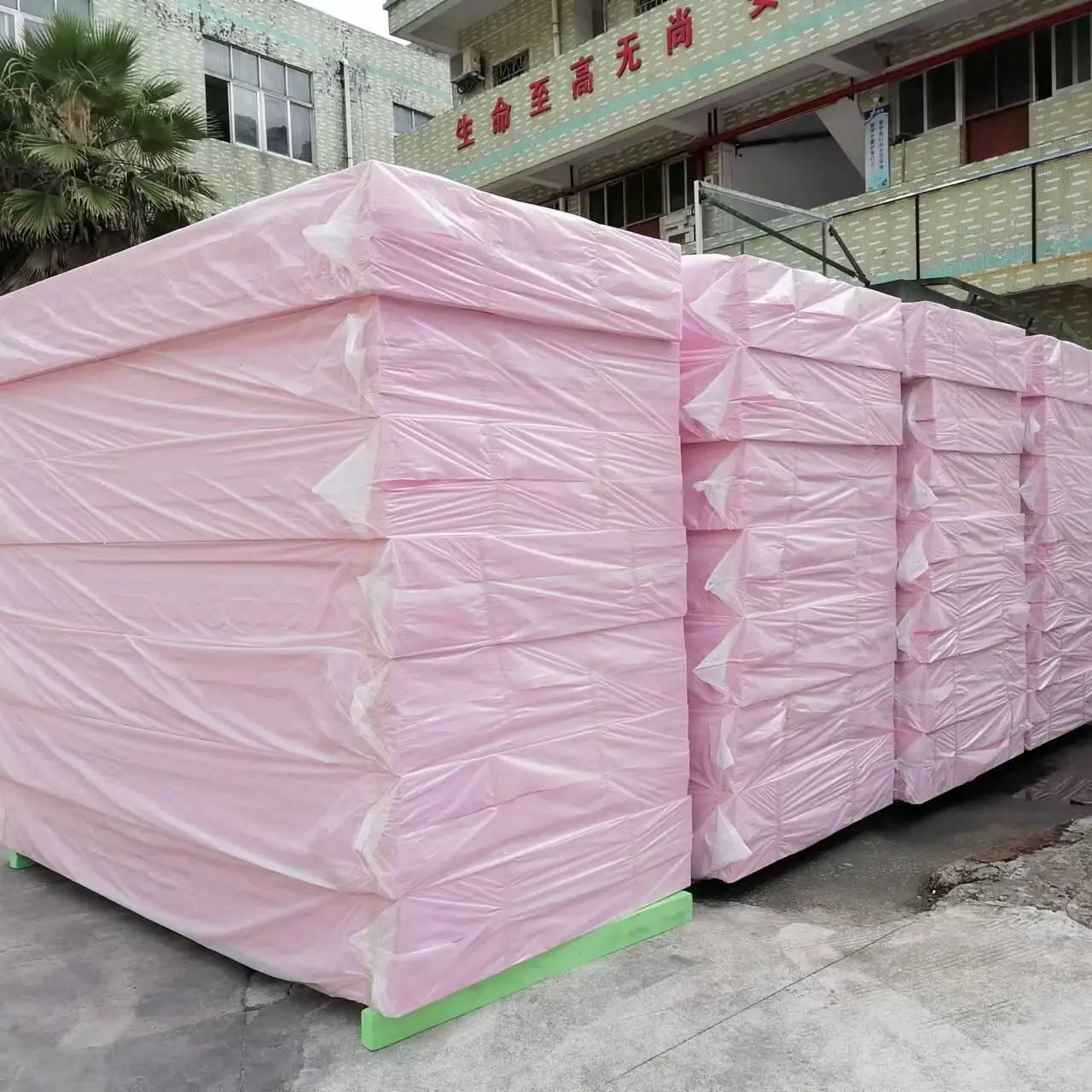

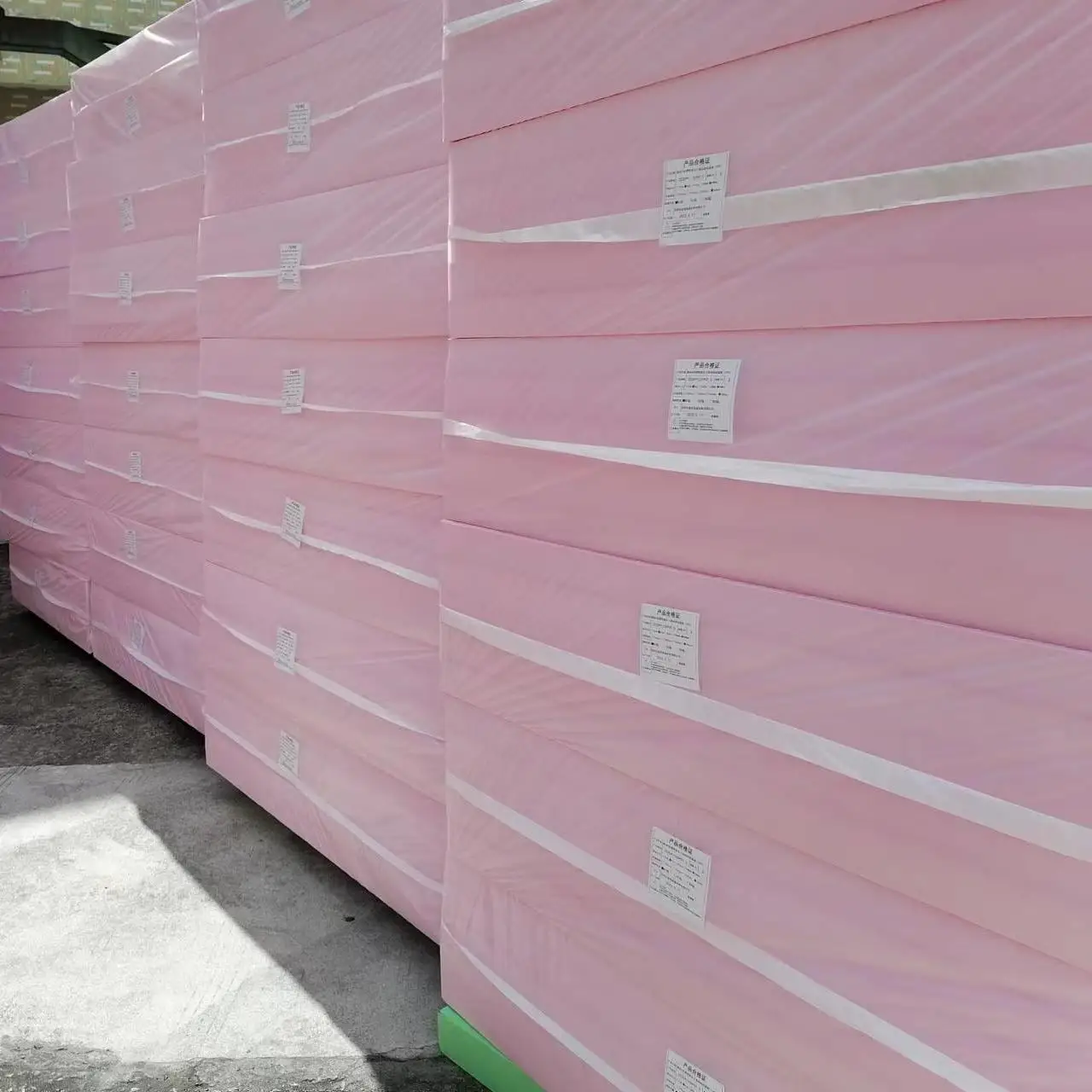

Packing & Delivery

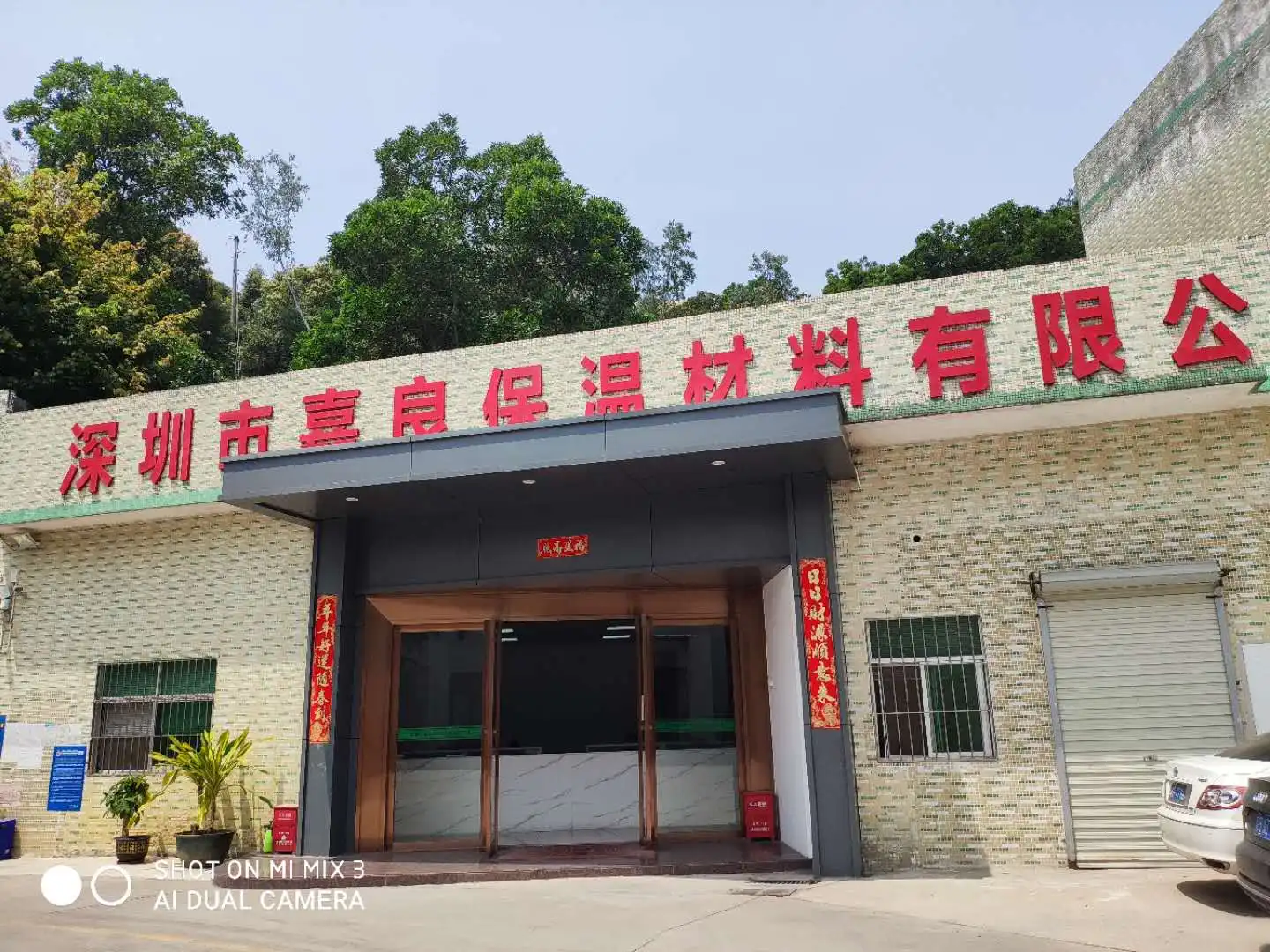

Company Profile

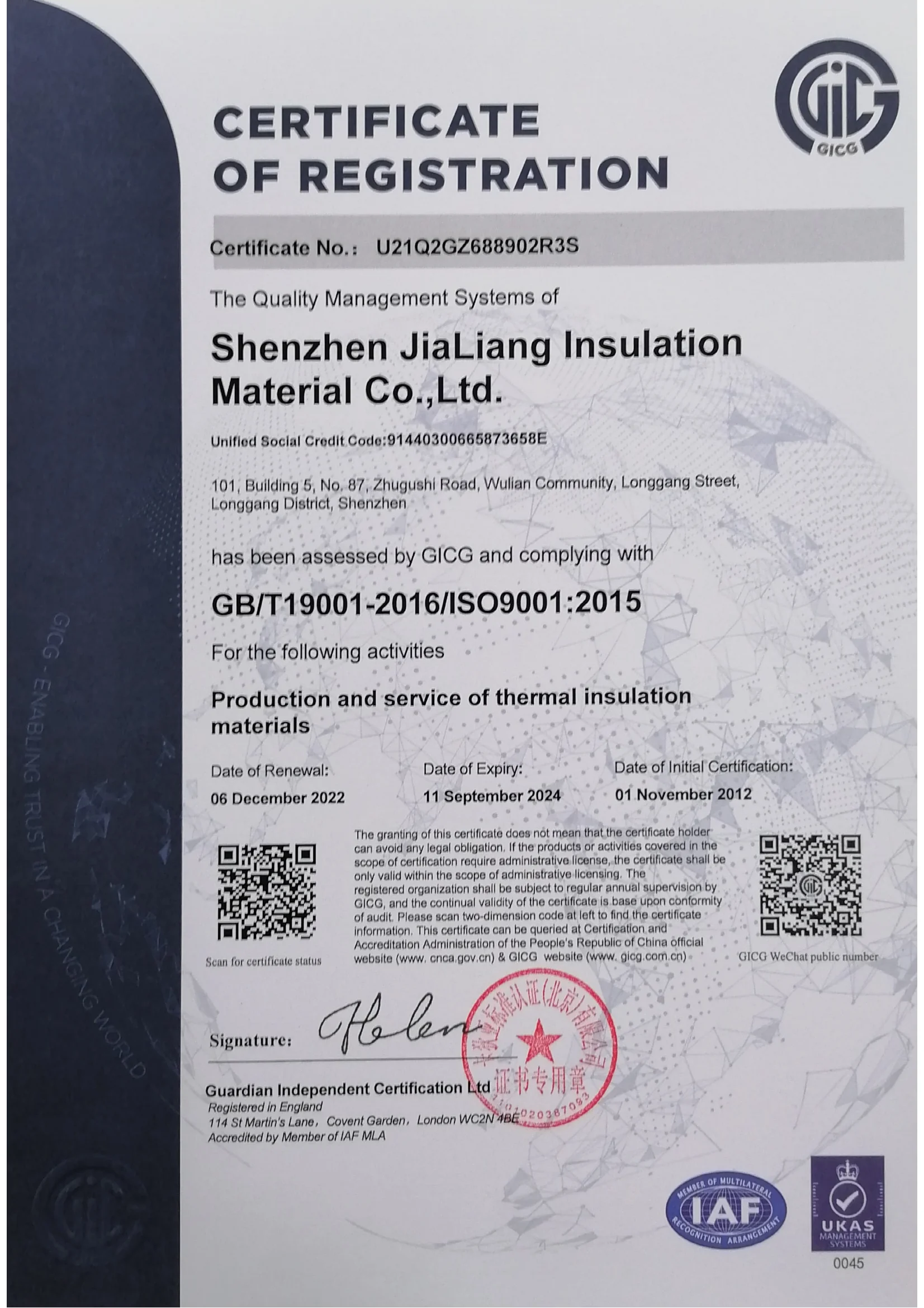

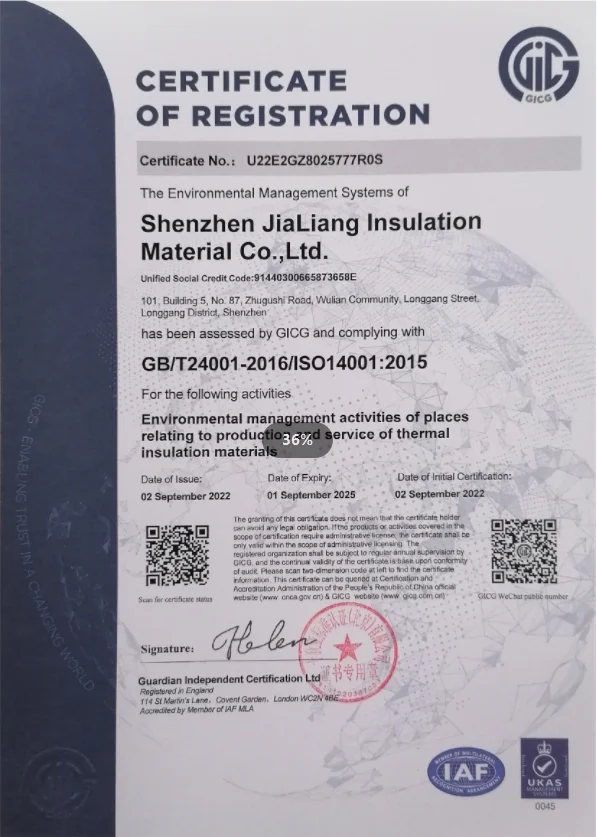

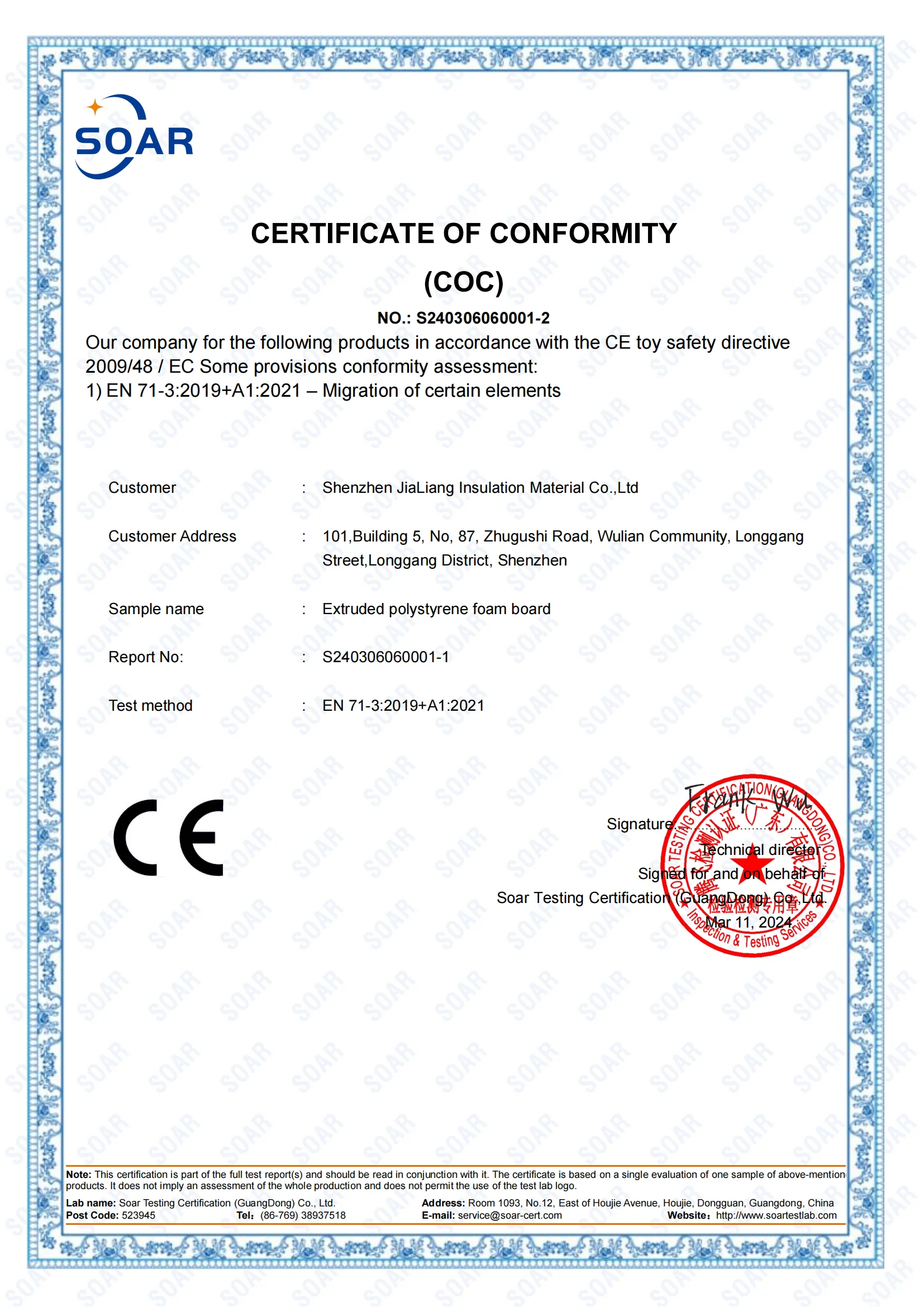

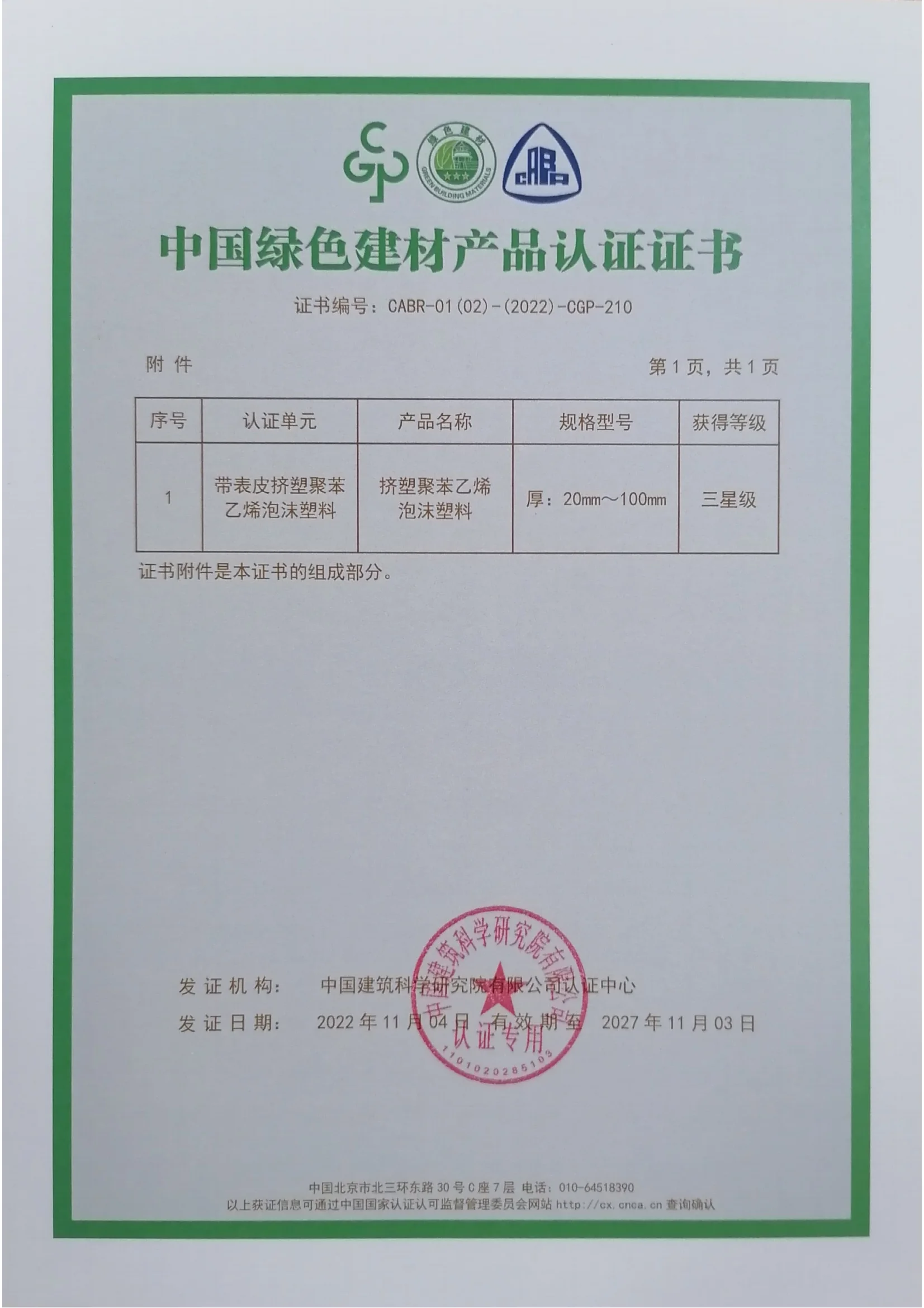

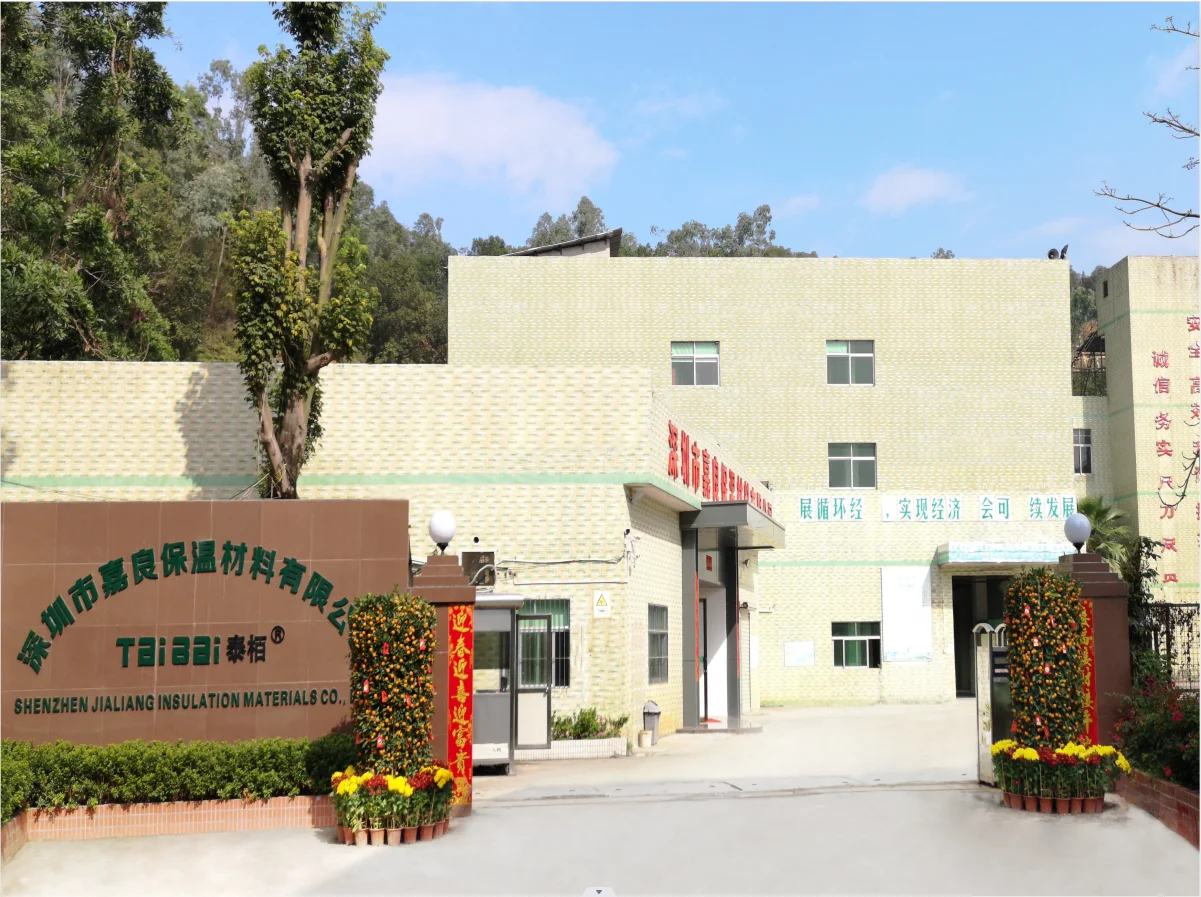

Shenzhen Jiangsu Thermal Insulation Materials Co., Ltd. was founded in 2007 and is a comprehensive enterprise that integrates product research and development, production, and sales. It has passed ISO9001, ISO14001, Green Building Materials Product Certification, and Safety Production Standardization Enterprise Certification, and has been awarded the title of "Advanced Enterprise in Longgang District, Shenzhen". Jialiang Insulation's brand, Taibai, was founded in 1982. It is one of the earliest brands in China to introduce new lightweight building material production technology from the United States and promote the concept of "new lightweight building" domestically. After more than 30 years of sedimentation and accumulation, Tai Bai ? It has developed into a representative mid to high end brand in the southern region of China, making due contributions to building energy conservation and emission reduction in China.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Eastern Asia(78.00%),Mid East(12.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPS board,Xps Foam Board,XPS insulation board,Insulation board,Extruded polystyrene foam
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:null
We are based in Guangdong, China, start from 2007,sell to Eastern Asia(78.00%),Mid East(12.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPS board,Xps Foam Board,XPS insulation board,Insulation board,Extruded polystyrene foam
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:null
