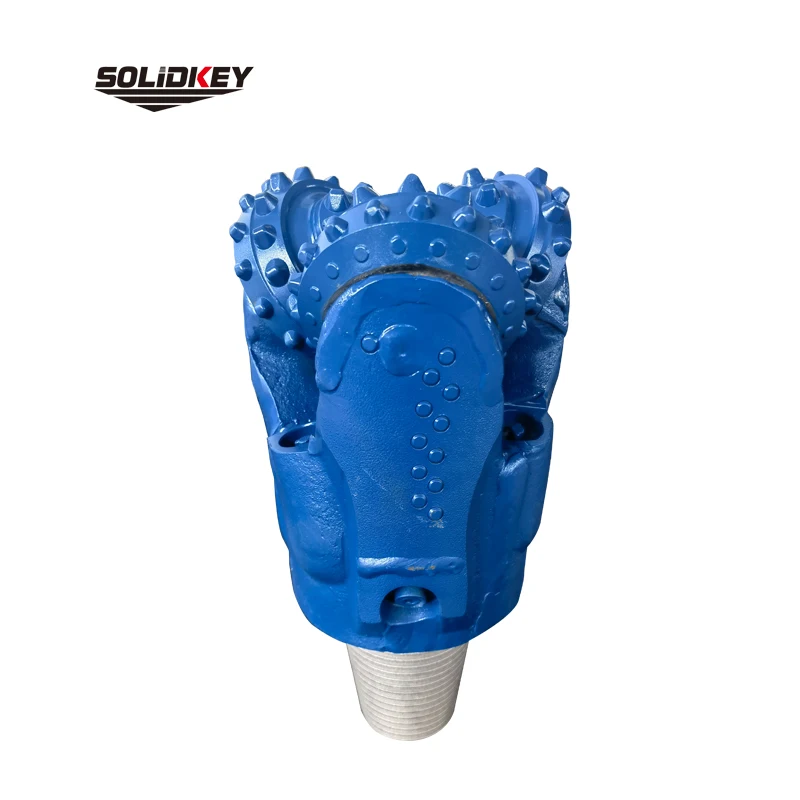

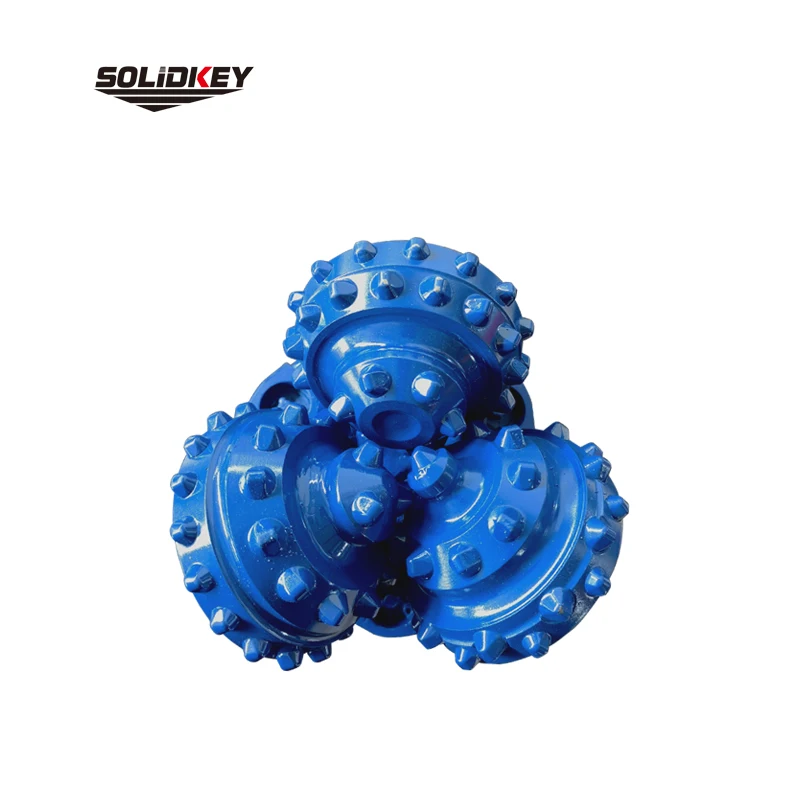

5 1/2 inch IADC537 tricone bit for water well, oil well , gas well

Product Overview

Description







For more than 90 years, API has led the development of petroleum, natural gas and petrochemical equipment and operating standards. These represent the industry's collective wisdom on everything from drill bits to environmental protection and embrace proven, sound engineering and operating practices and safe, interchangable equipment and materials.
Learn more please visit api.org/about

"Lower the cost of drilling per meter, achieve the most cost effective".





FAQ

1. How to get an exact quotation?

Answer: Please send us detailed information as below:
-Tricone bits(Diameter, IADC code)

-PDC bits(Matrix or Steel body, blades quantity, cutter size, etc)

-Hole opener(Diameter, size of pilot hole, hardness of rocks, thread connection of your drill pipe, etc.)

-Roller cutters(Diameter of cones, model number, etc.)

-Core barrel(Diameter, quantity of cutters, connection, etc.)

A simple way is sending us photos .



Besides above, if possible please provide more information as below:

Drilling depth in vertical well drilling, Drilling length in HDD, hardness of rocks, Capacity of drill rigs, application(oil/gas well drilling, or water well drilling, or HDD, or foundation).



Incoterm: FOB or CIF or CFR, by plane or ship, port of destination/discharge.



The more information provided, the more exact quotation will be offered.



2. What is the quality control for your products?

Answer: All of our production are in lines of API rules and ISO9001:2015 strictly, from signing contract , to raw materials, to each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.



3. About lead time,payment terms, delivery ?

Answer: We always have regular models available in stock, prompt delivery is one of our advantages. Mass production depends on quantity of order.

We accept all regular payment terms including L/C, T/T, etc.

We are near from Beijing airport and Tianjin(Xingang) seaport, transportation from our factory to Beijing or Tianjin only takes one day, fast and very economical inland charges.



4. What is the history of SOLIDKEY?

Answer: The drilling bits business was started at year 2003 only for China domestic requirement, the name SOLIDKEY was started from year 2009, now SOLIDKEY has exported to more than 35 countries and areas. We are one of the earliest Alibaba Gold Supplier members in rock bit field , now we are Gold Plus Member.



5. Do you have Referenced Letters /Recommendation Letters from old customers?

Answer: Yes, we have many referenced letters/recommendation letters issued by old customers who would like to share our stories.



Regular Models of Tricone Bits
Regular Sizes	Regular IADC	API Reg Pin	Make-up Torque(N.m)
3 7/8"(98.4mm)	126/216/637	2 3/8	4100~4700
4 5/8"(117.4mm)	126/216/517/537/637	2 7/8	6100~7500
5 1/4"(133.3mm)	126/216/517/537/637	3 1/2	9500~12200
5 5/8"(142.8mm)	126/216/517/537/637	3 1/2	9500~12200
5 7/8"(149.2mm)	126/216/517/537/637	3 1/2	9500~12200
6"(152.4mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/4"(158.7mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/2"(165mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
7 1/2"(190mm)	126/216/517/537	4 1/2	16300~21700
7 5/8"(193mm)	126/216/517/537	4 1/2	16300~21700
7 7/8"(200mm)	126/216/517/537	4 1/2	16300~21700
8 1/2"(215.9mm)	117/127/217/437/517/537/617/637	4 1/2	16300~21700
9 1/2"(241.3mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
9 7/8"(250.8mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
10 5/8(269.8mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
11 5/8(295.3mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
12 1/4"(311.1mm)	114/127/217/437/517/537/617/637	6 5/8	38000~43400
13 5/8"(346.0mm)	127/217/517/537/617/637	6 5/8	38000~43400
14 3/4"(374.6mm)	127/217/517/537/617/637	7 5/8	46100~54200
17 1/2"(444.5mm)	114/115/125/215/515/535/615/635	7 5/8	46100~54200
26"(660.4mm)	114/115/125/215/515/535/615	7 5/8	46100~54200
