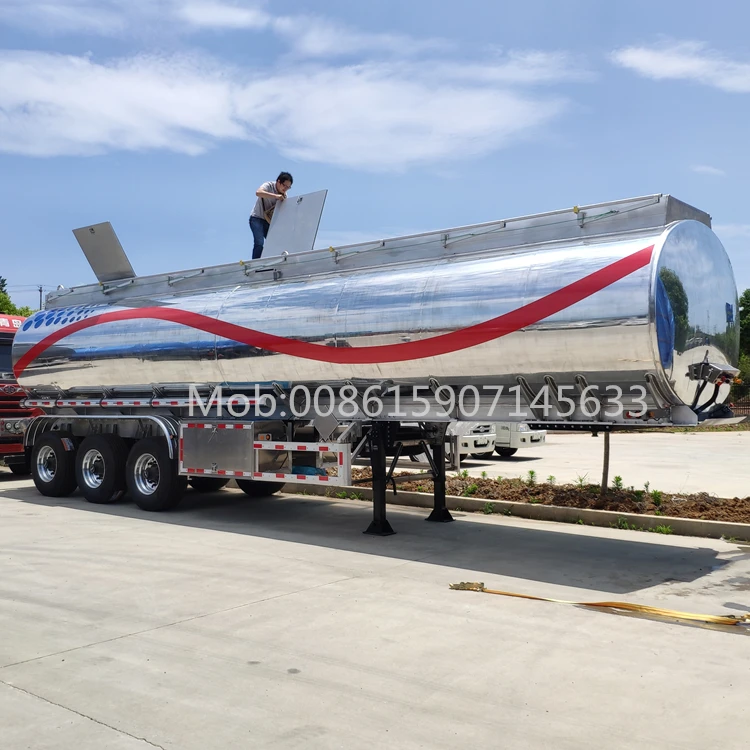

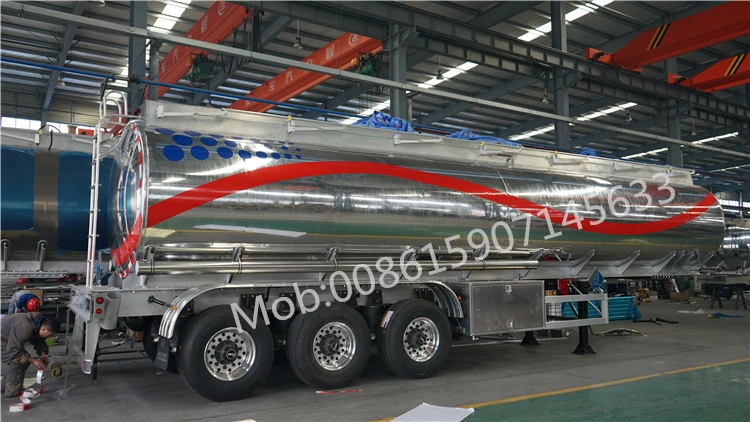

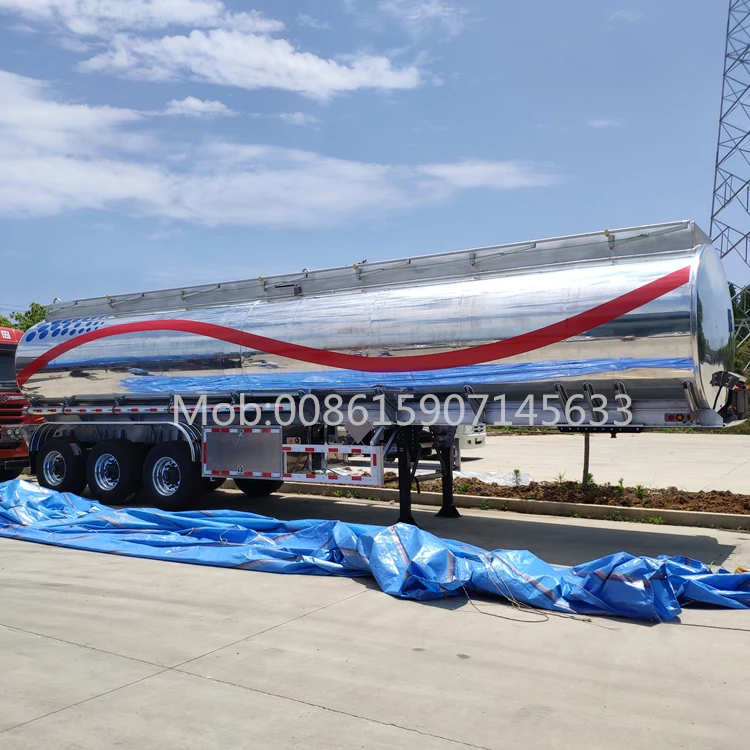

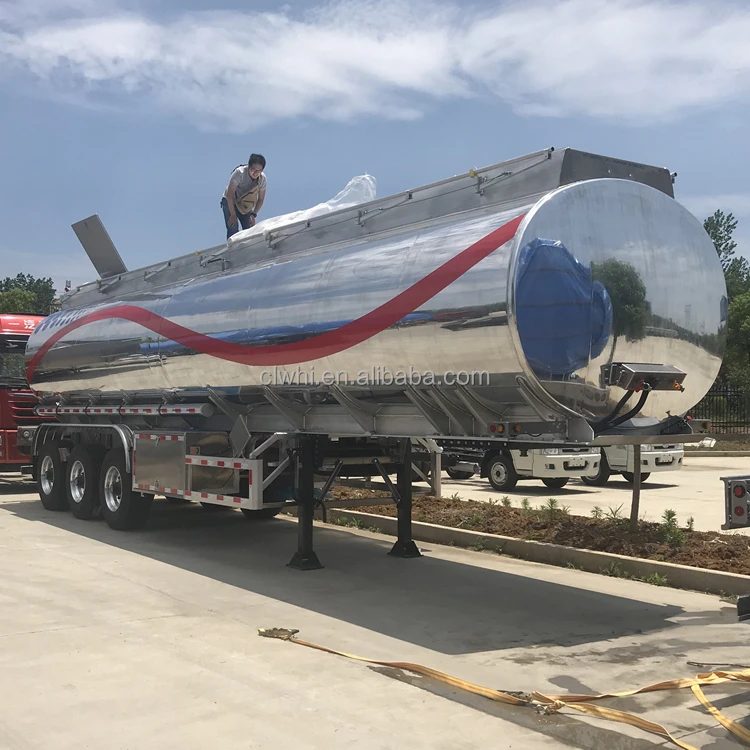

new and used 2/3 axles mirror aluminium ally tank semi trailer liquid fuel tanker truck trailer for transport

Saso aluminum fuel tanker material : shiny 5454/H32

Saso aluminum fuel tanker thickness :5.5/6mm

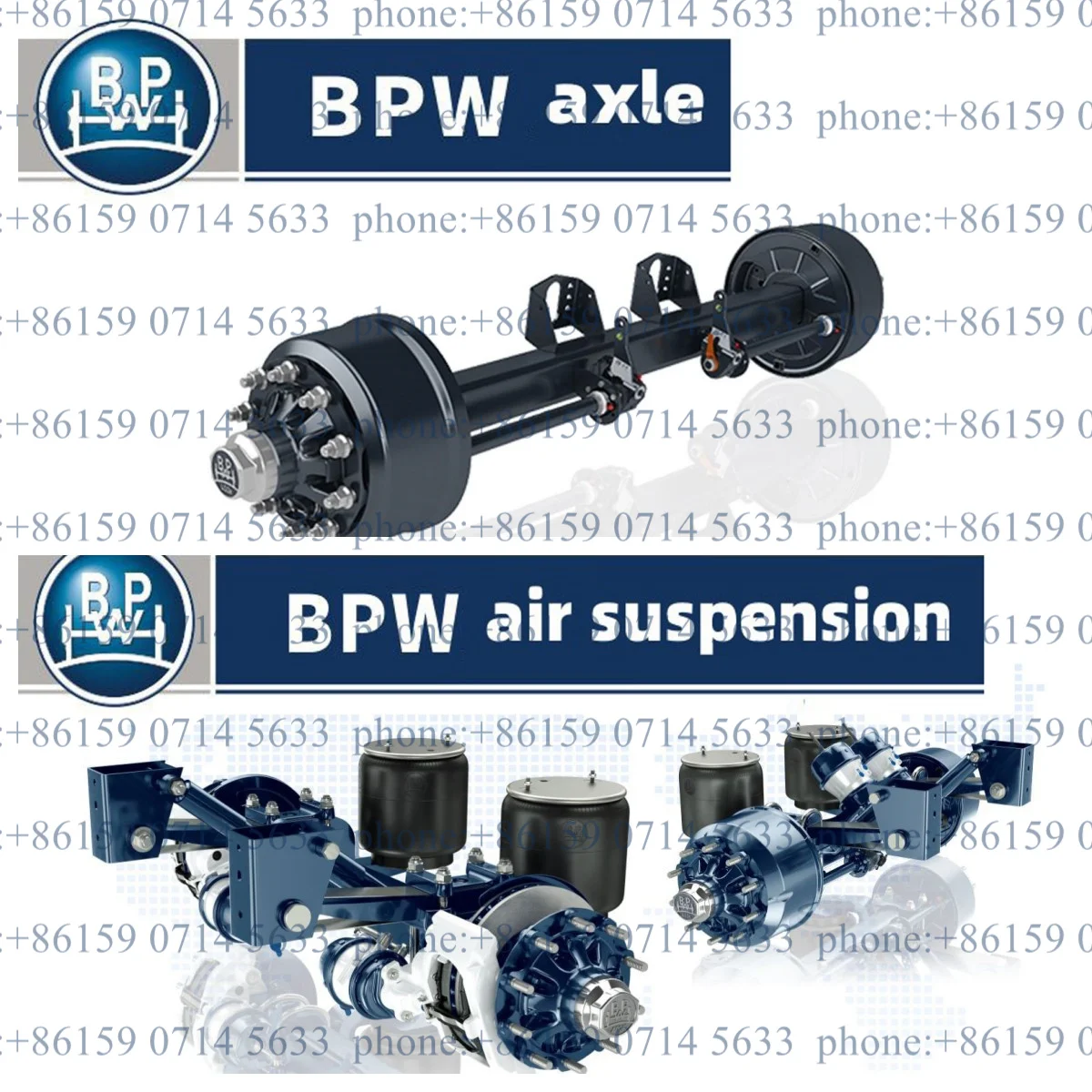

Saso aluminum fuel tanker axles: BPW or Fuwa 9Tons/10Tons
Saso aluminum fuel tanker Tires : Single tire, Hankook or Michelin 6+1pcs

More details of shiny aluminum alloy Fuel tanker, please contact with Ms.Marilyn

Mobile / Whatsapp: +86 15907145633

Wechat : 008615907145633

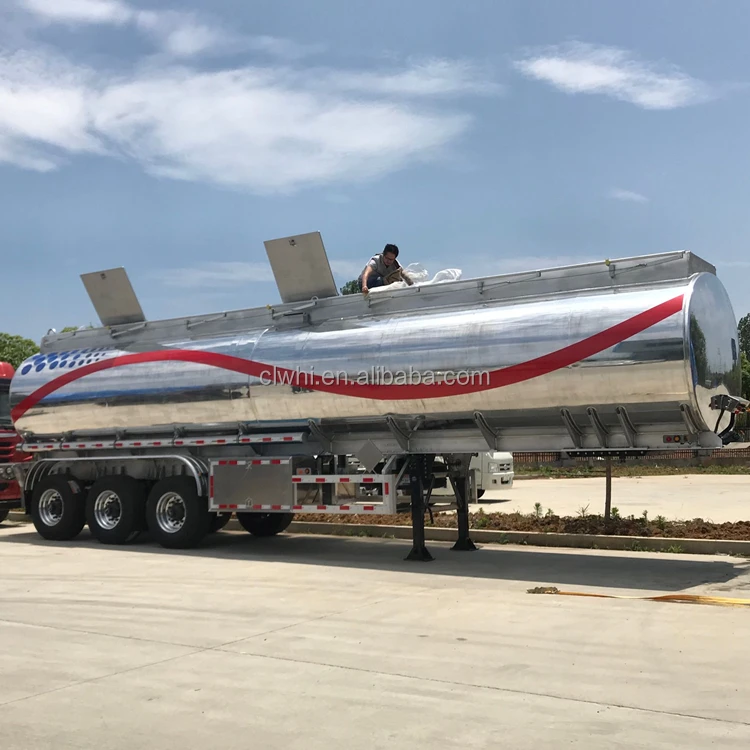

ALUMINUM FUEL TANKER TRAILER 42 M3

TECHNICAL SPECIFICATION

General:

The tanker trailer is designed for loading and transporting fuel.

Working pressure 75psi, testing pressure 1.5 times working pressure.

Transport medium:

 Fuel with density between 0.74kg/L and 0.87kg/L

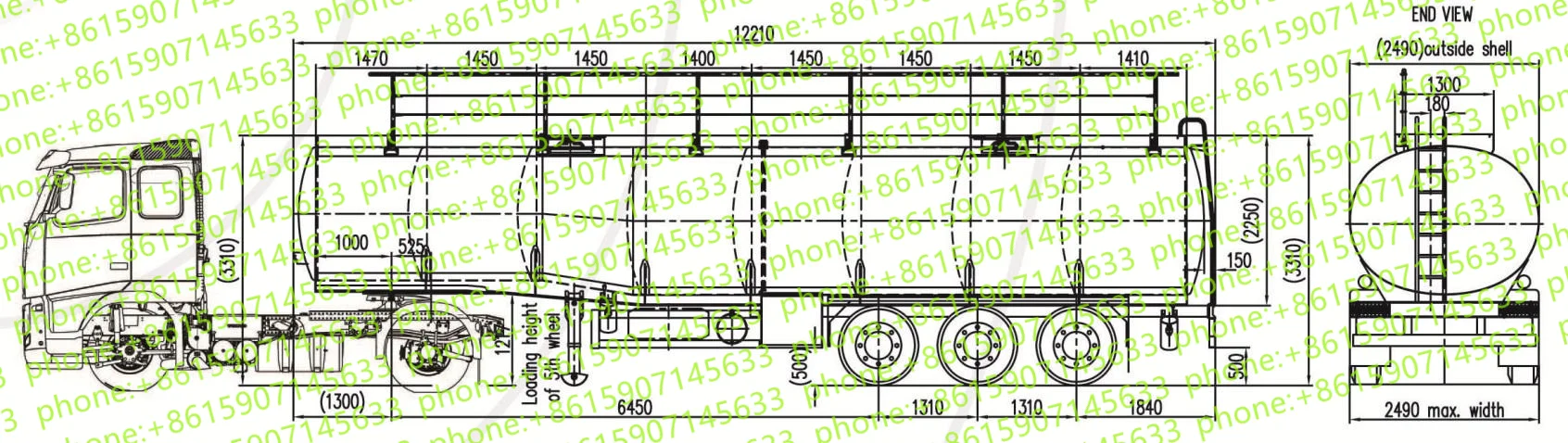

Dimension (mm):

 External (length x width x height) (mm) :        12,000 x 2,490x3,310

 Fifth wheel height (unload):                   1,319

 King pin Height:                            1,217

 King Pin Setting:(kingpin to front end ):          1,300

 Wheel Distance (king pin to second axle):         7,760

 Alex space:                                 1,310+1,310

 Landing Gear Location(from the king pin):        2,240

Chassis :

Axle : Fuwa brand axles,3pcs

Suspension : air bag suspension system.

Tire : Hankook brand, 385/65R22.5 158L 18PR

Tank Accessories and Fittings:

Manhole:

Two 20  diameter manhole with 20EMCO manhole cover, 10fill /vent,

Pressure Vacuum vent and emergency vent included in manhole assembly

Protecting cover for manhole is provided

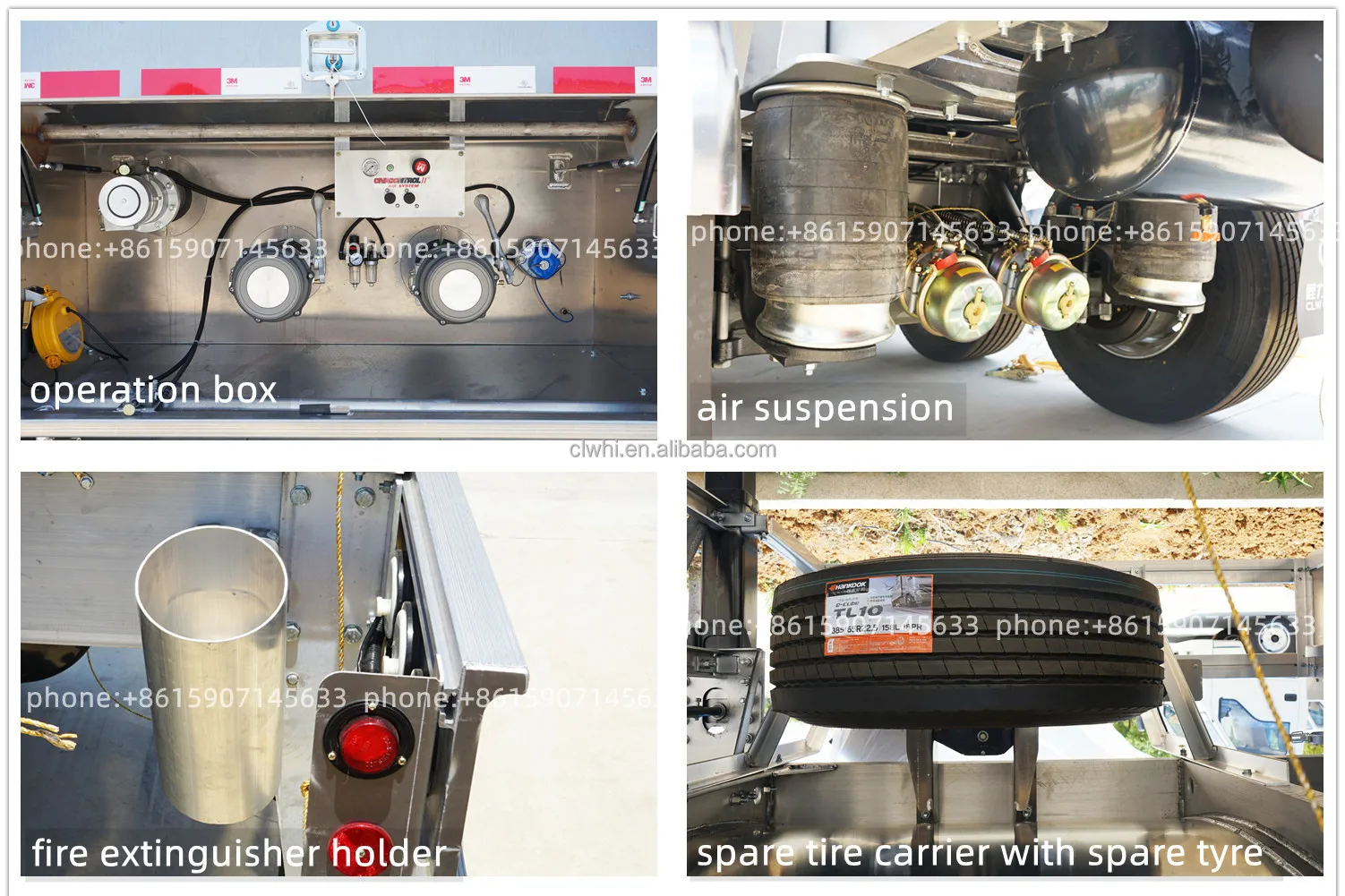

Discharge system:

Bottom loading & gravity discharge system:

1. Foot Valve : Two 4EMCO pneumatic foot value on the bottom of the tanker. one is in the front /middle of tank; the other is at the rear of tank.

2. 4aluminum alloy pipe line, outlet located at the middle of tank, right, with sight glass.

3. Two 4EMCO API adaptor with aluminum dust cap on the right side of the tanker ( horizontal installation)

4. The API adaptors are to be fitted at height of between 705mm and 850mm

5. All outlets are in the aluminum alloy box.

6.Outlets box equipped with sliding door and sealing opening

7.Trailer brake to be applied when bottom loading valves are on operation.

Braking System:

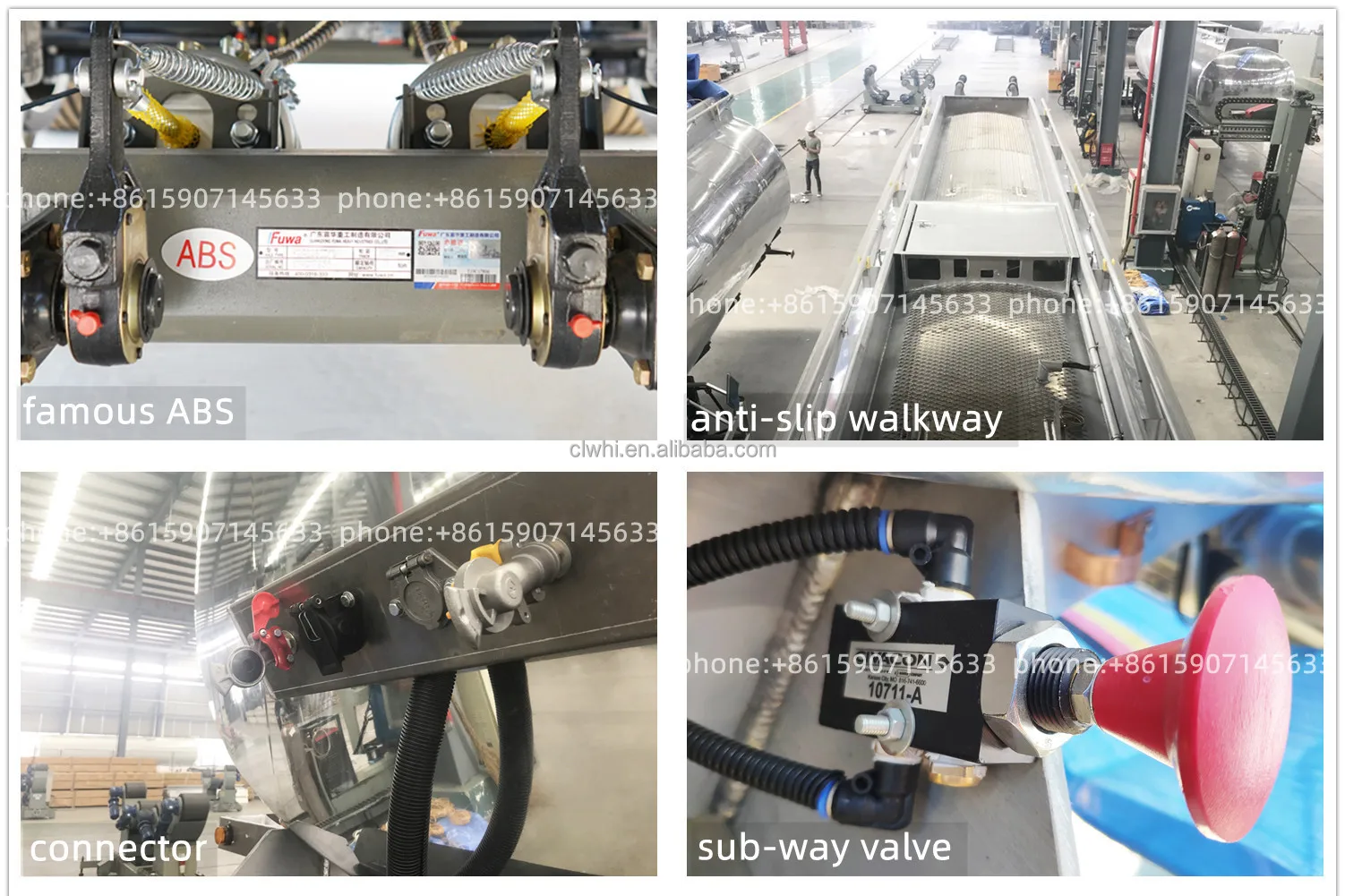

WABCO twin lines air brake system, with 4s/2m ABS.

HALDEX 30/30 type brake chambers on rear axle,

30 type on front two axles. Aink and tubes are made in china.

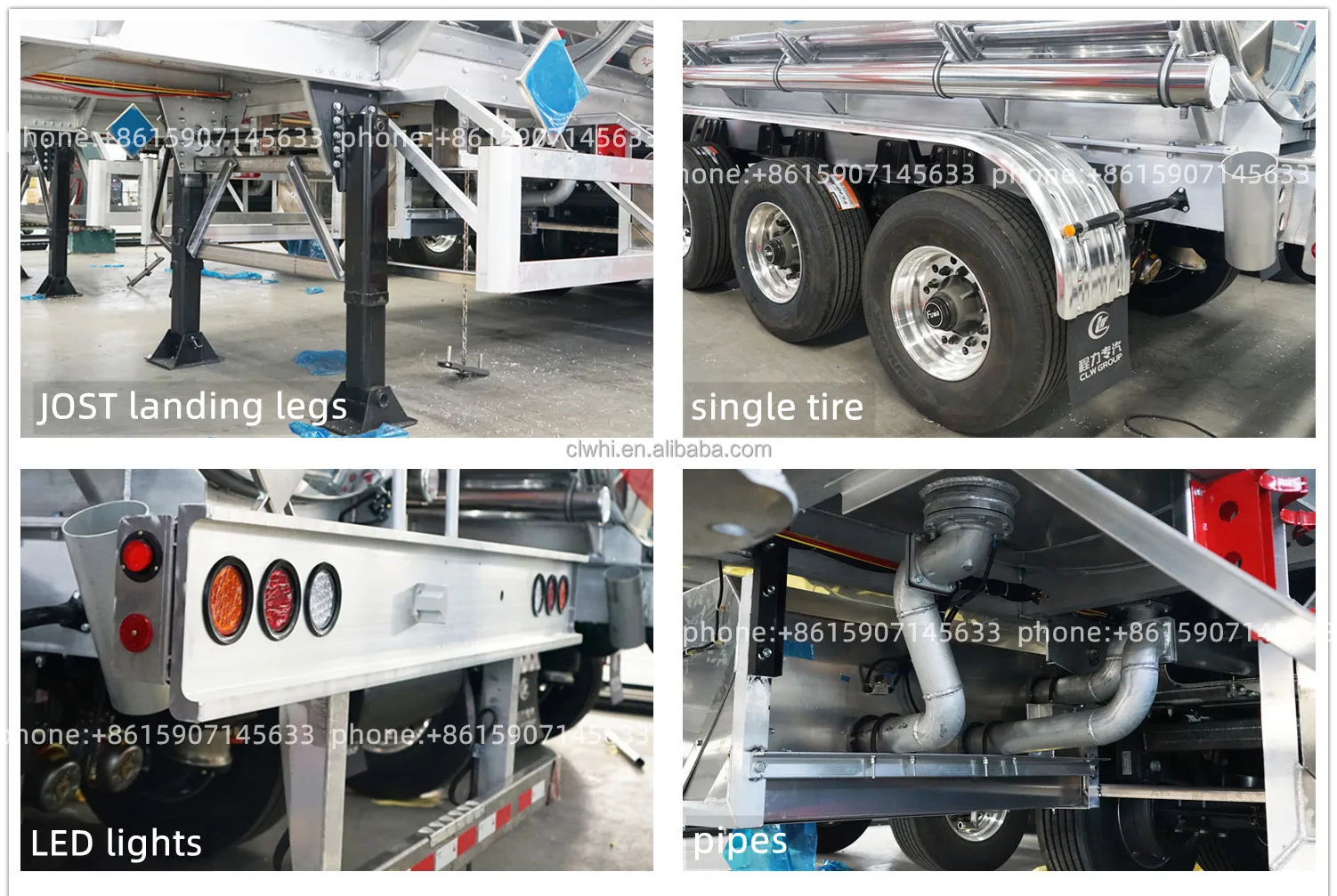

Landing Gear:

JOST two speed with sand shoe, model:A400.

King Pin:

JOST 2 inches diameter, bolt-on, model:KZ1010

Painting:

Aluminum surface no painting, shiny finish, steel surface silver paint.

Electrical System:

ADE approved lighting and electric system

24 Volt lighting system with LED lights at both sides and rear of the tanker

Harness: oil and vapor proof cable;

Side clearance and vapor proof cable

Side clearance/marker light: five PCS each side, amber

Tail light (including stop light, rear turn light and marker light): one pc/side, red/ amber:

License light: one pc white

Accessories:

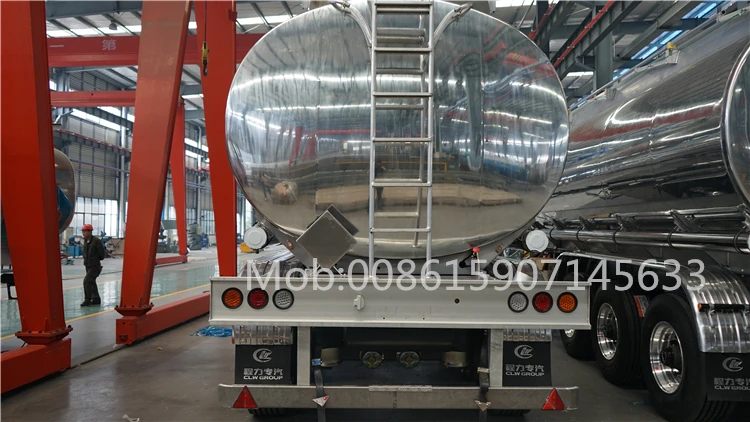

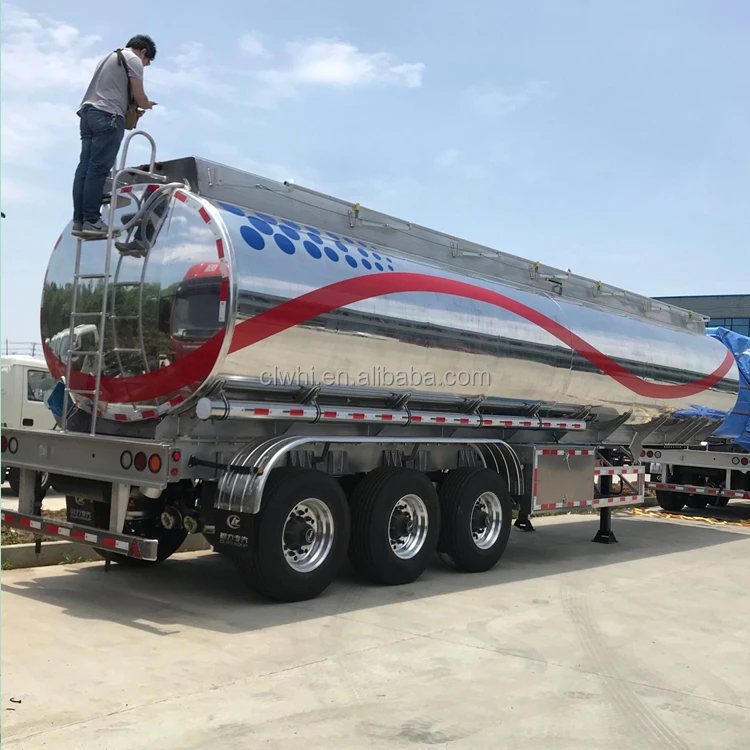

1. Ladder: A detachable ladder is equipped in the rear of the tanker made of aluminum

2. Walkway: Anti-skid aluminum walkway along the entire length of the tanker

3. Handrail: Aluminum alloy fixed on the top tank and can be used to rise

4. Fire extinguish box: Two boxes are fixed on the left and right side of the trailer made of steel.

5. Fire extinguisher :Four pieces

6. Fender :Mudguard with mud Flaps

7. Spare Tire Carrier: Equipped one sets per trailer made of steel

8. Tool Box: Equipped one sets per trailer, on the left side made of aluminum

9. Water Tank: Equipped one, plastic material ,50l

10. Side Guard: Made of Aluminum, on rear tank.

11. Drainage tube: made of aluminum, on rear tank.

12. Fist Aid Kit: One piece.

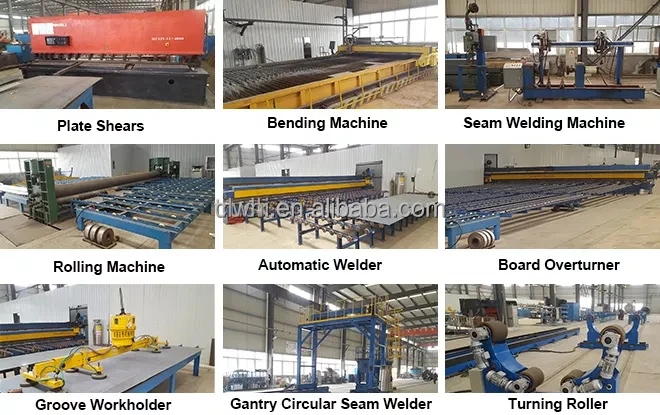

CLW Heavy Industry Co., Ltd., which is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our leading products are water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. Chengli series trucks have occupied the interior market for many years and have procured remarkable achievements. Our survival is based on the quality. We guarantee high quality but low price. Chengli Special Automobile is willing to serve for you, and is looking forward to your coming to visit our company.

Shipping way:Ro-ro ship,bulk ship,20GP,40GP/HQ/OT/FR both can accept

Marilyn Mo

Sales Manager

CLW Heavy Industry Co., Ltd.

Mobile/WhatsApp/WeChat: 0086-15907145633

Email: marilynmo@clwhitruck.com

Address of Foreign Business Department: Room 3104, Block 7, Oceanwide International, Huanhai Road, Jiangan District, Wuhan City, Hubei Province, China

Address of Factory: Special No. 1, Xiaotian Ave., Qijiawan Street, Wuhan, Hubei, China

Pls contact me to get the latest price.

And pls contact us before place the order.
