Product Description

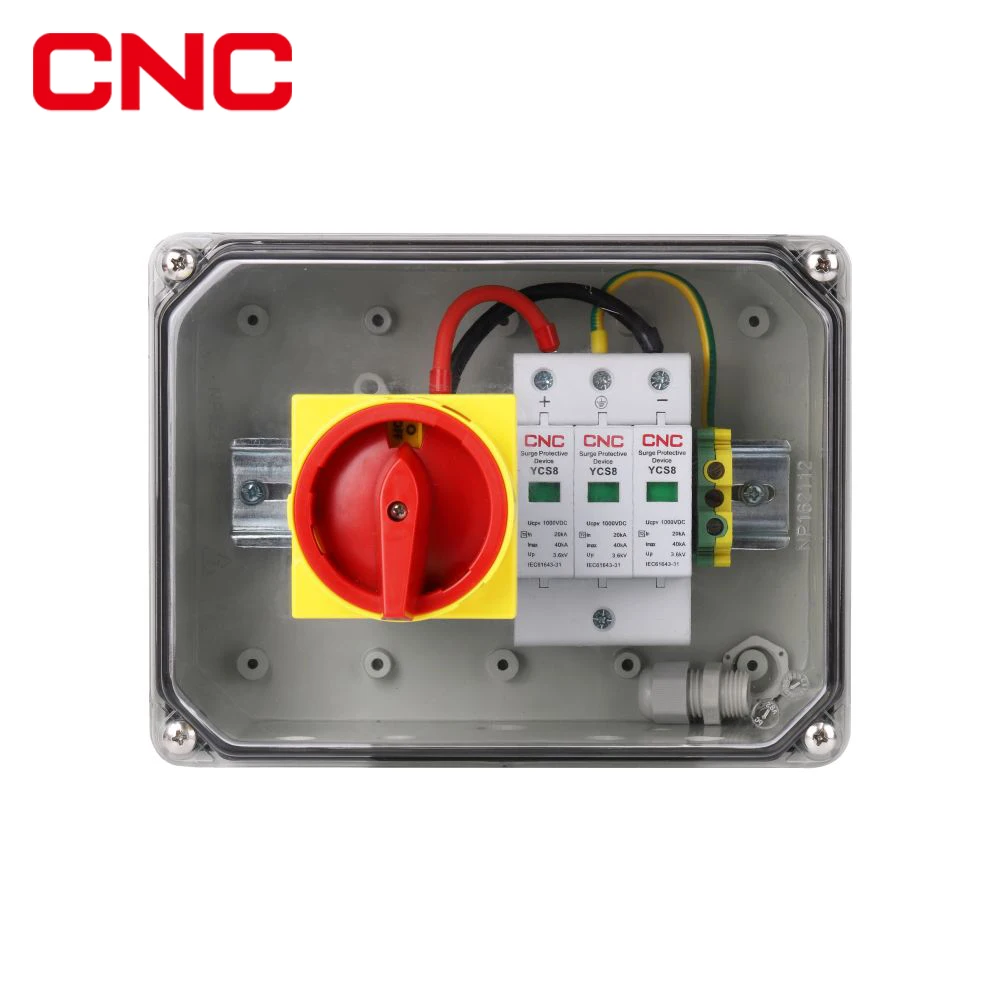

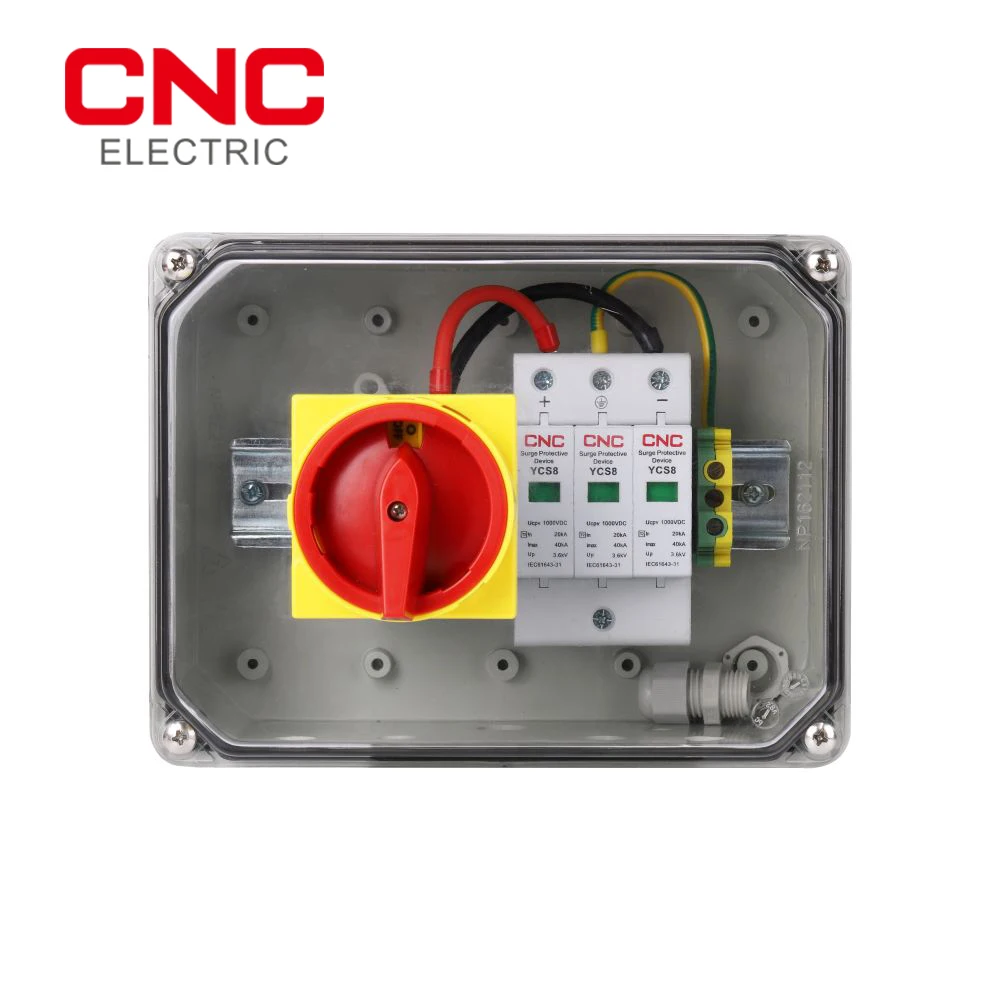

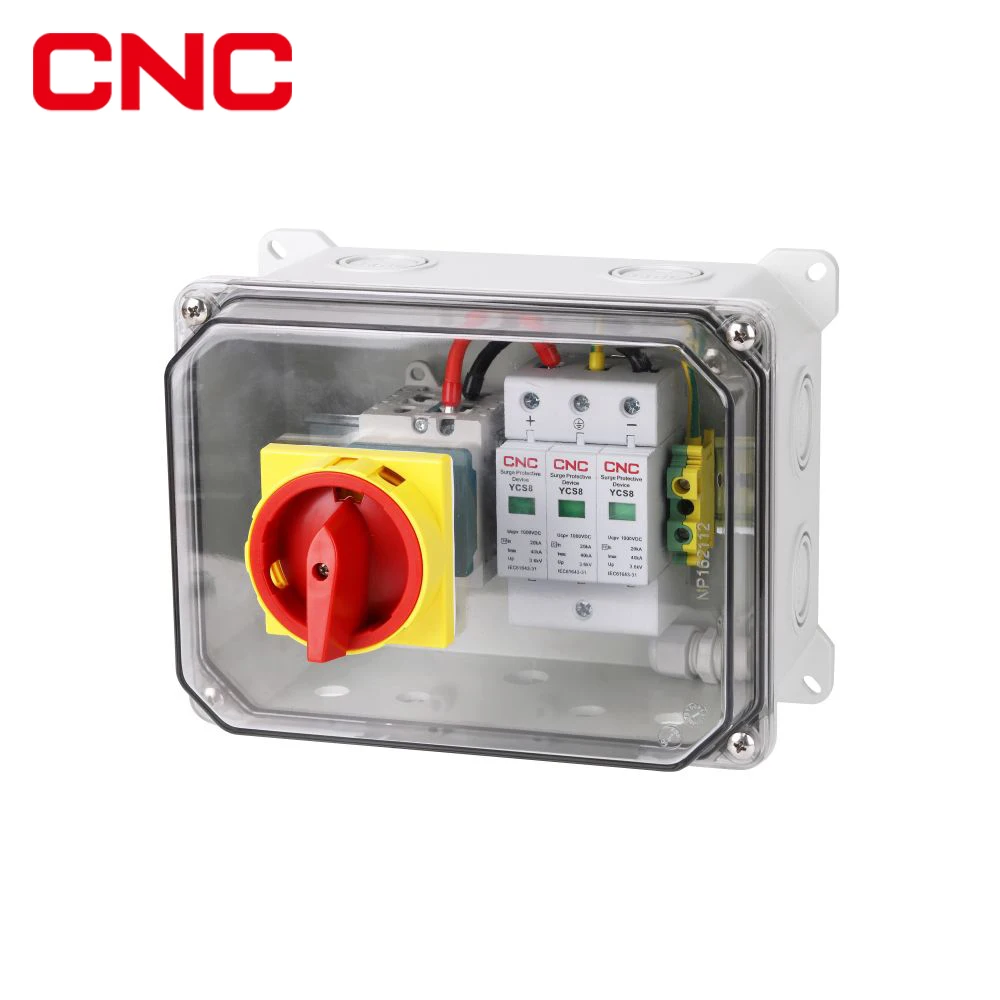

YCX8-DIS PV Switch Box Dc Solar Panel PV 6 String Solar Power System Connection Photovoltaic Combiner Box

solar panel combiner box

Product Detail

Maximum output current	16/32A
Maximum voltage	1000VDC
Input/Output	1/1 2/2 3/3 4/4 6/6 8/8 strings
Maximum discharge current	40KA
Protection degree	IP65
Standard	IEC 60947-3
Installation	Wall mounting
Impact resistance	IK10
DC SPD Model	YCS8-II 40PV DC1000
Ingress protection	IP65
Product Keywords	solar panel combiner box,combiner box solar,combiner box 6 string

General

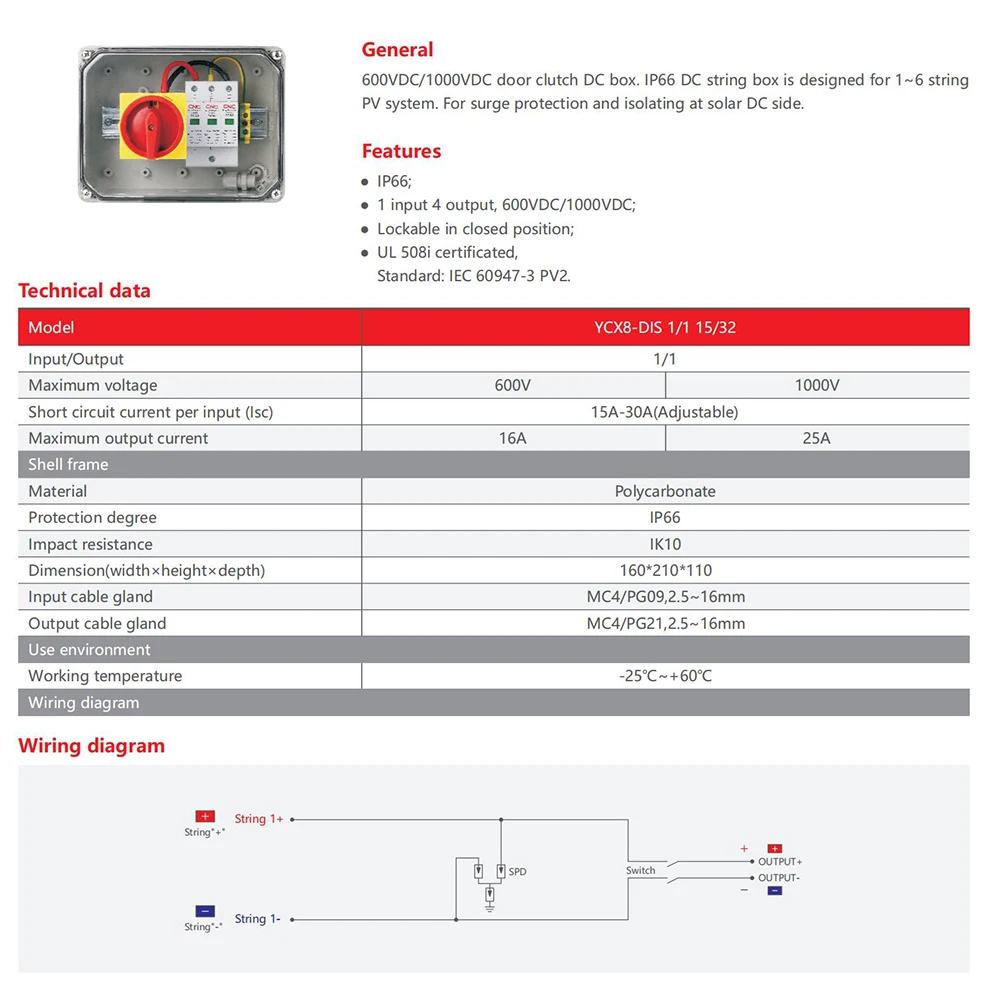

YCX8-DIS Door Clutch Combiner is 600VDC/1000VDC door clutch DC box. IP66 DC string box is designed for 1~6 string

PV system. For surge protection and isolating at solar DC side.

Features

1~8 Strings

DC1000V

16A/32A

3ms arc suppression

Lockable in closed position

Lightning&Isolation protection

IP65
