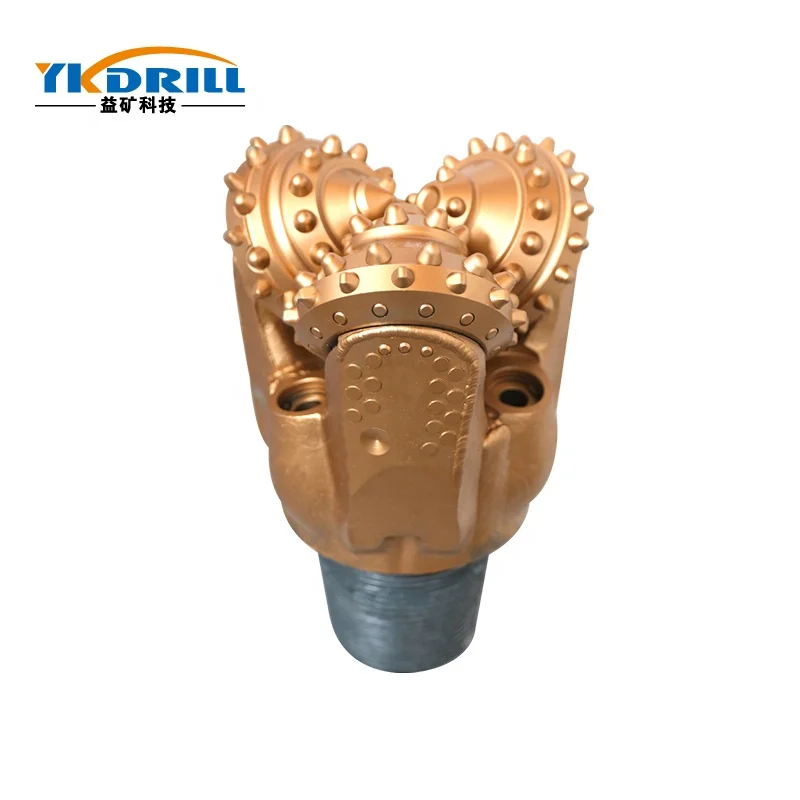

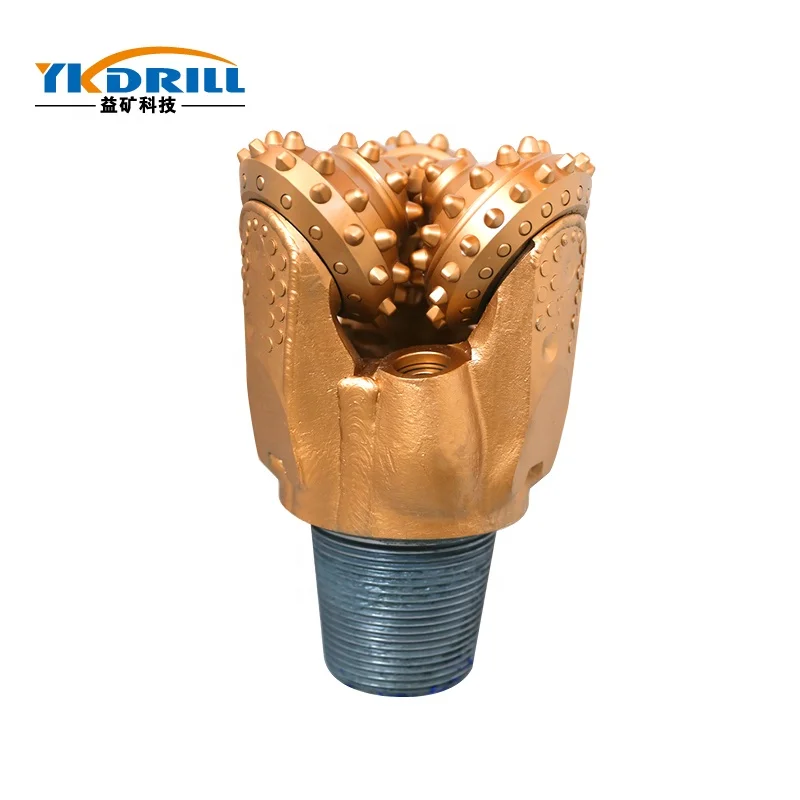

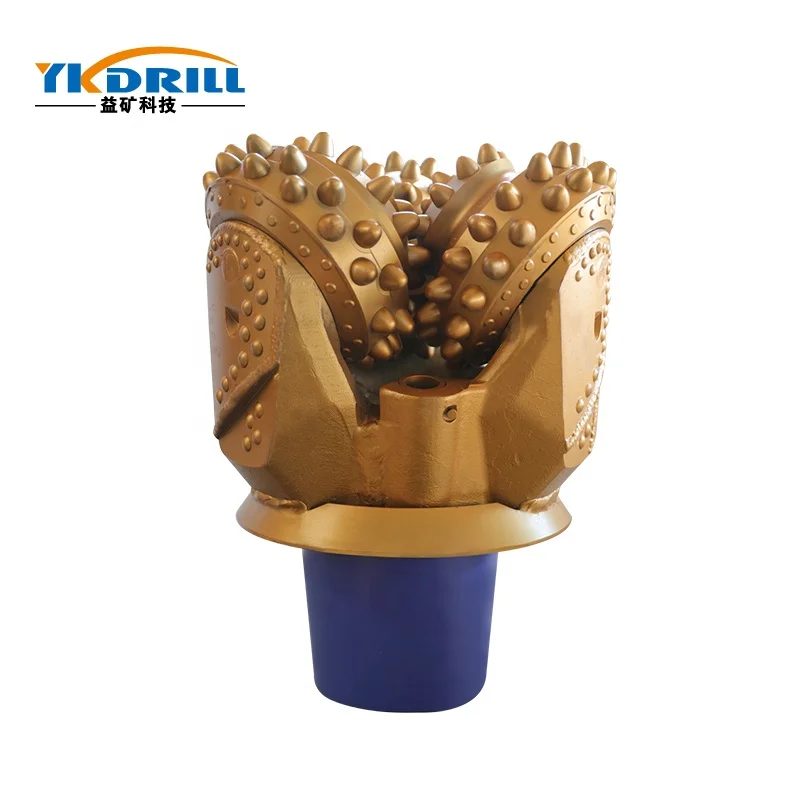

7' IADC 637 tricone rock drill bit API rubber sealed bearing for water wells
- Category: >>>
- Supplier: Shandong Yikuang Drilling Technology Co. Ltd.Shandong Ltd.
Share on (1601144460610):
Product Overview
Description
Product Description

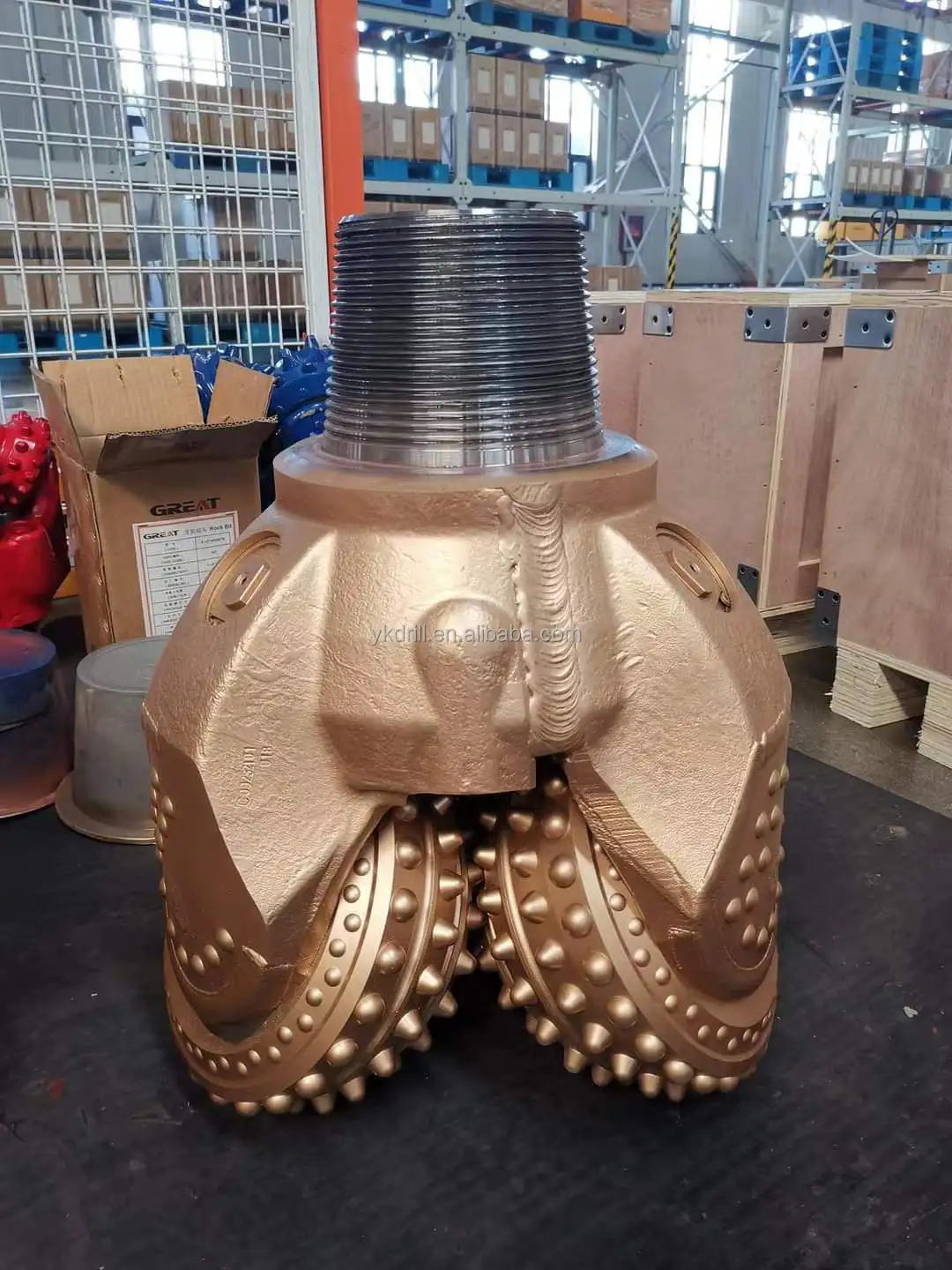

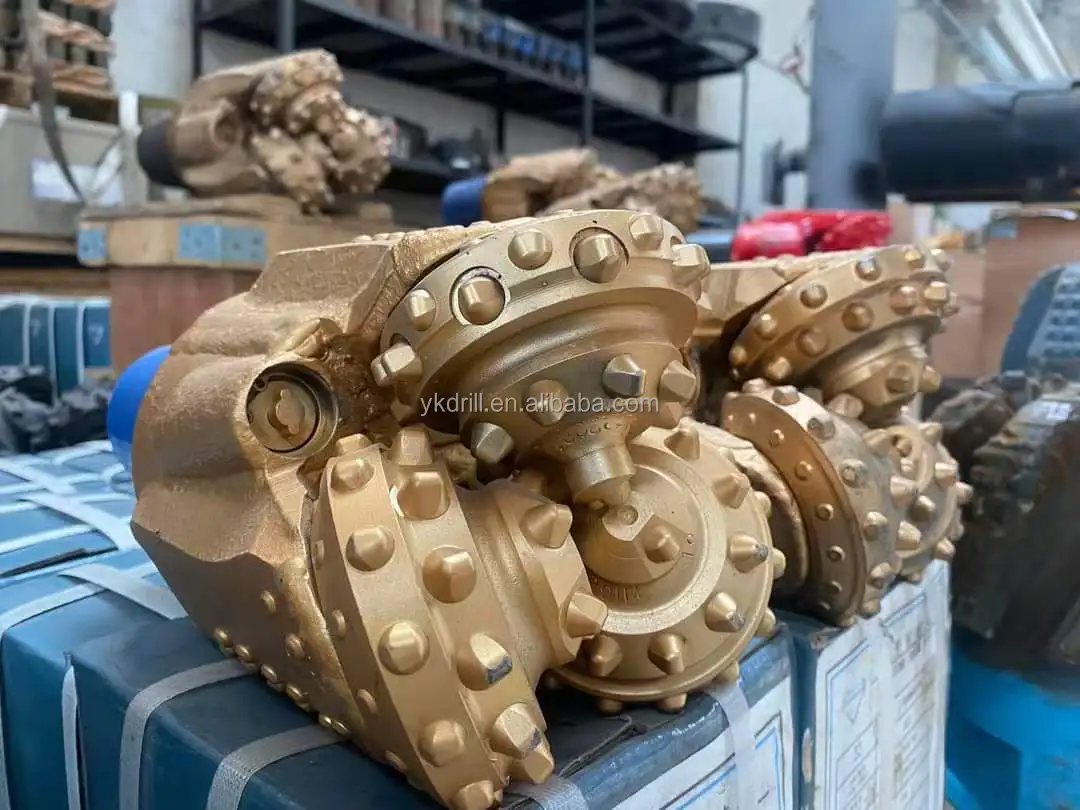

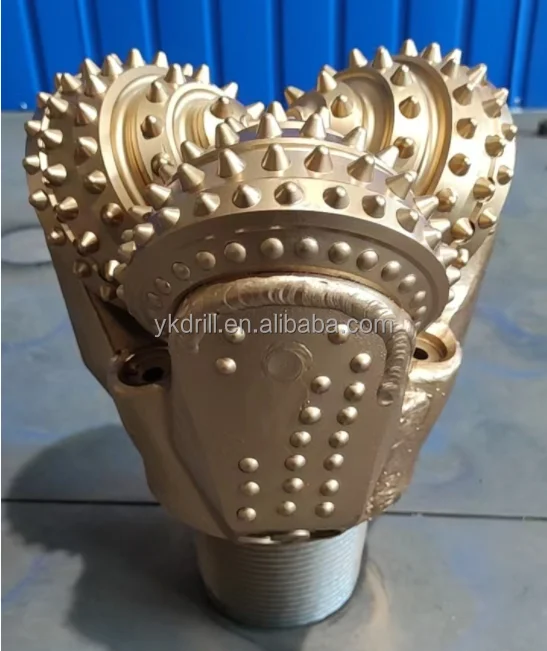

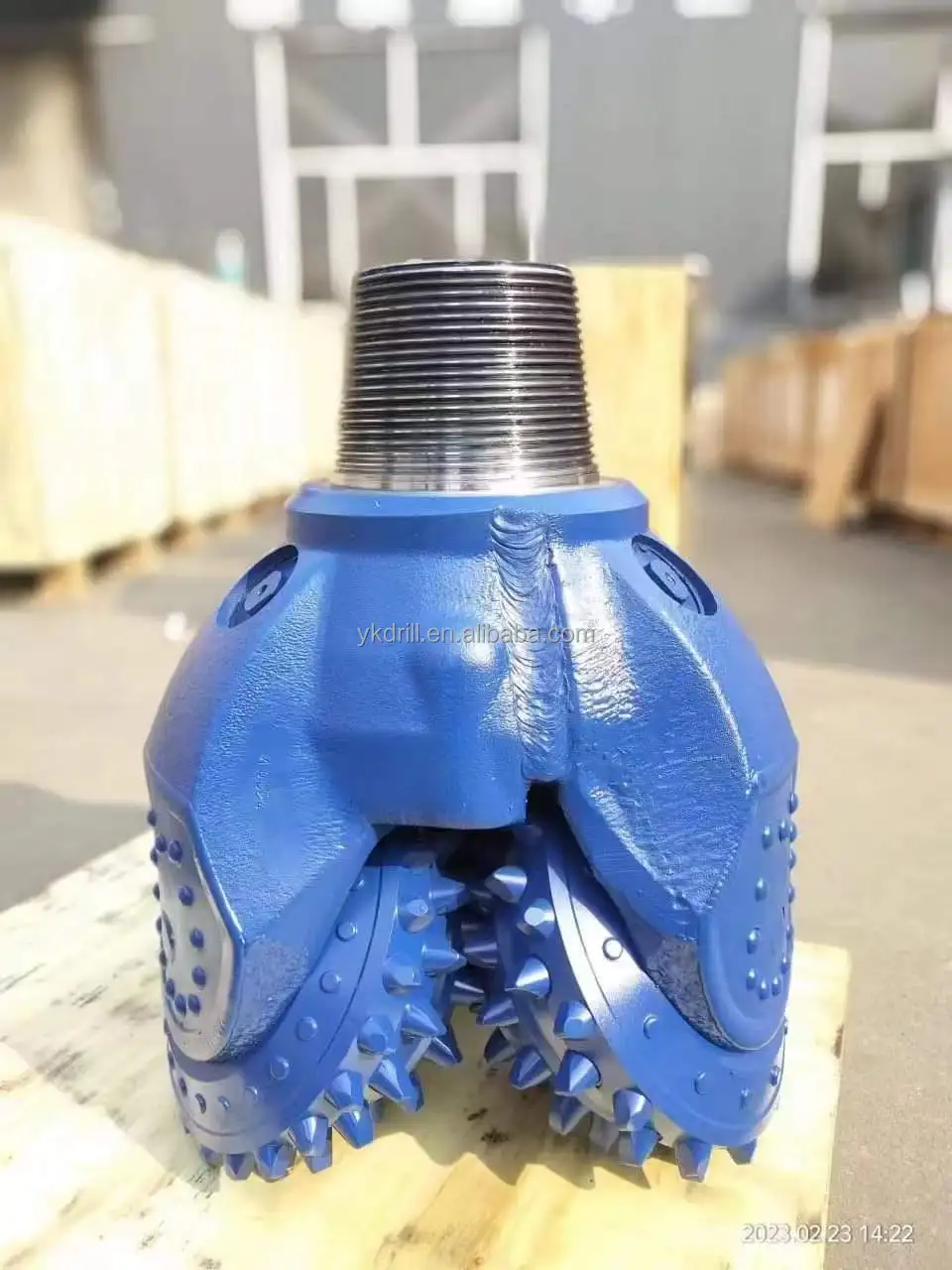

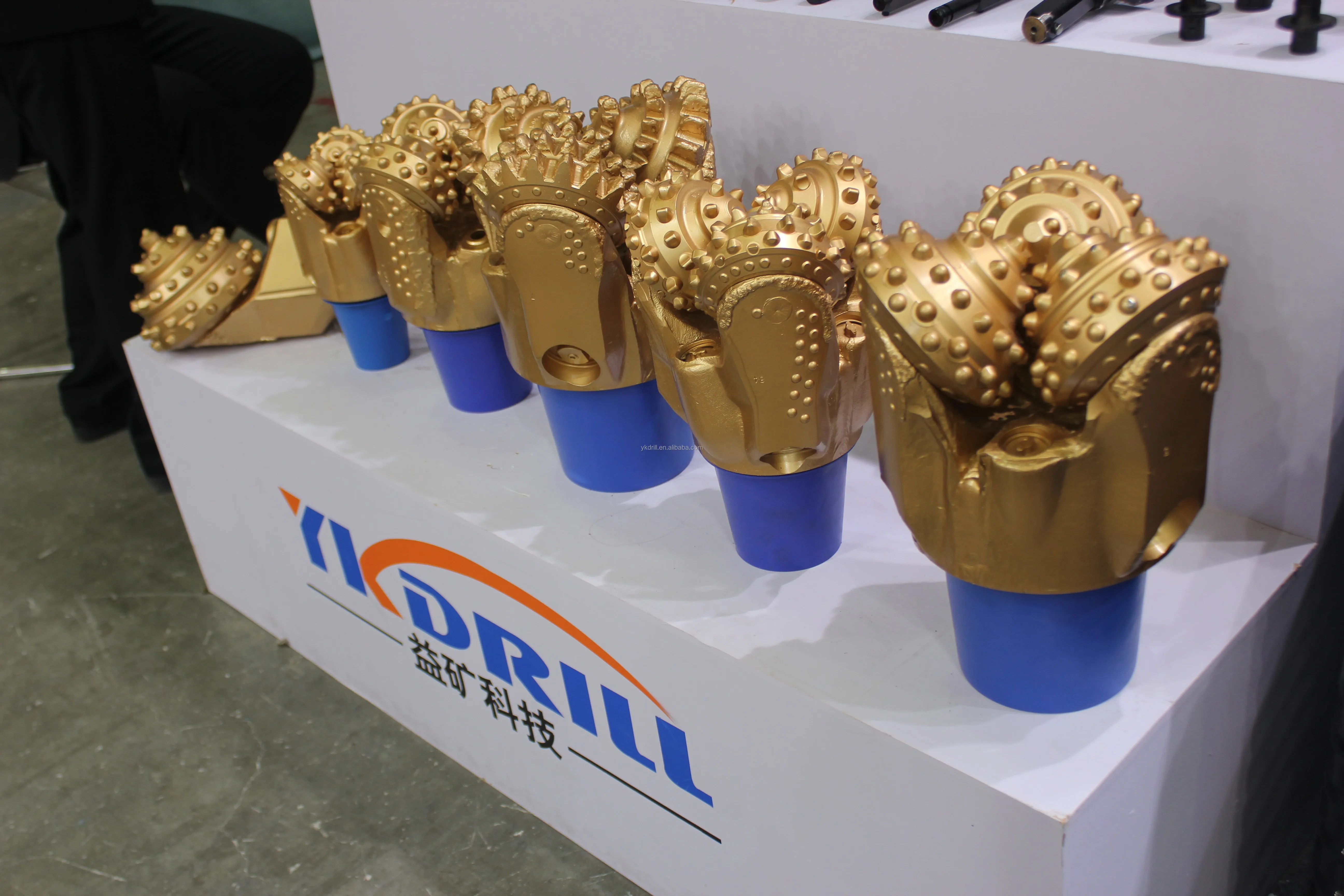

Tricone Drill Bit

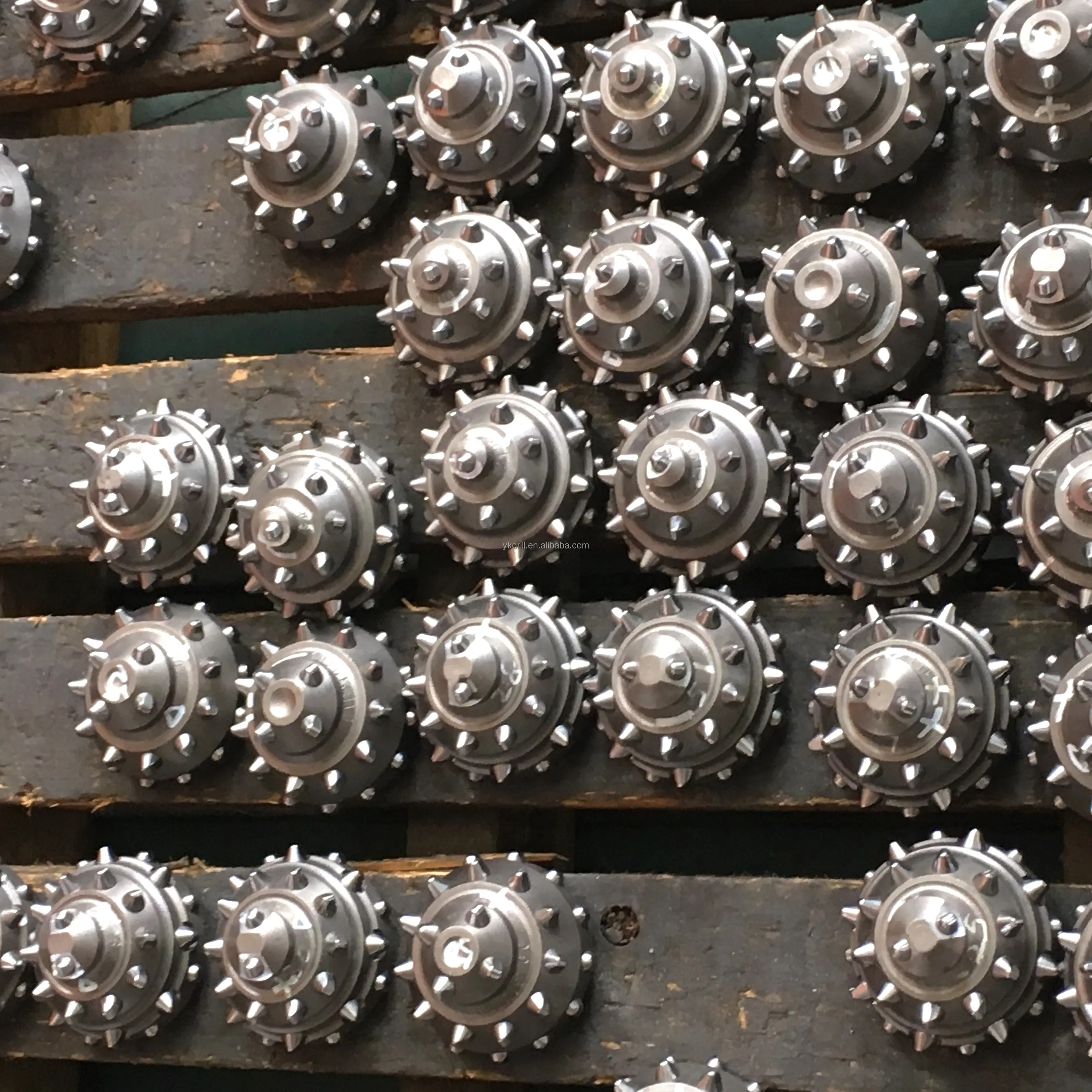

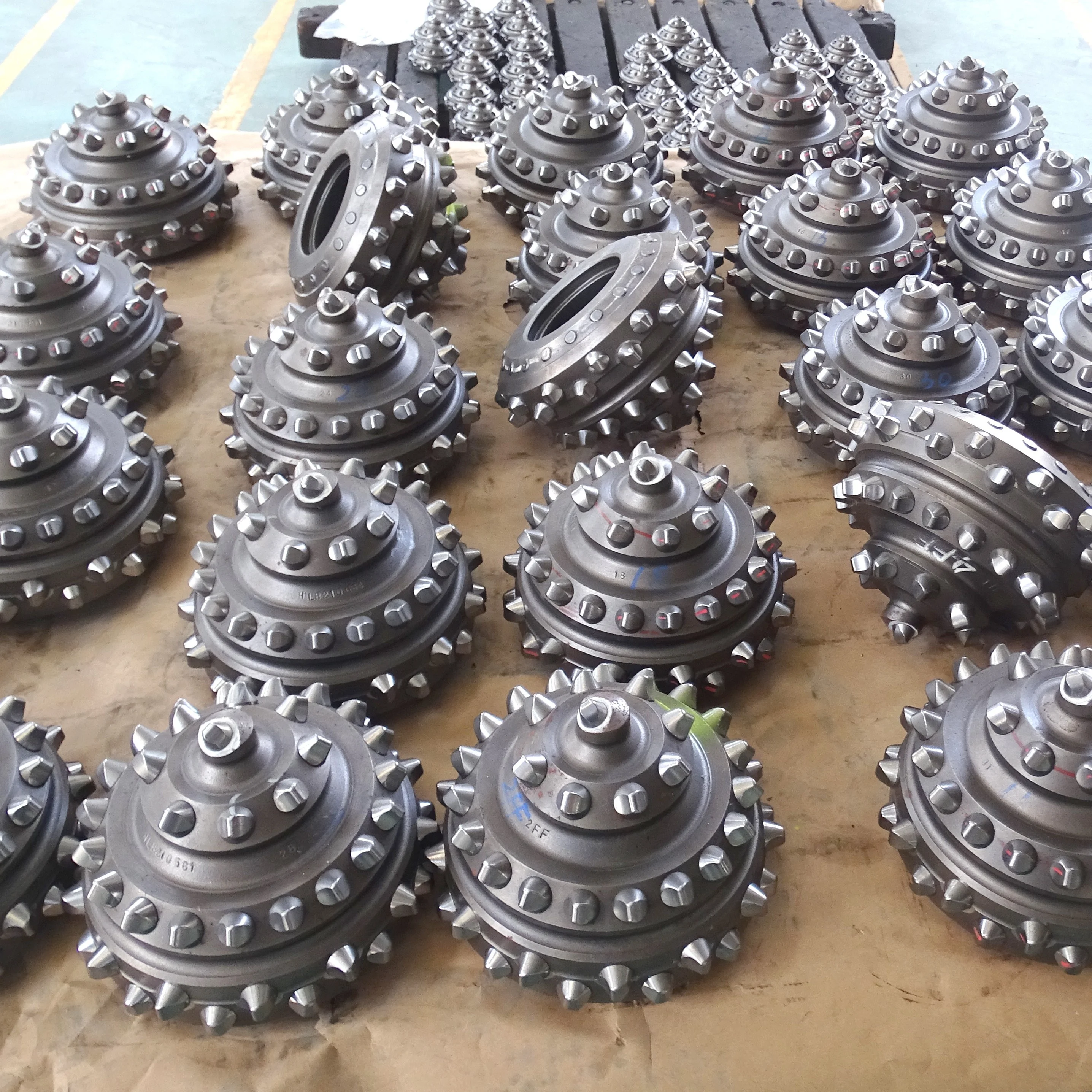

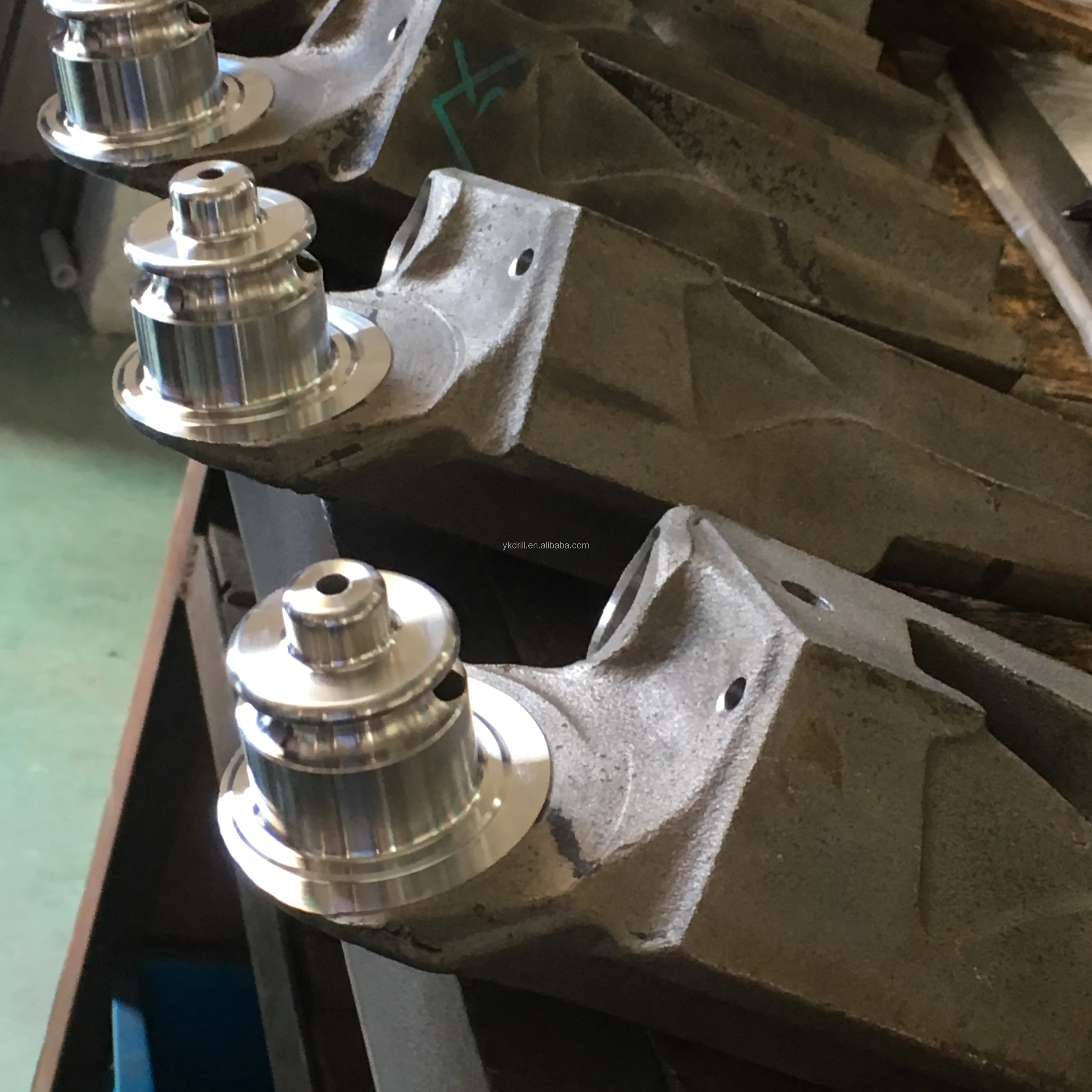

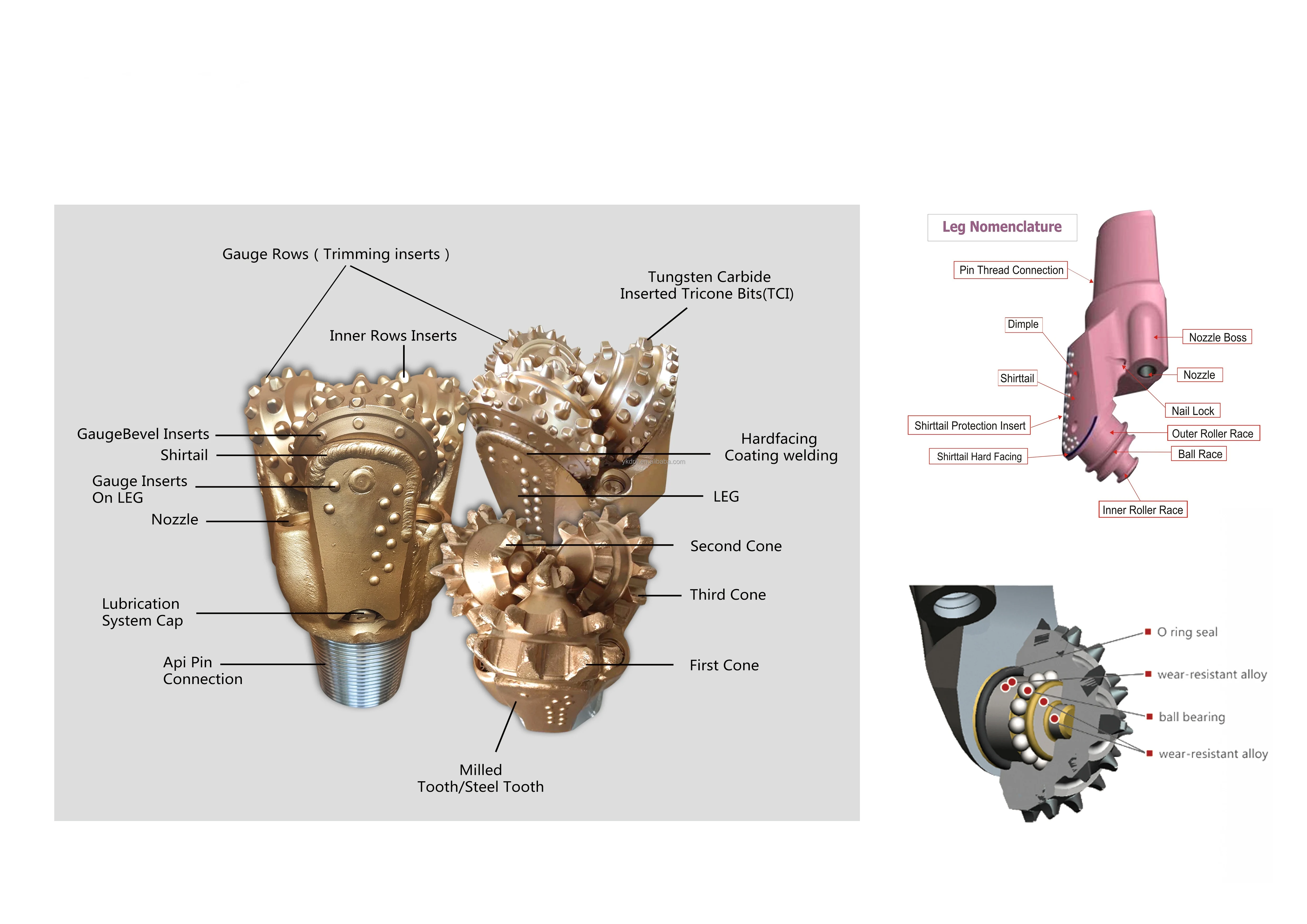

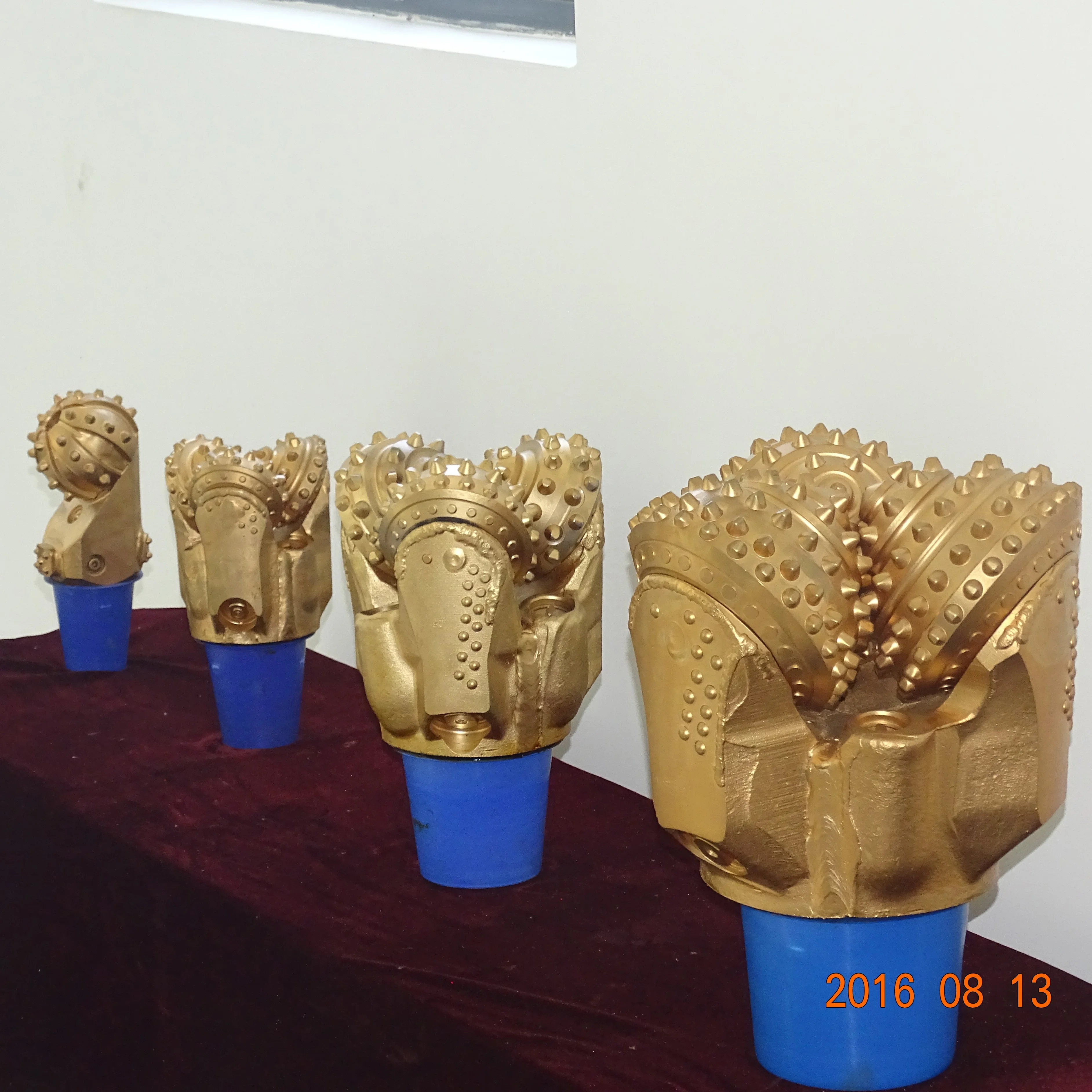

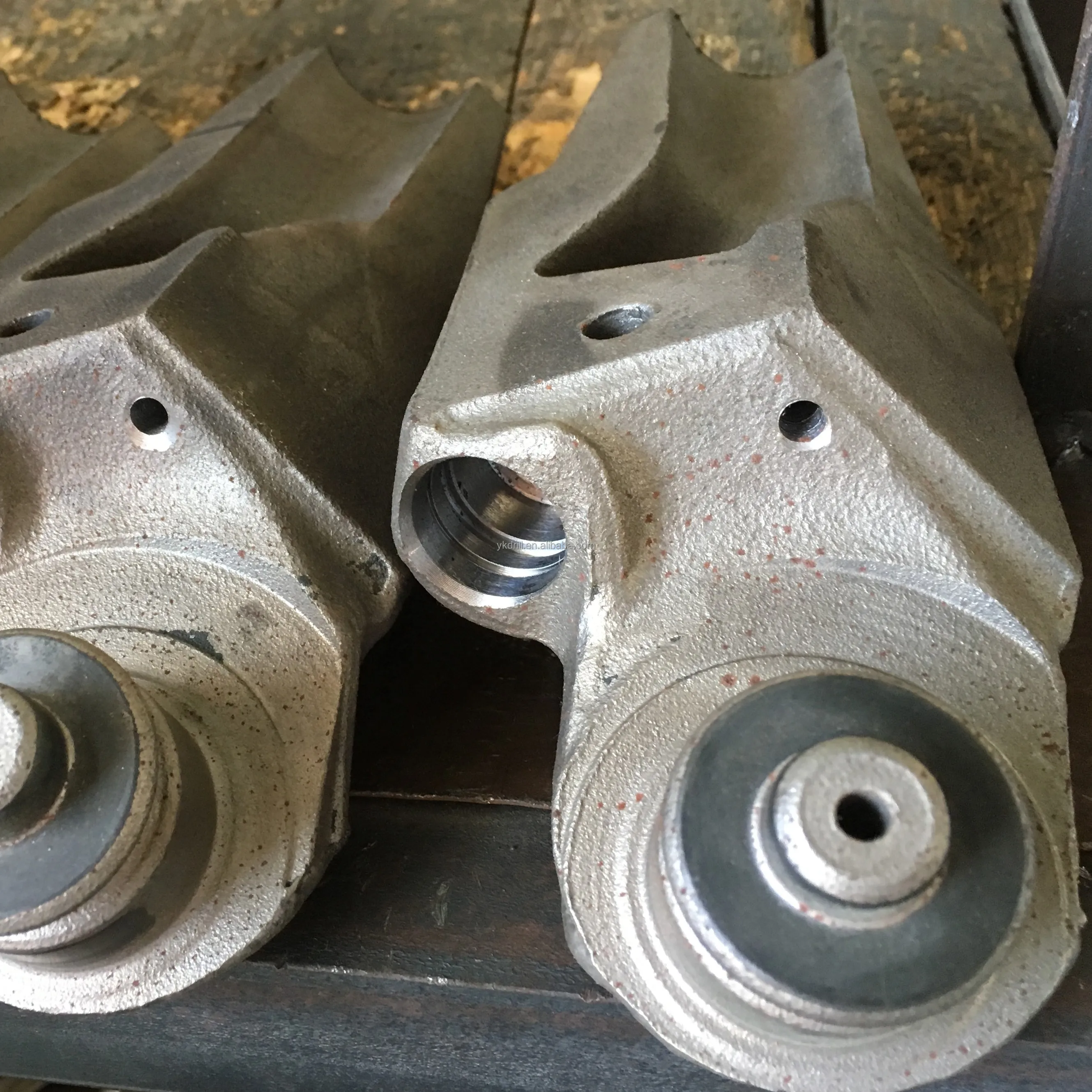

The tricone bit is one of the widely used drilling bits. It has the characteristics of adapting to a wide range of formations and high mechanical drilling speed. The tricone drill bit is composed of more than 20 parts such as cutting structure, bearing structure, locking element, oil storage sealing device, and nozzle device. The main products include series of mining drill bits with sizes ranging from 3'' to 28'', and mining drill bits of other sizes can be designed according to user requirements. In order to meet the special needs of drilling and formations, Yikuang Technology has continued to innovate in drill bit structures, and has developed new technologies such as palm back strengthening, palm back centering, anti-backflow valves, and special diameter protection of cones. Promote the application of drill bit products to improve the quality and performance of drill bits.
Under the action of the drilling pressure and the rotation of the drill string, the teeth of the roller cone bit crush and eat into the rock, and at the same time, a certain amount of sliding occurs to shear the rock. When the cone rolls at the bottom of the well, the teeth on the cone impact and press into the formation in sequence. This action can crush part of the rock at the bottom of the well, and at the same time, the shearing effect caused by the sliding of the cone cuts away the remaining rock between the teeth. Part of the rock breaks the rock at the bottom of the well, allowing the wellbore to extend.
IADC | Pressure(KN/mm) | Drill speed(r/min) | Applicable strata |
417/427 | 0.3-0.9 | 150-70 | Very soft strata have low compressive strength and high drillability, such as mudstone, gypsum, salt, soft shale, soft limestone, etc. |
437/447 | 0.35-0.9 | 150-70 | |
515/525 | 0.35-0.9 | 180-60 | Soft strata have low compressive strengthand high drillability, such as mudstone, gypsum, salt, soft shale, soft limestone, etc. |
517/527 | 0.35-1.0 | 140-50 | |
535/545 | 0.35-1.0 | 150-60 | Soft to medium-soft has low compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone, forming medium-hard and hard grinding interlayer. |
537/547 | 0.4-1.0 | 120-40 | |
617/627 | 0.45-1.1 | 90-50 | High compressive medium-hard formation strength, such as hard shale, limestone, sandstone, dolomite, etc. |
637 | 0.5-1.2 | 80-40 | Hard strata have high compressive strength, such as sandstone, limestone, dolomite, gypsum, marble, etc. |
737 | 0.7-1.2 | 70-40 | Hard strata have high compressive strength, such as hard limestone, dolomite, etc. |
827/837 | 0.7-1.2 | 70-40 | Extremely hard strata with high compressive strength and abrasiveness, such as hard limestone, dolomite, hard sandstone, chert, etc. |
Specification
item | value |
Condition | New |
Warranty | 1 Year |
Applicable Industries | Construction works , Energy & Mining |
Weight (KG) | 24 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Place of Origin | China |
Shandong | |
Brand Name | YKDRILL |
Type | DRILL BIT |
Machine Type | Drilling Tool |
Material | Carbon steel |
Processing Type | Forging |
Use | Well Drilling |
Bit diameter | 7'' (177.8mm) |
IADC | 637 |
Usage | Water welll |
Thread | 3 1/2" API REG |
For Rock hardness | High compressive strength hard formation |
Color | Gold and Customizable |
Certification | ISO9001:2015 |
MOQ | 1PCS |
Packing | Wooden Box |
Quality | High Quality |

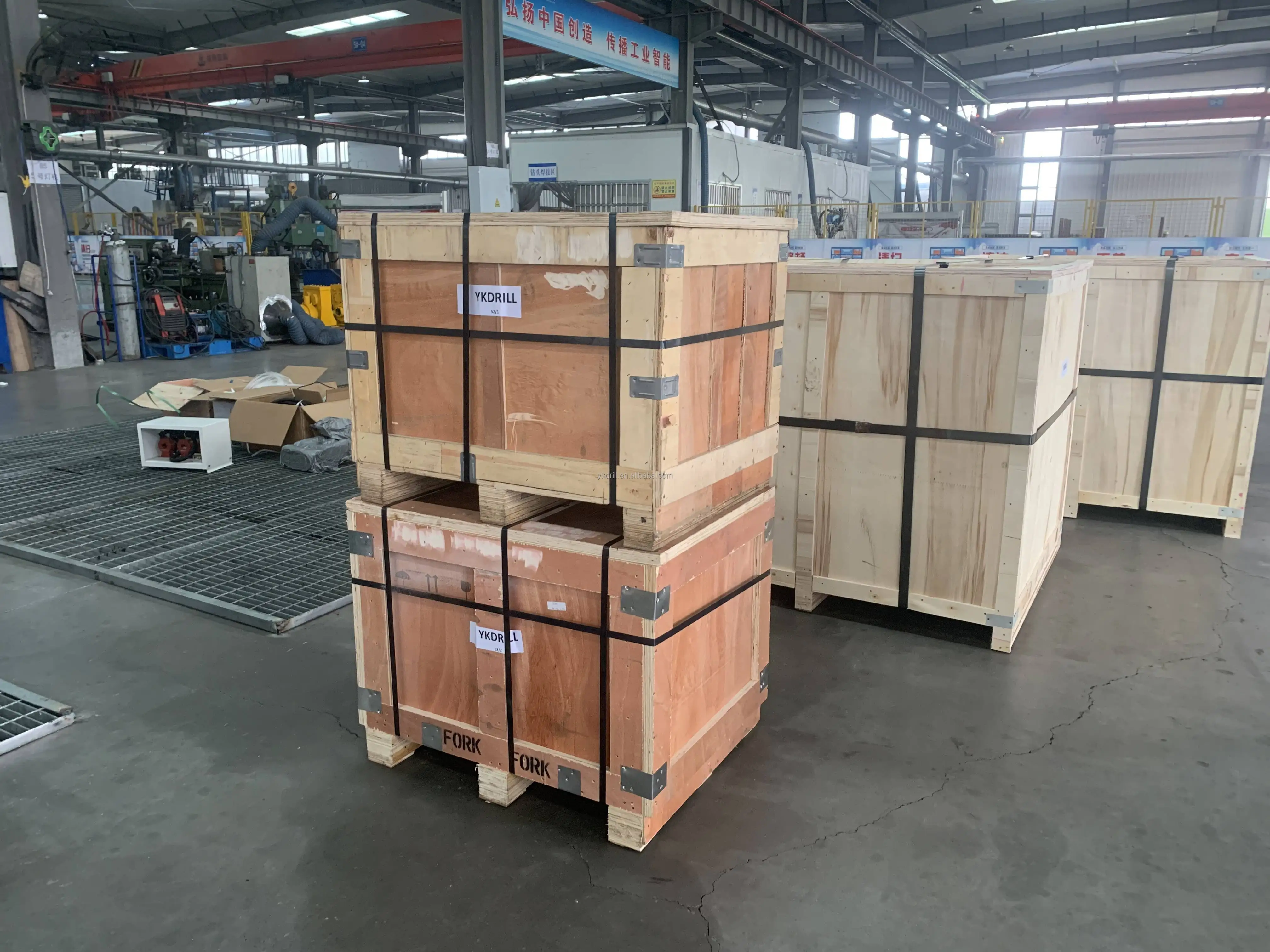

Packing & Delivery
Wooden BOX
Company Profile

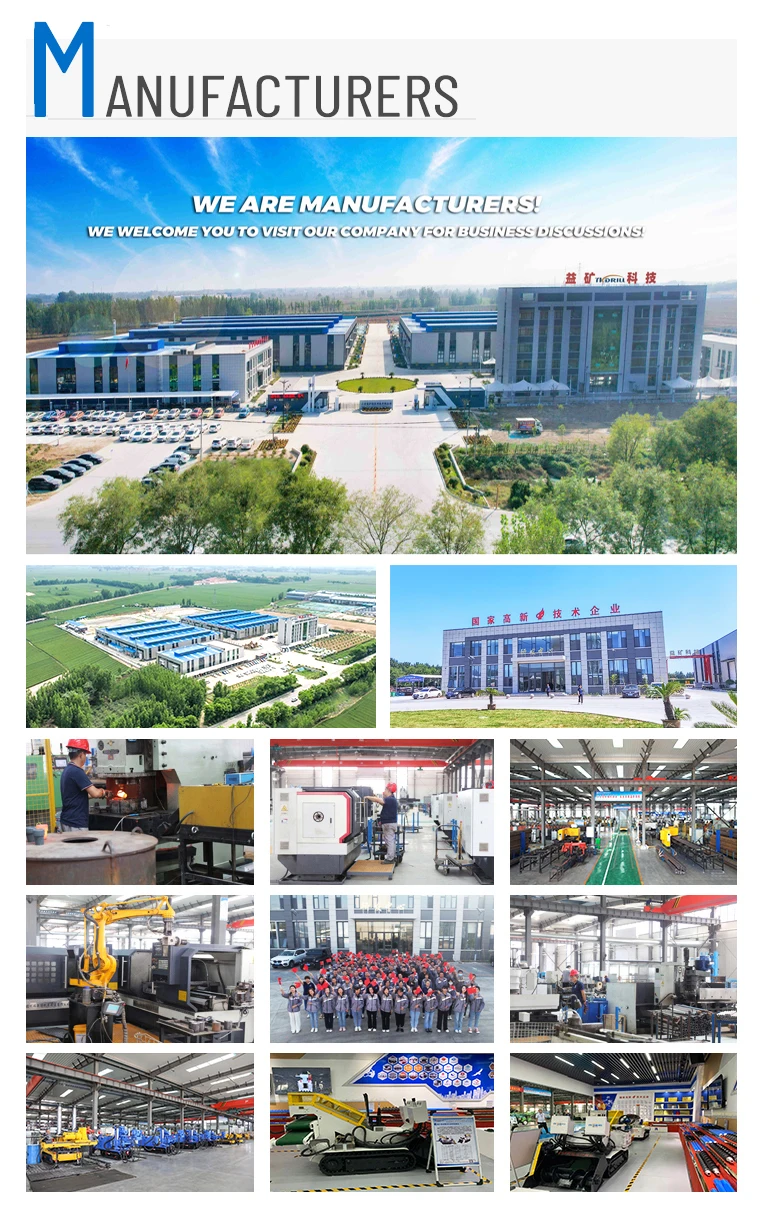

Shandong Yikuang Drilling and Mining Technology Co., Ltd. is located in Linqing City, the famous city of the ancient Beijing-Hangzhou Canal and an important industrial town in Shandong Province. The company's registered capital is 23 million yuan, and the factory covers an area of 25,000 square meters. It is a high-tech enterprise integrating technology development in the fields of geological drilling, coal mining, engineering anchoring, gas and dust disaster control, and equipment manufacturing, sales and technical services.
Since its establishment, the company has been committed to the development, promotion and application of drilling, mining, anchoring and equipment in coal mines, mining, construction and water conservancy projects, railways, highways, tunnels and bridges. In 2018, "Liaocheng Industrial and Mine Safety Protection Drilling Tools Engineering Technology Research Center" settled here, and has been rated as "National High-tech Enterprise", "Provincial Specialized Specialized New Enterprise", "Science and Technology Small and Medium Enterprise" and "Gazelle". enterprise". The company has successively established long-term strategic cooperative relations with many scientific research institutions and equipment enterprises. The company has strong strength, and has a high-quality scientific and technological personnel team of more than 40 people composed of professors, associate professors, doctors and masters. And relying on the talent and technical advantages of many mining universities and strategic cooperation units, in response to the needs of coal, mining, construction engineering and other industries, we have developed and produced a number of drilling products and equipment with independent intellectual property rights.
Yikuang Drilling always adhere to the Business principle of "Win the market by quality ,Create Value for Customer" and always insist on high quality ,high technology and high cost performance drill products .At the same time ,The Complete Professional Solution will be offered to customers,this make our customers decrease the large cost.
Yikuang Drilling successively passed and ran ISO 9001:2008 quality System Authentication and ERP customer system.There are friction welding process ,flight welding,installing process etc full automatic produce lines,adopt the first class manufacturing and testing equipment of the world,these all assure the good quality of products.
Master Drilling Technology , Lead the future of drilling ! Benefit customer,High quality product and service are provided for customer,create value for customer is our unswerving pursuit!Now ,YIkuang Drilling People are led by Haifeng wang ,are walking to Normalize,Professionalization ,Refine business way,YIkuang Drilling People are looking forward to cooperate with mining business friend with positive and pragmatic work spirit and high quality professional service !Welcome all friends from all over the world visit and calling for chatting cooperation.
Since its establishment, the company has been committed to the development, promotion and application of drilling, mining, anchoring and equipment in coal mines, mining, construction and water conservancy projects, railways, highways, tunnels and bridges. In 2018, "Liaocheng Industrial and Mine Safety Protection Drilling Tools Engineering Technology Research Center" settled here, and has been rated as "National High-tech Enterprise", "Provincial Specialized Specialized New Enterprise", "Science and Technology Small and Medium Enterprise" and "Gazelle". enterprise". The company has successively established long-term strategic cooperative relations with many scientific research institutions and equipment enterprises. The company has strong strength, and has a high-quality scientific and technological personnel team of more than 40 people composed of professors, associate professors, doctors and masters. And relying on the talent and technical advantages of many mining universities and strategic cooperation units, in response to the needs of coal, mining, construction engineering and other industries, we have developed and produced a number of drilling products and equipment with independent intellectual property rights.
Yikuang Drilling always adhere to the Business principle of "Win the market by quality ,Create Value for Customer" and always insist on high quality ,high technology and high cost performance drill products .At the same time ,The Complete Professional Solution will be offered to customers,this make our customers decrease the large cost.
Yikuang Drilling successively passed and ran ISO 9001:2008 quality System Authentication and ERP customer system.There are friction welding process ,flight welding,installing process etc full automatic produce lines,adopt the first class manufacturing and testing equipment of the world,these all assure the good quality of products.
Master Drilling Technology , Lead the future of drilling ! Benefit customer,High quality product and service are provided for customer,create value for customer is our unswerving pursuit!Now ,YIkuang Drilling People are led by Haifeng wang ,are walking to Normalize,Professionalization ,Refine business way,YIkuang Drilling People are looking forward to cooperate with mining business friend with positive and pragmatic work spirit and high quality professional service !Welcome all friends from all over the world visit and calling for chatting cooperation.
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to Domestic Market(90.00%),Eastern Europe(4.00%),Africa(4.00%),Mid East(1.00%),South Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mining Machinery and Equipment and Accessories (Drill Pipe,Drill Bit,Drilling Rig,Accessories)
4. why should you buy from us not from other suppliers?
1. Original manufacturer for more than 10 years in NortChina
2. 7/24 sales service
3. Over 20 people technial team
4. Provide the whole drill solution
5. 6 month after-sales warranty
7. Rich experience in drilling field
8. Honesty business principle
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2014,sell to Domestic Market(90.00%),Eastern Europe(4.00%),Africa(4.00%),Mid East(1.00%),South Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mining Machinery and Equipment and Accessories (Drill Pipe,Drill Bit,Drilling Rig,Accessories)
4. why should you buy from us not from other suppliers?
1. Original manufacturer for more than 10 years in NortChina
2. 7/24 sales service
3. Over 20 people technial team
4. Provide the whole drill solution
5. 6 month after-sales warranty
7. Rich experience in drilling field
8. Honesty business principle
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
