SRDZ47 63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch
SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch

SRDZ47 63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch

Share on (1601151128295):


Price:$3.80 - $4.50

Quantity:


Product Overview

Description

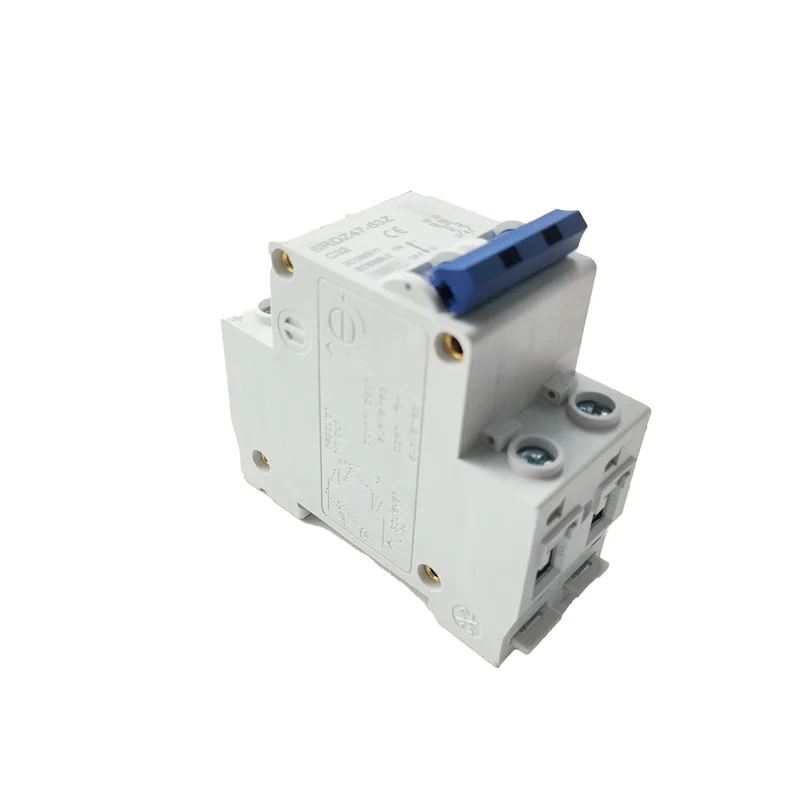

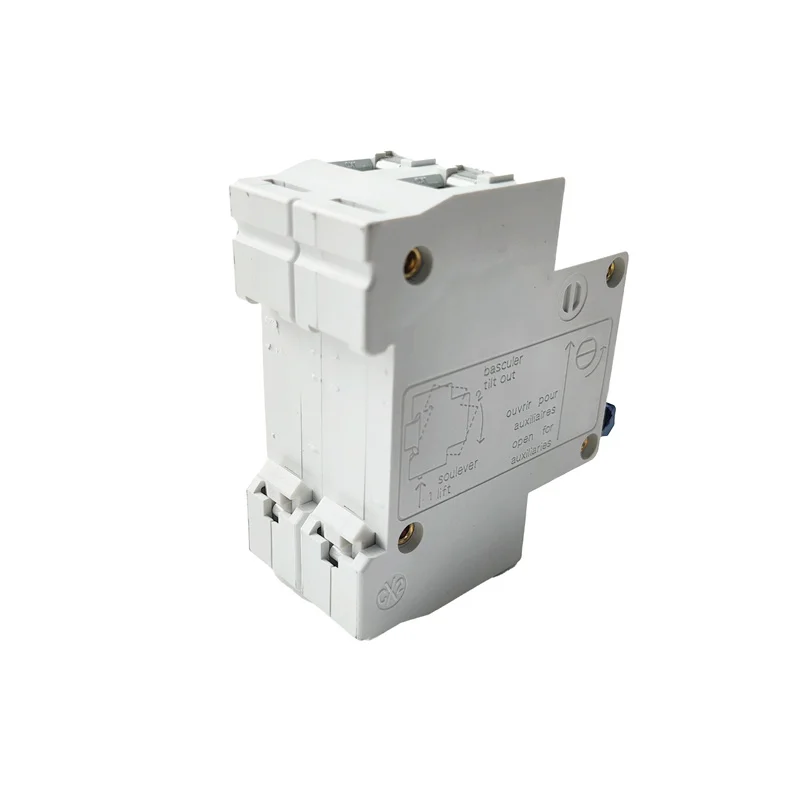

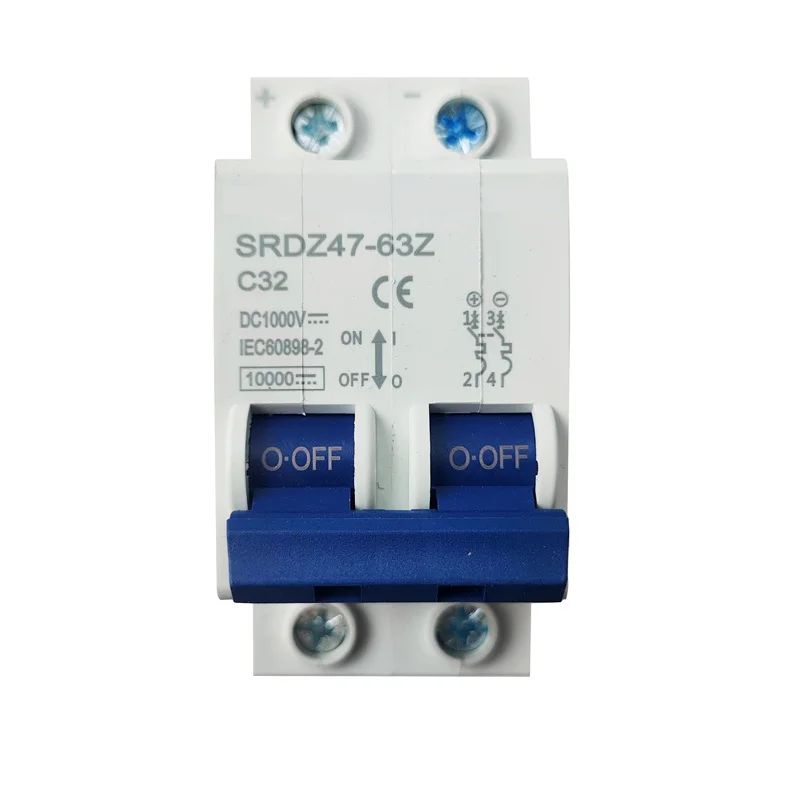

SRDZ47-63Z 2P DC1000V DC500V 10A 16A 20A 32A 40A 63A air switch circuit breaker Leakage switch


Products Description


There are two voltage for option: DC500V, DC1000VCurrent option: 10A 16A 20A 32A 40A 63A
Electromagnetic trip device, short circuit protection, When the current fails, excessive current is generated, and the circuit
breaker can cut off the power supply quickly to realize short-circuit protection

When the total current in the circuit is greater than the rated current of the conductor, the circuit breaker cuts off the power
supply to prevent damage to the conductor

After the current enters the arc extinguishing grid, it is divided into many series arcs, which are stretched, cooled and
extinguished by the electromagnetic force

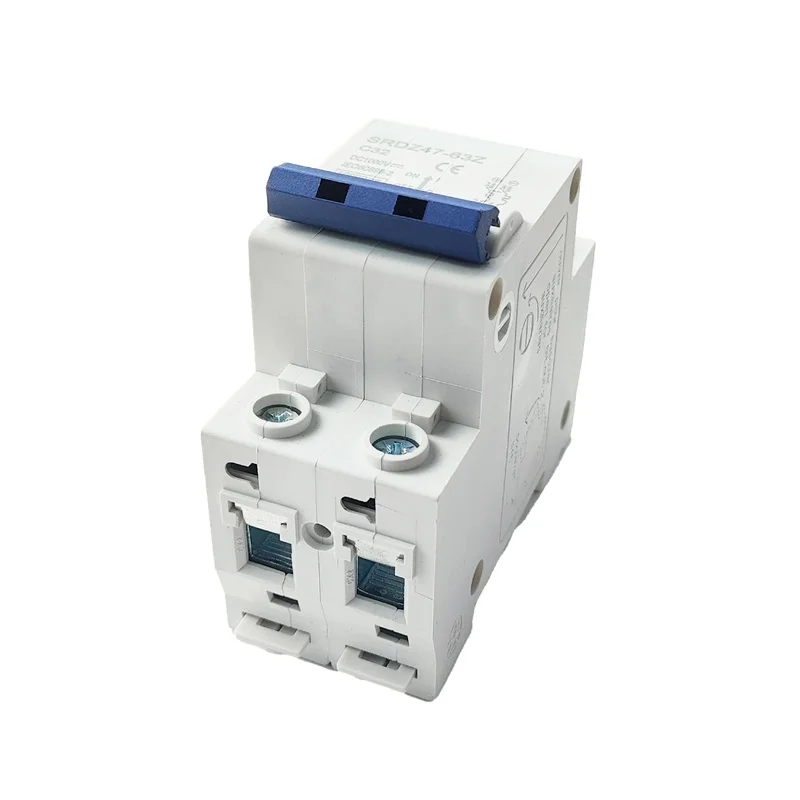

Tunnel terminal, wire crimping more firm, to prevent improper connection caused by poor contact

PC fire retardant housing


Packaging Details
1pc per opp bag,safe carton pack
Selling Units
Single item
Single package size
14.3X13.5X3.8 cm
Single gross weight
2.800 kg










Recommend Products




Applications




Why Choose Us




Contact Us




Packing & Shipping




About us


Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.

These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.

Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!




FAQ


1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.

2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well

3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.

4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.

5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.

6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
