Automatic Stringer Machine 1800 Speed flat soldering ribbon of 0.35 1.6 mm 2 12 BB Solar Cells for Solar Panel Production Line
- Category: >>>
- Supplier: Nantong Reoo Technology Co. Ltd.Nantong Ltd.
Share on (1601153186281):
Product Overview
Description

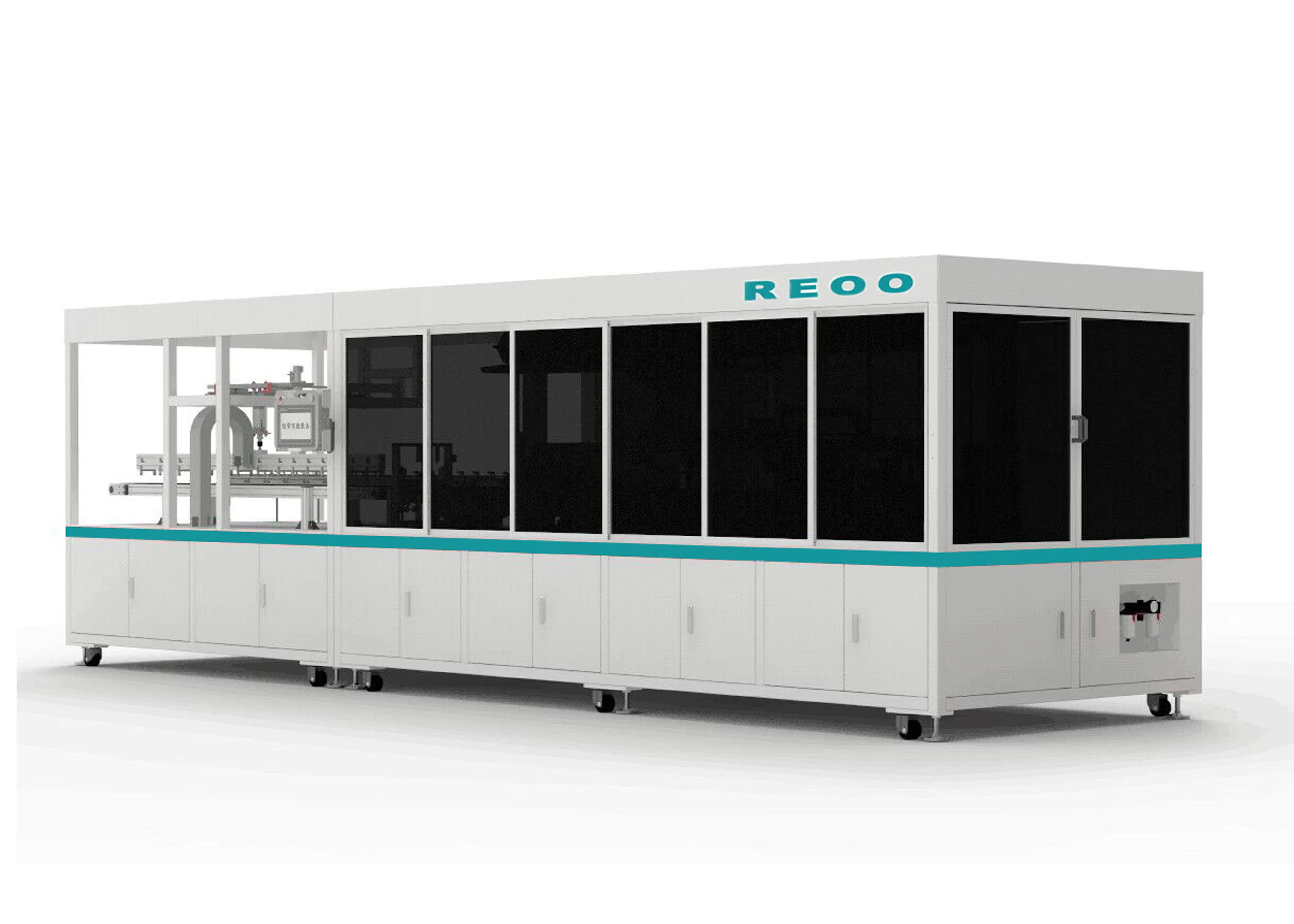

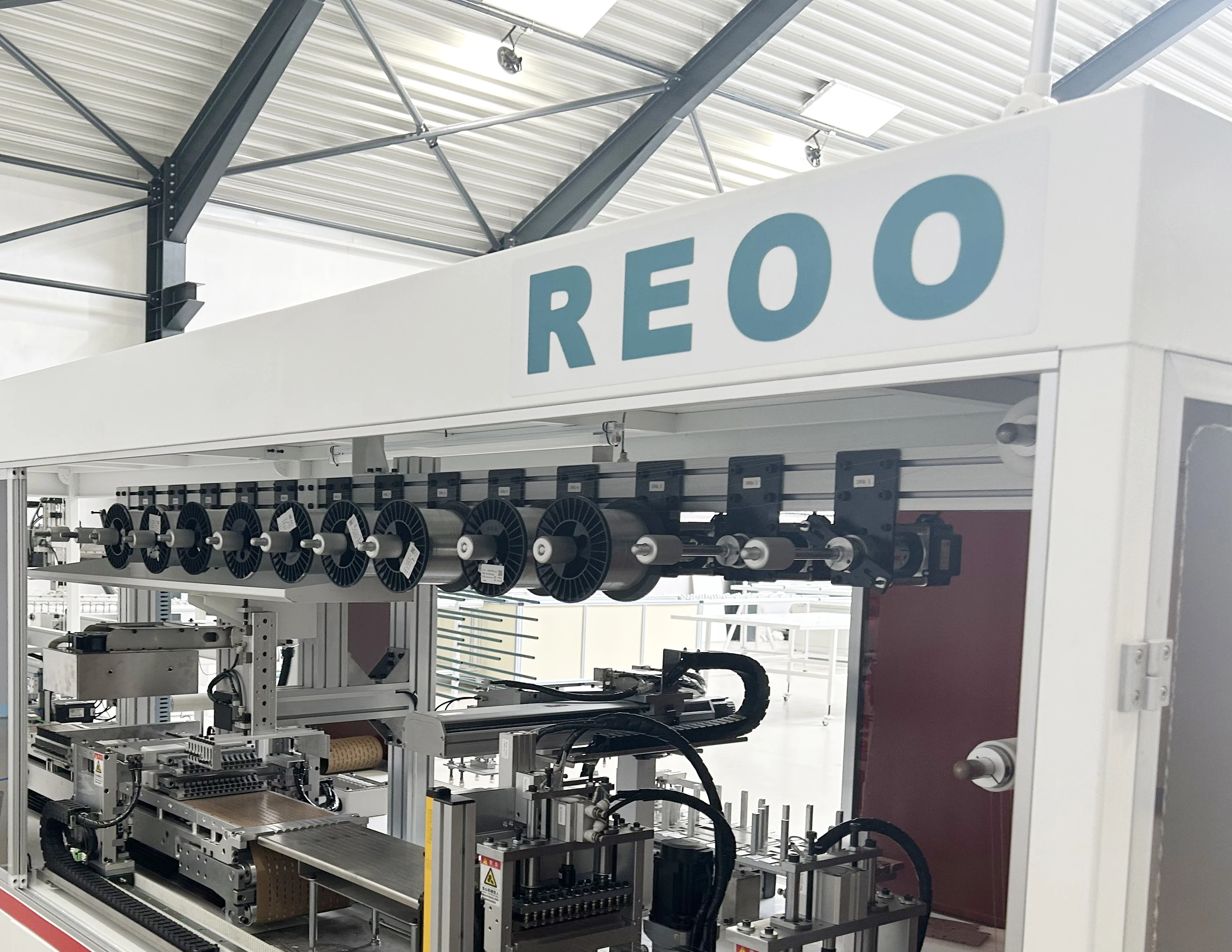

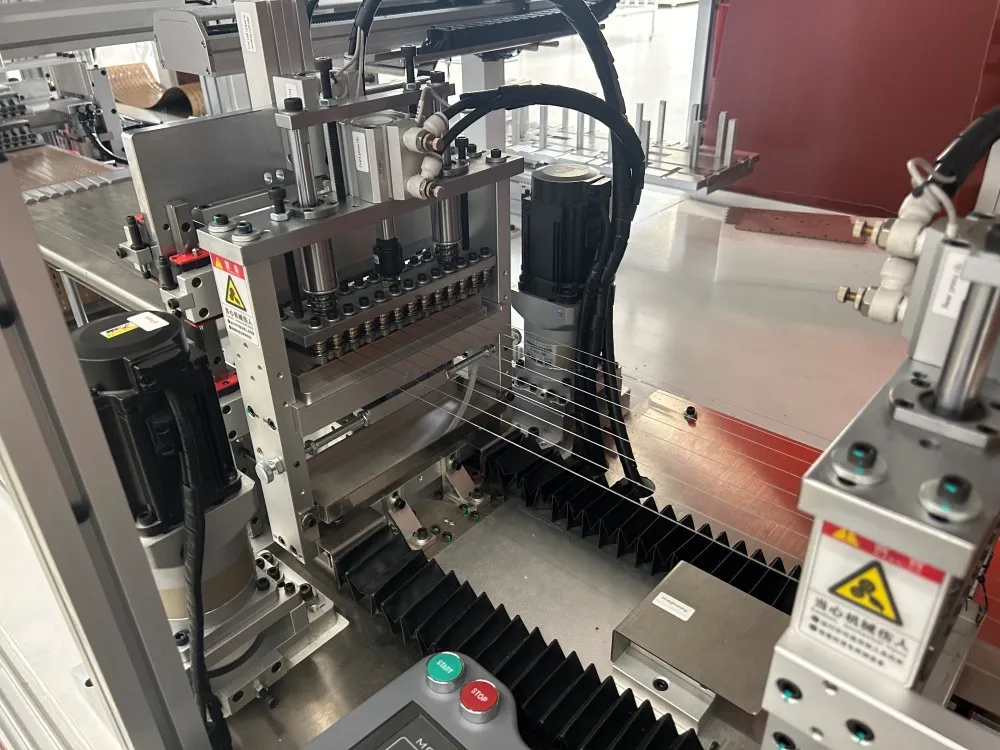

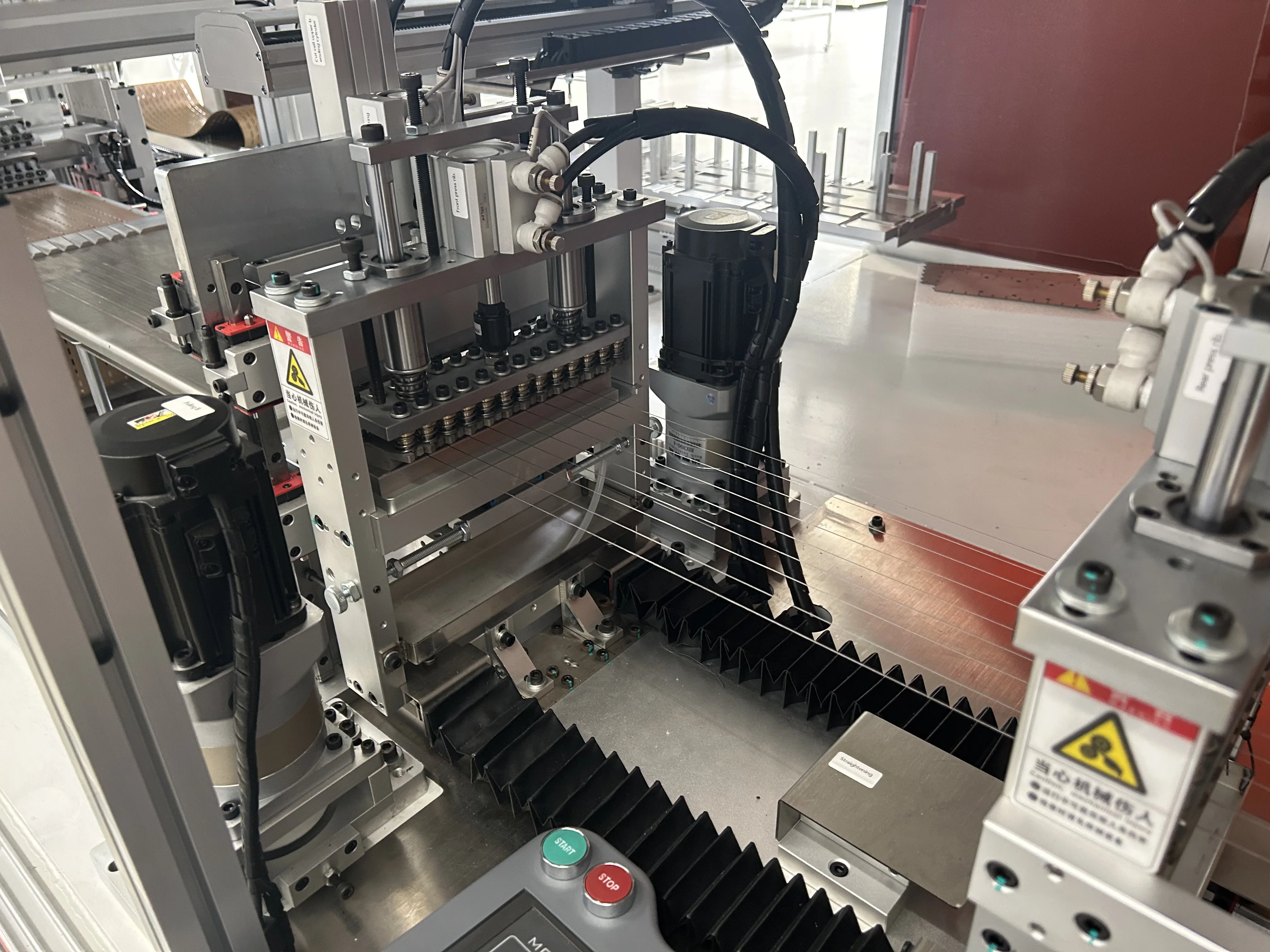

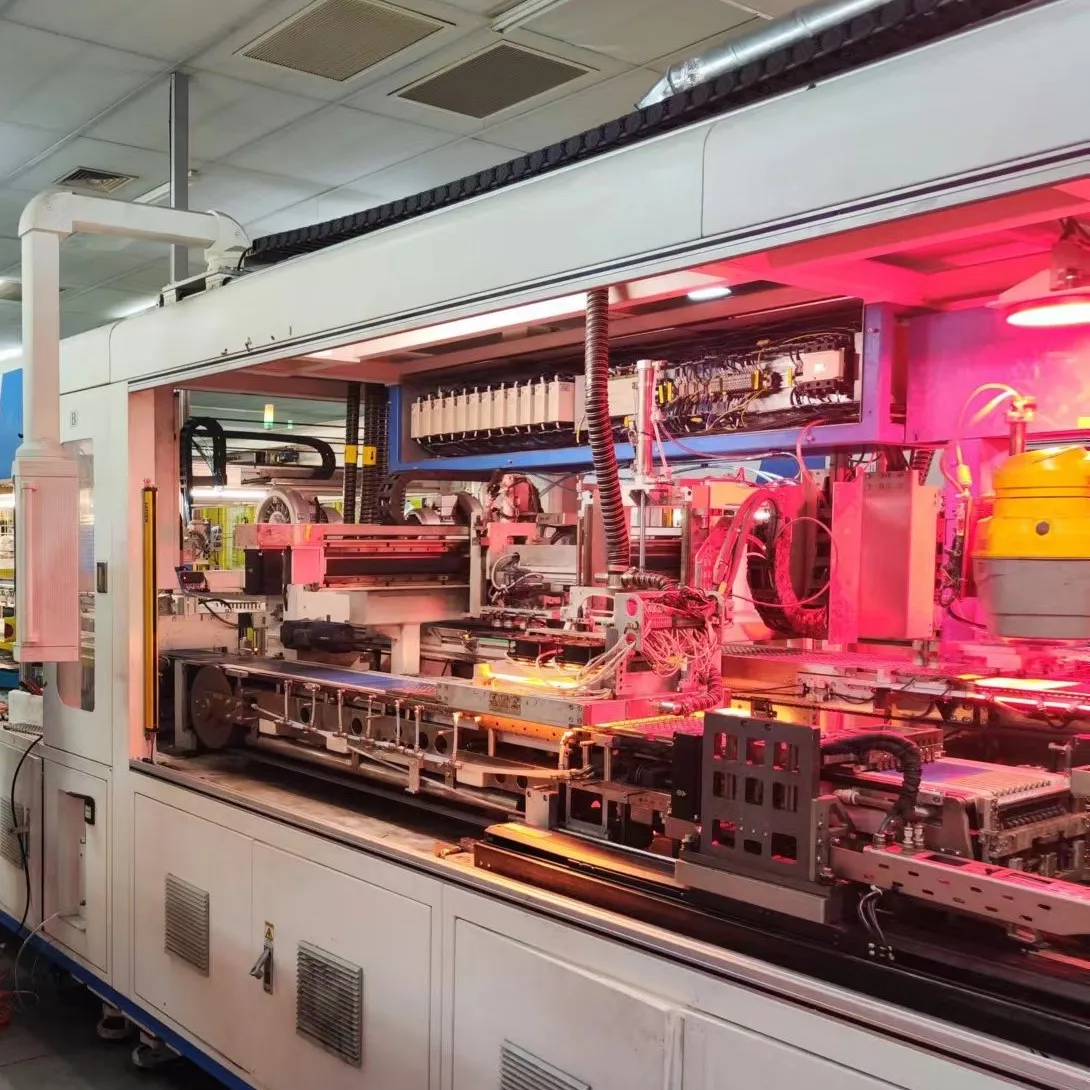

Automatic Stringer Machine 1800 Speed
Model: S2024B
H2020E is a single track automatic tabbing and string for solar cells.
Up to speed 1800 cells/hour.
High flexibility for 5BB/6BB/9BB/12BB solar cells .
The base solution is 3 type of cell of 210x 105mm, 182 x 91mm, 166x 166mm and others .
Works with different kind of cells including cut cells with width >30mm.
The number of cells for string is settable from touch screen.
Cell spacing is adjustable.

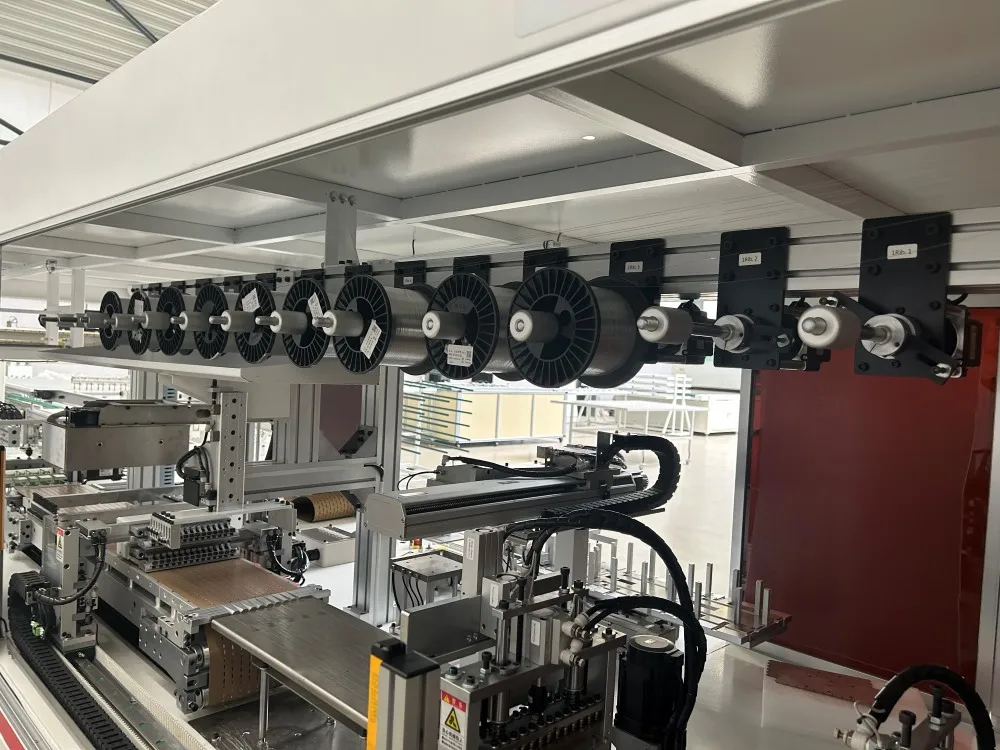

Quick and simple operation & ribbon change.
Low cost of spare parts and consumables.
Machine size: 5200 x 1500 x 1980mm.
Operating space: 7000X 3000 mm .
Soldering capacity | Max 2.7 seconds /pcs,Max1800 pcs /hour |
Cell‘s dimension | 30~166*210mm |
Cell busbar | 5BB/6BB/9BB/12BB/ |
Ribbon sizes | Width: 0.8~2.0mm,Thickness: 0.12~0.23mm . Ribbon size should be informed before order |
Breakage | ≤0.2%, On the basis of Grade A cells with good cutting, no cracks and damage |
Cell basket capacity | 4 x 100 PCS,4 Cell baskets to load up to a maximum 100pcs each,total 400pcs auto switch |

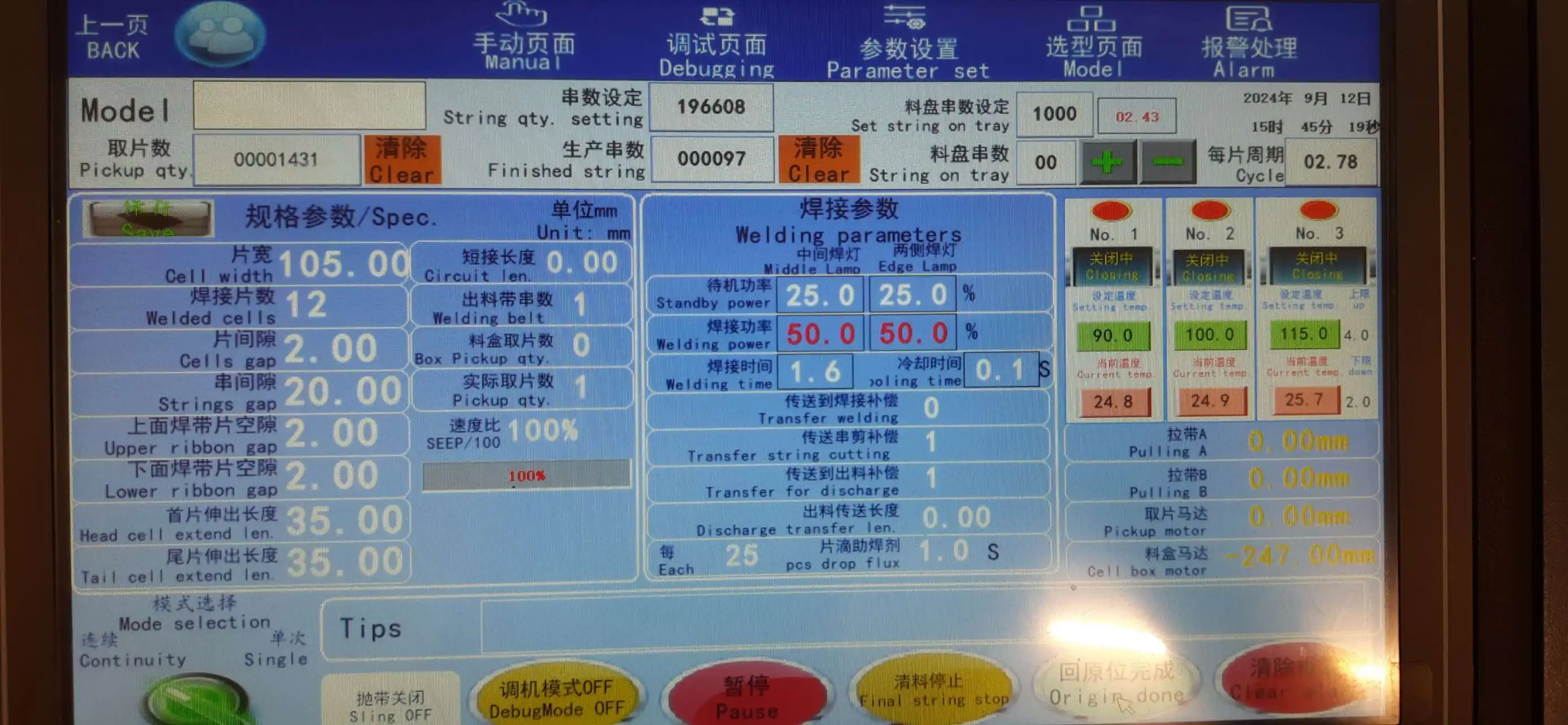

Operation control | PLC touch screen |
Soldering technology | IR light |
Soldering light life | ≥1000Hr |
Soldering temperature | Normal~400℃(adjustable) |
Input power | 3 phase/50~60Hz/380V/30A, Power cable >6mm2 |
Peak power | 12 KW |
Average power | 8 KW |
Compressed air | ≥ 0. 5 Mpa clean & dry air |
Compressed air consumption | Approx 200L/min |
Max.length of the string | 2050mm, Suitable for 12pcs 6 inch cells per string with 2mm cell spacing |
Operator interface | English |
Warranty | 12 Months |
Our Services
Installing:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Packing:
All the equipment, tools, accessories and goods be suitably packed. All packages are liable to be opened for
customs examination and packing shall therefore be designed to facilitate opening and reacking thereafter.
Each package shall have the shipment information printed on it in bold letters.
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,buyers pay for the cost.
Company Information
REOO technology company is a leading manufacturer of solar panel machines in China.
Founded in 2005, it specializes in the design and production of solar panel production equipment and specializes in manufacturing and selling solar panels.
Our company's advantages: Tailored for customers of all kinds of equipment; Rich experience in overseas installation, commissioning and training; Rich experience in overseas equipment after-sales service.

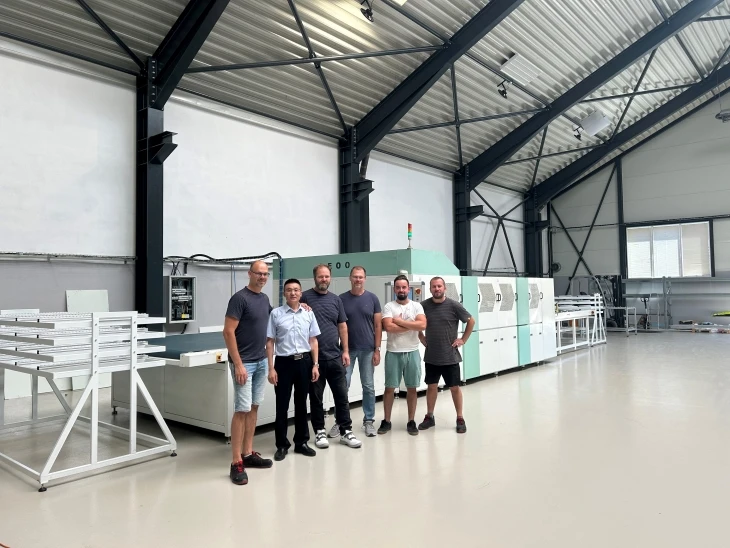

Our Clients

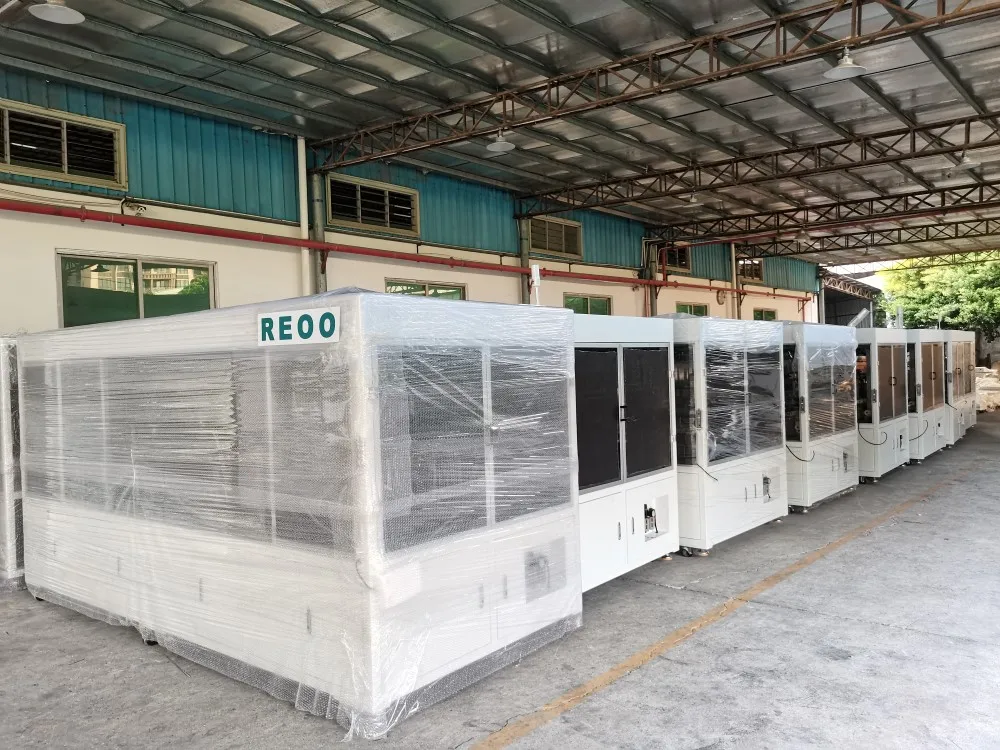

Packaging & Shipping
Contact with me
Lisa Xing
NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400
Mobile number: +86 187 5132 7183
Tel: +86 513 8410 5399
Fax: +86 513 8410 5505
What's App:+86 187 5132 7183
