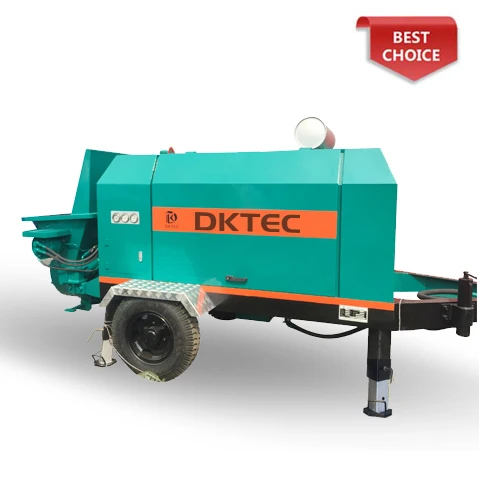

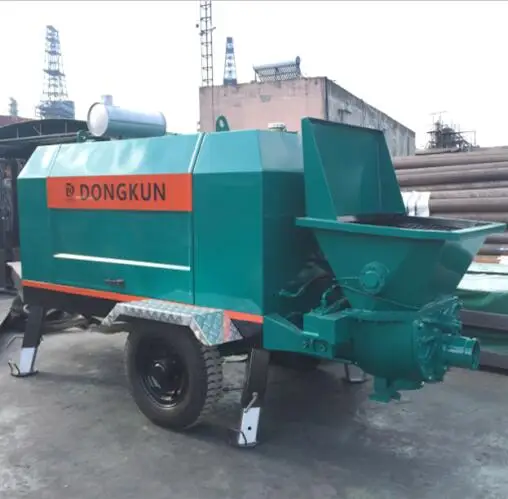

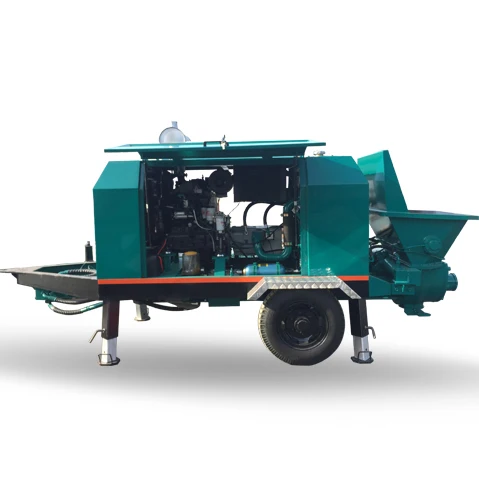

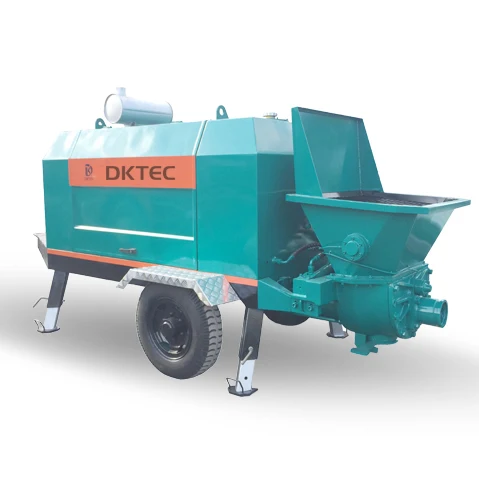

High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer
High Efficiency diesel machine small pump self loading concrete mixer

High Efficiency diesel machine small pump self loading concrete mixer

Share on (1601153459007):


Price:$30,000.00

Quantity:


Product Overview

Description



Product Description




Performance Characteristics
1. Advanced hydraulic system ensures the stable working performance.
2. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation.
3. Plunger pump with constant power, to ensure the efficiency of main engine
4. High-quality wear resistant alloy components for long service-life
5. High delivery pressure for demand of high-rise and long distance projects
6. PLC system to ensure best control performance
7. With re-pumping function to smooth construction of better accessibility


Spcification


Model
Unit
CP30D
CP50D
CP90D
Max. conveying capacity of concrete(Low/High pressure)
m3/h
53/36
70/50
91/51
Max. theoretical output pressure(Low/High pressure)
MPa
8
5.3/10
8.5/15.7
Rated diesel power
KW
56(60)
92(92)
174
Delivery cylinder diameter × rod diameter × stroke
mm
Φ100×Φ65×800
Φ100×Φ65×1400
Φ140xΦ95x1800
Distribution valve

Rock valve
Apron valve
S-tube valve
Feeding hopper capacity × height
mm
650×1200
650×1200
700x1350
Output Diameter
mm
Φ150
Φ150
Φ175
Max. aggregate size
mm
Pebble 50, Crushed stone 40
Pebble 50, Crushed stone 40
Pebble 50, Crushed stone 40
Dimensions(L×W×H)
mm
4768×1700×2300
4788×1700×2300
6370x2145x2390
Overall weight
kg
2850
3200
5780

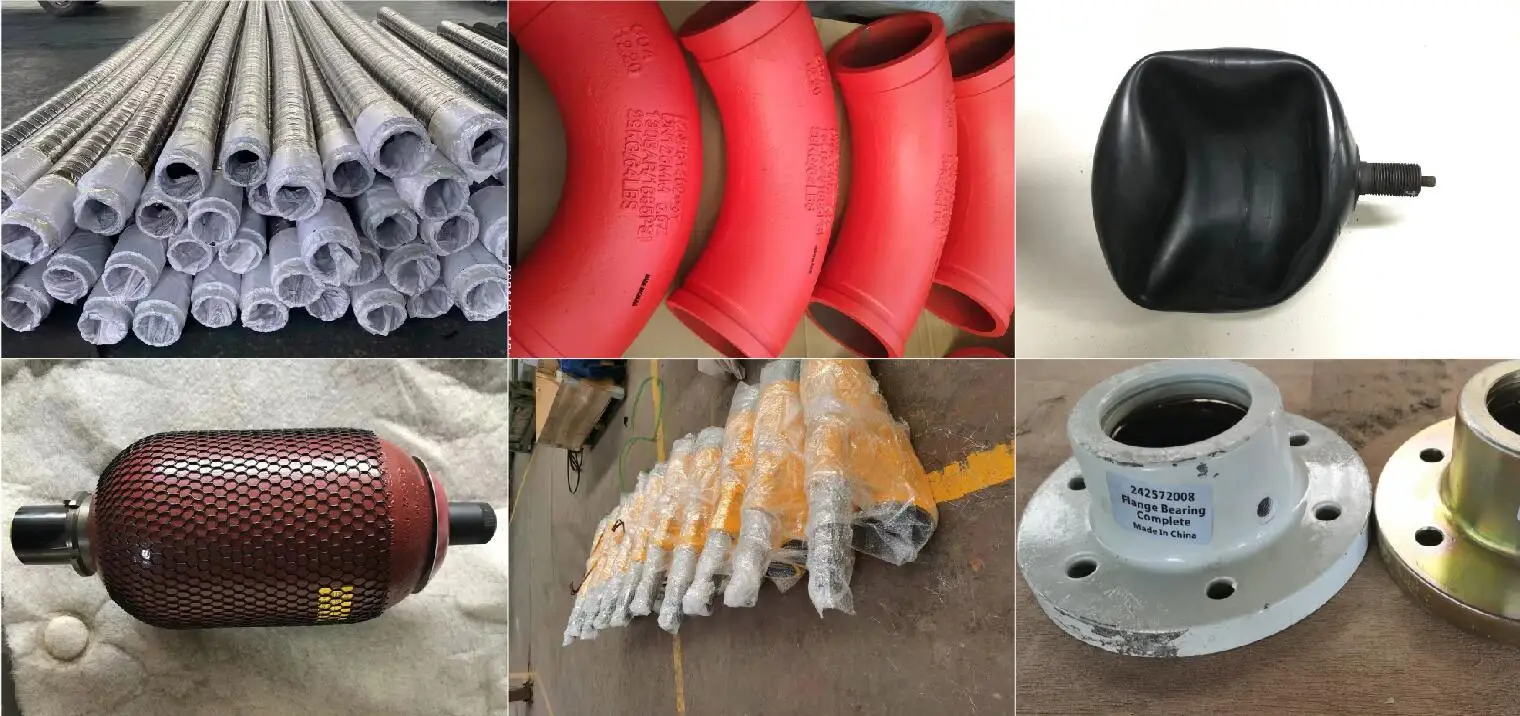

Other spare parts
