Automatic Vacuum Cooling System EPS Foam Making Machine EPP Machine Shape Molding Machine
- Category: >>>
- Supplier: Hebei Xinao Technology Co. Ltd.Hebei Ltd.
Share on (1601154221625):
Product Overview
Description
37 Years Machine Production Experience!
Sold over 200+ production lines!
Welcome to visit our running line!
Welcome to visit our running line!

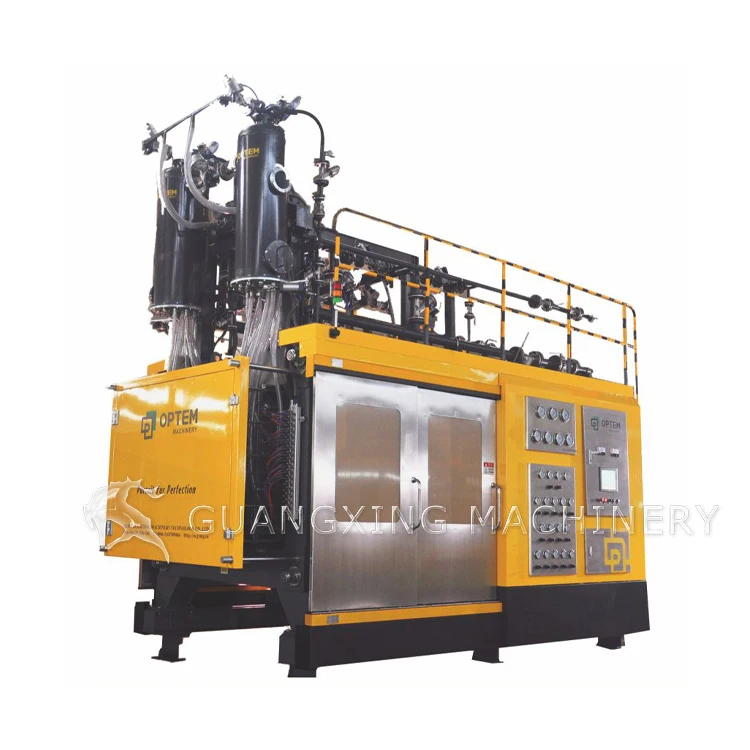

Automatic Vacuum Cooling System EPS Foam Making Machine EPP Machine Shape Molding Machine
Specification
ltem | GPZ1412 | GPZ1714 | GPZ1816 | GPZ2216 |
Standard mold size(mm) | 1400x1200 | 1700x1400 | 1800x1600 | 2200x1600 |
Finish product size(mm) | 1200x1000x380 | 1500x1200x380 | 1600x1400x380 | 2000x1400x380 |
Mold opening distance(mm) | 210-1610 | 210-1610 | 210-1610 | 210-1610 |
Steam consumption(T/T) | 8-12 | 8-12 | 8-12 | 8-12 |
Steam inlet(mm) | DN100 | DN100 | DN100 | DN100 |
Cooling water inlet(mm) | DN8O | DN8O | DN8O | DN8O |
Discharge hole(mm) | DN125 | DN150 | DN150 | DN150 |
Compressed air consumption(kg/cycle) | 1.4 | 1.6 | 1.6 | 1.6 |
Vacuum Pump Air Suction(m³/min) | 4.66 | 4.66 | 4.66 | 4.66 |
Installed power(kw) | 17.2 | 17.2 | 20.7 | 20.7 |
Overall dimension(mm) | 4950x2300x5350 | 4950x2650x5550 | 4950X2750X5750 | 4950X2850X5750 |
Machine weight(t) | 7.8 | 8.5 | 9 | 9.5 |
Cycle time(sec) | 50-110 | 60-120 | 60-130 | 60-130 |

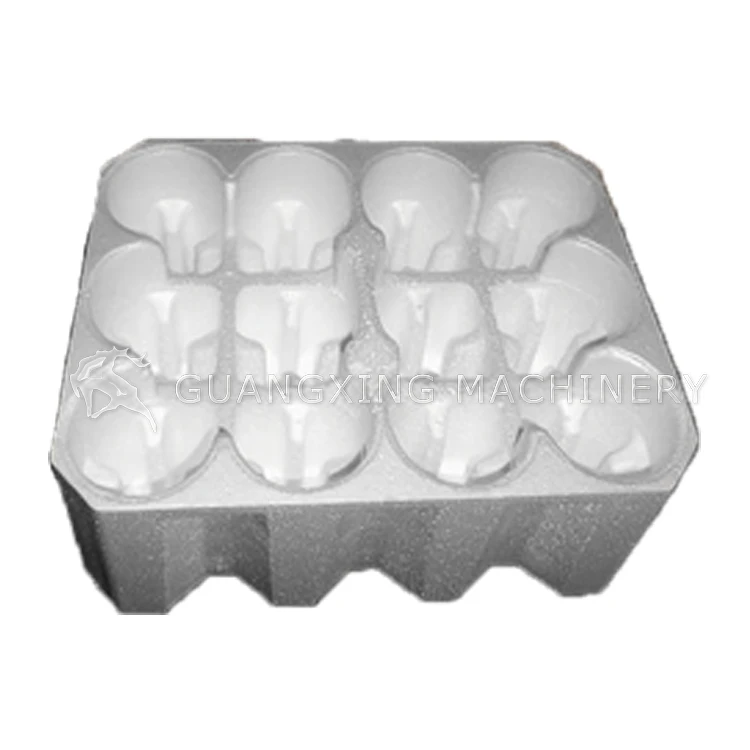

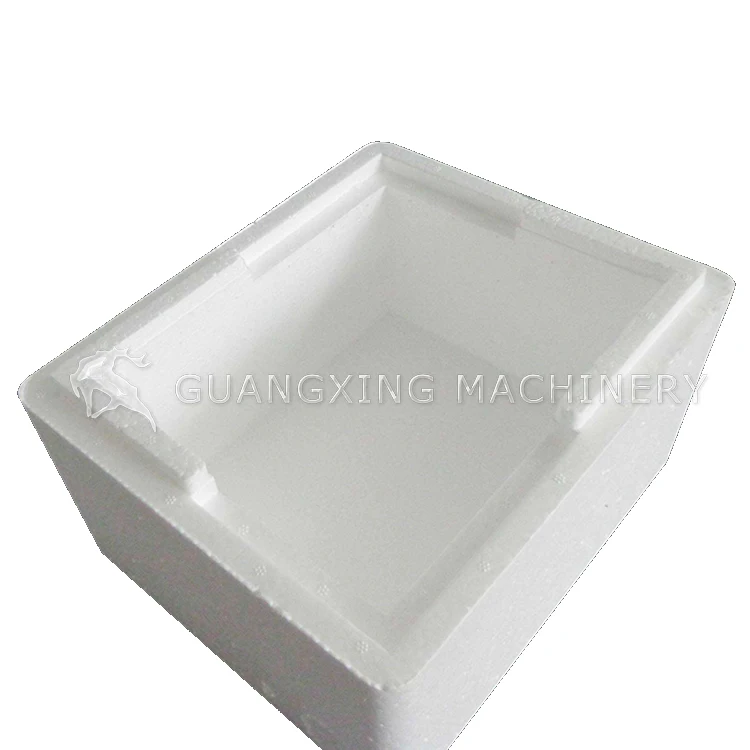

Polystyrene EPS Styrofoam Forming Molding Machine Production Line For Fruit Vegetable Packaging Box

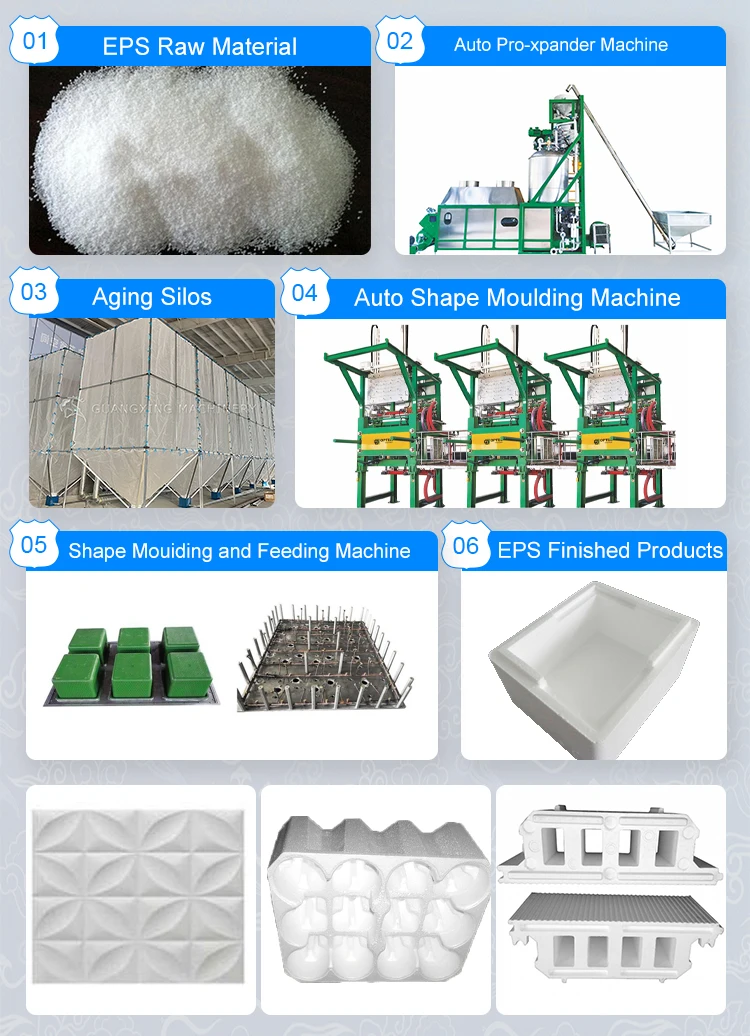

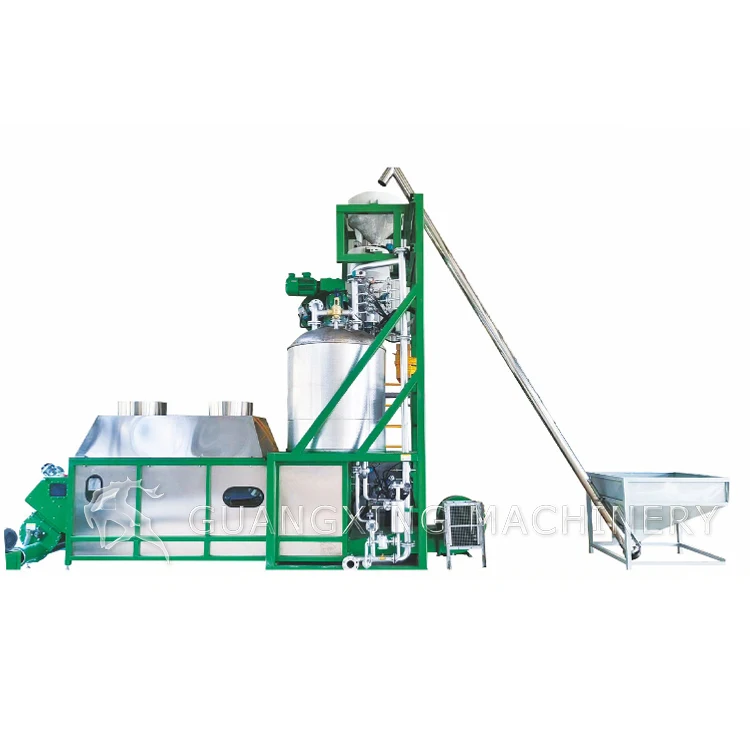

The machine is used for foaming EPS beads. The foamed EPS beads can be widely used for EPS Panel, Box, Insert Block , ICF, Hourdis, Styrofoam Packaging , Helmet , Cornice , Ceiling Board , etc.
Made by high quality steel plate. After welding and pre-machining ,machine main frame is processed with stress relief annealing treatment. Whole machine is processed with abrasive blasting,electrostatic spray and anti-corrosion treatment, ensure the equipment non-rust, non-corrosion and non-deformation in working.
EPS Shape Molding Machine is mainly used to produce EPS foam packaging box, ICF block, block concrete insert, floor hollow block, hourdis, lost foam casting, decorative cornice , ceiling board, column, helmet, etc.
We can make an exclusive customizing according to your request！！！
Details Images
Can be produced including the sandwich panel with thickness of 40-300mm and width of 950-1200mmand corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.
Recommend Products
Factory
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO 9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.

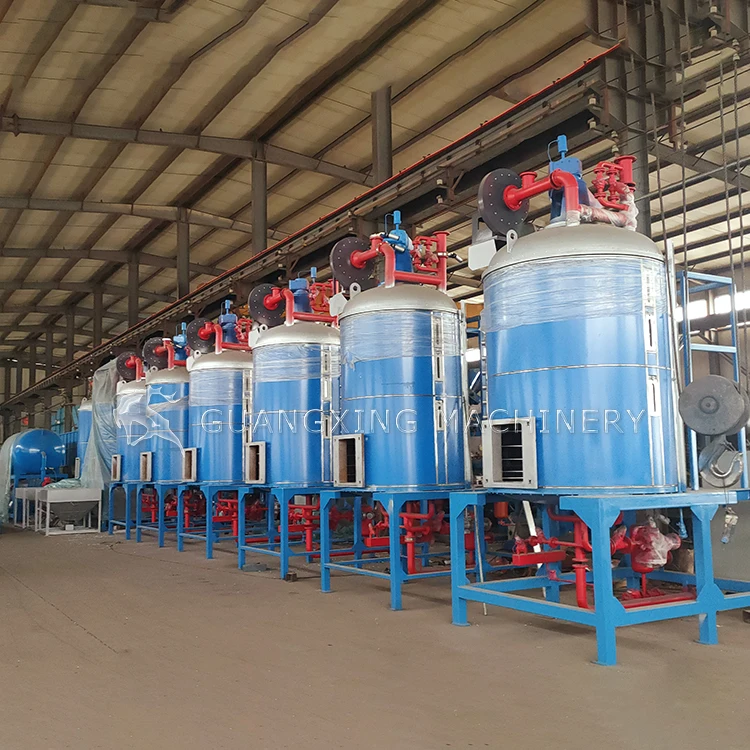

Advanced machinery and equipment
Our team
package
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
