Products Description

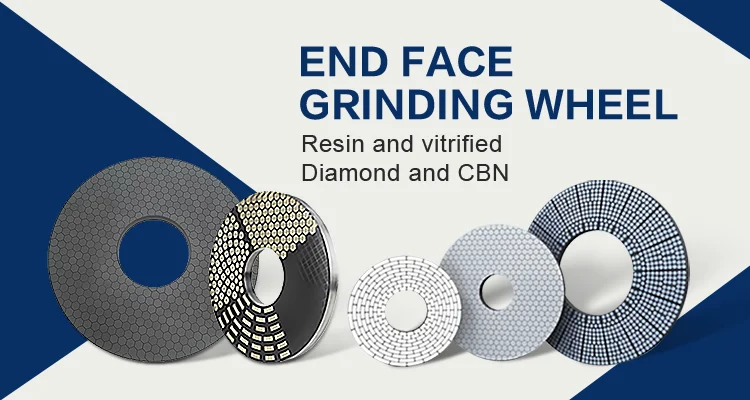

End Face Grinding Wheels
Vitrified Diamond CBN Double Disc Wheels is made of grinding disc matrix and super hard diamond grinding pellets by epoxy resin adhesive, and can be made into various shapes such as regular hexagon, sector, square ,circular, trigonometrical, hexagonal pellets (other shapes can be customized).
RUIZUAN offers a full line of diamond and CBN double disc grinding wheels and dressing stones for fine grinding machines and single and double side lapping systems.

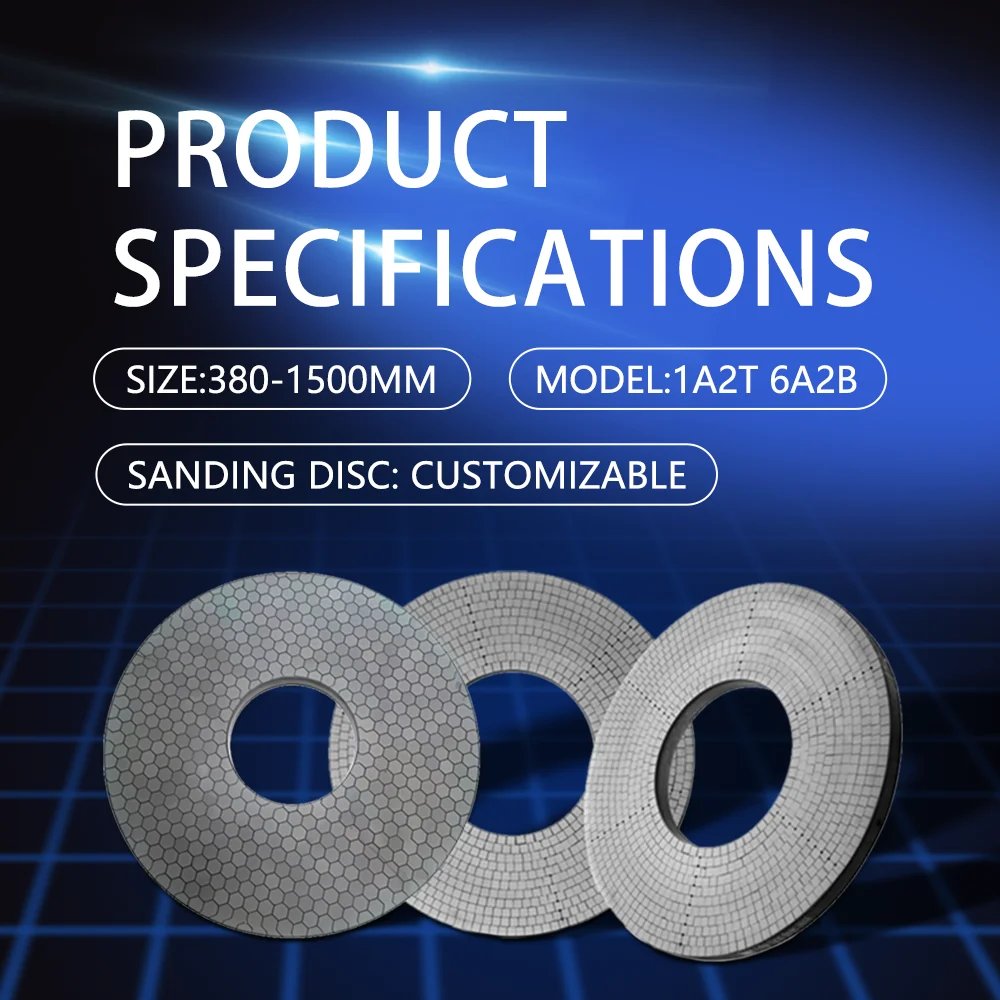

Product Name | Vitrified Diamond CBN Grinding Disc Wheels/Resin CBN Grinding Wheel |
Outside Diameter | 380mm-1500mm |
Internal Diameter | 50mm-500mm |
Substrate Thickness | 50mm-100mm |
Grit | 80grit-1500grit |
Abrasive Layer Thickness | 5mm-10mm |
Abrasive Layer shape | Regular hexagon, sector, square ,circular, trigonometrical, hexagonal pellets,customized |

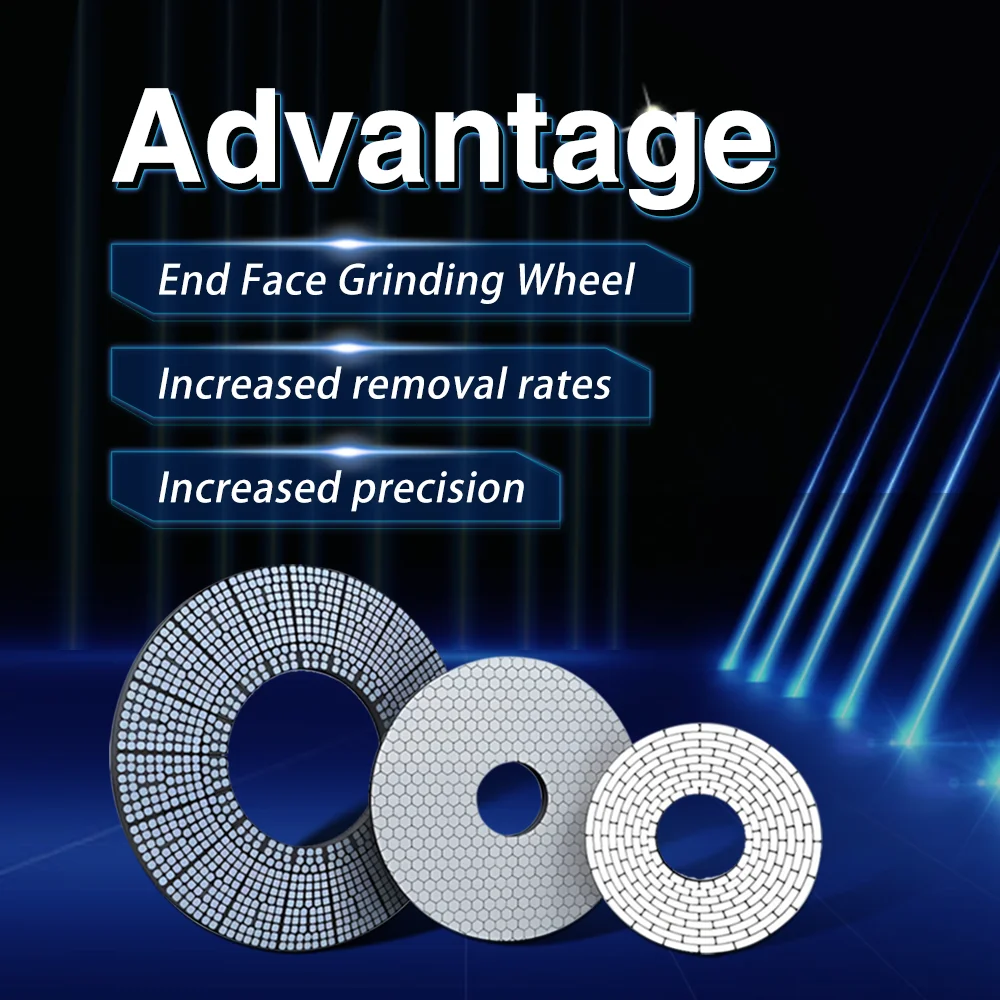

Product Features
1. High dimensional accuracy and good consistency.
2. Controllable surface roughness.
3. Good form and position tolerance such as parallelism and flatness;
4. The processing efficiency is several times to dozens of times that of grinding.
5. The utility model can realize clean processing, the work piece does not need cleaning after processing, and the workers' operating environment is good.
6. The comprehensive processing cost and direct cost are lower than other processing methods.
2. Controllable surface roughness.
3. Good form and position tolerance such as parallelism and flatness;
4. The processing efficiency is several times to dozens of times that of grinding.
5. The utility model can realize clean processing, the work piece does not need cleaning after processing, and the workers' operating environment is good.
6. The comprehensive processing cost and direct cost are lower than other processing methods.
Product Applications

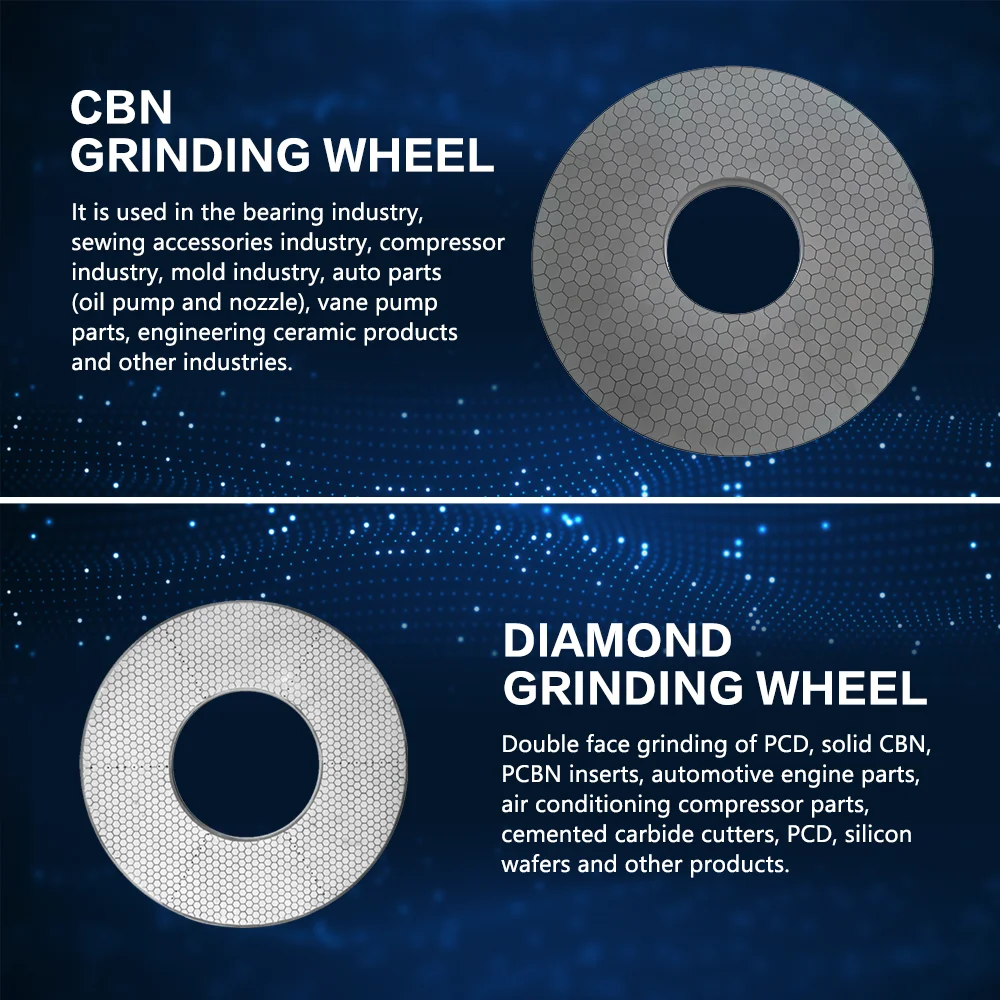

1.Diamond grinding disc:
Double face grinding of PCD, solid CBN, PCBN inserts, automotive engine parts, air conditioning compressor parts, cemented carbide cutters, PCD, PCBN cutters, alumina, zirconia ceramic products, precision bearings, hydraulic parts, pneumatic components, measuring tools, crystals, gemstones, silicon wafers and other products.
2.CBN grinding disc:
It is used in the bearing industry, sewing accessories industry, compressor industry, mold industry, auto parts (oil pump and nozzle), vane pump parts, refrigeration compressor parts, engineering ceramic products and other industries.

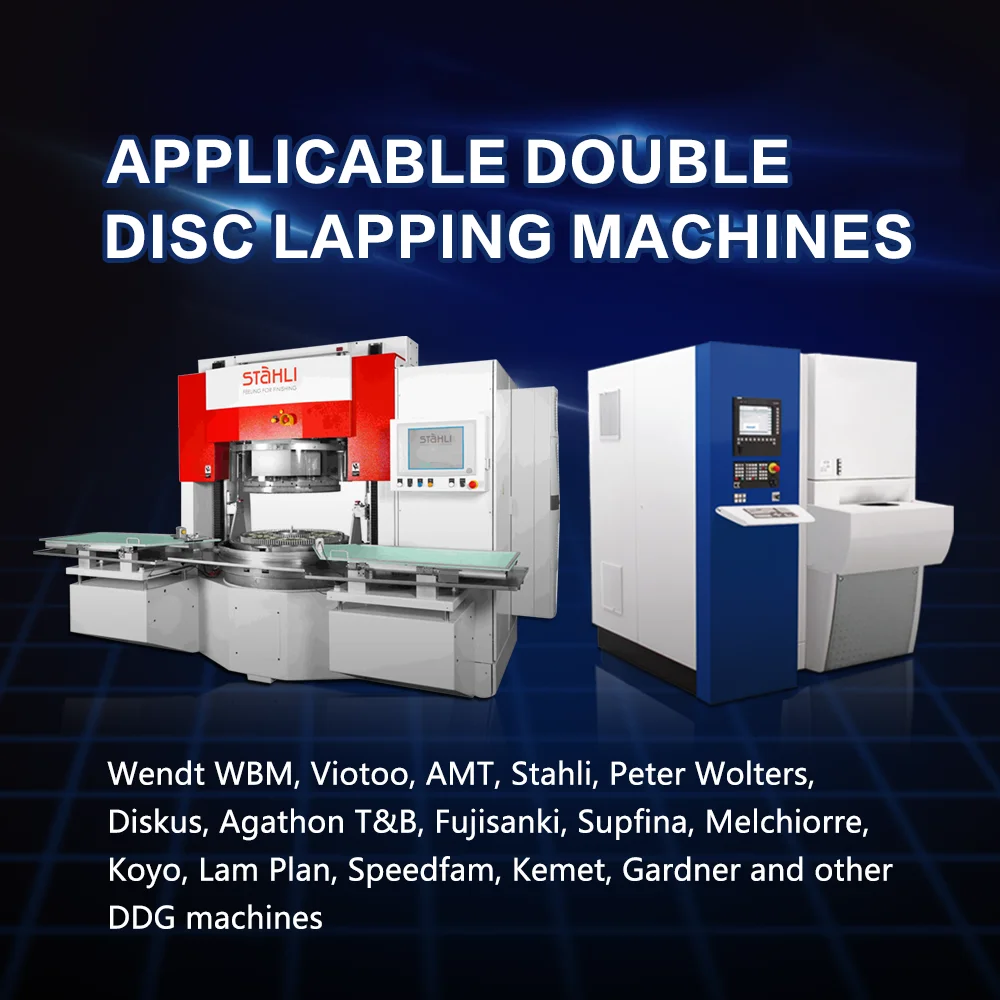

3.Application machine:
Single-sided or double-sided grinding machines.
4.Machine brand:
Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other DDG machines.
