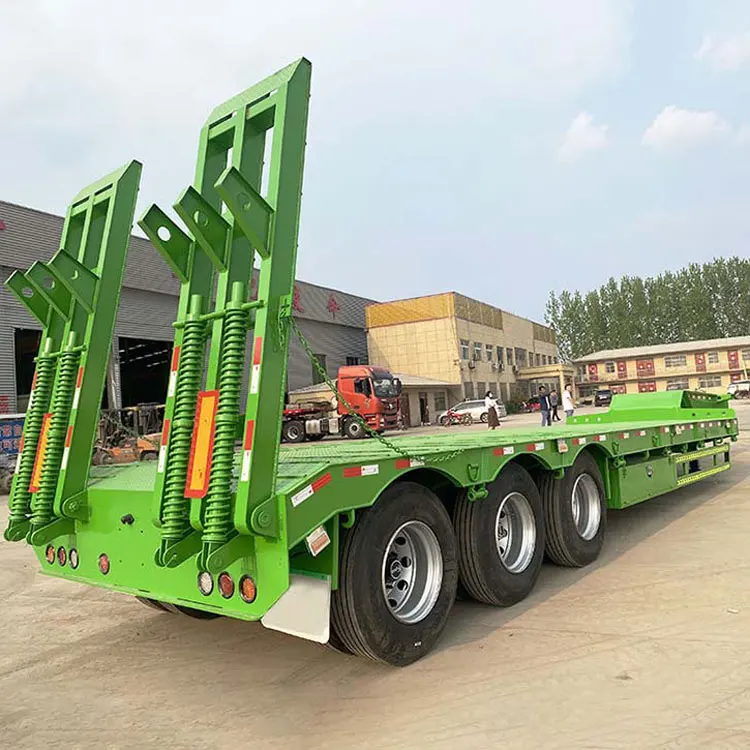

3 Axles 4 Axles 50ton 60ton Heavy Duty Hydraulic Gooseneck Lowboy Lowbed Low Bed Semi Trailer Truck For Sale
- Category: >>>
- Supplier: Liangshan Huayuan Freight Service Co. Ltd
Share on (1601157828229):
Product Overview
Description

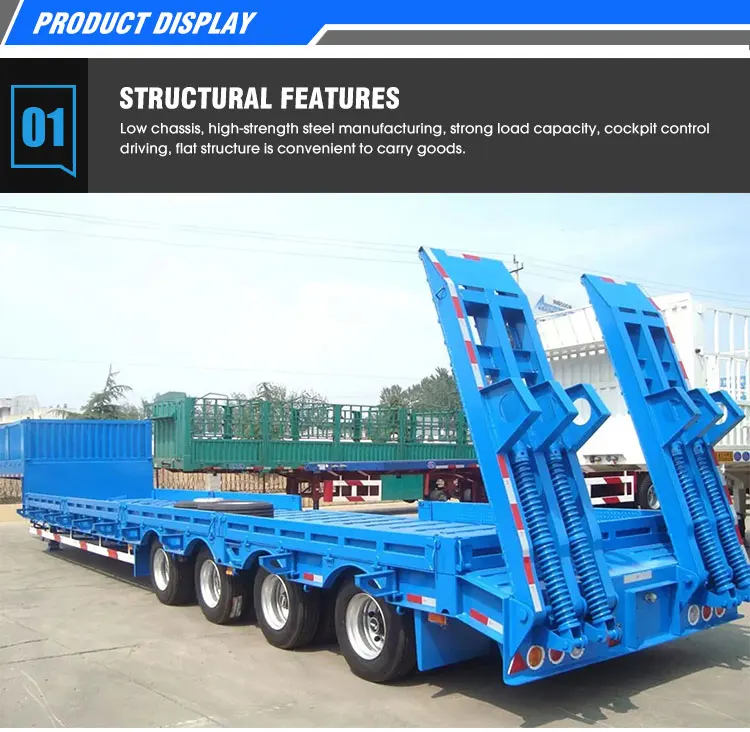

Low flat semi-trailer, efficient tool for medium and long distance freight. No bar design, easy to transport all kinds of goods, especially suitable for heavy and special goods. Its low center of gravity design enhances stability and safety, making it possible to transport ultra-high loads and overhead obstacles. With advanced computer aided design, the frame bearing surface can be customized to meet various special transportation needs.
HuaYuan Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available) | ||||||
Product Name | 2 axle bottom bed semi-trailer | 3axle bottom bed semi-trailer | 4 axle bottom bed semi-trailer | |||
Size(mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 | |||
Payload | 40000KG | 60000KG | 80000KG | |||
Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate | |||
Axles | 2*13ton capacity(Brand optional) | 3*13ton capacity(Brand optional) | 4*13ton capacity(Brand optional) | |||
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is18mm ; Material is Q345B Steel. | |||||
Side beam | 250mml beam; 20mm channel steel ( Material is Q235steel ) | |||||
Bottom Platform | 4mm thickness diamond steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12(specially intended for overseas markets) | |||||

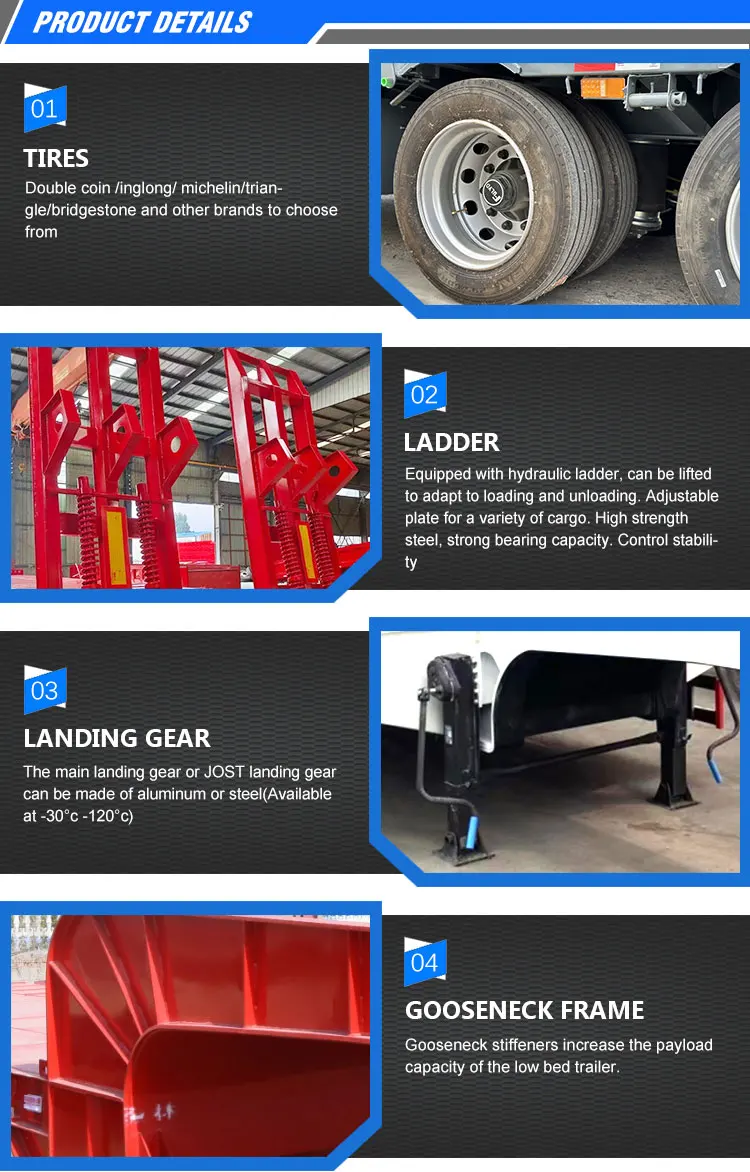

Tire | 12R22.5/11.00R20 8pcs (Other size optional) | |||||
Rim | 9.00-22.5/11.00R20 8pcs (Other size optional) | |||||
Kin pin | 2"/3.5” bolt type | |||||
Landing gear | 28 Ton two speed | |||||
Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional | |||||
Electrical | LED light , 7 ways ,24V | |||||
Accessory | One tooling box with a set of standard trailer tool | |||||
Painting | 1.Sand blasting processing clean rust. 2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation. | |||||

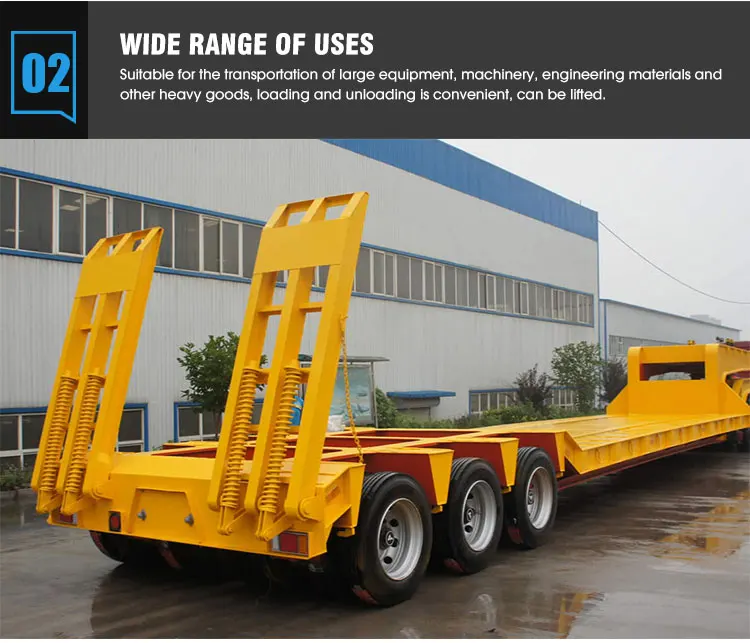

Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,power plant equipment or machine, and all sorts of steel products. | |||||
Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm. | |||||
Remark | We can design model according to client's requirement | |||||
Ensure that the side curtain is intact and not torn or worn, so as not to be further damaged during transportation. Use wooden boxes, foam, plastic film and other materials to pack the fragile parts, while using ropes or plastic belts to secure the vehicle.
