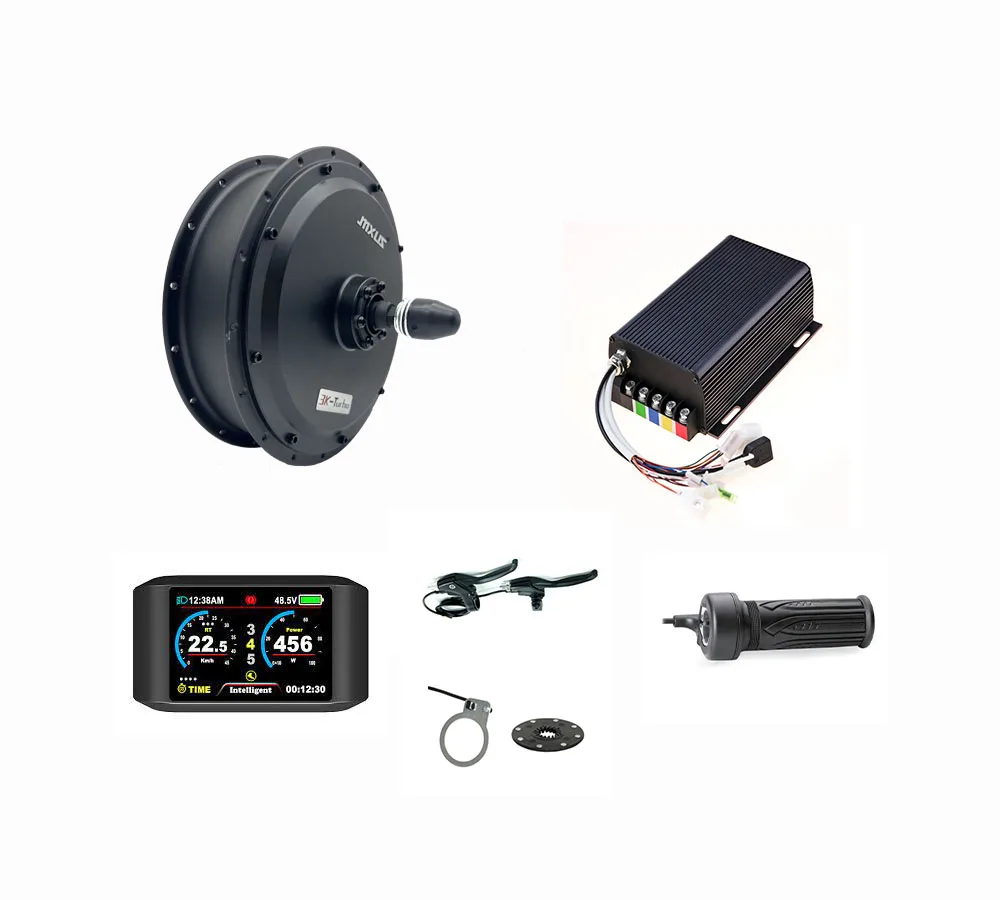

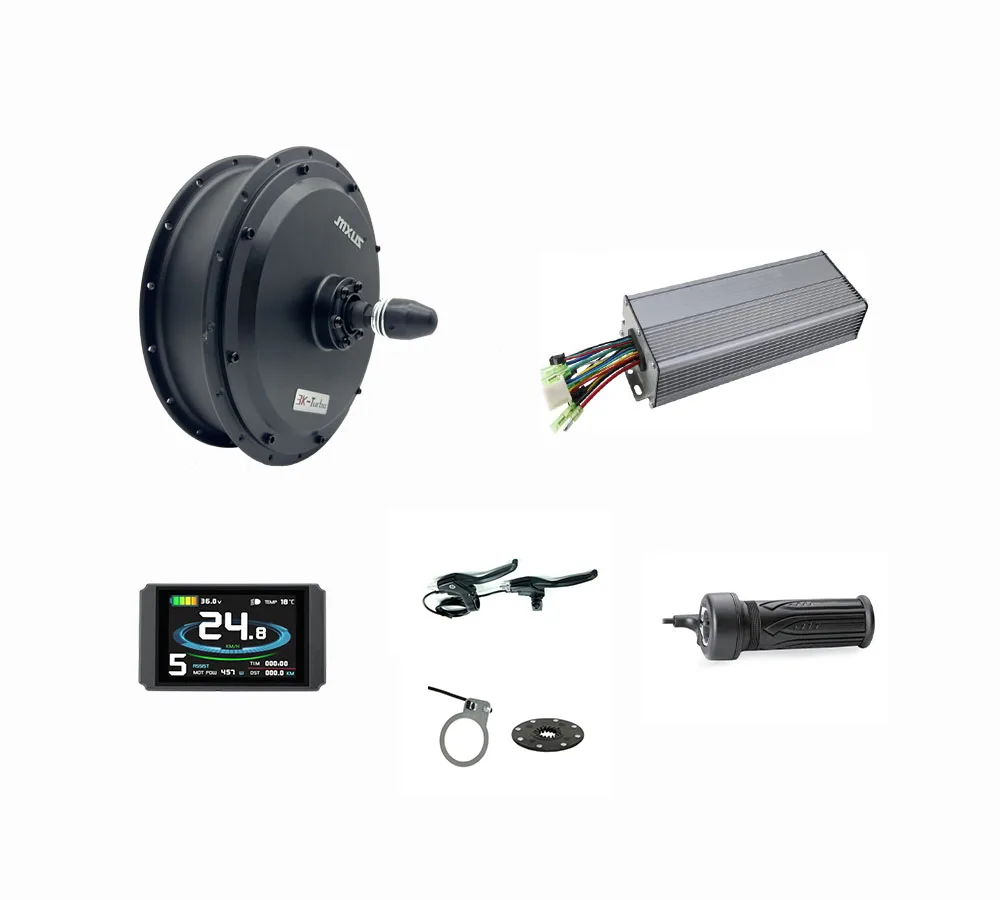

  • MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit

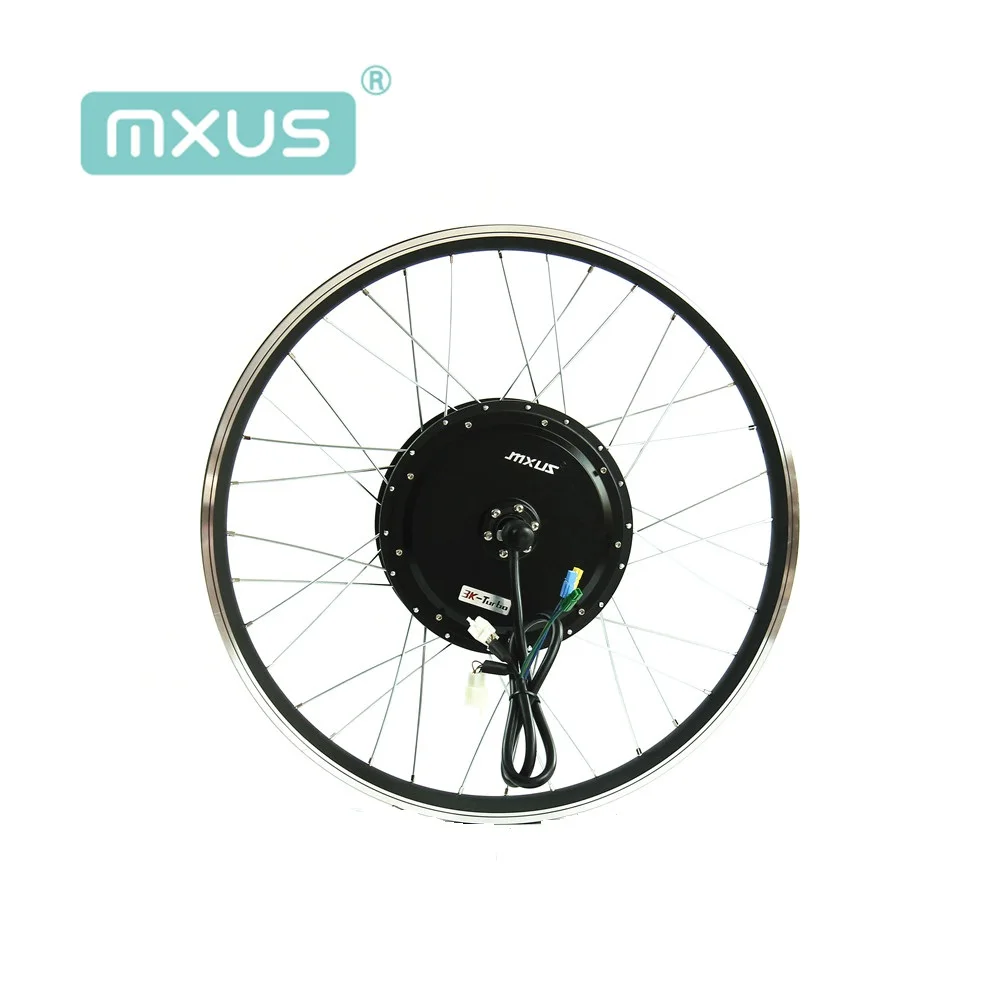

MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit
MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit
MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit
MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit
MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit
MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit

MXUS 60V 72V 3000W 45H 135mm 142mm 3T 4T 5T Electric Bike Motor Kit

Share on (1601157943232):


Price:$110.00-135.00

Quantity:


Product Overview

Description



Detailed Images




Rated Voltage (V)
48/60/72
Wheel & spokes
10G/20-28inch
Rated Power (W)
1500-3000w
Brake Type
Disk Brake
Wheel size (inch)
20-28
Weight (kg)
10
Rated speed (km/h)
32-50
Open Size (mm)
135/142
Drive and Freewheel
6S
Single freewheel
Optional
Temperature sensor
Optional
Hallsensor
Double
silicon steel sheets
0.35mm
Lead cable
4 mm²


Product Description

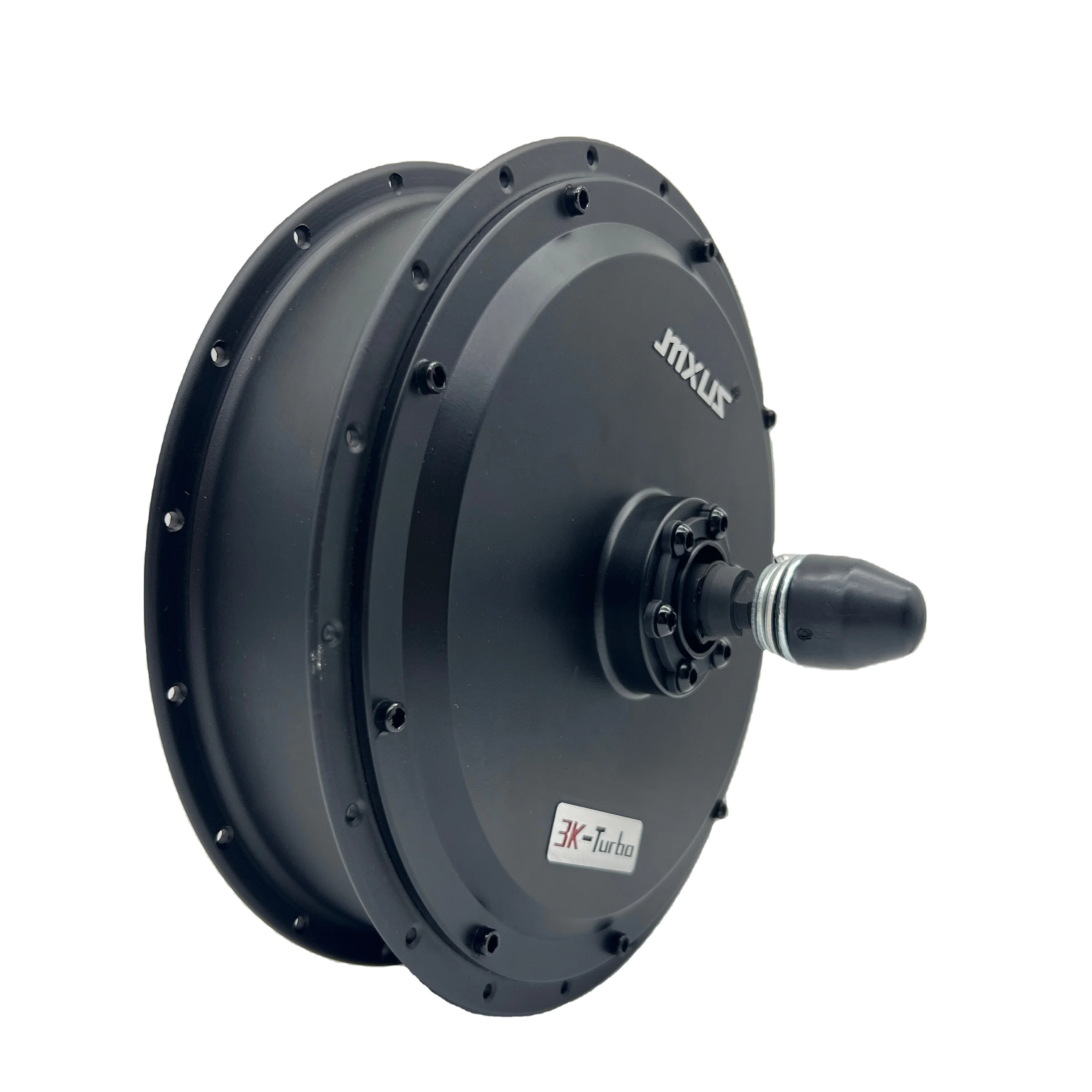

MXUS 72V 3000W Double Hall sensor
135mmdrop motor can only be equipped with single speed freewheel
142mmmotor can be equipped with multi-speed as 7-speed freewheel


Nominal Voltage (V):60/72
Rated Power (W):3000
Wheel Size (inches):20-28
Maximum speed (km/h):3T 90-100; 4T 70-80; 5T 60-65 (no load)
Hallsensor: Dual
Weight (KG): 9.8
Position: Rear
Construction: Gearless
Drop (mm): 135mm or 142mm

Freewheel: 6S
Operating Temperature (C):-65
Efficiency (%):>= 83
Noise rating (dB):<= 55
Waterproof Grade: IP65
Salt Spray Test Standard (H):96

The motor is version 3 of the MXUS 3000W hub motor.

The advantage is:

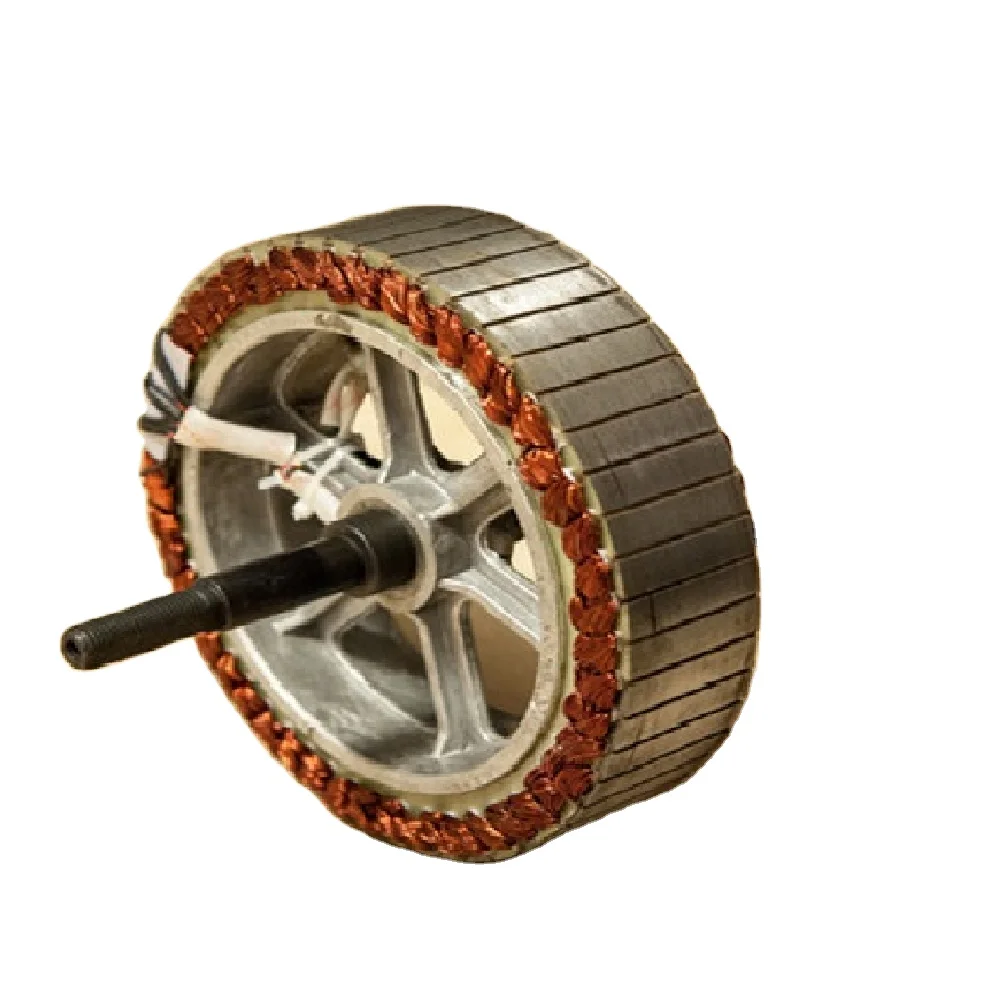

1) Its aluminum stator is 0.35mm 300 silicon steel sheets. The engine has "more power, more torque and higher efficiency"!
2) The phase cable is 4.0mm square, it can afford higher current.
3) It has 2 pieces of aisle cable, so you don't need to worry about the aisle problem.

If you need, please tell me these details:
1) What is the size of the wheel? You can choose 20 inches ---- 29 inches.
2) What is the voltage of your battery? You can choose 48V -- 96V.
3) How fast do you need? You can choose 30 km/h -- 100 km/h

The maximum loading speed of the motor
48V 60V 72V 84V 96V
3T 560RPM 700RPM 840RPM 980RPM 1120rpm
4T 430RPM 535RPM 645RPM 750RPM 860rpm
5T 350RPM 435RPM 525rpm 610RPM 700rpm






Related Products

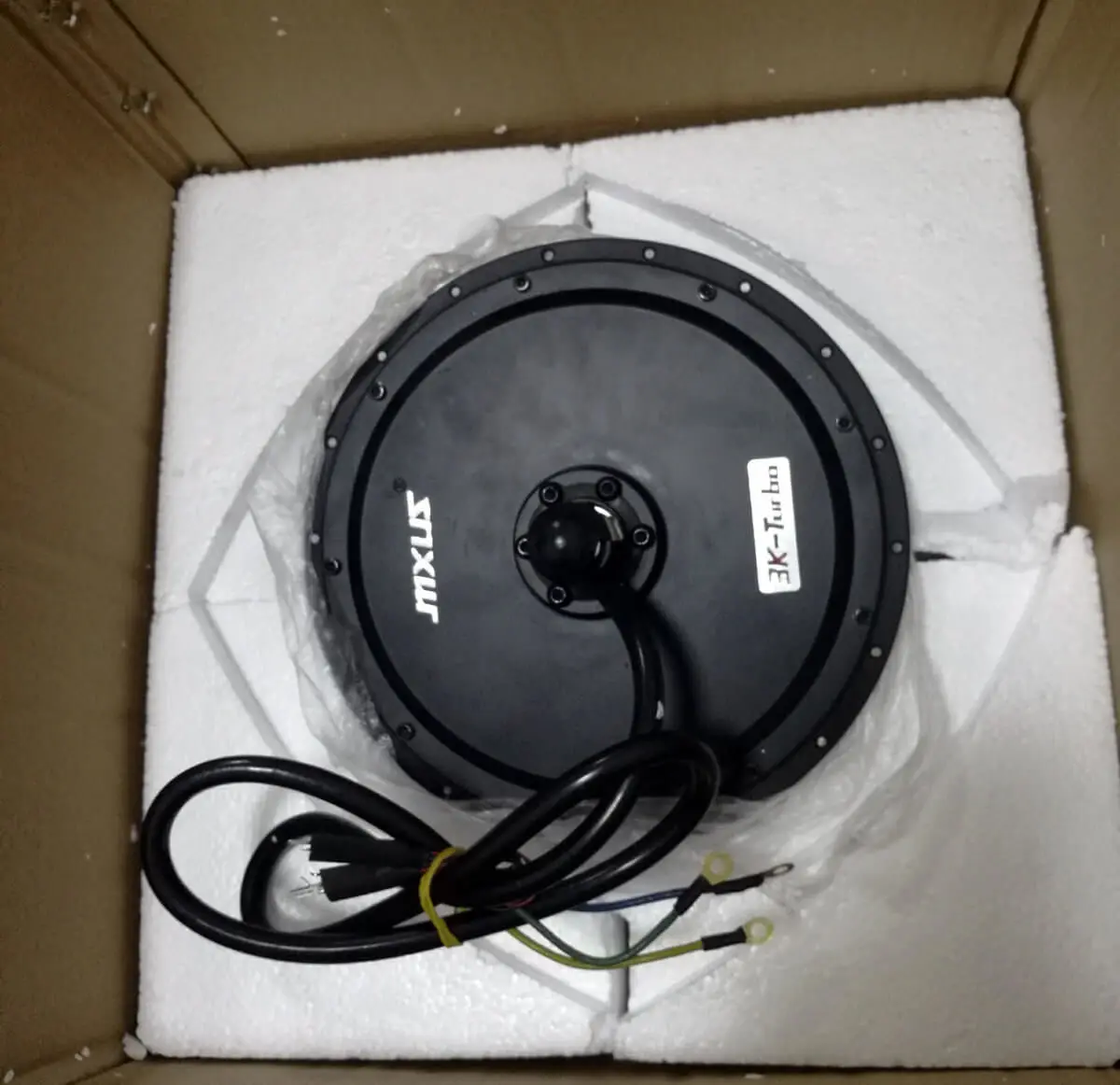

Packing & Delivery




Certifications




Our Company


Company profile

Changzhou Mxus Imp.&Exp. Co., Ltd. is located in DongQing town, ChangZhou city. There is only 10mins from the center of ChangZhou and 5mins from the HengShan bridge extra of the SHANGHAI-NANJING HIGH WAY express way.

We have our own factory---Changzhou Hua Yu Xin Feng Motor Co., Ltd. The company encompasses an area of approximately 10,000 square meters of buildings and currently owns over 200 employees, among them there are 30 higher technician levels.

Quality first is our principle, all products need to be seriously tested before packing. We have passed all necessary certification, such as CE, CCC, EN15194 and ROHS.



Winding
Assembling


Warehouse
Office


FAQ


1. How is the warranty?

2 years for motor & battery & 1 year for spare parts;

You don't need to send the broken part back; only show us the serious number and picture or video which describe the problem.


2. What is the usual lead time?

15-21 days for sample
30-35 days for small quantity
35-45 days for container


3. Do you accept OEM orders?

Yes, we are the factory can do any OEM


4. How can I do if I want to try an order but am afraid of the risk?

We have attended to the "Trade assurance", which means we can make deal through Alibaba, you can pay to Alibaba first, and Alibaba will pay to us after the orders shipped.Before that you can arrange someone in Alibaba to check the goods in our factory.
